The Rayi 18x6.5 CCW Drone Propeller weighs 20g, has a thrust limitation of ≤6000r/min, and an optimum RPM of ≤3500g.
Integrated prop 18*6.5 inch
Price 69 usd/pair
Product Description
Specification

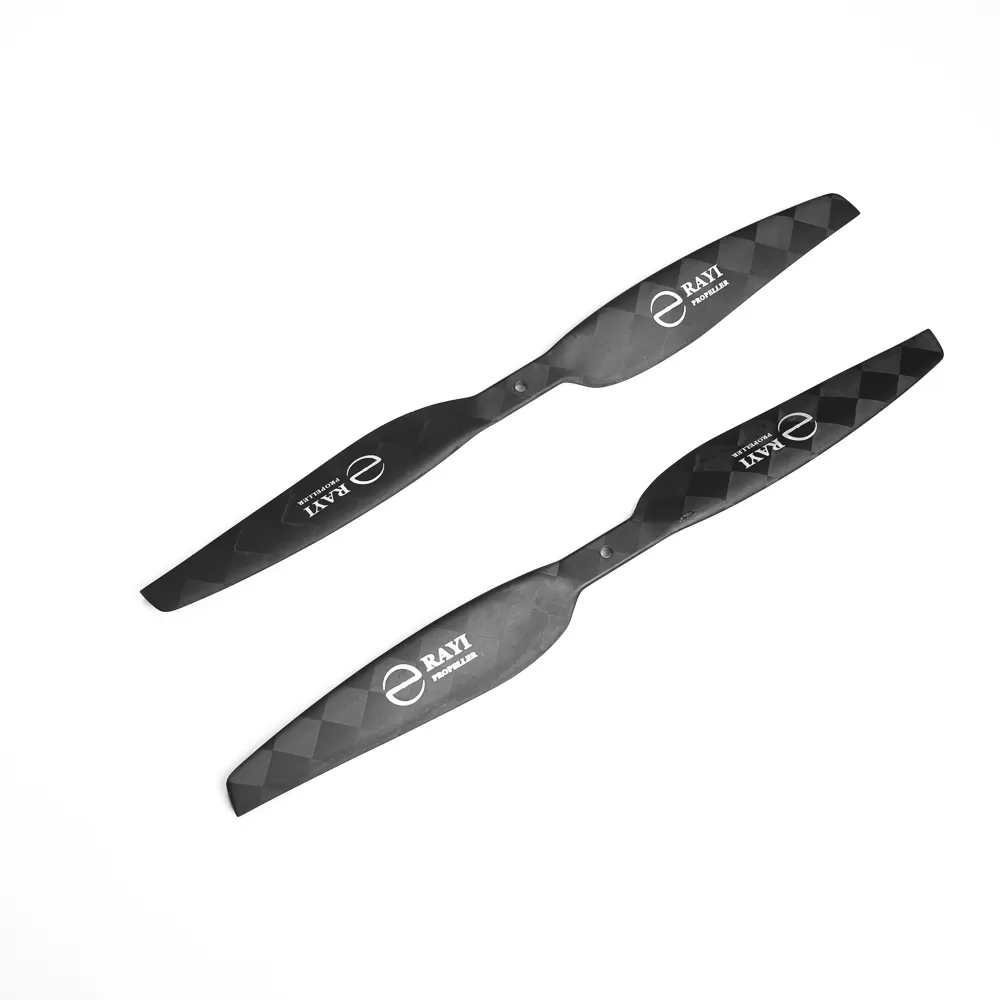

Product name: 18*6.5 Ultra light carbon fiber integrated CW/CCW Propeller
Propeller type: 2 blades-integrated
Includes: 1 pcs CW and 1 pcs CCW propeller
Specifications: IIXQ,IIKQ
Model: 18*6.5Y
Diameter (inches): 18
Pitch (inches): 6.5
Material: carbon fiber and epoxy
Surface Treatment : Polished or Frosted
Single net weight: 20g
Installation method: Screw fixation
Applicable models: Multi rotor,fixed wing
Thrust Limitation: ≤6000r/min
Optimum RPM: ≤3500g
Working ambient temperature: -40℃~+60℃
Storage temperature: -10℃~+40℃
When shopping for Carbon Fiber Propellers, it’s essential to evaluate important specifications like weight, thrust limitation, and optimum RPM to ensure your drone achieves the best performance and efficiency. The Rayi Ultra Light 18x6.5 Two Blades Propeller is designed to meet these exacting standards, offering reliability, durability, and superior performance for various drone applications.
Single Net Weight: 20g
Thrust Limitation: ≤6000r/min
Optimum RPM: ≤3500g
The Rayi Ultra Light 18x6.5 Two Blades Propeller weighs just 20g, making it lightweight enough to ensure your drone remains highly responsive while maintaining maximum thrust capacity. With an optimum RPM of ≤3500g, this propeller delivers the ideal balance of power and efficiency, ensuring smooth and stable flights in a variety of environments.
Additionally, the thrust limitation of ≤6000r/min allows you to push your drone to its limits without overloading the motor, ensuring safety and longevity.
The Rayi Ultra Light 18x6.5 Two Blades Propeller is a perfect choice for drone enthusiasts and professionals who seek high performance and minimal weight in their Carbon Fiber Drone Propellers. The two-blade design, coupled with the ultra-lightweight carbon fiber construction, ensures that your drone operates efficiently while reducing the strain on its motors. This propeller is ideal for a wide range of applications, from recreational flying to commercial operations.
Made from high-quality carbon fiber, the Rayi Ultra Light 18x6.5 Propeller offers enhanced durability and resistance to wear and tear, making it a long-lasting option for those who fly frequently. Its low weight enhances overall flight performance, improving the drone's agility, stability, and responsiveness in various conditions.
When looking for Carbon Fiber Propellers that deliver optimal performance, the Rayi Ultra Light 18x6.5 Two Blades Propeller should be at the top of your list. The combination of its lightweight structure and high thrust capacity makes it an excellent choice for maximizing your drone's flight efficiency. Whether you're working in aerial photography, drone racing, or industrial inspections, this propeller provides the reliability and performance you need to get the job done.
Technical Parameter
| 18X6.5 Ultralight Carbon Fiber Integrated CW/CCW Drone Propeller | |||||||
| PARAMETER TABLE | |||||||
| voltage | current | thrust | torque | rotation speed | shaft power | axial force | throttle |
| (V) | (A) | (g) | (N.M) | (rpm) | (W) | (G/W) | (%) |
| 21.7 | 1.23 | 380 | 0.09 | 1996 | 18.60 | 20.43 | 30 |
| 21.7 | 1.74 | 506 | 0.12 | 2289 | 27.80 | 18.20 | 35 |
| 21.7 | 2.33 | 638 | 0.14 | 2551 | 38.19 | 16.70 | 40 |
| 21.7 | 3.52 | 885 | 0.20 | 2959 | 60.41 | 14.65 | 45 |
| 21.7 | 4.6 | 1066 | 0.23 | 3254 | 79.38 | 13.43 | 50 |
| 21.7 | 5.72 | 1243 | 0.27 | 3550 | 101.10 | 12.29 | 55 |
| 21.7 | 7.07 | 1466 | 0.32 | 3818 | 126.32 | 11.61 | 60 |
| 21.7 | 8.54 | 1678 | 0.36 | 4072 | 153.06 | 10.96 | 65 |
| 21.7 | 10.03 | 1861 | 0.40 | 4300 | 179.18 | 10.39 | 70 |
| 21.7 | 11.7 | 2058 | 0.44 | 4531 | 210.16 | 9.79 | 75 |
| 21.7 | 13.57 | 2274 | 0.49 | 4756 | 243.00 | 9.36 | 80 |
| 21.7 | 15.49 | 2489 | 0.53 | 4975 | 277.11 | 8.98 | 85 |
| 21.7 | 17.74 | 2717 | 0.58 | 5182 | 315.77 | 8.60 | 90 |
| 21.7 | 20.03 | 2945 | 0.63 | 5383 | 354.50 | 8.31 | 95 |
| 21.7 | 23.61 | 3270 | 0.70 | 5656 | 412.75 | 7.92 | 100 |
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
Feature
Our carbon propellers use modified materials, with extremely low water absorption, 38% carbon fiber content, higher strength than other peer products, and high propeller efficiency. High quality and low price, it is recognized in the industry as the most cost-effective product series.
1. With fine workmanship and exquisite appearance.
2. The blades have passed precise dynamic balance inspection, and the flight noise is low.
3. High aerodynamic efficiency, low power consumption, improve battery life.
4. Light and strong pulling force, and excellent balance.
5. Adopts push-type quick release design, which is easy to assemble and disassemble.
6. Adapted to various types of drones, widely used in firefighting, surveying, monitoring, logistics, express delivery, military and police equipment, and university research projects
7. It is a perfect replacement for the damaged parts.
Dimensions:
We have12X4inch,14X8inch,15X5inch,16X6inch,16X8inch,16X5.5inch,17X6inch,17.5X6.5inch,18X6.5inch, 19X6.2inch20X6.5inch,22X7.8inch,22X9inch,24X7.8inch,24X15inch,26X8.2inch,28X12inch,28X12inch,29X9.6inch,
30X9.8inch,30X14inch,32X12inch,32.5X15.6inch,34X12inch,36X18inch,40X13inch,42X14inch,47.5X18inch,
50X19inch,52X19inch,57X19inch,60X19inch,64X20inch,72X31inch carbon fiber propellers for various drone or UAV
Accept customized size
Notice: Accepted customized design,OEM &ODM
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
