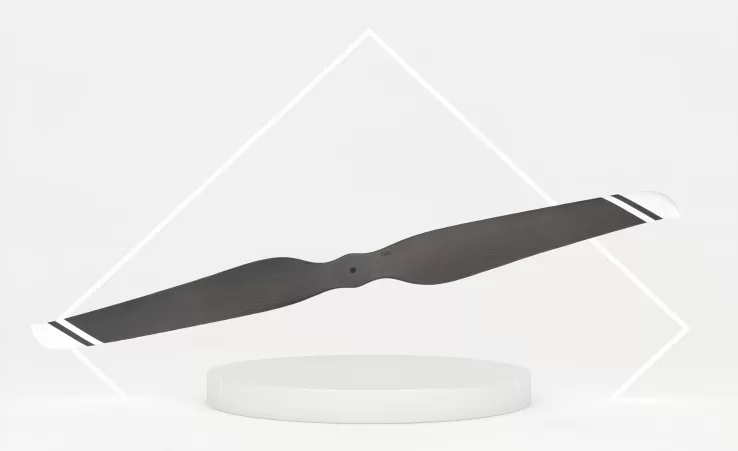

Rayi 57x19 Carbon Fiber Propeller is engineered to offer the perfect balance of lightweight design, durability, and high thrust, making it an ideal choice for multi-rotor and vertical fixed-wing drones.
Straight type 57*19 inch
Price 799 usd/pair
Product Description
Product name: 57*19 inch Ultra light carbon fiber integrated CW/CCW Propeller
Propeller type: 2 blades-integrated
Includes: 1 pcs CW and 1 pcs CCW propeller
Specifications: IIKE
Model: 57*19Y
Diameter (inches): 57
Pitch (inches): 19
Material: carbon fiber and epoxy
Surface Treatment : Polished or Frosted
Single net weight: 806g
Installation method: Screw fixation
Applicable models: Multi rotor,Vertical fixed wing
Thrust Limitation: ≤2800r/min
Optimum RPM: ≤90kg
working ambient temperature: -40℃~+60℃
Storage temperature: -10℃~+40℃
When it comes to enhancing drone performance, the right Carbon Fiber Propellers can make a significant difference. Rayi 57x19 Carbon Fiber Propeller is engineered to offer the perfect balance of lightweight design, durability, and high thrust, making it an ideal choice for multi-rotor and vertical fixed-wing drones. With its superior construction and optimized performance, the 57x19 Carbon Fiber Propeller is the ideal upgrade for your drone.
Diameter (inches): 57
Pitch (inches): 19
Material: Premium carbon fiber and epoxy
Surface Treatment: Choose between polished or frosted finish for added durability and performance
Single Net Weight: Only 806g, providing the lightweight design that ensures long flight times and better energy efficiency
Installation Method: Easy screw fixation, allowing for quick and secure mounting on your drone
Applicable Models: Suitable for multi-rotor drones and vertical fixed-wing UAVs
Thrust Limitation: Capable of handling up to 2800 r/min, ensuring consistent and reliable performance
Optimum RPM: Ideal operating conditions up to 90kg thrust
Temperature Range: Withstands working temperatures between -40℃ to +60℃ and storage temperatures between -10℃ to +40℃, making it versatile for a wide range of environments.
Technical Parameter
| 57X19 Ultralight Carbon Fiber Integrated CW/CCW Drone Propeller | |||||||
| PARAMETER TABLE | |||||||
| voltage | current | thrust | torque | rotation speed | shaft power | axial force | input pulse width |
| (V) | (A) | (g) | (N.M) | (rpm) | (W) | (G/W) | (us) |
| 58.53 | 5.36 | 5328 | 3.35 | 714 | 250.43 | 21.28 | 1268 |
| 58.36 | 9.43 | 7947 | 4.98 | 865 | 451.02 | 17.62 | 1313 |
| 58.17 | 13.96 | 10358 | 6.50 | 984 | 669.66 | 15.47 | 1358 |
| 58.02 | 20.32 | 13736 | 8.43 | 1121 | 989.42 | 13.88 | 1404 |
| 57.62 | 29.47 | 17133 | 10.78 | 1259 | 1420.99 | 12.06 | 1450 |
| 57.34 | 37.48 | 20198 | 12.58 | 1364 | 1796.56 | 11.24 | 1495 |
| 56.88 | 46.88 | 23233 | 14.49 | 1469 | 2228.62 | 10.42 | 1540 |
| 56.56 | 58.97 | 26444 | 16.76 | 1572 | 2758.50 | 9.59 | 1586 |
| 56.08 | 71.62 | 29843 | 18.83 | 1671 | 3294.38 | 9.06 | 1632 |
| 55.46 | 88.50 | 33974 | 21.53 | 1763 | 3974.14 | 8.55 | 1677 |
| 54.87 | 103.30 | 36948 | 23.48 | 1841 | 4525.83 | 8.16 | 1722 |
| 54.16 | 123.32 | 40699 | 25.95 | 1928 | 5238.31 | 7.77 | 1768 |
| 53.42 | 140.52 | 44025 | 27.89 | 1992 | 5816.81 | 7.57 | 1814 |
| 52.63 | 160.23 | 46952 | 29.77 | 2059 | 6417.74 | 7.32 | 1859 |
| 51.83 | 181.02 | 50272 | 31.55 | 2108 | 6963.32 | 7.22 | 1904 |
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
If you’re looking for high-performance Carbon Fiber Drone Propellers that combine lightness, strength, and durability, the 57x19 Carbon Fiber Propeller from Rayi is the perfect choice. Its robust construction ensures your drone performs optimally, whether for commercial or industrial applications. Rayi is a trusted manufacturer of Carbon Fiber Propellers, delivering products that meet the highest standards of quality and performance.
Don’t miss out on the opportunity to elevate your drone’s capabilities. With the 57x19 Carbon Fiber Propeller, you can enjoy longer flight times, higher payload capacity, and exceptional reliability. Visit our website now to learn more about the 57x19 Carbon Fiber Propeller and place your order today! With Rayi, your drone performance is in expert hands.
Contact us now to secure your 57x19 Carbon Fiber Propeller and take your drone operations to the next level!
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
