As industrial and heavy-lift drones undertake increasingly demanding payloads, the reliability of UAV propulsion systems is paramount. A critical question for many engineers is: What is the ultimate physical stress a carbon fiber propeller can withstand, and where does its limit lie?

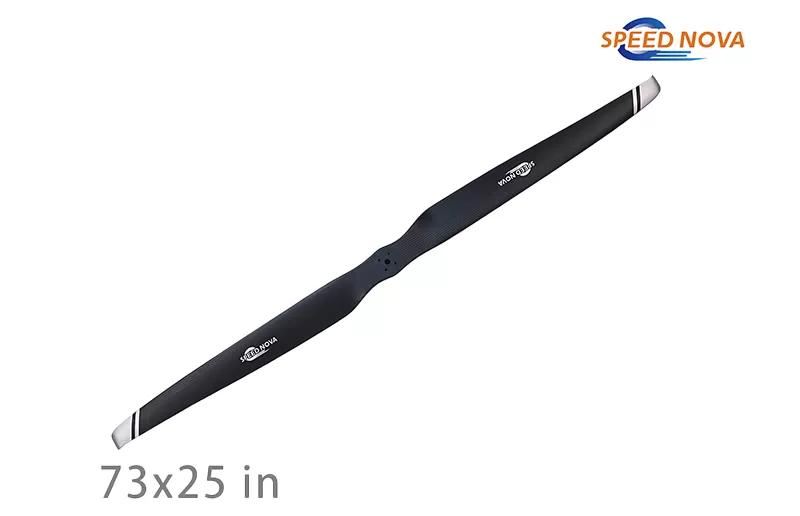

A recent testing video for the RAYI SPEED NOVA series provides a definitive and staggering answer. By subjecting its 73x25 carbon fiber propeller to a rigorous stress test, the results set a new benchmark for ultra-lightweight, high-strength UAV components.
The following breaks down the performance data and testing methodology revealed in the demonstration.
The 90kg Single-Blade Strength Test: A Data Breakdown
To verify structural integrity under extreme conditions, the RAYI 73x25 propeller underwent a dynamic load test using precision pressure equipment.

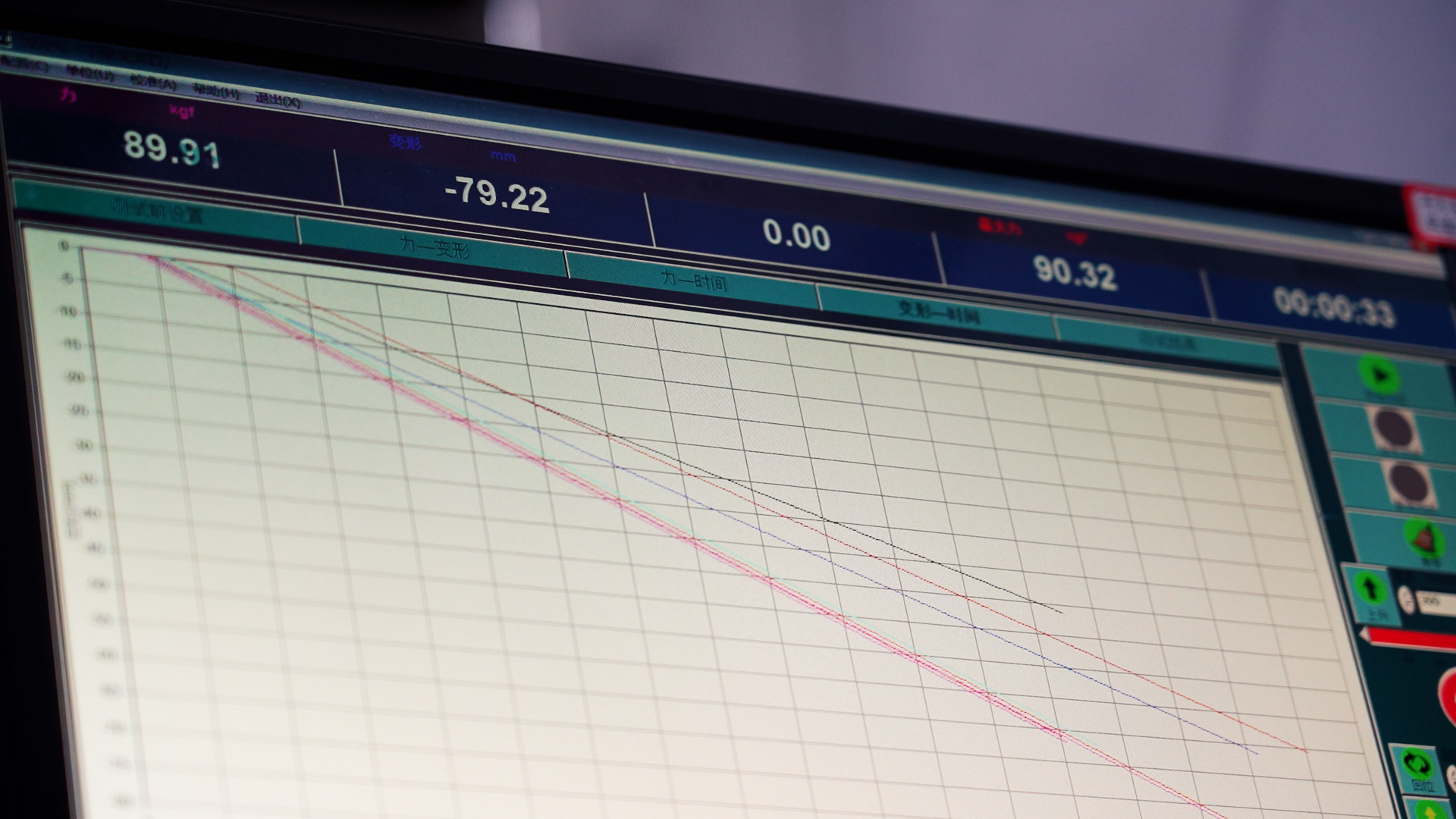

During the demonstration, the machine applied progressive downward force directly onto the blade at its midpoint. The load increased steadily, ultimately reaching a remarkable sustained peak pressure of 90kg without any fracture or failure.

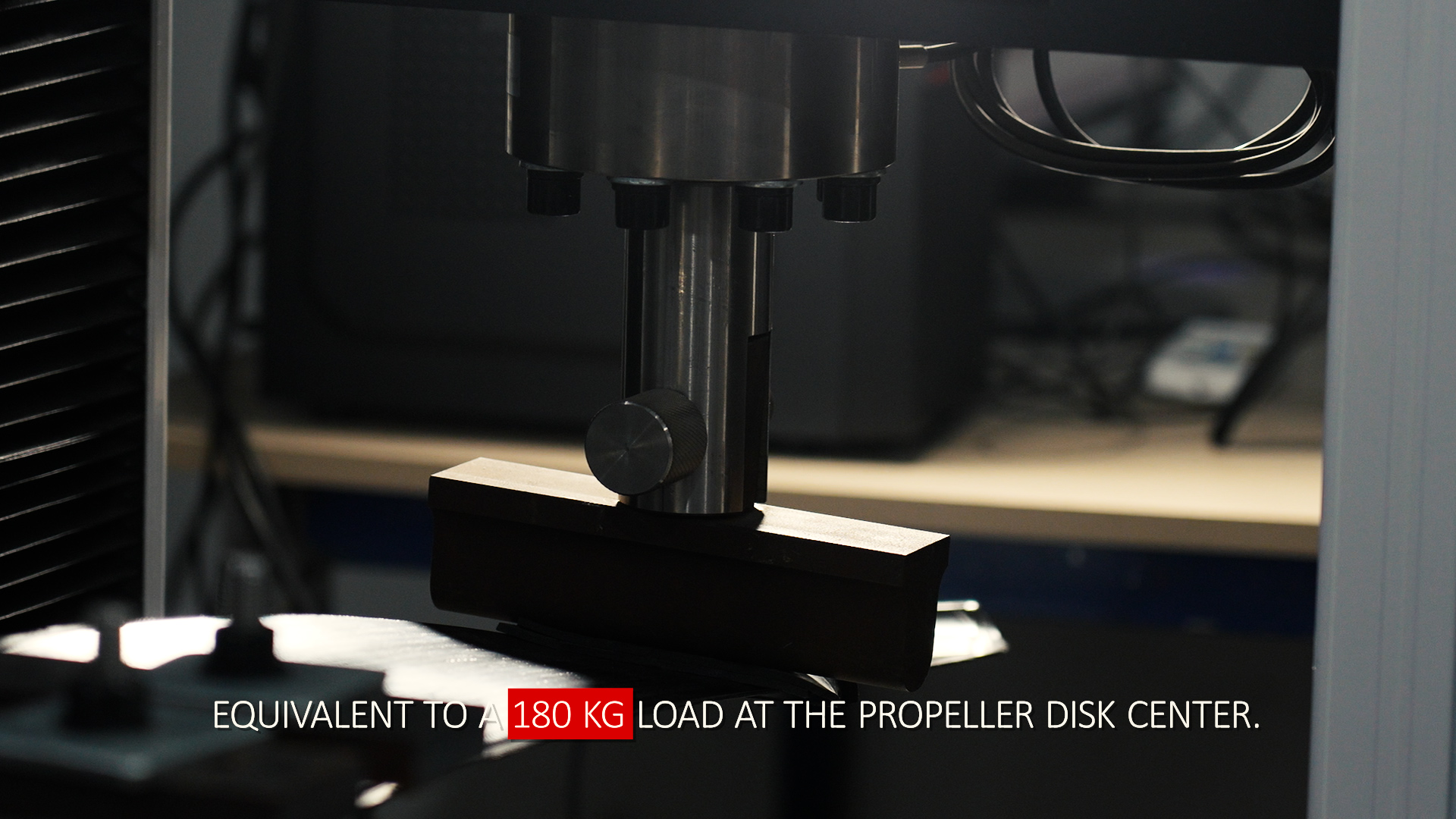

Why is this significant? In real-world flight dynamics, stress on a propeller is distributed. According to the test data, the 90kg force applied at the quarter-point of the blade span is equivalent to a staggering 180kg load at the propeller disk center.
Furthermore, this test was conducted with a 1.5x safety factor to validate the blade's structural strength, ensuring the propeller maintains integrity even under unexpected turbulence or at maximum payload capacity.
Advanced Manufacturing: The Secret to High Strength
Achieving an equivalent 180kg load capacity on a lightweight UAV propeller requires more than standard carbon fiber layup. The video highlights two key manufacturing techniques behind the SPEED NOVA 73x25's durability:
High-Temperature Molding Process: This proprietary molding process, independently developed by RAYI, ensures deep fusion of the carbon fiber layers, eliminating micro-voids that can lead to structural weaknesses.
Integrated Monocoque Forming: By manufacturing the propeller as a cohesive, integrated unit rather than assembling separate components, RAYI propellers achieve superior structural continuity and tensile strength.
Efficiency Testing: Bio-Inspired Airfoil Design

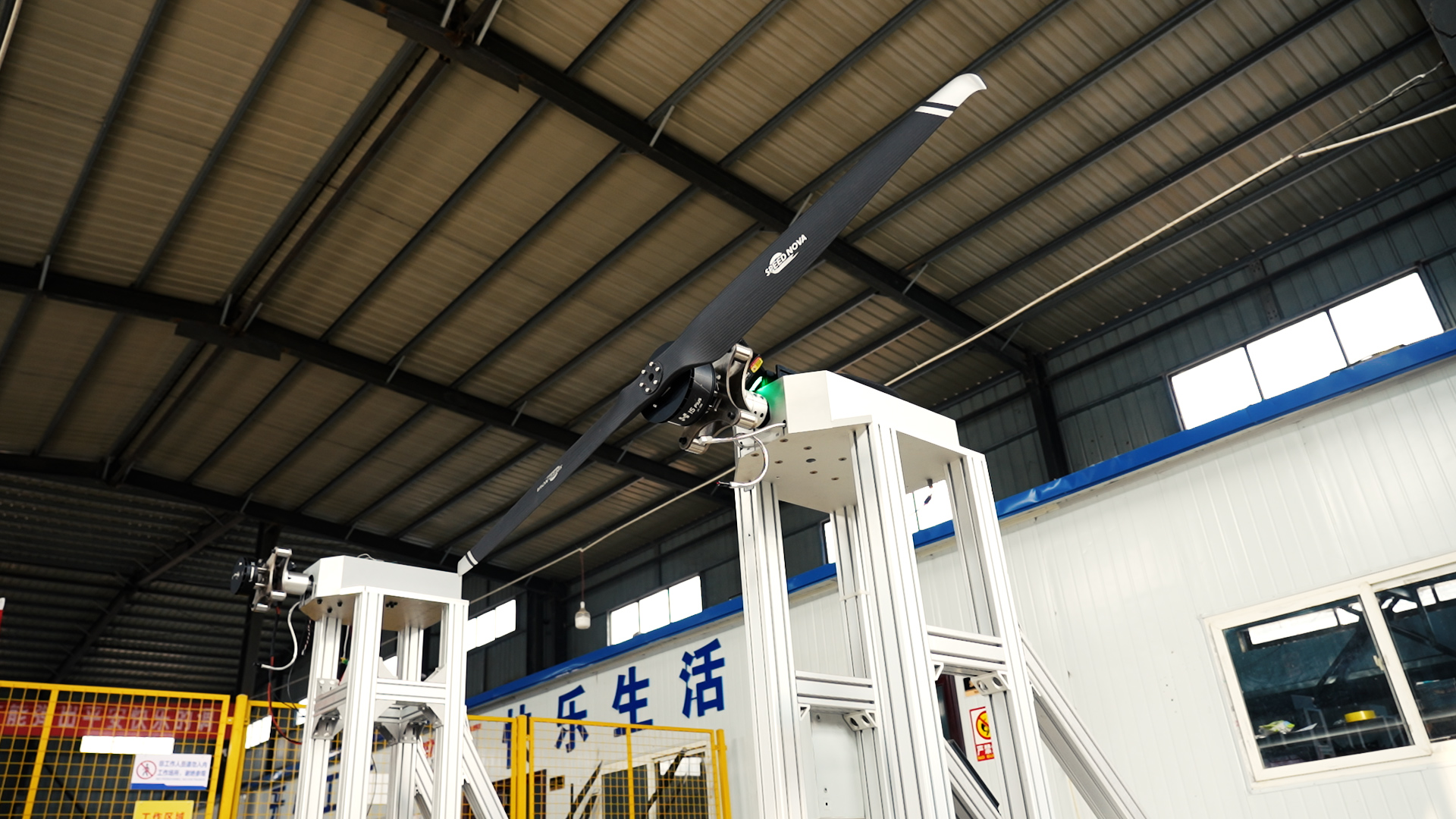

Raw strength is futile if a propeller drains a drone's battery excessively. Following the strength test, the 73x25 was mounted on a high-power motor test bench for comprehensive efficiency testing.
Spinning at thousands of RPM, the propulsion system was monitored via real-time data software tracking thrust, voltage, current, and overall system efficiency. The standout feature is RAYI's proprietary aerodynamic airfoil design. By emulating aerodynamic efficiencies found in nature, this specialized blade profile significantly improves the lift-to-drag ratio, ensuring that high load capacity does not come at the expense of flight endurance.
Conclusion: Ultra-Lightweight, High-Strength, High-Efficiency
For manufacturers of industrial drones, component failure is not an option. The rigorous testing of the RAYI 73x25 proves that modern carbon fiber manufacturing can meet the extreme demands of next-generation flight.
By successfully balancing an ultra-lightweight profile with high-strength durability (capable of withstanding an equivalent 180kg load) and high-efficiency aerodynamics, the SPEED NOVA 73x25 positions itself as the premier choice for heavy-duty applications.
Looking for the most reliable propeller for heavy-lift drones? Check out the performance of the SPEED NOVA 73x25!
In today's video, we push this carbon fiber prop to the limit. First, a breathtaking 90KG destructive pressure test (equivalent to a 180KG center load!), followed by high-thrust efficiency testing on the rig.
Whather you are operating heavy-lift multirotors in the freezing cold or scorching desert heat, reliability is everything. See why our advanced materials and engineering make the difference.
Upgrade your drone's performance today: Explore the SPEED NOVA series and more professional UAV accessories at: https://www.rayiaero.com
Connect with us: +86 15670906122(Whats app)
Don't forget to Like, Comment, and Subscribe for more extreme drone testing and industry insights!
TikTok: @RAYIAERO
Official Website: www.rayiaero.com
Ali Shop: https://rayiaero.en.alibaba.com
