Why dynamic balance is the stealth killer of heavy drones: An in-depth exploration of RAYI AERO's precision standards

Core Overview

· Core pain point: Unbalanced blades can generate tremendous centrifugal force when rotating at high speeds (such as 2400 RPM).

·Three major hazards: sensor fatigue (fuzzy data), motor bearing damage (overheating shortens lifespan), and reduced flight endurance.

·RAYI Advantages: The industry standard is typically G6.3, while RAYI AERO strictly adheres to the G2.5 standard, achieving measured imbalance values as low as 0.014g - 0.035g, representing a nearly 20-fold improvement in accuracy.

In the field of industrial drones, a propeller is not just a set of blades; it serves as the core of the propulsion system. For heavy-duty drones equipped with expensive sensors or critical payloads, a crucial factor determining mission success is dynamic balance.

At RAYI AERO, we don't just manufacture propellers; we are committed to enhancing flight stability. Our positioning is as a drone power solution provider.

Today, we will show you  our balance standard is superior;

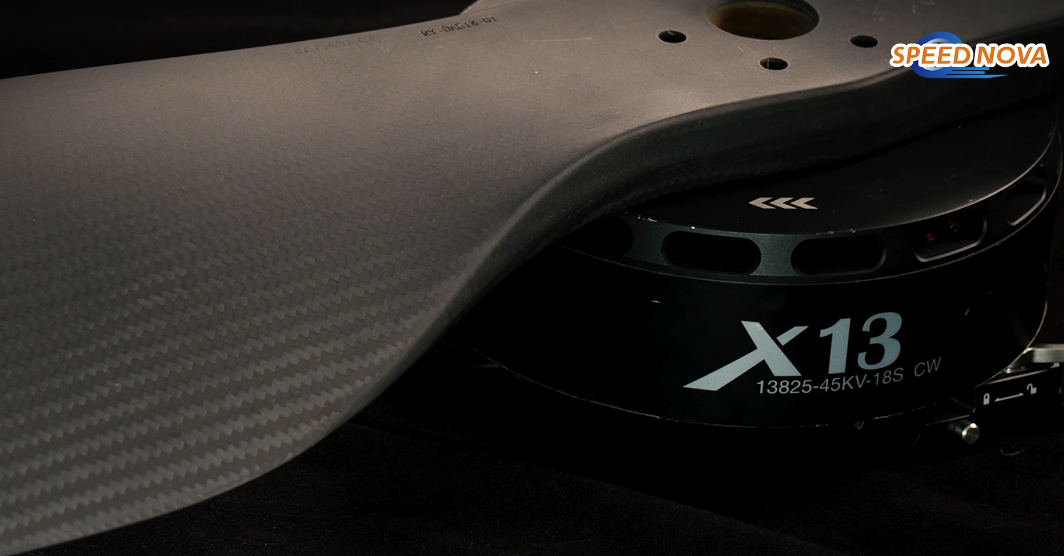

The motor used in the picture is a Hobbywing X13, and the propeller is a RAYI 57x19 carbon fiber propeller

1. The cost of poor dynamic balance value

Many B2B buyers may overlook minor vibrations, but in high-speed environments, "near-balance" can actually become a burden. A propeller spinning at 2400 rpm, even with just a 1-gram offset, can generate significant centrifugal force, leading to:

Sensor fatigue: High-frequency vibration can blur LiDAR data and produce a "jelly effect" in optical cameras.

Motor bearing failure: Continuous vibration can accelerate the wear of expensive motors, leading to overheating and shortened service life.

Reduced flight time: The energy wasted on vibration will decrease lift and endurance.

2. Benchmark setting: G2.5 standard

Although many commercial propellers only meet the G6.3 standard (or do not meet any standard at all), RAYI AERO strictly adheres to standards above G6.0

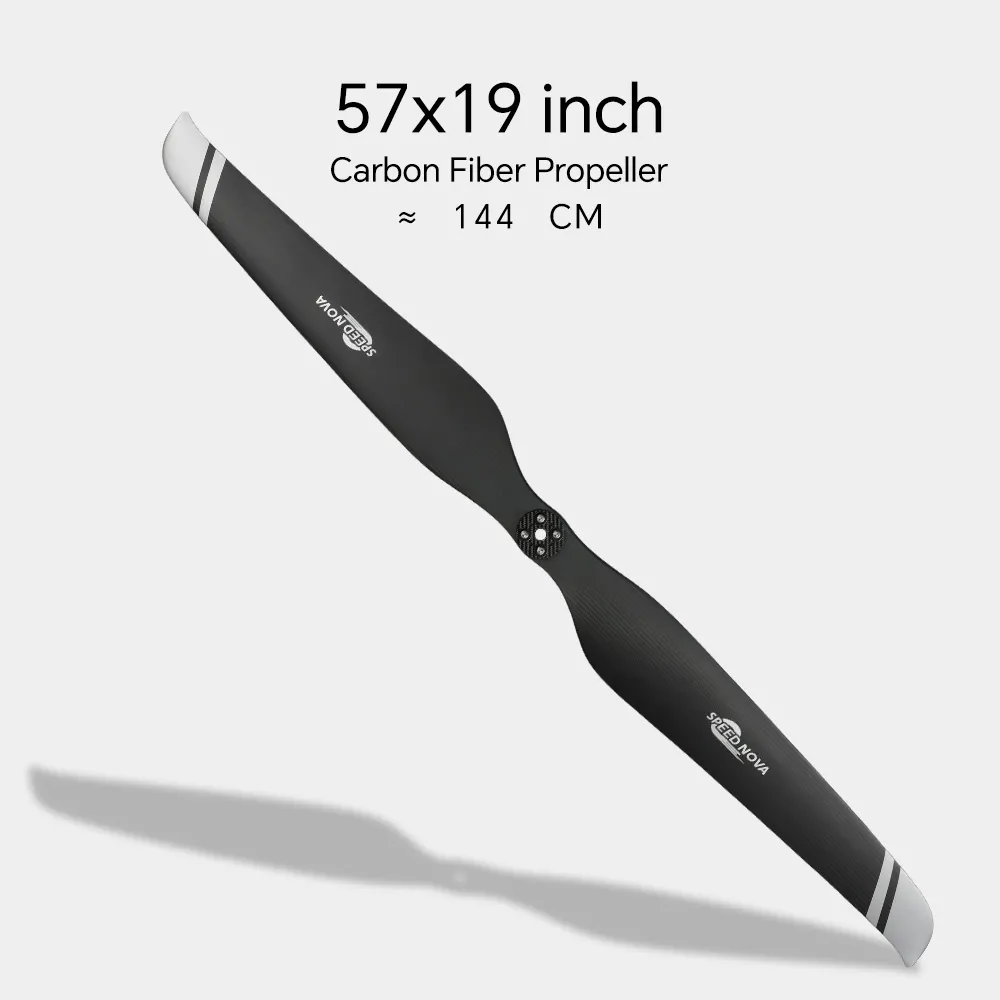

We will conduct a 10% sample inspection on this batch of 40 pairs of 57x19 propellers that are about to be shipped

Requirements: For propellers of this size, the G2.5 standard requires that their unbalance at rated speed should be ≤0.70 grams.

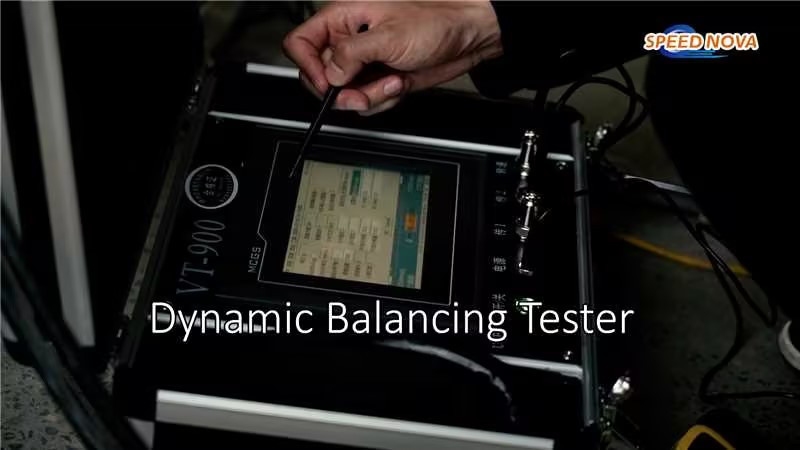

RAYI reality: Our tests, conducted by our chief engineer, have shown that the vibration values of the RAYI propeller often reach as low as 0.014 grams to 0.035 grams.

This means that the precision of RAYI AERO propellers is typically 20 times higher than the standard requirements.

3. Data-driven excellence: Overview of laboratory results

Let's take a look at the actual performance data of the IIKE-57X19Y series:

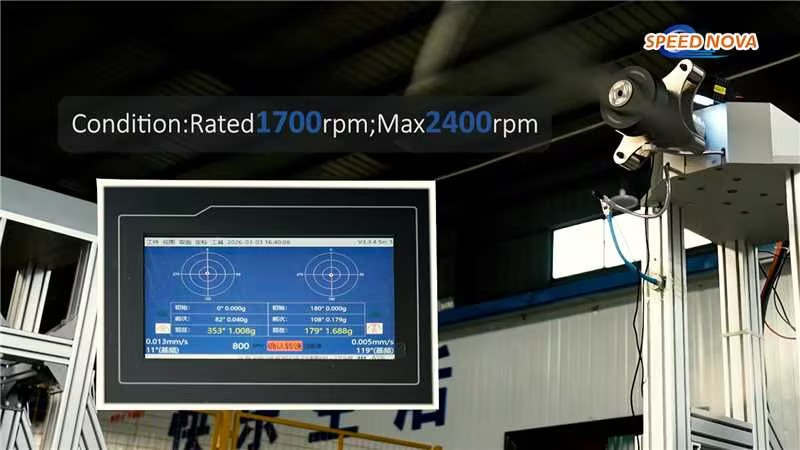

Rated speed: 1700 RPM

Peak speed: 2400 RPM

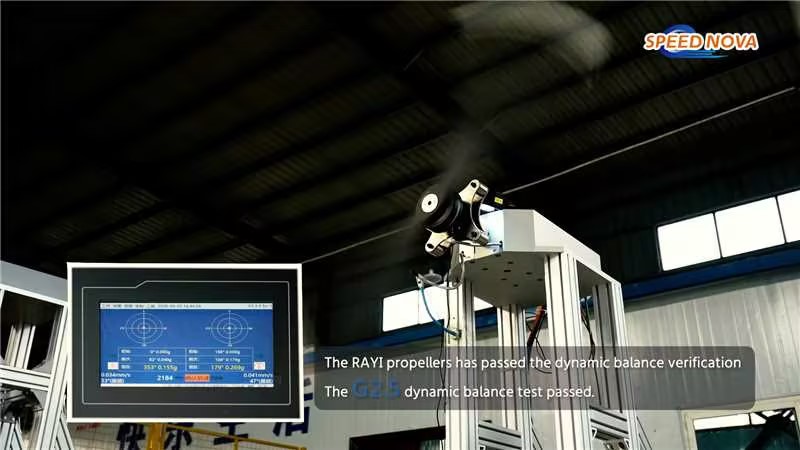

Test results: All tested blades (clockwise and counterclockwise) passed the G2.5 dynamic balance test with excellent scores.

Whether it's 57×19 CCW or 57×19 CW, our craftsmanship ensures a perfect match between paired products, thereby reducing the workload of drone flight controllers and electronic speed controllers.

4. Why do professional drone integrators choose RAYI AERO

RAYI carbon fiber propellers are specifically designed for the harshest industrial environments. By combining advanced composite layup techniques with rigorous post-production balancing, we are able to offer:

Structural integrity: Optimized for peak loads at 2400 rpm.

Consistency: Each propeller undergoes rigorous review and professional verification.

Conclusion: Stability cannot be compromised

Your propulsion system forms the foundation of drone performance. Choosing a propeller with excellent dynamic balance performance is not only crucial for ensuring a stable flight, but also essential for protecting your investment and ensuring mission success.

Are you ready to enhance the performance of your drone?

At RAYI AERO, we offer more than just products; we also provide technical cooperation to drone manufacturers worldwide.

[Inquire Now] Please visit www.rayiaero.com to contact our engineering team, request a complete dynamic balance test report for our "IIKE" series, or discuss customized propulsion solutions for your next heavy lifting project.

Precision is not a choice, but our standard.
