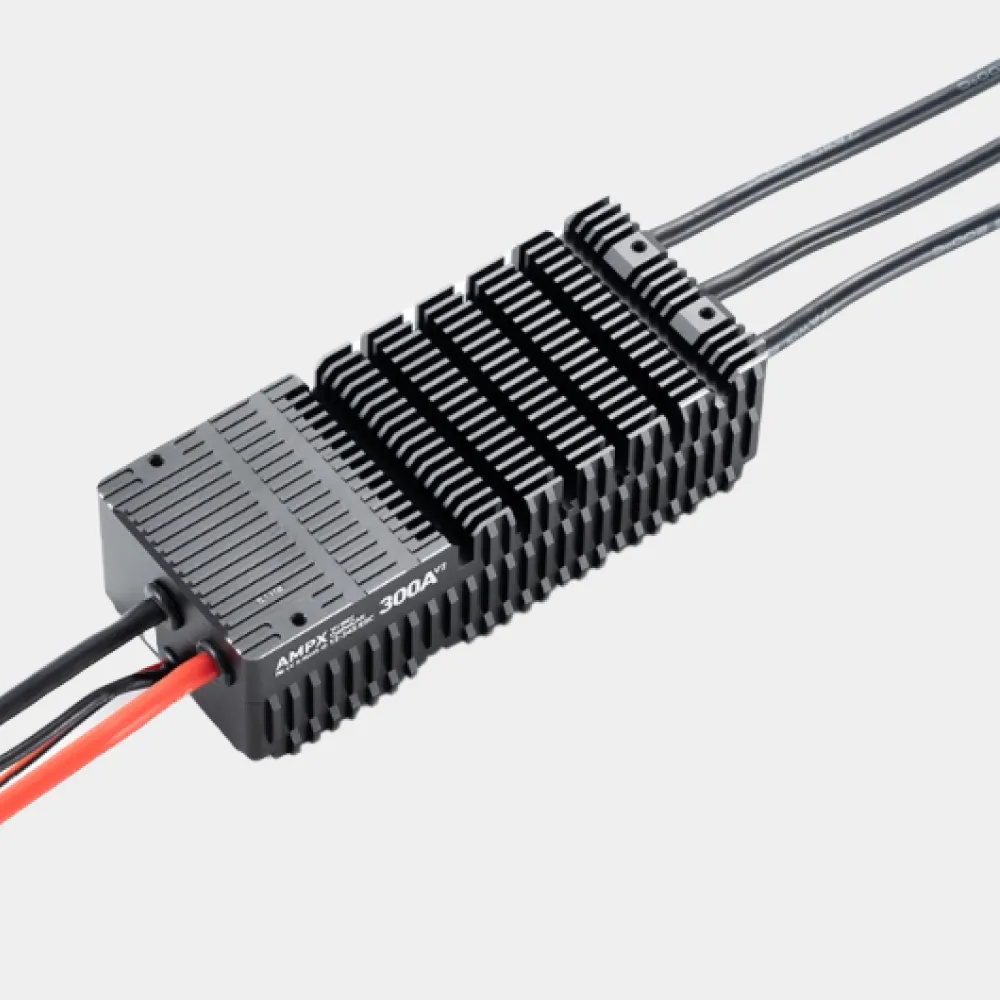

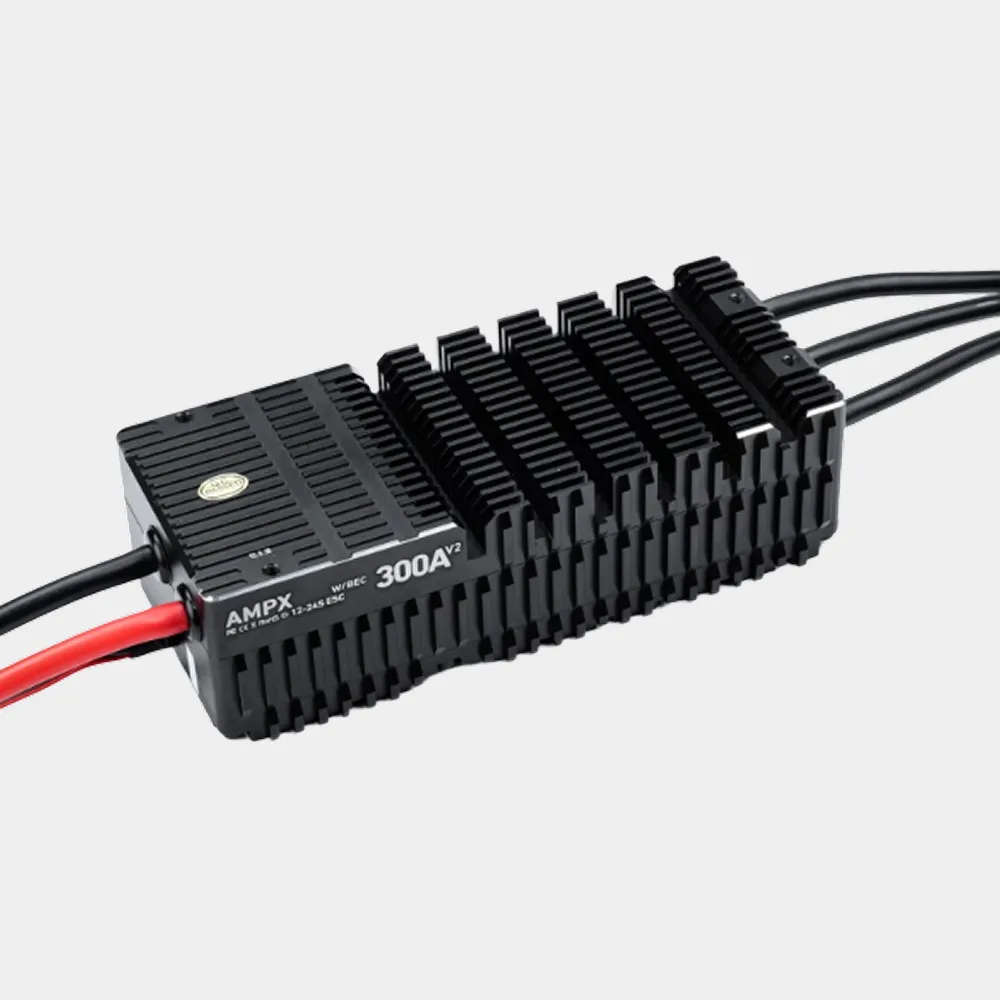

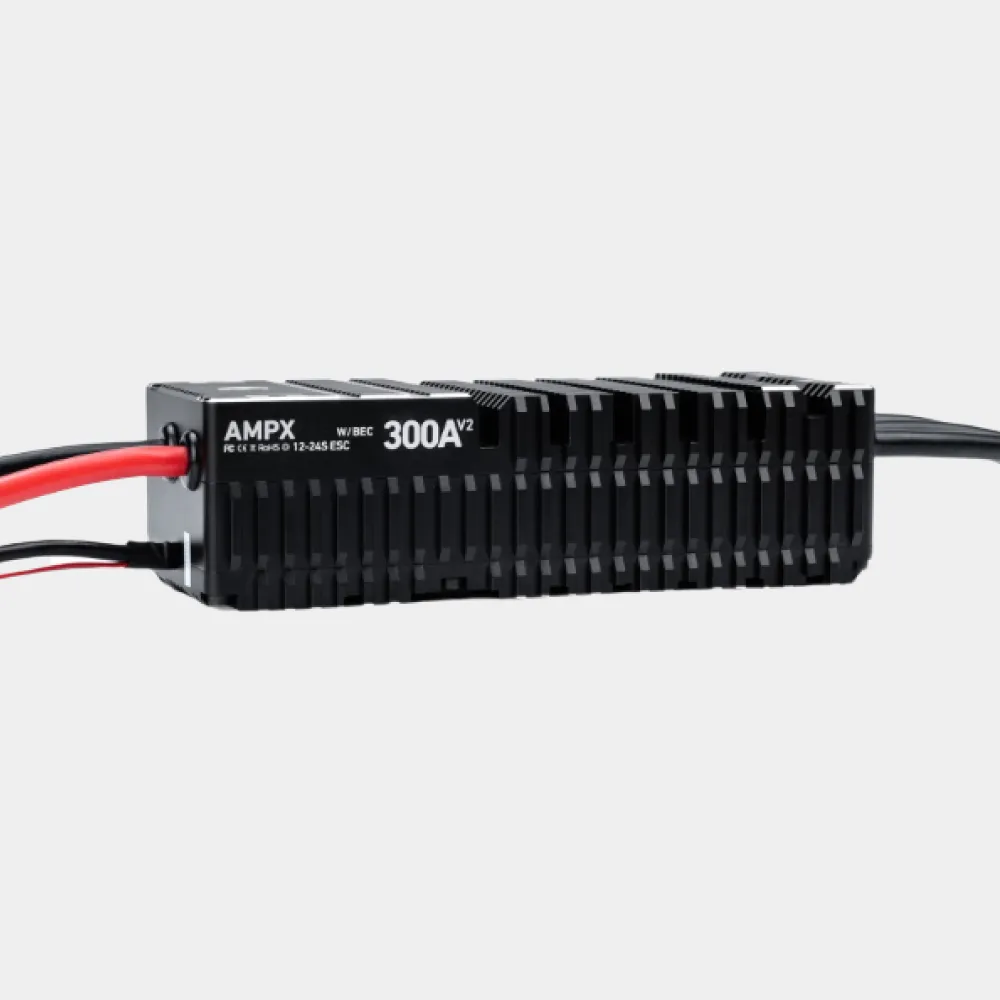

The MAD AMPX 300A 12-24S HV Drone BLDC ESC is a high-voltage electronic speed controller for demanding UAV and drone propulsion systems. It supports 12-24S lithium battery configurations and provides a 300A continuous current rating when suitable heat dissipation conditions are maintained. The ESC supports both CAN digital throttle control and PWM analog throttle input, with priority given to CAN digital control. It also provides CAN communication, RPM signal output, error signal output, online update support and multiple protection functions. The aluminum heatsink structure is designed for thermal management in high-power installations. Before integration, confirm the motor, battery, flight controller, signal wiring, cooling system and propeller load.
High-Voltage UAV ESC
12-24S · 300A Continuous Current · CAN and PWM Control
300A High-Voltage ESC for UAV Propulsion
High-Voltage Control with Multiple Protection Functions

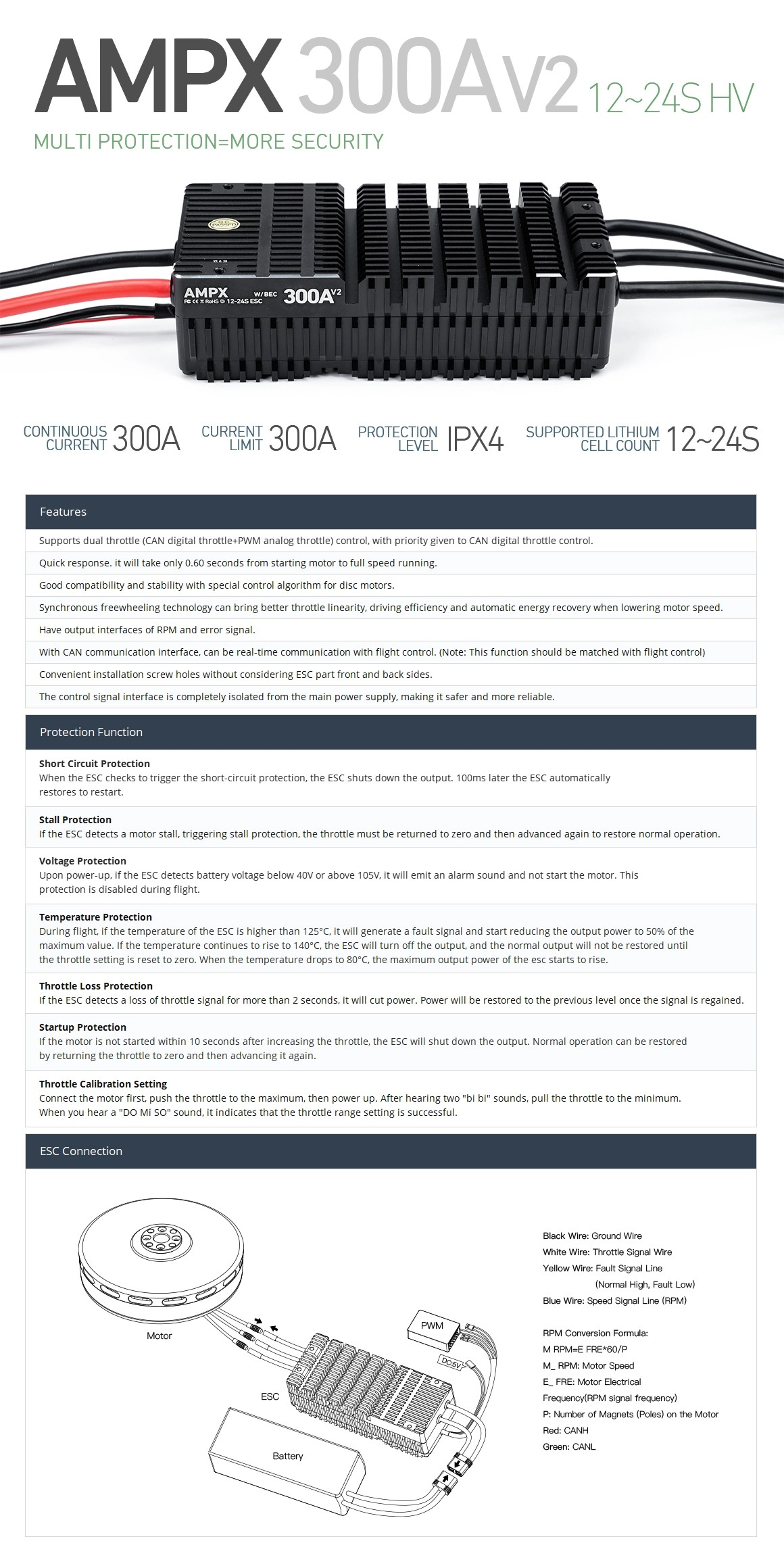

The MAD AMPX 300A HV ESC is designed for high-voltage UAV propulsion systems using 12-24S lithium battery configurations. Its protection functions include phase short-circuit protection, stall protection, voltage protection, throttle-loss protection and startup protection. The ESC also supports CAN communication, RPM signal output and error signal output for system monitoring and integration with compatible flight-control equipment.
Built for High-Current UAV Propulsion Systems

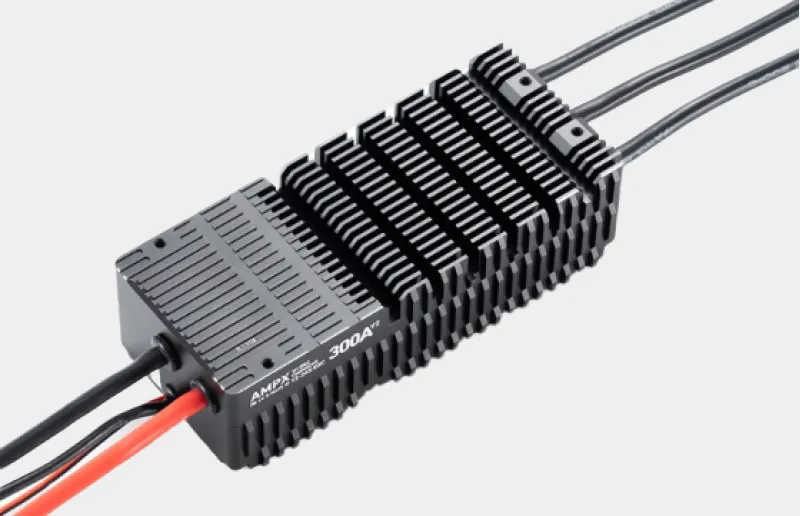

The AMPX 300A HV ESC provides a 300A continuous current rating when good heat dissipation conditions are available. The ESC specification lists 176.0 × 77.2 × 51.0mm dimensions, approximately 580g weight excluding wires and an IPX4 protection level. It supports 3.3V and 5V compatible PWM input, 5V/200mA BEC output and CAN communication for compatible UAV propulsion architectures.

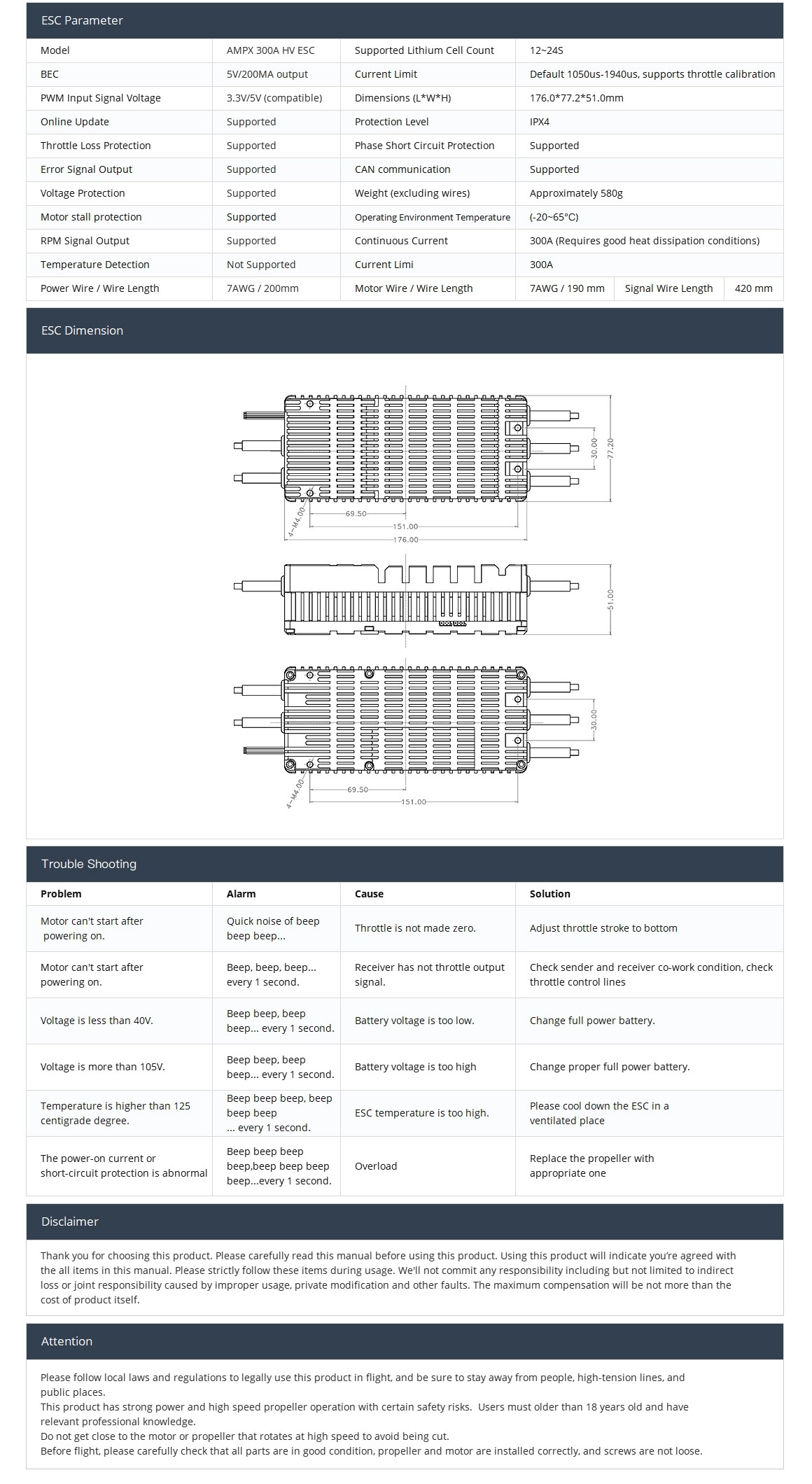

Technical Parameters
· Product Type: High-voltage UAV BLDC ESC
· Model: AMPX 300A HV ESC
· Supported Battery: 12-24S lithium battery
· Continuous Current: 300A with good heat dissipation conditions
· Current Limit: 300A
· BEC Output: 5V/200mA
· PWM Input Signal Voltage: 3.3V/5V compatible
· Control Interfaces: CAN digital throttle and PWM analog throttle
· CAN Communication: Supported
· RPM Signal Output: Supported
· Error Signal Output: Supported
· Online Update: Supported
· Protection Level: IPX4
· Dimensions: 176.0 × 77.2 × 51.0mm
· Weight: Approximately 580g excluding wires
· Power Wire: 7AWG / 200mm
· Motor Wire: 7AWG / 190mm
· Signal Wire: 420mm
· Temperature Detection: Not supported
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
300A High-Voltage UAV ESC with CAN Communication
· Supports 12-24S lithium battery configurations
· 300A continuous current rating with suitable heat dissipation
· CAN digital throttle and PWM analog throttle control
· CAN communication for compatible flight-control systems
· RPM signal and error signal output
· Phase short-circuit, stall, voltage, throttle-loss and startup protection
· IPX4 protection level
· 176.0 × 77.2 × 51.0mm body size

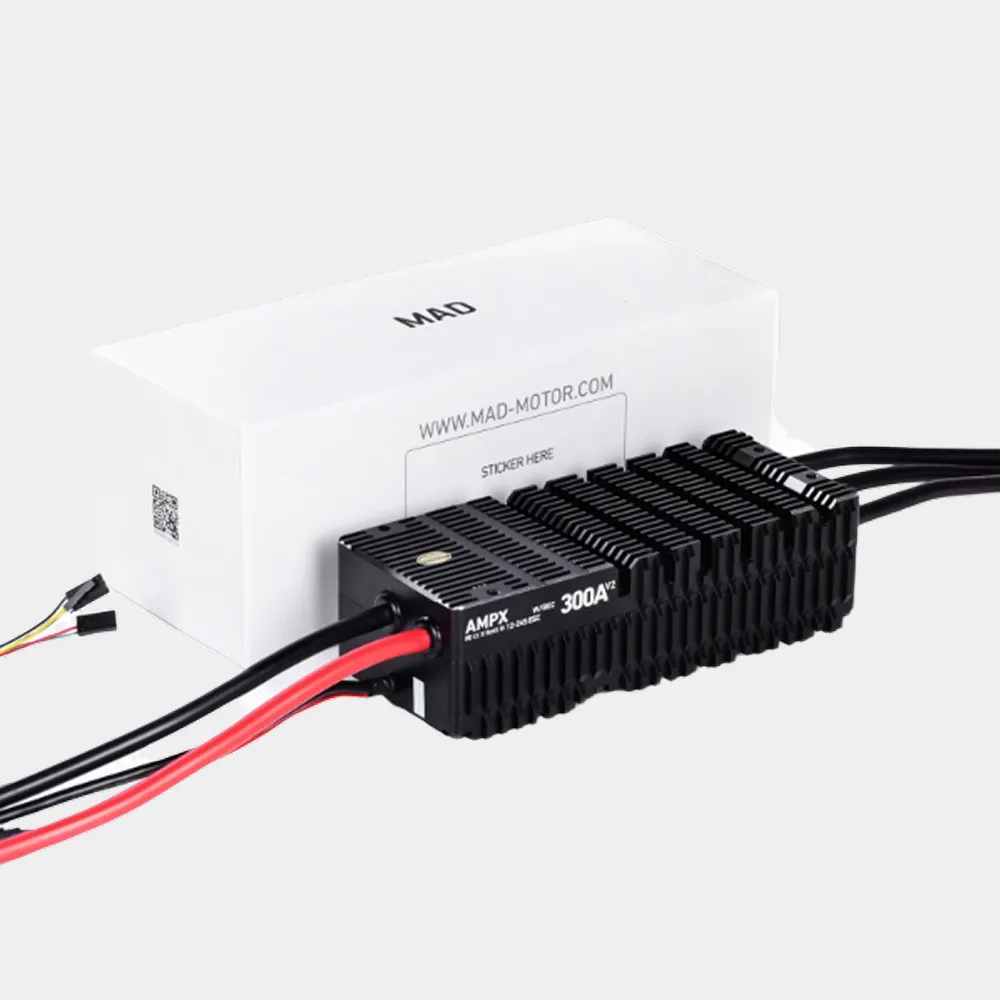

Packaging & Shipping
· Product: MAD AMPX 300A 12-24S HV Drone BLDC ESC

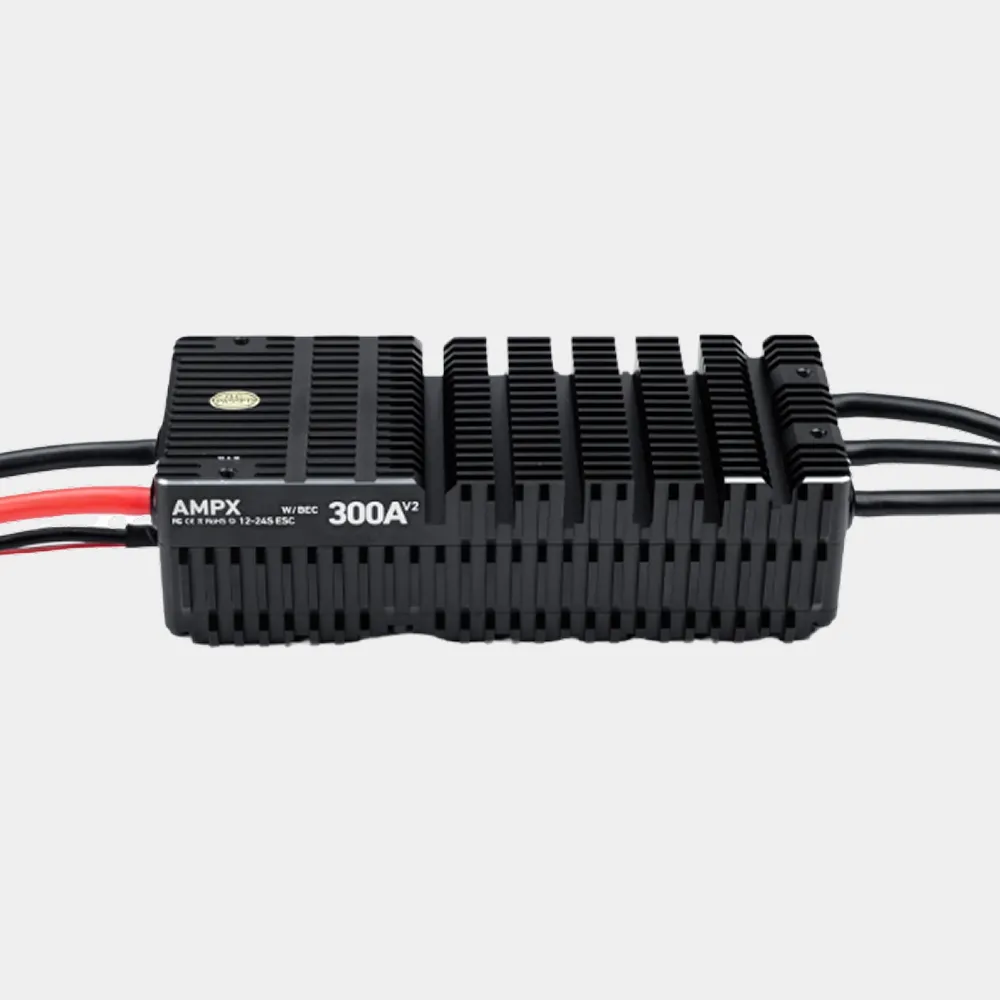

· The product materials show the ESC body with power, motor and signal wires.
· Power Wire: 7AWG / 200mm
· Motor Wire: 7AWG / 190mm
· Signal Wire: 420mm
· Product weight is approximately 580g excluding wires.
· Package dimensions, package weight and included accessories are not specified in the supplied materials.
· Please confirm the final package configuration before ordering.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
High-Voltage Installation Notice
· Confirm that the battery configuration is within the specified 12-24S range before powering the ESC.
· This is a high-current 300A ESC; the power system, connectors, wiring and battery must be selected for the actual load.
· Maintain suitable heat dissipation conditions during operation. Do not install the ESC in an enclosed position without adequate cooling.
· Confirm CAN or PWM signal compatibility with the flight controller before wiring.
· Temperature detection is listed as not supported; external system monitoring may be required where applicable.
· Complete throttle calibration and verify motor rotation, propeller installation and signal wiring before the first powered test.
· Keep clear of rotating propellers and high-voltage wiring during testing and operation.
