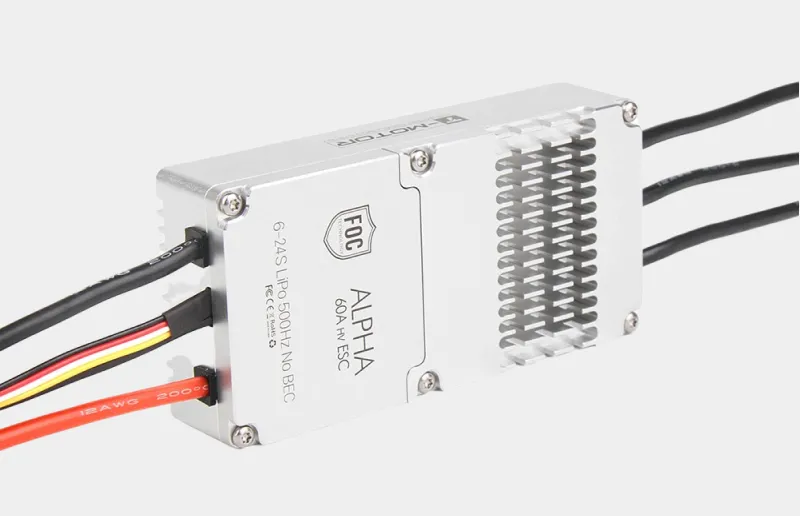

T-Motor ALPHA 60A 6–24S HV ESC is a high-voltage electronic speed controller for UAV power systems and brushless motor applications. It supports 40–100V input for 6–24S LiPo battery systems. The specification lists 40A continuous current and 60A peak current, making it suitable for high-voltage propulsion system integration where current, motor and cooling requirements must be evaluated together. The ESC provides a 1100–1900μs throttle position range, 500Hz throttle refresh frequency and 50ms throttle response speed. It has no BEC and requires a suitable external power supply for connected electronics. Confirm motor phase wiring, power polarity, signal connection and operating conditions before installation.
High-Voltage Brushless ESC
For 6–24S UAV Power Systems

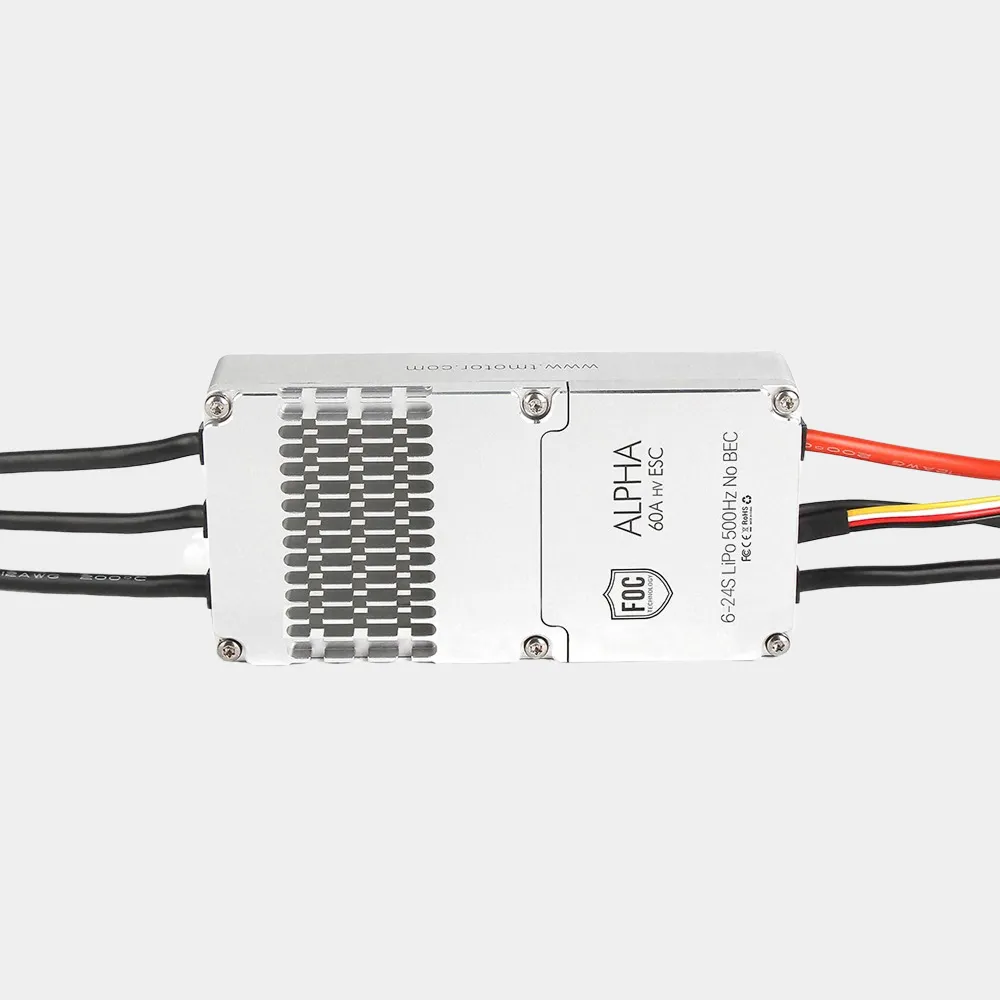

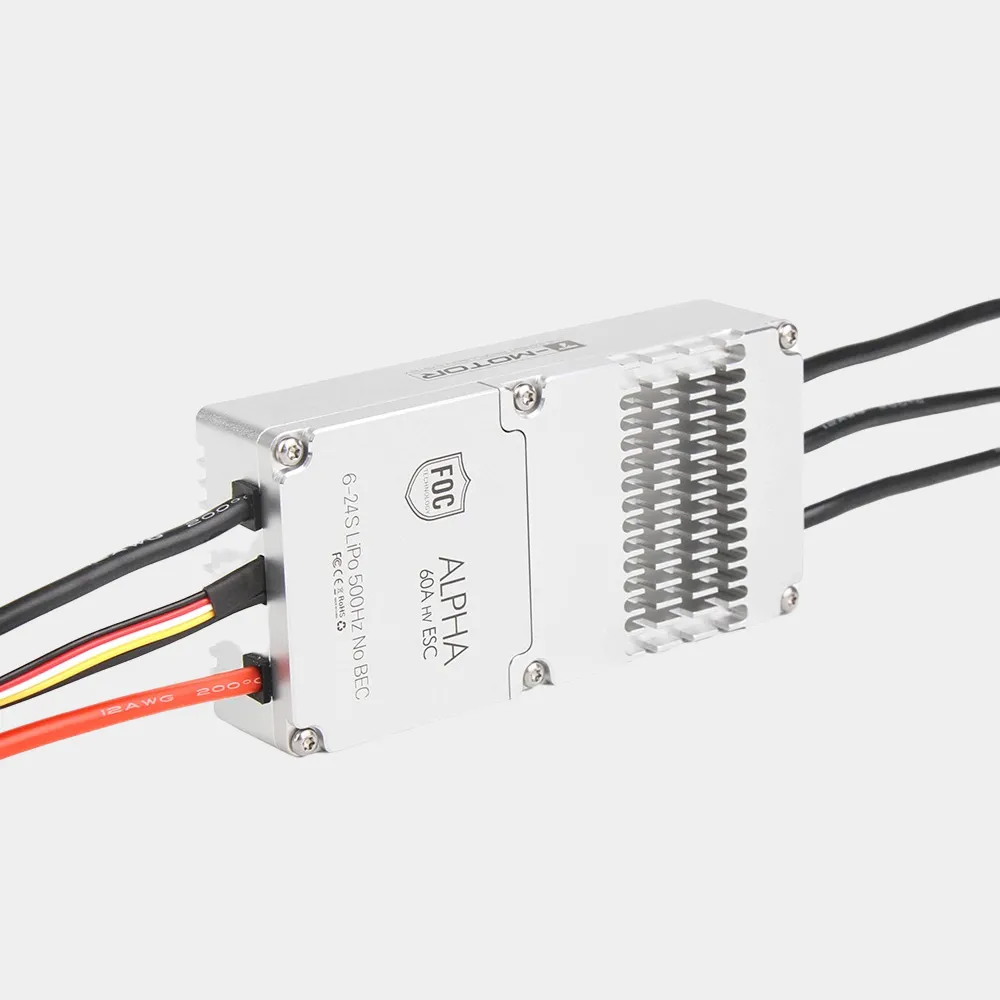

T-Motor ALPHA 60A HV ESC for 6–24S UAV Power Systems
High-Voltage ESC for UAV Propulsion
T-Motor ALPHA 60A HV ESC supports 40–100V input for 6–24S LiPo power systems. It provides 40A continuous current and 60A peak current for brushless motor control in high-voltage UAV propulsion systems. The ESC should be matched with the motor, battery, propeller, flight controller and cooling arrangement before system integration.

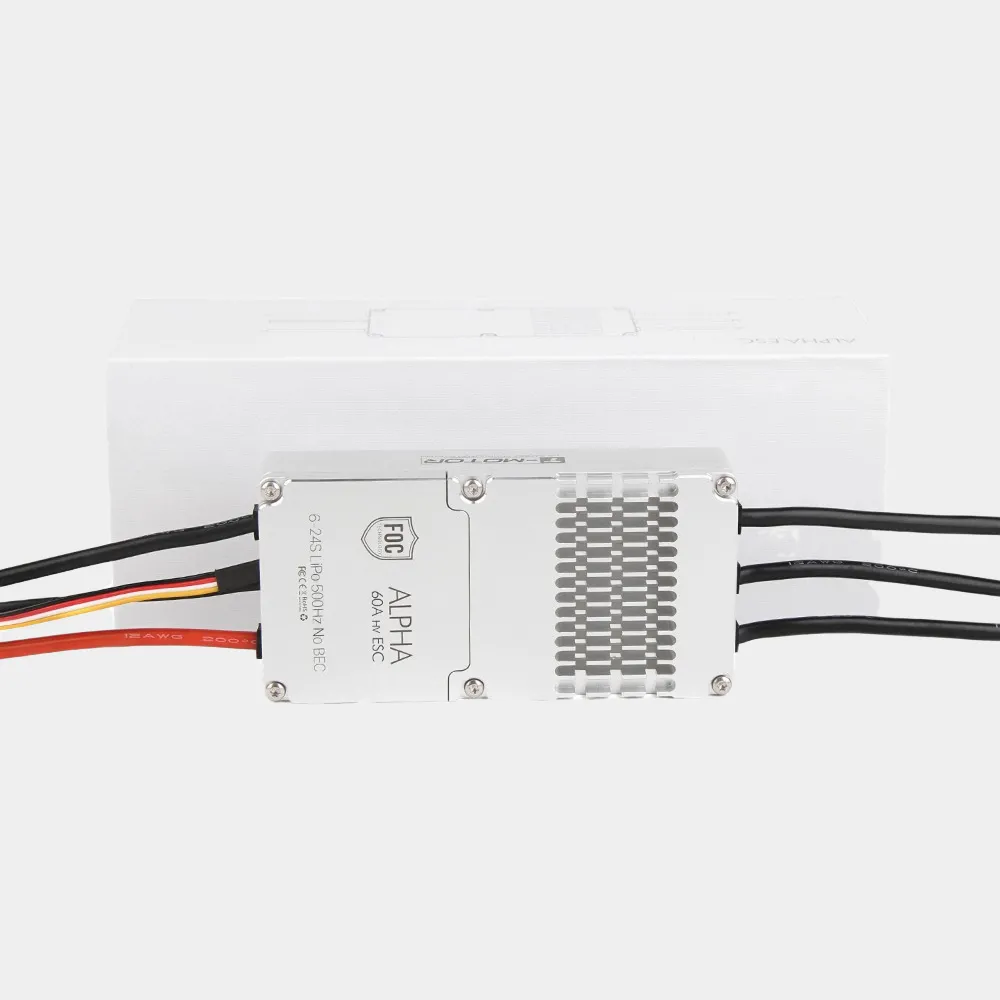

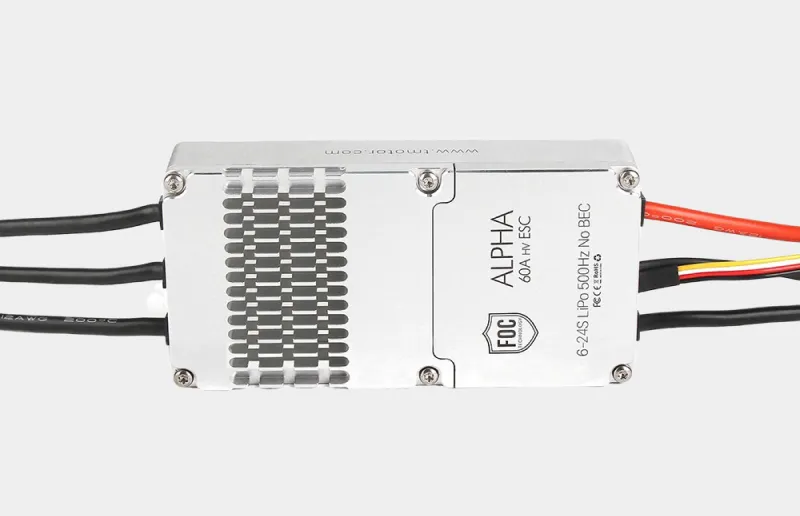

Control and Wiring Integration
The ALPHA HV ESC provides a 1100–1900μs throttle position range, 500Hz throttle refresh frequency and 50ms throttle response speed. It has no BEC, so the flight controller and receiver system require a suitable external power supply. Confirm the power cable, motor cables, signal cable, programming cable and connector configuration before installation.

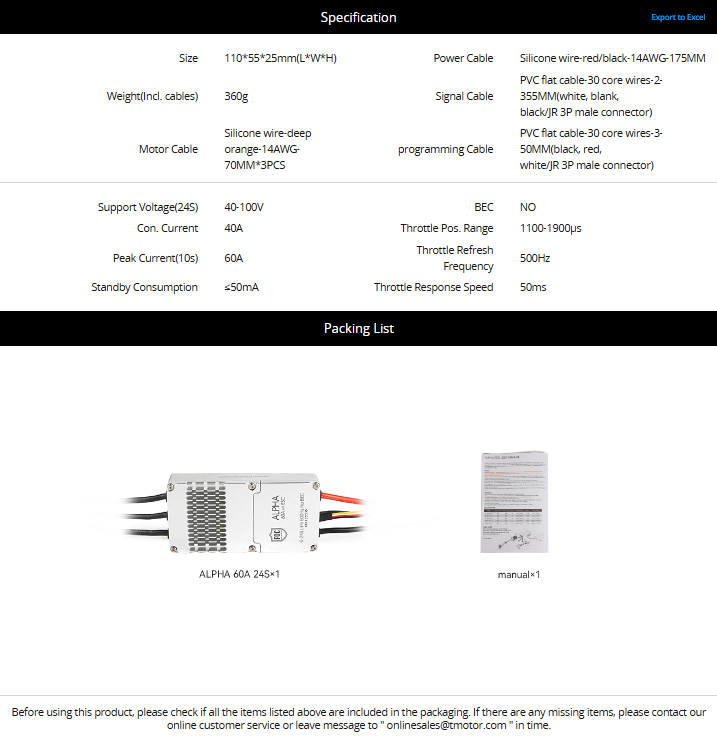

Core Technical Parameters
· Product Type: High-Voltage Electronic Speed Controller
· Model: ALPHA 60A 24S HV ESC
· Support Voltage: 40–100V
· Battery Compatibility: 6–24S LiPo
· Continuous Current: 40A
· Peak Current: 60A (10S)
· Standby Consumption: ≤50mA
· BEC: No
· Throttle Position Range: 1100–1900μs
· Throttle Refresh Frequency: 500Hz
· Throttle Response Speed: 50ms

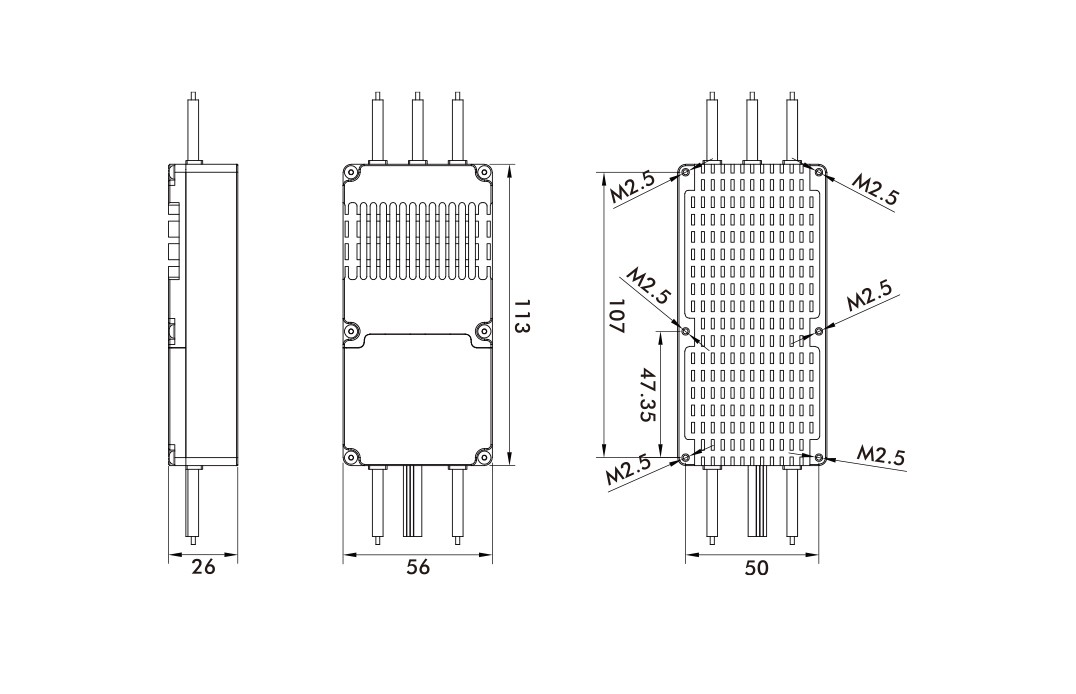

· Dimensions: 110 × 55 × 25mm
· Weight Including Cables: 360g
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
High-Voltage ESC for UAV Power Systems
· 6–24S LiPo battery compatibility
· 40–100V supported input voltage
· 40A continuous current
· 60A peak current
· 500Hz throttle refresh frequency
· 50ms throttle response speed
· No BEC
· 1100–1900μs throttle position range
· 110 × 55 × 25mm body size
· 360g weight including cables
Packaging and Shipping

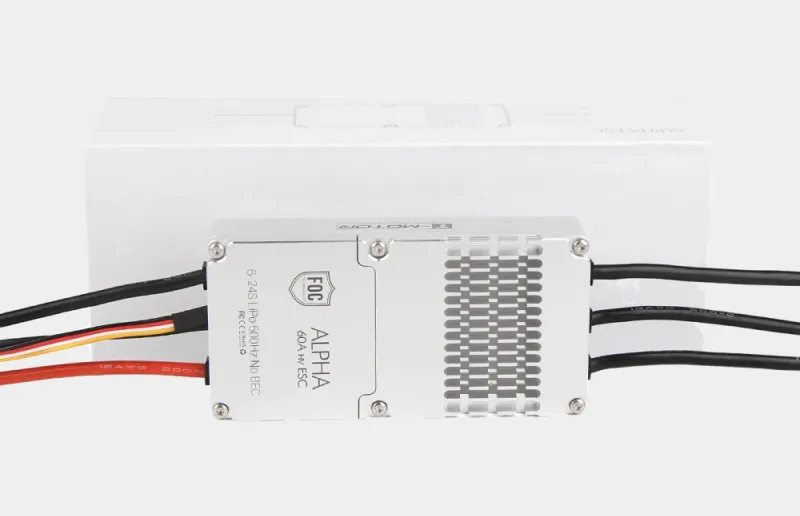

· Product: T-Motor ALPHA 60A 6–24S HV ESC
· Packing list: One ALPHA 60A 24S ESC and one manual according to the product specification image
· Confirm cable configuration and included accessories before shipment
· Packaging configuration: To be confirmed
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important High-Voltage ESC Installation Notice
· Confirm that the battery system operates within the supported 40–100V input range before connection.
· Confirm that the motor, propeller, battery and ESC current requirements are compatible.
· This ESC has no BEC; provide a suitable external power supply for the flight controller, receiver and other connected electronics.
· Check power polarity, motor phase wires, signal wiring and programming cable connections before powering the system.

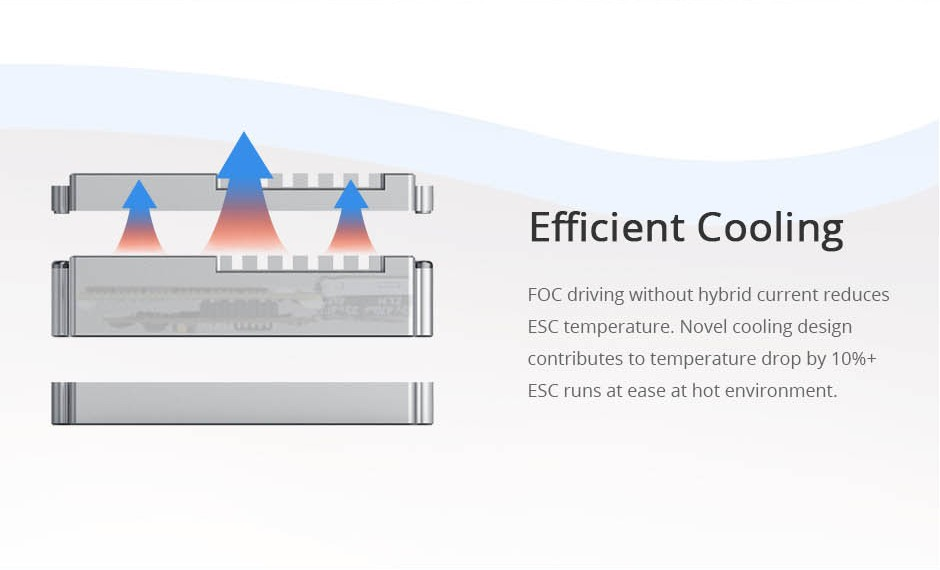

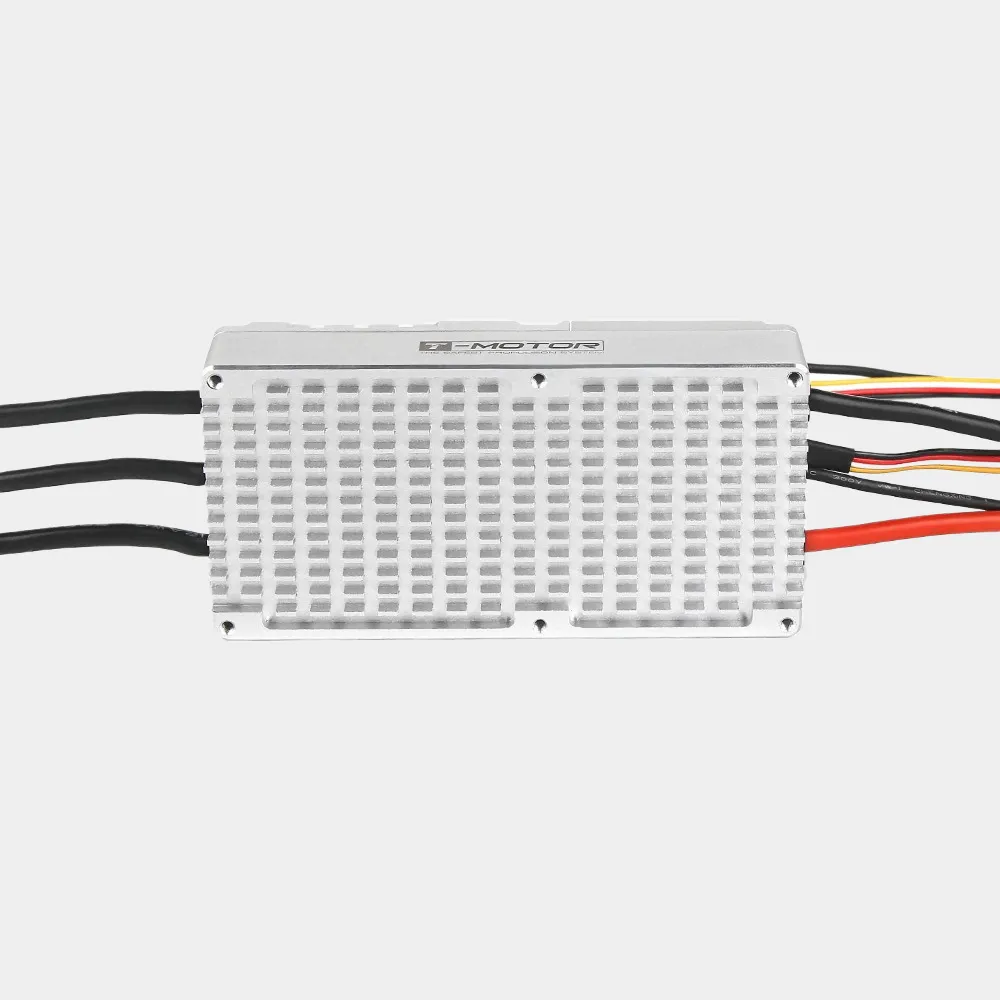

· Provide suitable cooling and avoid operating the ESC beyond its specified voltage or current limits.
· Test the propulsion system without a propeller before the first flight and inspect all high-voltage connections before operation.
