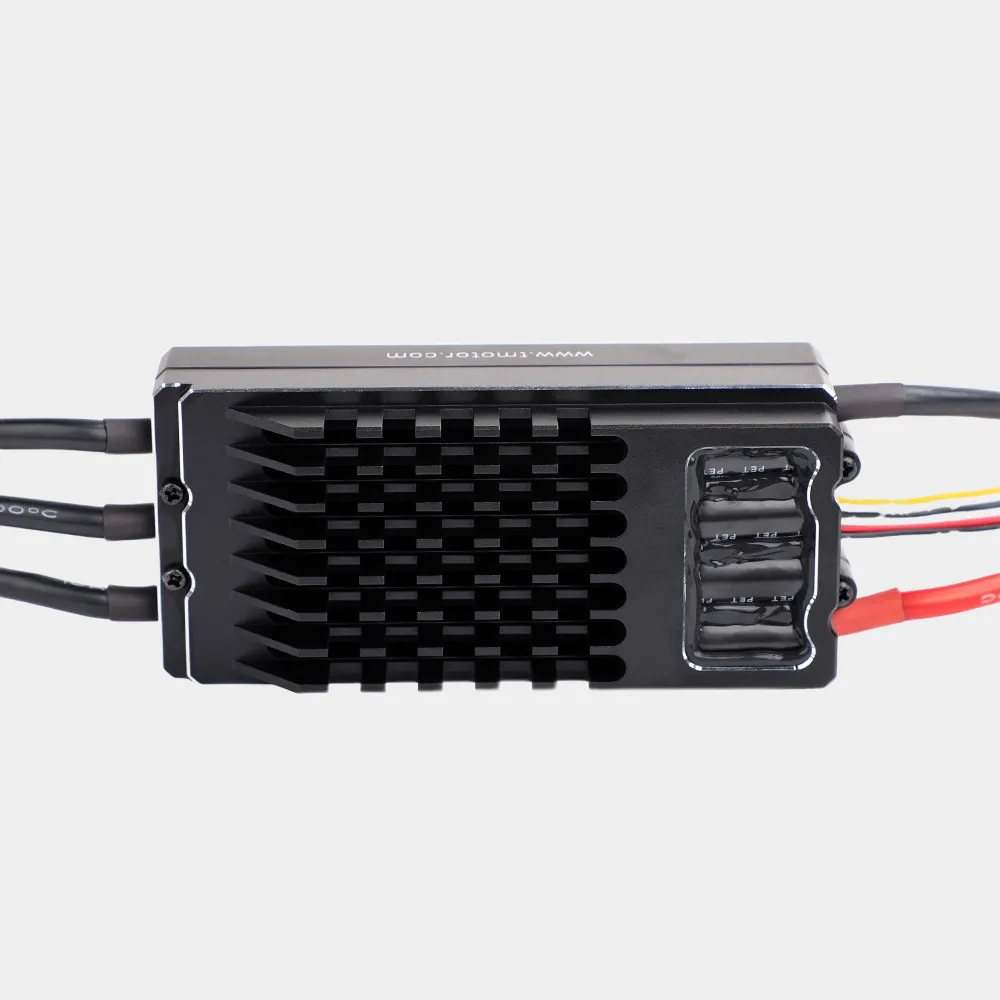

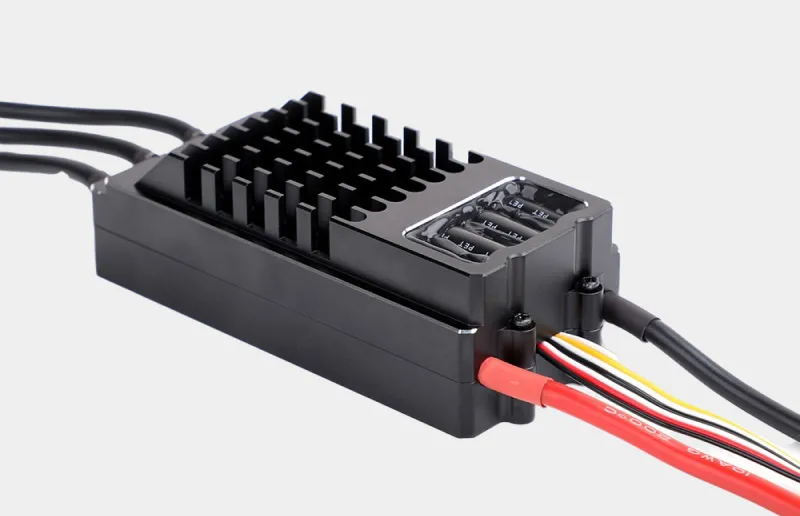

T-Motor FLAME 180A 12S V2.0 ESC is a high-current electronic speed controller for multirotor and UAV power systems. It supports 6–12S LiPo batteries, with a stated 180A continuous current and 200A peak current. The ESC uses a layered cooling structure to support heat dissipation during high-power operation. The product specification lists a weight of 279g and dimensions of 112.2 × 50.5 × 35.5mm. It has no BEC output and no programmable items listed in the product manual, so the flight controller and other electronics require an external power supply where necessary. Confirm the battery, motor, wiring, cooling and installation requirements before operation.
High-Current UAV ESC
For 6–12S LiPo Power Systems
180A 6–12S HV ESC for UAV Power Systems

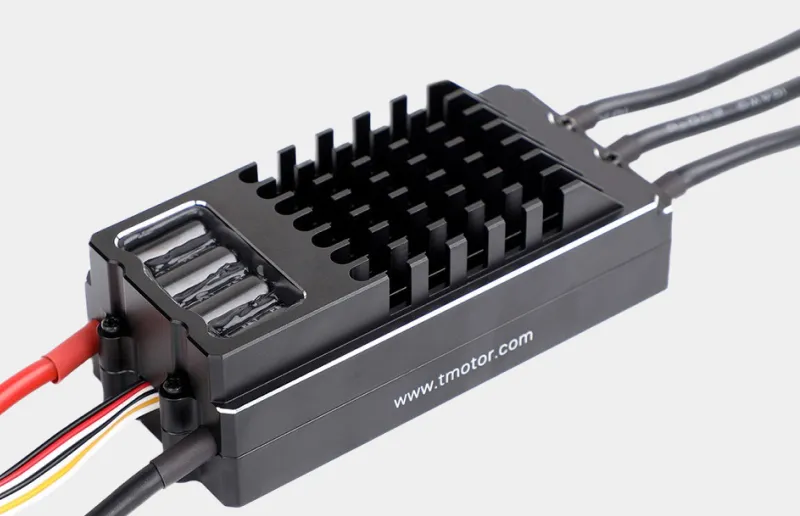

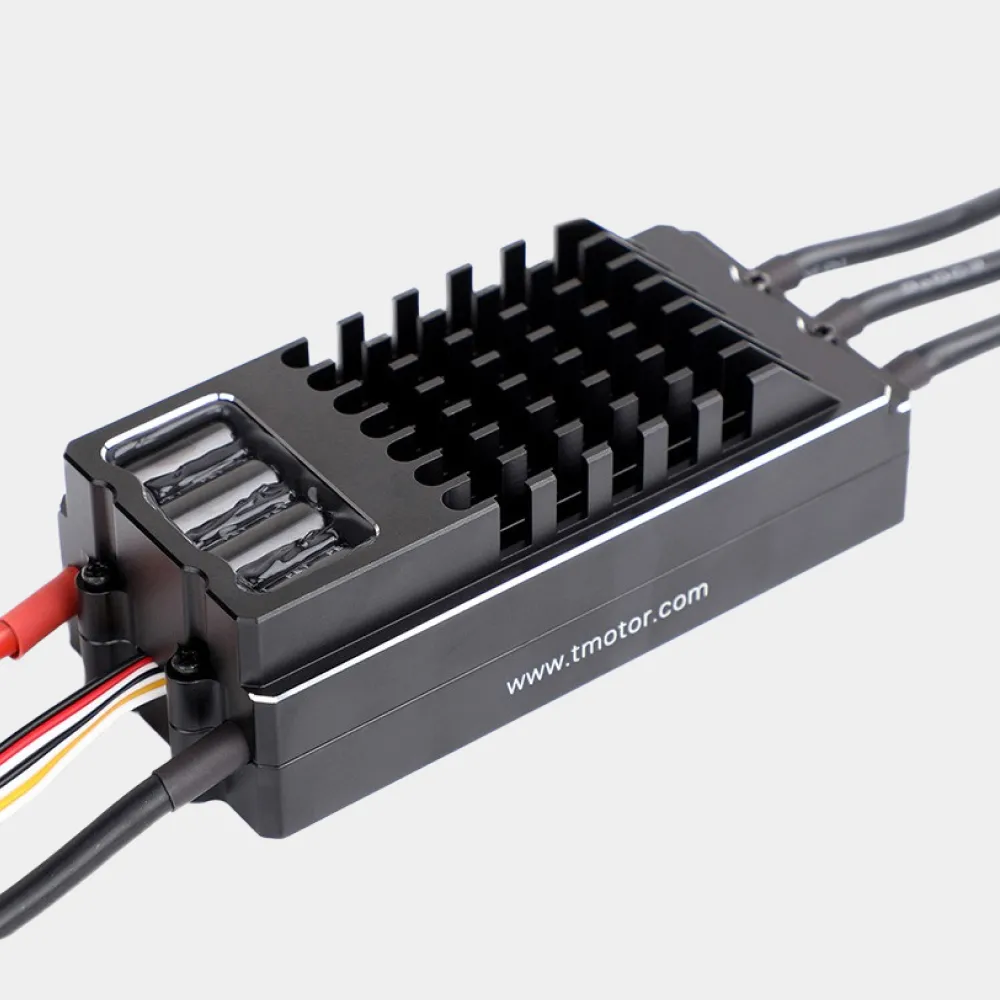

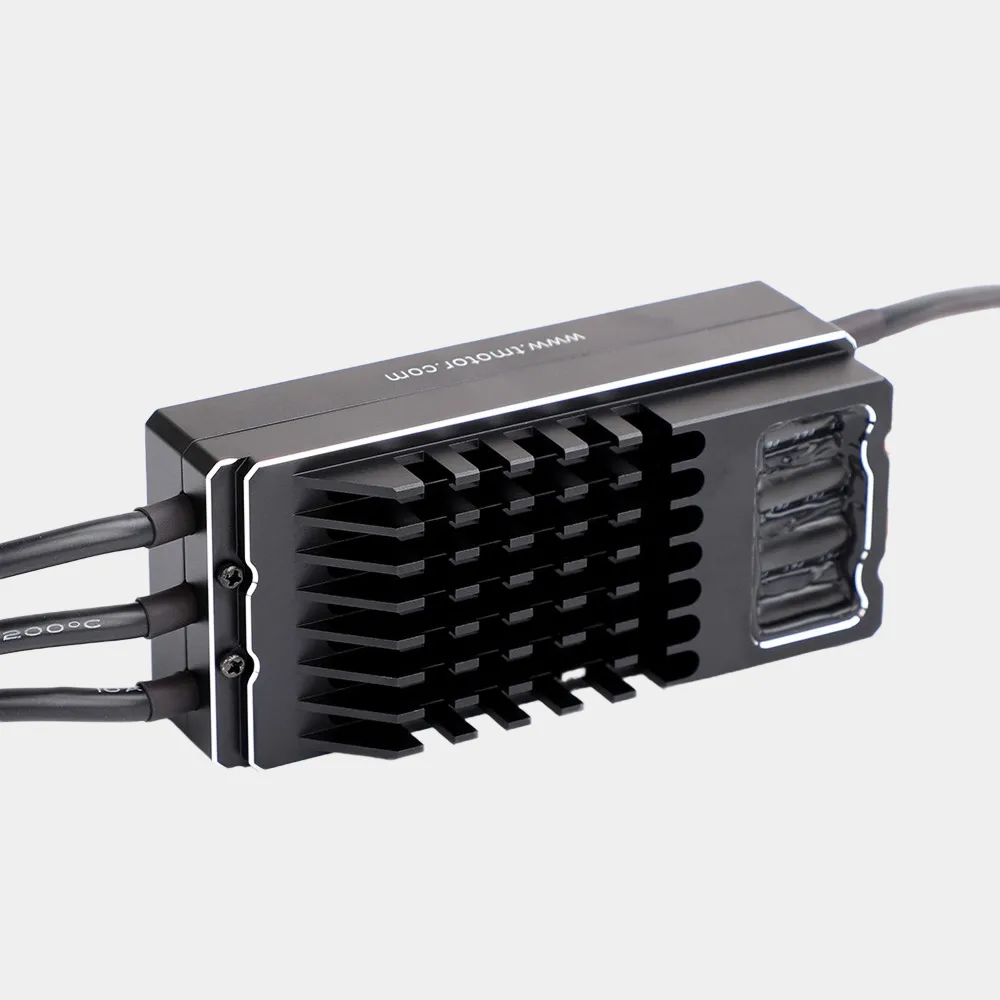

Layered Cooling Structure
The T-Motor FLAME 180A 12S V2.0 ESC uses a layered heat-dissipation structure for high-current UAV propulsion systems. It supports 6–12S LiPo battery configurations and provides a stated 180A continuous current with a 200A peak current. Actual system performance depends on the motor, battery, wiring, airflow and installation environment.
Compact High-Current Integration

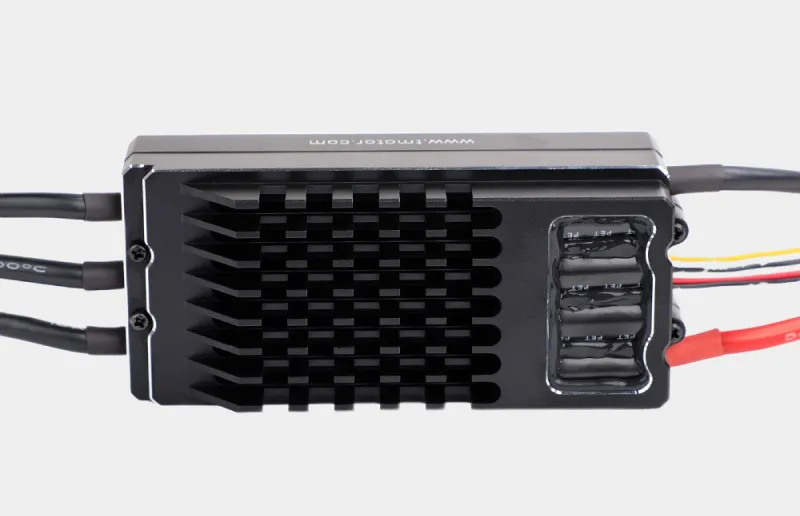

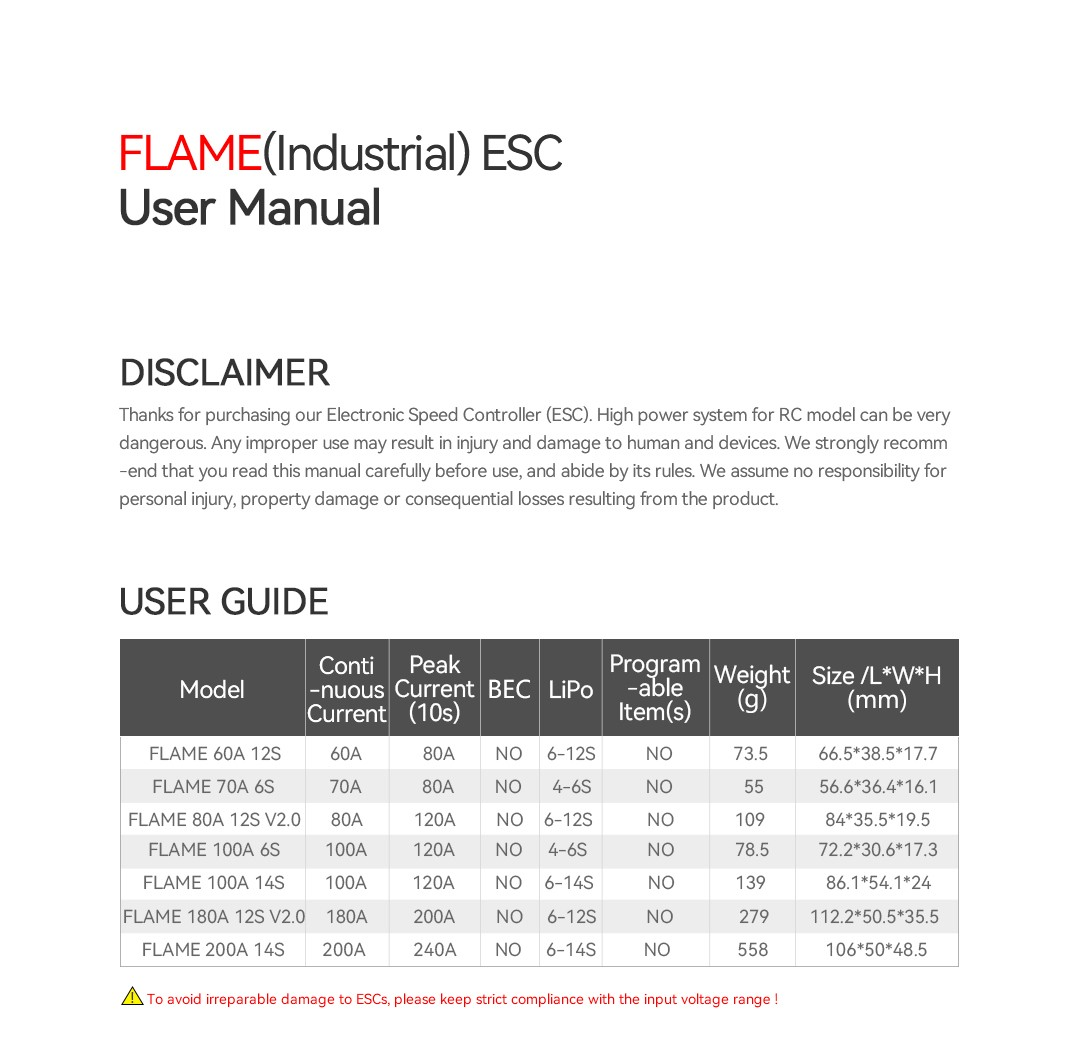

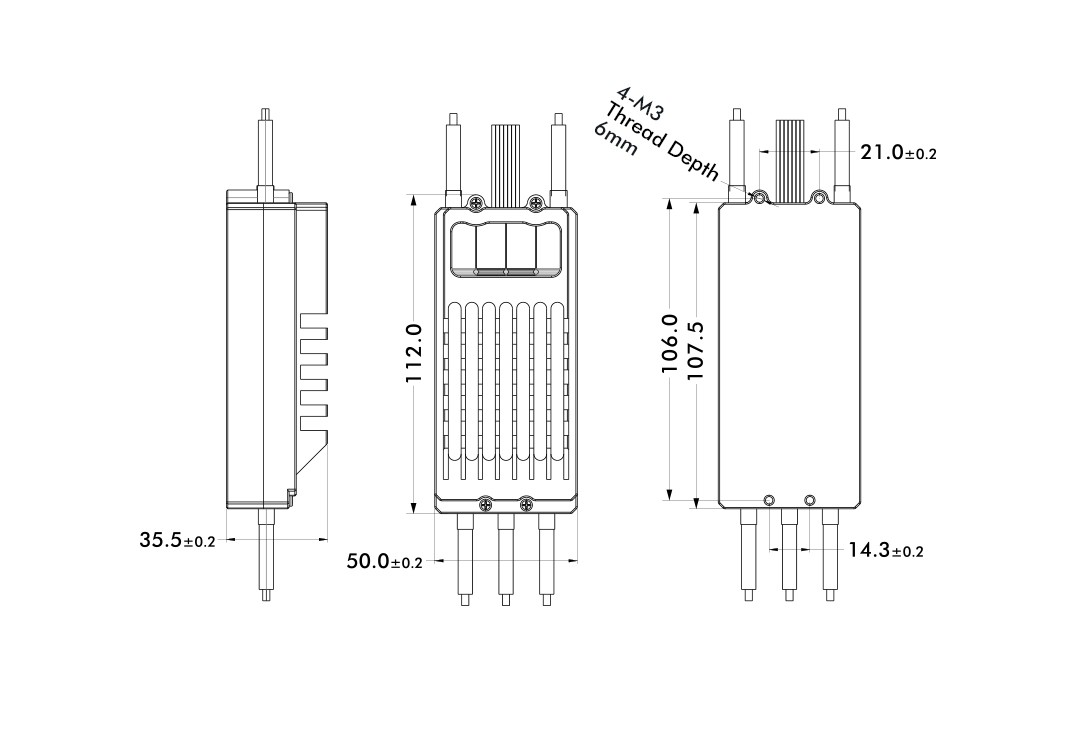

The FLAME 180A 12S V2.0 ESC measures 112.2 × 50.5 × 35.5mm and weighs 279g according to the product manual. The CAD drawing shows the mounting structure and external dimensions for UAV power-system integration. Confirm installation clearance, cable routing, cooling airflow and mounting hardware before assembly.
Core Technical Parameters
· Product Type: High-Current Electronic Speed Controller
· Model: FLAME 180A 12S V2.0 ESC
· Battery Compatibility: 6–12S LiPo
· Continuous Current: 180A
· Peak Current: 200A
· BEC: No
· Programmable Items: No
· Dimensions: 112.2 × 50.5 × 35.5mm
· Weight: 279g
· Mounting Thread: M3
· Thread Depth: 6mm
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
180A High-Current UAV ESC
· 6–12S LiPo battery compatibility
· 180A continuous current
· 200A peak current
· No BEC output
· Layered structure for heat dissipation
· Dimensions: 112.2 × 50.5 × 35.5mm
· Weight: 279g
· M3 mounting thread with 6mm thread depth
Packaging and Shipping
· Product: T-Motor FLAME 180A 12S V2.0 ESC
· Product weight: 279g
· BEC output: Not available
· Programmable items: Not listed in the product manual
· Connector and cable configuration: Confirm before shipment
· Packaging configuration: To be confirmed
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important High-Current ESC Installation Notice
· Confirm that the battery system is within the 6–12S LiPo voltage range before connection.
· Confirm compatibility between the ESC, motor, battery, propeller and wiring before operation.
· This ESC has no BEC output; provide a suitable external power supply for the flight controller and other electronics.
· Install the ESC with sufficient cooling airflow and clearance around the heat-dissipation structure.

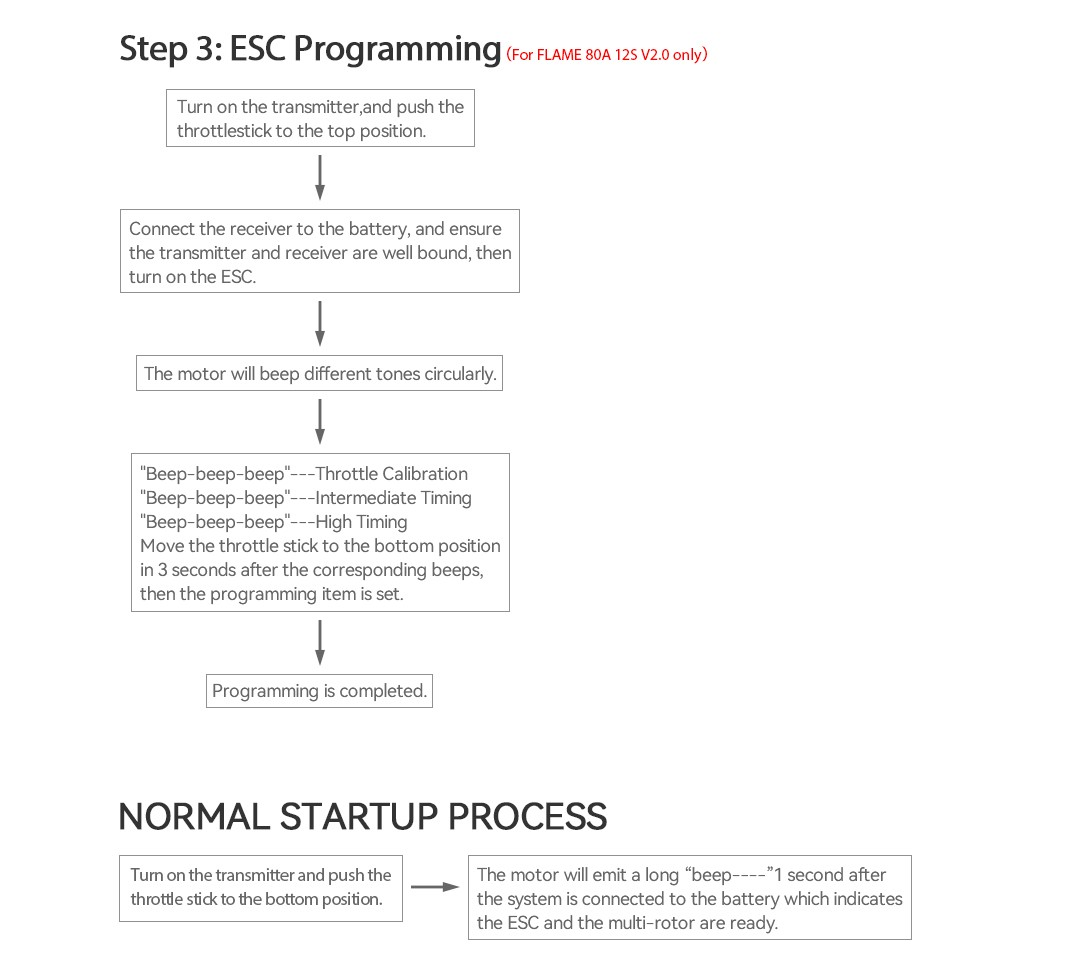

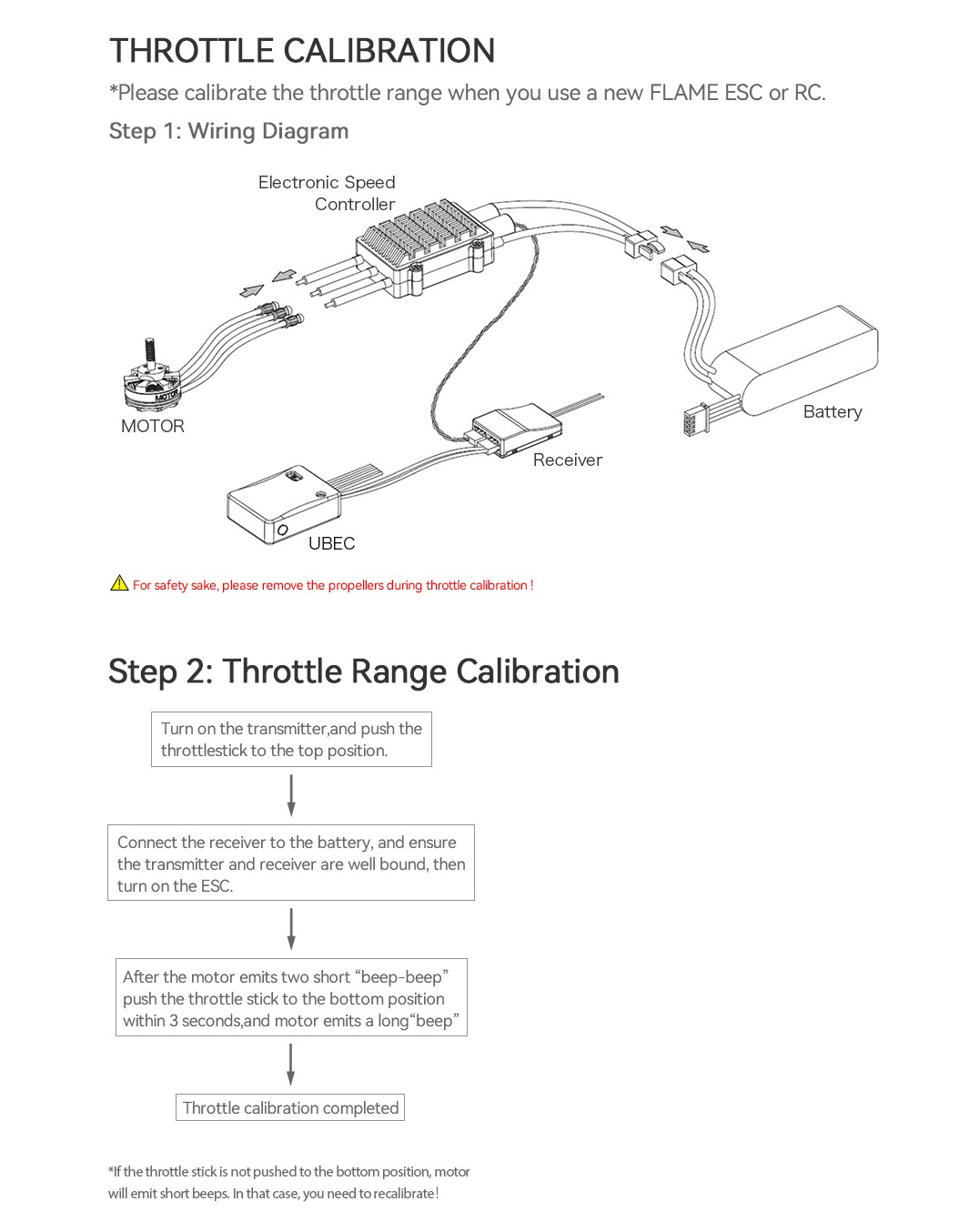

· Calibrate the throttle range when using a new FLAME ESC or receiver.
· Remove the propeller before throttle calibration and initial system testing.
· Check polarity, motor wiring, throttle signal and receiver binding before powering the system.
· Do not operate the ESC outside its specified input-voltage range.
