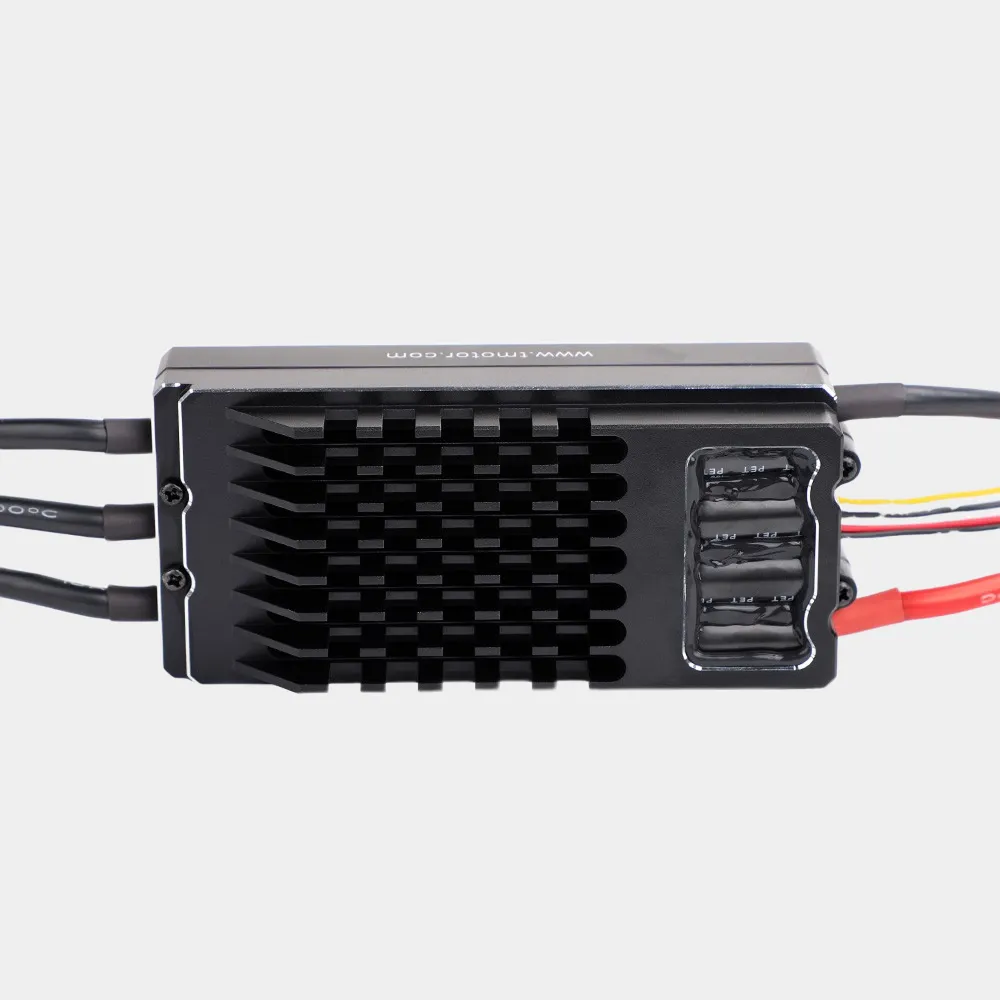

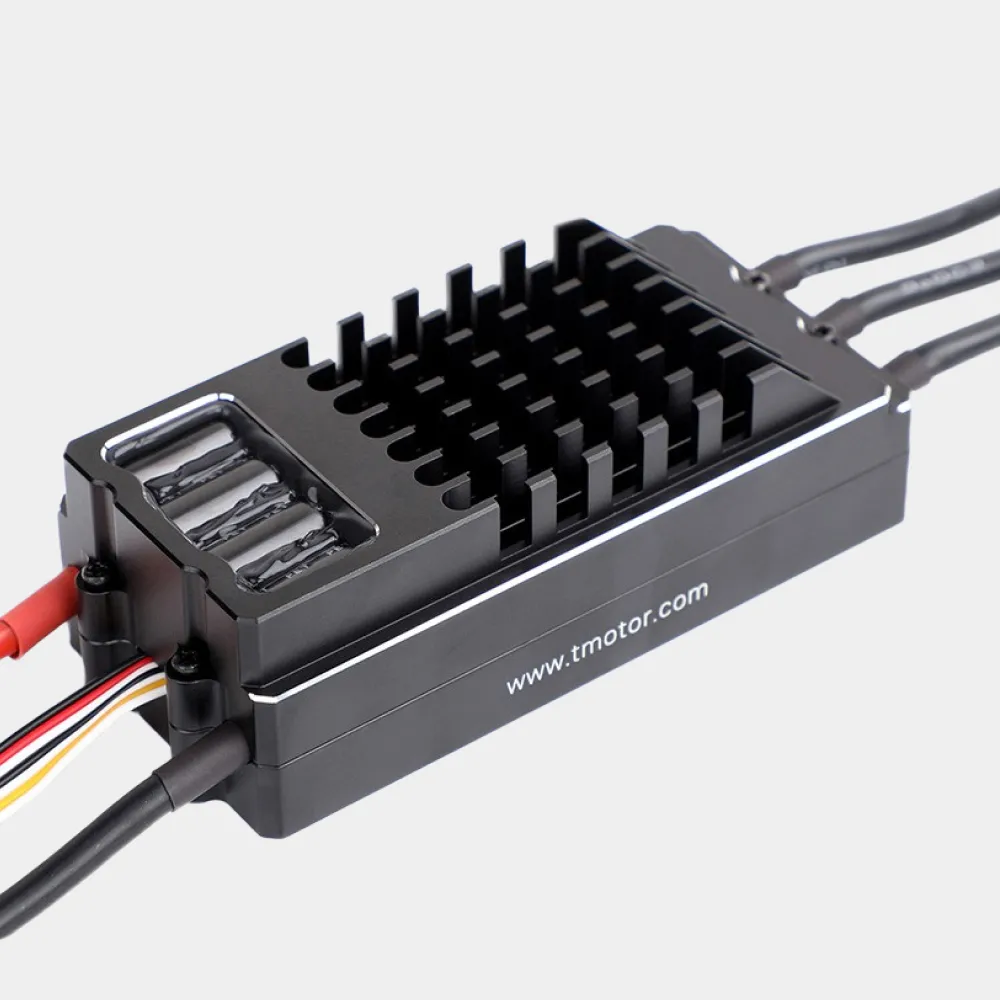

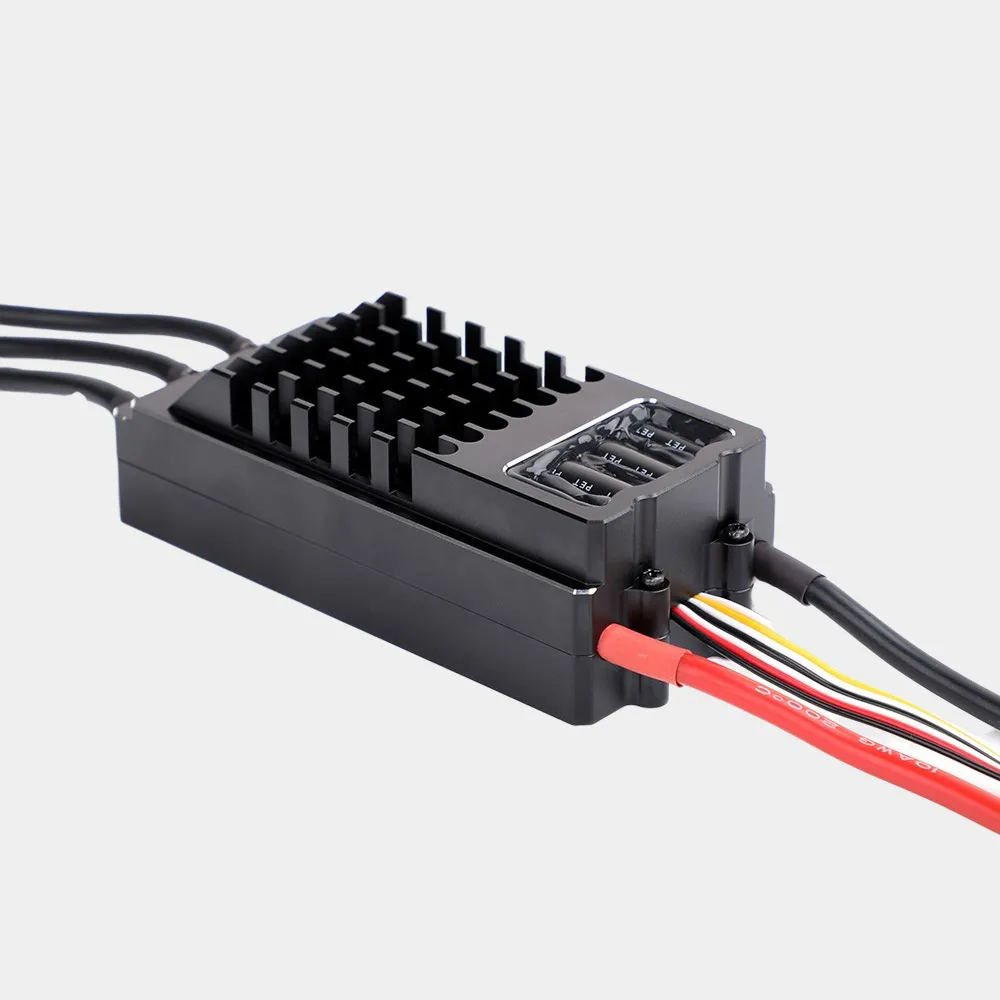

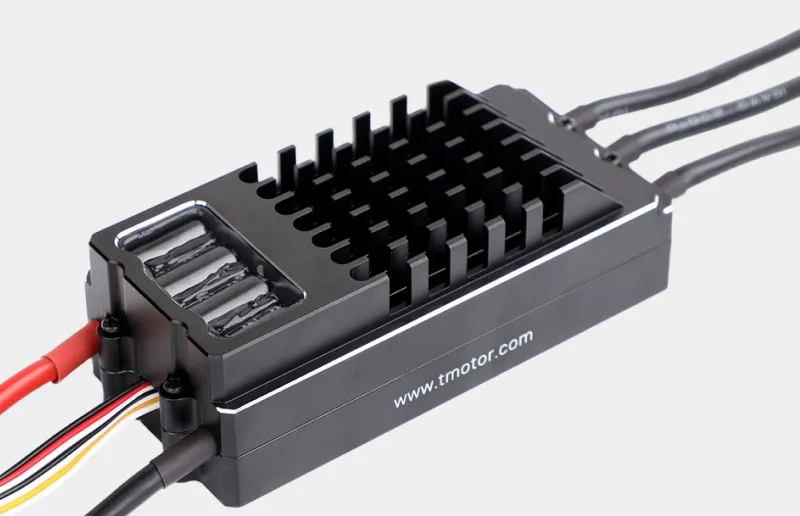

T-Motor THUNDER 200A 12–24S ESC is a high-voltage electronic speed controller for UAV and multirotor power systems. It supports 12–24S LiPo batteries and provides a stated 120A continuous current with a 220A peak current for up to 3 seconds under suitable cooling conditions. The ESC features IP54 protection, PWM throttle input, UART-TTL data feedback and a calibratable PWM throttle position range. It uses an aluminum alloy housing and stacked internal structure for heat dissipation. The unit weighs 620g including cables and measures 154.9 × 69.6 × 36.1mm, excluding wire length. Confirm the full motor, battery, wiring and cooling configuration before operation.
High-Voltage UAV ESC
For 12–24S LiPo Power Systems
High-Voltage 12–24S ESC for UAV Power Systems
High-Voltage UAV Power Control
T-Motor THUNDER 200A 12–24S ESC supports 12–24S LiPo battery systems and provides a stated 120A continuous current with a 220A peak current for 3 seconds under suitable cooling conditions. The ESC is designed for high-voltage UAV and multirotor propulsion integration. Actual current capability depends on cooling, wiring, motor load and installation conditions.

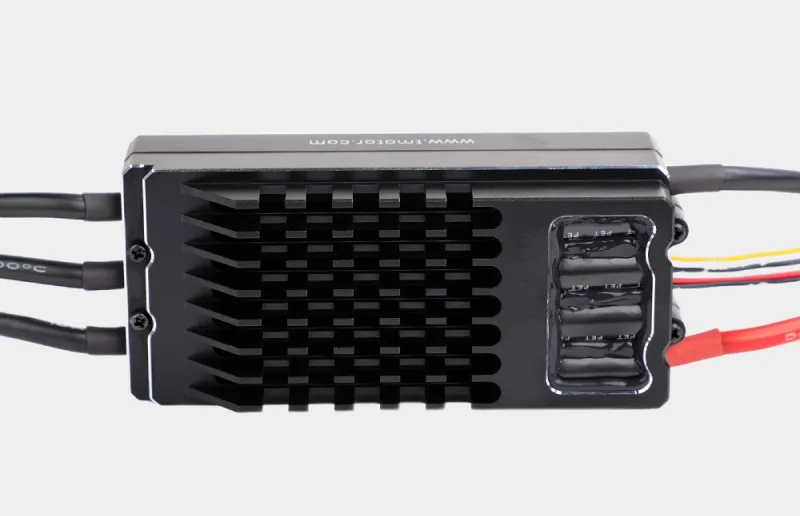

Feedback and System Integration
The THUNDER ESC uses PWM throttle control and provides UART-TTL data feedback with isolated power according to the product specification. It supports a 3.3–5V PWM signal, a 50–400Hz PWM frequency and a calibratable throttle position range. Confirm flight-controller compatibility, signal wiring, external power requirements and data protocol before integration.
Core Technical Parameters
· Product Type: High-Voltage Electronic Speed Controller
· Model: THUNDER 200A 24S
· Support Voltage: 12–24S LiPo
· Continuous Current: 120A with suitable cooling
· Peak Current: 220A for 3 seconds with suitable cooling
· Weight: 620g including cables
· Dimensions: 154.9 × 69.6 × 36.1mm, excluding wire length
· Protection Rating: IP54
· Working Temperature: -20°C to 65°C
· Signal: PWM
· PWM Voltage: 3.3–5V
· PWM Frequency: 50–400Hz
· Data Feedback: UART-TTL with isolated power
· Standby Consumption: Less than 50mA
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.

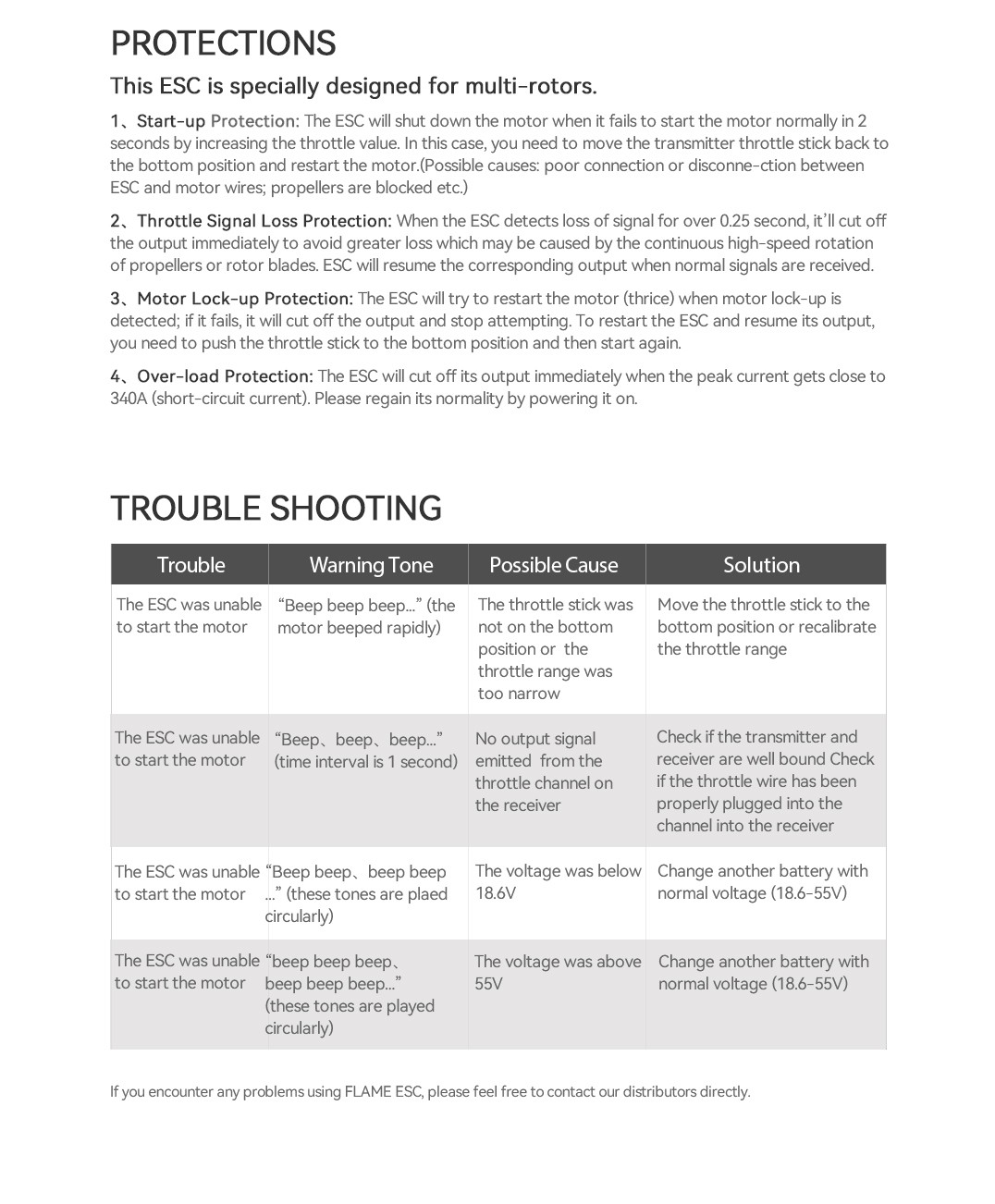

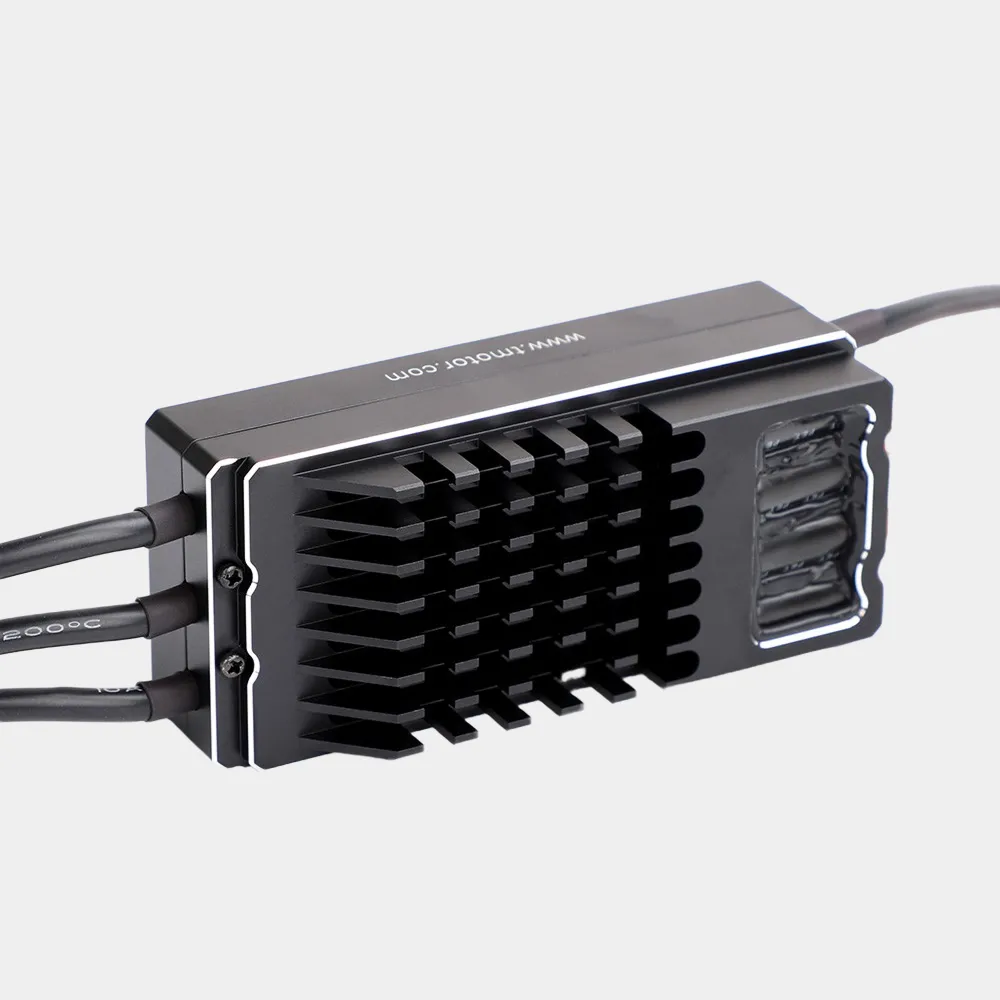

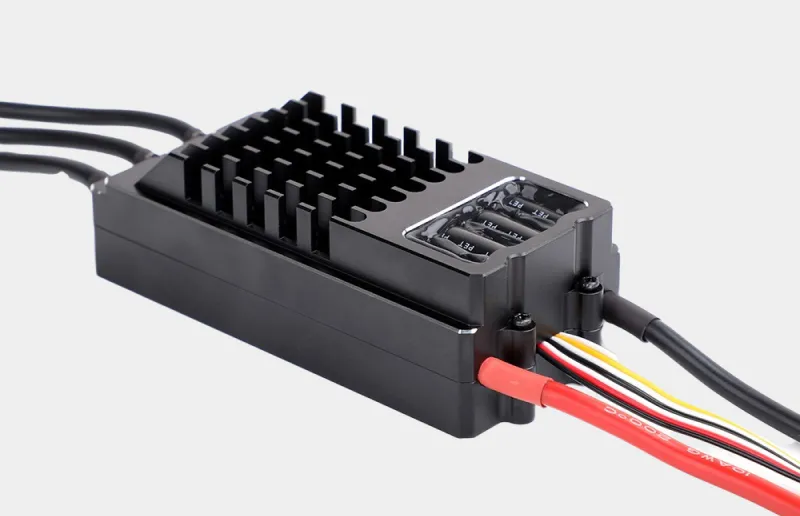

Protection and Feedback Functions
· 12–24S LiPo support
· 120A continuous current with suitable cooling
· 220A peak current for 3 seconds with suitable cooling
· IP54 protection rating
· Overvoltage protection
· Overcurrent protection
· Over-temperature protection
· Throttle signal loss protection
· PWM throttle control
· UART-TTL data feedback
· Working temperature: -20°C to 65°C
Packaging and Shipping
· Product: T-Motor THUNDER 200A 12–24S ESC
· Product weight: 620g including cables
· Power wire: Silicone wire, black/red, 8AWG, 750mm
· Motor wire: Silicone wire, black, 10AWG, 150mm
· Signal wire: Shielded 24AWG wire, 520mm, JR 3-pin male
· Feedback line: PVC wire, black/red/white, 100mm, JR 3-pin male
· Packaging configuration: To be confirmed
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important High-Voltage ESC Installation Notice
· Confirm that the battery system is within the specified 12–24S LiPo voltage range.
· The stated 120A continuous current and 220A peak current require suitable cooling conditions.
· Confirm compatibility between the ESC, motor, battery, wiring and propeller before operation.
· Check the PWM signal voltage, frequency and throttle position range before connection.
· Confirm UART-TTL feedback compatibility and wiring with the flight controller.
· IP54 protection does not mean the ESC can be submerged or exposed to uncontrolled water ingress.
· Check polarity, signal wiring, feedback wiring and motor phase connections before powering the system.

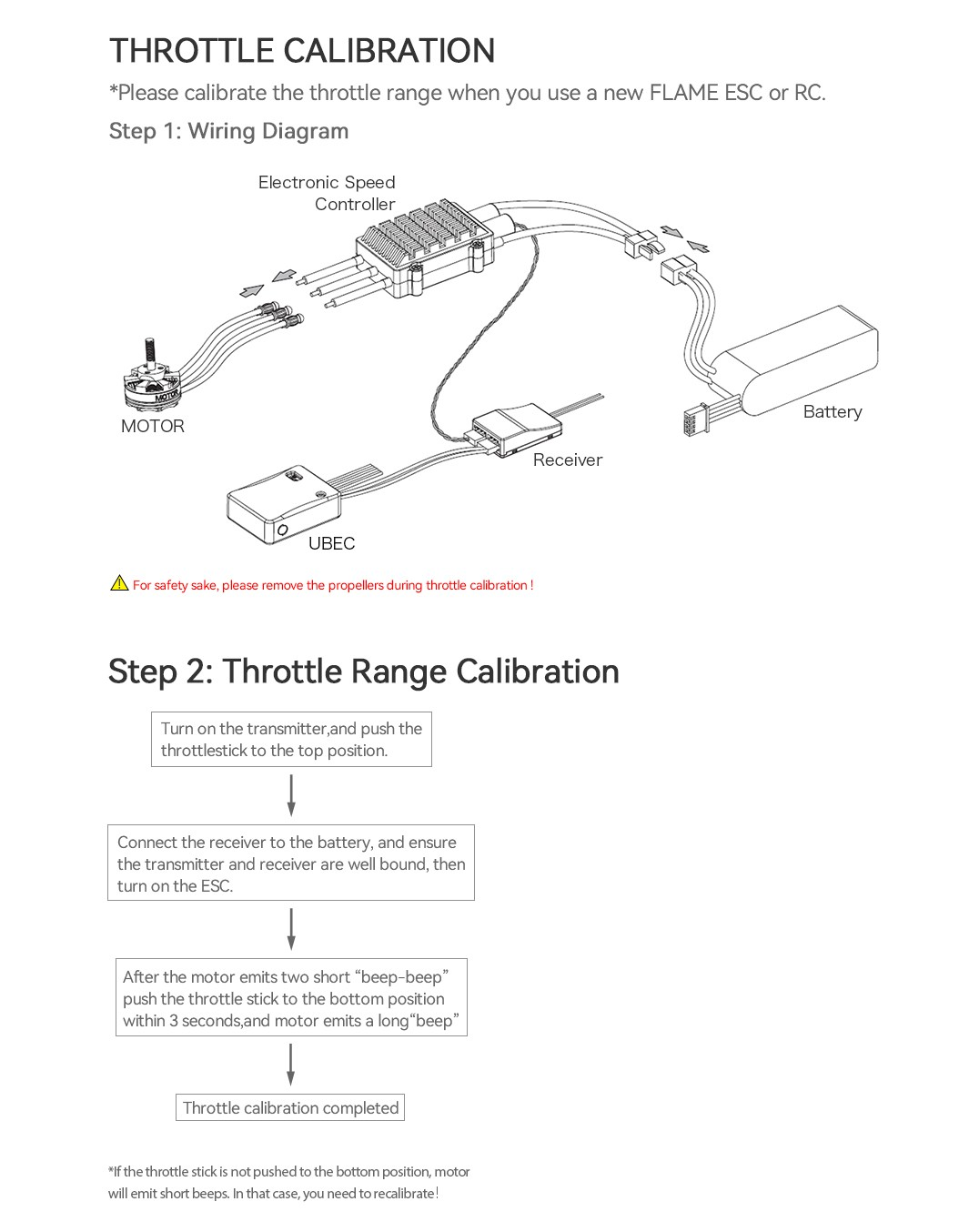

· Keep the propeller removed during calibration and initial bench testing.
