T-Motor V150A 14S is a field-oriented control electronic speed controller designed for UAV and multirotor power systems. It supports 18–60V input, equivalent to 6–14S LiPo battery configurations, with a stated 70A continuous current and 160A peak current for less than 10 seconds. The ESC supports PWM and CAN protocols and provides a calibratable throttle position range from 1040 to 1940. It uses a 116 × 49 × 31mm housing and weighs 295g including cables. The V150A 14S has no BEC output, so external power may be required for the flight controller and connected electronics. Confirm motor, battery, wiring and protocol compatibility before installation.
FOC UAV ESC
For 6–14S LiPo Power Systems

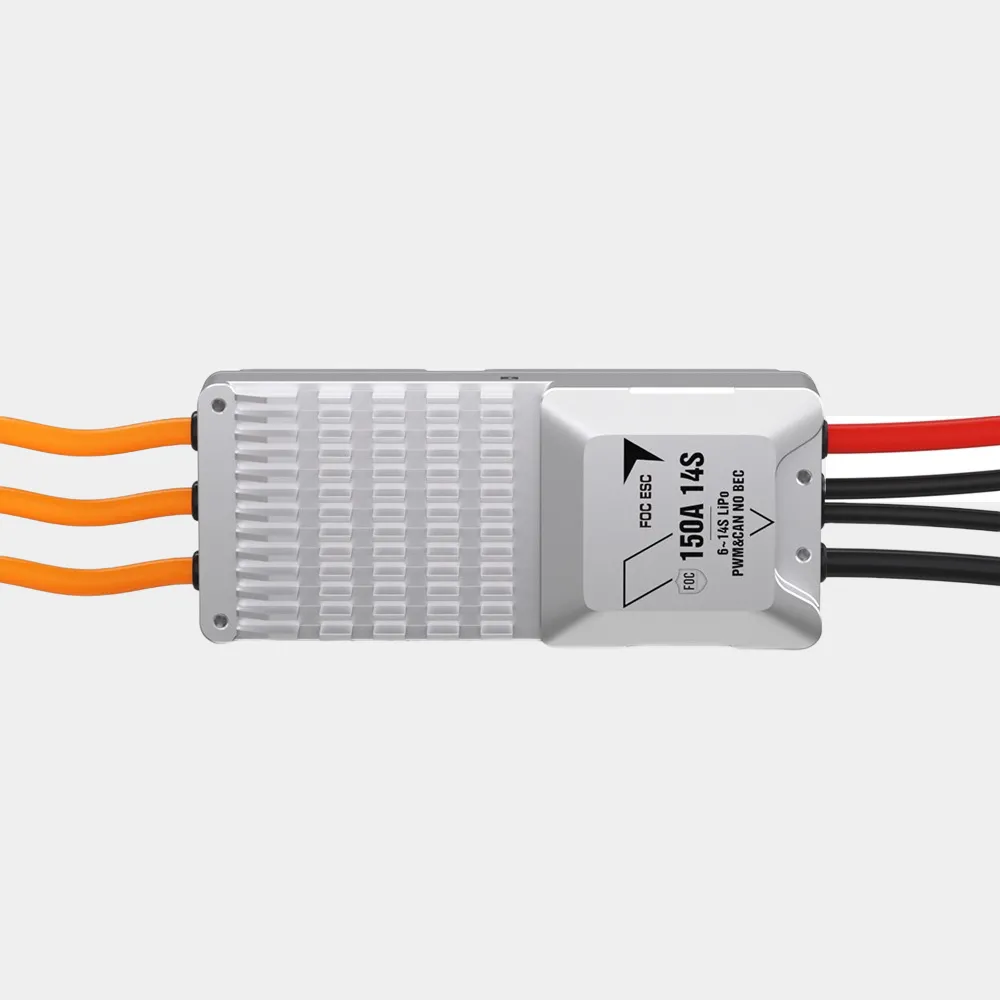

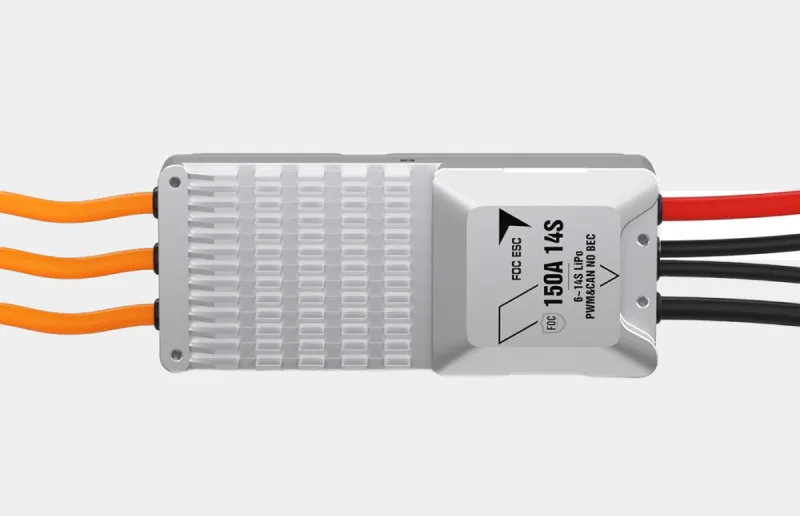

V150A 14S FOC ESC for UAV Power Systems
Field-Oriented Control for UAV Propulsion
The T-Motor V150A 14S is a FOC electronic speed controller for UAV propulsion systems. It supports 18–60V input, equivalent to 6–14S LiPo batteries, with a stated 70A continuous current and 160A peak current for less than 10 seconds. The motor, battery, propeller, cooling conditions and installation environment should be evaluated together before operation.

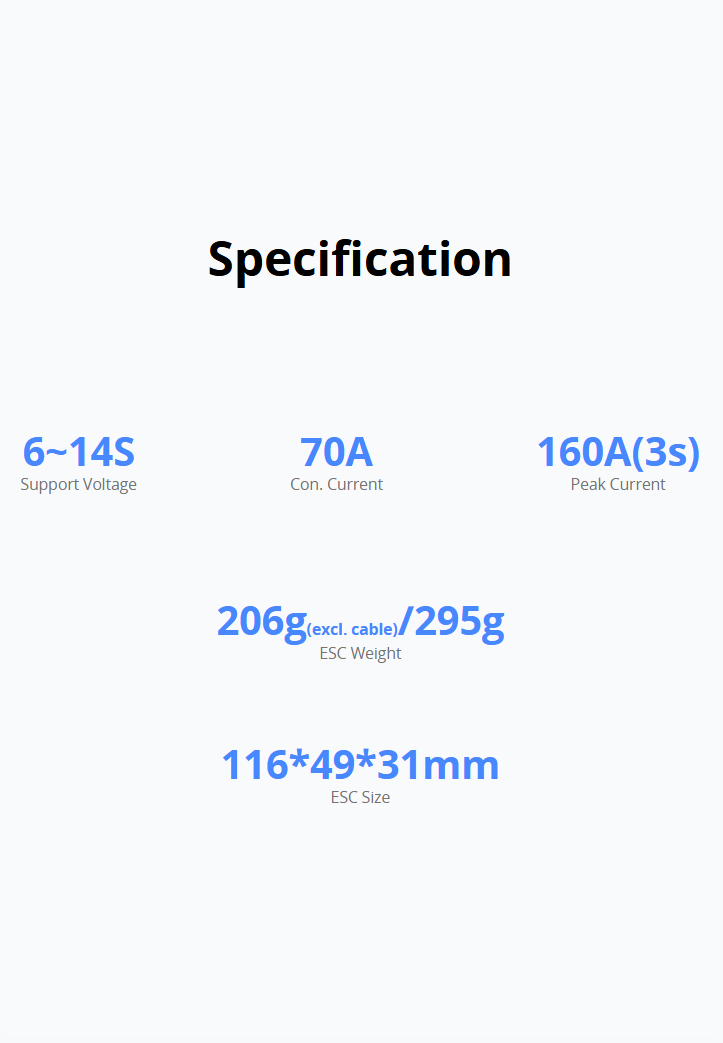

Core Technical Parameters
· Product Type: Field-Oriented Control Electronic Speed Controller
· Model: V150A 14S
· Support Voltage: 18–60V / 6–14S LiPo
· Continuous Current: 70A
· Peak Current: 160A for less than 10 seconds
· Weight: 295g including cables
· Weight Without Cables: 206g

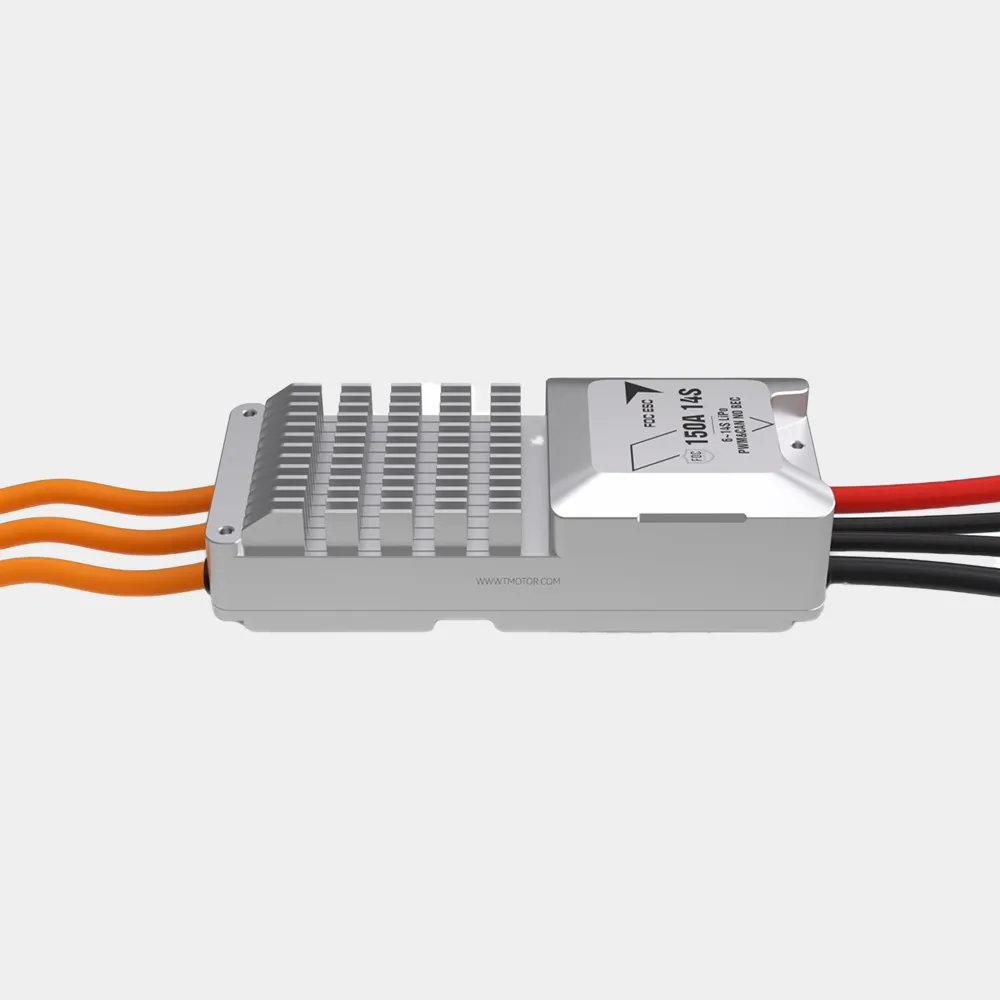

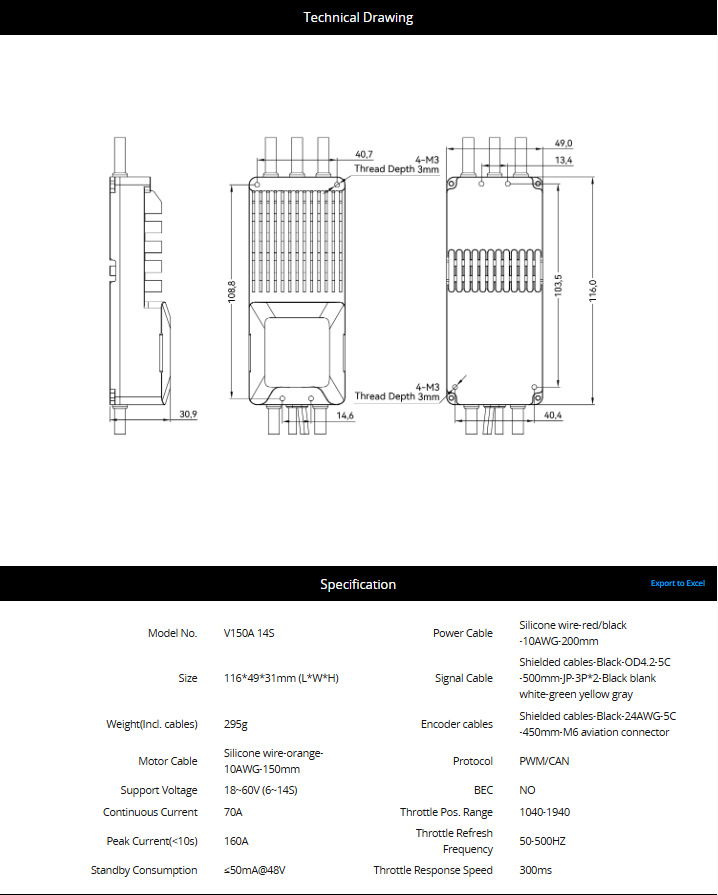

· Dimensions: 116 × 49 × 31mm

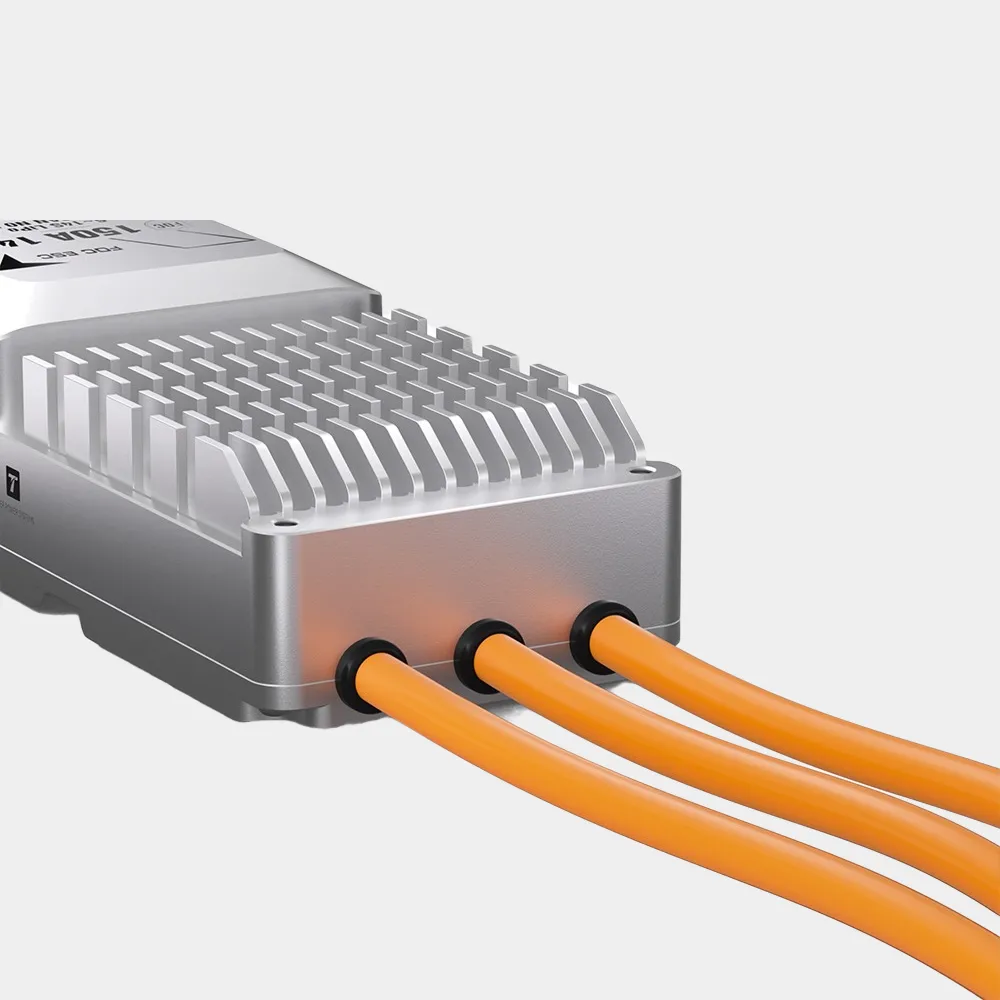

· Motor Cable: Silicone wire, orange, 10AWG, 150mm

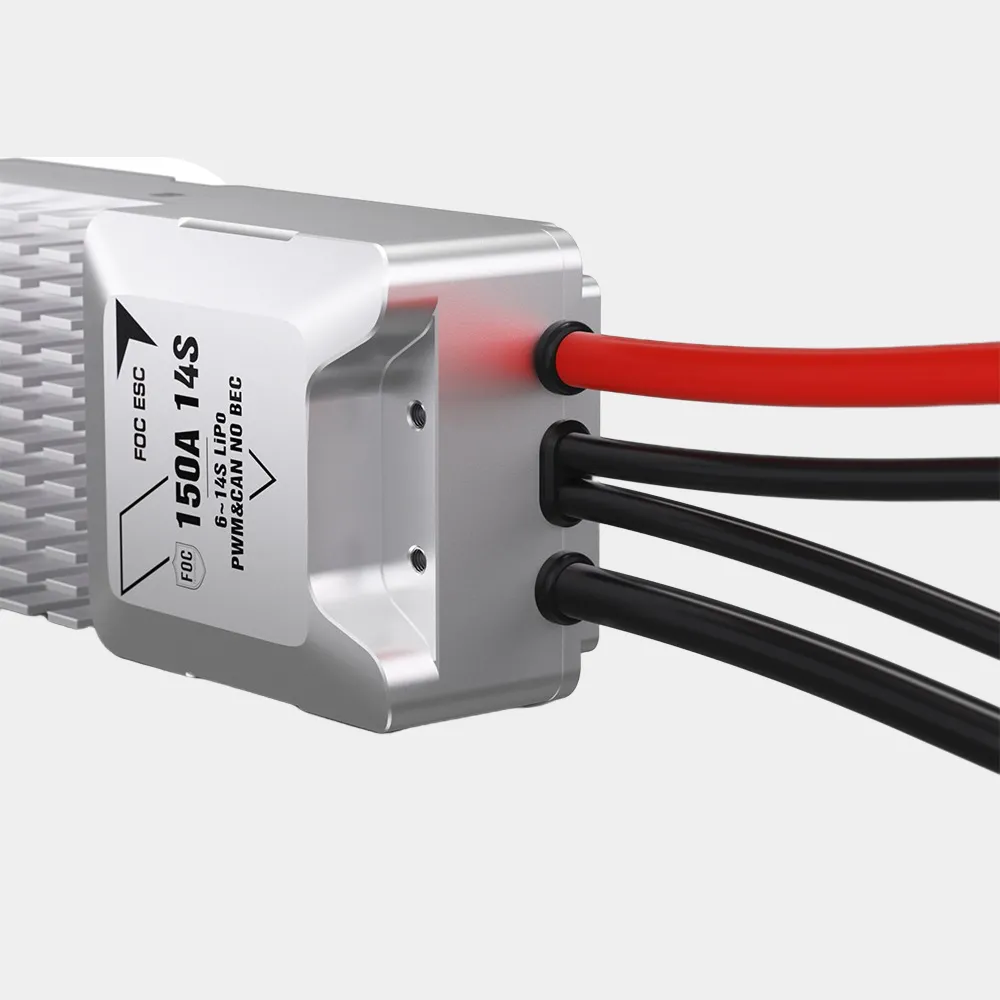

· Power Cable: Silicone wire, red/black, 10AWG, 200mm
· Protocol: PWM/CAN
· BEC: No
· Throttle Position Range: 1040–1940
· Throttle Refresh Frequency: 50–500Hz
· Standby Consumption: ≤50mA at 48V
· Throttle Response Speed: 300ms
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
V150A 14S Core Specifications
· FOC electronic speed controller
· 6–14S LiPo support
· 70A continuous current
· 160A peak current for less than 10 seconds
· PWM/CAN protocol support
· No BEC output
· Dimensions: 116 × 49 × 31mm
· Weight: 295g including cables
· Throttle position range: 1040–1940
· Throttle refresh frequency: 50–500Hz

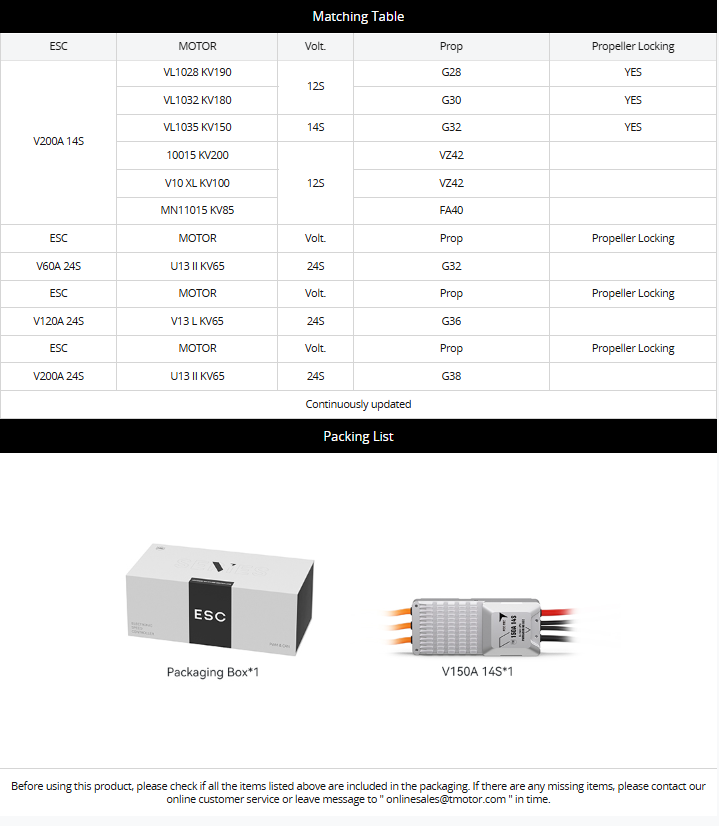

Packaging and Shipping
· Product: T-Motor V150A 14S ESC
· Package contents: One V150A 14S ESC and one packaging box
· Product weight: 295g including cables
· Power cable: 10AWG, 200mm
· Motor cable: 10AWG, 150mm
· Signal cable and encoder cable: Included according to the product specification
· Packaging configuration: Confirm before shipment
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important V150A 14S ESC Installation Notice
· Confirm that the input voltage is within the specified 18–60V / 6–14S LiPo range.

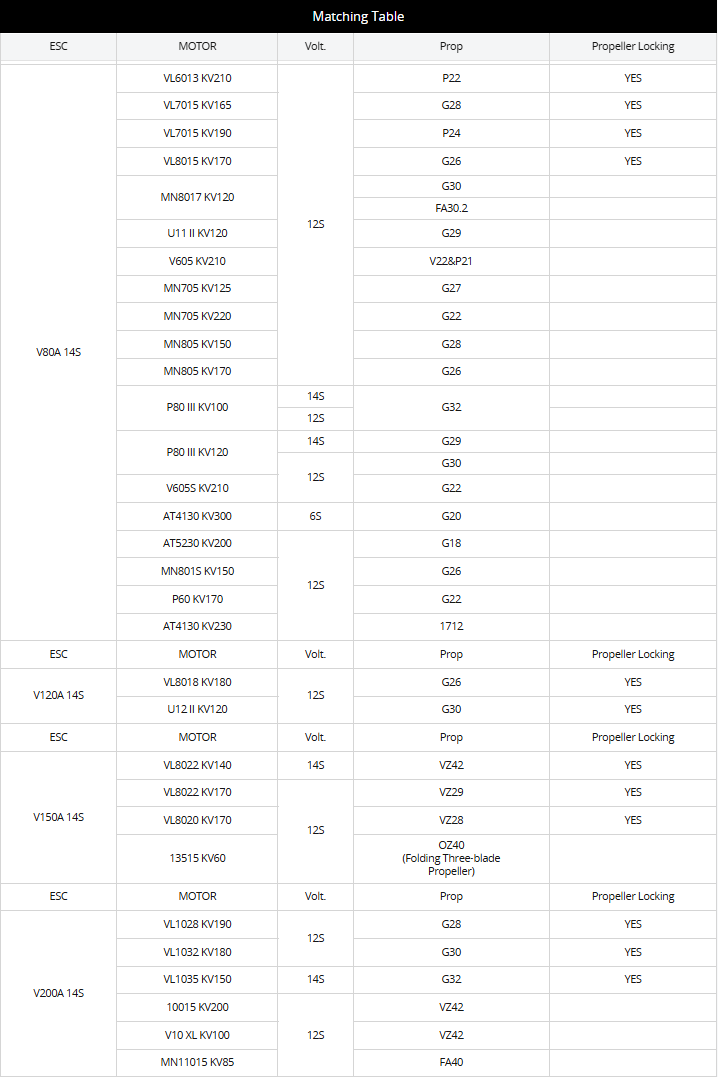

· Confirm compatibility between the ESC, motor, battery, propeller and wiring before operation.
· This ESC has no BEC output; provide a suitable external power supply for the flight controller and other electronics.
· Confirm whether PWM or CAN control is required for the flight-control system.
· Check the 1040–1940 throttle position range and complete throttle calibration before operation.
· Confirm signal cable, encoder cable and aviation connector compatibility before installation.
· Keep the propeller removed during calibration and initial bench testing.
· Ensure adequate cooling and secure mounting for high-current UAV propulsion operation.
