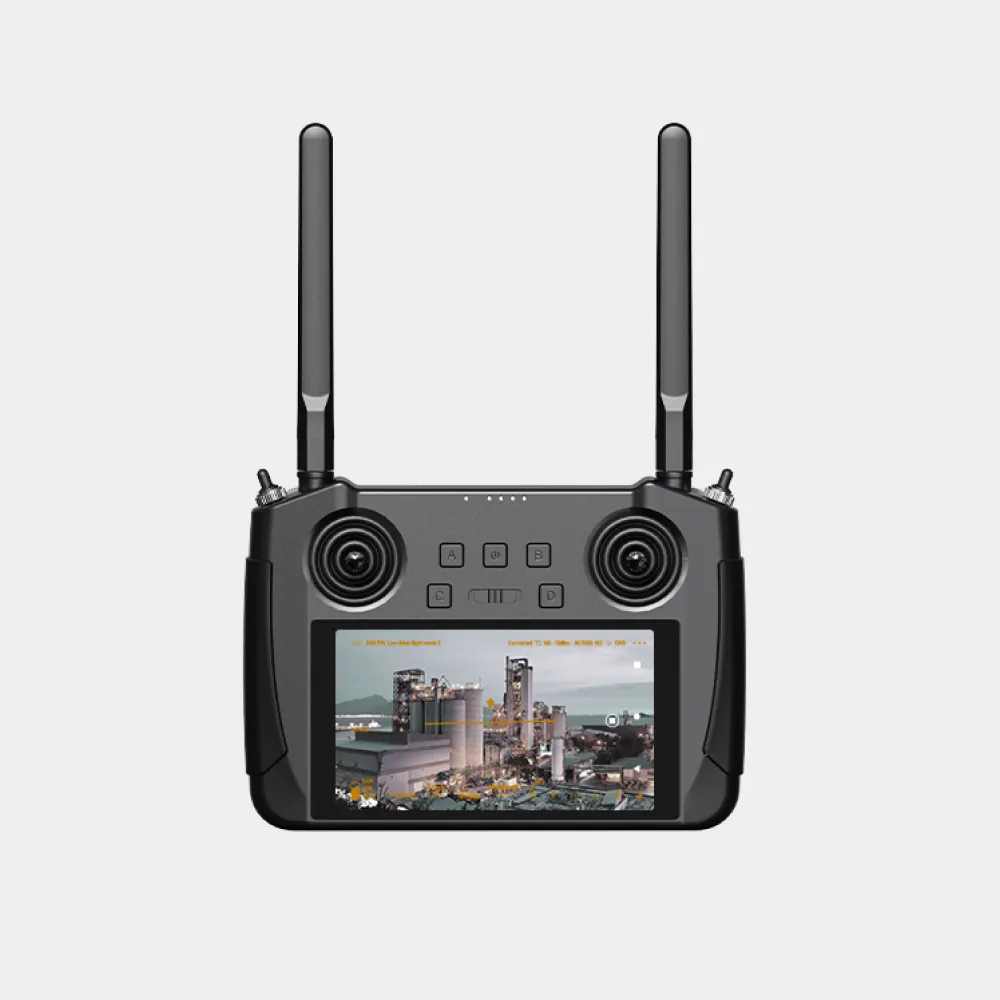

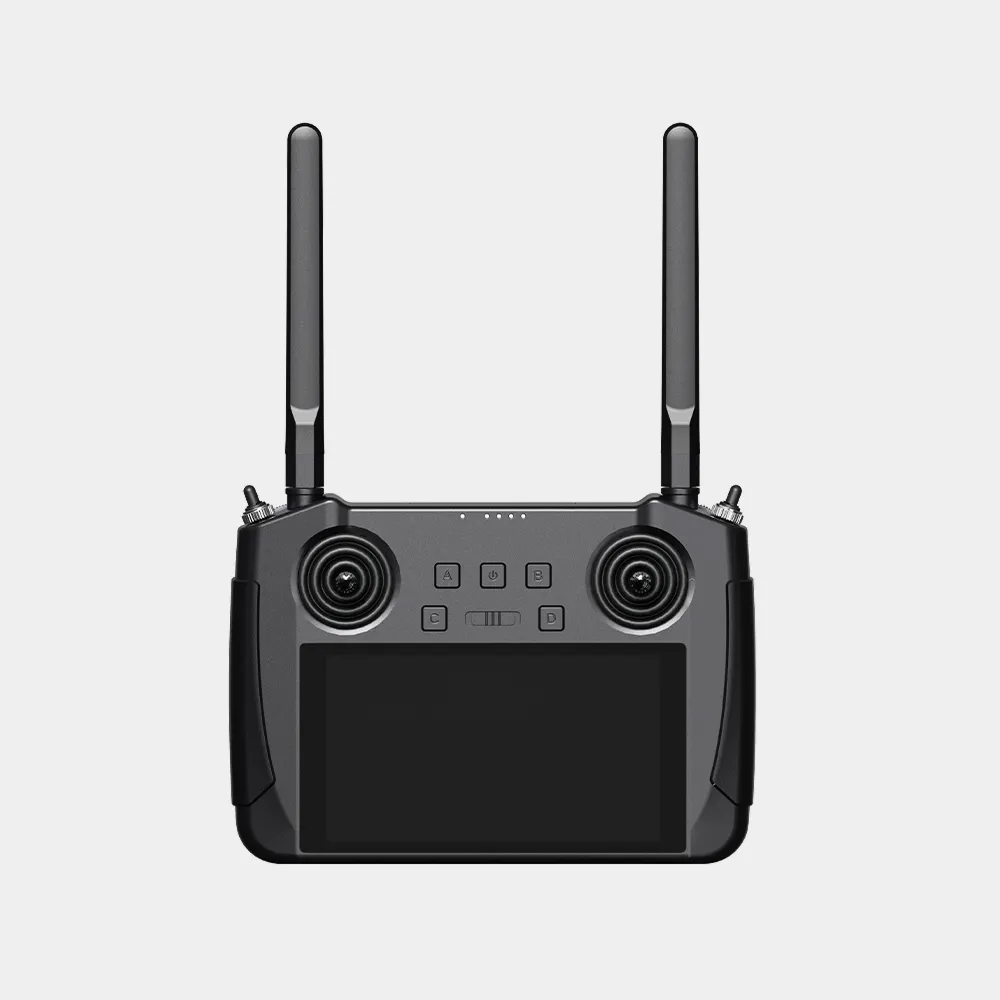

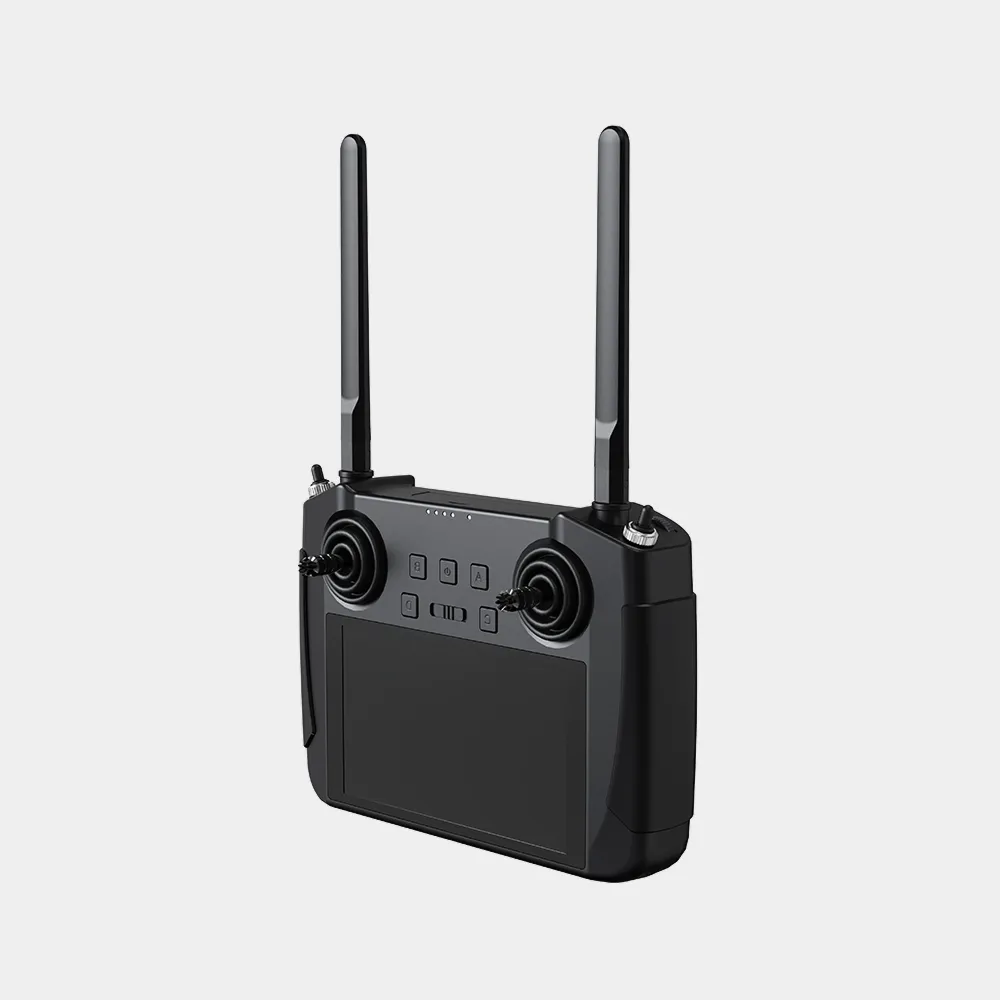

SIYI MK15 is an enterprise mini handheld ground station designed for UAV remote control, telemetry and real-time HD video transmission. It integrates a ground control unit, high-definition monitor and wireless communication functions into a compact handheld platform.
The MK15 supports dual 1080p digital image transmission with a listed range of up to 15 km using standard omni-directional antennas and up to 30 km with directional antennas under unobstructed and interference-free conditions. Its built-in 5.5-inch high-definition monitor provides up to 1000 nits of brightness for outdoor operation.
Powered by a Qualcomm 8-core CPU and Android OS, the ground station supports 1080p 60 fps video decoding in H.264 or H.265 formats, 4G cellular networking and compatible ground-control software. Optional dual-operator and remote-control relay functions are available with the corresponding dual combo.
Enterprise UAV Ground Station
For Remote Control, Telemetry and HD Video
Enterprise UAV Ground Control System
Long-Range HD UAV Communication

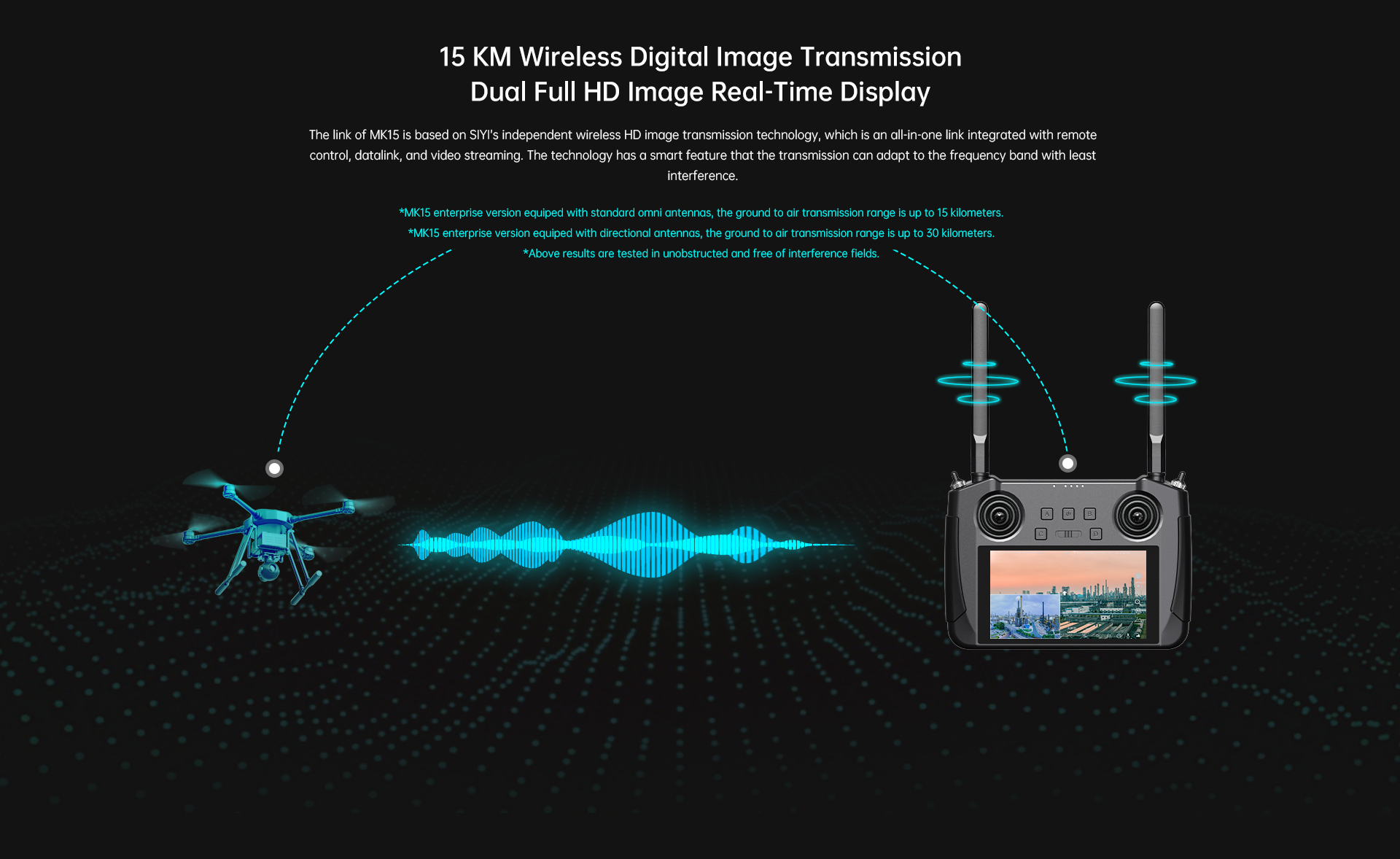

SIYI MK15 combines remote control, datalink communication and dual-channel HD image transmission in one enterprise UAV ground station. The listed range reaches up to 15 km with standard omni-directional antennas and up to 30 km with directional antennas under suitable conditions. This makes the system suitable for professional UAV operation, inspection, delivery and other remote-control applications supported by the selected aircraft configuration.
Android Ground Control Platform

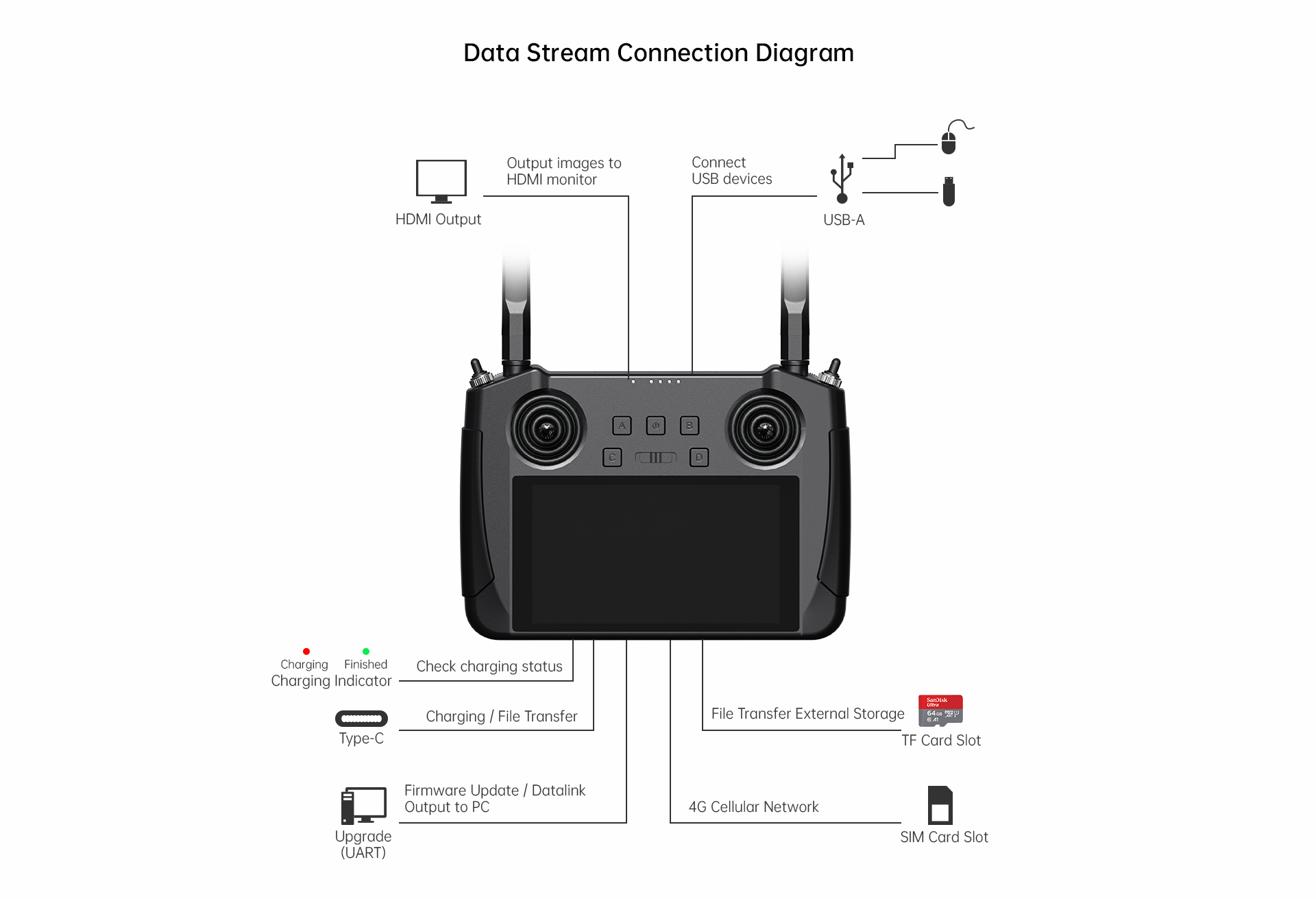

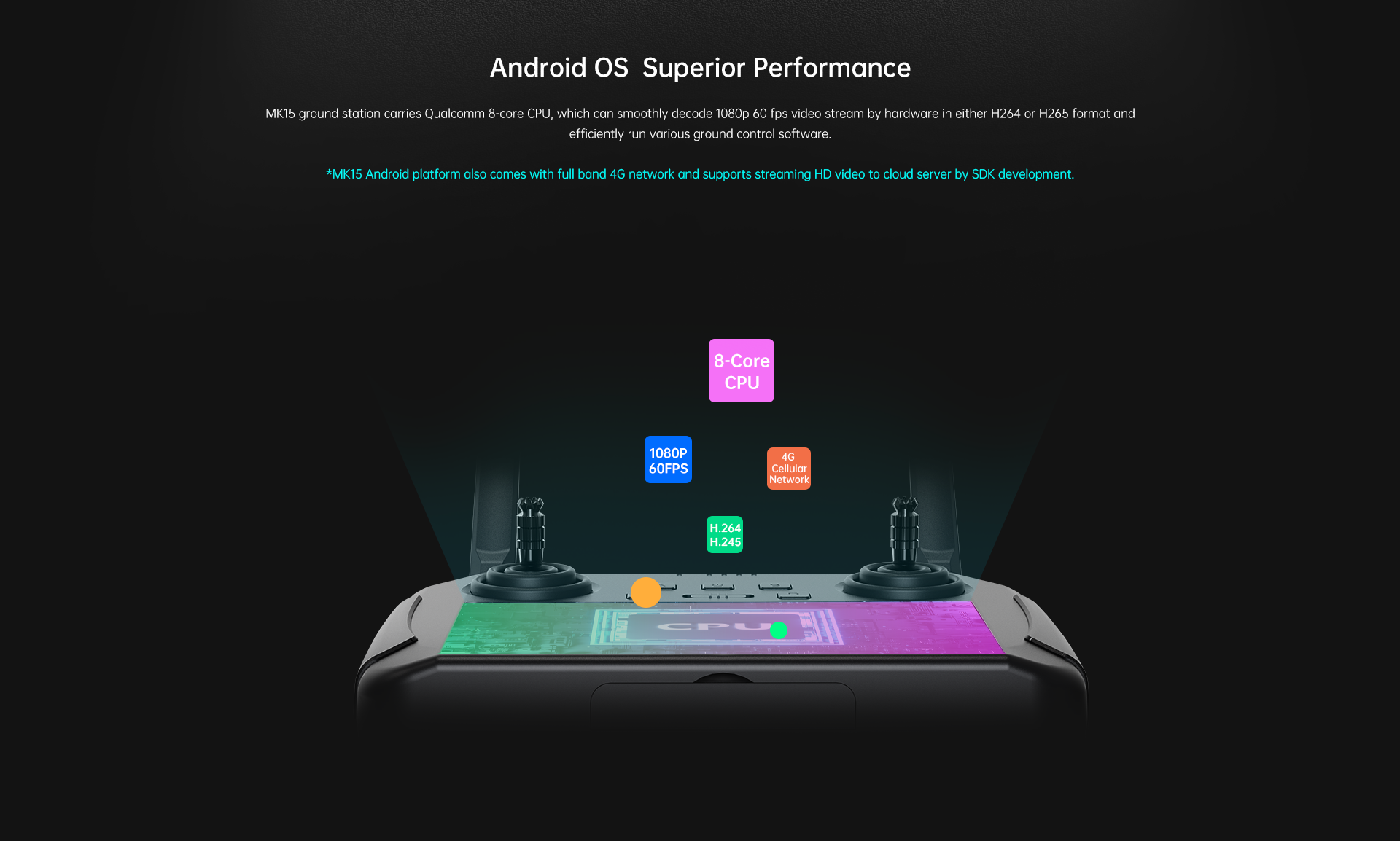

The MK15 ground station uses a Qualcomm 8-core CPU and Android operating system to support 1080p 60 fps video decoding in H.264 and H.265 formats. Its 5.5-inch 1000-nit display shows flight-control software, telemetry data and high-quality video in outdoor environments. The 4G cellular network and USB, HDMI, Type-C, TF card and SIM card interfaces support flexible system integration.
Technical Parameters
· Product Type: Enterprise mini handheld UAV ground station
· Transmission Range: Up to 15 km with standard omni-directional antennas
· Extended Range: Up to 30 km with directional antennas
· Image Transmission: Dual 1080p digital image transmission

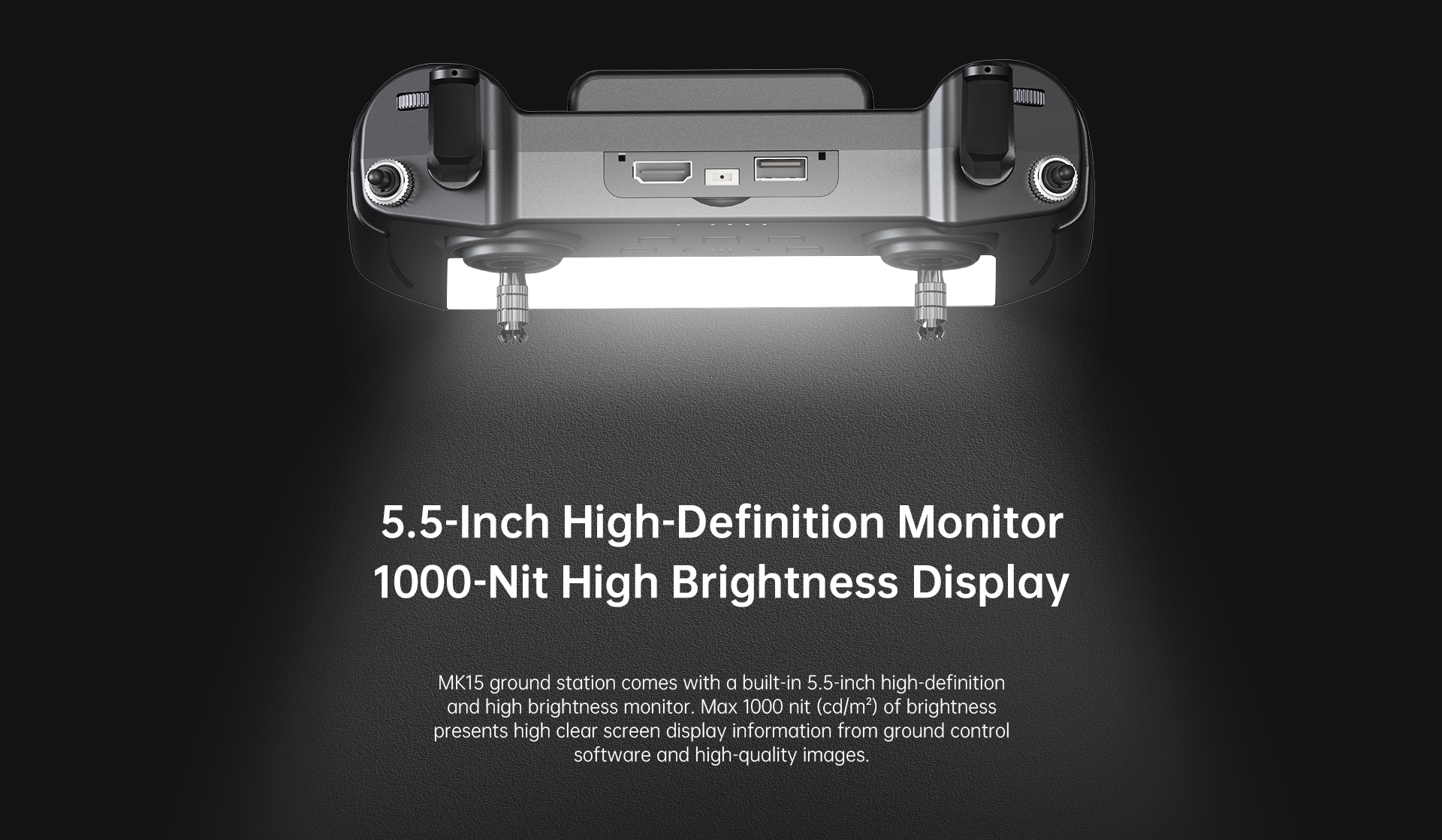

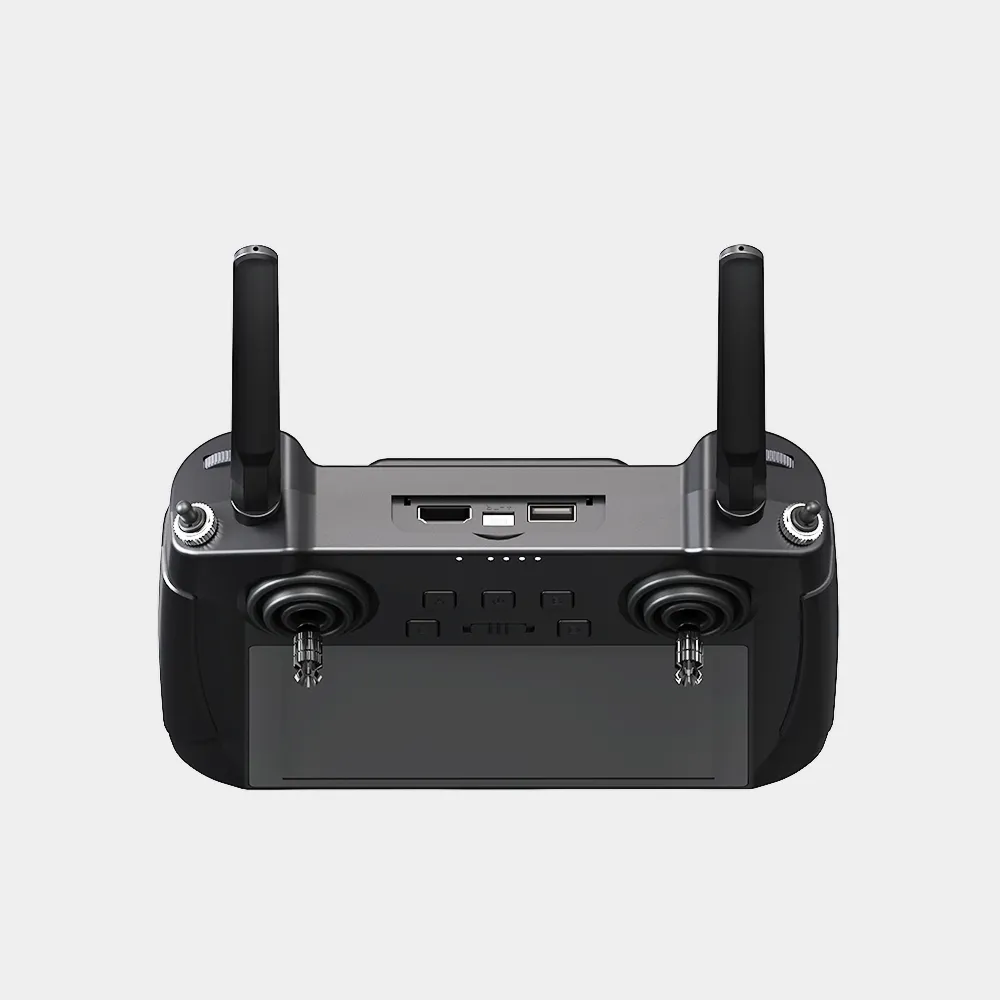

· Display: 5.5-inch high-definition monitor
· Display Brightness: Up to 1000 nits
· Processor: Qualcomm 8-core CPU
· Video Decoding: 1080p at 60 fps
· Video Codec: H.264 and H.265
· Operating System: Android
· Cellular Network: 4G

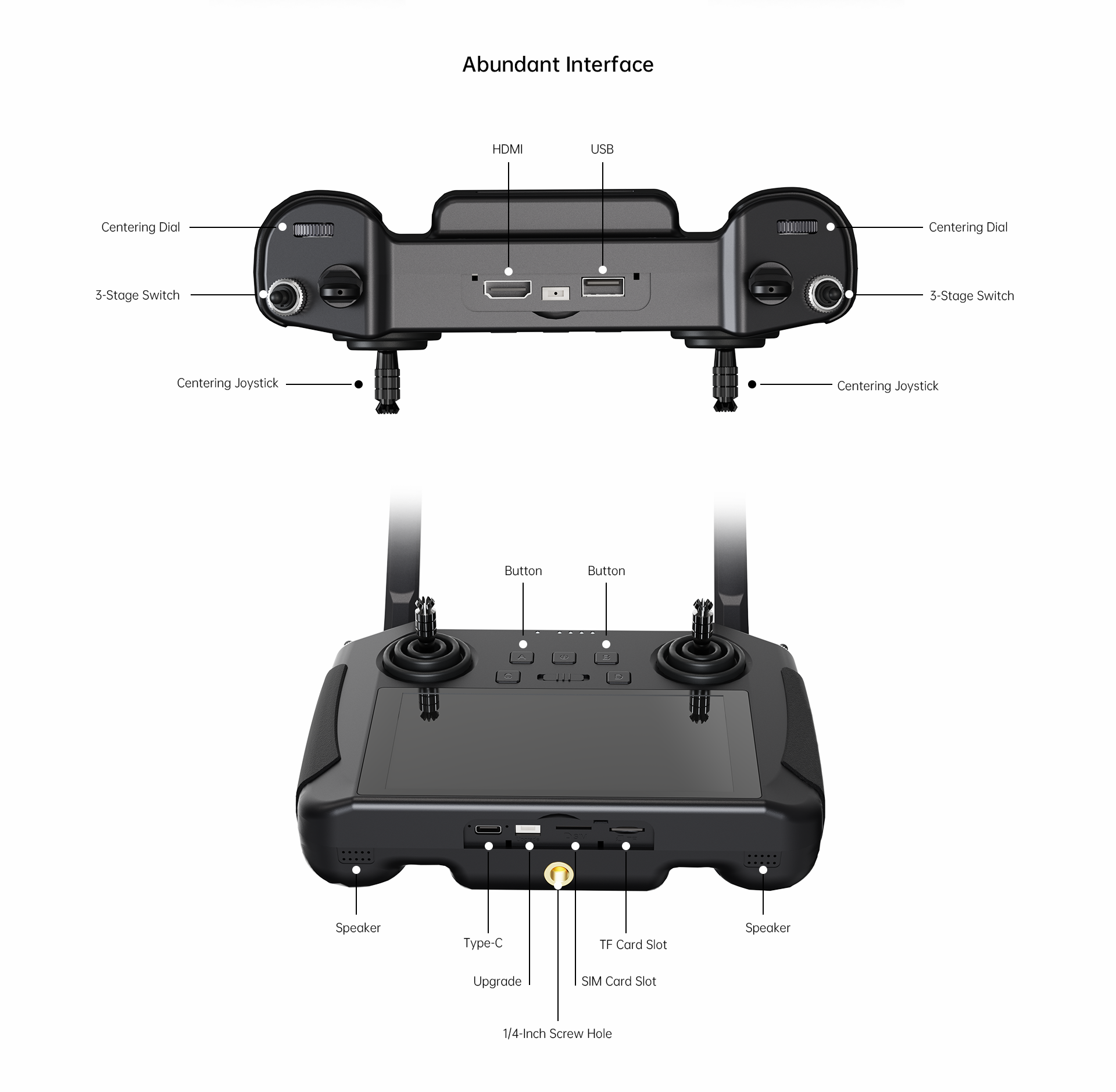

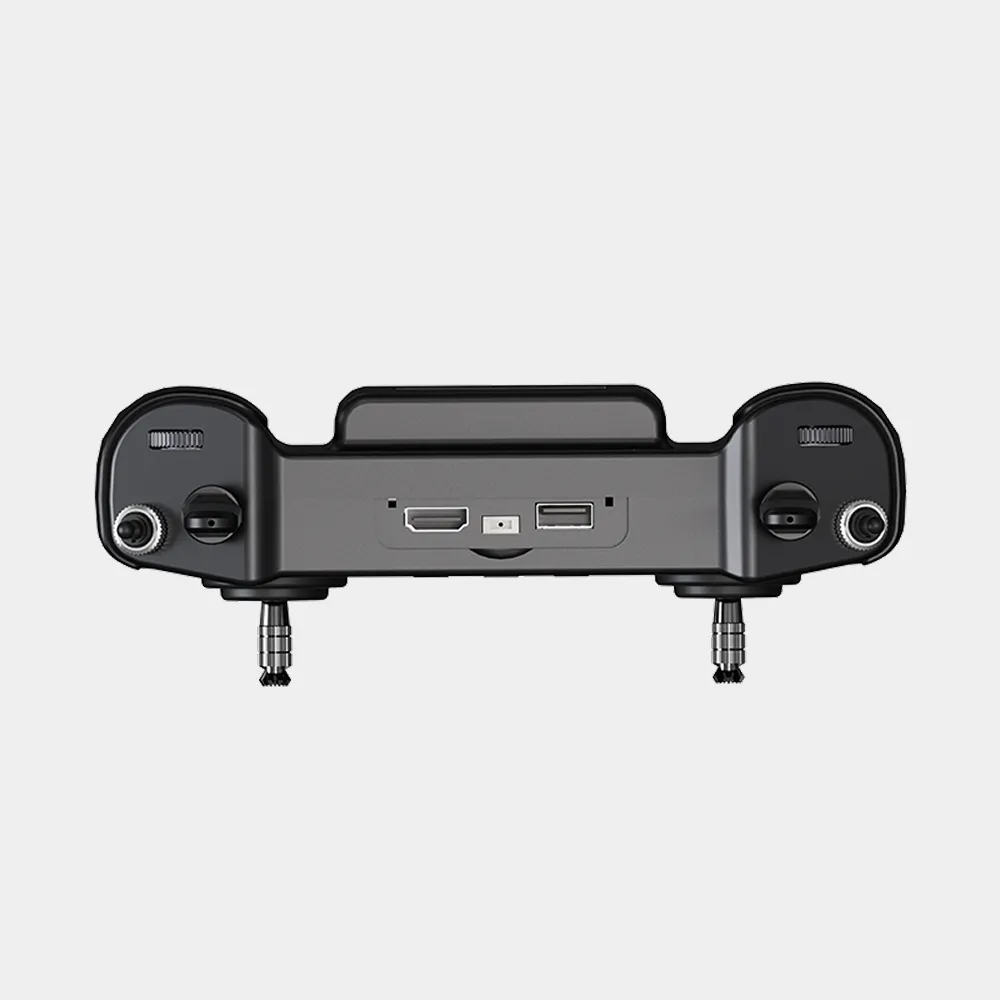

· Interfaces: HDMI, USB-A, USB Type-C, TF card slot and SIM card slot
· Power Input: 25.2–58.8 V through 6S–14S BEC
· Optional Function: Dual-operator control and remote-control relay
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Professional UAV Ground Control Features
· Enterprise mini handheld ground station
· Dual 1080p digital image transmission
· Up to 15 km with standard omni-directional antennas
· Up to 30 km with directional antennas
· 5.5-inch high-definition display
· Up to 1000 nits outdoor brightness
· Qualcomm 8-core CPU
· Android operating system
· 1080p 60 fps H.264 and H.265 video decoding
· 4G cellular network support
· HDMI, USB-A, Type-C, TF card and SIM card interfaces
· Dual-operator control and remote-control relay available with selected combos
Combo Options

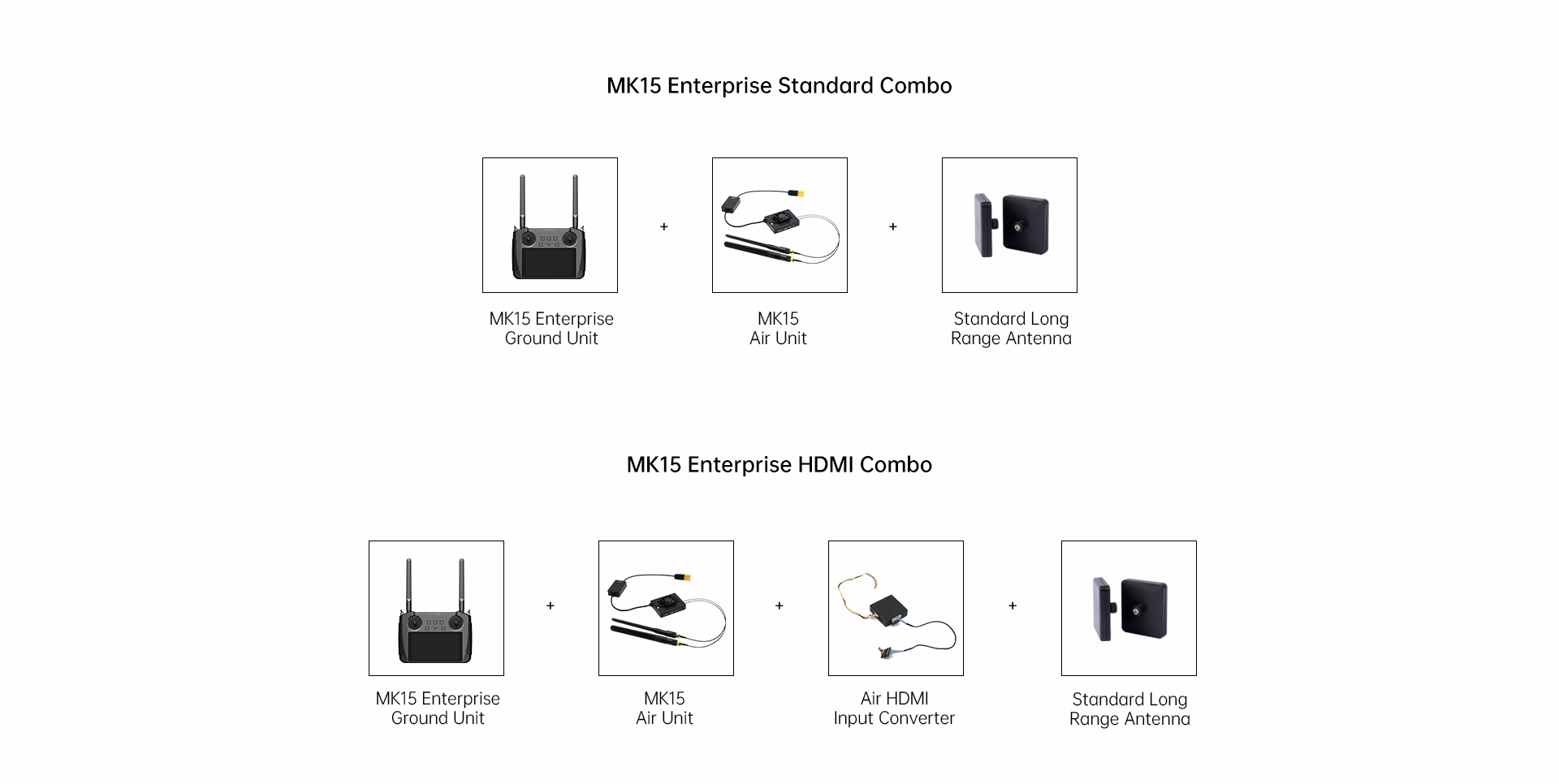

· Enterprise Standard Combo: MK15 Enterprise ground unit, MK15 air unit and standard long-range antenna
· Enterprise HDMI Combo: MK15 Enterprise ground unit, MK15 air unit, air HDMI input converter and standard long-range antenna

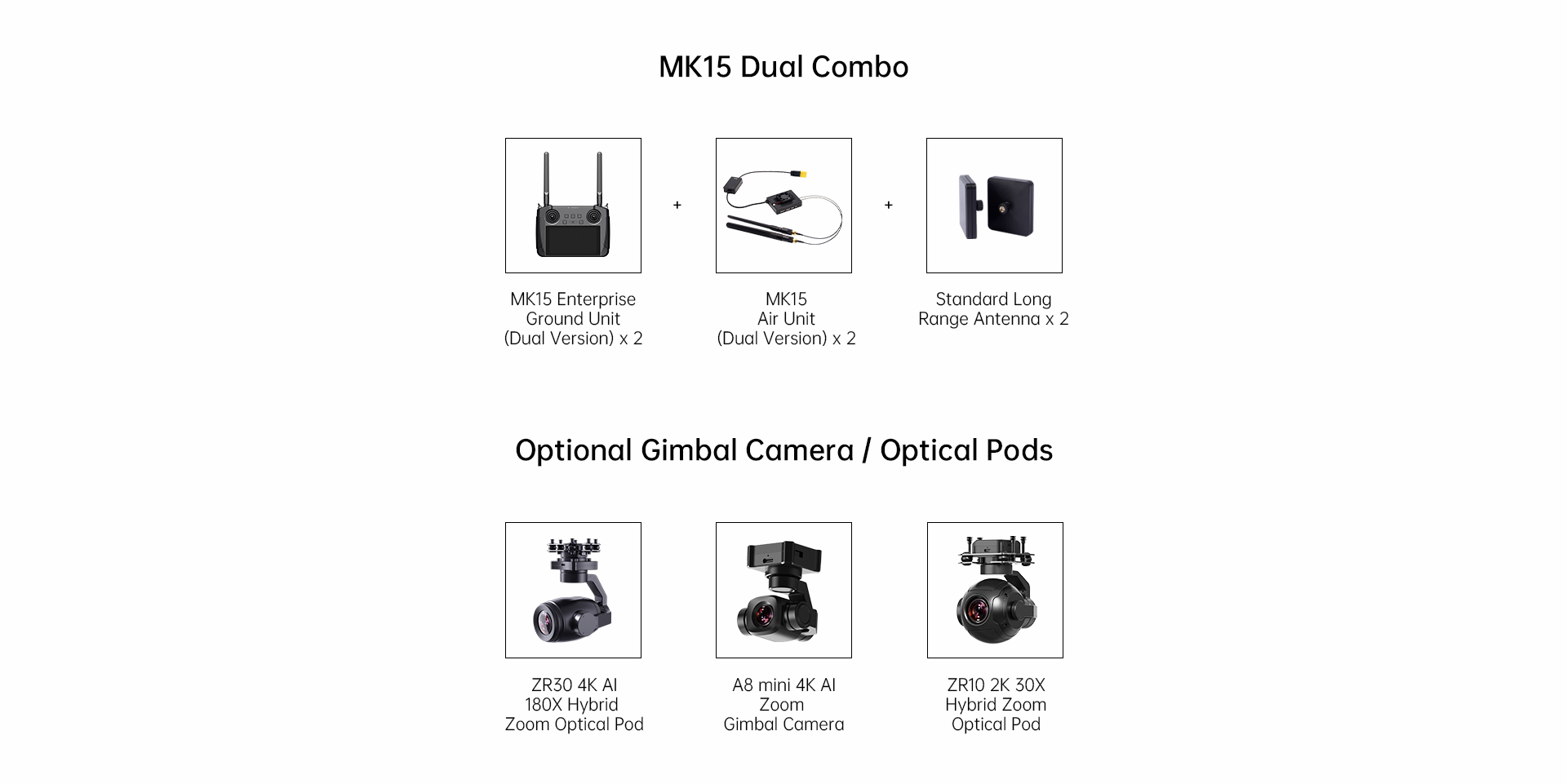

· Dual Combo: Two MK15 Enterprise ground units, two dual-version MK15 air units and two standard long-range antennas
· Optional gimbal cameras and optical pods may include ZR30, A8 mini, ZR10 and A2 mini

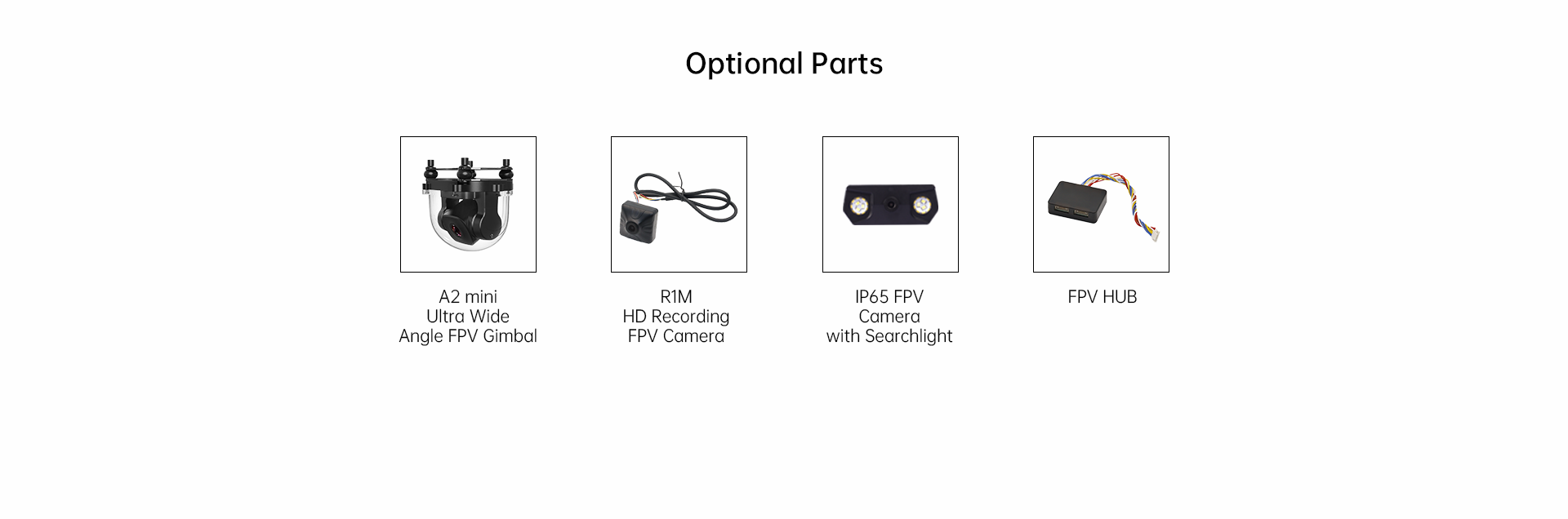

· Optional parts may include R1M HD recording FPV camera, IP65 FPV camera with searchlight and FPV HUB
· Final combo contents should be confirmed before ordering
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Notes
· The listed 30 km transmission range requires directional antennas and suitable unobstructed conditions. Standard omni-directional antennas have a listed range of up to 15 km.

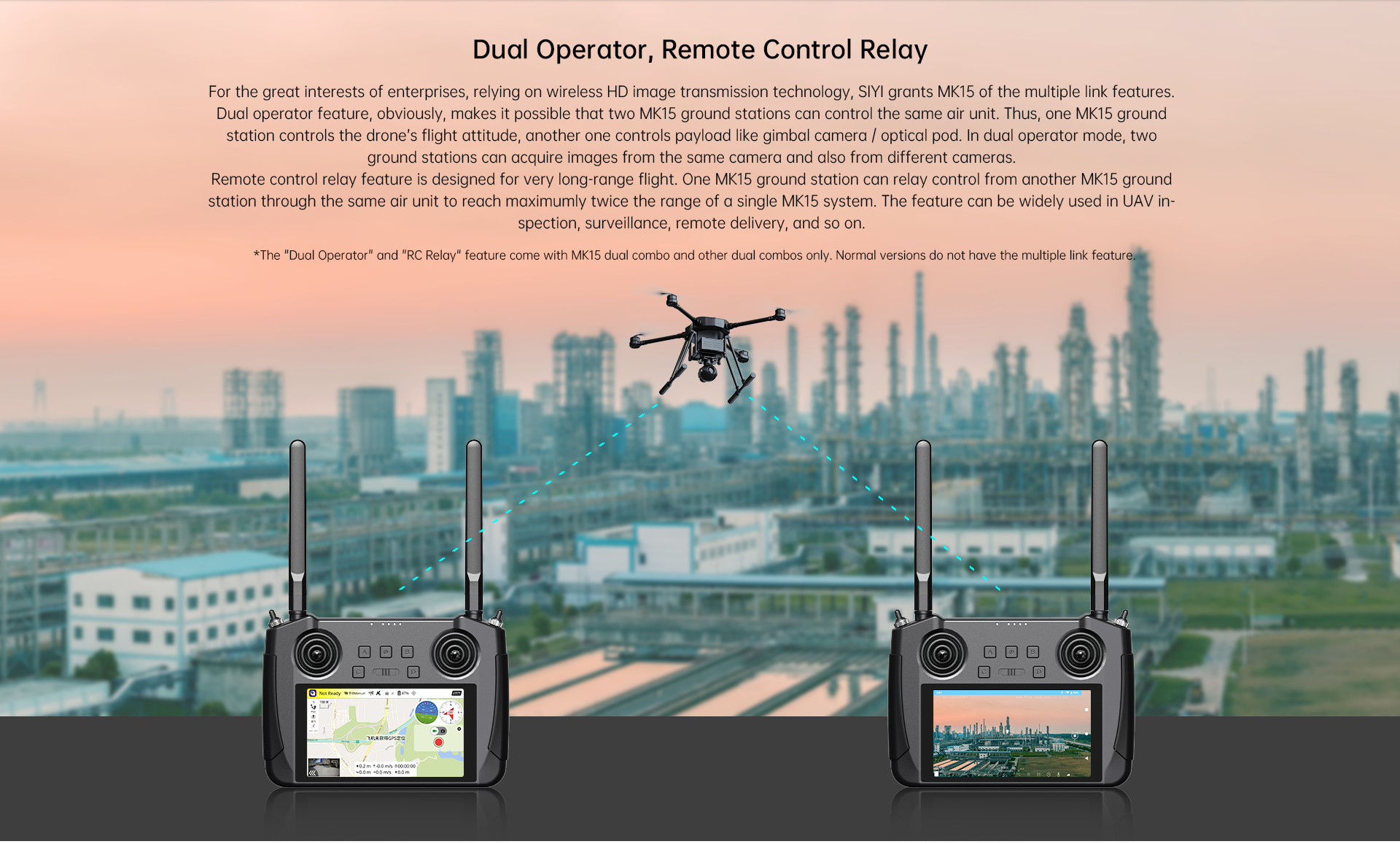

· Dual-operator control and remote-control relay are available only with the corresponding dual combo. Standard versions do not include these functions.
· The MK15 ground station requires compatible air-unit, flight-controller, camera and ground-control software integration.

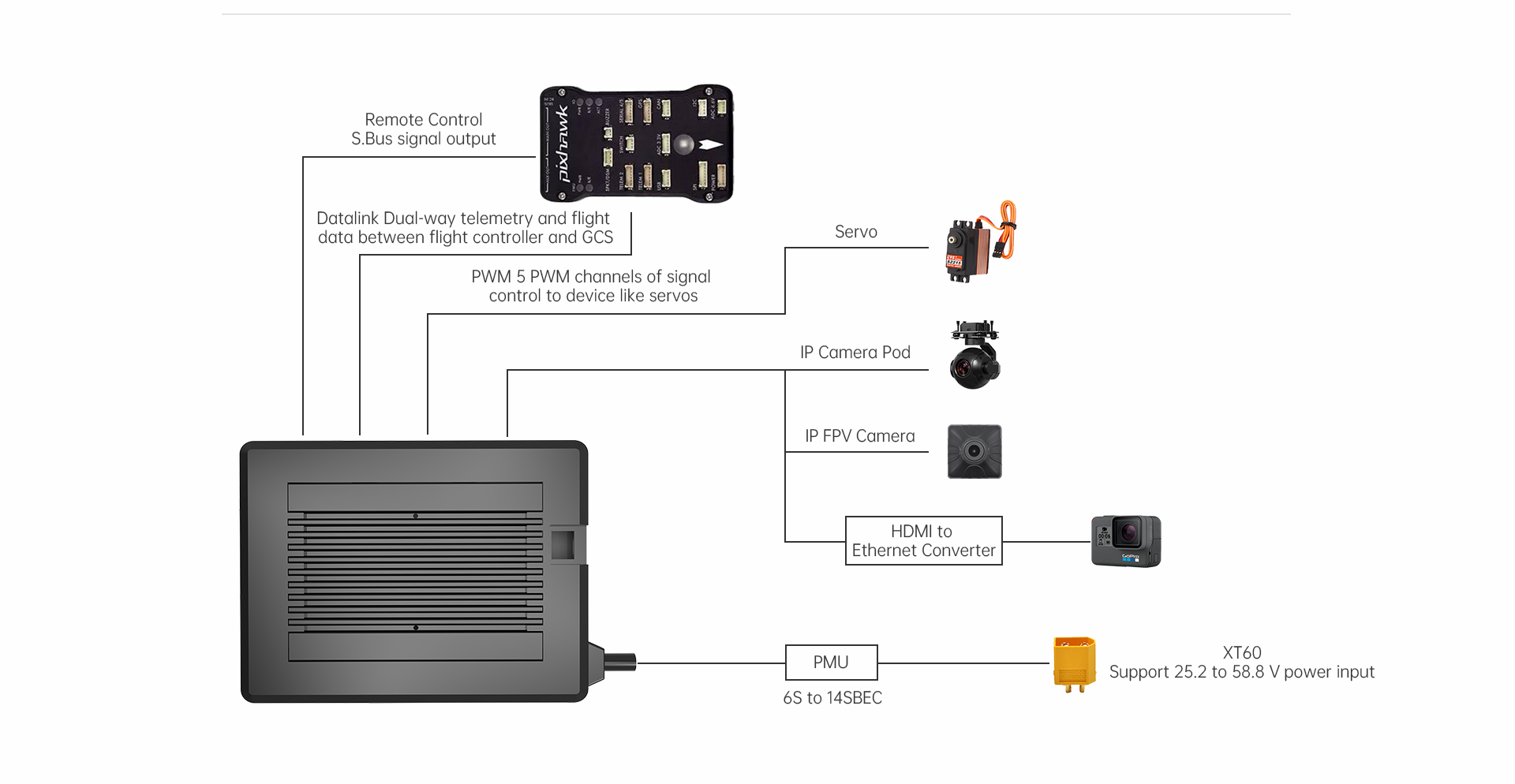

· The 25.2–58.8 V input is shown with a 6S–14S BEC connection. Confirm the aircraft power system and wiring before installation.
· 4G networking, SIM card functions and cloud video streaming may depend on network availability, software support and local service conditions.
· Optical pods, cameras, HDMI converters and other accessories may not be included in the standard combo.
