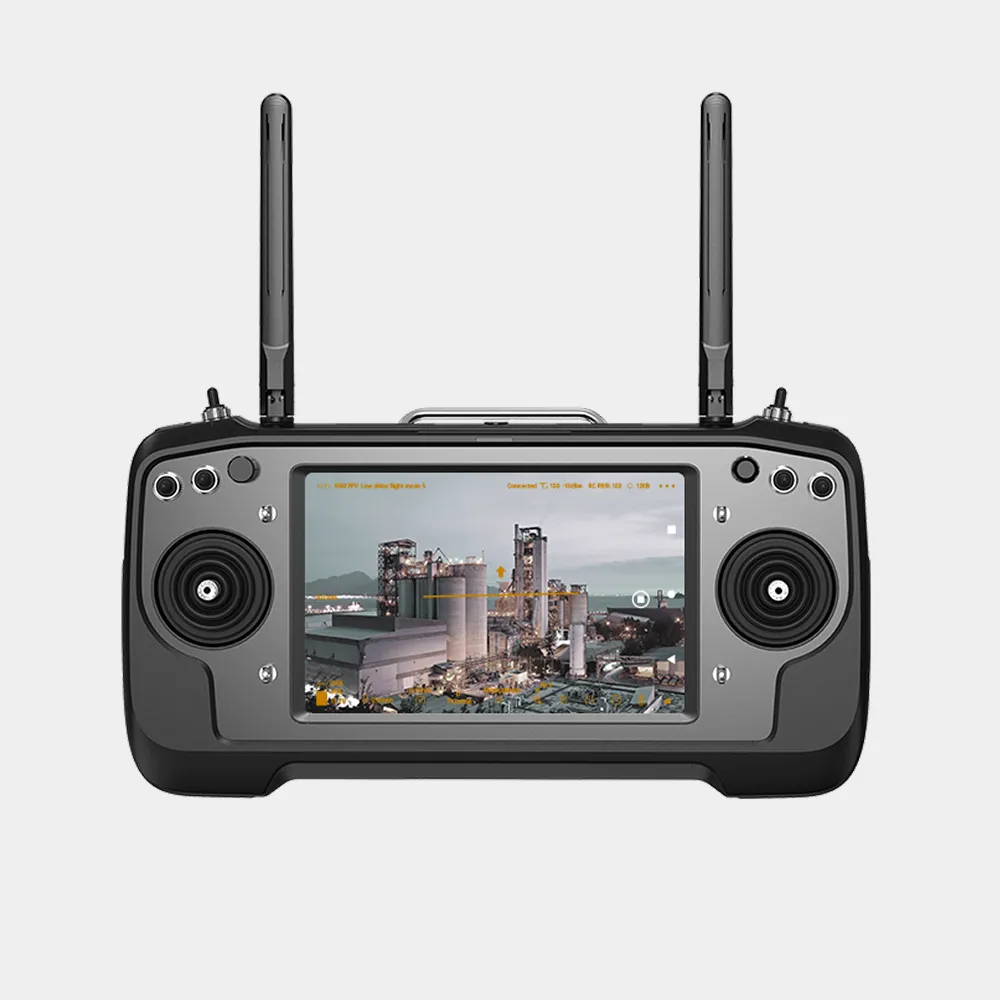

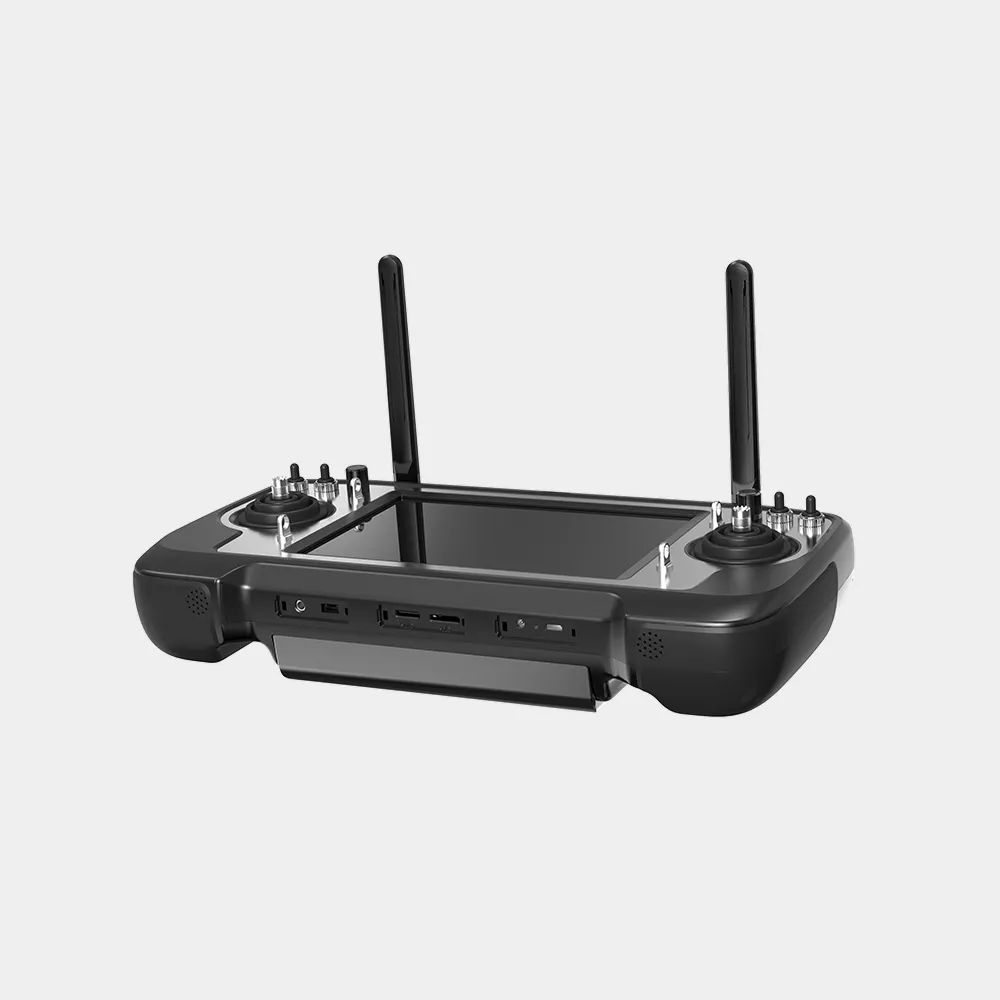

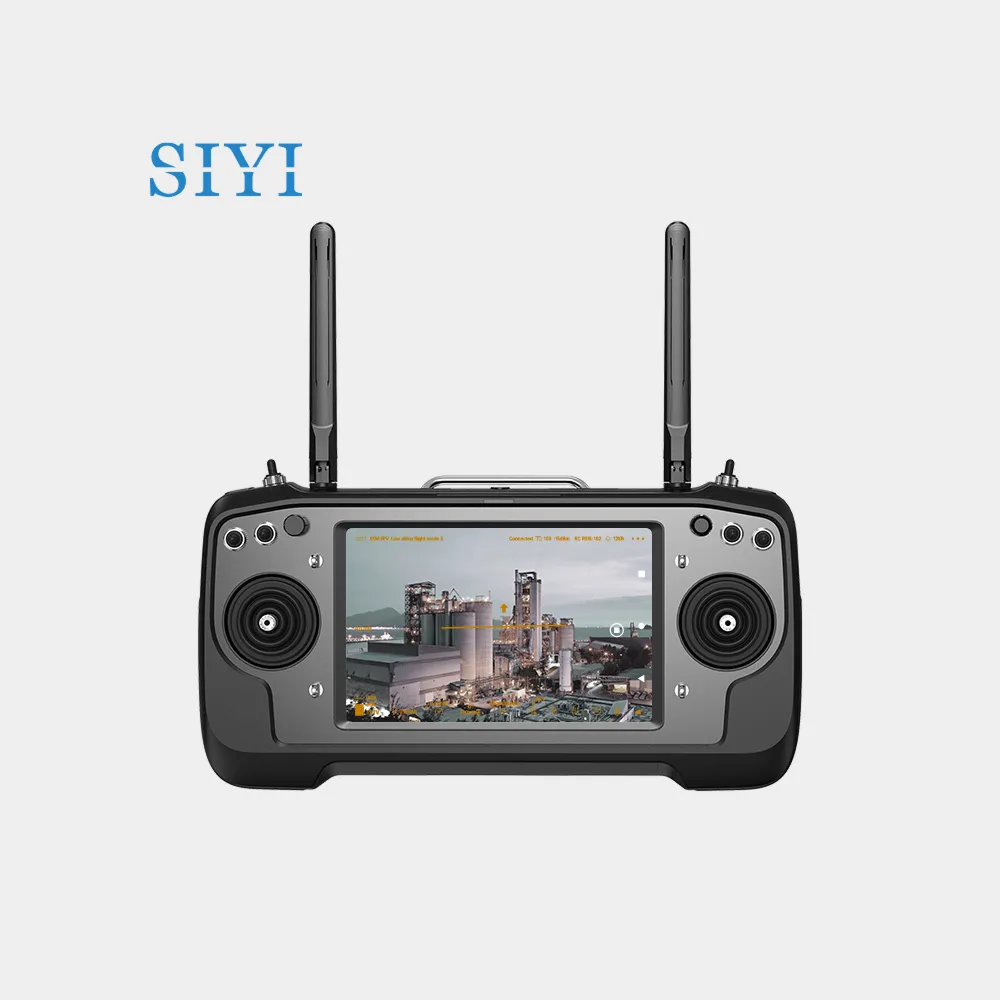

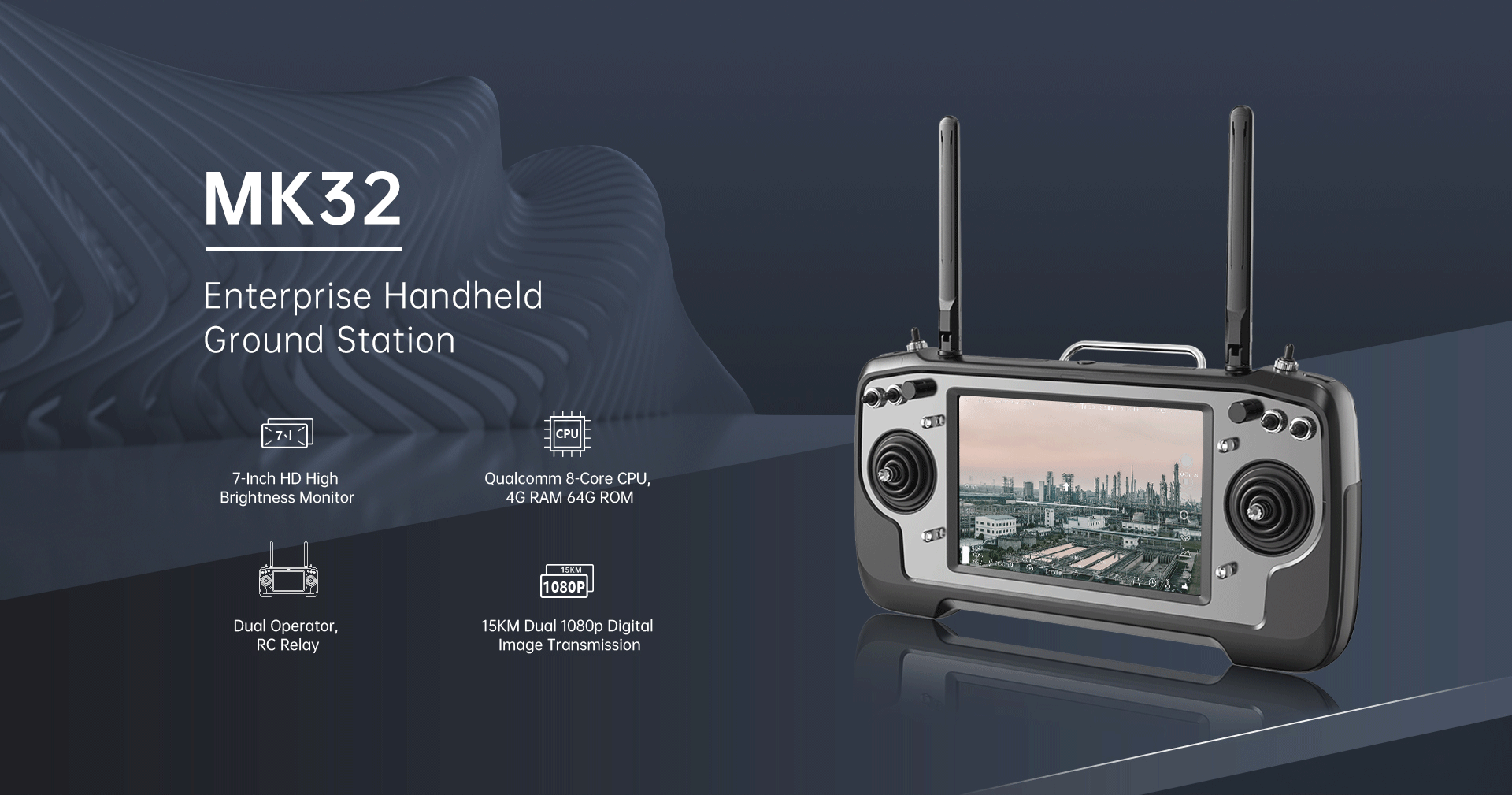

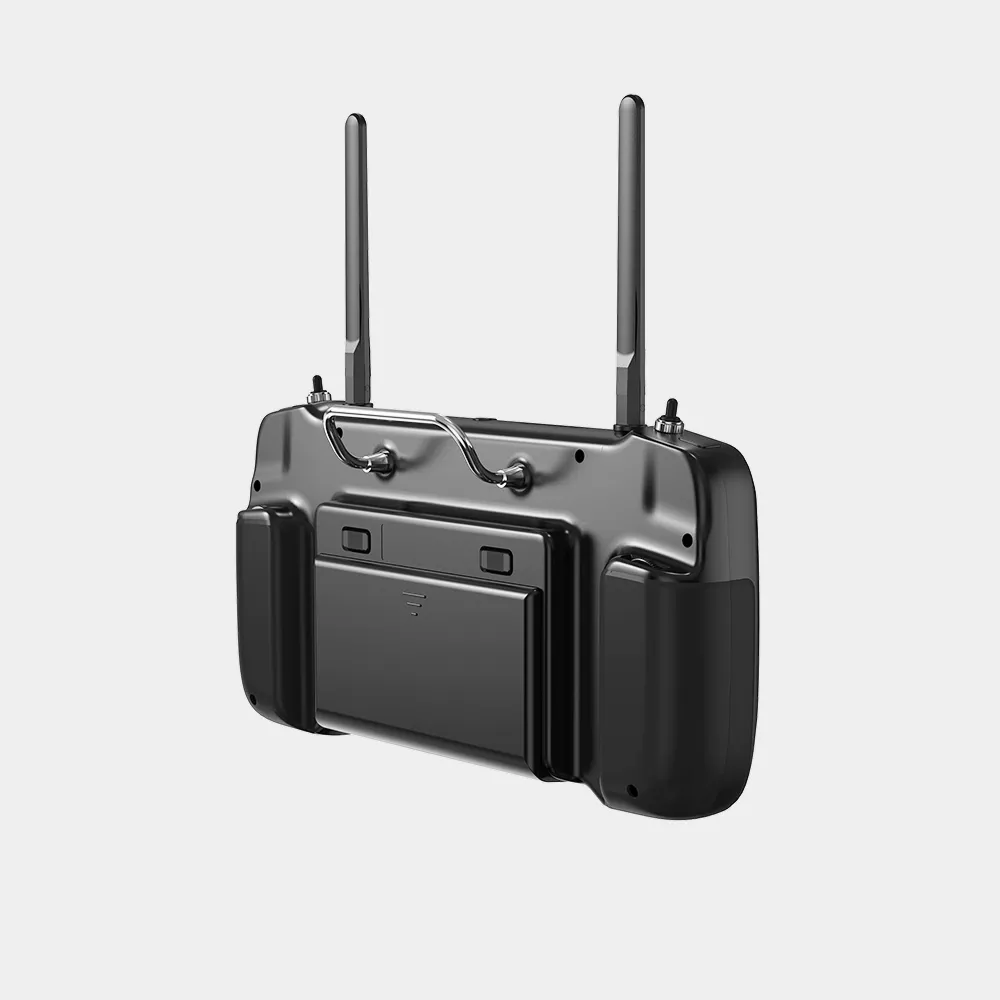

SIYI MK32 is an enterprise handheld ground station designed for professional UAV remote control, telemetry and real-time HD video transmission. It integrates a ground control unit, wireless communication system and large high-brightness display into one portable platform.
The MK32 supports dual 1080p digital image transmission with a listed range of up to 15 km using standard omni-directional antennas and up to 30 km with directional antennas under suitable conditions. Its built-in 7-inch high-definition monitor provides up to 1000 nits of brightness for outdoor operation.
The ground station uses a Qualcomm 8-core CPU with 4G RAM and 64G ROM. Its Android platform supports 1080p 60 fps video decoding in H.264 and H.265 formats, 4G cellular networking and compatible ground-control software. Dual-operator control and remote-control relay functions are available with the MK32 dual combo.
Enterprise UAV Ground Station
For Remote Control, Telemetry and HD Video
Enterprise UAV Ground Control Platform

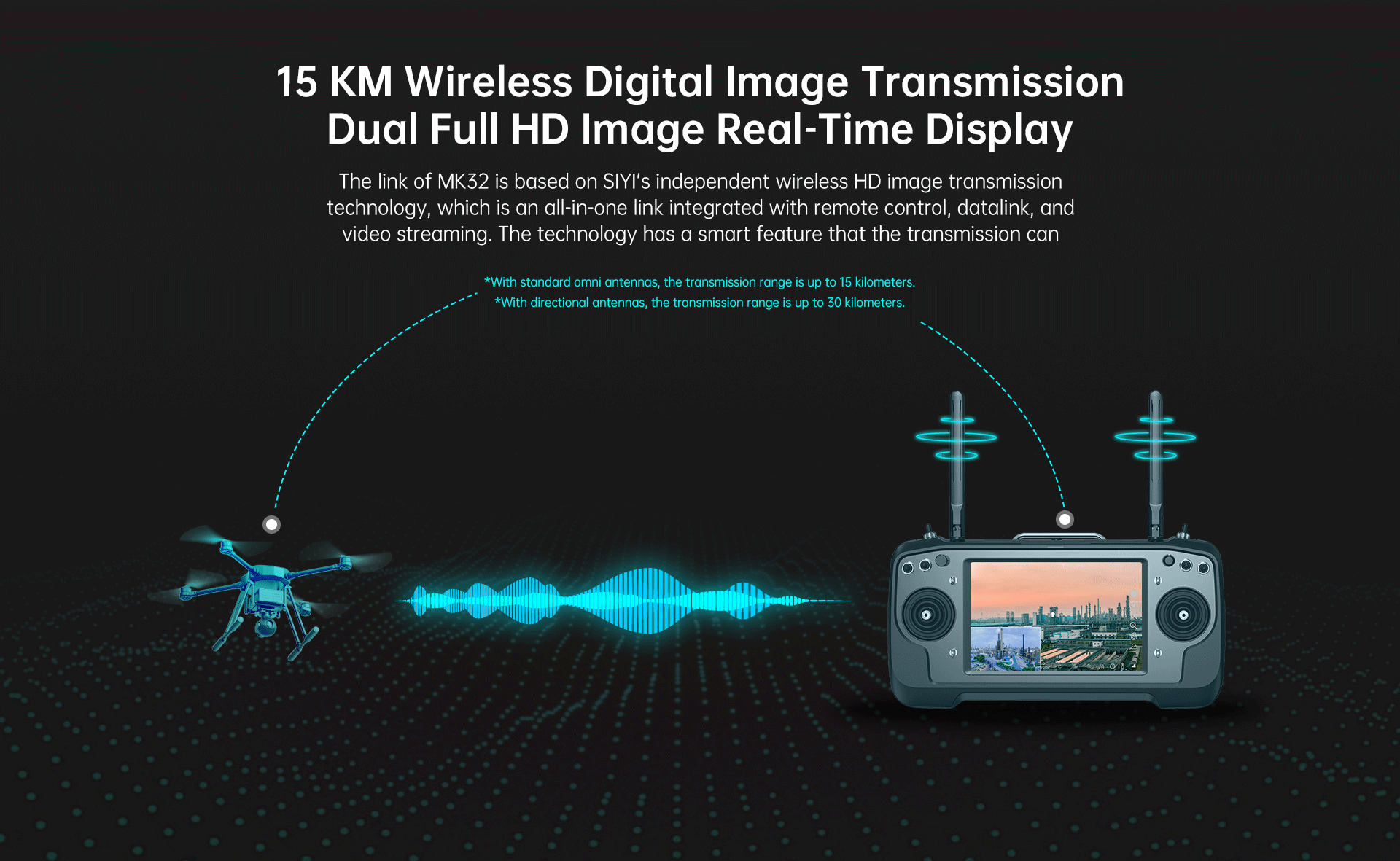

Long-Range Dual HD Image Transmission
SIYI MK32 combines remote control, datalink communication and dual full HD digital image transmission in one enterprise UAV ground station. The listed transmission range reaches up to 15 km with standard omni-directional antennas and up to 30 km with directional antennas under suitable conditions. The system is designed for professional UAV inspection, surveillance, delivery and other remote-operation applications.

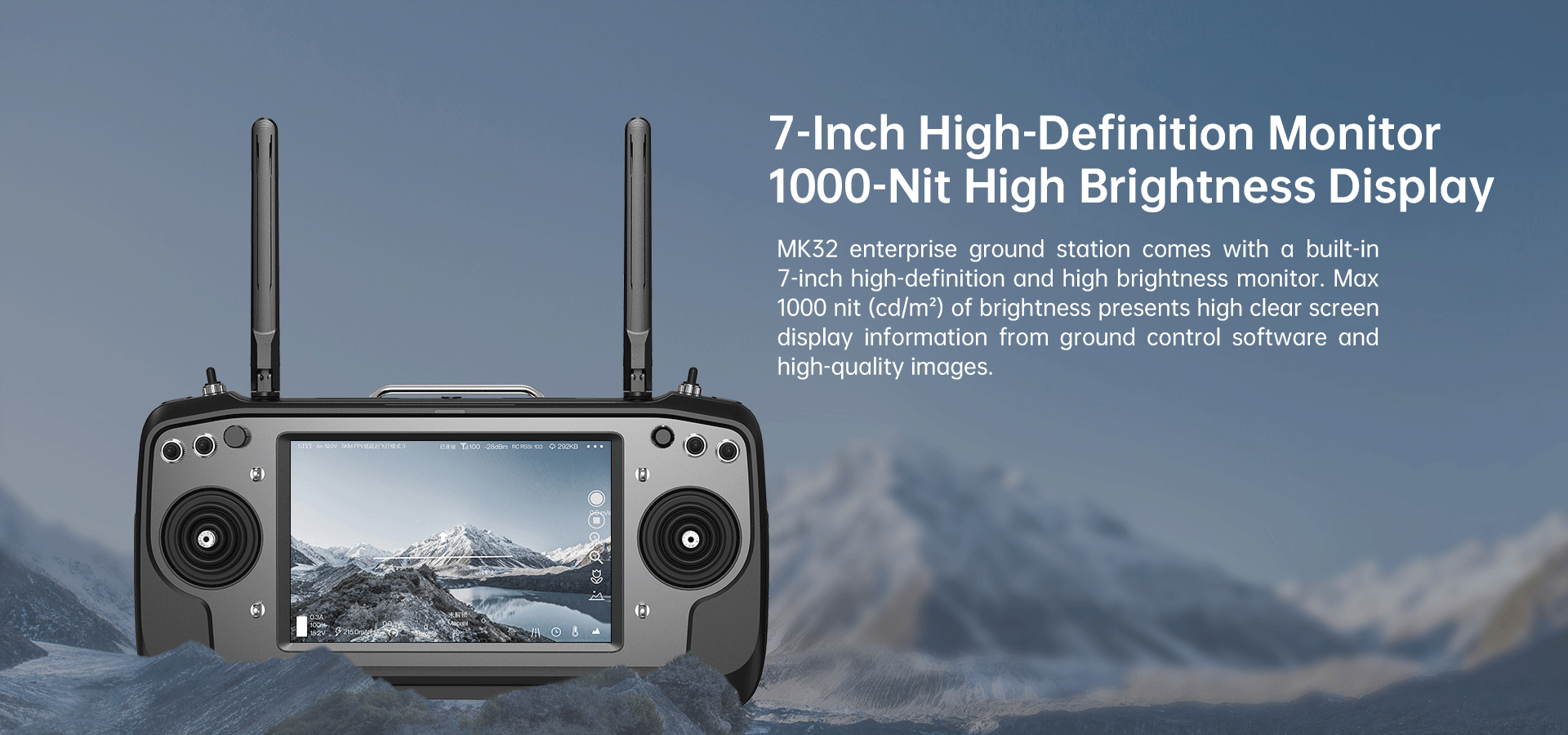

Large Outdoor High-Brightness Display

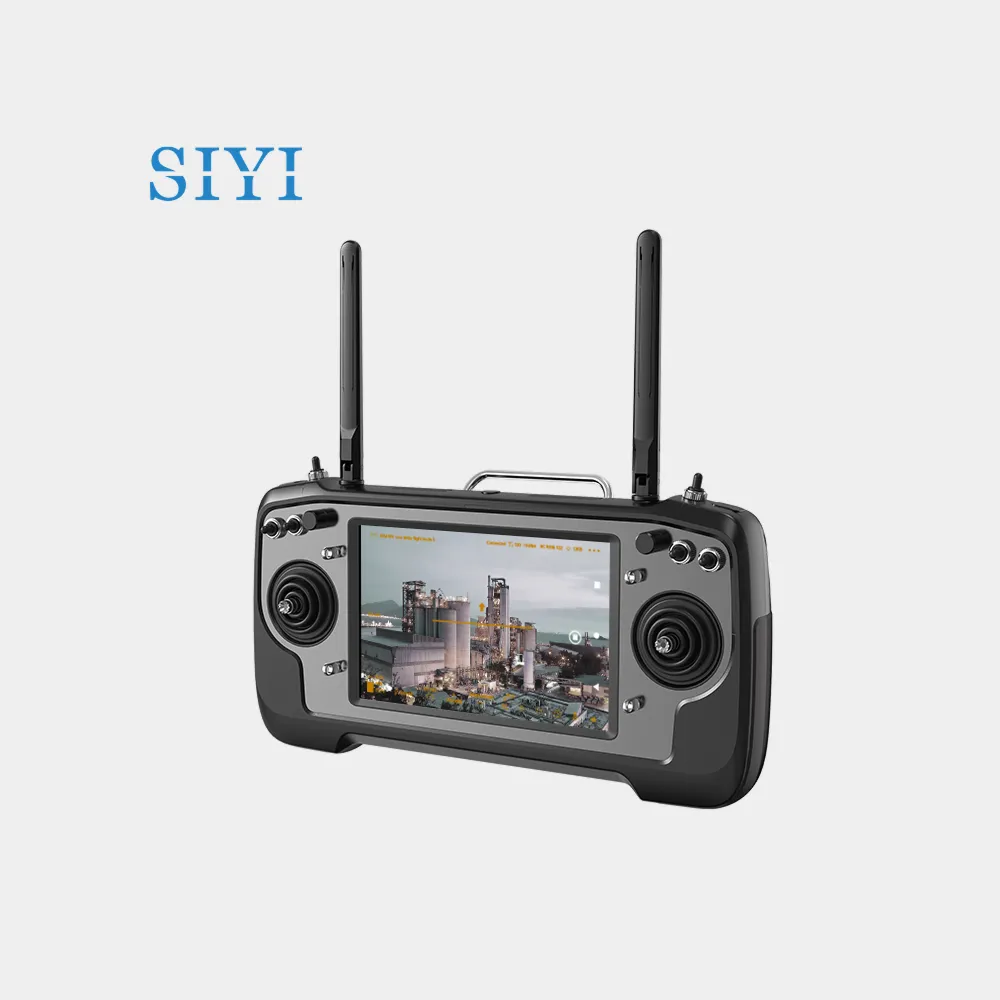

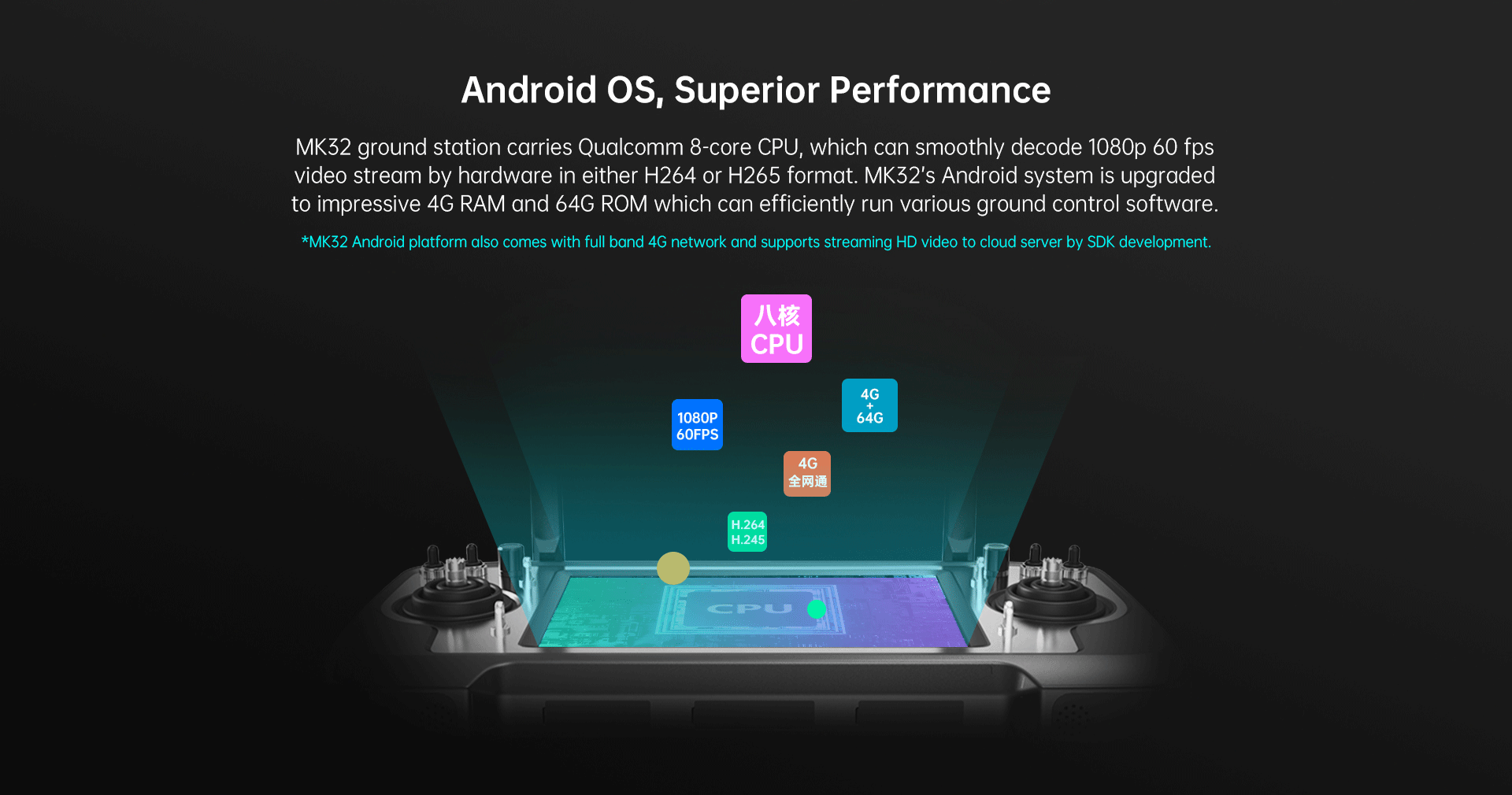

The MK32 features a built-in 7-inch high-definition monitor with up to 1000 nits of brightness for clearer outdoor viewing. Its Qualcomm 8-core CPU, 4G RAM and 64G ROM support Android ground-control software and 1080p 60 fps video decoding in H.264 and H.265 formats. HDMI, LAN, USB-A, Type-C, SIM and TF interfaces support flexible UAV system integration.
Technical Parameters
· Product Type: Enterprise handheld UAV ground station
· Transmission Range: Up to 15 km with standard omni-directional antennas
· Extended Range: Up to 30 km with directional antennas
· Image Transmission: Dual 1080p digital image transmission
· Display: 7-inch high-definition monitor
· Display Brightness: Up to 1000 nits
· Processor: Qualcomm 8-core CPU
· Memory: 4G RAM and 64G ROM
· Video Decoding: 1080p at 60 fps
· Video Codec: H.264 and H.265
· Operating System: Android
· Network: 4G cellular network

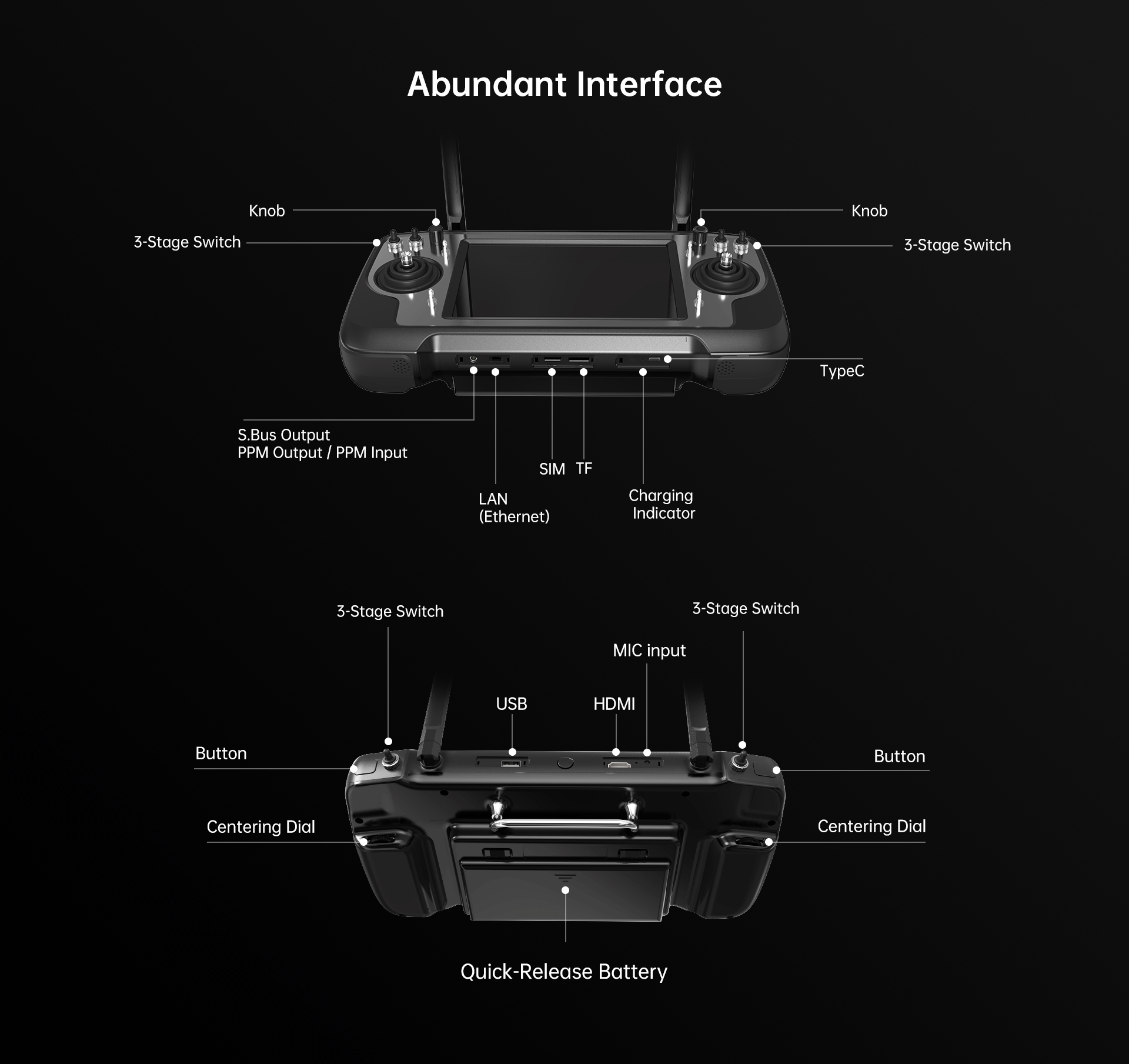

· Interfaces: HDMI, LAN, USB-A, USB Type-C, SIM card slot and TF card slot
· Optional Function: Dual-operator control and remote-control relay
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Professional UAV Integration Features
· Enterprise handheld UAV ground station
· Dual 1080p digital image transmission
· Up to 15 km with standard omni-directional antennas
· Up to 30 km with directional antennas
· 7-inch high-definition monitor
· Up to 1000 nits outdoor brightness
· Qualcomm 8-core CPU
· 4G RAM and 64G ROM
· Android operating system
· 1080p 60 fps H.264 and H.265 video decoding
· HDMI, LAN, USB-A, Type-C, SIM and TF interfaces
· S.Bus and PPM control interfaces
· Dual-operator control available with MK32 dual combo

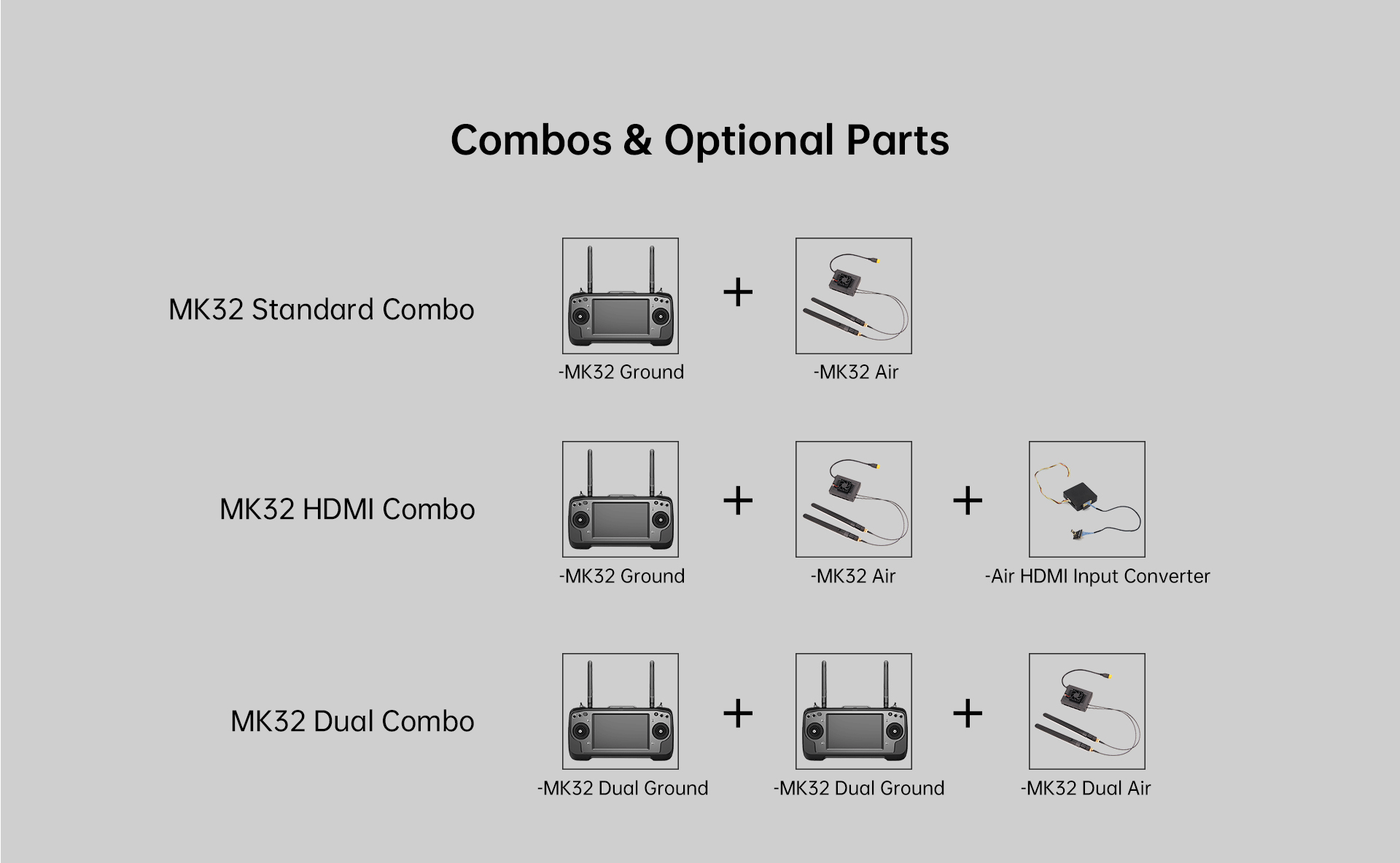

Combo Options
· MK32 Standard Combo: MK32 ground unit and MK32 air unit
· MK32 HDMI Combo: MK32 ground unit, MK32 air unit and air HDMI input converter
· MK32 Dual Combo: Two MK32 ground units and one dual-version MK32 air unit

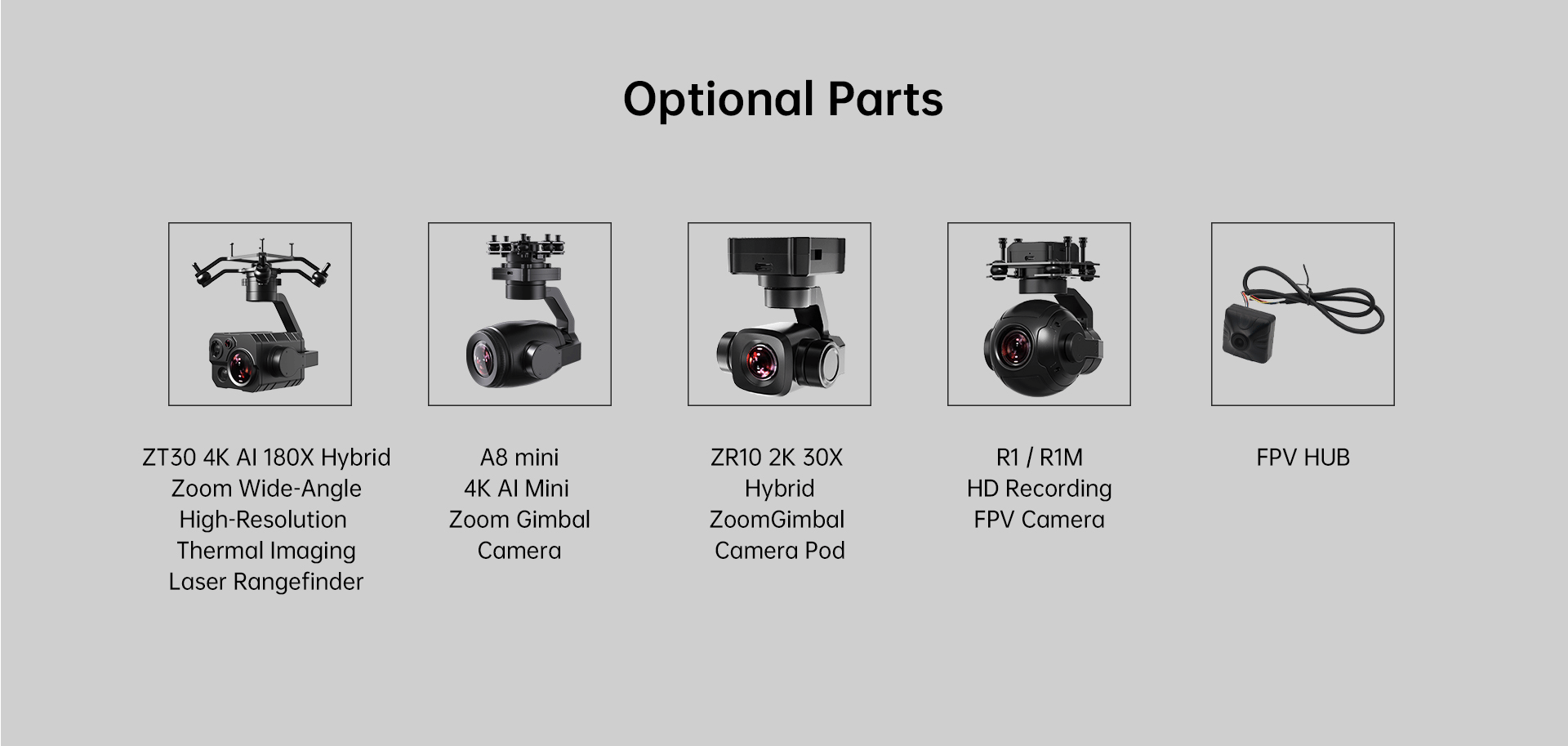

· Optional parts may include ZT30, A8 mini, ZR10, R1/R1M HD recording FPV camera and FPV HUB
· Final combo contents, air-unit version and optional accessories should be confirmed before ordering
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Notes
· The listed 30 km transmission range requires directional antennas and suitable operating conditions. Standard omni-directional antennas have a listed range of up to 15 km.

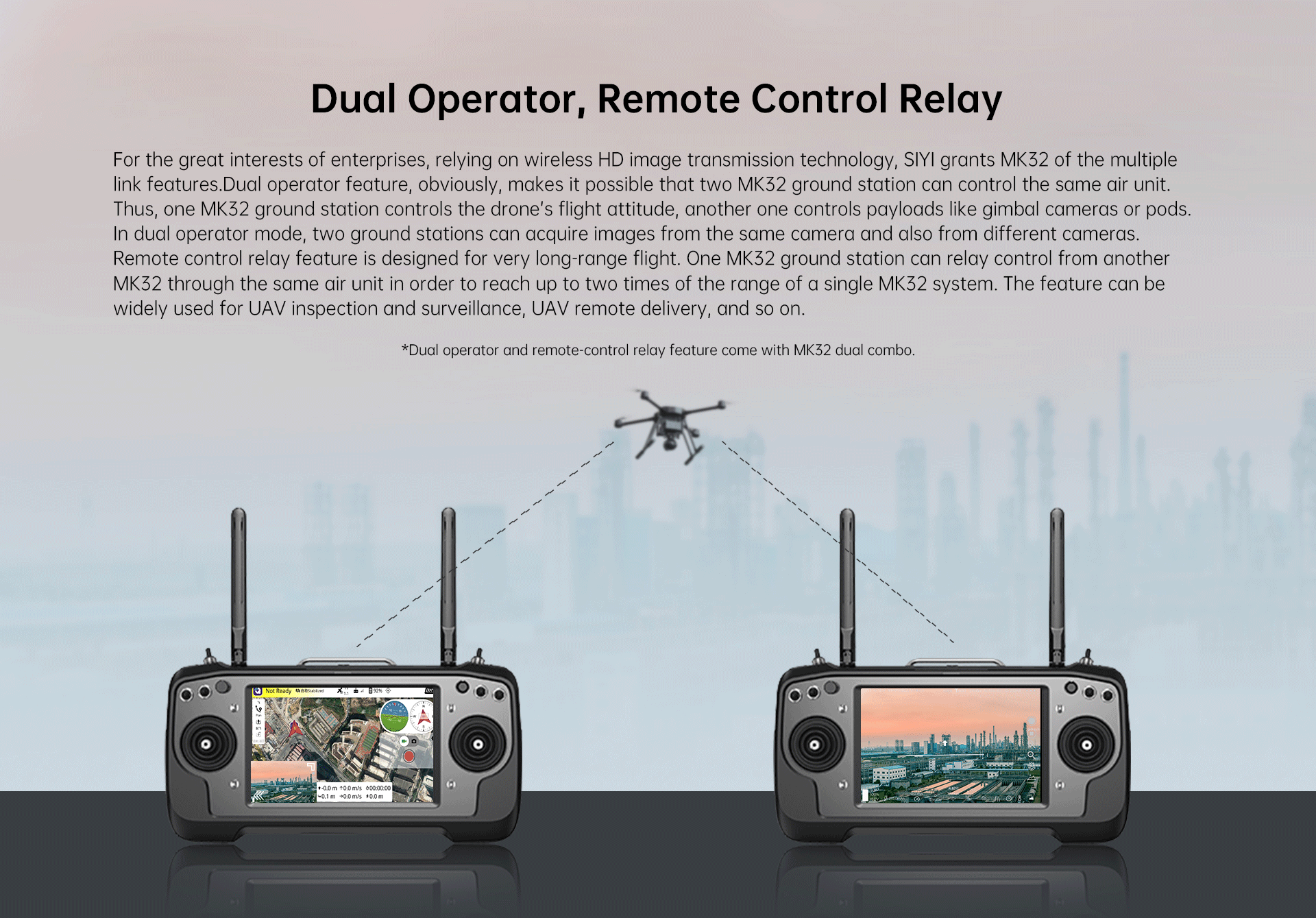

· Dual-operator control and remote-control relay are available with the MK32 dual combo. Standard and HDMI combos do not include these functions.
· Confirm compatibility with the selected flight controller, air unit, camera, gimbal and ground-control software before installation.

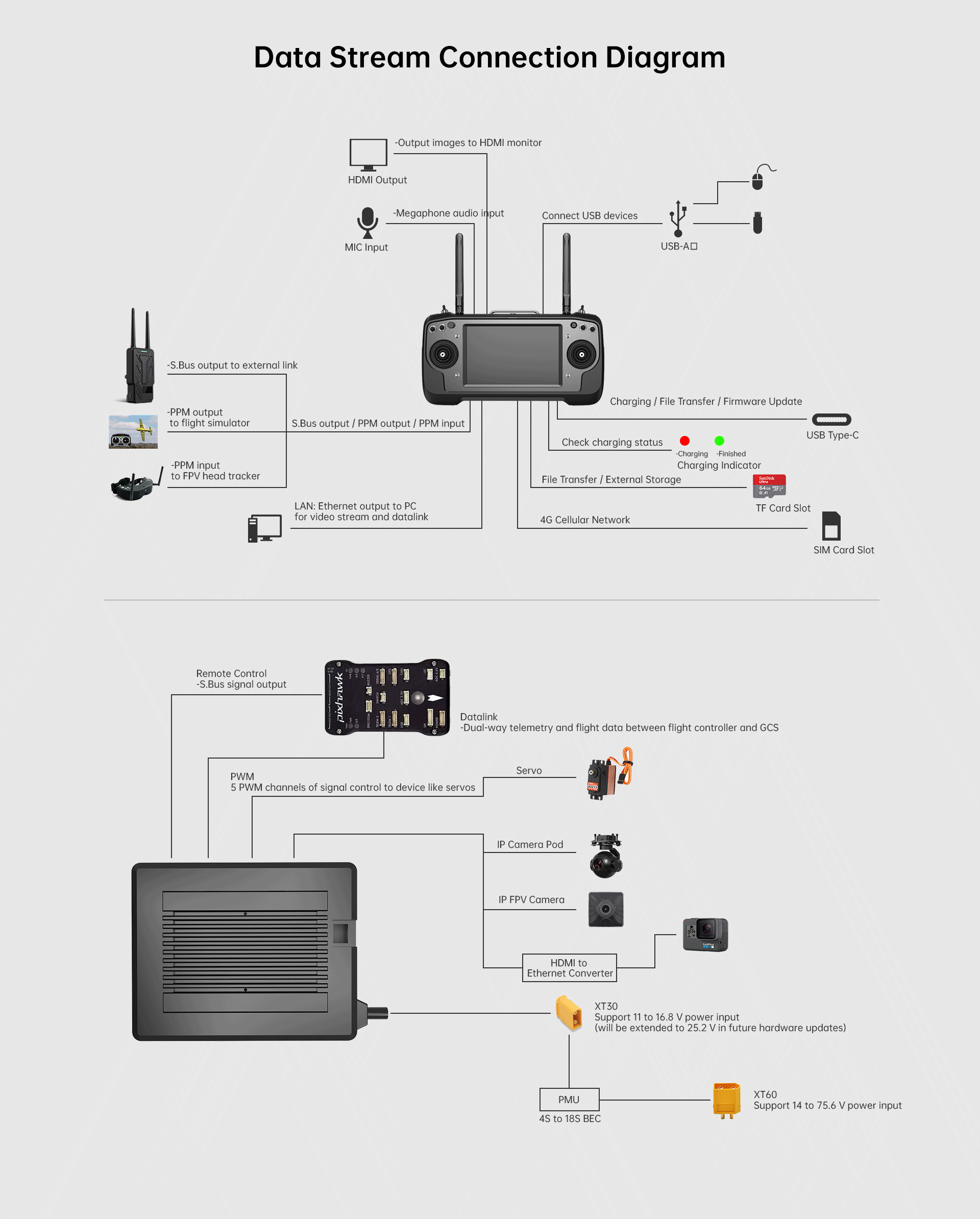

· The interface diagram shows different power-input configurations for the air unit, including XT30 and XT60 connections. Confirm the actual hardware version, PMU and BEC before wiring.
· The interface diagram shows XT60 input support up to 14–75.6 V and XT30 input support of 11–16.8 V for the corresponding configurations. Do not connect power without confirming the actual version.
· ZT30, A8 mini, ZR10, R1/R1M and FPV HUB are optional parts unless included in the selected combo.
