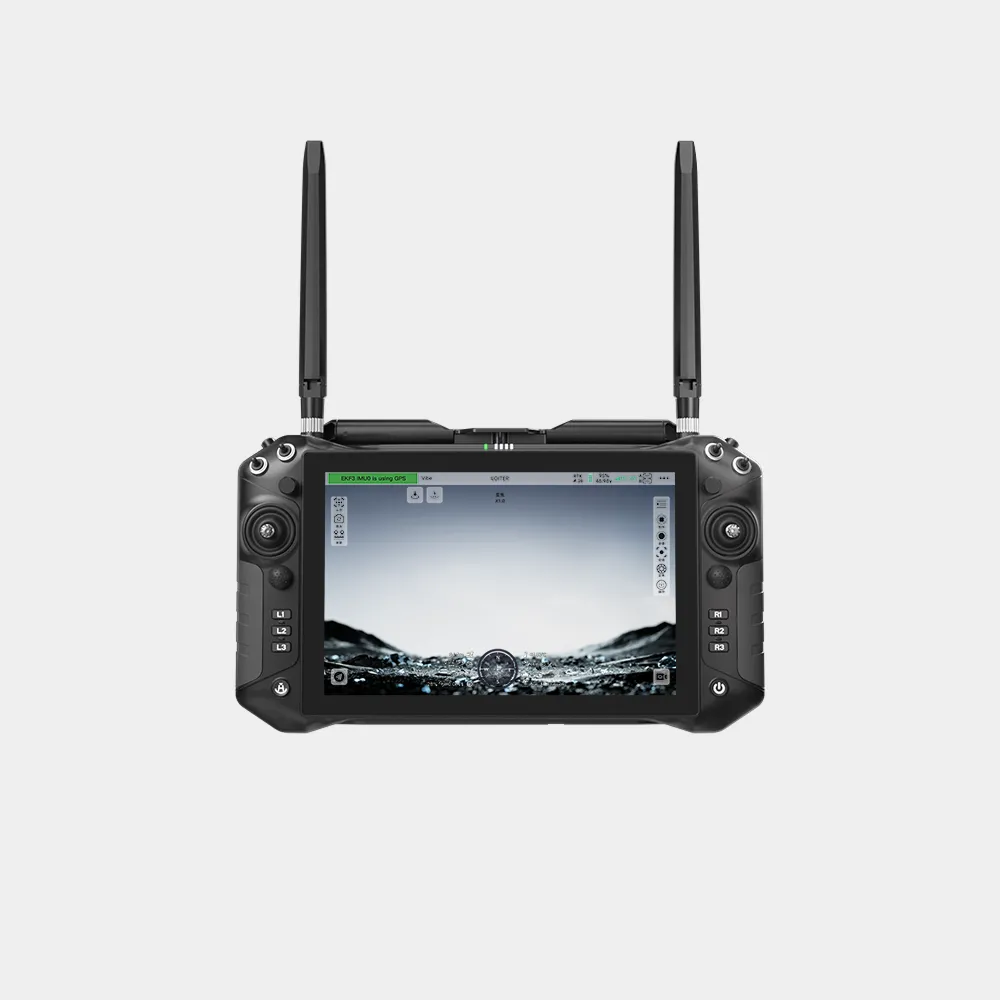

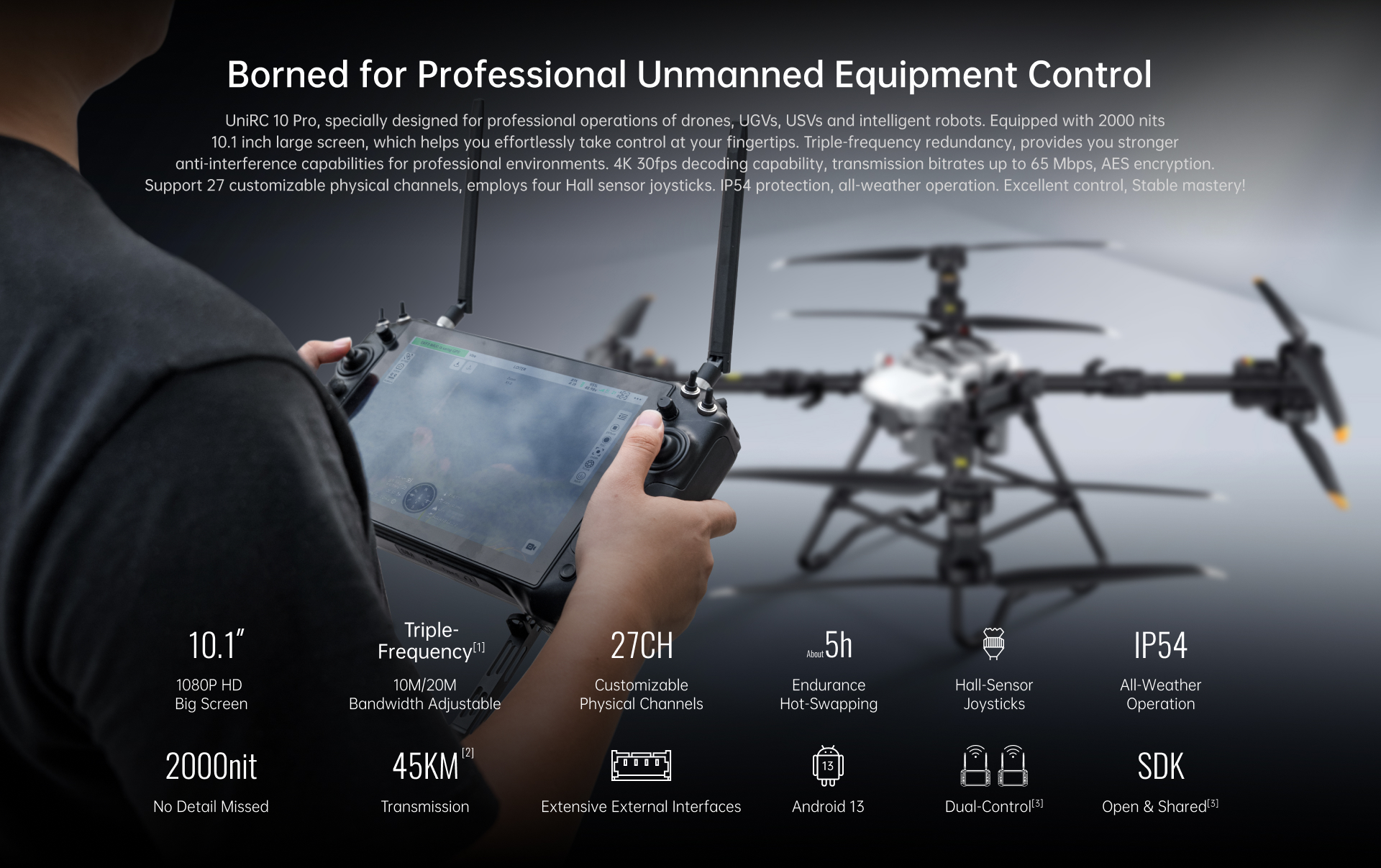

SIYI UniRC 10 Pro is a professional handheld ground station designed for UAVs, UGVs, USVs and intelligent robotic systems. It features a 10.1-inch 1920×1200 display with 2000-nit brightness, Android 13 and a Snapdragon 8-core processor for clear information display and smooth control.
The ground station supports triple-frequency transmission, adjustable 10M/20M bandwidth, 27 customizable physical channels and Hall-sensor joysticks. Its dual-battery architecture supports approximately 5 hours of operation, hot-swappable external batteries and charging while operating. With HDMI, RJ45 Ethernet, USB-A, Type-C, SIM, TF, audio, S.Bus and PPM interfaces, UniRC 10 Pro supports flexible control and data integration for professional unmanned equipment.
Professional Ground Station
Triple-Frequency Transmission + 27-Channel Multi-Payload Control

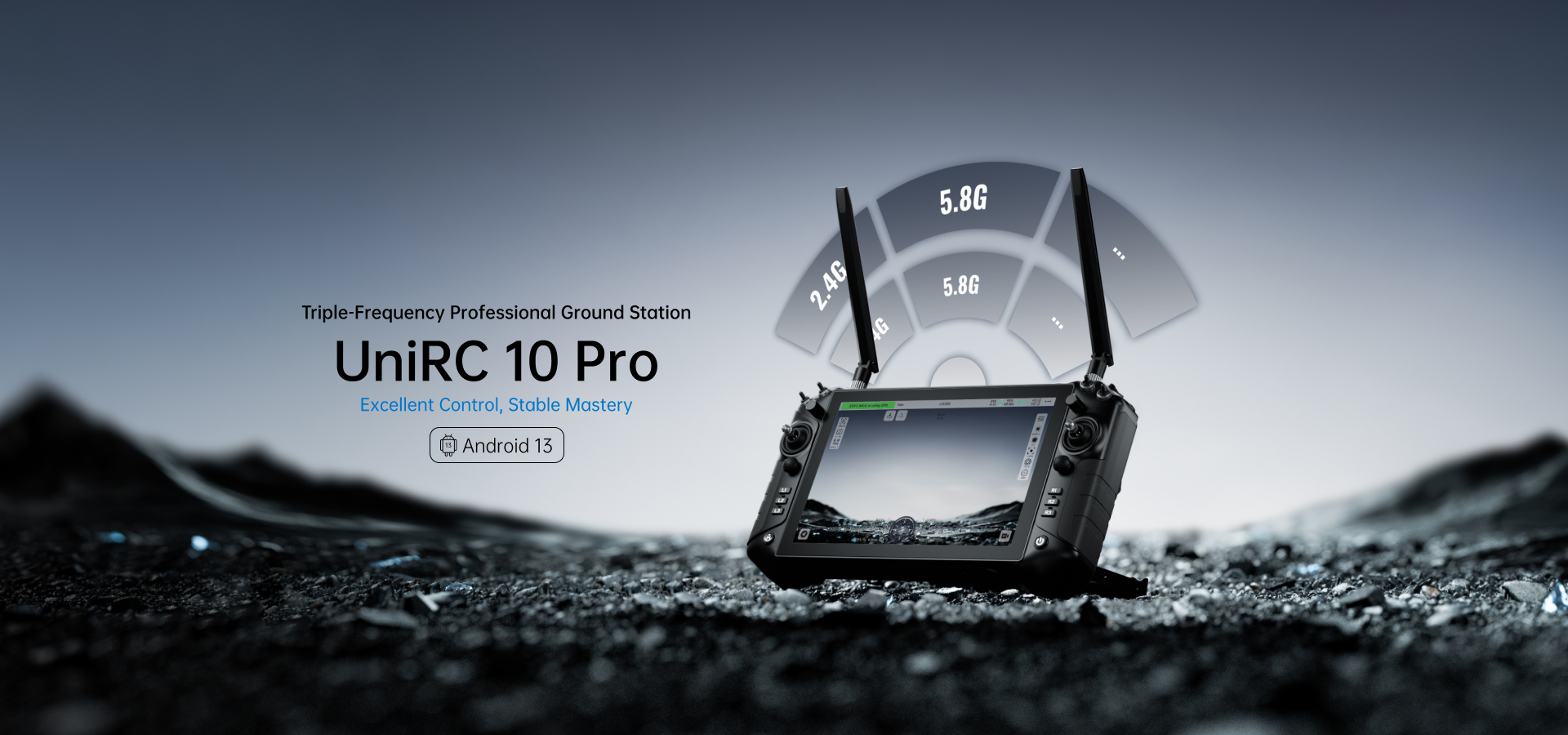

Triple-Frequency Professional Ground Station
Large Bright Display for Professional Field Control

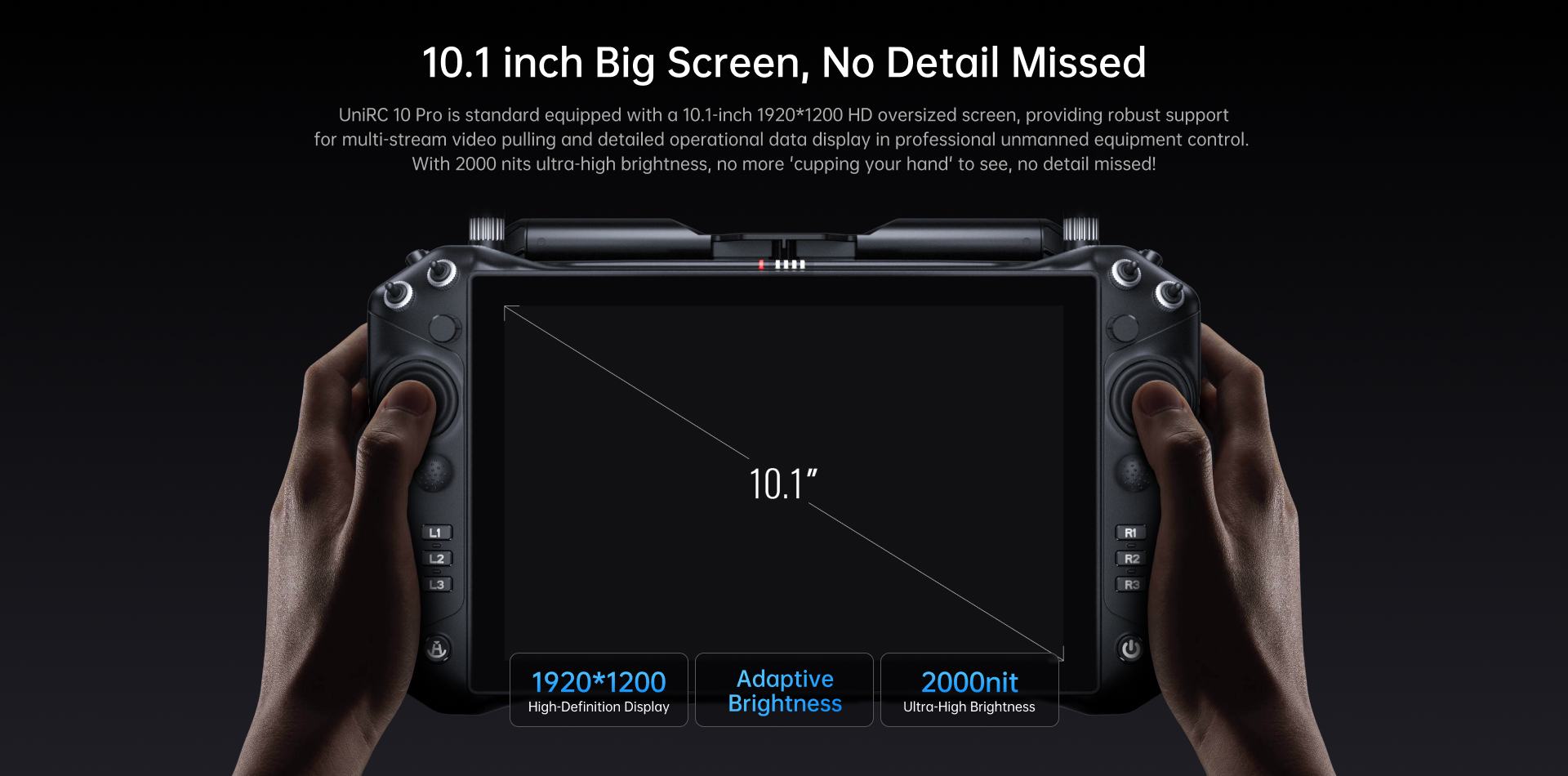

UniRC 10 Pro features a 10.1-inch 1920×1200 display with 2000-nit brightness and adaptive brightness adjustment. Running on Android 13 with a Snapdragon 8-core processor, it provides a clear and responsive control platform for flight data, video streams, maps and multi-payload operation. The large display is designed for professional unmanned equipment control in outdoor and field environments.
Stable Transmission and Flexible Multi-Payload Control

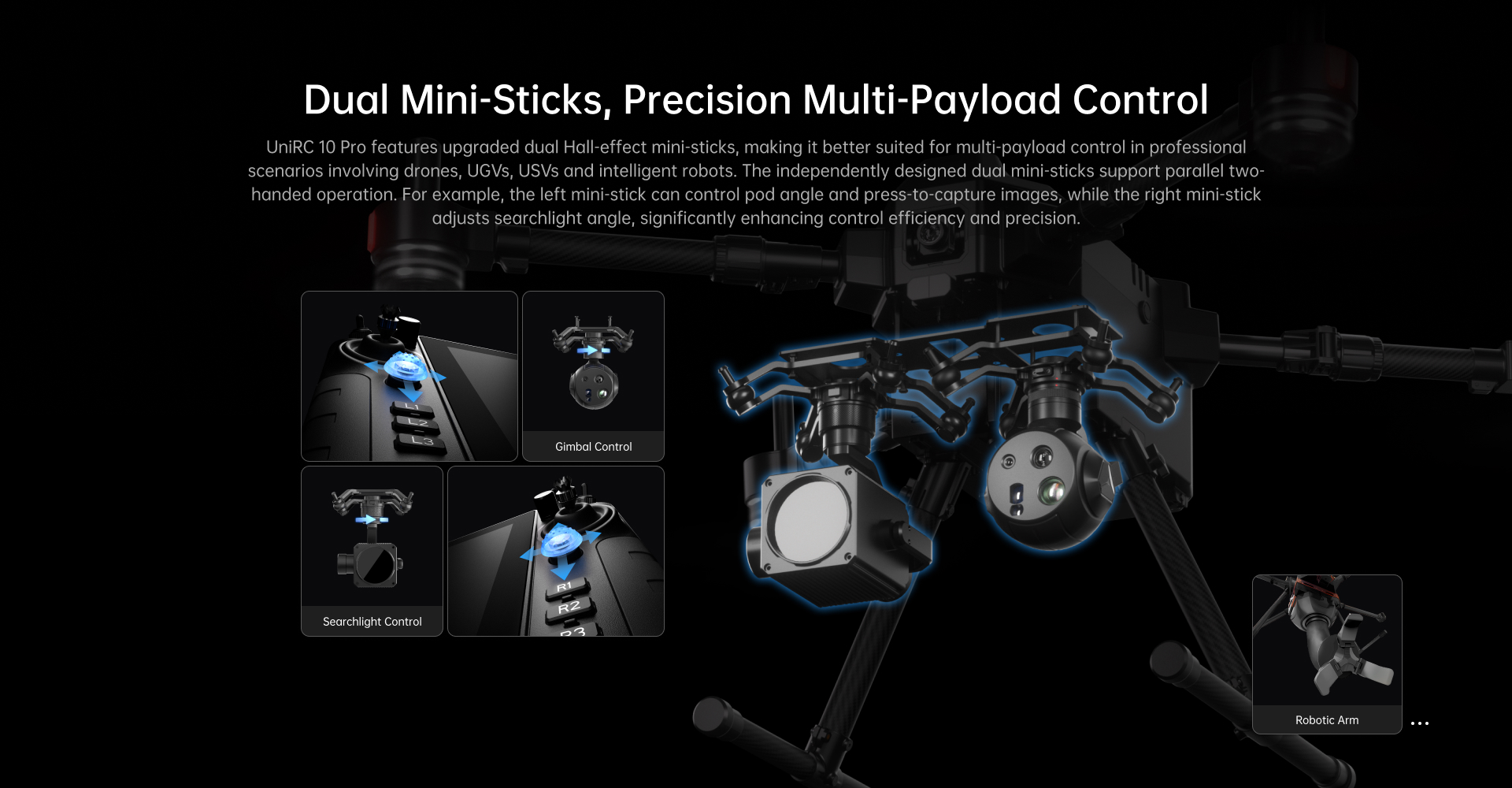

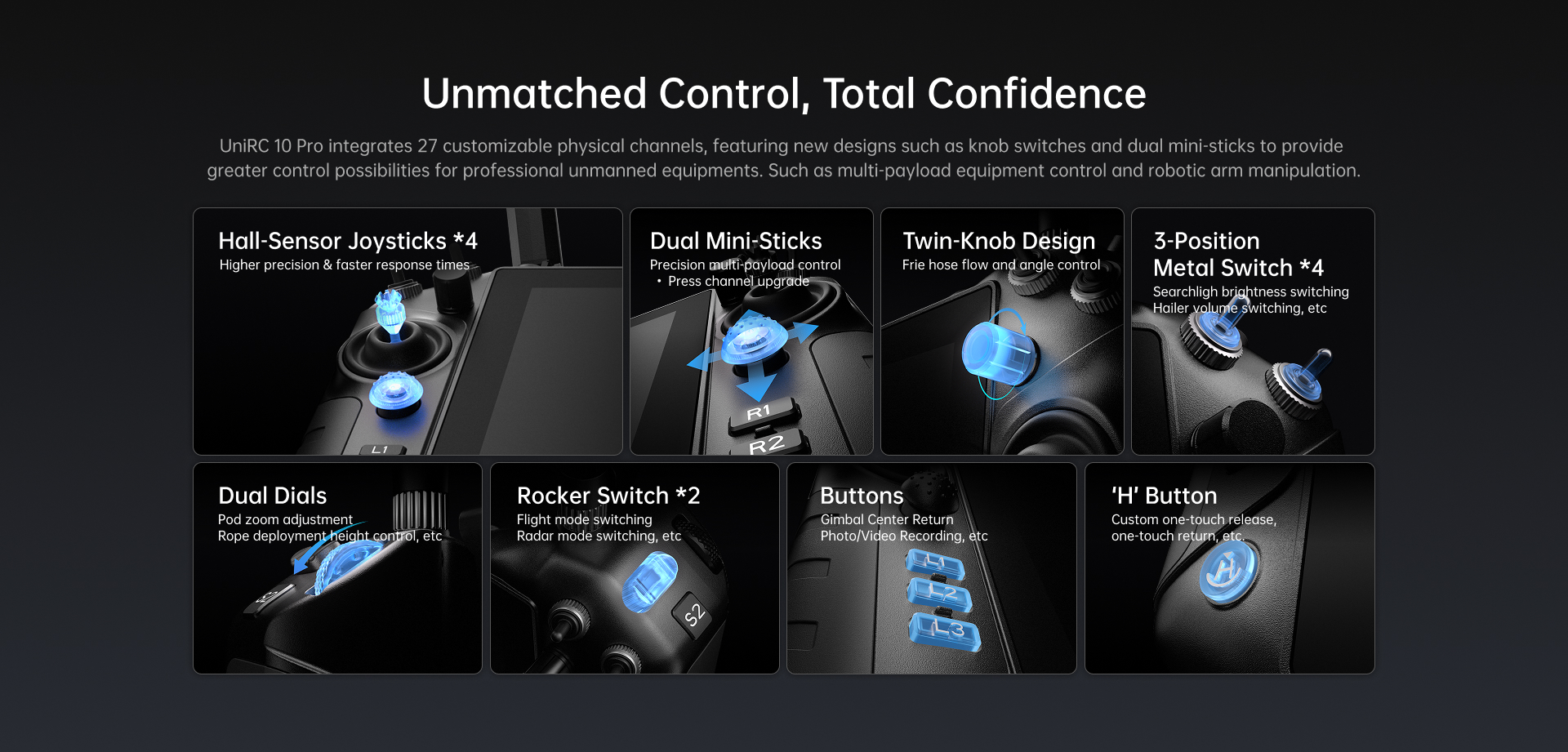

The triple-frequency transmission system supports adjustable 10M/20M bandwidth, adaptive frequency hopping and dual-control functions. UniRC 10 Pro provides 27 customizable physical channels, including Hall-sensor joysticks, mini-sticks, dials, knob switches and three-position switches. This layout supports simultaneous control of flight modes, gimbals, searchlights, robotic arms and other payload equipment.

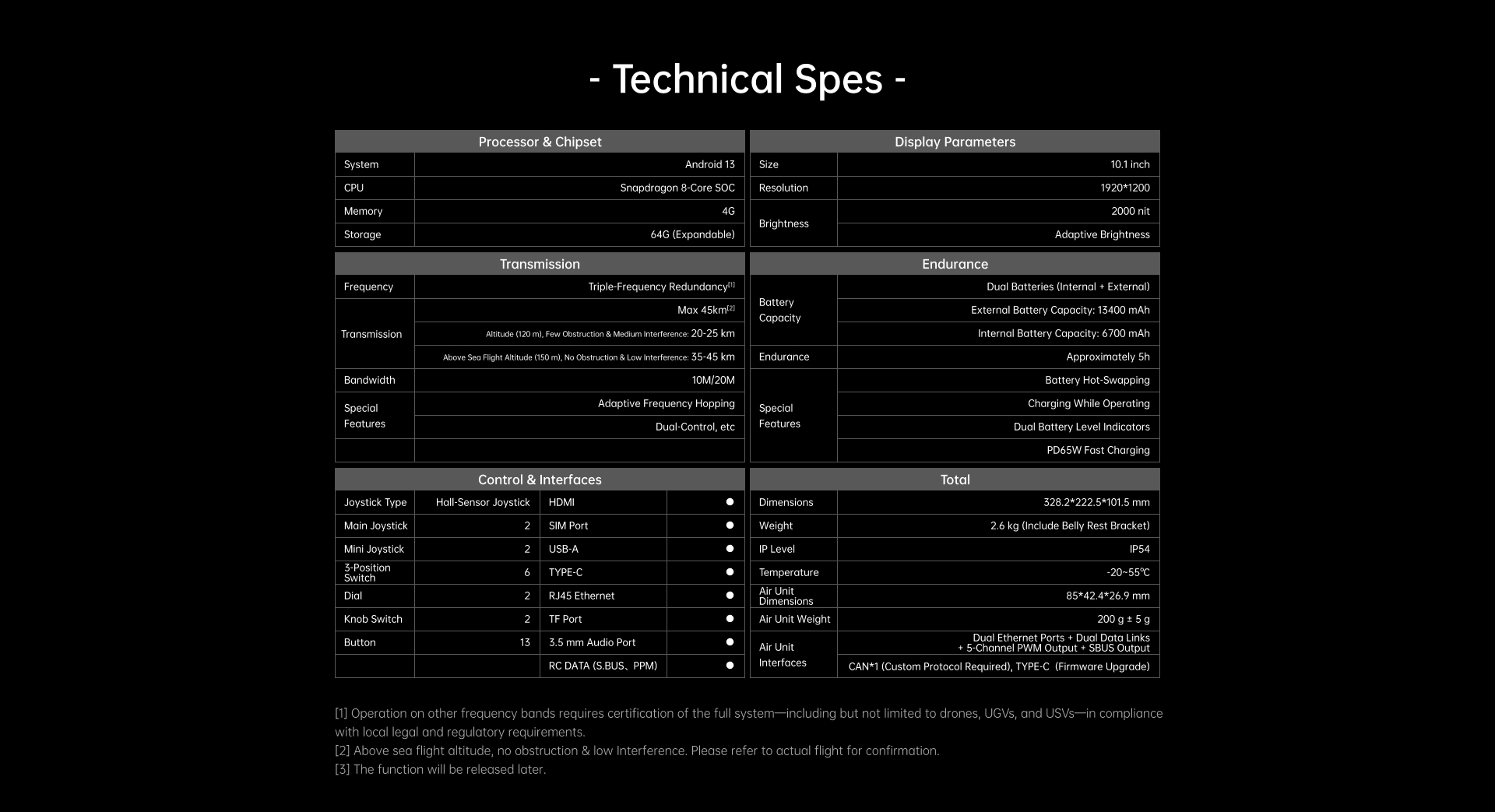

Technical Parameters
· Product Type: Professional handheld ground station
· Display: 10.1-inch, 1920×1200 resolution, 2000-nit brightness
· Operating System: Android 13
· Processor: Snapdragon 8-core SoC
· Memory and Storage: 4 GB RAM, 64 GB storage, expandable
· Transmission: Triple-frequency redundancy, adjustable 10M/20M bandwidth
· Maximum Transmission Distance: Up to 45 km under specified conditions
· Control Channels: 27 customizable physical channels
· Joysticks: 2 Hall-sensor main joysticks and 2 mini joysticks
· Controls: 2 dials, 2 knob switches, 2 three-position switches and 13 buttons
· Battery: Internal 6700 mAh + external 13400 mAh battery
· Endurance: Approximately 5 hours
· Charging: Battery hot-swapping, charging while operating and PD65W fast charging
· Interfaces: HDMI, SIM, USB-A, Type-C, RJ45 Ethernet, TF card, 3.5 mm audio, S.Bus and PPM
· Dimensions: 328.2 × 222.5 × 101.5 mm
· Weight: 2.6 kg including belly rest bracket
· Protection Rating: IP54
· Operating Temperature: -20°C to 55°C

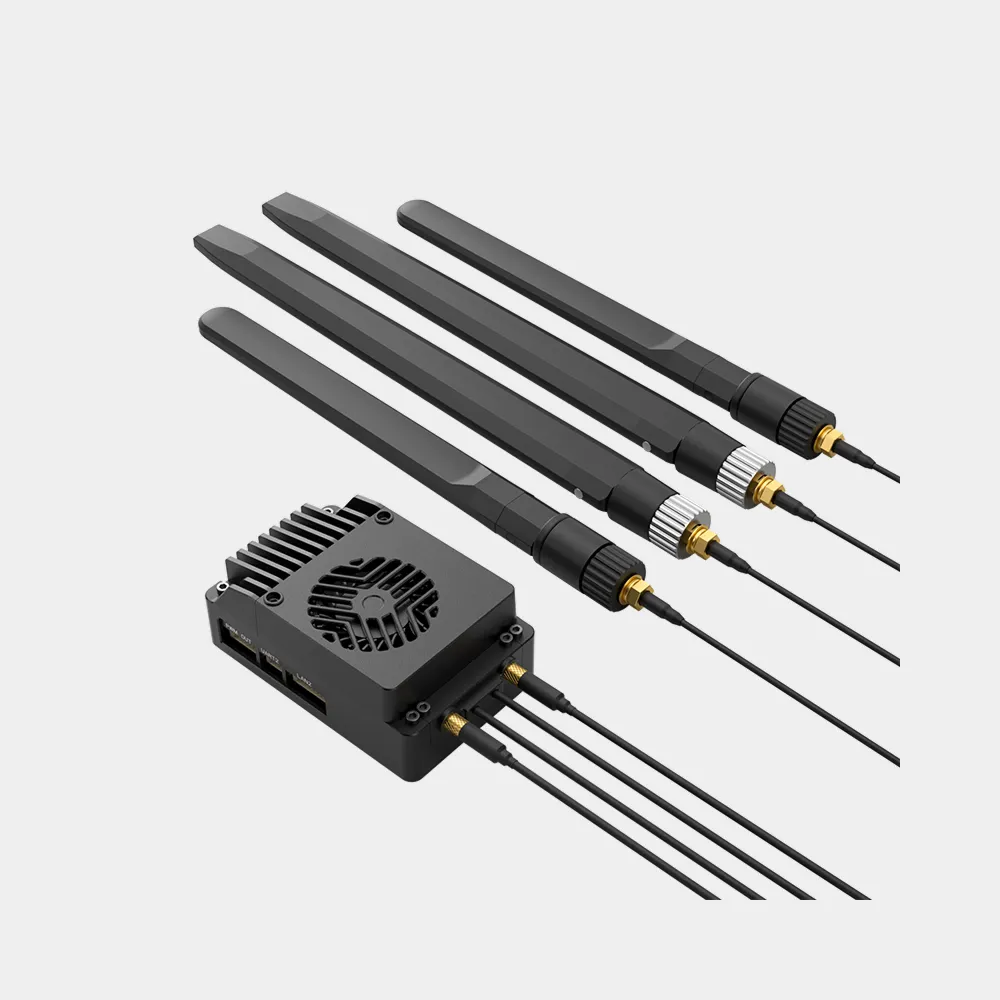

· Air Unit Dimensions: 85 × 42.4 × 26.9 mm
· Air Unit Weight: 200 g ± 5 g
· Air Unit Interfaces: Dual Ethernet ports, dual data links, 5-channel PWM output, S.Bus output and Type-C
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.

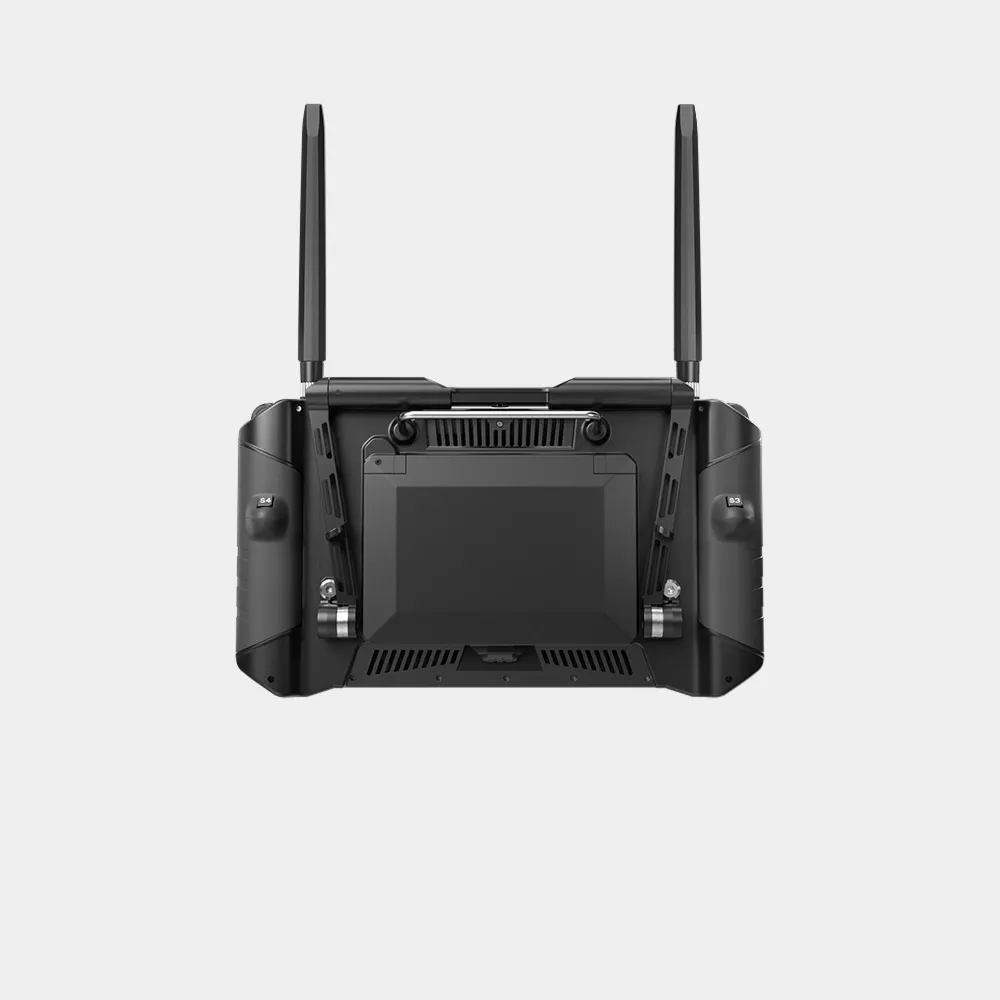

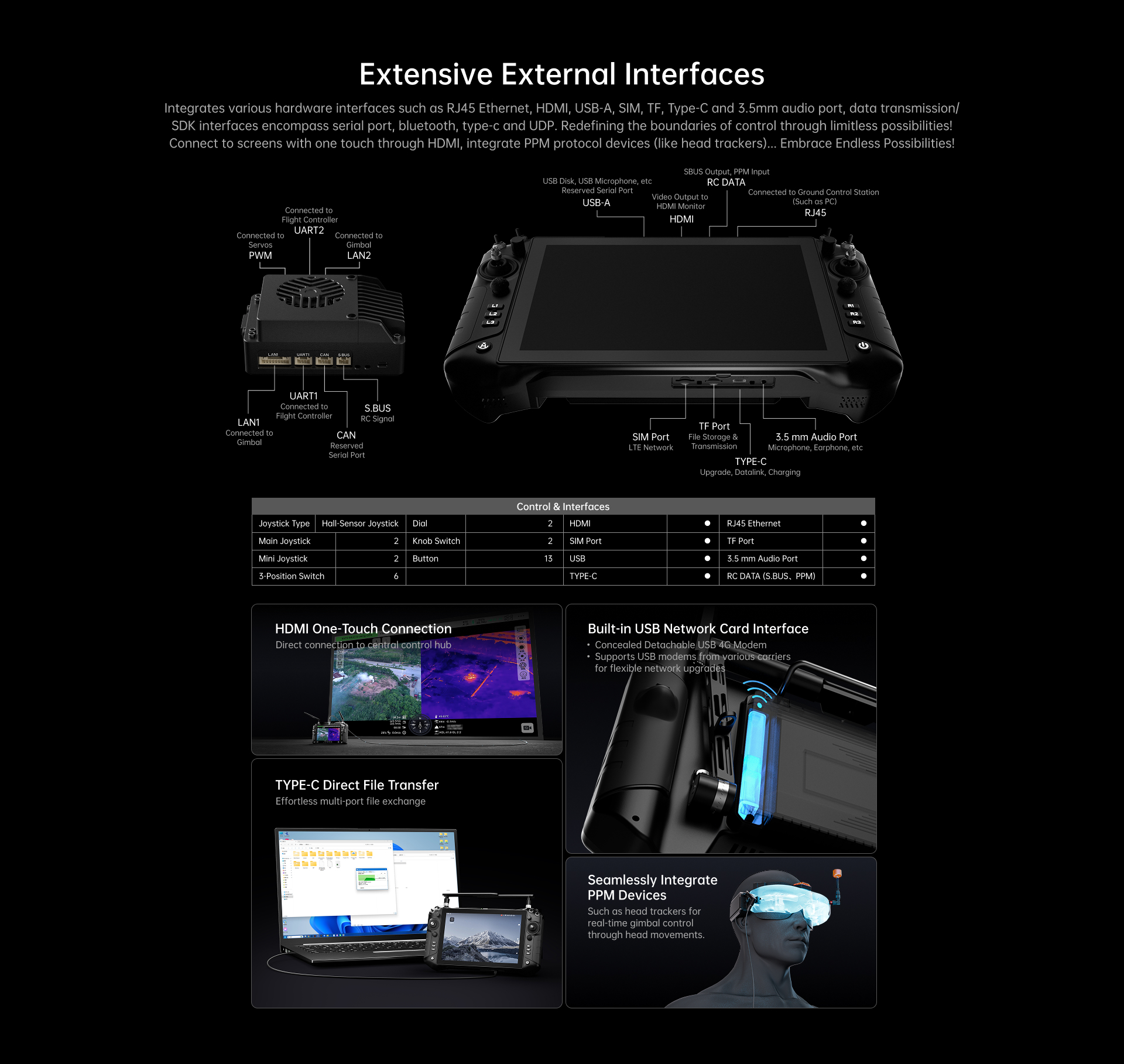

Extensive Interfaces for Unmanned System Integration
· HDMI output for connecting an external monitor
· RJ45 Ethernet for ground control and data transmission
· USB-A for USB drives, microphones and other accessories
· Type-C for charging, firmware upgrade and file transfer
· SIM port for LTE network connectivity
· TF card slot for file storage and transmission
· 3.5 mm audio port for microphone and earphone connection
· S.Bus output and PPM input for flexible control integration

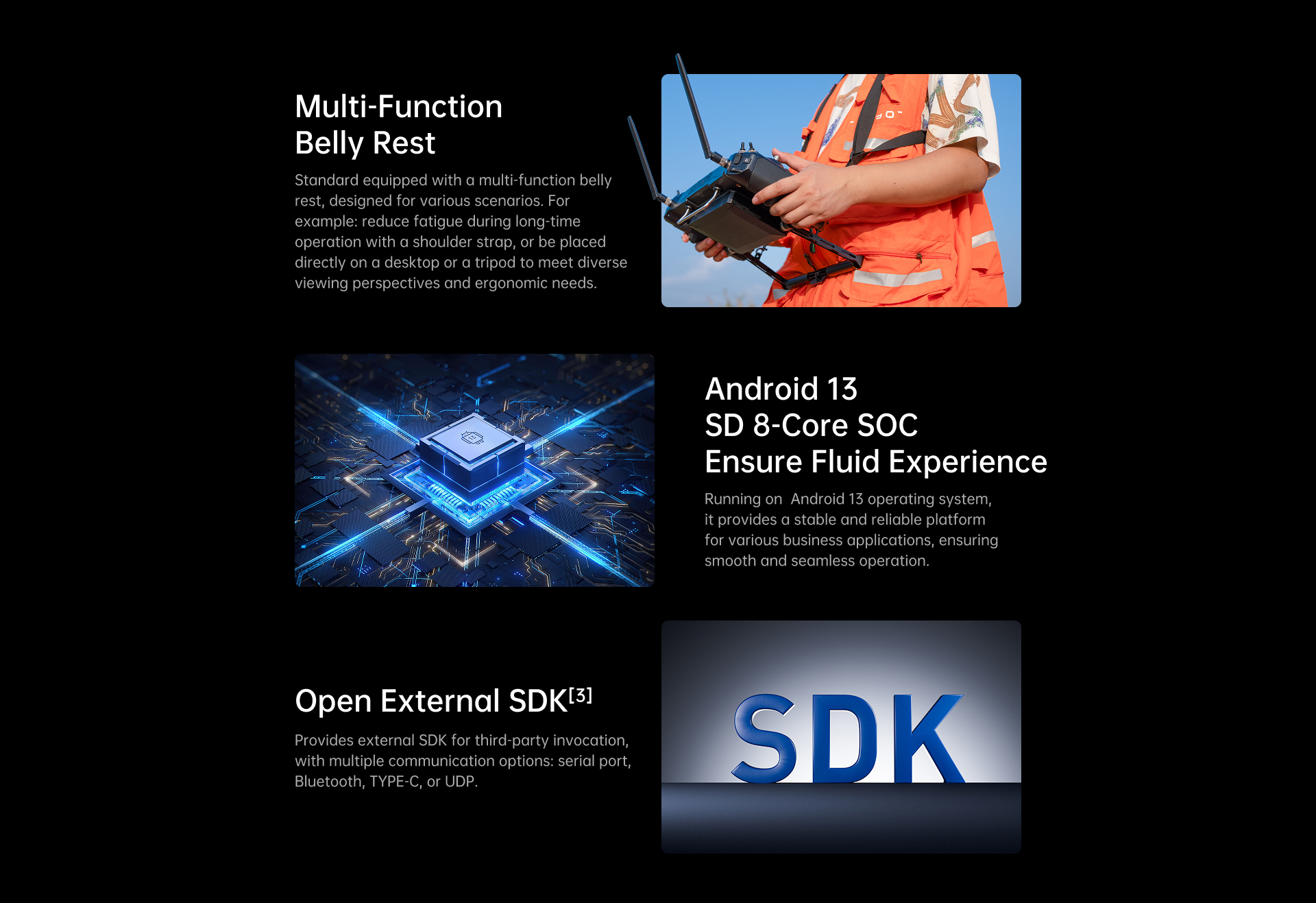

· Serial, Bluetooth, Type-C and UDP options for external SDK access
Package Contents
· 1 × UniRC 10 Pro handheld ground station with belly rest bracket
· 1 × UniRC 10 Pro storage case
· 1 × UniRC 10 Pro air unit
· 1 × UniRC 10 Pro battery
· 2 × 1.4G & 2.4G omnidirectional antennas
· 2 × 5G omnidirectional antennas
· 1 × UniRC 10 Pro air unit data cable
· 1 × UniRC 10 Pro air unit S.Bus cable
· 1 × UniRC 10 Pro air unit CAN cable
· 1 × Network cable
· 1 × Type-C to USB-A adapter
· 1 × UniRC 10 Pro PWM cable
· 1 × PD65W fast charger
· 1 × 100W USB-C to USB-C fast-charging cable
· 1 × UniRC 10 Pro shoulder strap
· 1 × XT30 female power cable
· Package Dimensions: 412 × 278 × 150 mm
· Package Weight: 3744 g
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Notes for Use
· Available operating frequency bands and transmission ranges depend on the country or region and must comply with local laws and regulations.
· The maximum 45 km transmission distance applies only under specified conditions, including suitable altitude, low interference and no obstruction.
· Install the ground and air unit antennas correctly before operation and keep the antenna orientation appropriate during use.
· Confirm the compatible air unit, data link, flight controller and payload equipment before ordering.
· The CAN interface requires a custom protocol; confirm protocol compatibility before integration.
· Battery hot-swapping and charging while operating must follow the product manual and use compatible charging accessories.
· Check the control channels, failsafe settings, video link and data link before the first operation.
