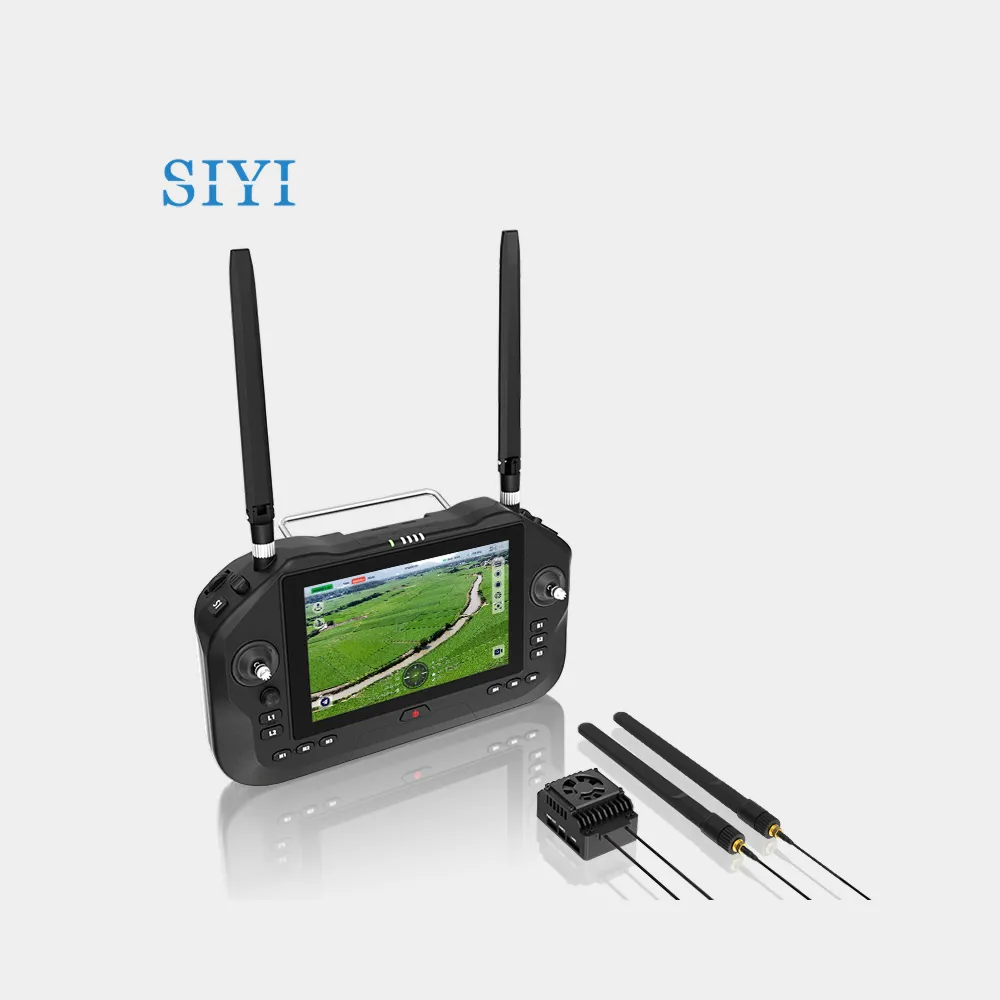

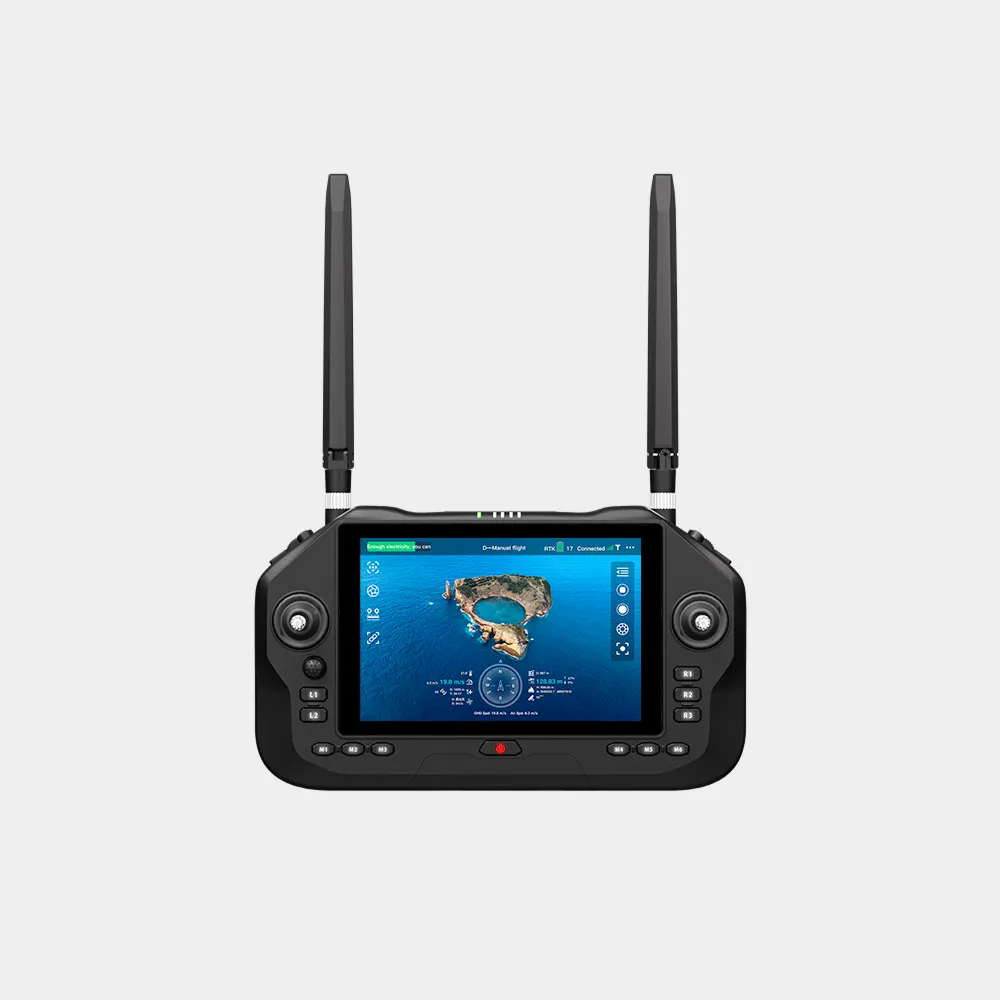

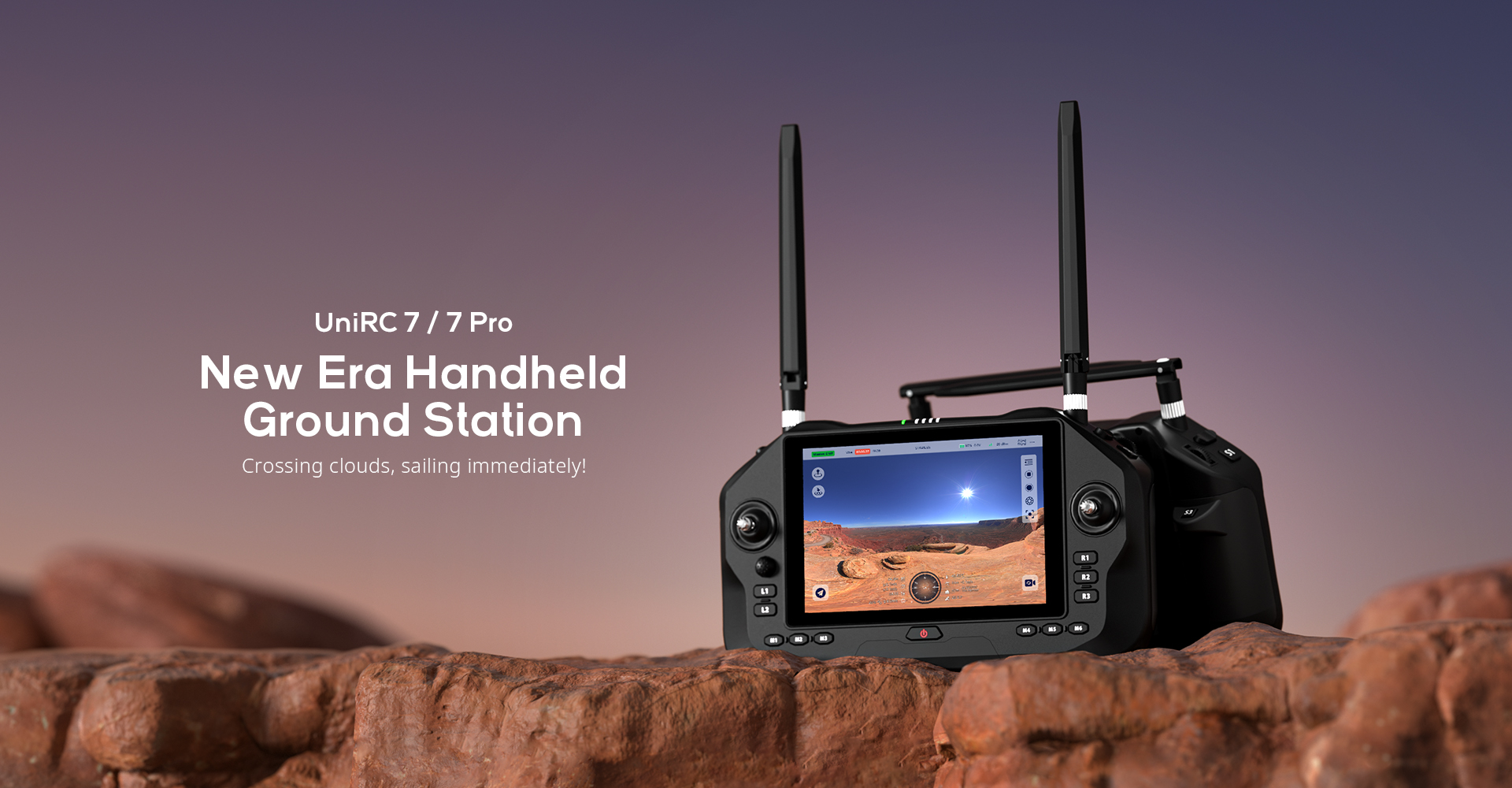

SIYI UniRC 7 is a professional handheld ground station designed for drones, unmanned vehicles, unmanned boats and intelligent robotic systems. It features a 7-inch 1280×800 touchscreen with 1600-nit brightness and adaptive brightness control for clear outdoor operation.
UniRC 7 uses SIYI wireless video transmission technology with a 2.4 GHz operating frequency, up to 4K 30FPS video decoding, a transmission bitrate of up to 65 Mbps and AES encryption. The Android 13 platform, Qualcomm octa-core processor, 4 GB RAM and 64 GB storage support smooth operation and data management. With 16 physical channels, a mini joystick, dual dials, quick-release belly supports, IP54 protection and approximately 11 hours of battery life, it is suitable for long-duration professional unmanned equipment control.
Handheld Ground Station
7-inch 1600-nit Display + 2.4 GHz Video Transmission
Professional Handheld Ground Station for Unmanned Systems

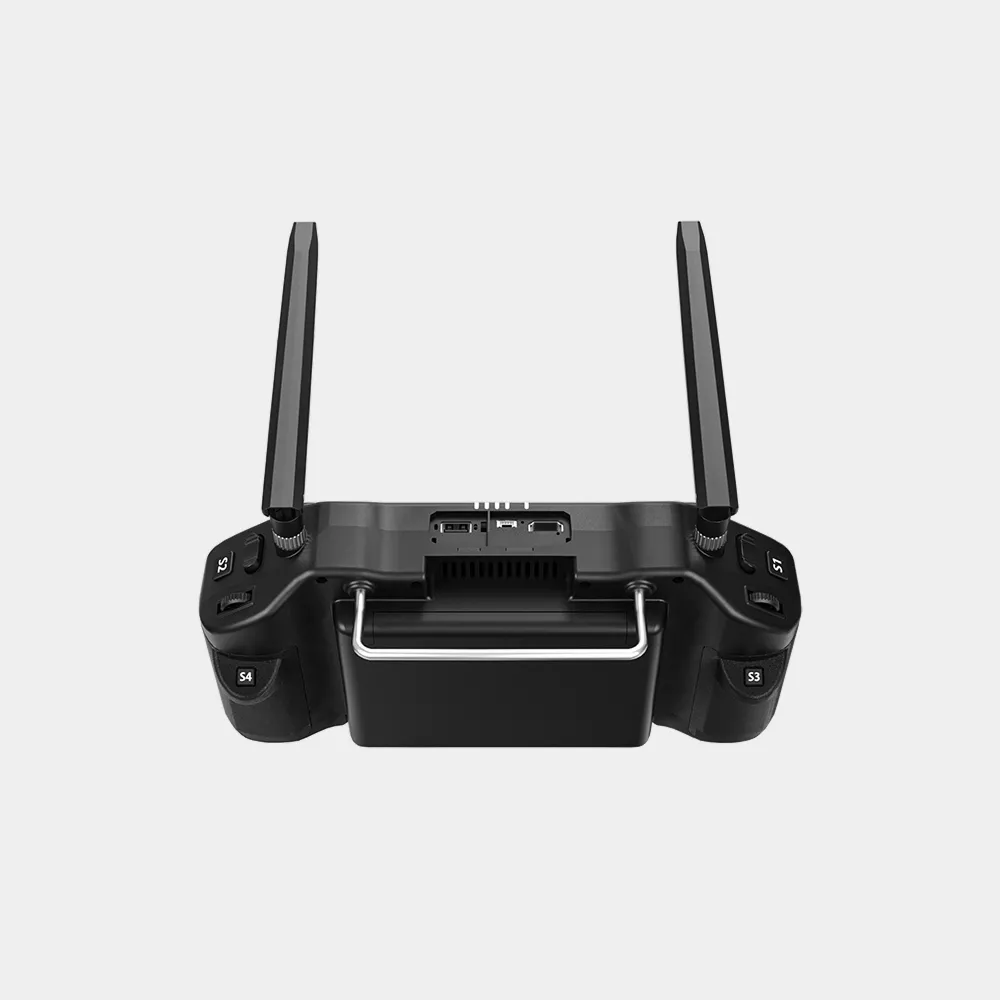

Ergonomic Control for Long-Duration Operations

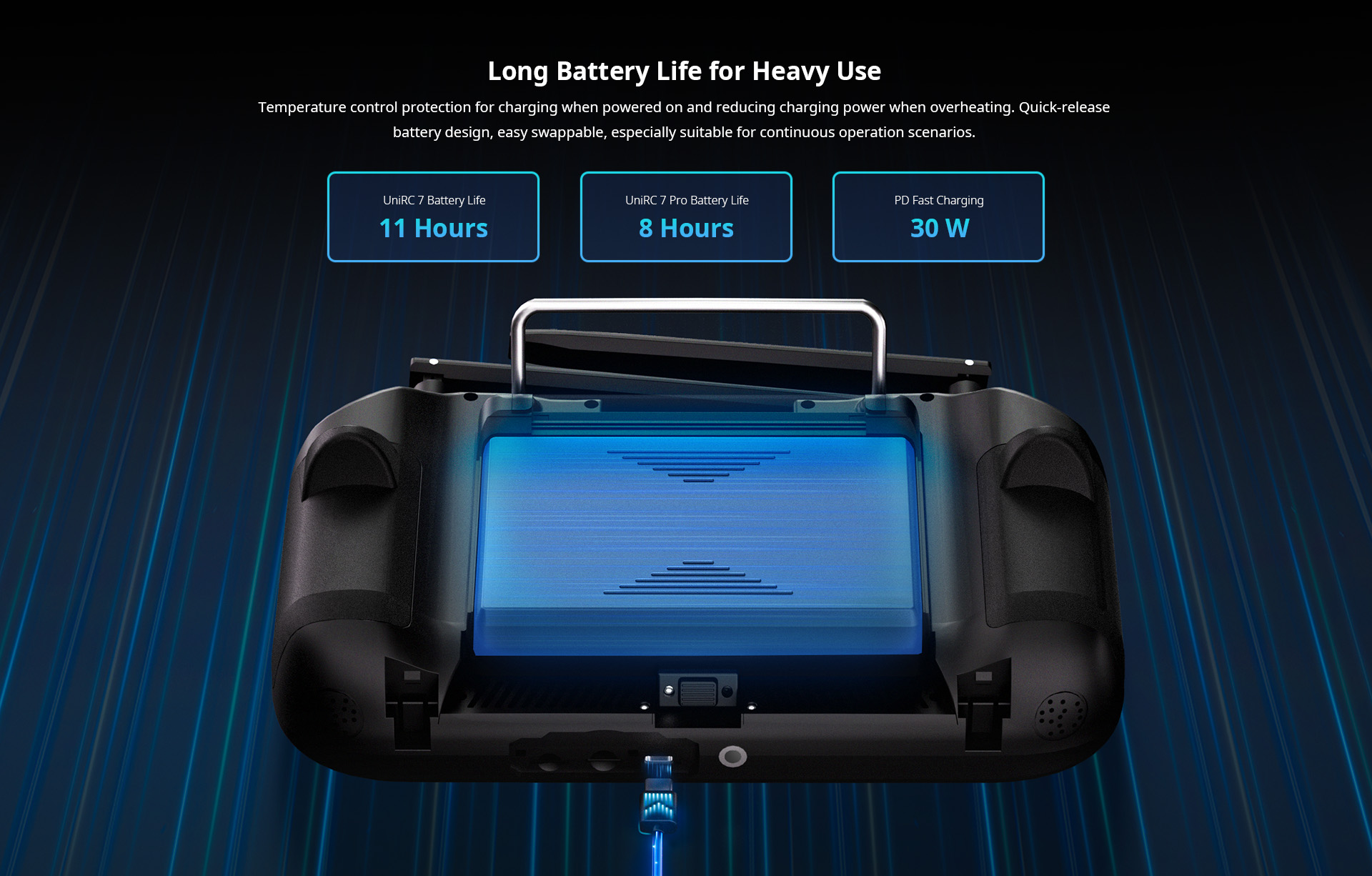

UniRC 7 is designed for extended field operation with a quick-release battery, approximately 11 hours of battery life and PD 30W fast charging. The mini joystick provides an additional customizable control channel for gimbal or payload functions, while the quick-release belly supports help reduce operator fatigue. Backlit buttons, active cooling and IP54 protection support reliable operation in demanding outdoor environments.
Clear Outdoor Display and Long-Range Video Transmission

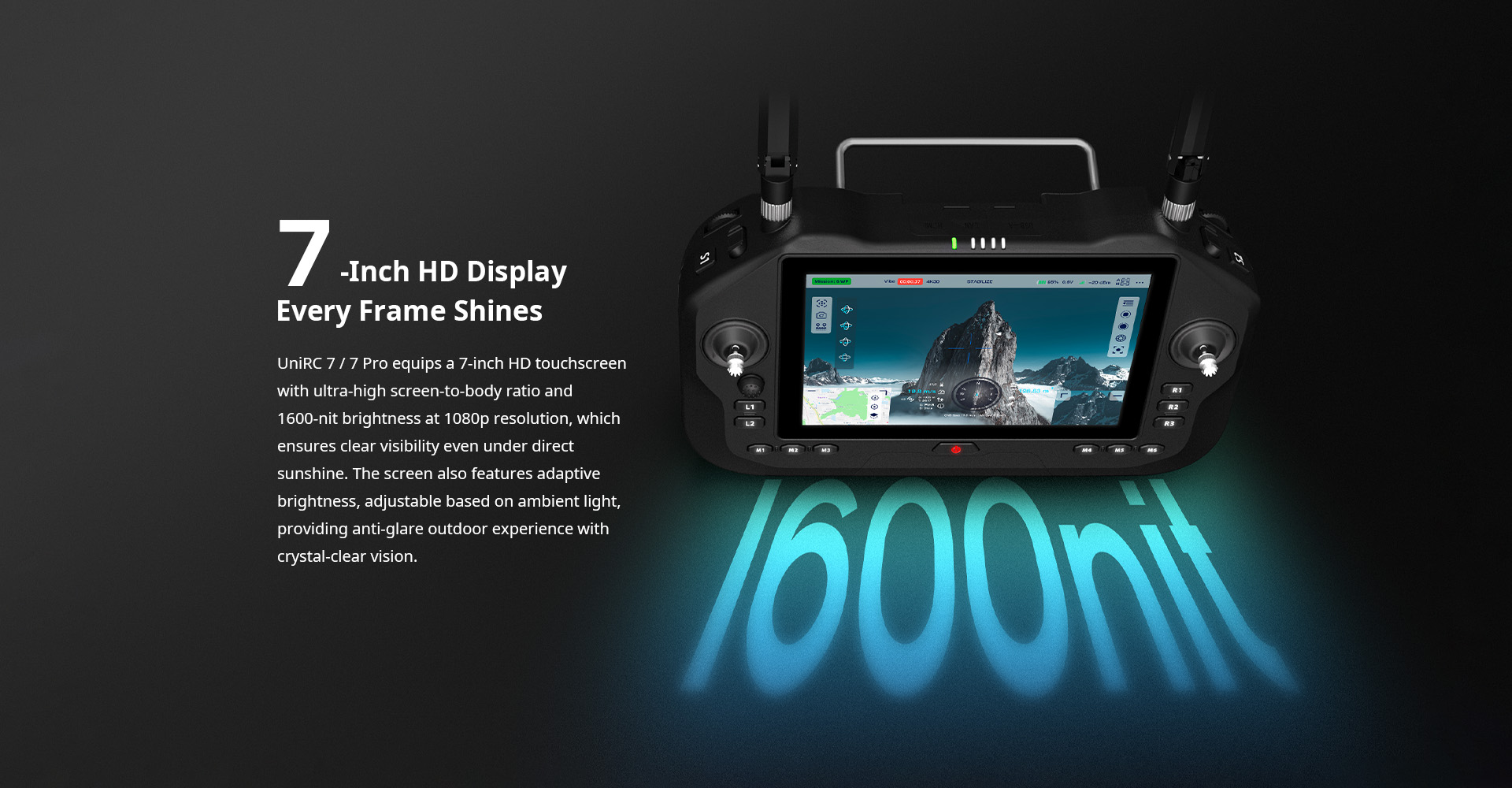

UniRC 7 combines a 7-inch 1280×800 touchscreen with 1600-nit brightness and adaptive brightness adjustment for clear visibility in outdoor environments. Its 2.4 GHz wireless video transmission system supports up to 4K 30FPS decoding, a transmission bitrate of up to 65 Mbps and AES-encrypted data communication. Actual communication distance depends on altitude, obstruction and interference conditions.
Technical Parameters
· Product Type: Handheld ground station
· Display: 7-inch touchscreen, 1280×800 resolution, 1600-nit brightness
· Operating System: Android 13
· Processor: Qualcomm octa-core CPU
· Memory and Storage: 4 GB RAM + 64 GB ROM, expandable via microSD card
· Operating Frequency: 2.4015–2.4815 GHz
· Video Decoding: Up to 4K 30FPS
· Transmission Bitrate: Up to 65 Mbps
· Encryption: AES encryption

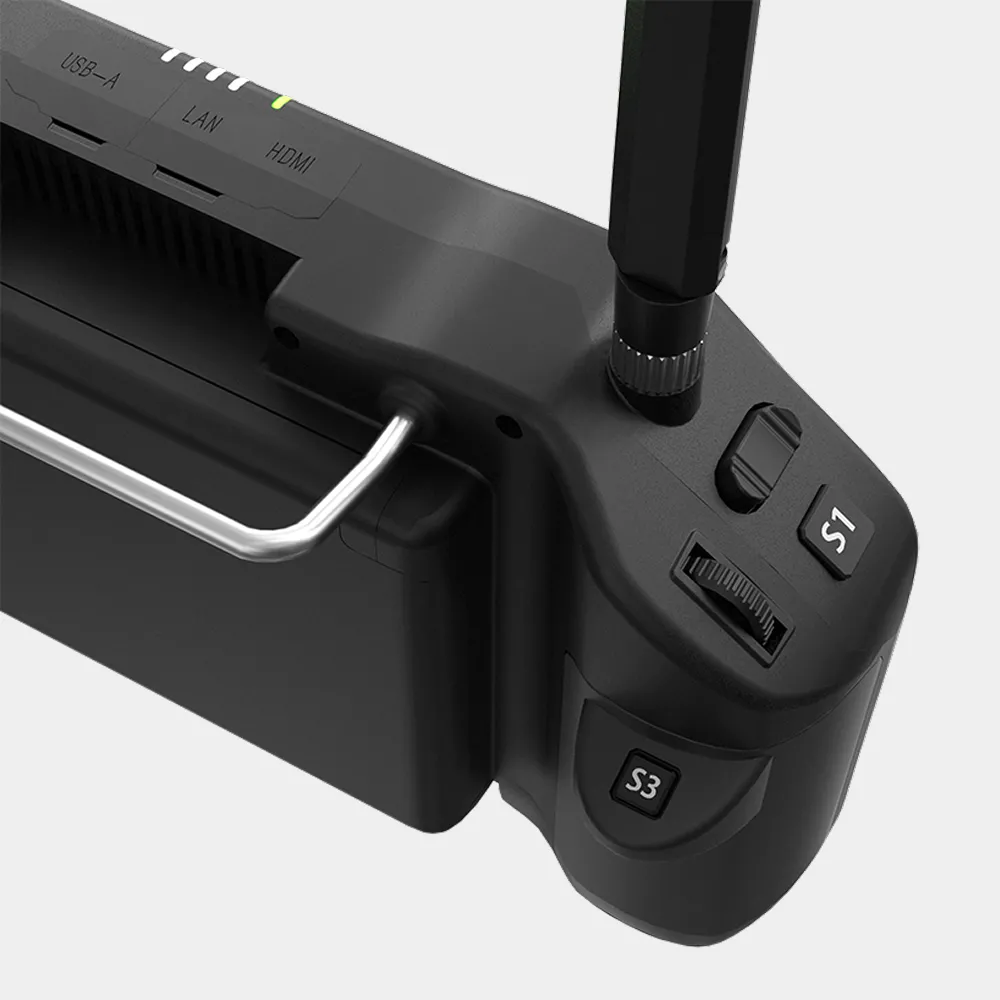

· Physical Channels: 16 push buttons, 2 three-position switches, 2 main joysticks, 1 mini joystick and 2 dials
· Battery Capacity: 13400 mAh
· Battery Life: Approximately 11 hours
· Charging: PD 30W fast charging

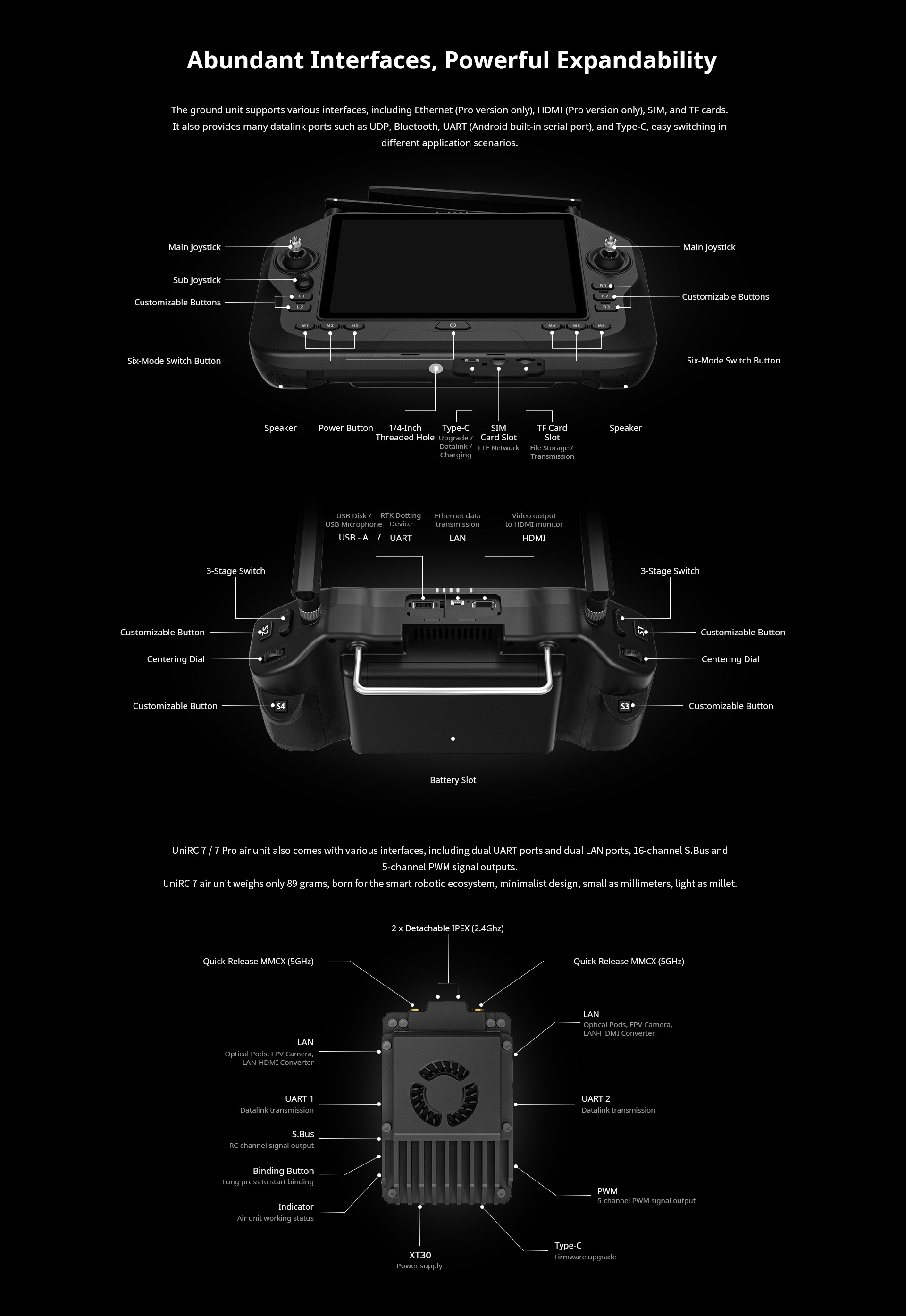

· Data Transmission Interfaces: UART, UDP, Bluetooth and Type-C
· Functional Interfaces: Type-C, TF card slot and SIM card slot
· Protection Rating: IP54
· Operating Temperature: -20°C to 55°C
· Ground Unit Dimensions: 274 × 190 × 100 mm
· Ground Unit Weight: 1.44 kg
· Air Unit Power Input: 12–76 V
· Air Unit Interfaces: 2 × UART, 2 × Ethernet, 16-channel S.Bus output and 5-channel PWM output
· Air Unit Dimensions: 57 × 40 × 28 mm, excluding antennas
· Air Unit Weight: 90 g, excluding antennas
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Designed for Long-Duration Outdoor Operation
· 7-inch 1600-nit display for outdoor visibility
· Approximately 11 hours of battery life
· Quick-release battery design
· PD 30W fast charging
· IP54 protection for professional field operation
· Backlit buttons for low-light operation
· Quick-release belly supports for improved operator comfort
· Active cooling for stable long-duration use
Standard Package Contents
· 1 × UniRC 7 ground unit
· 2 × 2.4G omnidirectional antennas for the ground unit
· 1 × UniRC 7 air unit
· 2 × 2.4G omnidirectional antennas for the air unit
· 1 × PX4 / ArduPilot autopilot data cable
· 1 × S.Bus male connector cable
· 1 × PWM cable
· 1 × 30W PD fast charger
· 1 × Type-C to Type-C fast-charging cable
· 1 × Type-C to USB-A adapter
· 1 × storage case
· 2 × quick-release belly supports
· 1 × ground unit shoulder strap
· Final package contents and shipping arrangement should be confirmed before ordering.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Notes for Use
· UniRC 7 uses the 2.4 GHz frequency band; available frequency bands and operating ranges must comply with local laws and regulations.
· The communication range depends on flight altitude, obstruction, interference and line-of-sight conditions.
· The stated 30–40 km maritime range applies only under clear line-of-sight and low-interference conditions.
· Install the ground unit and air unit antennas correctly before operation.
· Confirm compatibility with the selected flight controller, gimbal, payload and data-link system before ordering.
· The air unit power input range is 12–76 V; confirm the power supply before connection.
· Set the failsafe function and complete joystick calibration before operating the aircraft or unmanned vehicle.
· Keep the air unit away from the GPS module; the manual recommends more than 20 cm separation.
