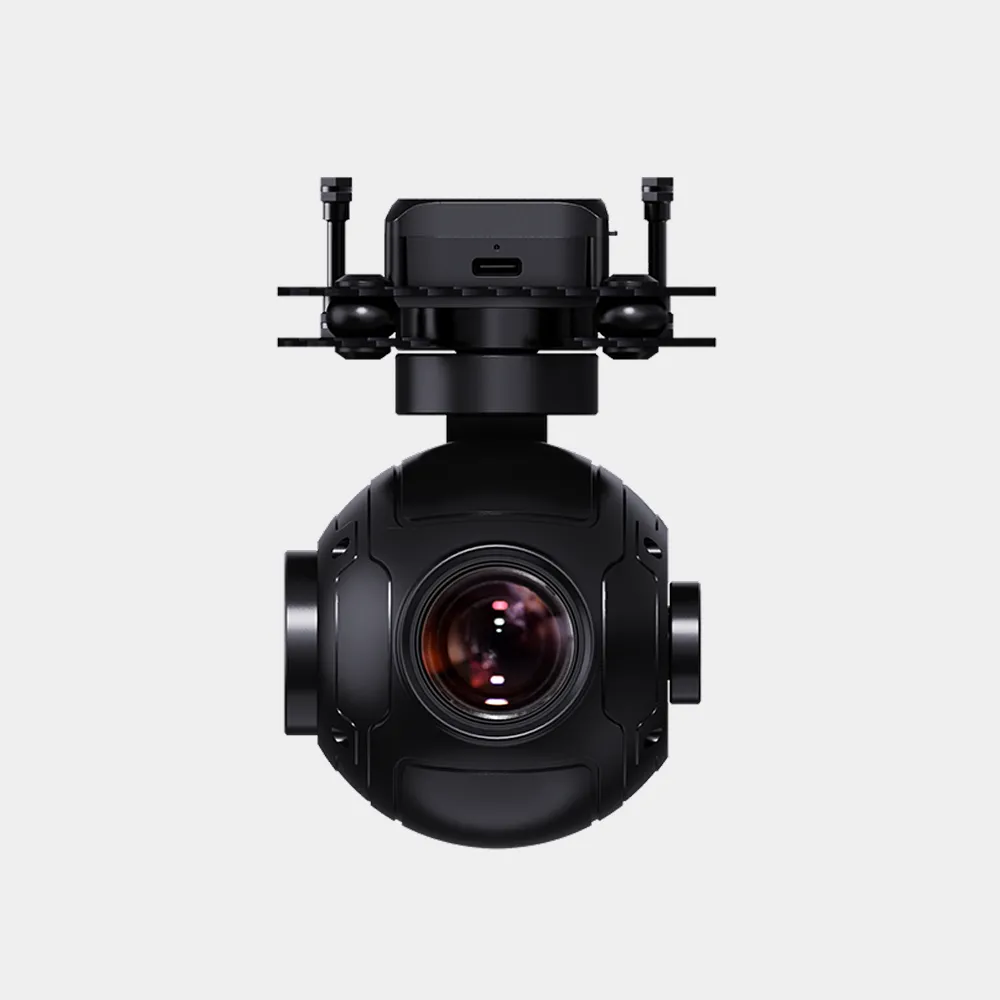

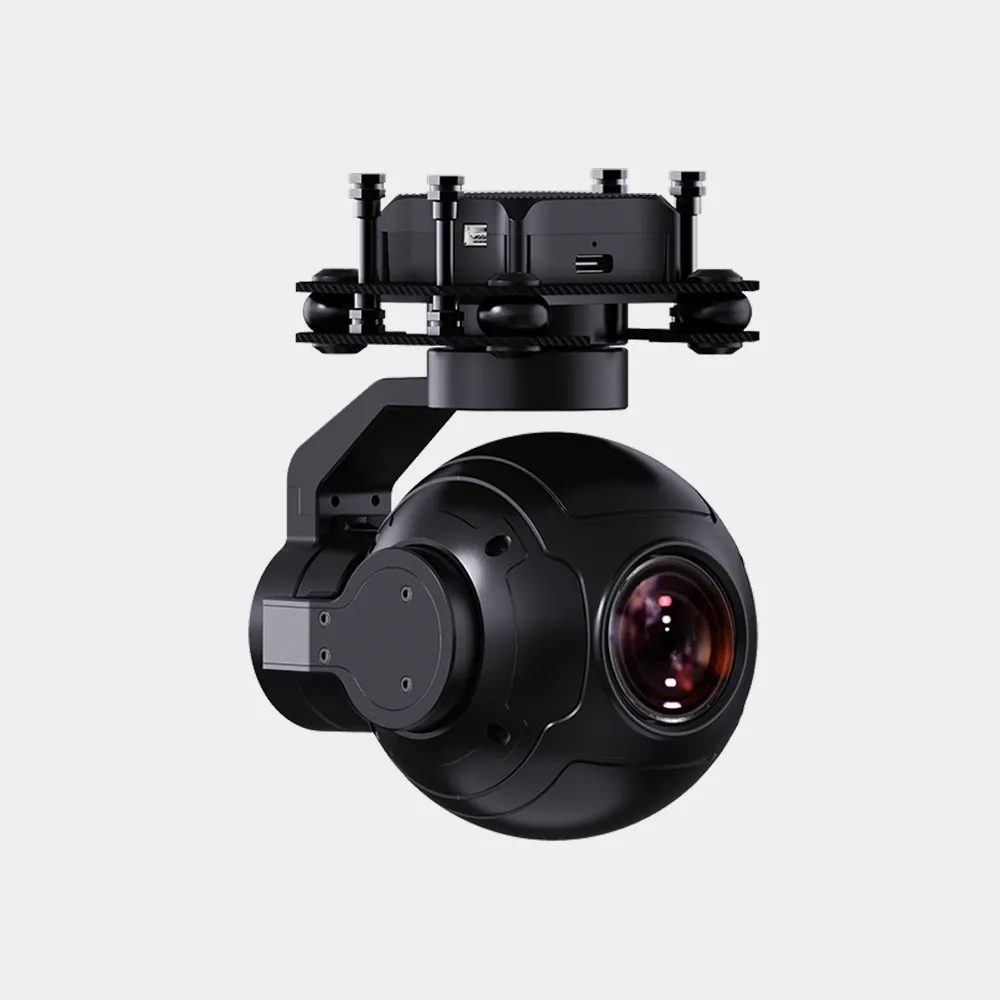

SIYI ZR10 is a 2K hybrid zoom gimbal camera pod designed for UAV imaging and remote observation. It combines a 4MP 1/2.7-inch CMOS sensor with up to 30X hybrid zoom and 10X optical zoom, helping operators inspect distant objects while maintaining a stable view.
The camera pod supports 2K Quad HD video and photography, point-to-focus operation, focus tracking, starlight night vision and HDR imaging. Its 320° yaw-axis rotation and multiple gimbal motion modes support flexible observation during flight.
ZR10 can be controlled through S.Bus, Ethernet or UART protocol interfaces. It supports SIYI SDK integration as well as ArduPilot and PX4 MAVLink-related control environments. Optional AI tracking can be added through the SIYI AI tracking module. Confirm the air unit, flight controller, power input and interface compatibility before installation.
Hybrid Zoom Gimbal Camera
For UAV Imaging and Remote Observation
Long-Range UAV Optical Imaging
2K Hybrid Zoom Imaging
ZR10 combines a 4MP 1/2.7-inch CMOS sensor with 2K Quad HD video and photography. Its 30X hybrid zoom and 10X optical zoom support detailed observation of distant targets. Point-to-focus and focus-tracking functions help maintain a clear view while the operator adjusts the viewing range.
Flexible UAV System Integration

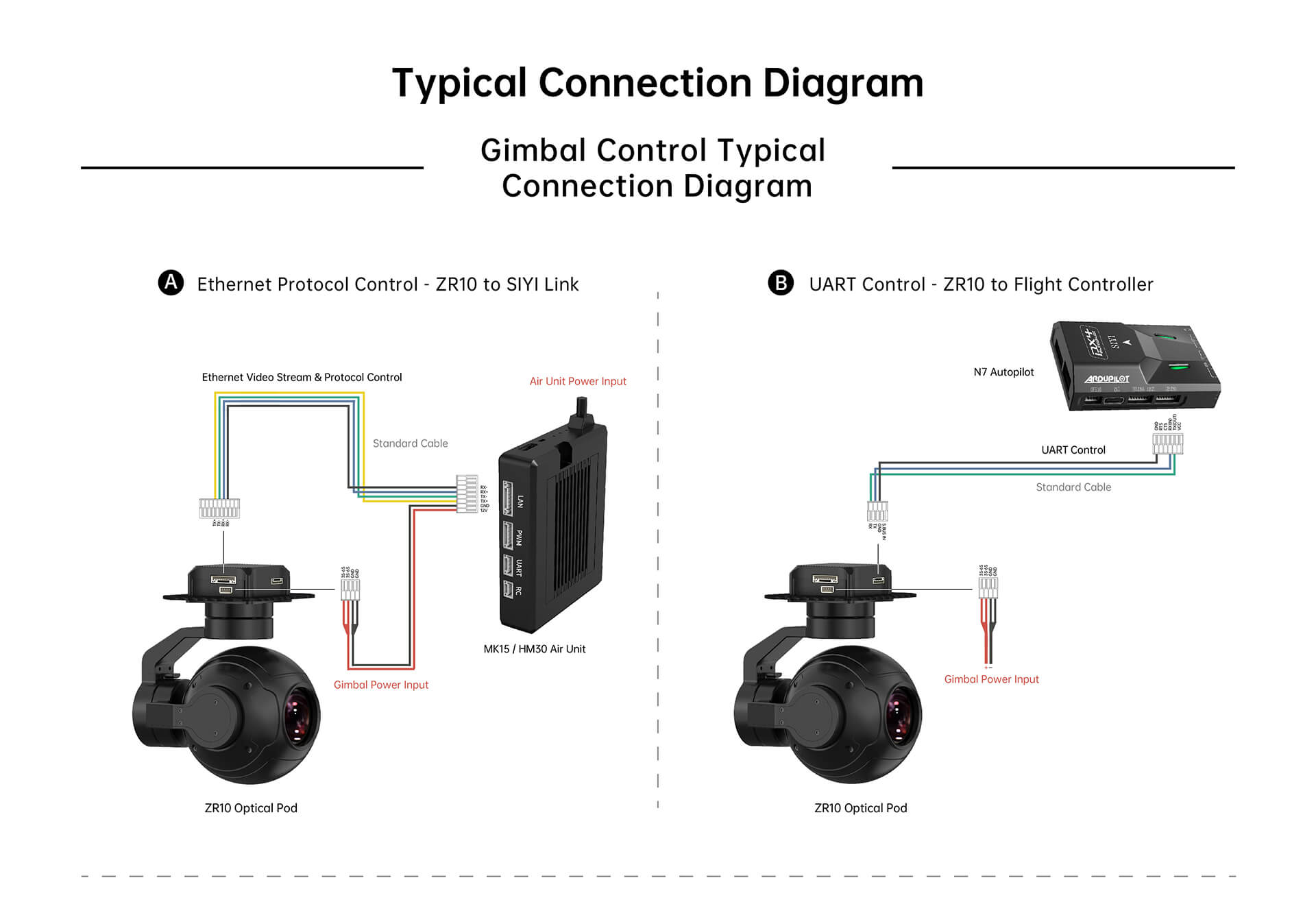

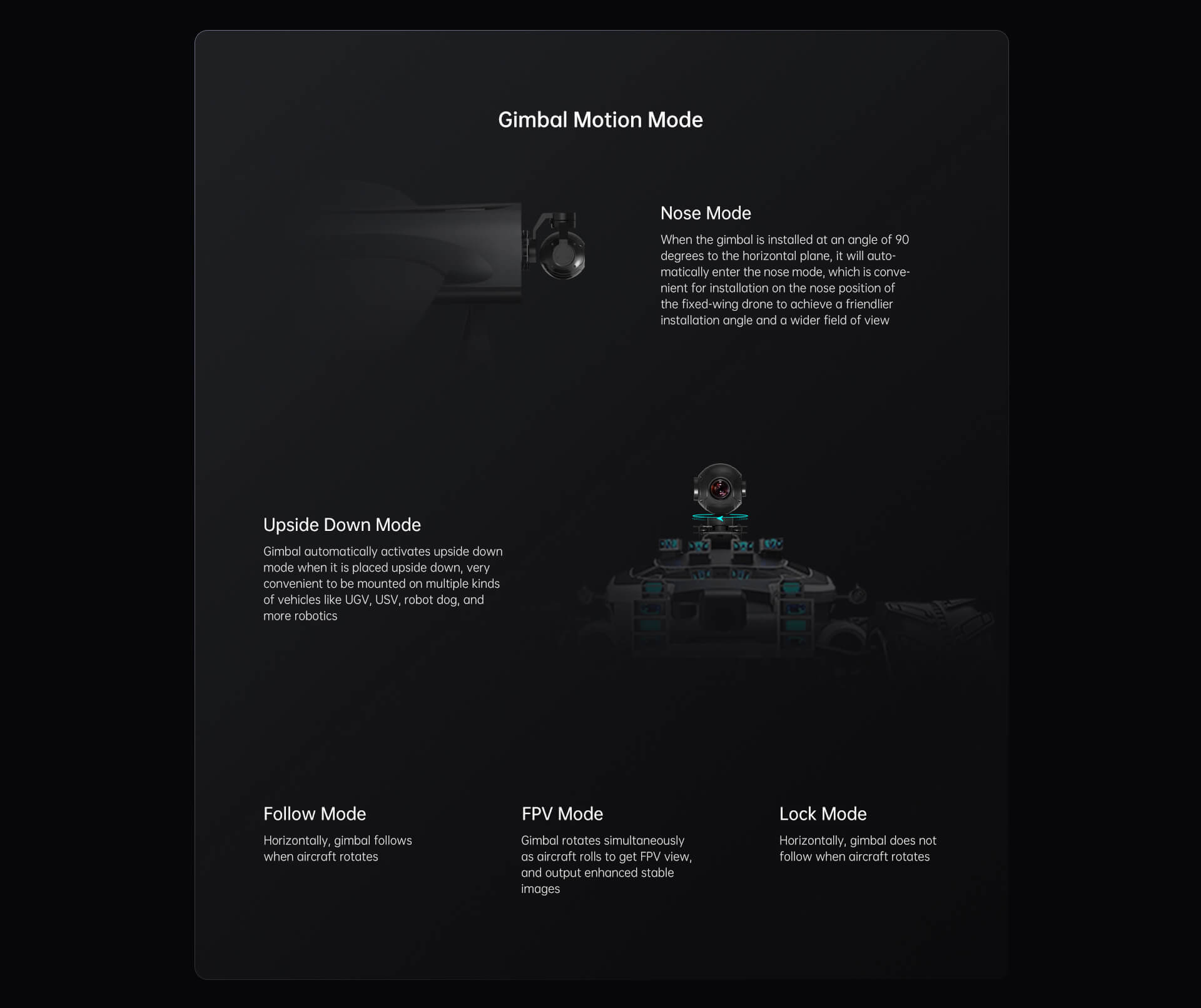

ZR10 supports S.Bus, Ethernet and UART protocol control. It can be integrated with SIYI SDK-based control systems and compatible ArduPilot or PX4 MAVLink environments. The pod also supports different gimbal motion modes, including nose, upside-down, follow, FPV and lock modes. Confirm the selected air unit and flight controller before integration.
Technical Parameters
· Product Type: Hybrid zoom gimbal camera pod
· Video and Photography: 2K Quad HD
· Image Sensor: 4MP 1/2.7-inch CMOS
· Hybrid Zoom: Up to 30X
· Optical Zoom: Up to 10X
· Yaw-Axis Rotation: 320°
· Imaging Functions: Point-to-focus, focus tracking, starlight night vision and HDR
· Gimbal Motion Modes: Nose, upside-down, follow, FPV and lock modes

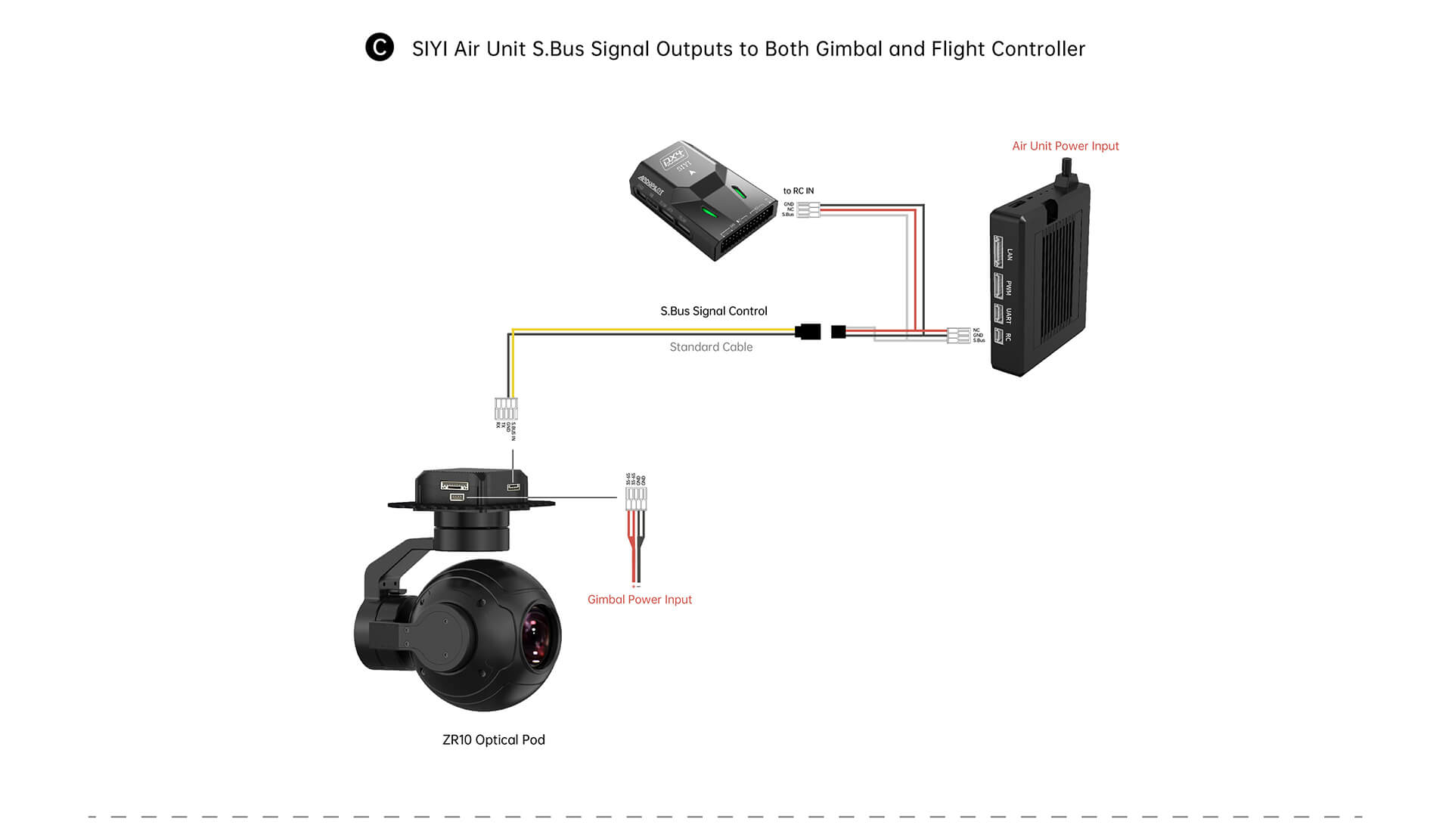

· Control Interfaces: S.Bus, Ethernet and UART
· Supported Protocols: SIYI SDK, ArduPilot and PX4 MAVLink
· Power Input: 3S to 6S; early manufacturing lots support 3S to 4S only
· Optional Function: AI tracking with optional SIYI AI tracking module
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Advanced UAV Imaging and Control
· 2K Quad HD video and photography
· 4MP 1/2.7-inch CMOS image sensor
· Up to 30X hybrid zoom
· Up to 10X optical zoom
· 320° yaw-axis rotation
· Point-to-focus and focus-tracking functions
· Starlight night vision and HDR imaging
· S.Bus, Ethernet and UART control
· Optional AI tracking module support
Packaging and Configuration
· Product: SIYI ZR10 hybrid zoom gimbal camera pod
· Air unit, mounting hardware and cable configuration: To be confirmed
· AI tracking module: Optional and not assumed to be included

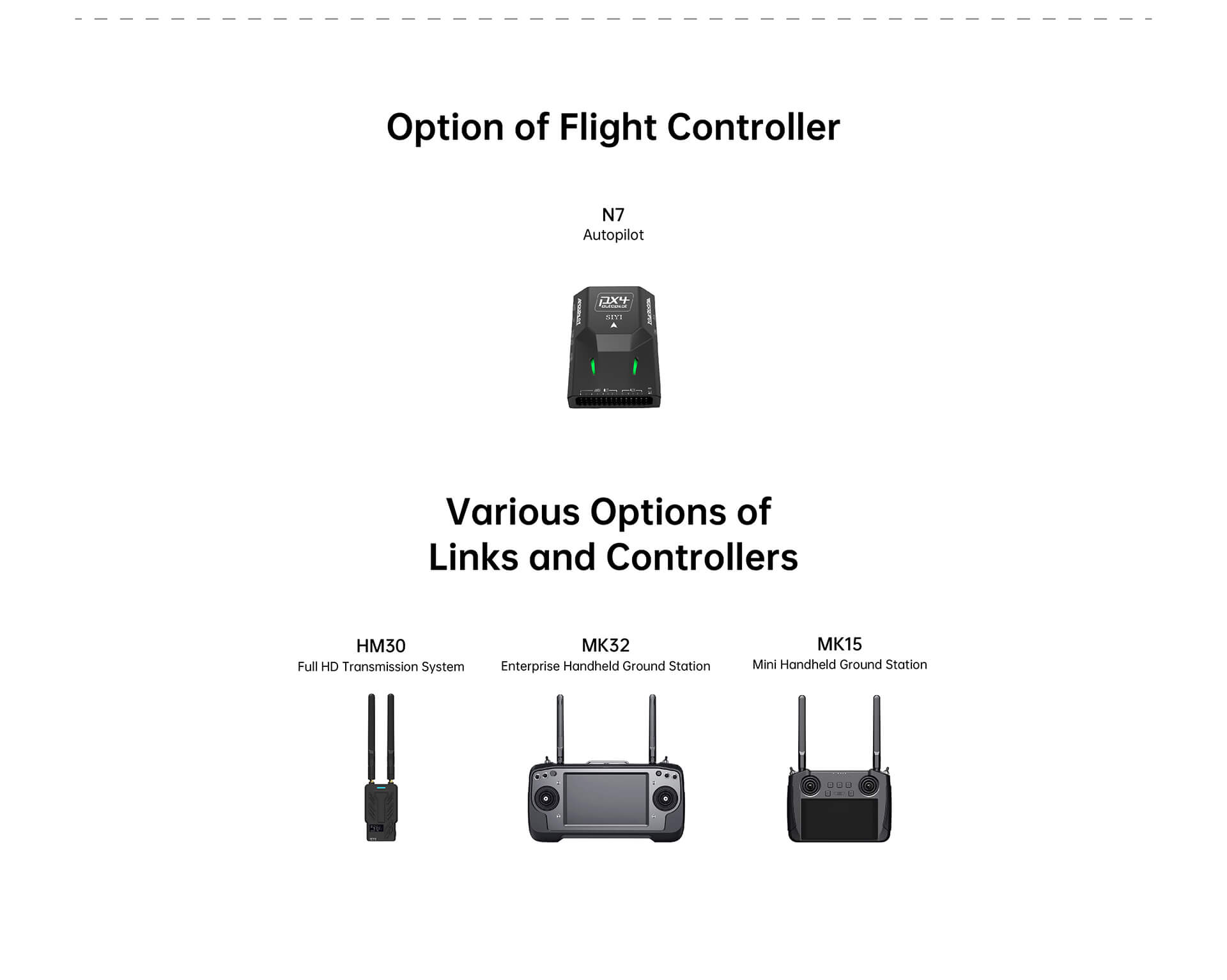

· Flight controller, video converter and transmission system: Confirm final configuration before order
· Final package contents: Please confirm before shipment
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Integration Notice

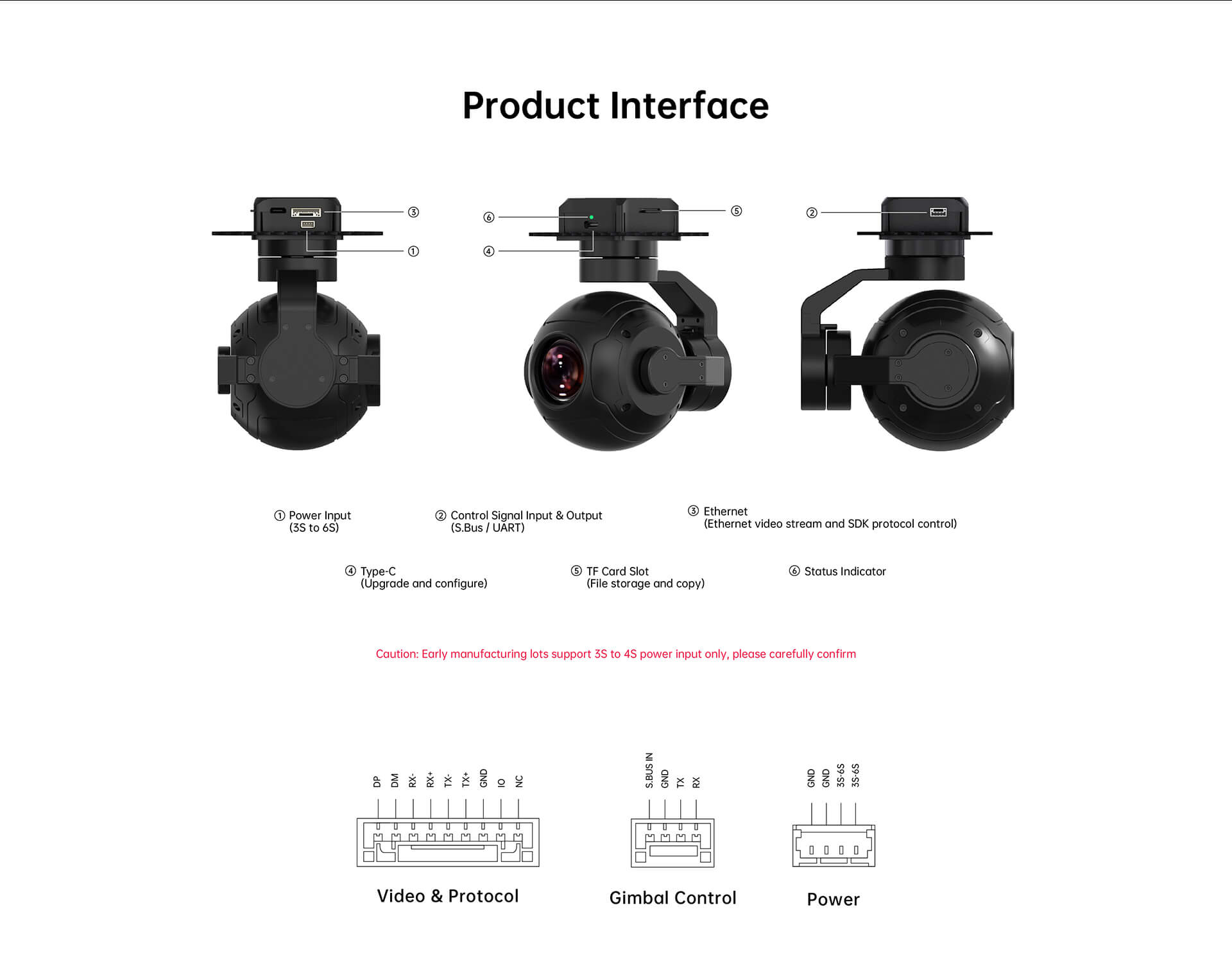

· Confirm the actual ZR10 production version before connecting power.
· Standard power input is listed as 3S to 6S; early manufacturing lots support 3S to 4S only.
· Confirm the air unit, flight controller, cable pinout and selected control method before installation.
· ArduPilot and PX4 MAVLink control requires compatible system configuration and protocol setup.

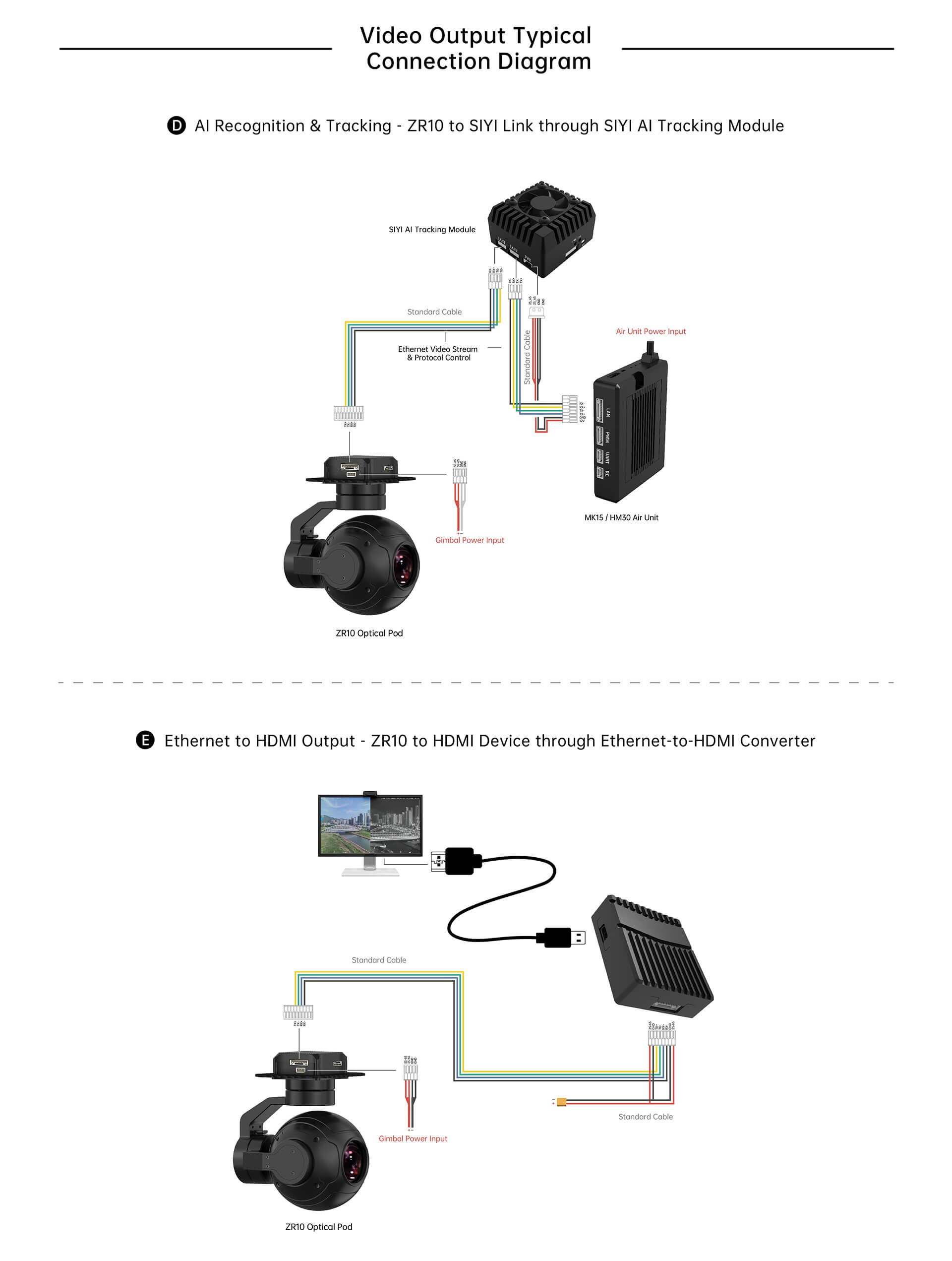

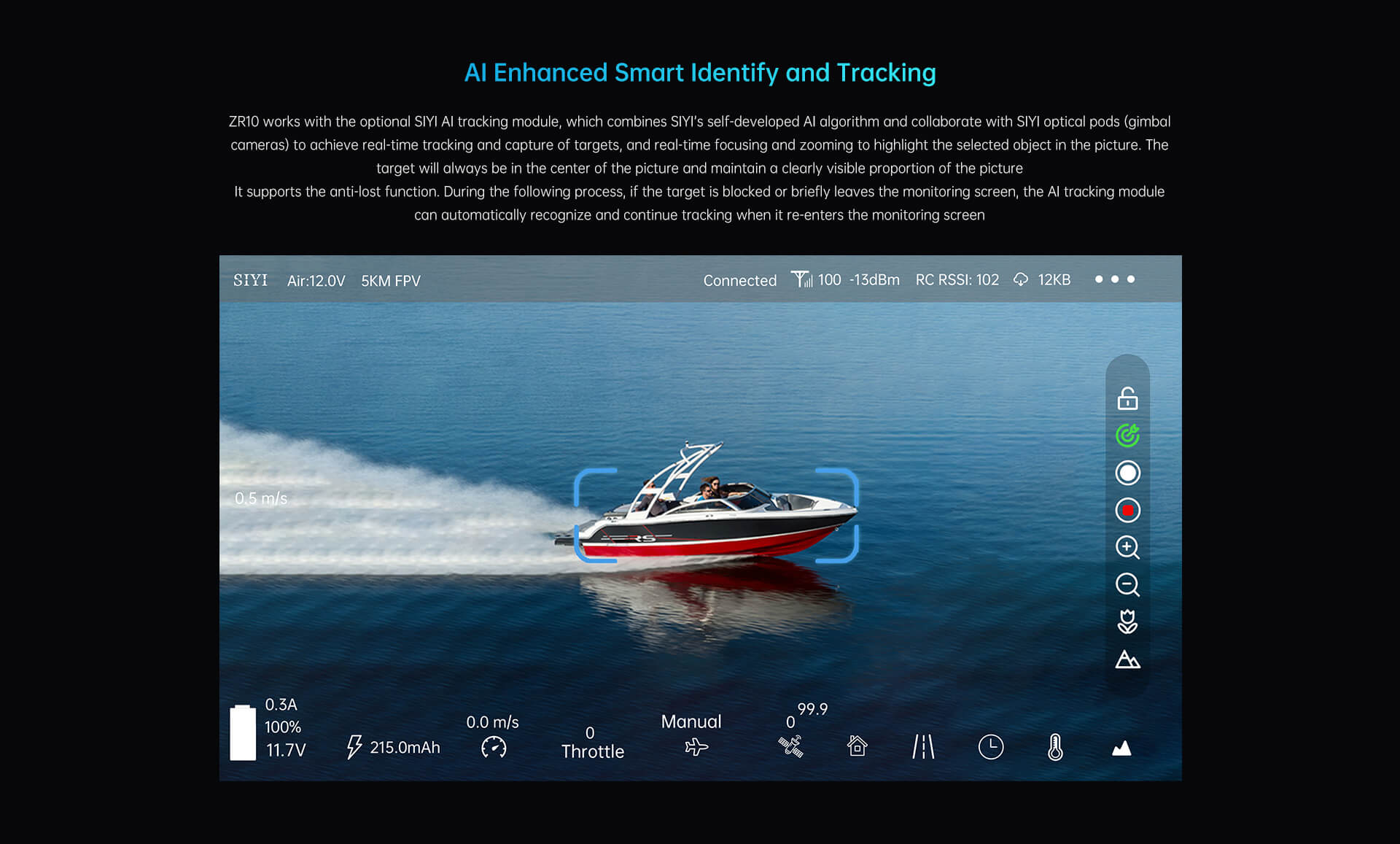

· AI tracking requires the optional SIYI AI tracking module and compatible system connection.
· Do not assume that the air unit, converter, flight controller or AI tracking module is included in the standard package.
