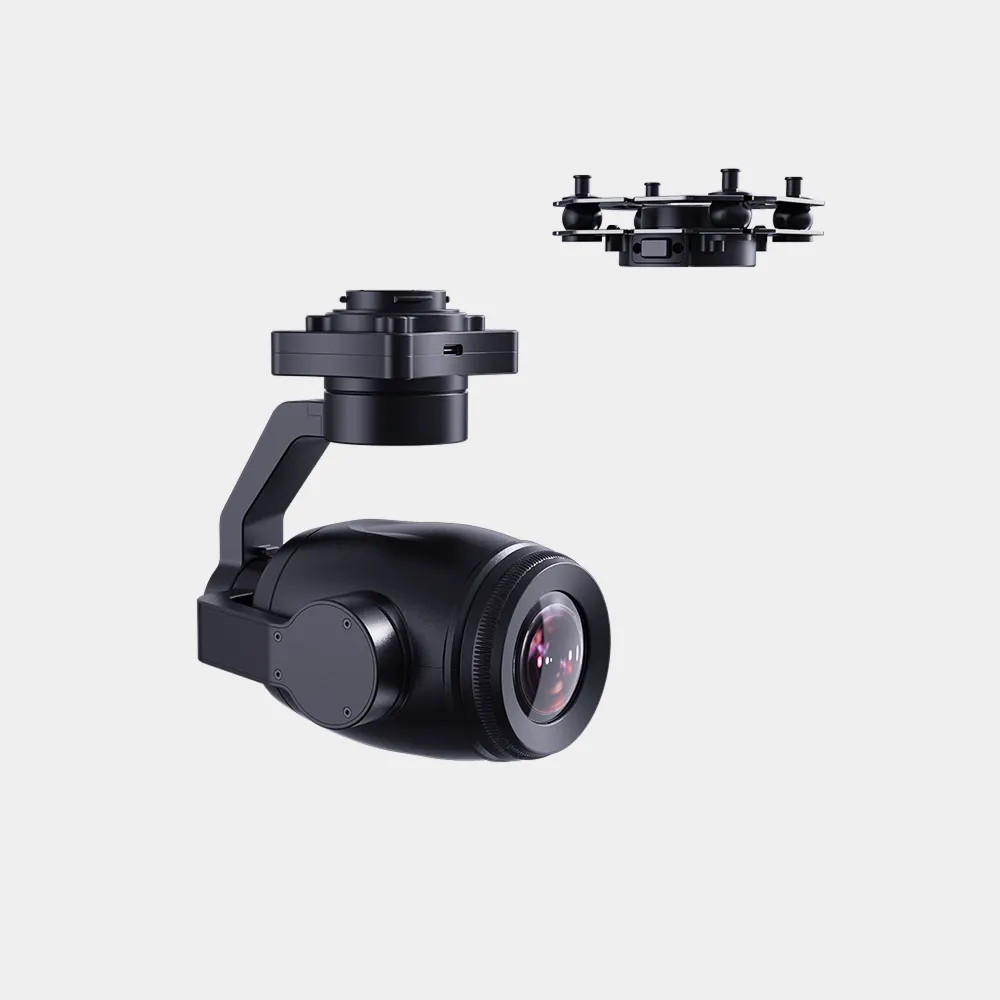

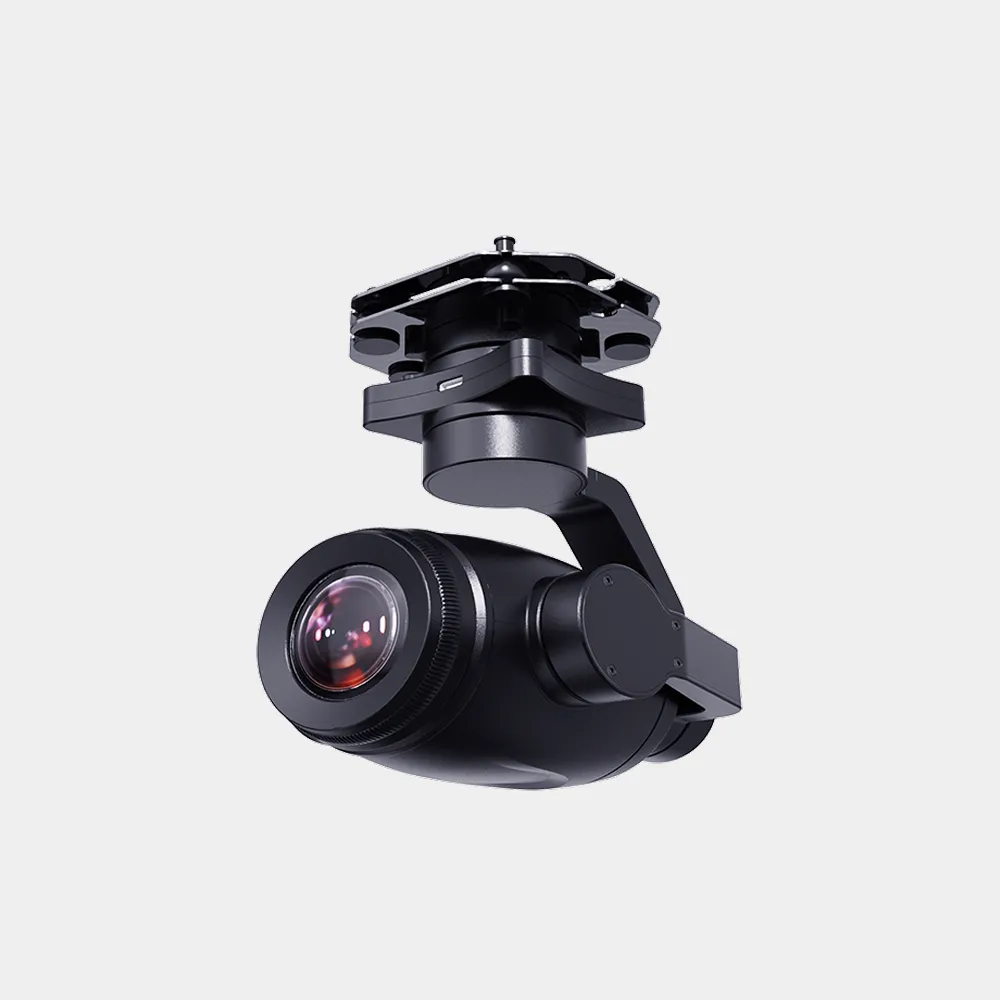

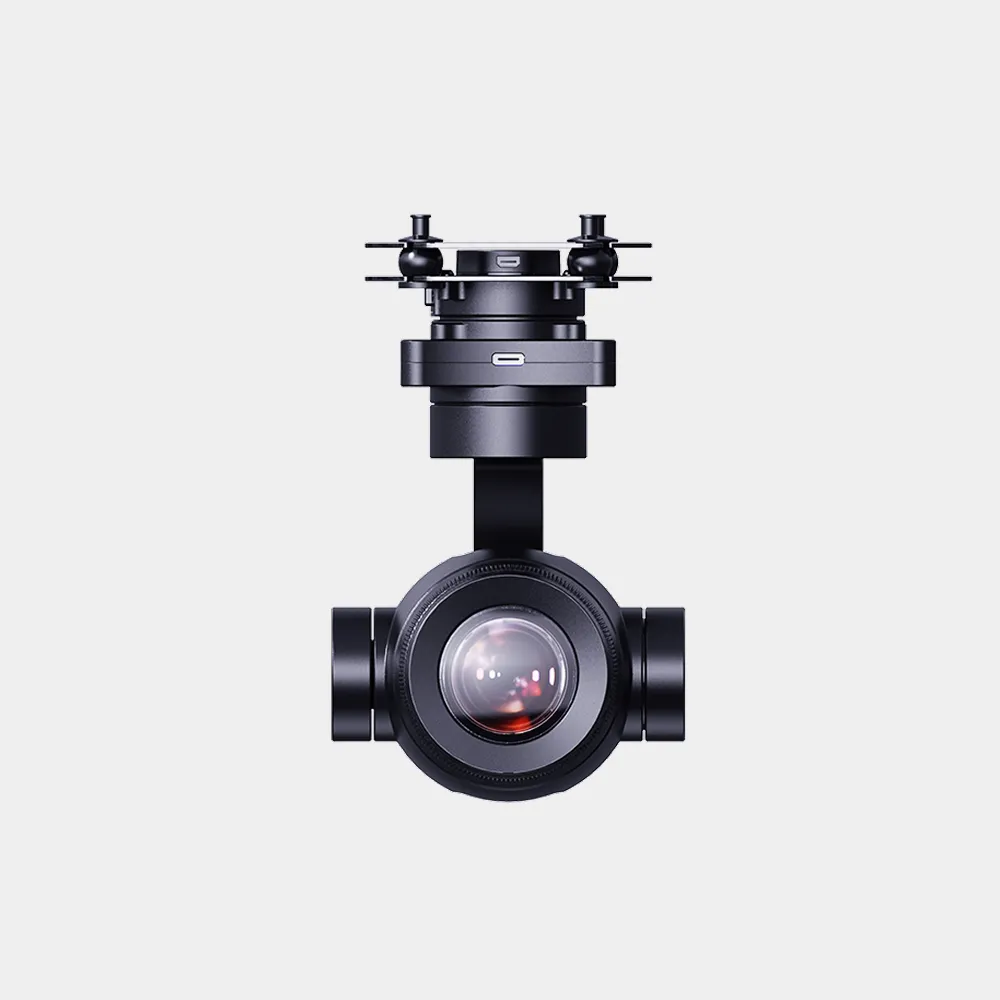

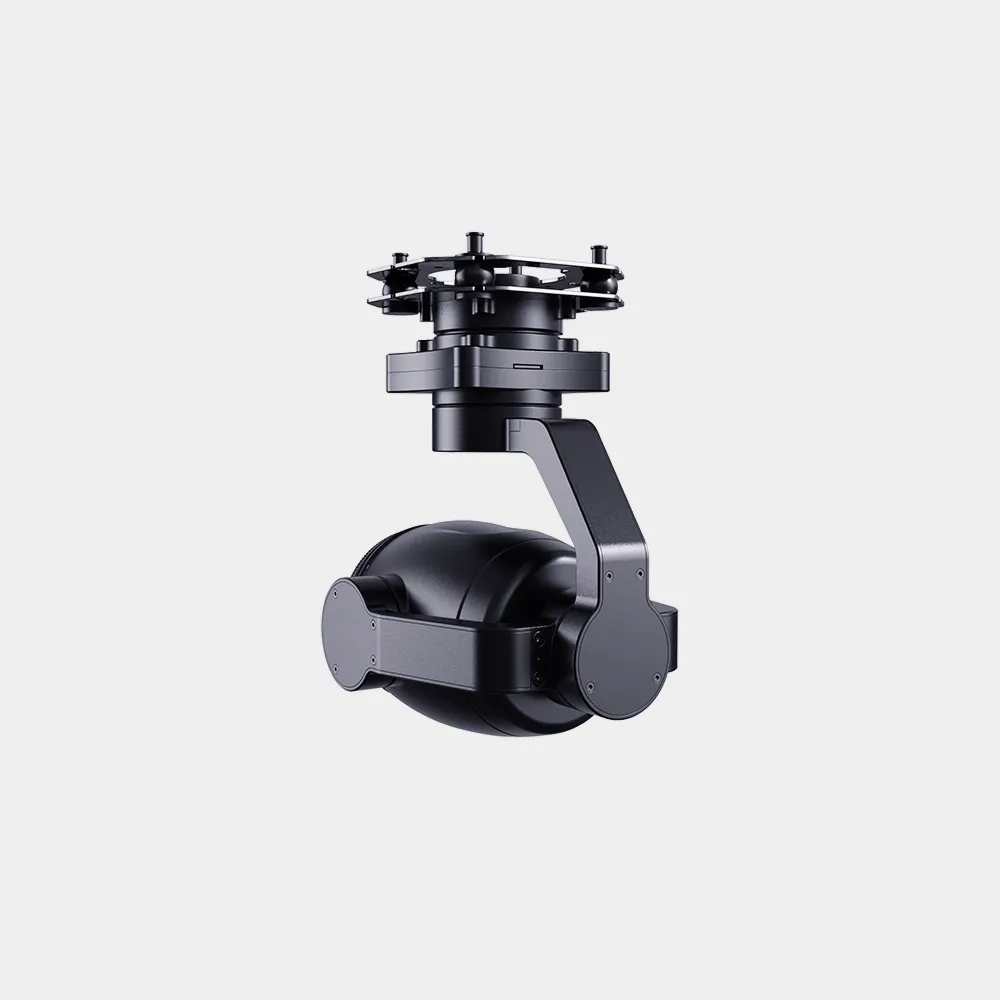

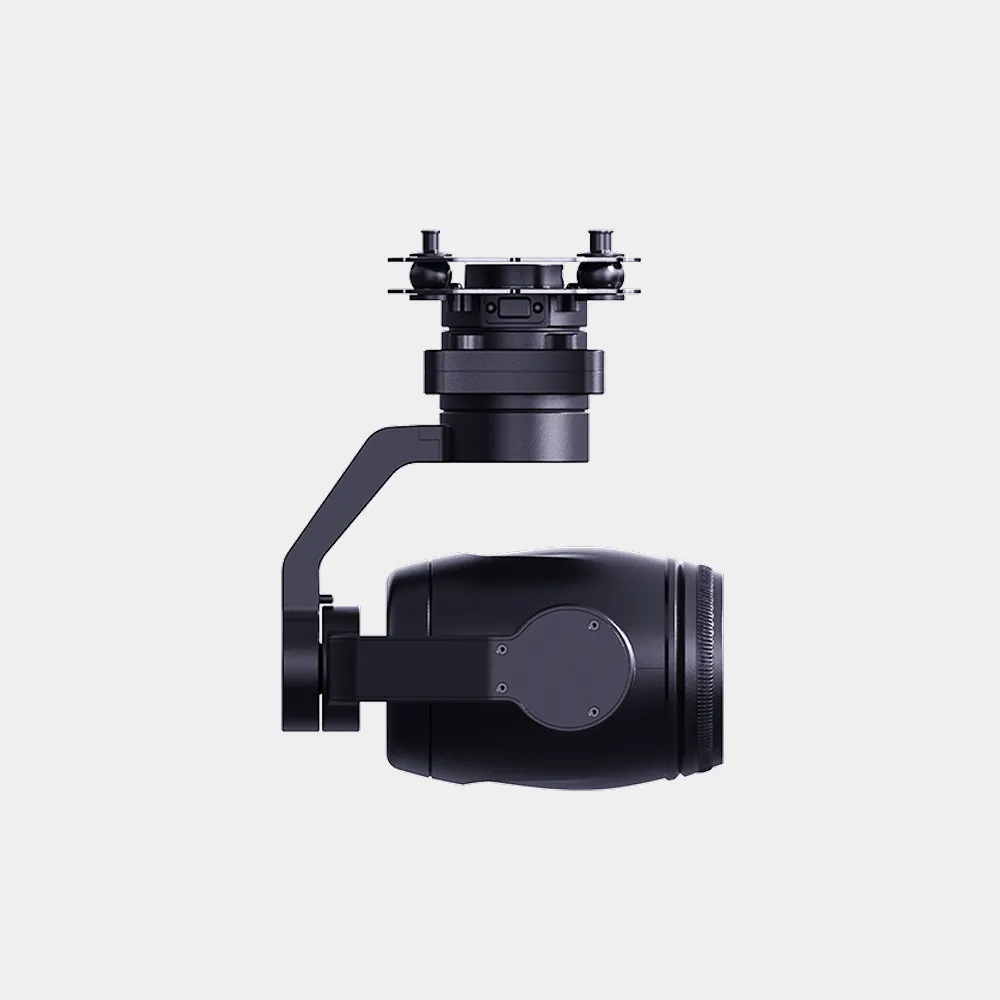

SIYI ZR30 is a professional optical pod designed for UAVs and other unmanned platforms that require clear long-range imaging. It integrates a 1/2.7-inch Sony CMOS sensor with 8MP resolution, 4K video recording and photography, 30X optical zoom and up to 180X hybrid zoom.
The ZR30 supports point-to-focus, focus tracking, starlight night vision and HDR imaging for detailed observation in changing lighting conditions. Its 540-degree yaw-axis rotation and quick-release structure support flexible payload installation and wide-area viewing. With Ethernet, UART and S.Bus control options, ZR30 can integrate with SIYI links, flight controllers, ArduPilot, PX4 and MAVLink-based systems.
Professional Optical Pod
4K Imaging + 30X Optical Zoom + 540-Degree Yaw Rotation
Professional 4K Optical Pod for UAV Payloads
4K Imaging with 180X Hybrid Zoom
ZR30 uses a 1/2.7-inch Sony CMOS sensor with 8MP resolution to capture 4K video and photos. Its 30X optical zoom and 180X hybrid zoom support detailed observation of distant targets. Point-to-focus and focus-tracking functions help maintain clear images while the camera is zooming or recording moving scenes. Captured image files can also include GPS location and time attributes.

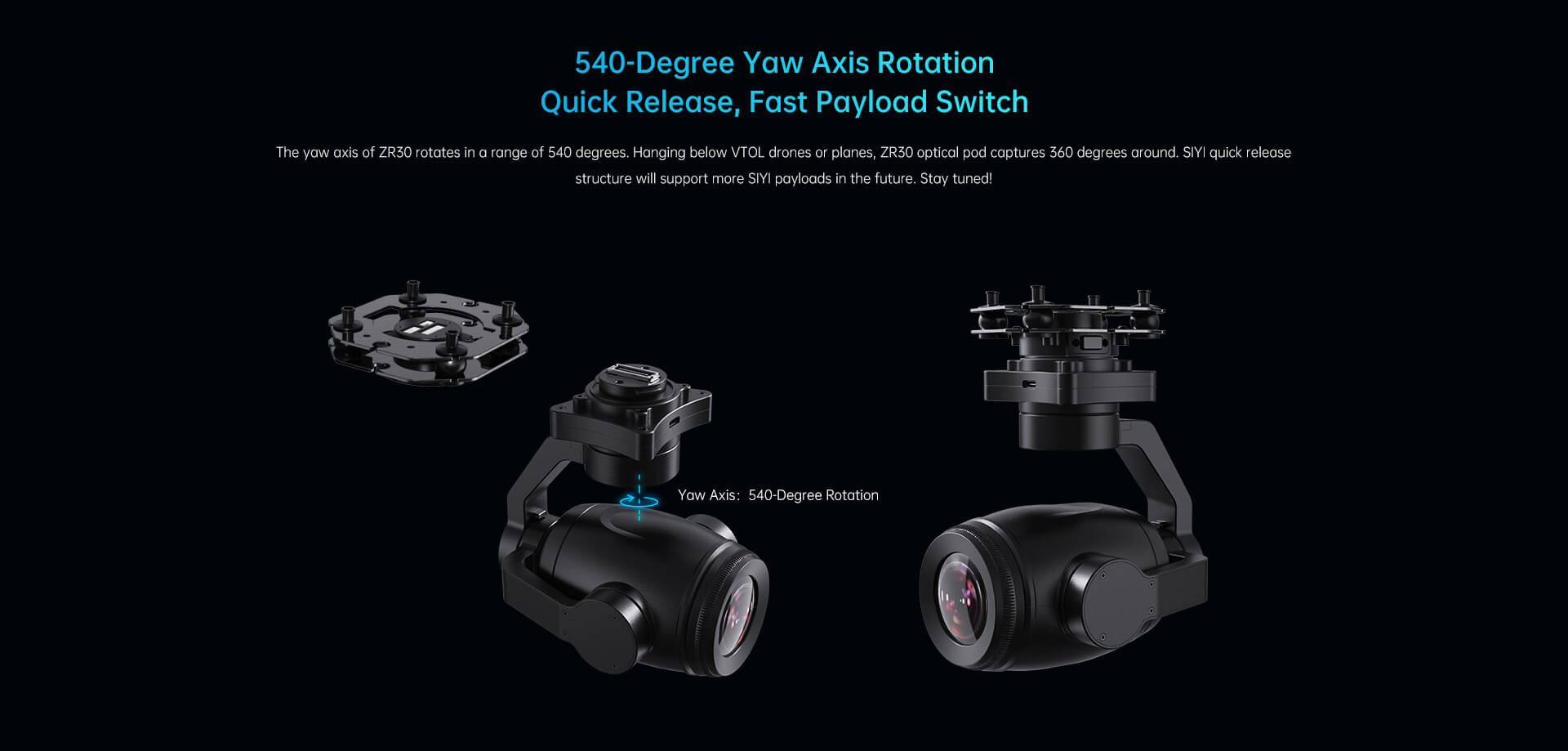

540-Degree Yaw Rotation for Flexible Observation
The ZR30 yaw axis supports 540-degree rotation, allowing the optical pod to capture a wide viewing range when installed on VTOL aircraft, fixed-wing platforms and other unmanned systems. Its quick-release structure supports faster payload replacement and future SIYI payload compatibility. Nose Mode and Upside Down Mode provide additional installation flexibility for different vehicle configurations.
Technical Parameters
· Product Type: Professional optical pod
· Image Sensor: 1/2.7-inch Sony CMOS
· Resolution: 8MP
· Video and Photography: 4K Ultra HD
· Zoom: 180X hybrid zoom / 30X optical zoom
· Yaw Rotation: 540-degree yaw-axis rotation

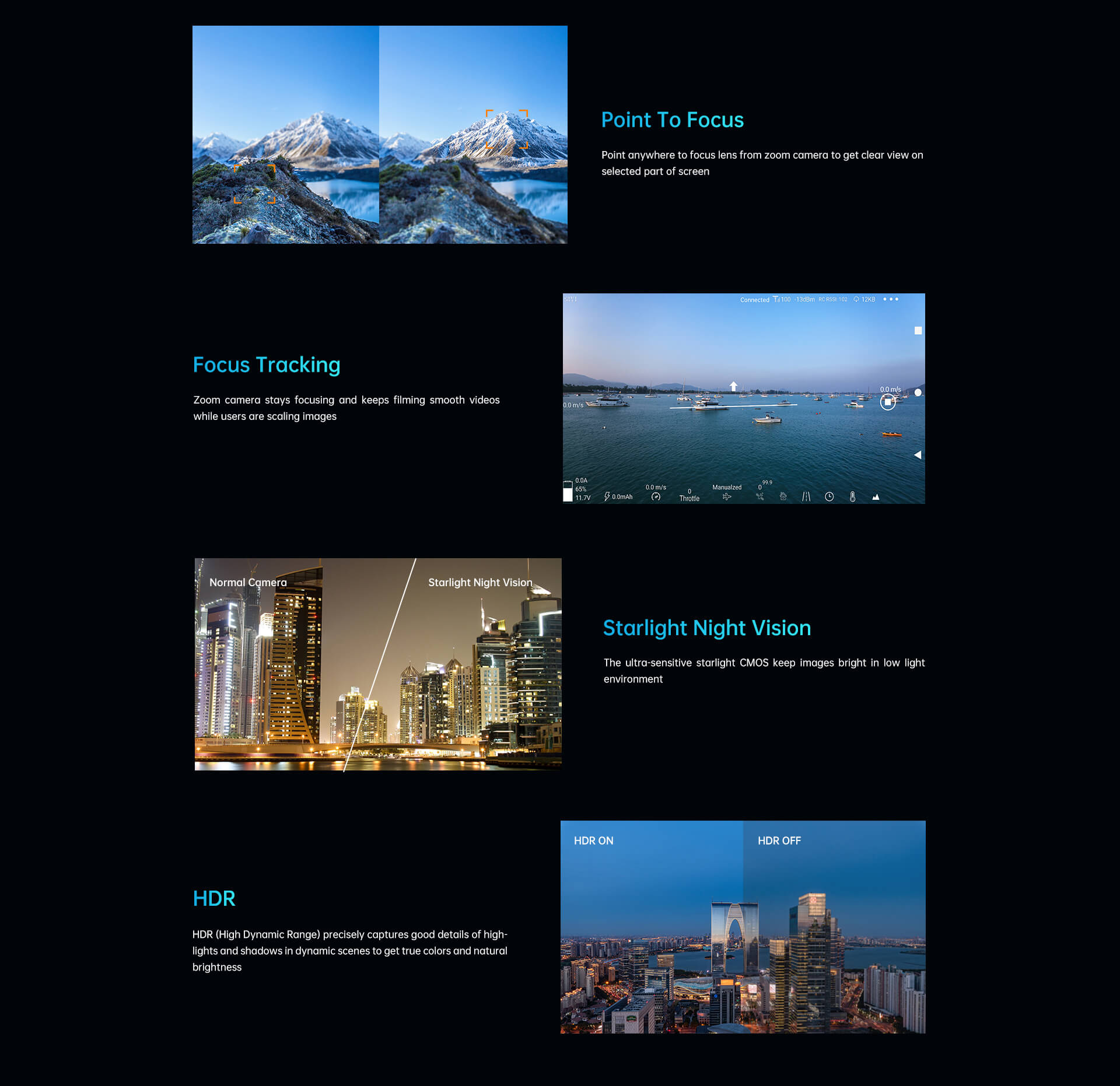

· Focus Functions: Point-to-focus and focus tracking
· Imaging Functions: Starlight night vision and HDR
· Control Interfaces: S.Bus, UART and Ethernet
· Video Output: Micro-HDMI
· Data and Protocol Control: SIYI Gimbal SDK, ArduPilot and PX4 MAVLink
· Power Input: 3S–6S
· Storage: TF card slot

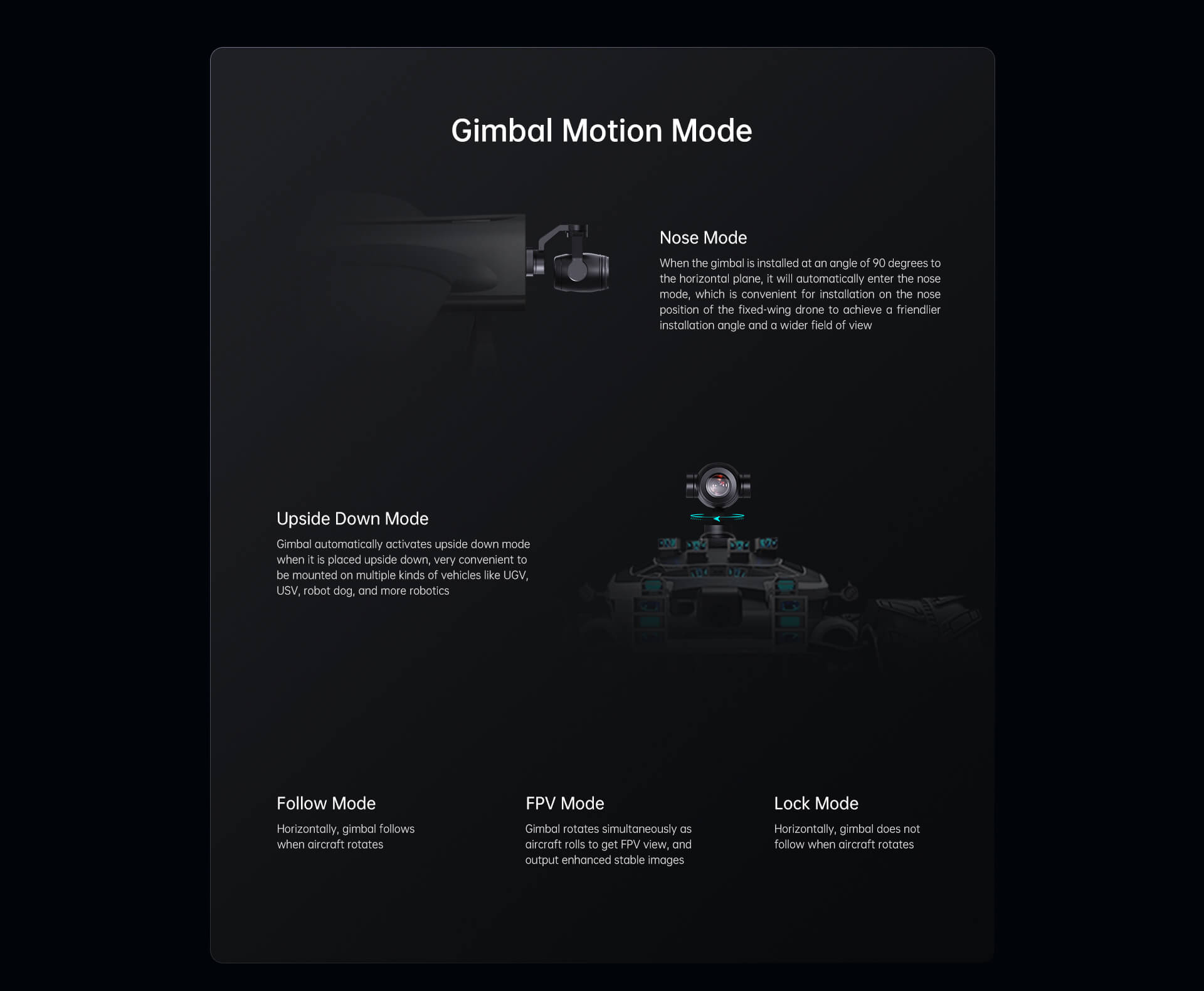

· Gimbal Modes: Nose Mode, Upside Down Mode, Follow Mode, FPV Mode and Lock Mode
· Dimensions and Weight: To be confirmed
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.

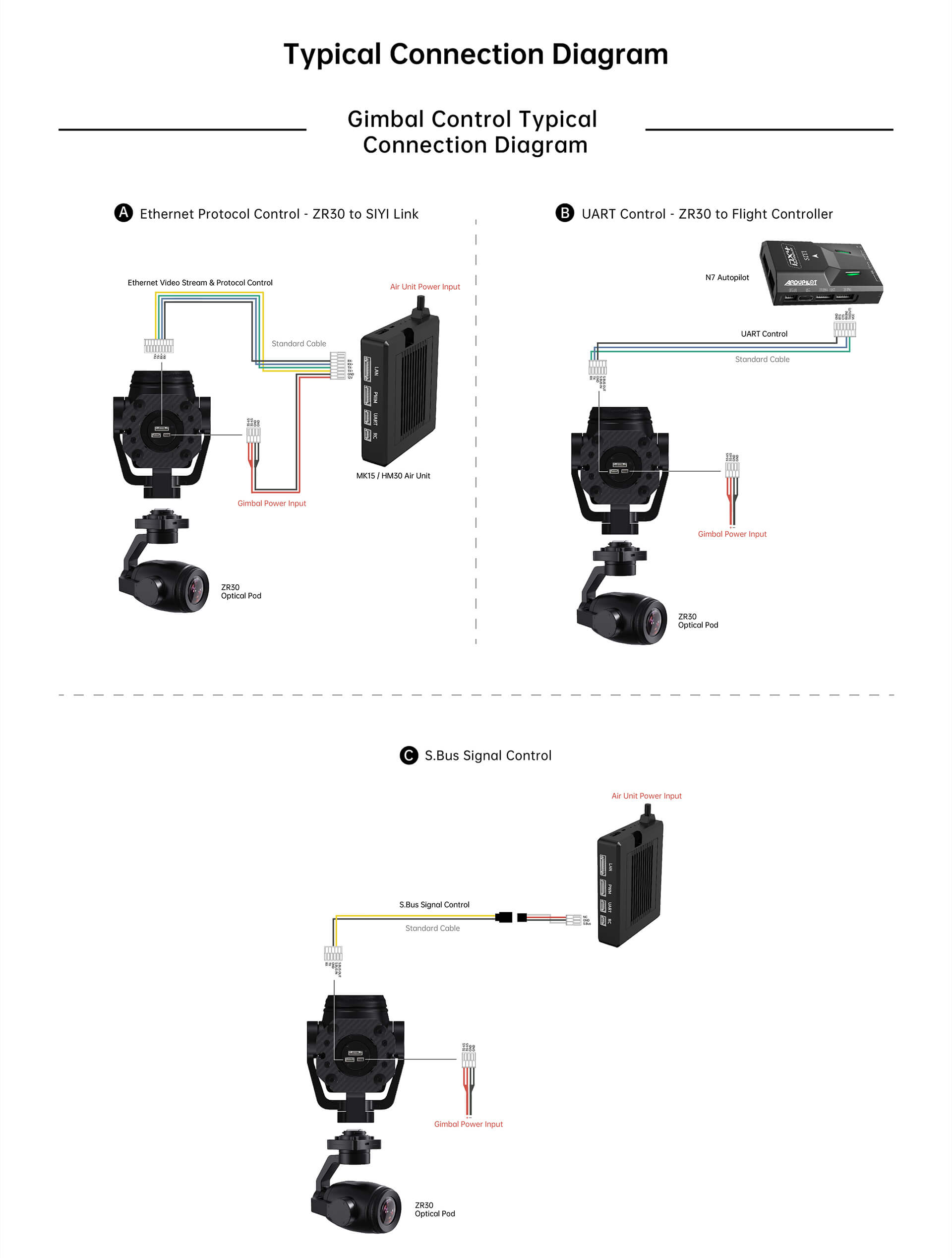

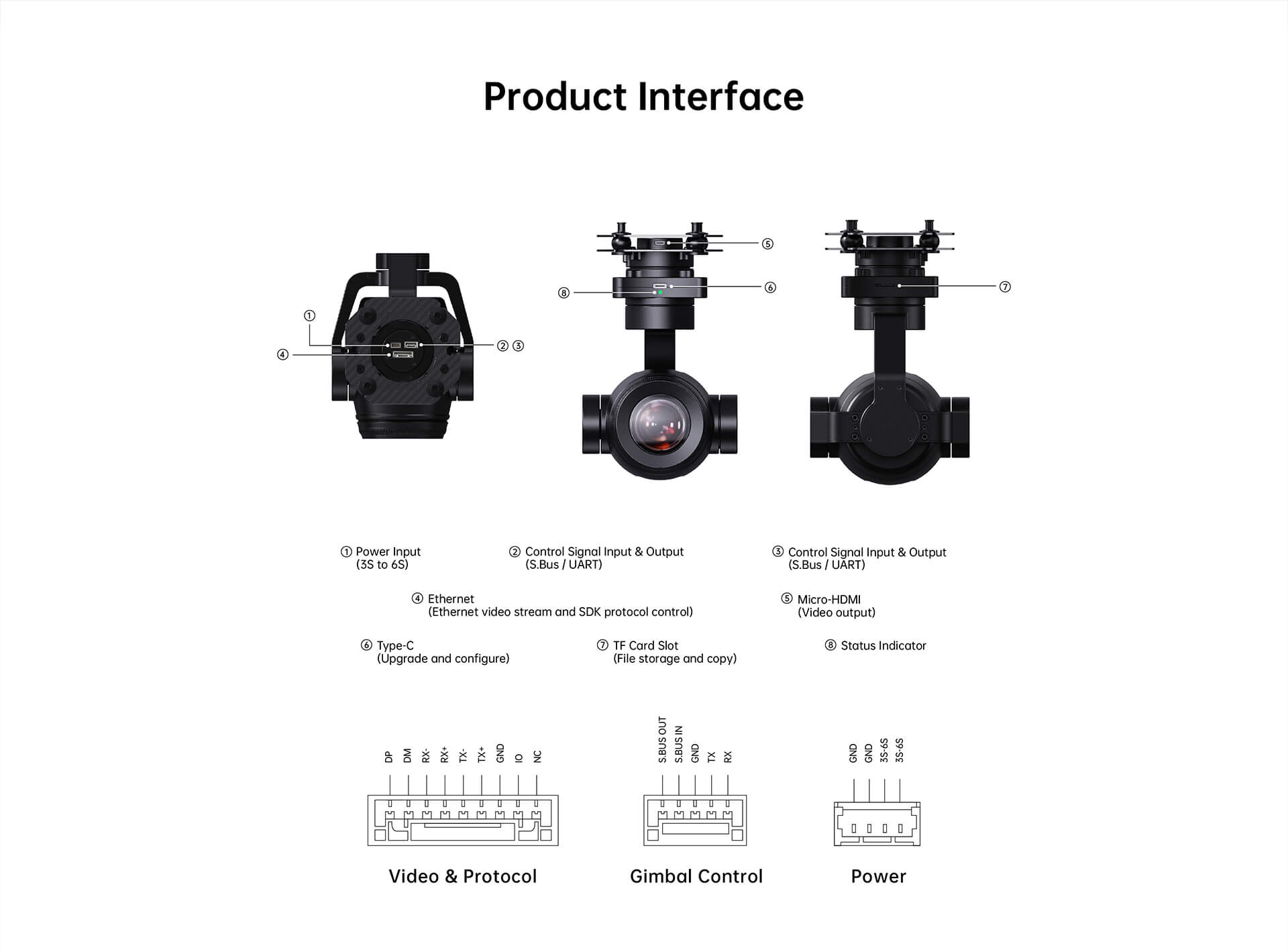

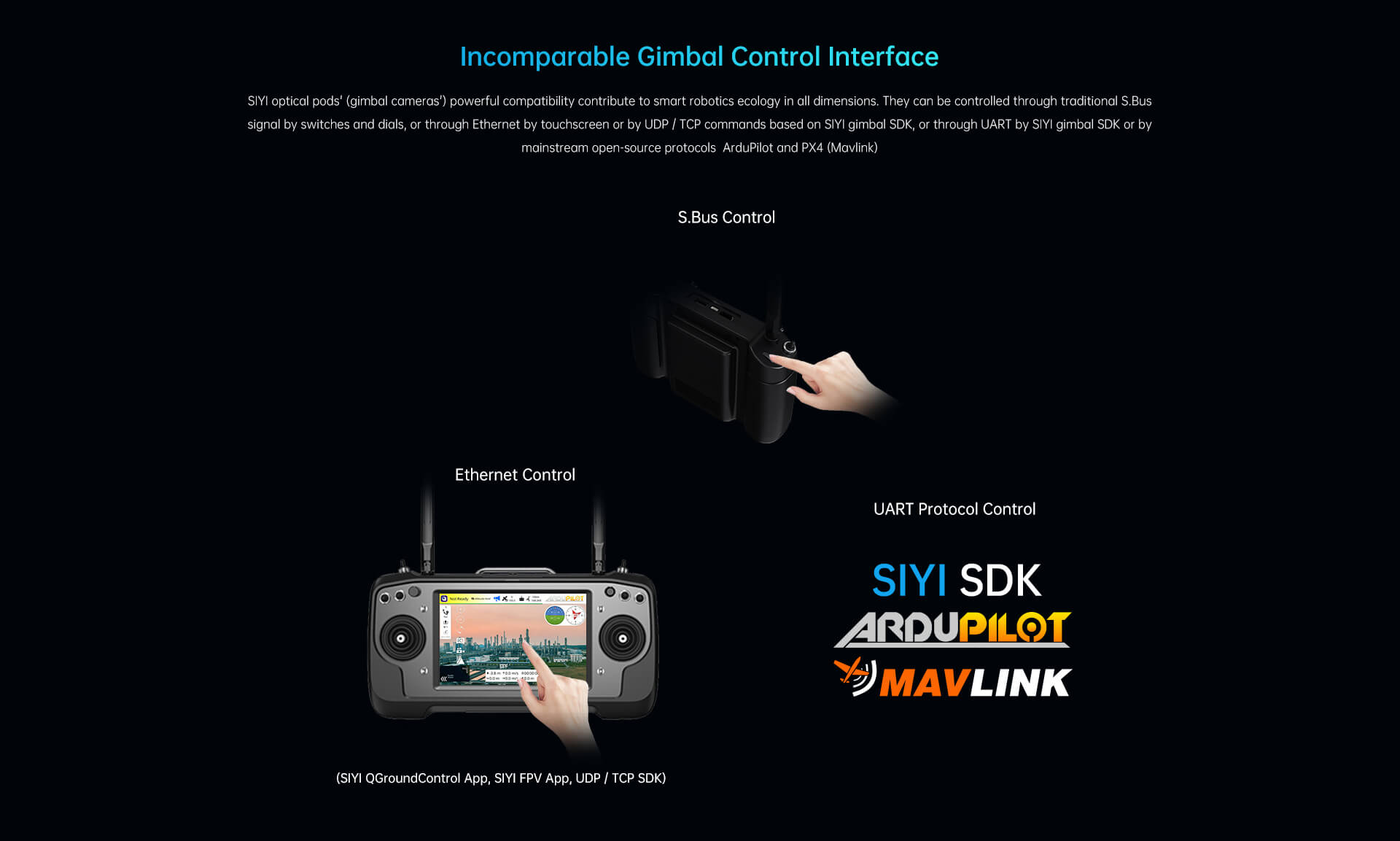

Flexible Interfaces for UAV Payload Integration
· 3S–6S power input
· Ethernet for video streaming and SDK protocol control
· S.Bus and UART for gimbal control
· Micro-HDMI for video output
· Type-C for firmware upgrade and configuration
· TF card slot for file storage and copying
· Compatible with SIYI Gimbal SDK
· Supports ArduPilot and PX4 MAVLink systems

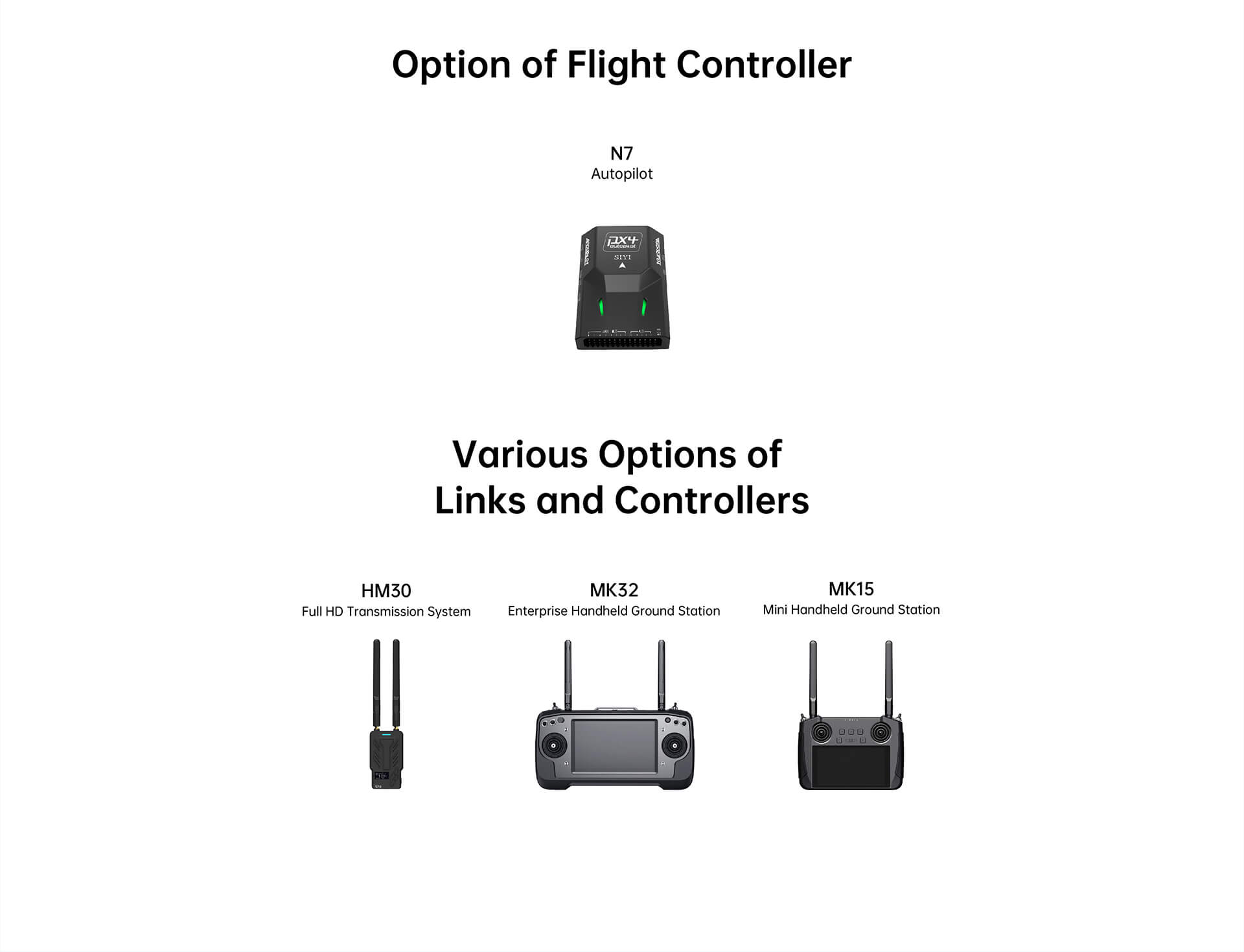

· Supports connection with SIYI links and compatible flight controllers
Packaging and Configuration Confirmation
· Final package contents, mounting accessories and connection cables should be confirmed before quotation.

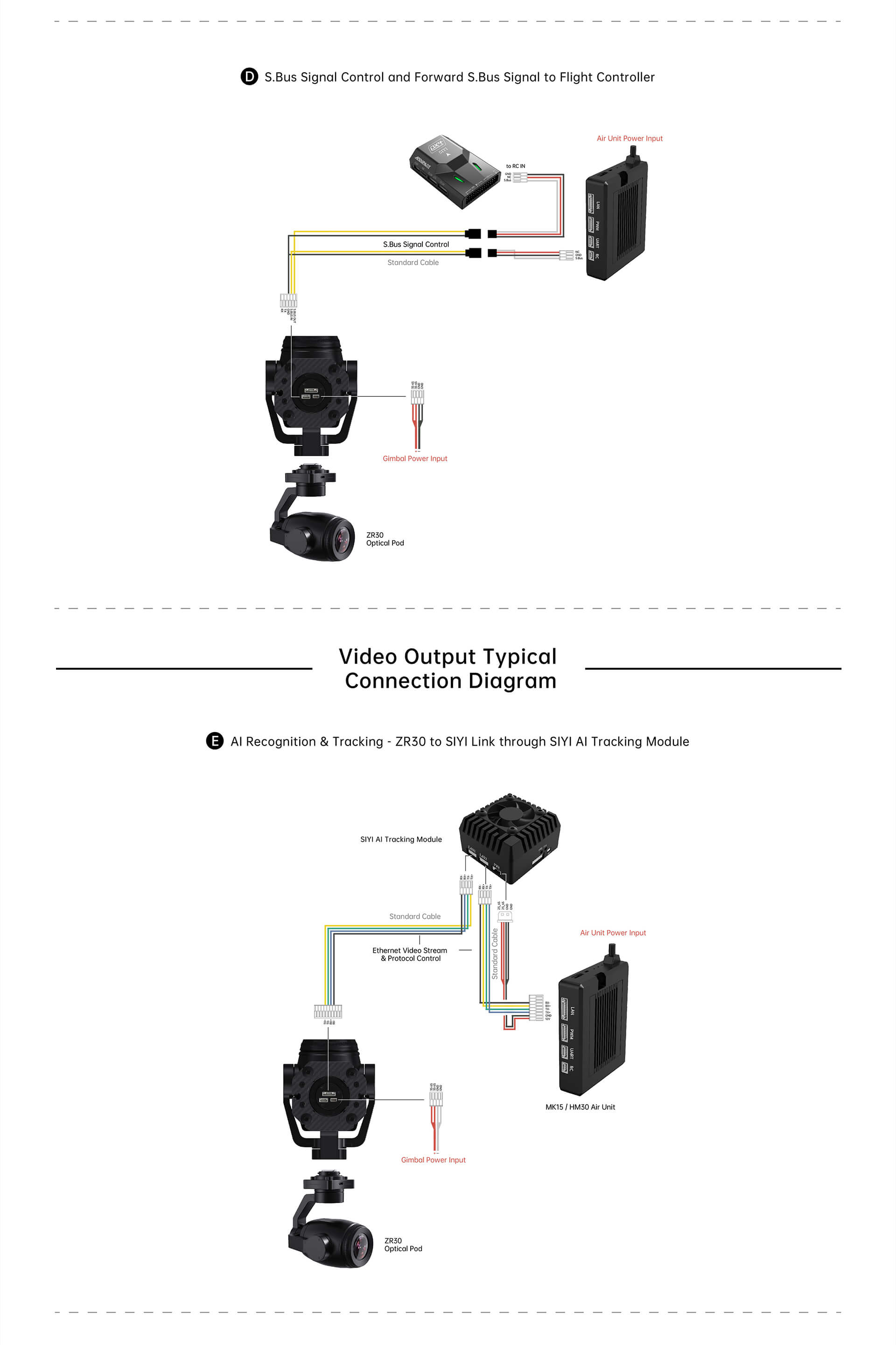

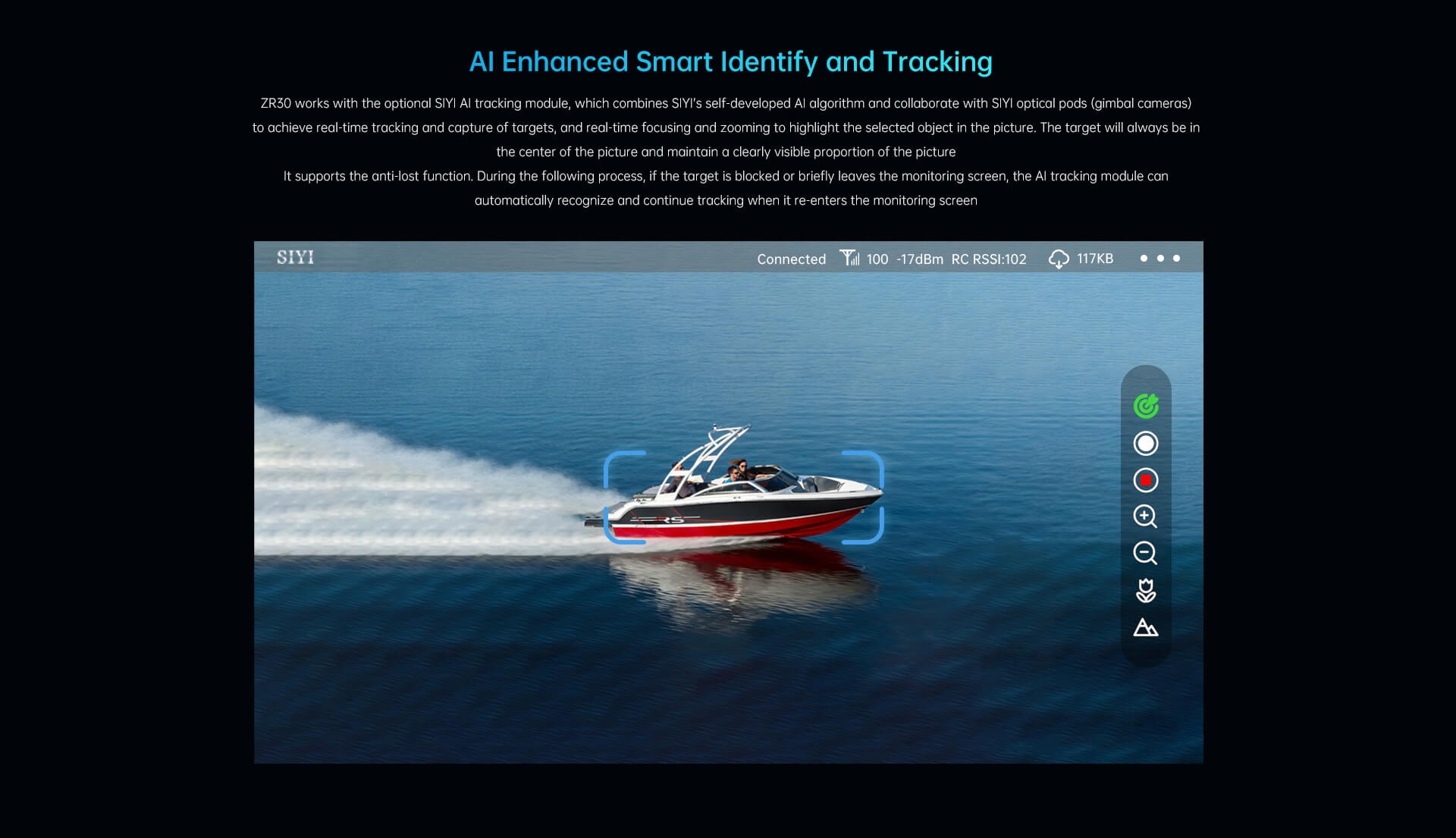

· The optional SIYI AI Tracking Module is not included by default and should be confirmed separately.
· The selected link, flight controller, video-output method and control protocol should be confirmed before ordering.
· Shipping method, lead time and freight are subject to order confirmation.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Notes for Installation and Operation
· Confirm that the power input is within the supported 3S–6S range before connection.
· Confirm the selected Ethernet, UART or S.Bus control method and compatible equipment before installation.
· The SIYI AI Tracking Module is optional and is not included by default.
· Complete gimbal calibration, control testing and video-output testing before operation.
· Confirm the mounting orientation before selecting Nose Mode or Upside Down Mode.
· Actual image quality, focusing performance and tracking results depend on lighting, distance, target movement and operating conditions.
· Confirm the final mounting accessories, cables and system compatibility before ordering.
