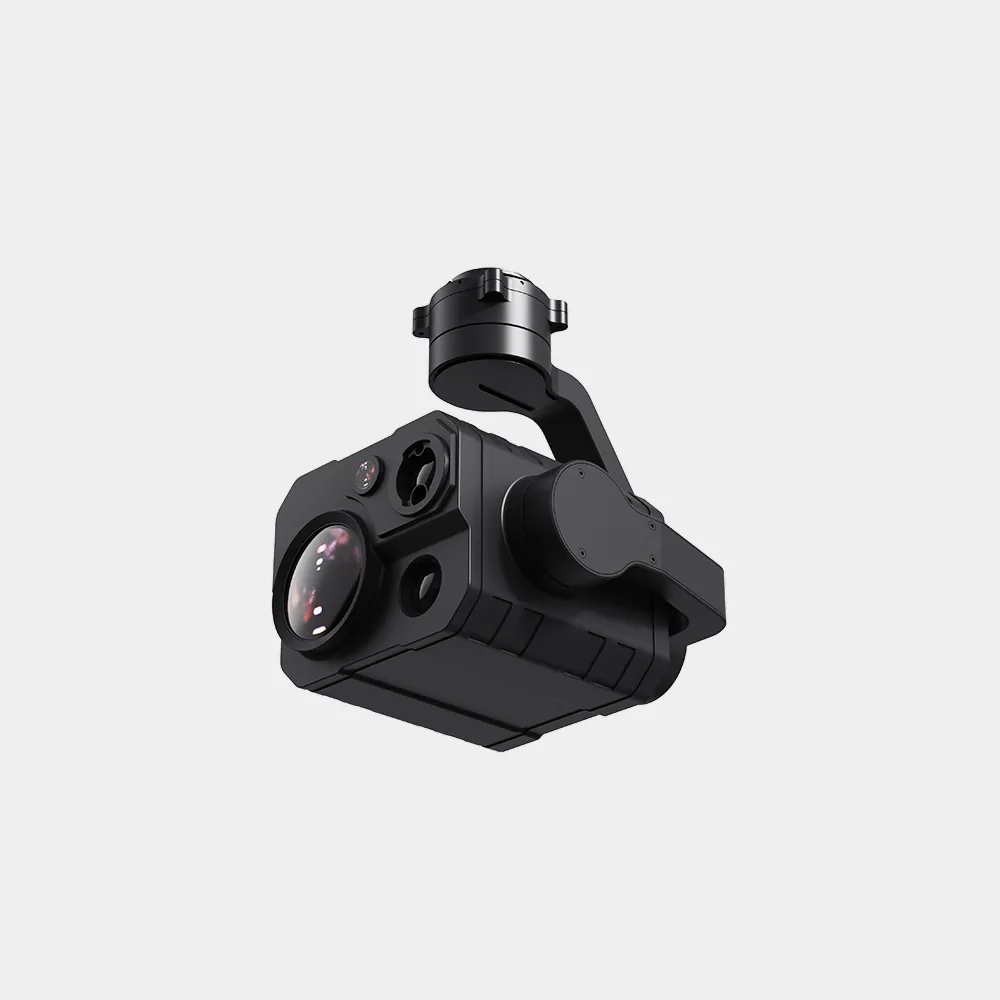

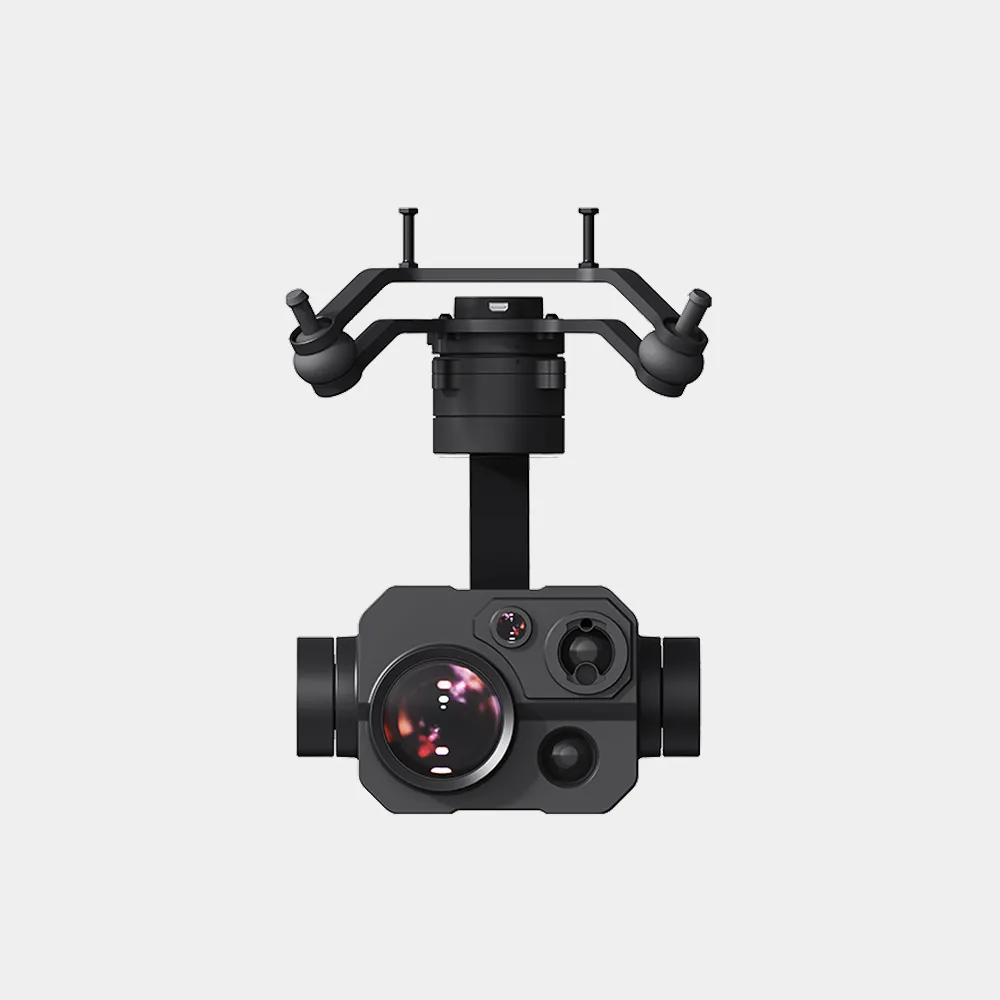

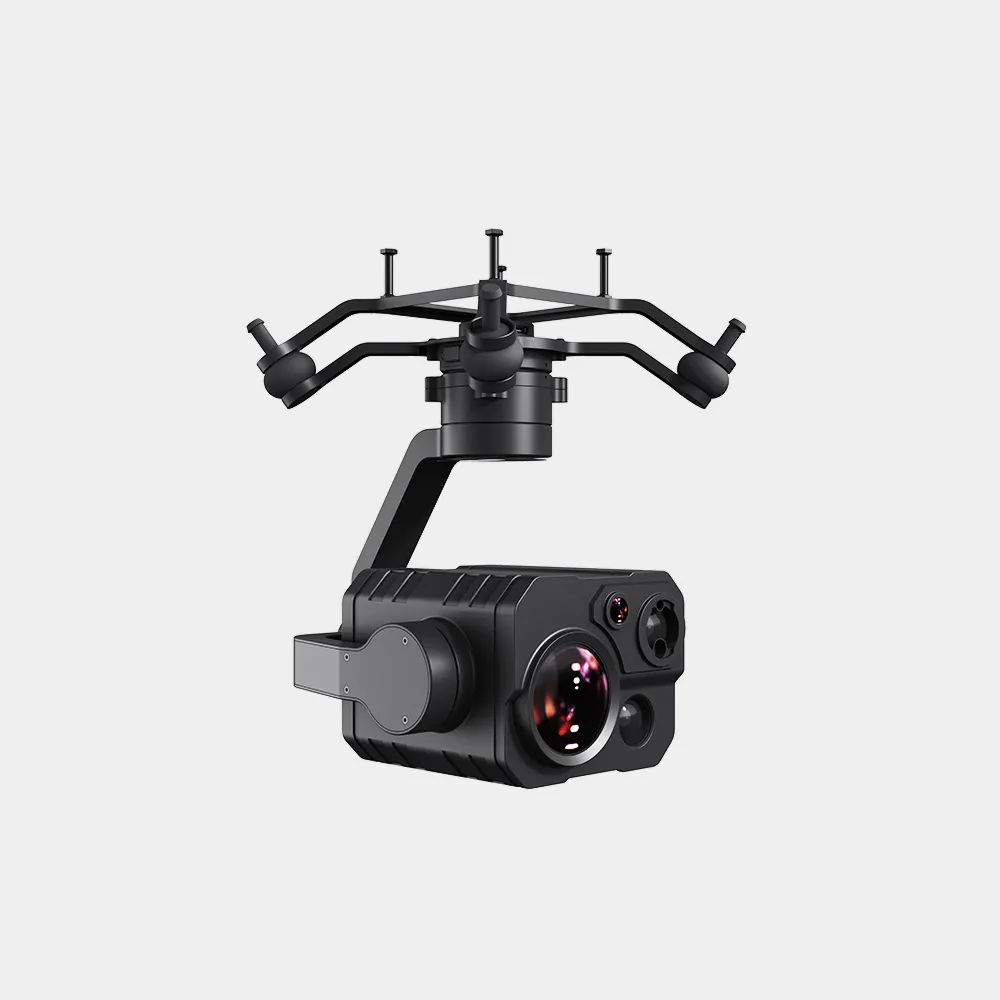

SIYI ZT30 is a professional four-sensor optical pod designed for UAVs, unmanned vehicles and unmanned boats. It integrates a 4K zoom camera, a 640×512 thermal imaging camera, a laser rangefinder and a 2K ultra-wide-angle camera in one stabilized payload platform.
The zoom camera provides 180X hybrid zoom and 30X optical zoom, while the thermal imaging camera supports full-image, point and box thermometric modes. With a 1200-meter laser rangefinder, limitless yaw rotation, synchronized zoom and multiple control interfaces, ZT30 supports flexible payload integration for aerial inspection, observation, search and other professional applications.
Four-Sensor Optical Pod
4K Hybrid Zoom + Thermal Imaging + Laser Rangefinder + 2K Wide Angle
Four-Sensor Imaging for Professional UAV Payloads
Hybrid Zoom and Flexible Payload Integration

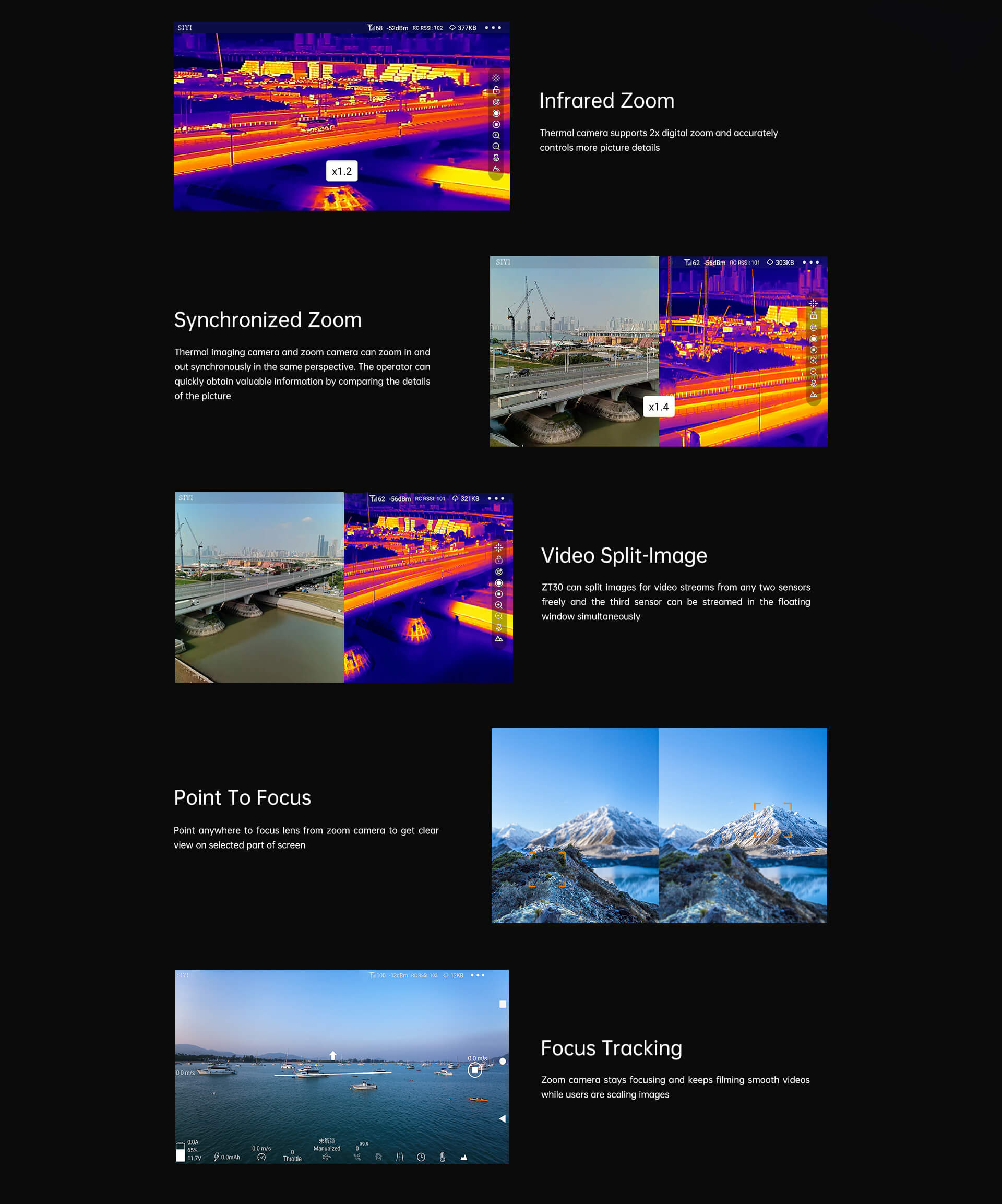

ZT30 supports synchronized zoom between the thermal imaging camera and the zoom camera, together with split-image display and multiple focusing functions. Its limitless yaw rotation provides a 360-degree viewing range, while Ethernet, UART and S.Bus interfaces support different payload integration methods. The gimbal can be used with SIYI Gimbal SDK, ArduPilot and PX4 MAVLink systems.
Four Sensors for Thermal, Visual and Wide-Area Observation

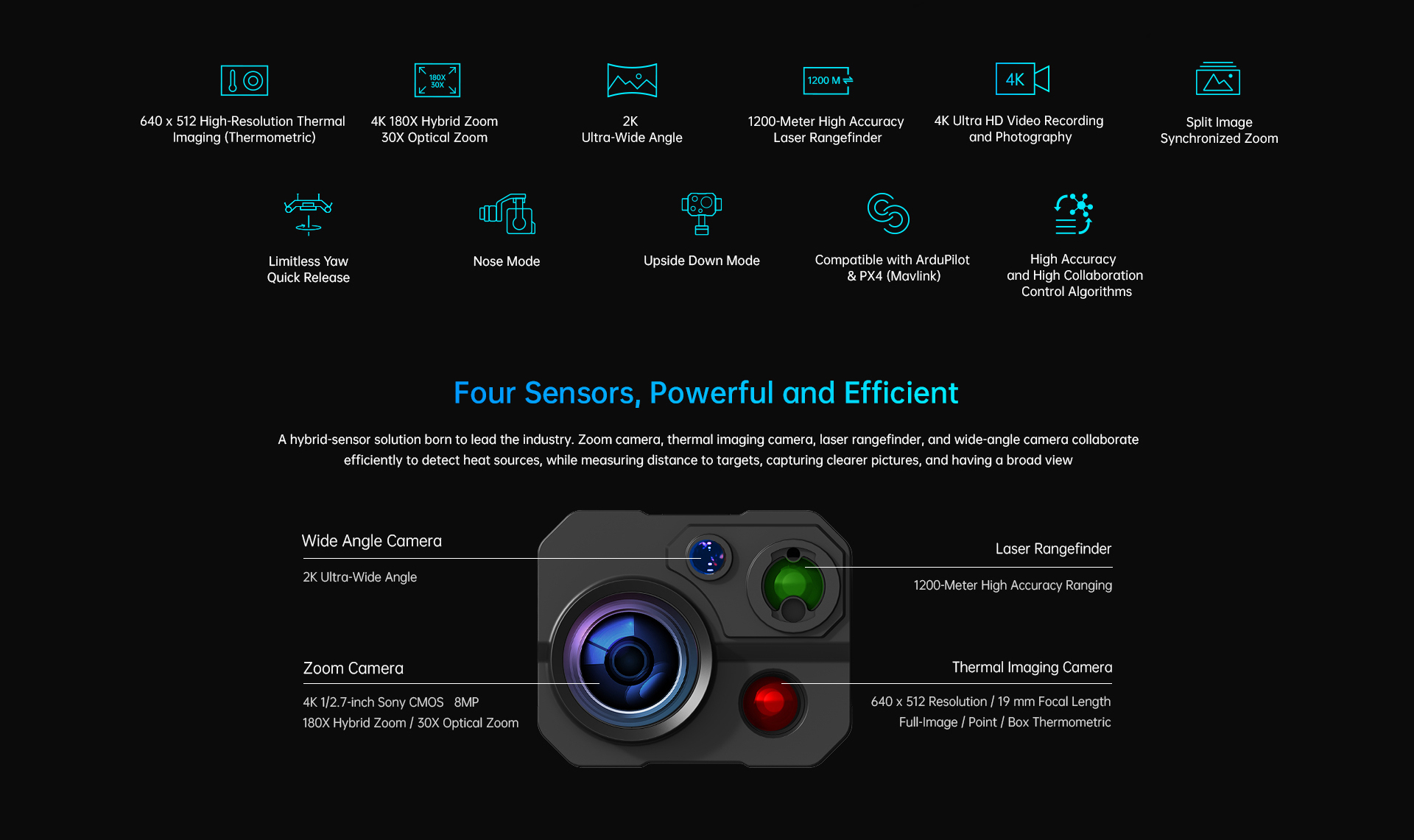

SIYI ZT30 combines four imaging and sensing functions in one stabilized optical pod. The system integrates a 4K zoom camera with 180X hybrid zoom and 30X optical zoom, a 640×512 thermal imaging camera, a 1200-meter laser rangefinder and a 2K ultra-wide-angle camera. This configuration supports detailed visual inspection, thermal observation, distance measurement and wide-area monitoring for professional UAV applications.
Technical Parameters
· Product Type: Four-sensor optical pod
· Zoom Camera: 4K, 1/2.7-inch Sony CMOS, 8MP
· Zoom Capability: 180X hybrid zoom / 30X optical zoom
· Wide-Angle Camera: 2K ultra-wide angle
· Thermal Imaging: 640×512 resolution, 19 mm focal length, 30 fps
· Thermal Zoom: 2X digital zoom

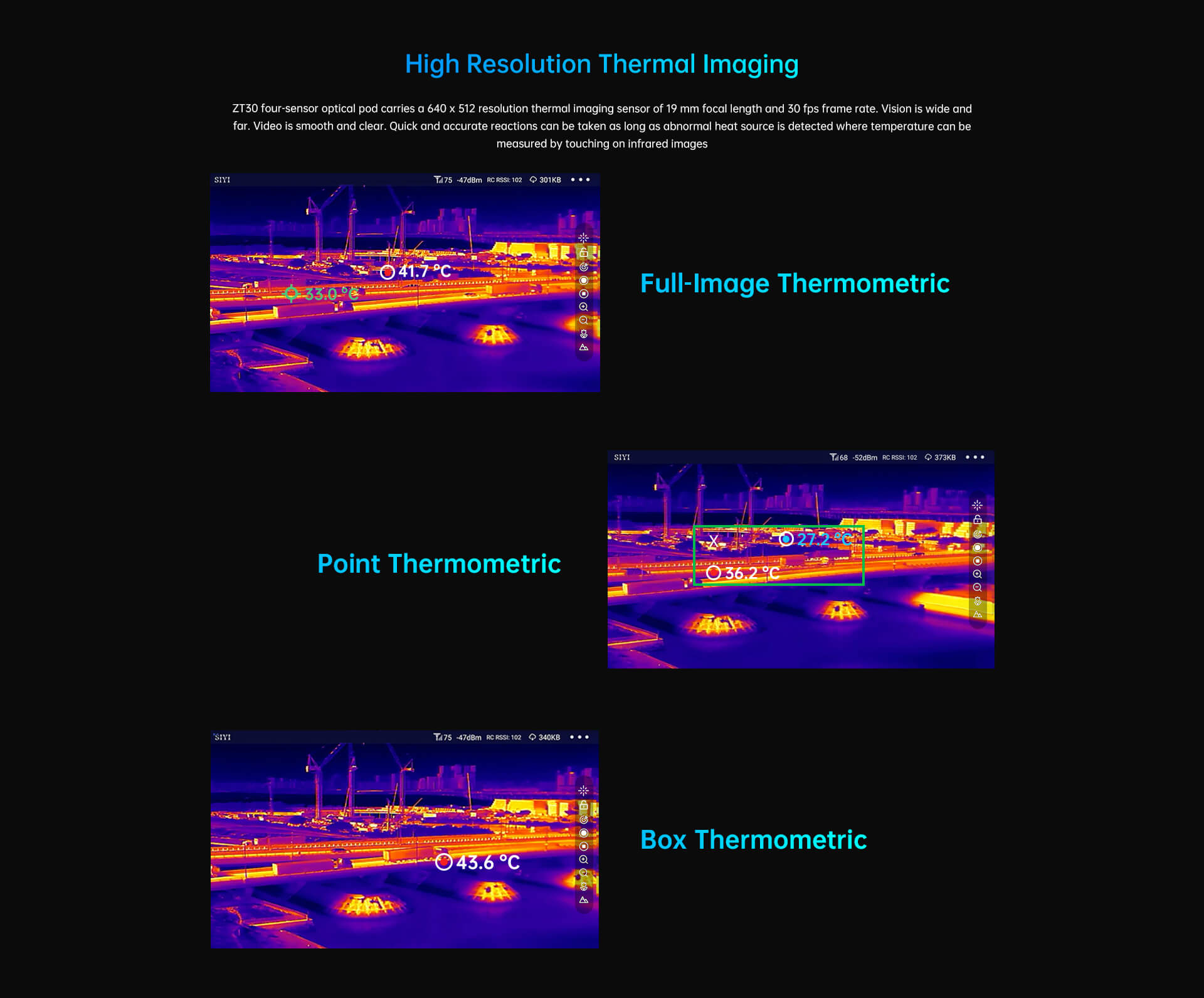

· Thermometric Modes: Full-image thermometric, point thermometric and box thermometric
· Laser Rangefinder: Up to 1200 m range, 0.1 m measuring accuracy

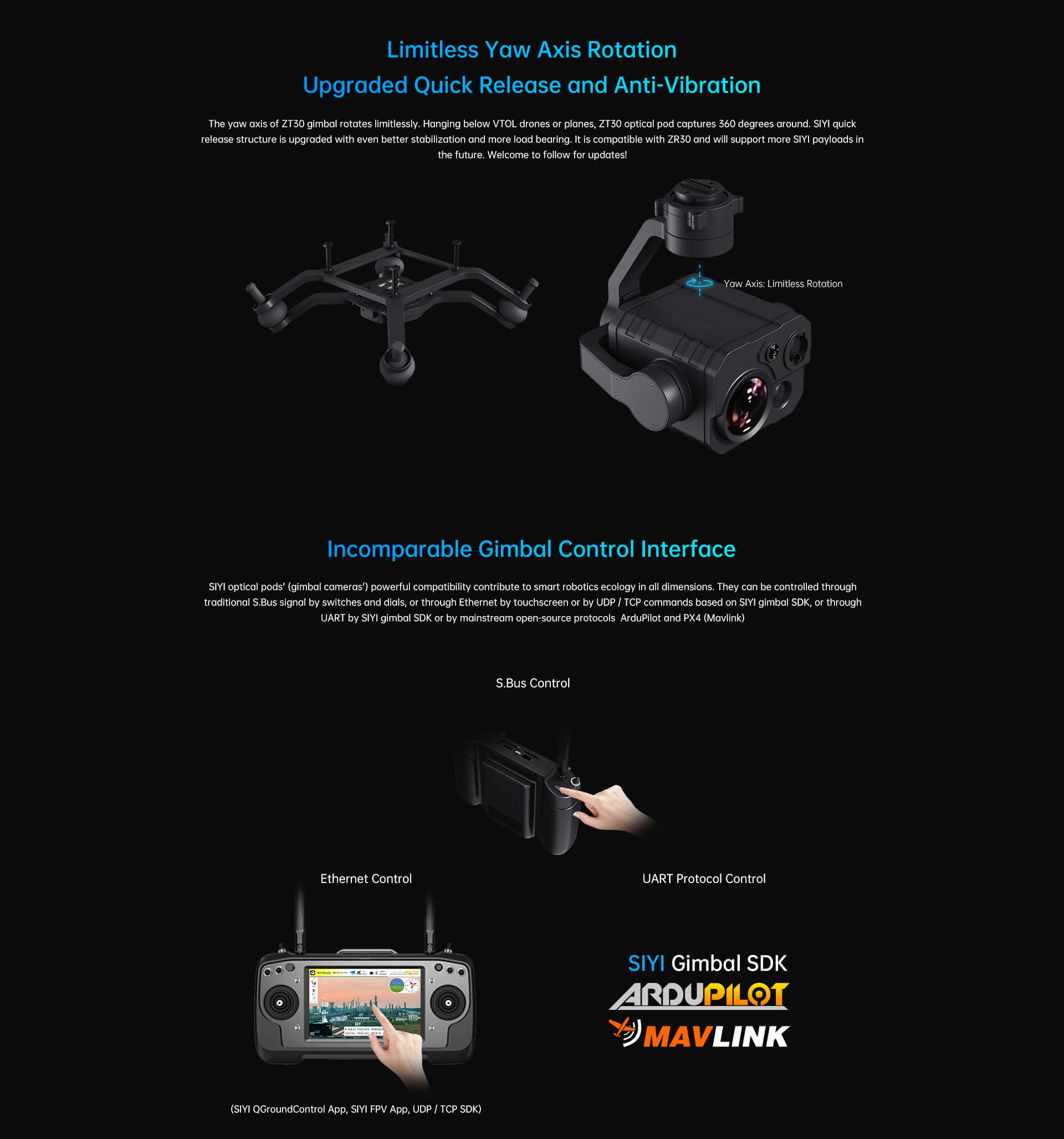

· Gimbal Rotation: Limitless yaw-axis rotation
· Power Input: 3S–6S

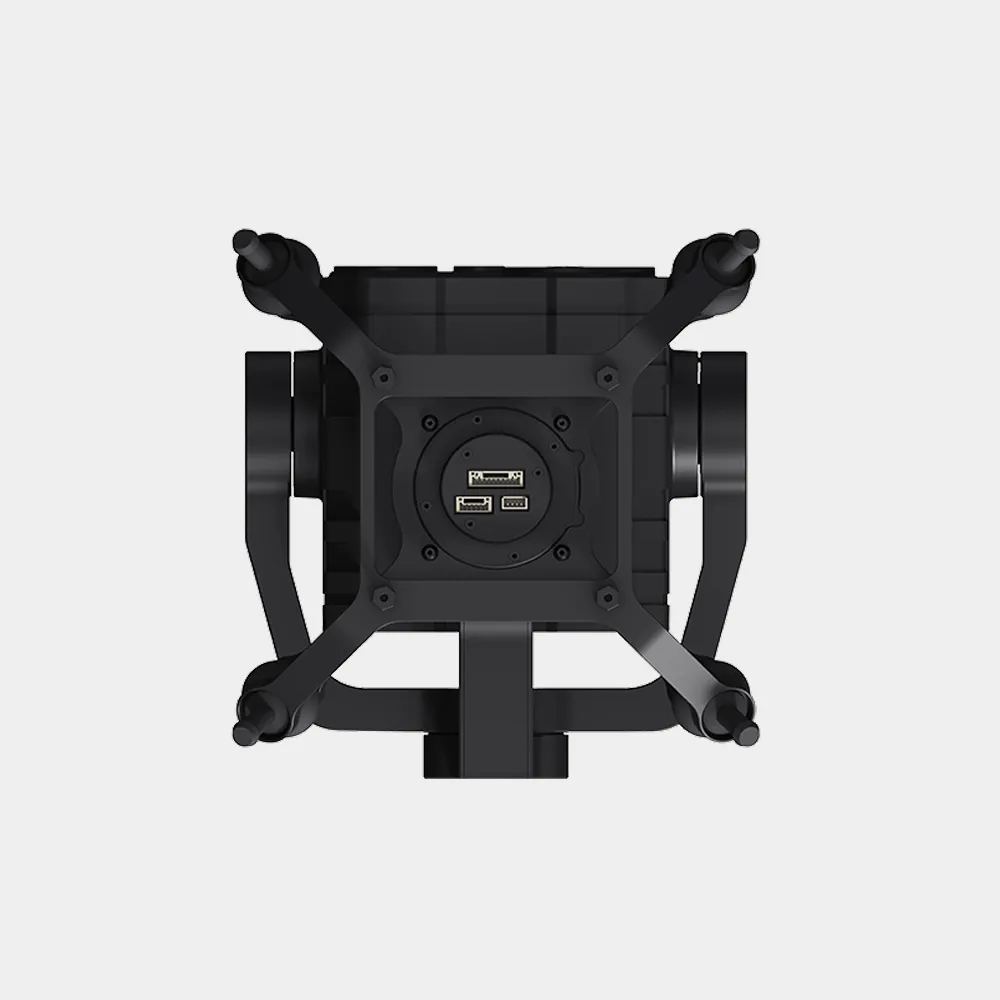

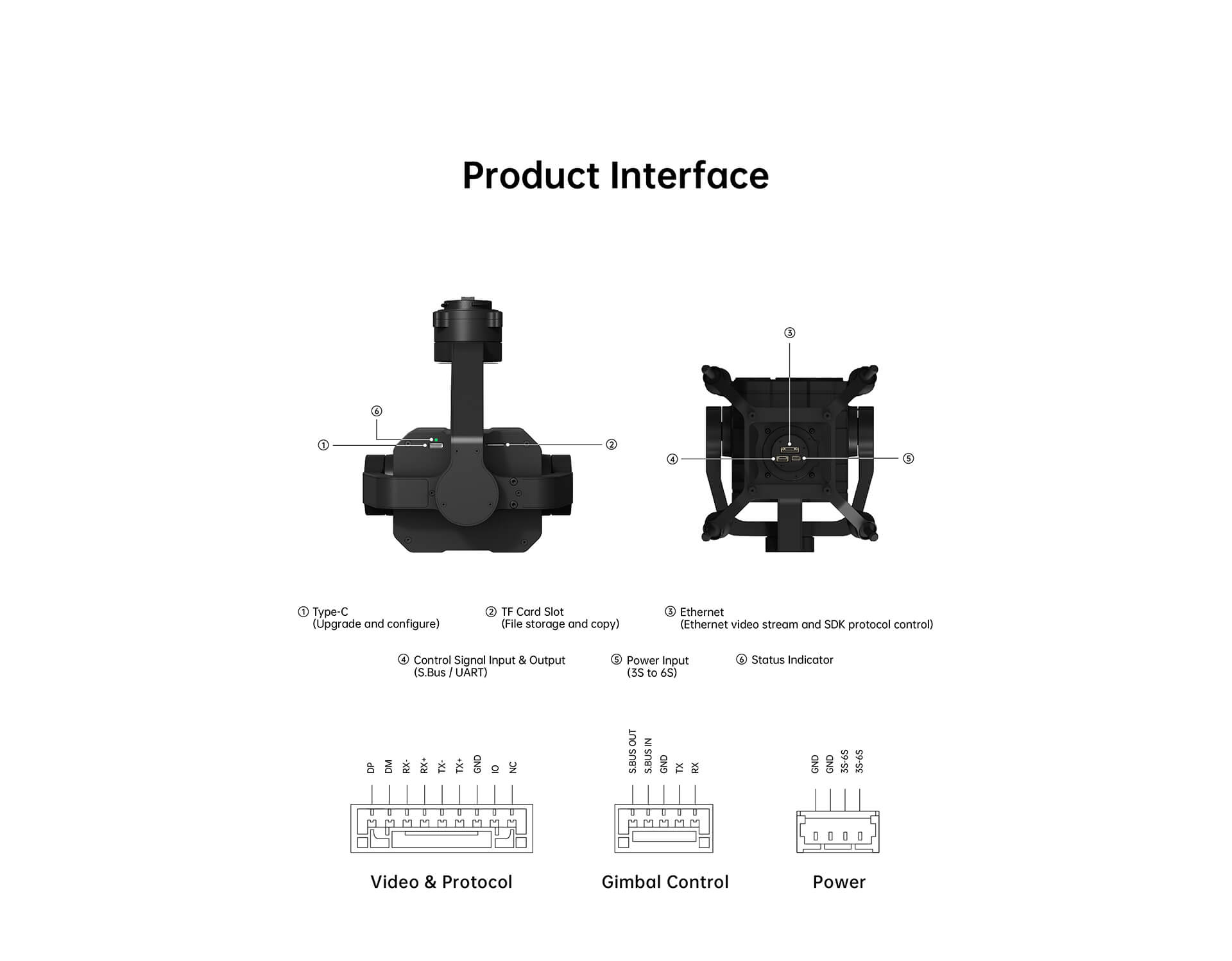

· Interfaces: Type-C, TF card slot, Ethernet, S.Bus and UART
· Control and Protocols: SIYI Gimbal SDK, ArduPilot and PX4 MAVLink
· Supported Platforms: UAVs, unmanned vehicles and unmanned boats
· Dimensions and Weight: To be confirmed
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.

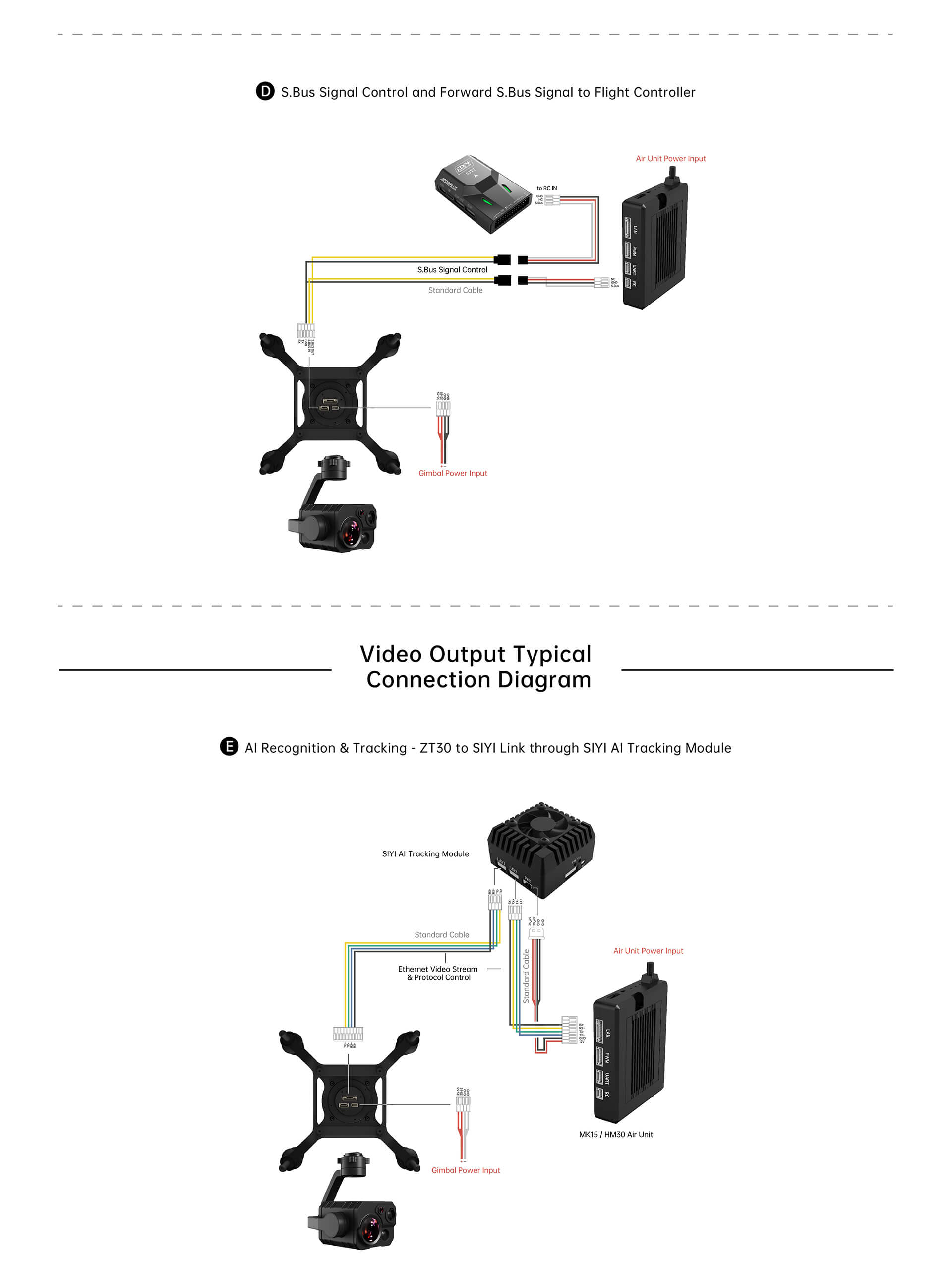

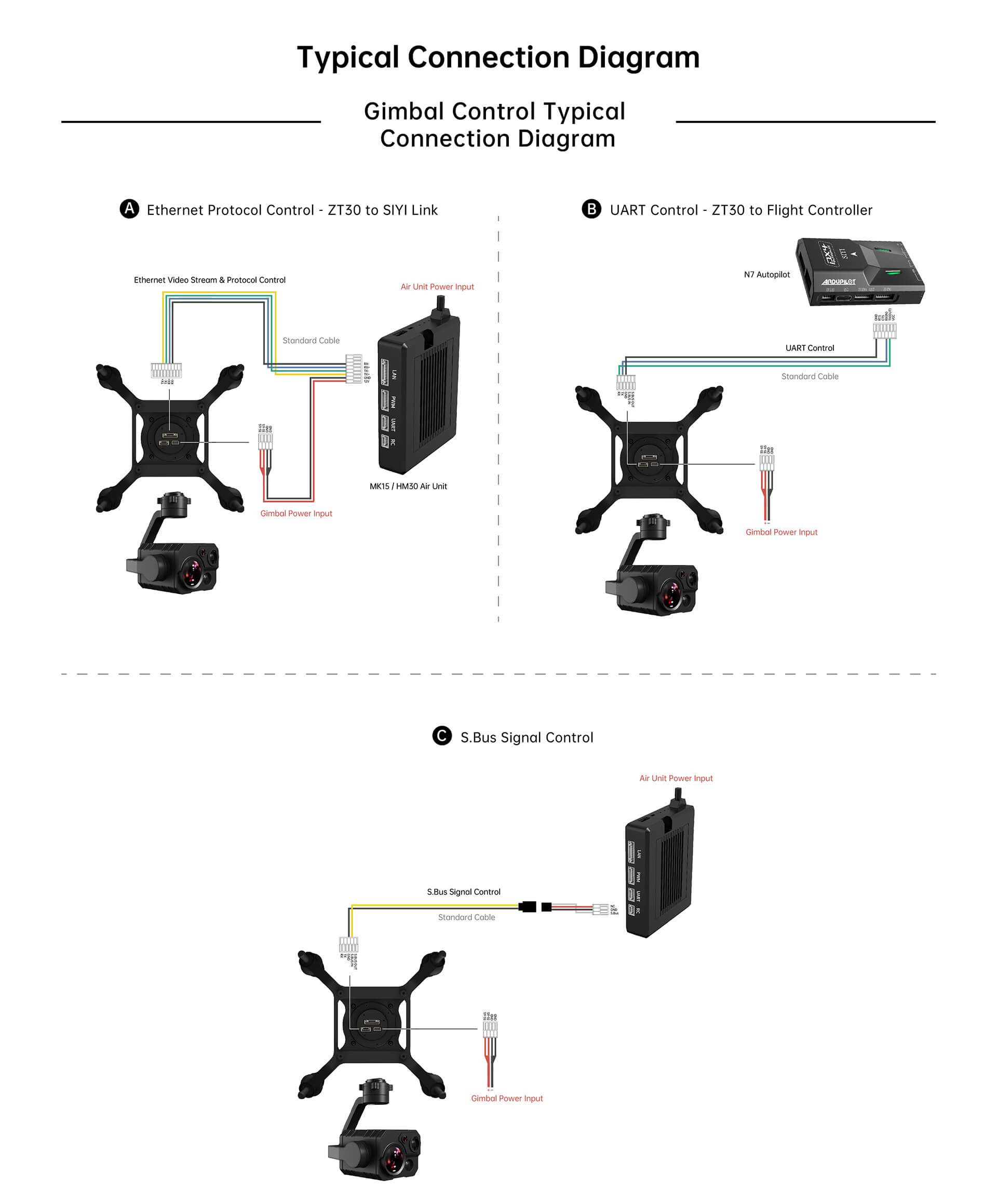

Flexible Interfaces for Professional Payload Integration
· 3S–6S power input for compatible UAV payload systems

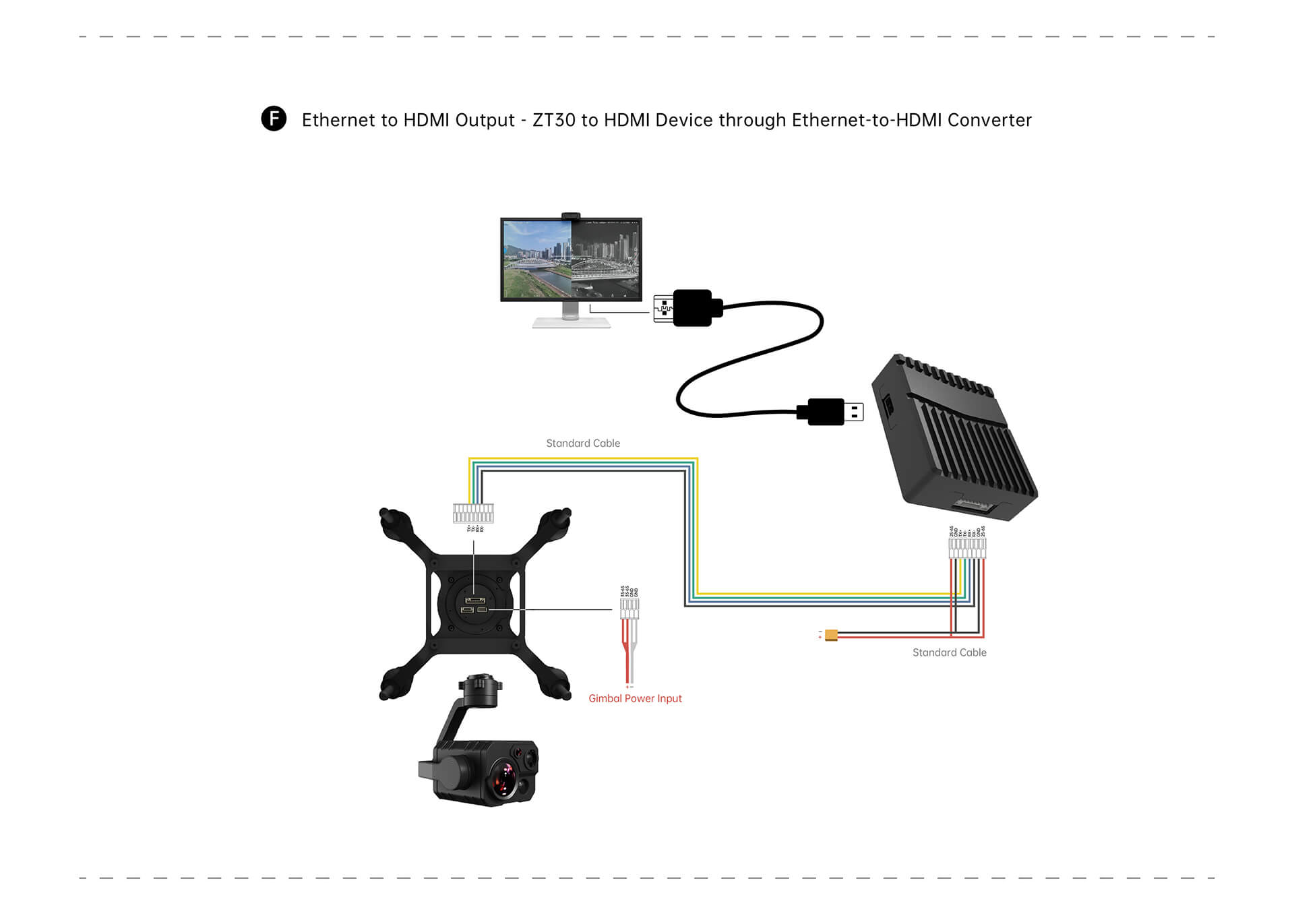

· Ethernet interface for video streaming and SDK protocol control
· S.Bus and UART interfaces for flexible gimbal control
· Type-C interface for product upgrade and configuration
· TF card slot for captured file storage and copying
· Compatible with SIYI Gimbal SDK, ArduPilot and PX4 MAVLink

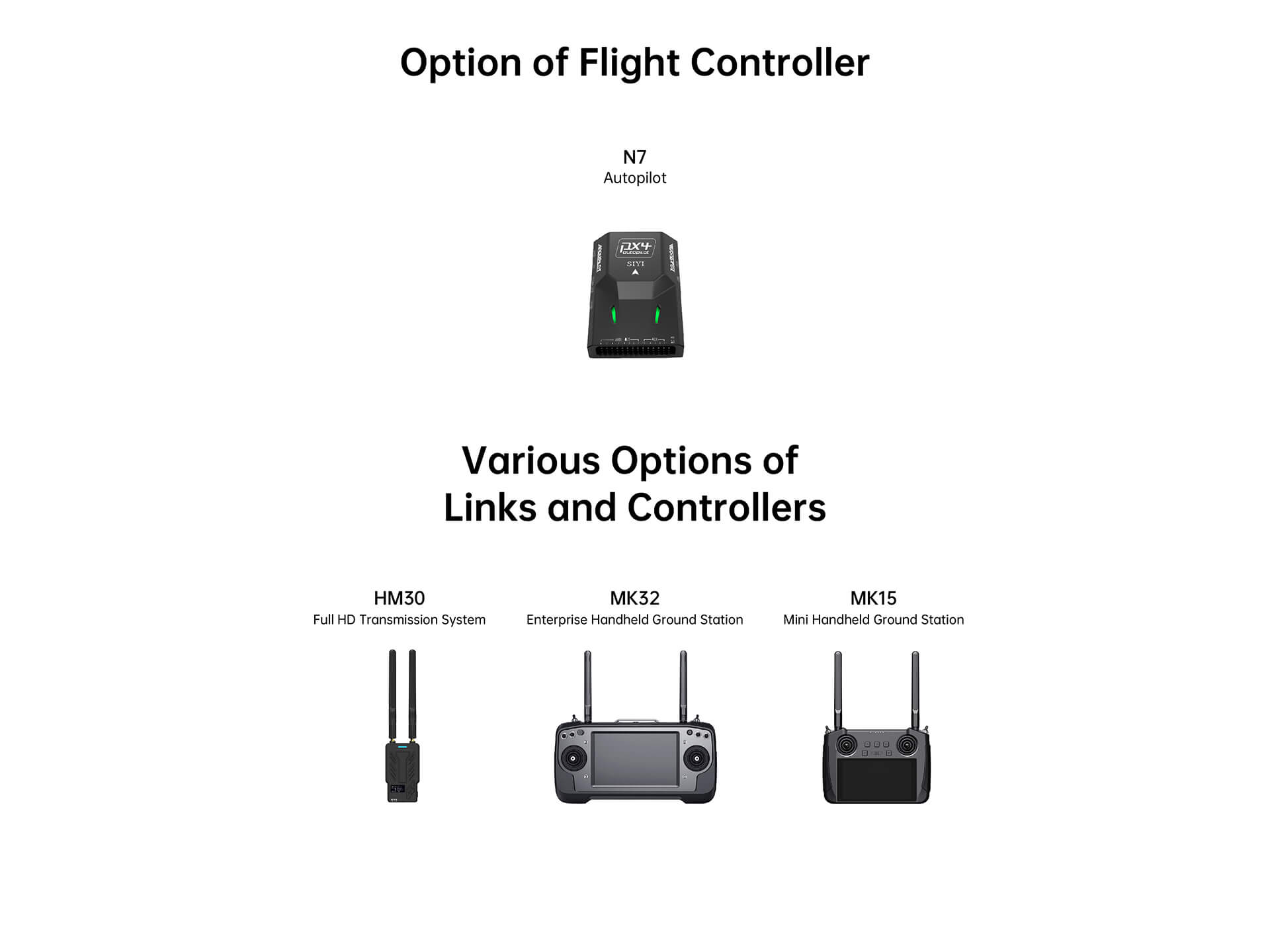

· Supports integration with SIYI links, flight controllers and video-output solutions
Packaging and Configuration Confirmation
· Final package contents, mounting accessories and connection cables should be confirmed before quotation.

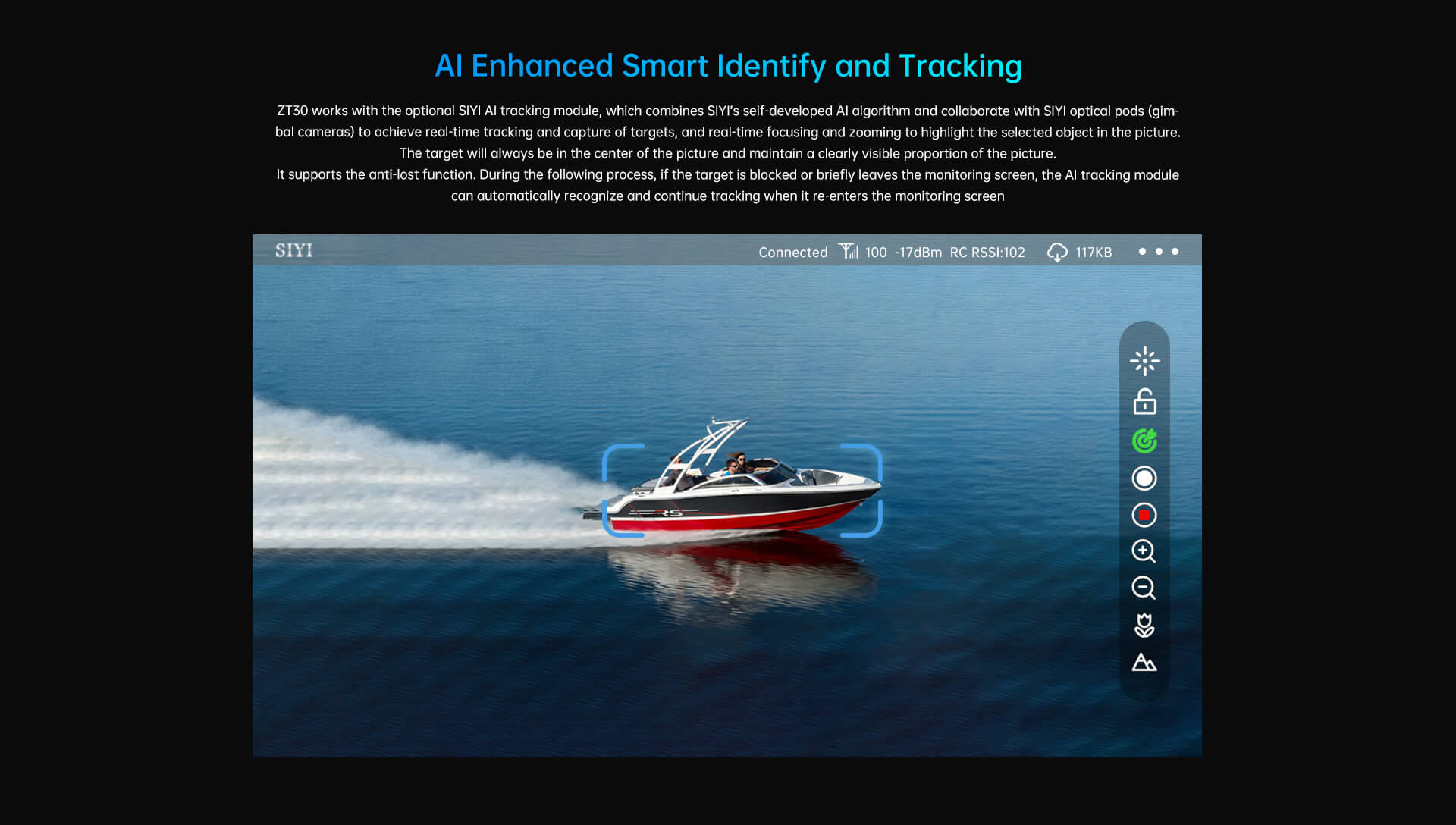

· The optional AI tracking module is not included by default and should be confirmed separately.
· The required air unit, link, flight controller or video-output solution depends on the selected integration method.
· Shipping method, lead time and freight are subject to order confirmation.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Notes for Installation and Operation
· Confirm that the power input is within the supported 3S–6S range before connection.
· Confirm the selected Ethernet, UART or S.Bus control method and compatible equipment before installation.
· The AI tracking module is optional and is not included by default.
· Complete gimbal calibration, video output testing, TF card checking and connection testing before operation.
· Laser ranging performance may vary depending on the target, distance, lighting and operating environment.
· Dimensions, weight and final package configuration should be confirmed before ordering.
