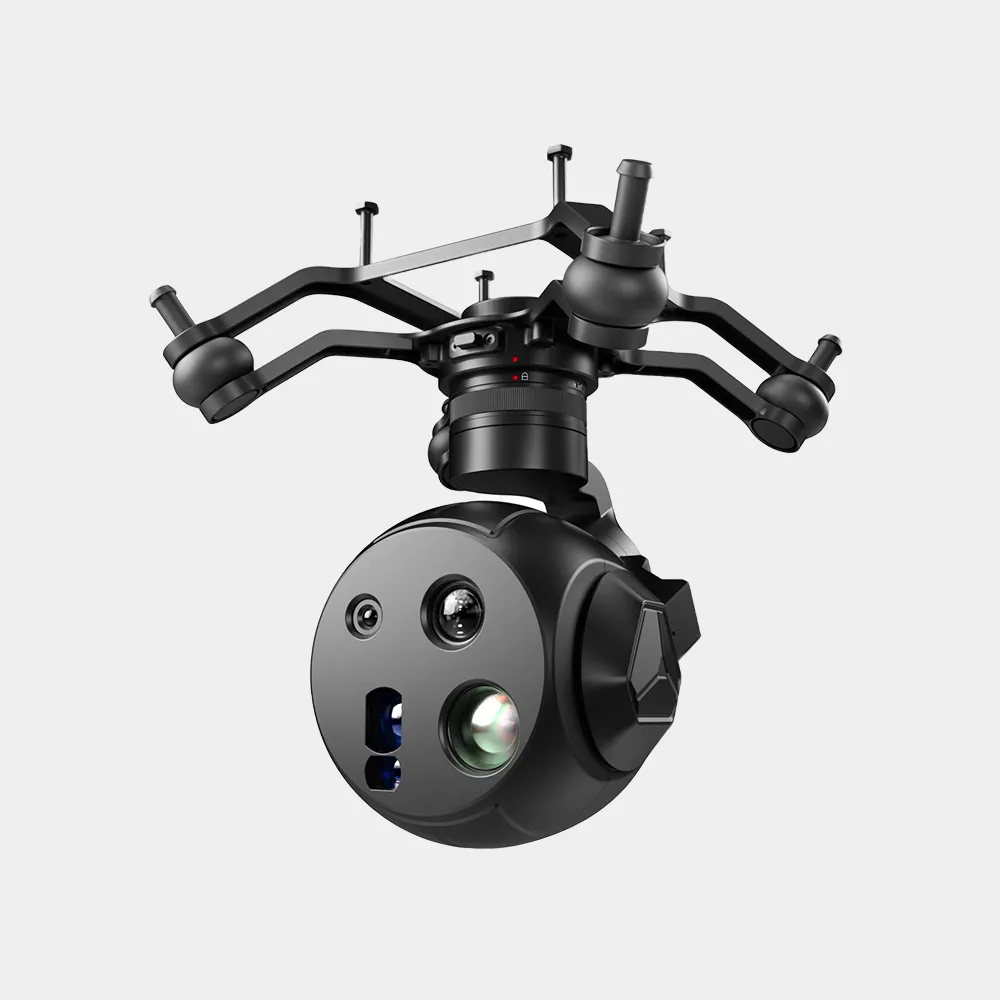

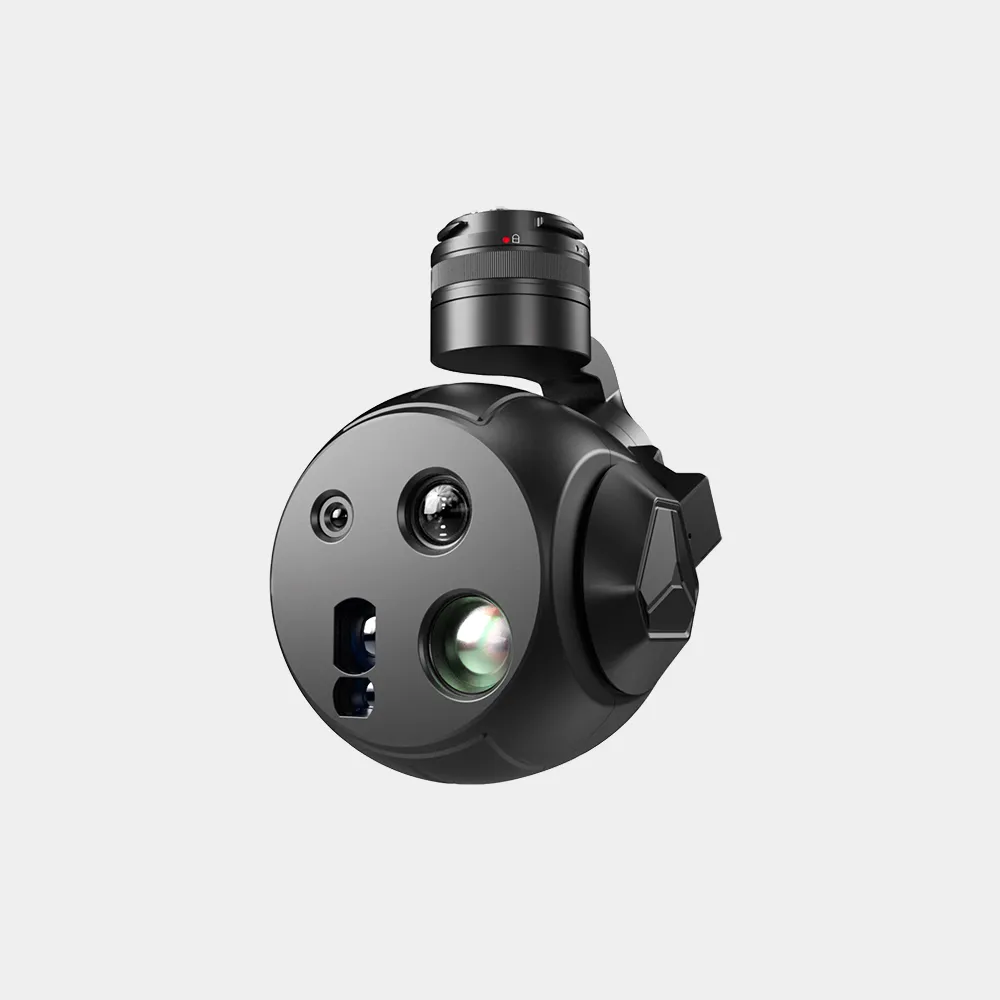

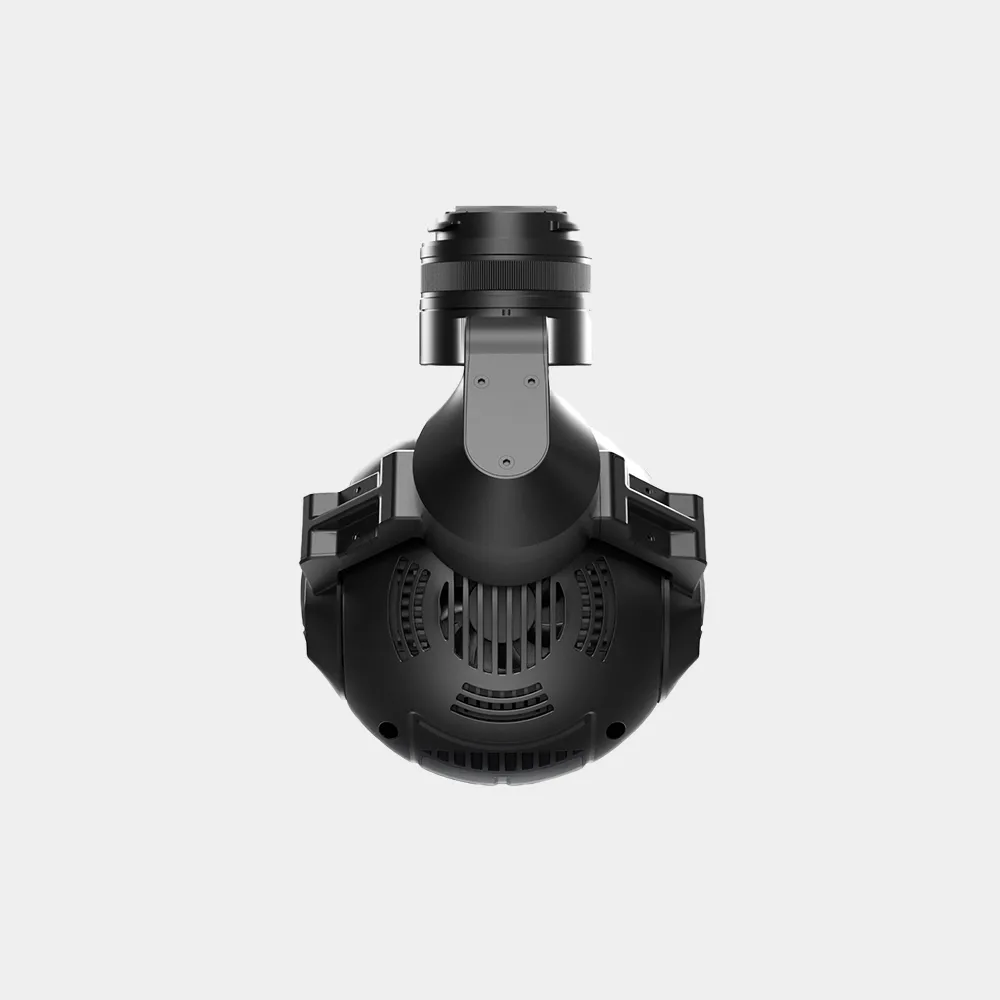

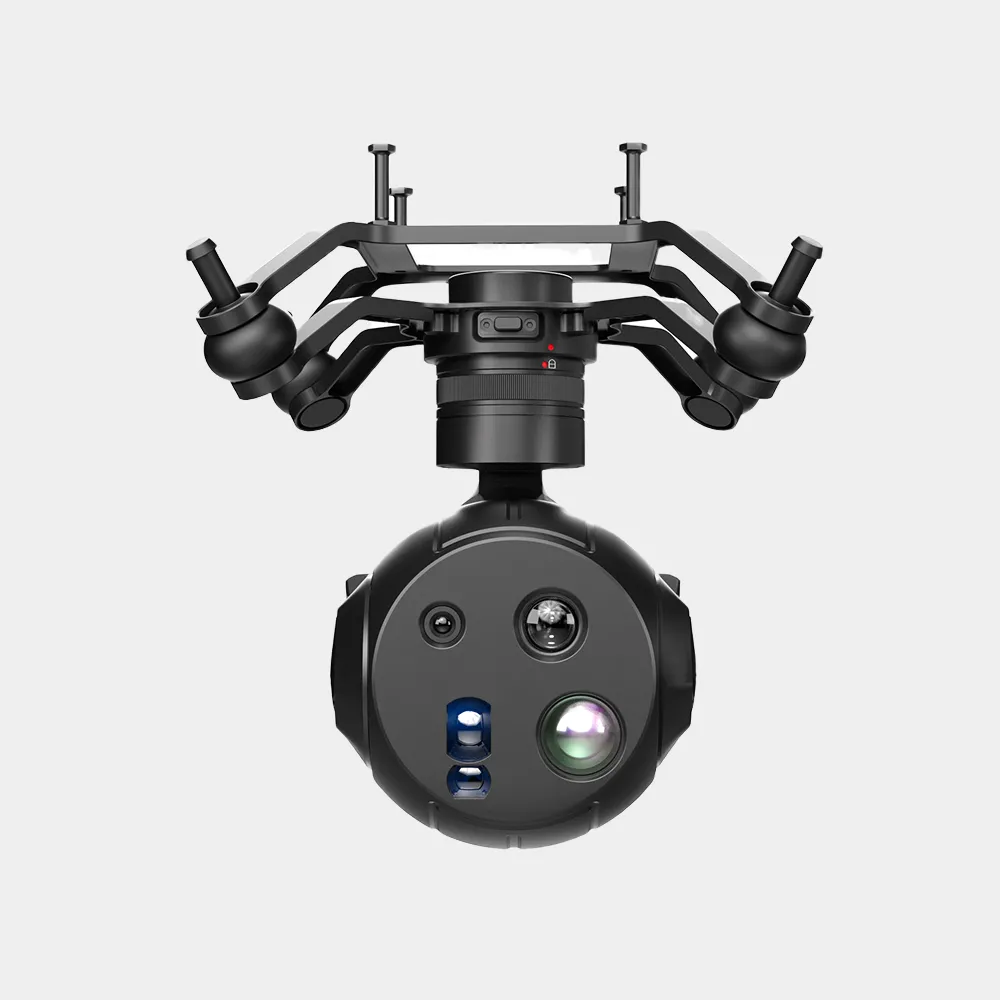

UniPod MT11 Quad-Sensor Optical AI Pod

UniPod MT11 is a mini quad-sensor optical AI pod for multirotor UAVs, VTOL aircraft and other unmanned platforms. It integrates a 48MP wide-angle camera, a 48MP zoom camera, a 640 × 512 infrared thermal imaging camera and a laser rangefinder. The optical system supports 11× optical zoom, 165× hybrid zoom and up to 8K photo resolution. Built-in 10 TOPS AI computing power supports on-board recognition, tracking and thermal image super-resolution without an external AI module. The pod provides three-axis stabilization, IP54 protection, S.Bus, UART and Ethernet control interfaces, and a 10–26V independent power supply. It is suitable for inspection, mapping, security, emergency rescue and forest fire prevention.

Quad-Sensor Optical AI Pod

For UAV Inspection, Mapping and Security

Inquire Now

48MP Quad-Sensor AI Payload for UAVs

UniPod MT11 48MP zoom camera and thermal imaging system

UniPod MT11 built-in AI computing and UAV integration

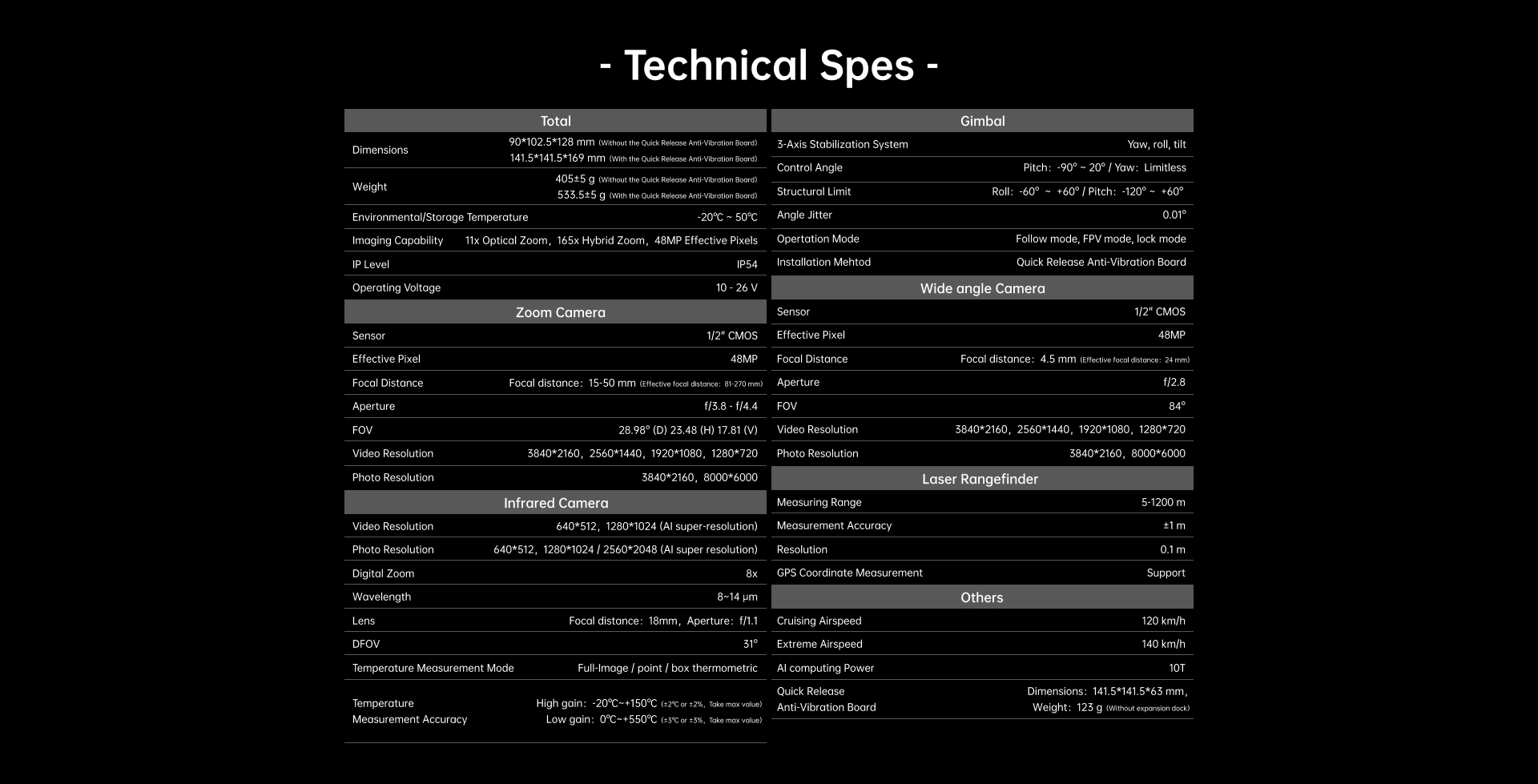

Core Technical Parameters

· Product Type: Quad-Sensor Optical AI Pod

· Model: UniPod MT11

· Wide-Angle Camera: 1/2-inch CMOS, 48MP effective pixels

· Zoom Camera: 1/2-inch CMOS, 48MP effective pixels

· Optical Zoom: 11×

· Hybrid Zoom: 165×

· Thermal Imaging Resolution: 640 × 512

· Thermal Imaging Digital Zoom: 8×

· Laser Rangefinder: 5–1200m measuring range

· Laser Measurement Accuracy: ±1m

· AI Computing Power: 10 TOPS

· Gimbal Stabilization: Three-axis stabilization

· Control Interfaces: S.Bus, UART and Ethernet TCP/UDP

· Video Output: Ethernet

· Operating Voltage: 10–26V, 3–6S

· IP Rating: IP54

· Dimensions Without Quick-Release Board: 90 × 102.5 × 128mm

· Dimensions With Quick-Release Board: 141.5 × 141.5 × 169mm

· Weight Without Quick-Release Board: 405g ±5g

· Weight With Quick-Release Board: 533.5g ±5g

· Working Environment: -20°C to 50°C

· Storage Temperature: -20°C to 60°C

UniPod MT11 thermal imaging and laser ranging functions

Packaging and Shipping

· Product: UniPod MT11 Quad-Sensor Optical AI Pod

· Package contents: One MT11 unit

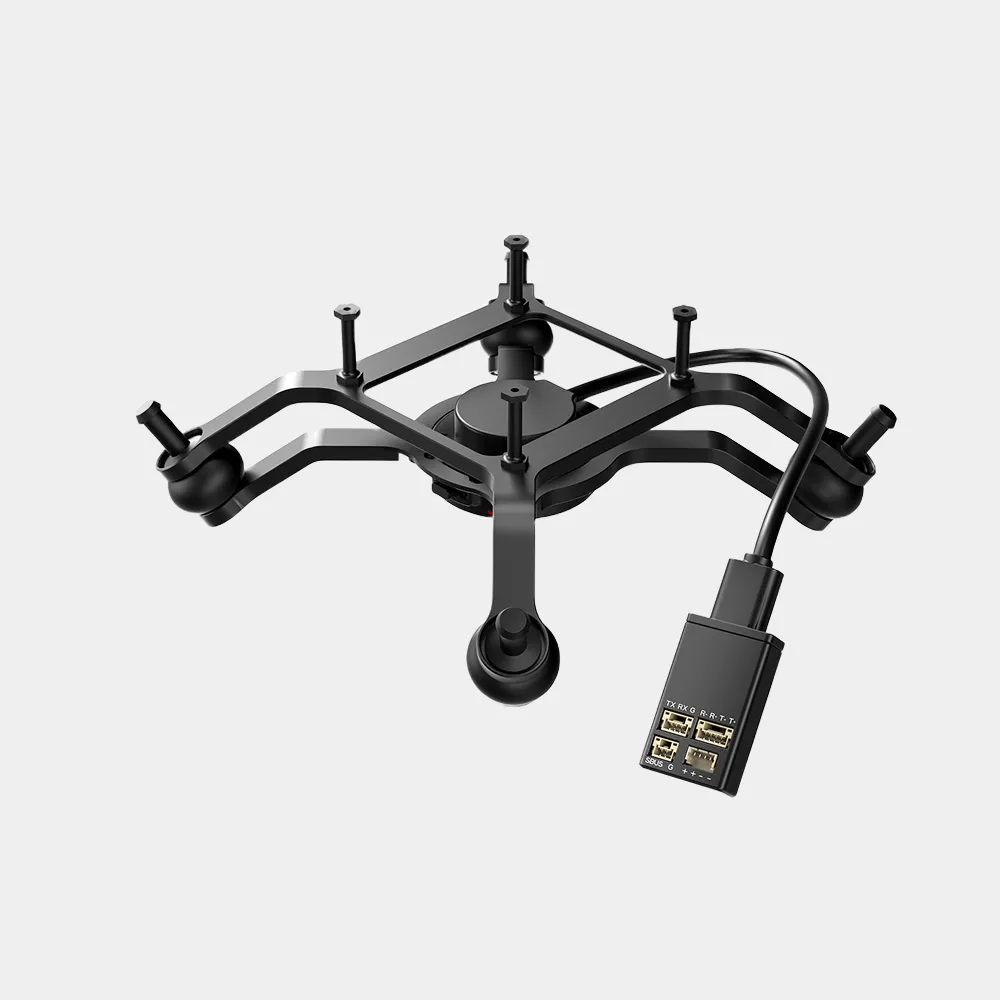

· One quick-release anti-vibration board

· One storage case

· One interface docking station

· One power input cable

· One Ethernet cable

· One Ethernet-to-RJ45 cable

· One ArduPilot/PX4 flight-controller UART cable

· One N7 autopilot UART cable

· One S.Bus Y-splitter cable

· One cable storage box

· One screw pack

· Package dimensions: 285 × 238 × 127mm

· Package weight: 1578g

Need a Custom

Share your UAV requirements. We’ll help evaluate the right propeller solution.

Submit Requirements

Important MT11 Installation and Operation Notice

· Confirm that the aircraft can provide an independent 10–26V power supply for the MT11.

· Confirm the payload mounting space and quick-release anti-vibration board installation before flight.

· Confirm compatibility between the aircraft, S.Bus/UART/Ethernet control interface and video transmission system.

· The laser rangefinder uses a Class 3R laser; do not aim it at people, aircraft or other unsafe targets.

· IP54 protection is not equivalent to waterproof or underwater operation.

· Use a suitable U3/Class 10/V30 or higher memory card when recording to the storage card.

· Confirm the thermal measurement mode, environmental parameters and temperature range before using temperature data for inspection decisions.

· Do not power off the MT11 during firmware upgrades.

· Complete gimbal, camera, control and video transmission checks before the first flight.
