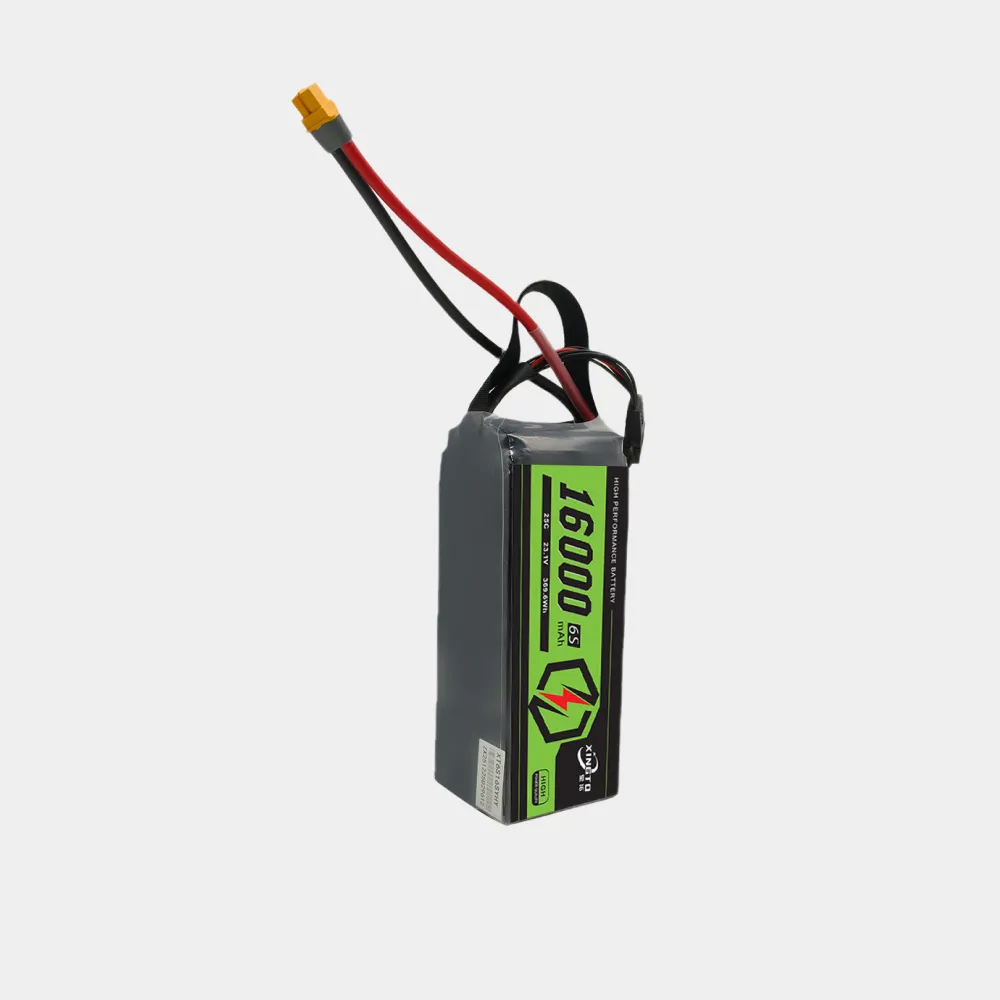

The Xingtuo 6S 16Ah 25C high-rate UAV battery is designed for compatible drone and unmanned vehicle power systems that require a high-rate battery pack with clearly defined voltage and energy specifications. The battery label identifies a 6S configuration, 16000mAh capacity, 25C discharge rating, 23.1V voltage and 369.6Wh energy rating. The pack includes a main power connector, balance lead and securing strap for system integration. Its documented body dimensions are 188 × 68 × 73mm. Before installation, confirm the battery connector, charger, power distribution system, ESC input range and aircraft mounting space.
High-Rate UAV Battery
6S · 16Ah · 25C · 23.1V
6S 16Ah High-Rate Battery for UAV Power Systems
Defined Size for UAV Installation Planning

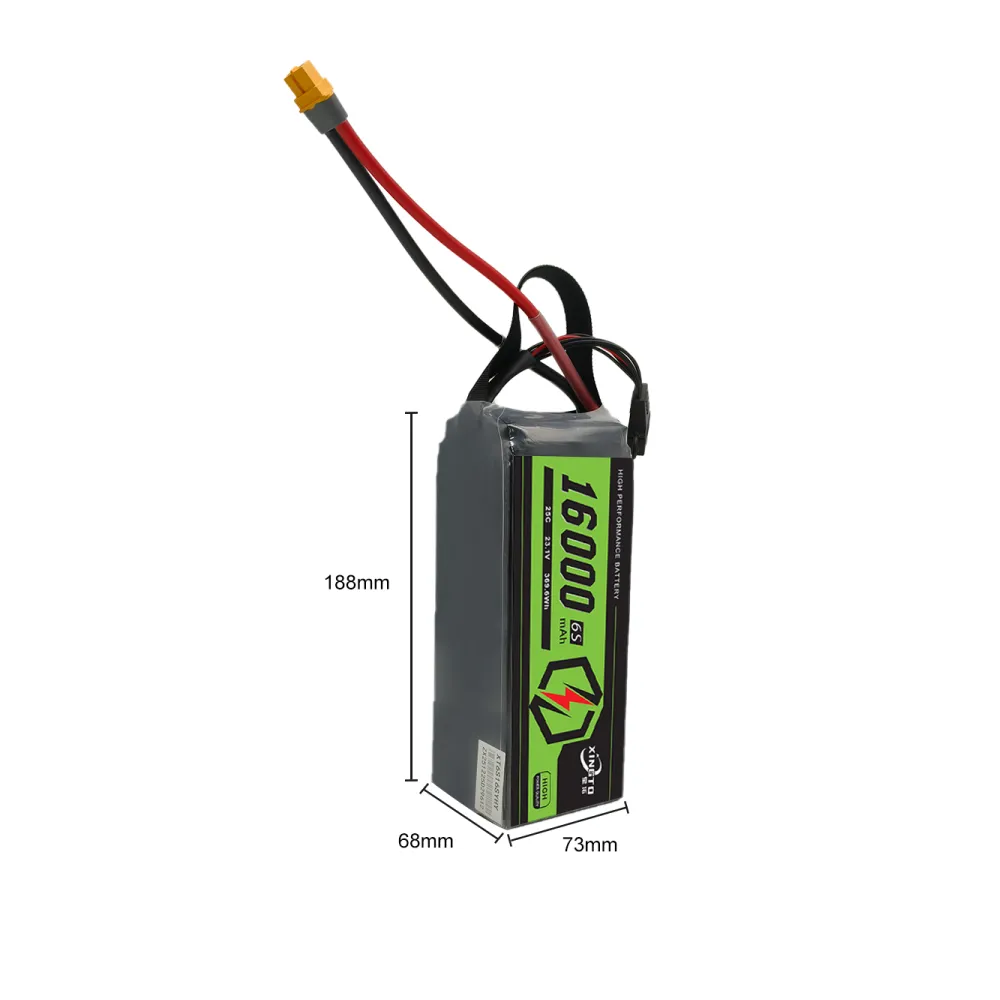

The Xingtuo 6S 16Ah battery pack has documented dimensions of 188 × 68 × 73mm. This dimensional reference helps users check the available battery compartment, mounting position, securing strap and cable routing before installation. Please allow additional space for the power connector, balance lead and cable bend radius when planning the complete UAV power system.
High-Rate Battery for Compatible UAV Platforms
The 6S 16Ah 25C configuration is intended for compatible UAV and drone power systems that require a defined 6S battery pack and high-rate output capability. The 23.1V and 369.6Wh label values provide a clear reference for preliminary power-system matching. Final compatibility depends on the aircraft, ESC, charger, connector, current demand and battery installation conditions.
Technical Parameters
· Product Type: High-rate UAV battery
· Battery Configuration: 6S
· Capacity: 16000mAh / 16Ah
· Discharge Rating: 25C
· Label Voltage: 23.1V
· Energy Rating: 369.6Wh
· Dimensions: 188 × 68 × 73mm
· Main Connector: Connector shown in the product images; exact connector model to be confirmed
· Balance Lead: Included, connector type to be confirmed
· Battery Weight: To be confirmed
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Clear 6S High-Rate Battery Specifications
· 6S battery configuration
· 16000mAh / 16Ah capacity
· 25C high-rate discharge rating
· 23.1V label voltage
· 369.6Wh energy rating
· 188 × 68 × 73mm documented dimensions
· Main power lead, balance lead and securing strap shown in the product images
Packaging & Shipping
· Product: Xingtuo 6S 16Ah 25C high-rate UAV battery
· The battery pack is shown with a main power lead, balance lead and securing strap.
· Documented battery dimensions: 188 × 68 × 73mm
· Shipping package dimensions and package weight are not specified in the supplied materials.
· Battery shipping and transport requirements should be confirmed before dispatch.
· Please confirm the final connector, cable configuration and package contents before ordering.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Battery Use and Safety Notice
· Confirm that the charger and power system support the 6S battery configuration before use.
· Verify the battery connector, polarity, balance lead and wiring before connection.
· Use a compatible balance charger and follow the charger manufacturer’s charging procedure.
· Do not use the battery if the pack is swollen, damaged, leaking, overheated or has damaged wiring.
· Secure the battery firmly inside the UAV and keep the power leads away from propellers, motors and hot components.
· The 25C rating is a product specification; actual usable current depends on temperature, battery condition, wiring and system configuration.
· Confirm the battery compartment can accommodate the documented 188 × 68 × 73mm dimensions.
