Diameter: 16 inches
Pitch: 5.5 inches
Weight: ≈16g
Applicable Models: Multi-Rotor
Thrust Limitation: ≤2500g
Optimum RPM: ≤6000 r/min
Operating Temperature: -40℃ to +60℃
Storage Temperature: -10℃ to +40℃
Foldable Type 16*5.5 inch
Ultra light High strength High efficiency Custom propeller
Product Description
Specification
Technical Specifications:

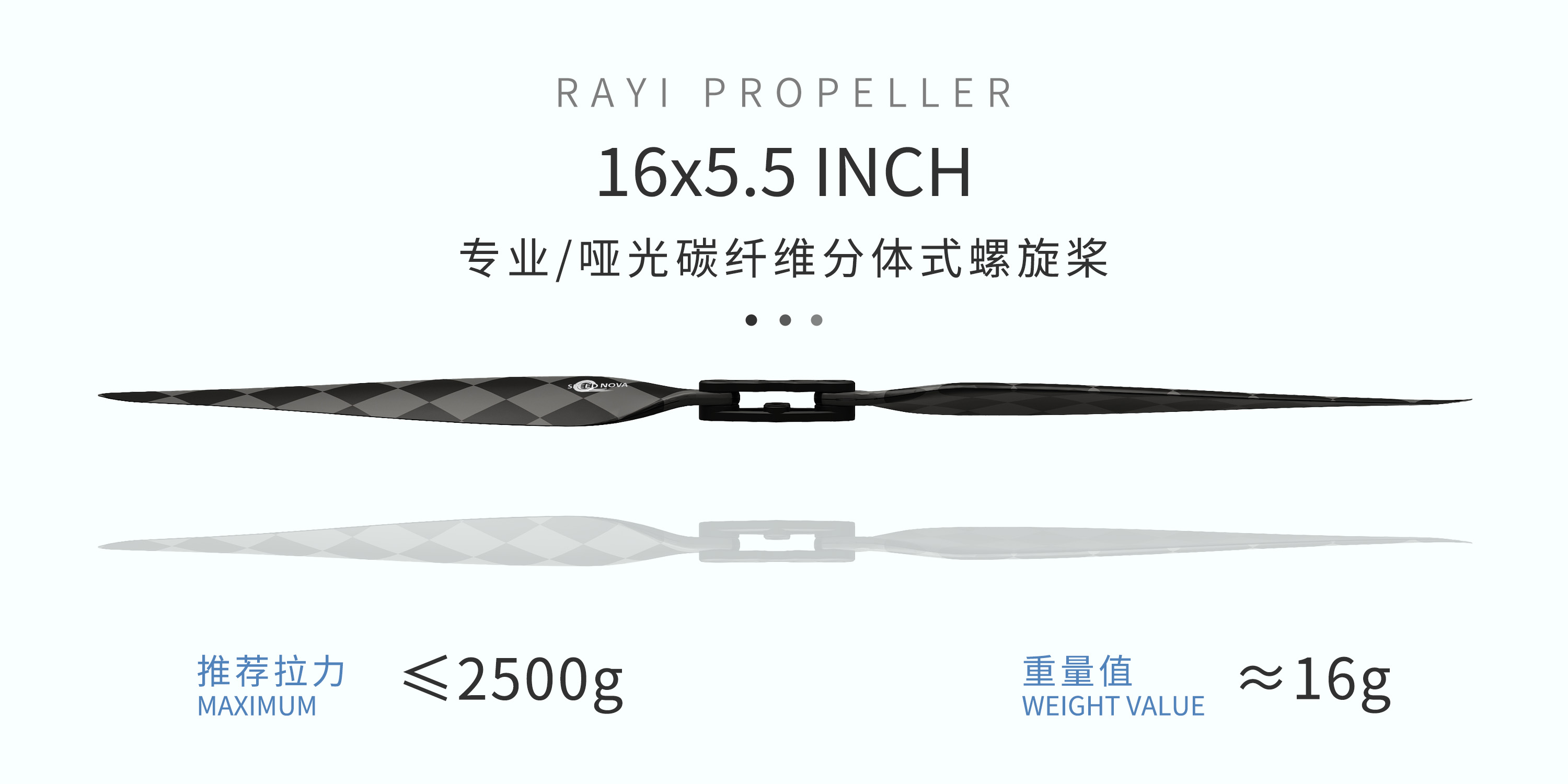

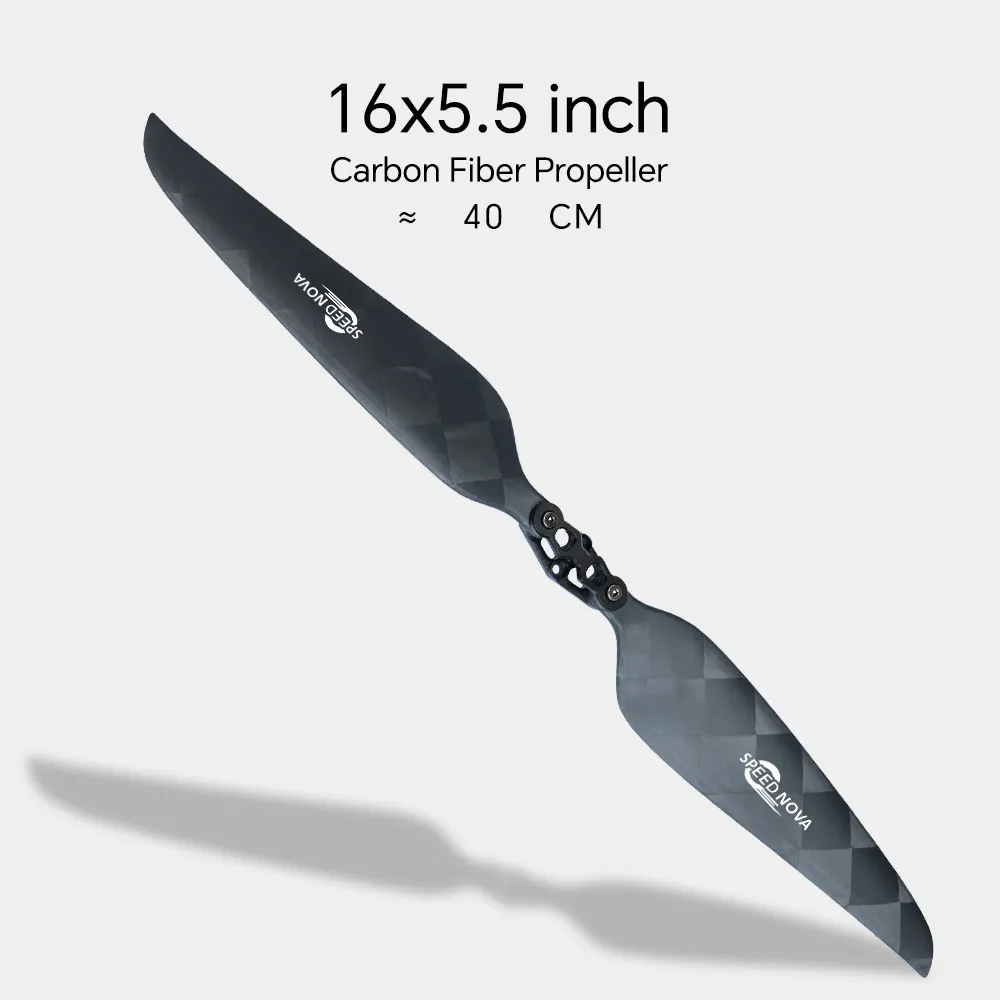

Product Name: 16x5.5 Ultra light carbon fiber folding CW/CCW Propeller

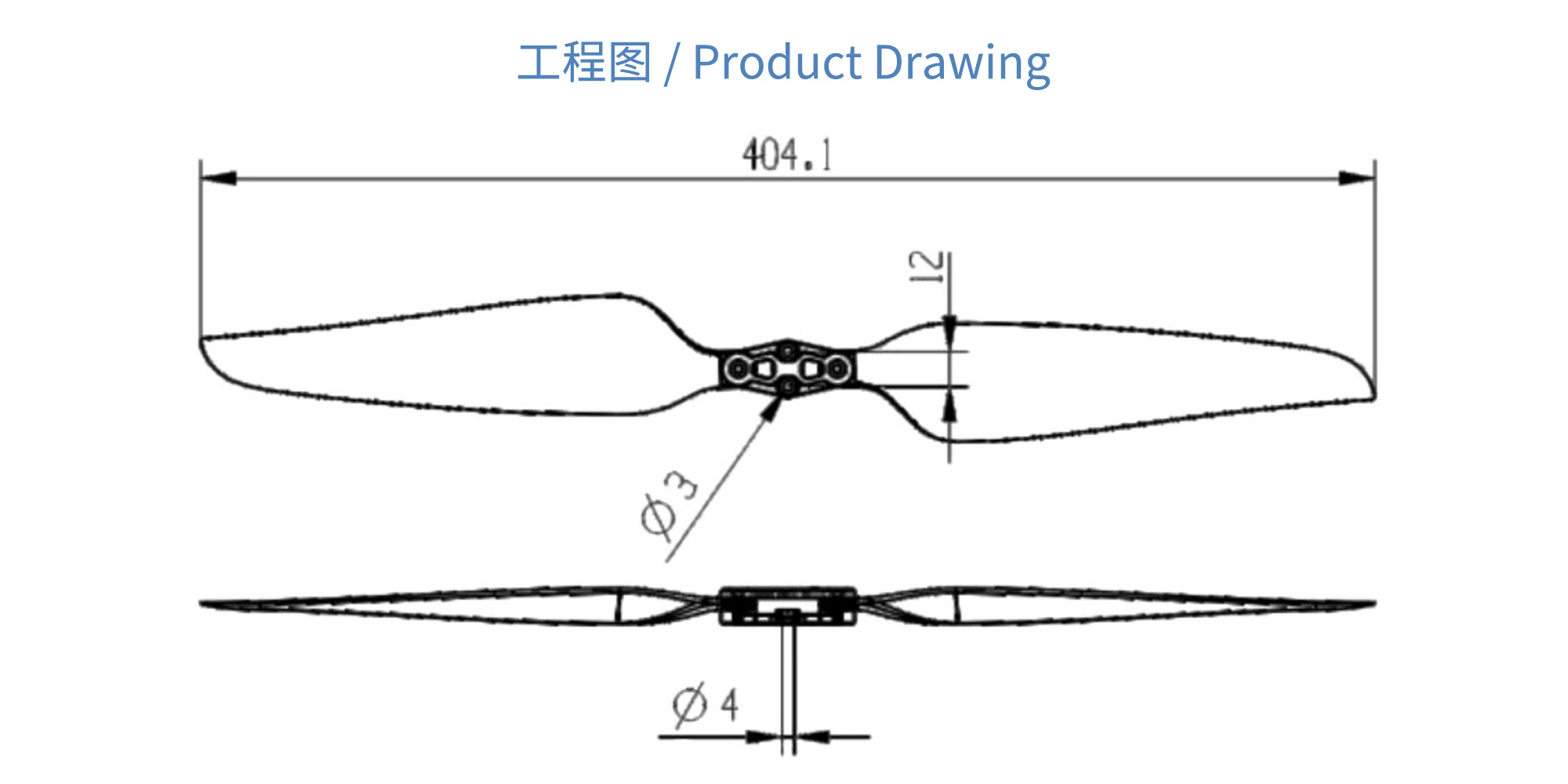

Diameter: 16 inches
Pitch: 5.5 inches
Weight: ≈16g
Applicable Models: Multi-Rotor

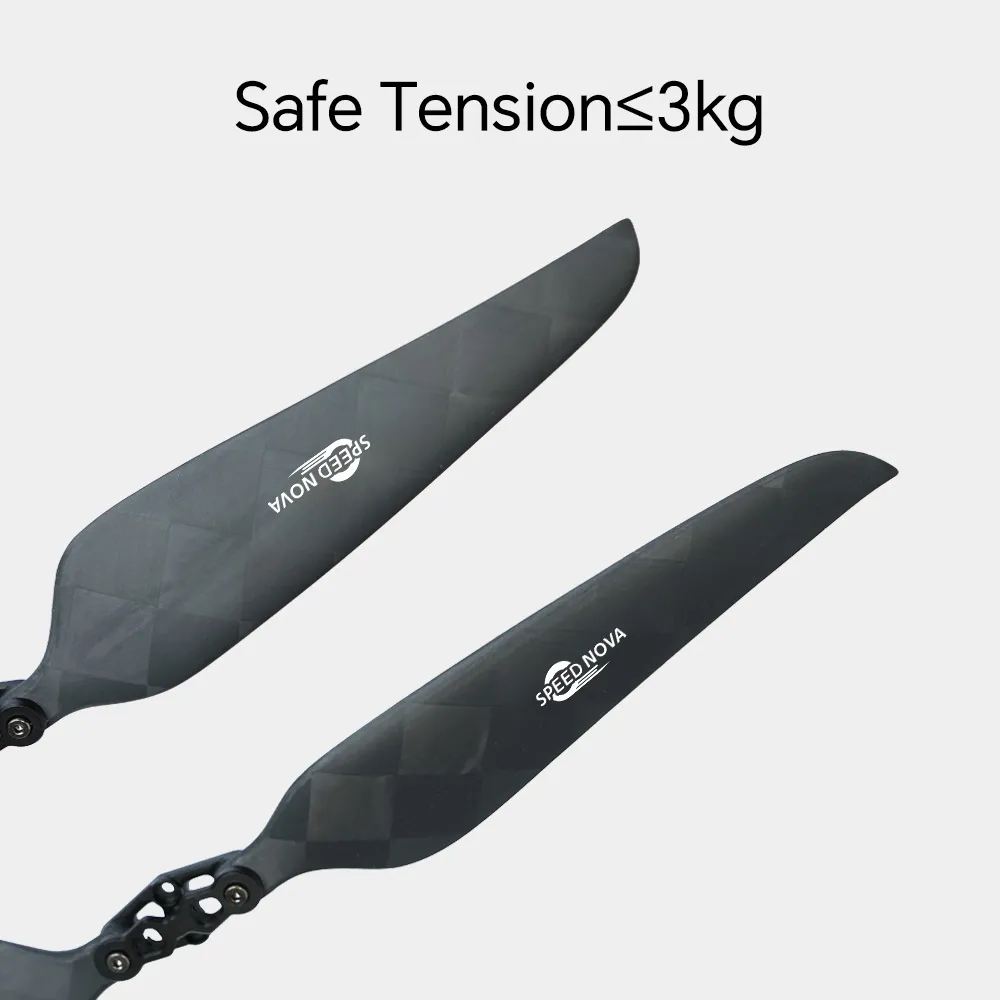

Thrust Limitation: ≤2500g
Optimum RPM: ≤6000 r/min
Operating Temperature: -40℃ to +60℃
Storage Temperature: -10℃ to +40℃
💡 We accept customized sizes and designs (OEM & ODM available).

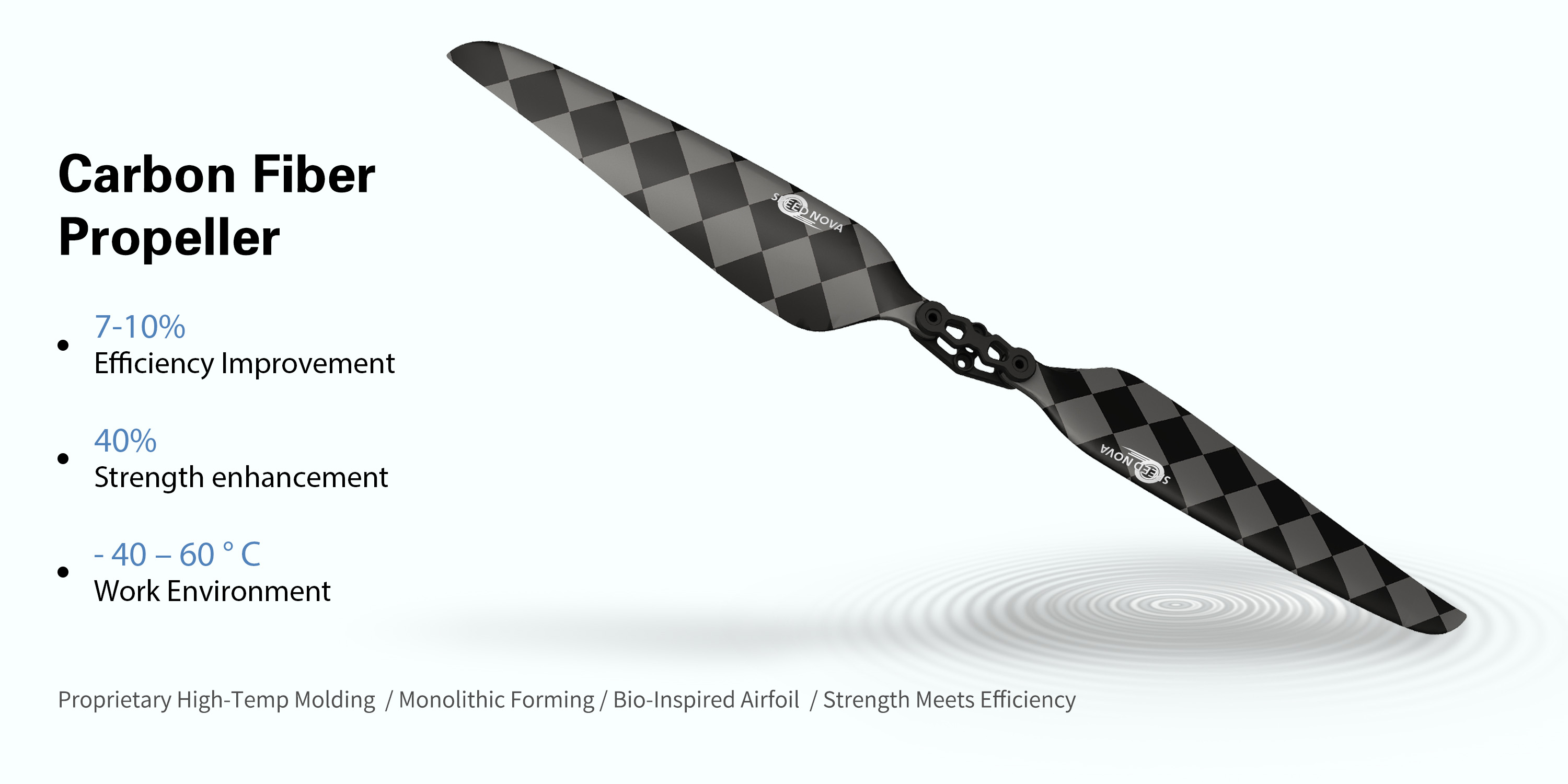

The Rayi 16x5.5 Ultra Light Carbon Fiber Folding Propellers are expertly crafted for multi-rotor models, offering impressive performance improvements. Each propeller weighs approximately 16g, ensuring minimal impact on your drone’s overall weight while maximizing flight efficiency. With their innovative airfoil design and high-strength carbon fiber construction, these propellers are perfect for achieving longer flight times and enhanced maneuverability.

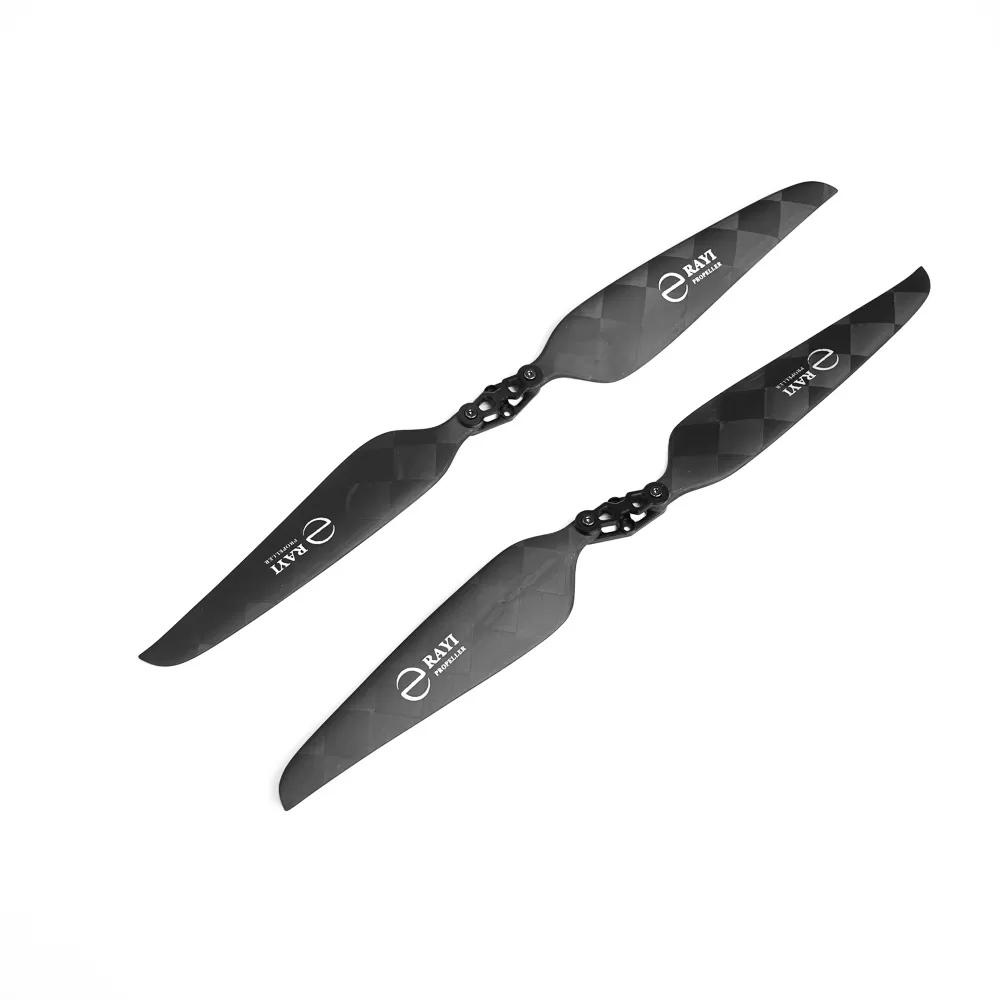

2 × 16x5.5 Inch CW Carbon Fiber Propellers (16g each)
2 × 16x5.5 Inch CCW Carbon Fiber Propellers (16g each)
This product comes with a standard warranty, ensuring peace of mind and reliable support for your purchase.
If you are looking for other sizes, materials, or models, please take a look at Rayi’s list of propellers.
For a comprehensive reading of related products, please visit the Rayi website.

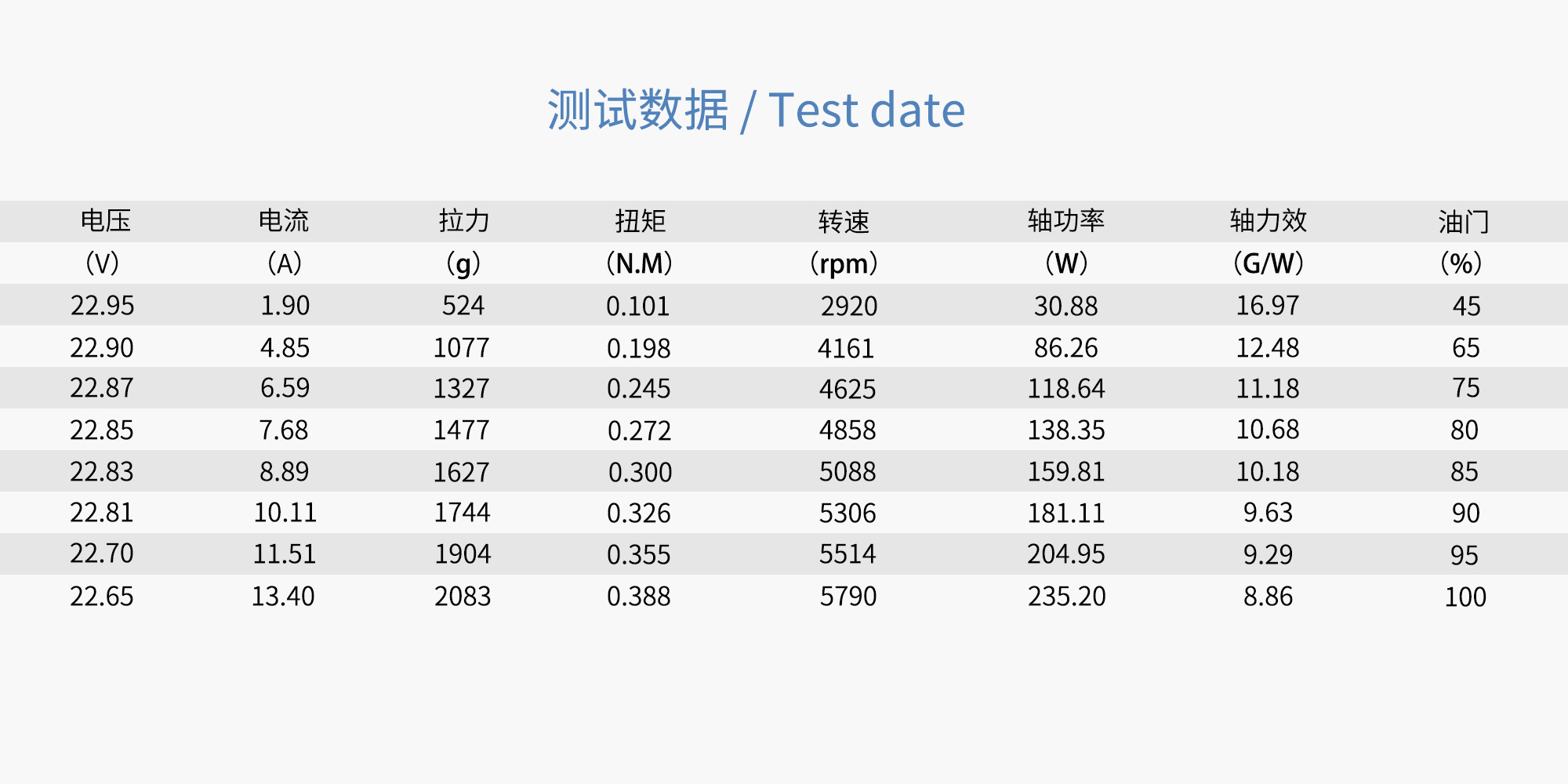

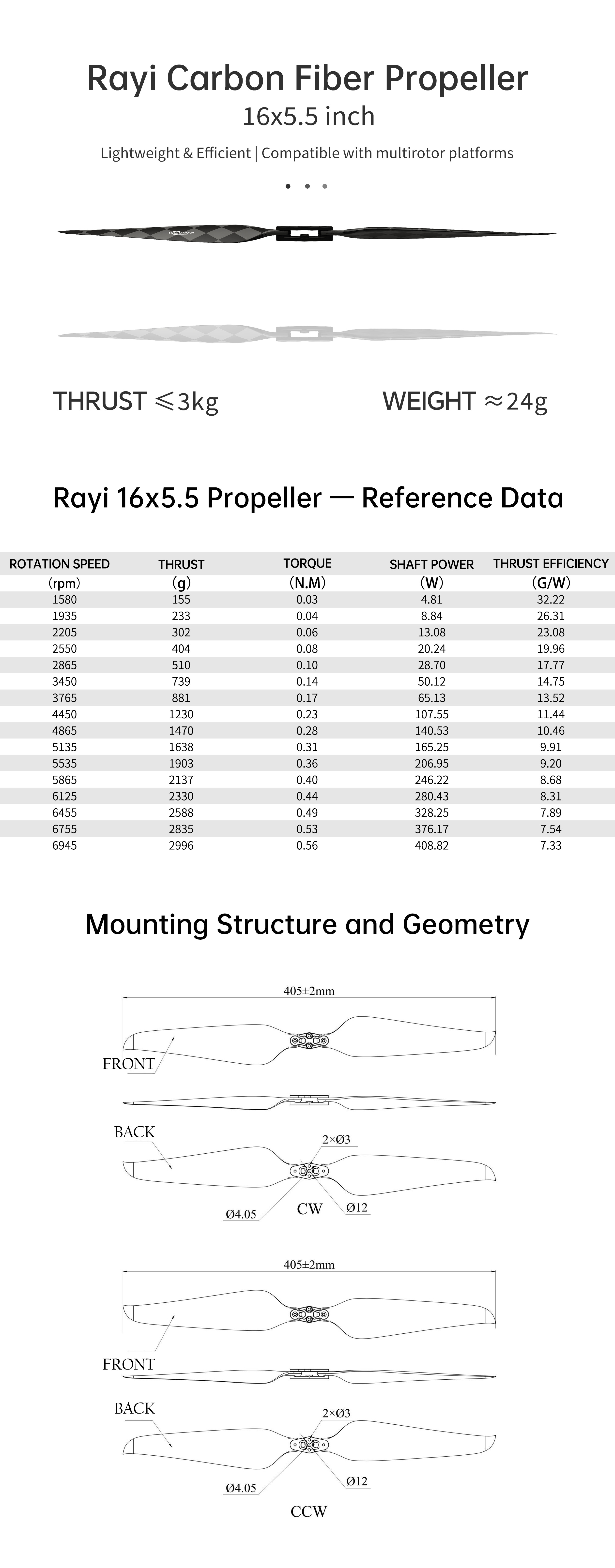

Technical Parameter
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
