Ultra-light, super-strong and high efficiency

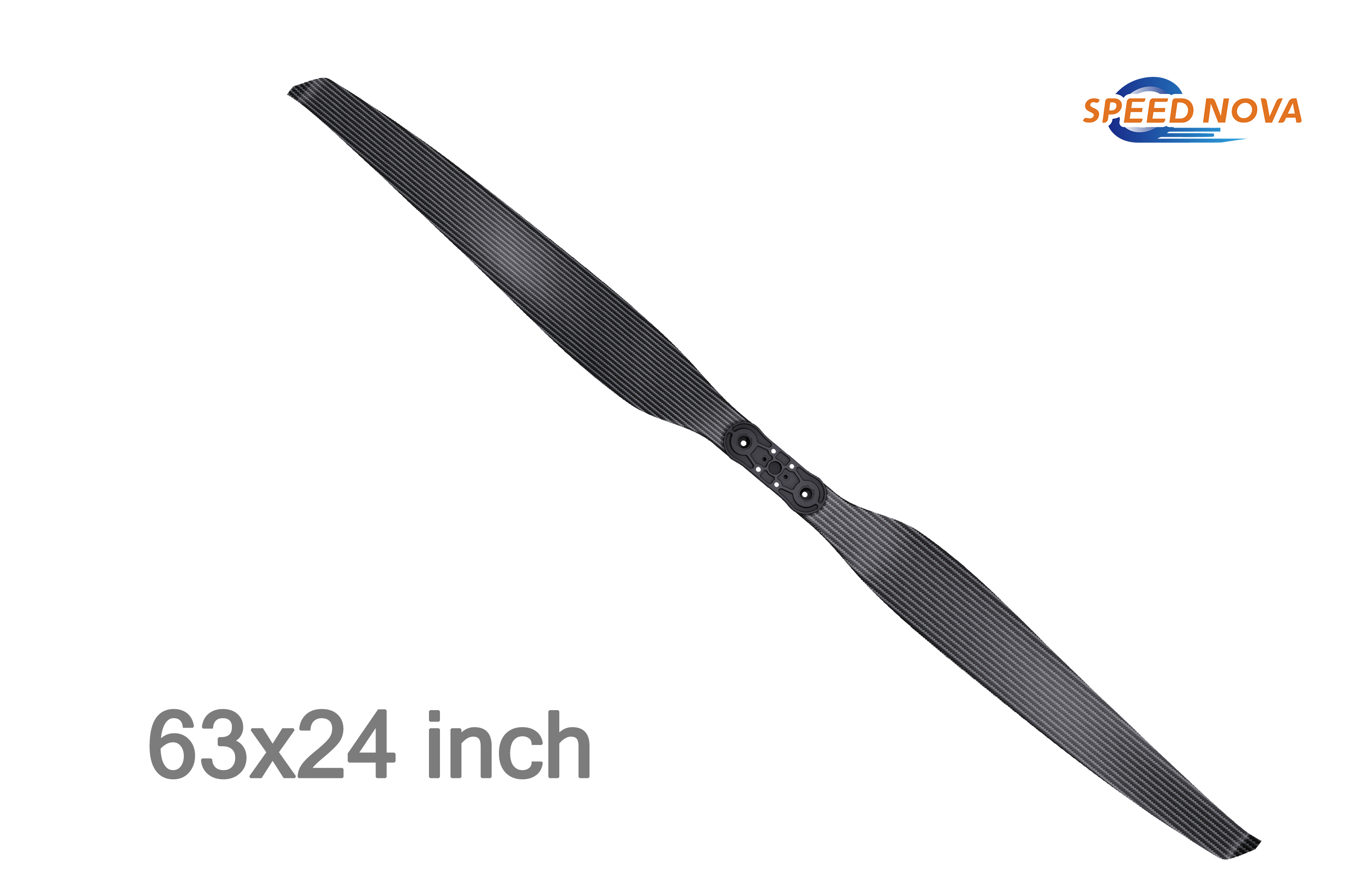

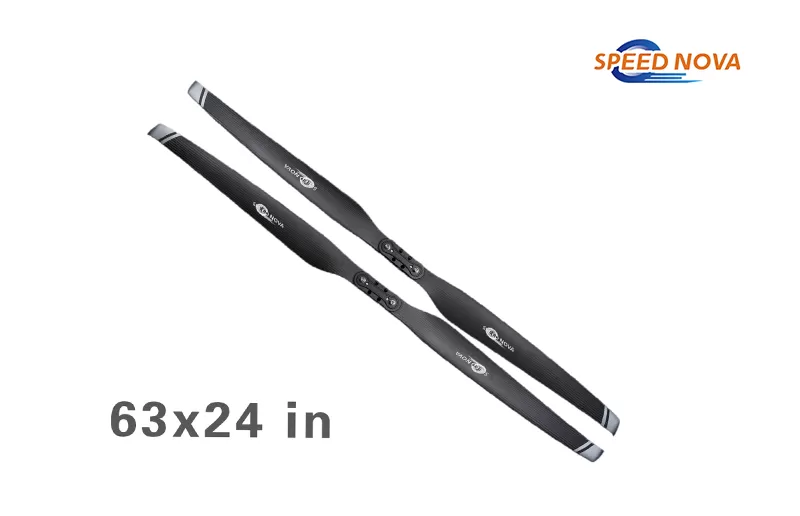

Straight type 63x24 inch
Price 380 usd/pair（CW+CCW）
Product Description
Specification

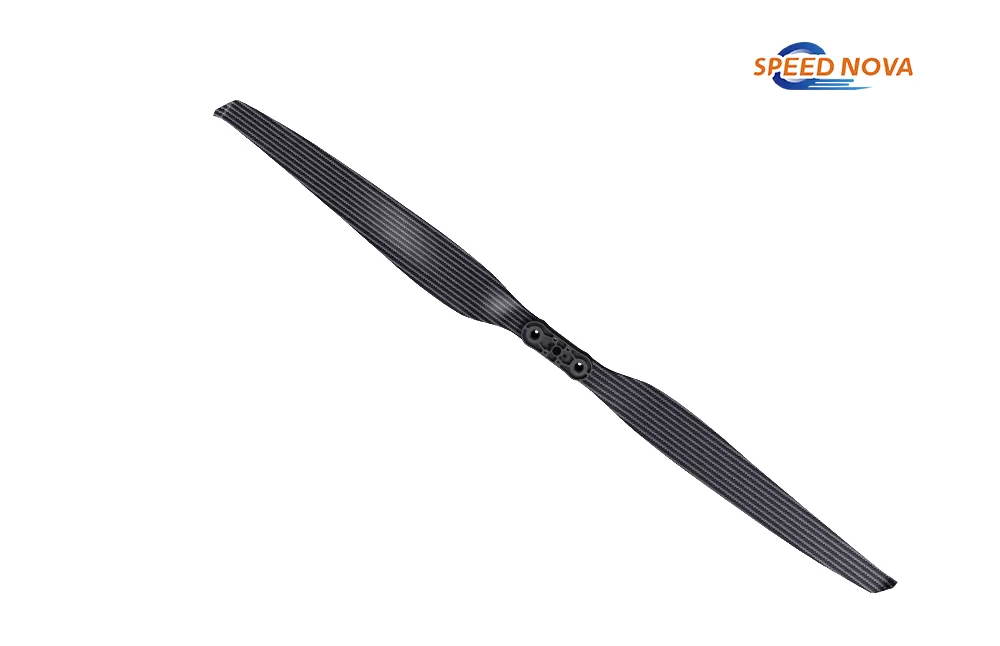

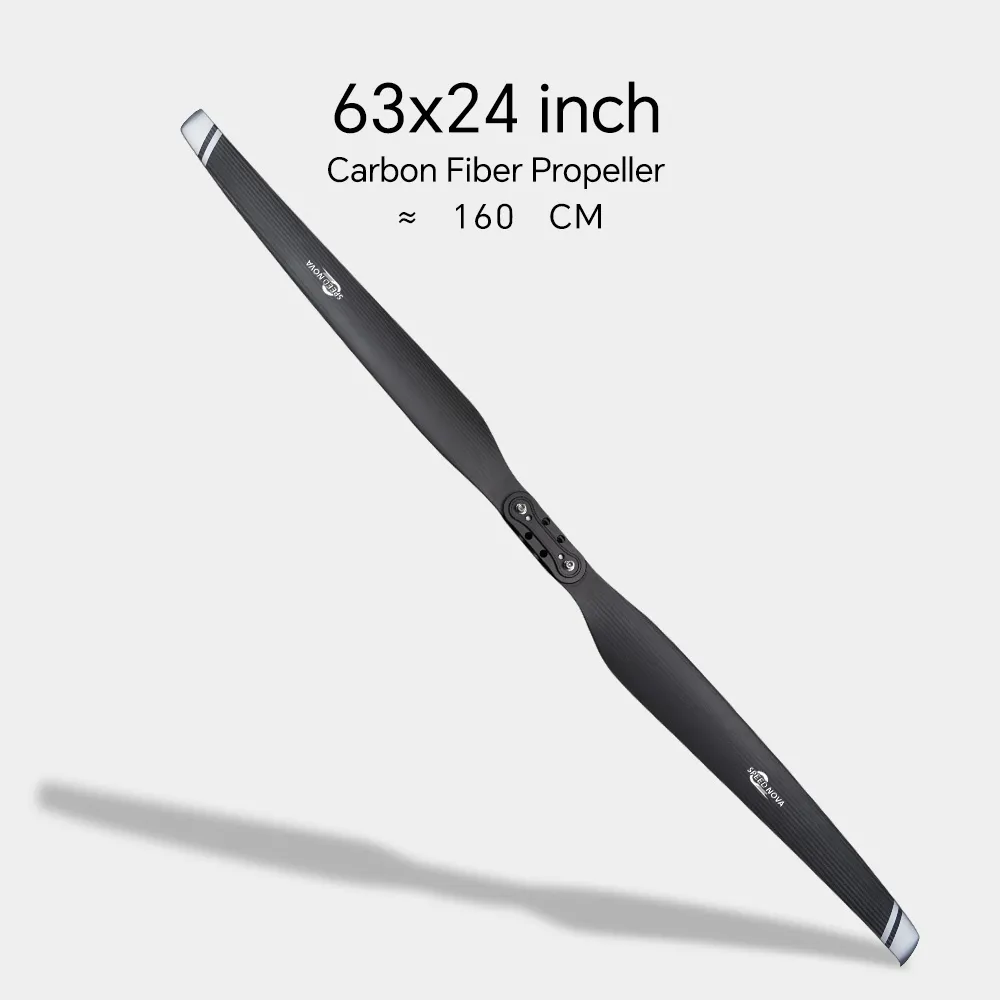

Product name: 63*24 inch Ultra light carbon fiber CW/CCW Propeller
Model: 63*24
Diameter (inches): 63
Pitch (inches): 24
Material: carbon fiber and epoxy
Surface Treatment : Polished or Frosted

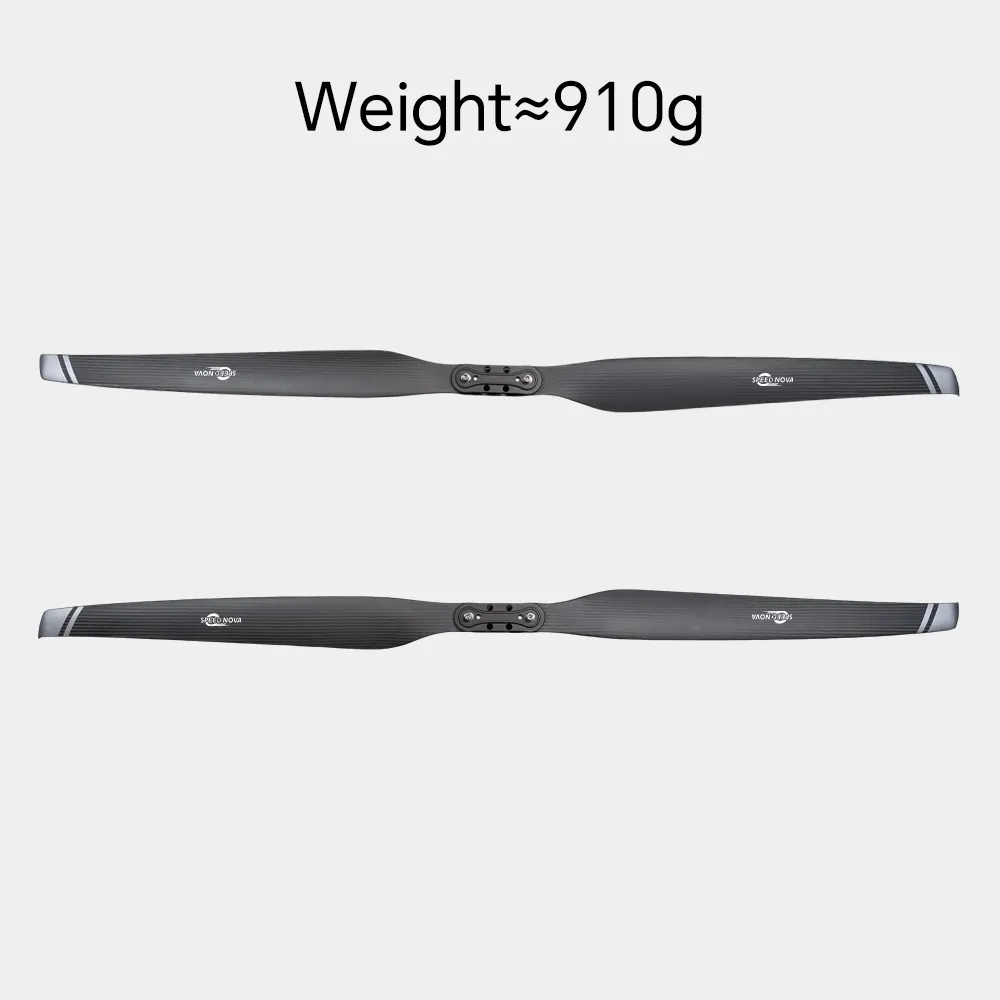

Single net weight: 900g
Installation method: Screw fixation
Applicable models: Multi rotor,Vertical fixed wing
Thrust Limitation: ≤2500 r/min
Optimum RPM: ≤80kg
working ambient temperature: -40℃~+60℃
Storage temperature: -10℃~+40℃
Product Description

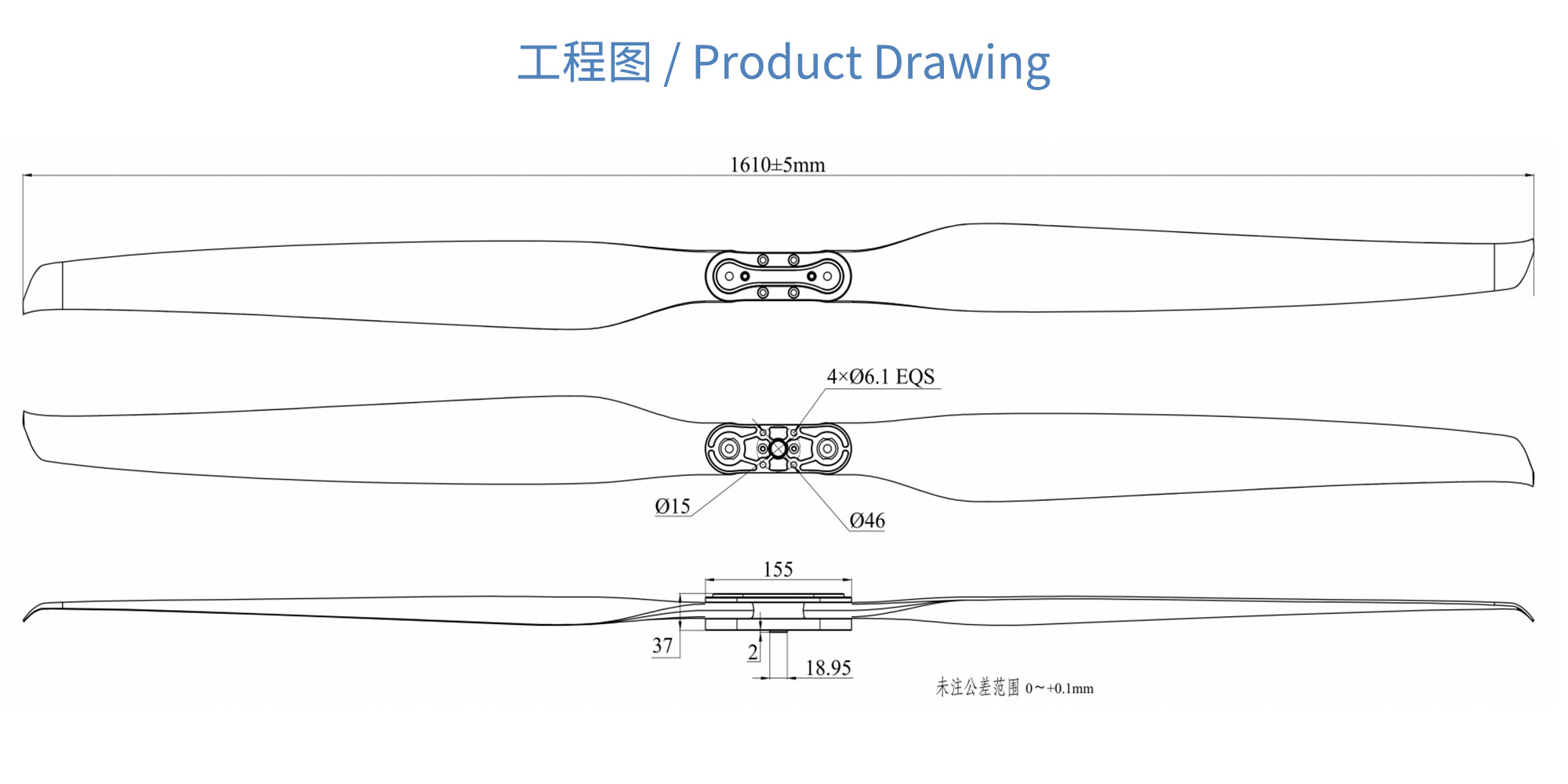

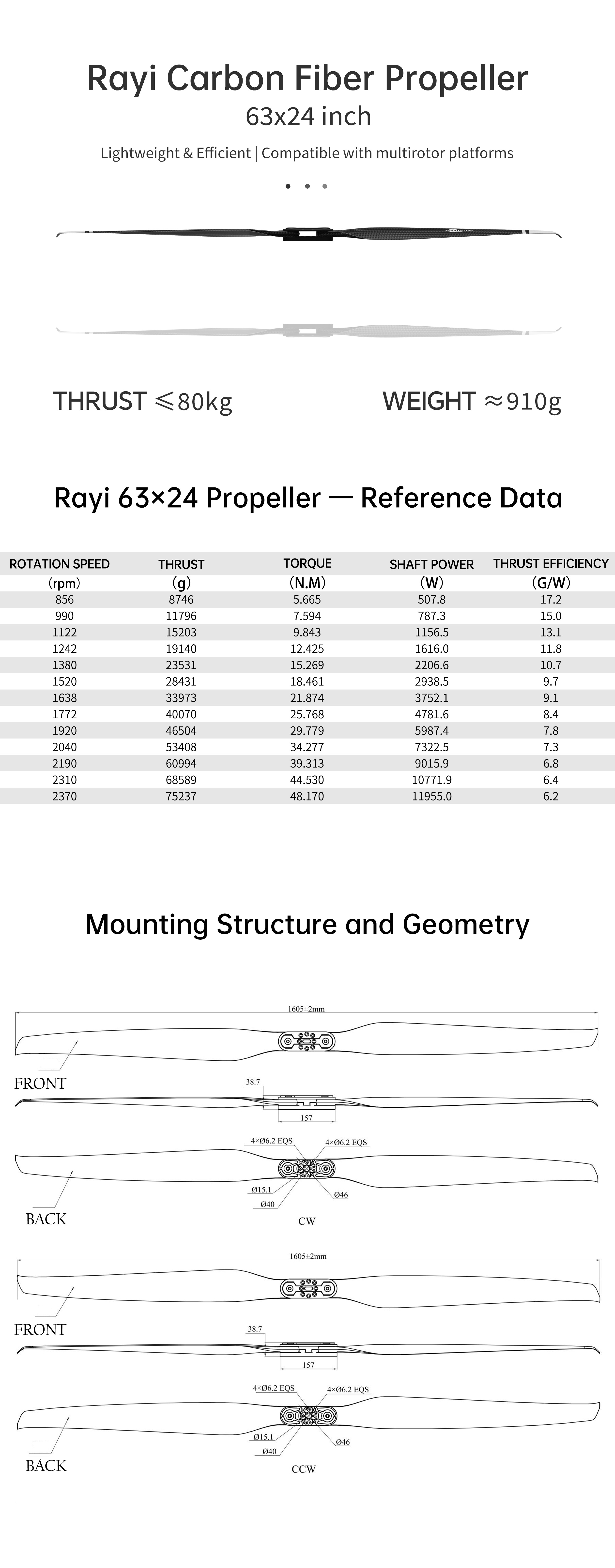

Technical Parameter
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
Feature
Designed for high-efficiency and precision, the 63x24 Carbon Fiber Propeller has a variety of features that make it an excellent choice for professionals seeking durability and performance:
Material Composition: Made from high-quality carbon fiber and epoxy, this propeller delivers excellent strength-to-weight ratio, ensuring both lightweight operation and robust performance.
Size & Dimensions: With a 63-inch diameter and 24-inch pitch, this propeller is optimized for heavy-duty applications, providing exceptional thrust for large cargo drones.

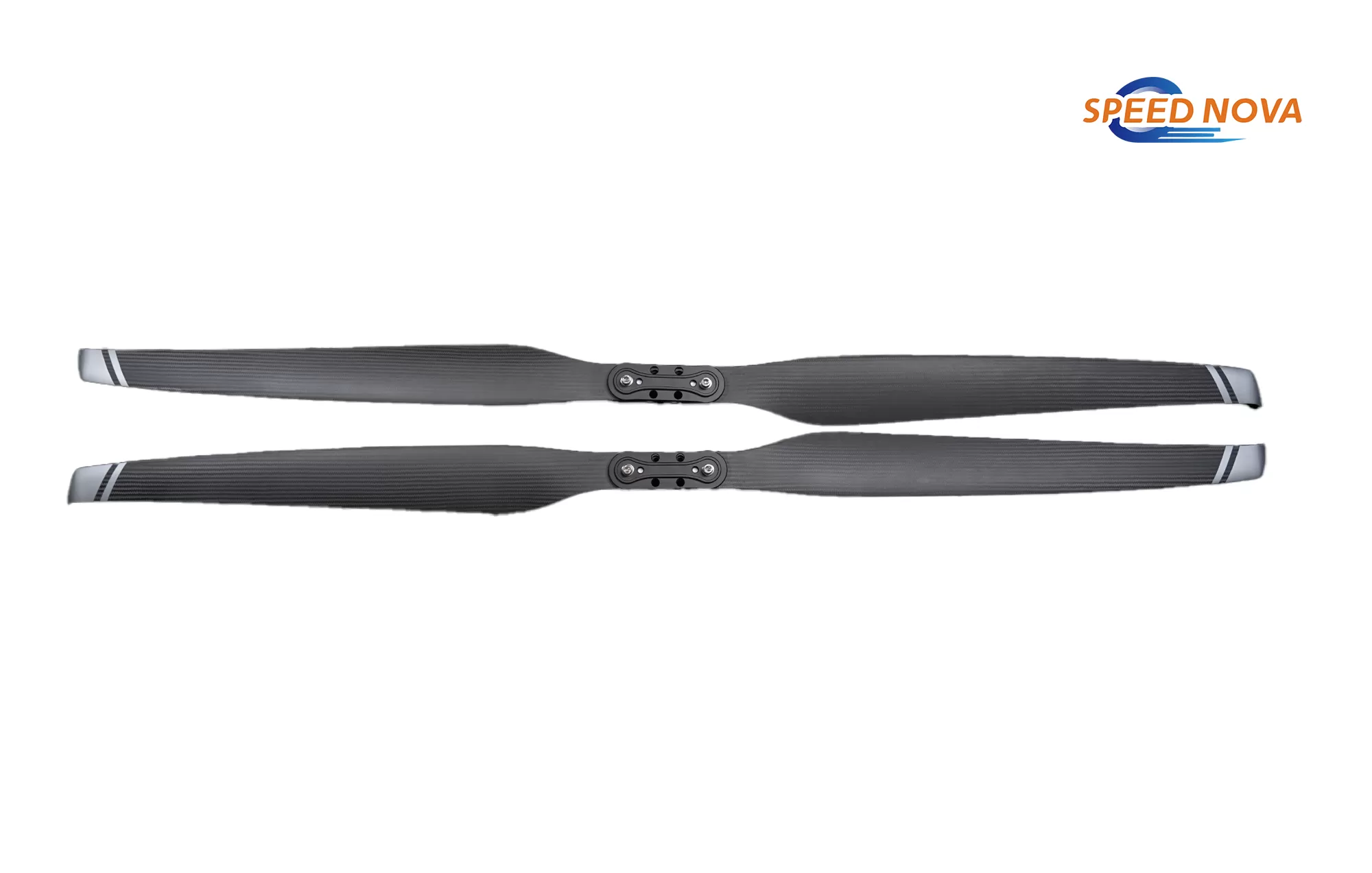

Dual CW/CCW Configuration: The package includes both a Clockwise (CW) and Counter-Clockwise (CCW) propeller, allowing for smooth, balanced flight for multi-rotor systems.
Lightweight Design: Each propeller weighs only 900 grams, ensuring your drone remains lightweight while achieving optimal lift.

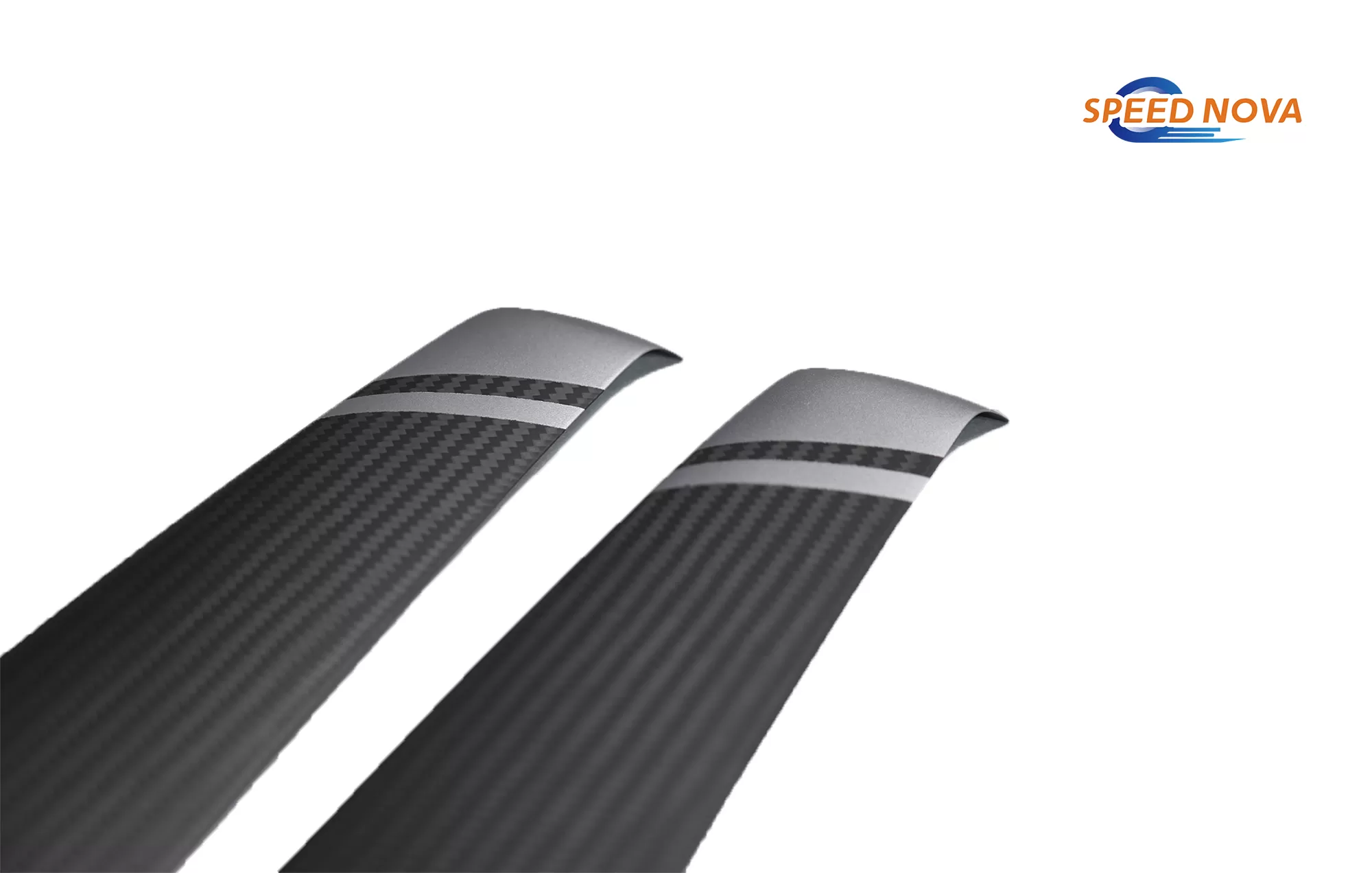

Surface Finish: Choose from a polished or frosted surface finish, both of which enhance the propeller’s aerodynamics while giving it a sleek, professional look.
Packaging & Shipping
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warn
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
