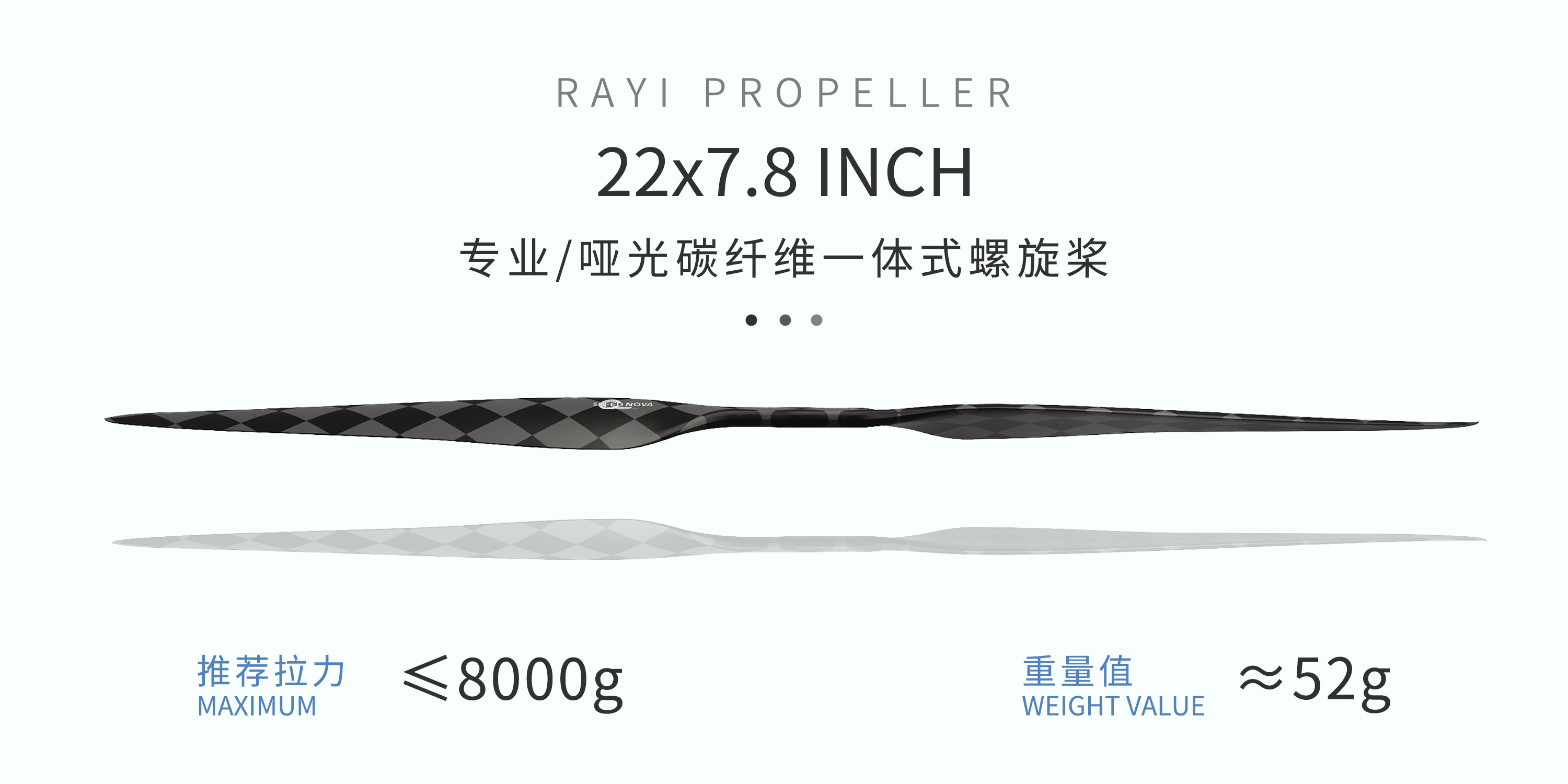

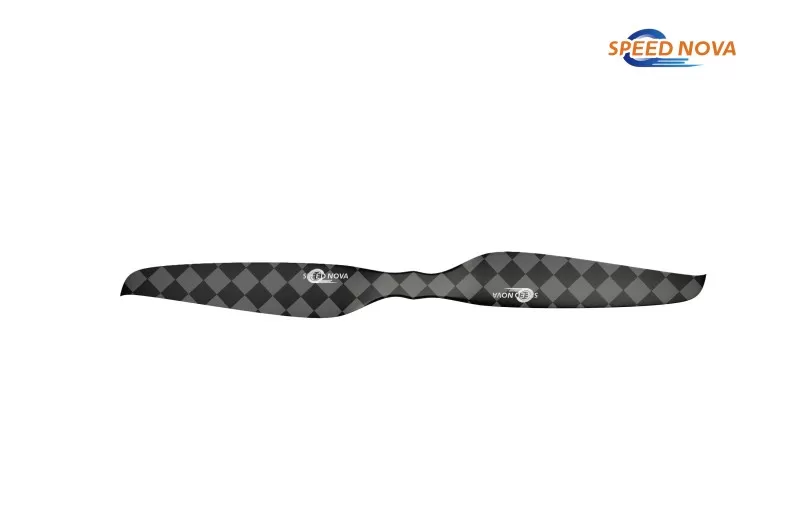

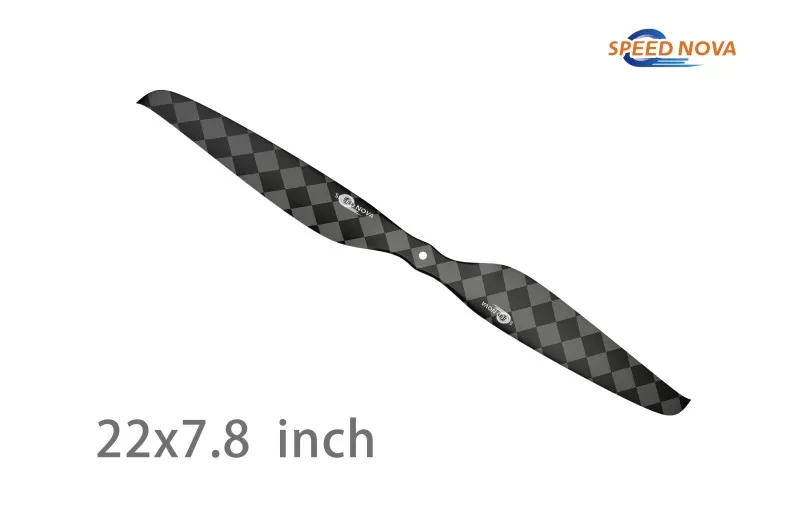

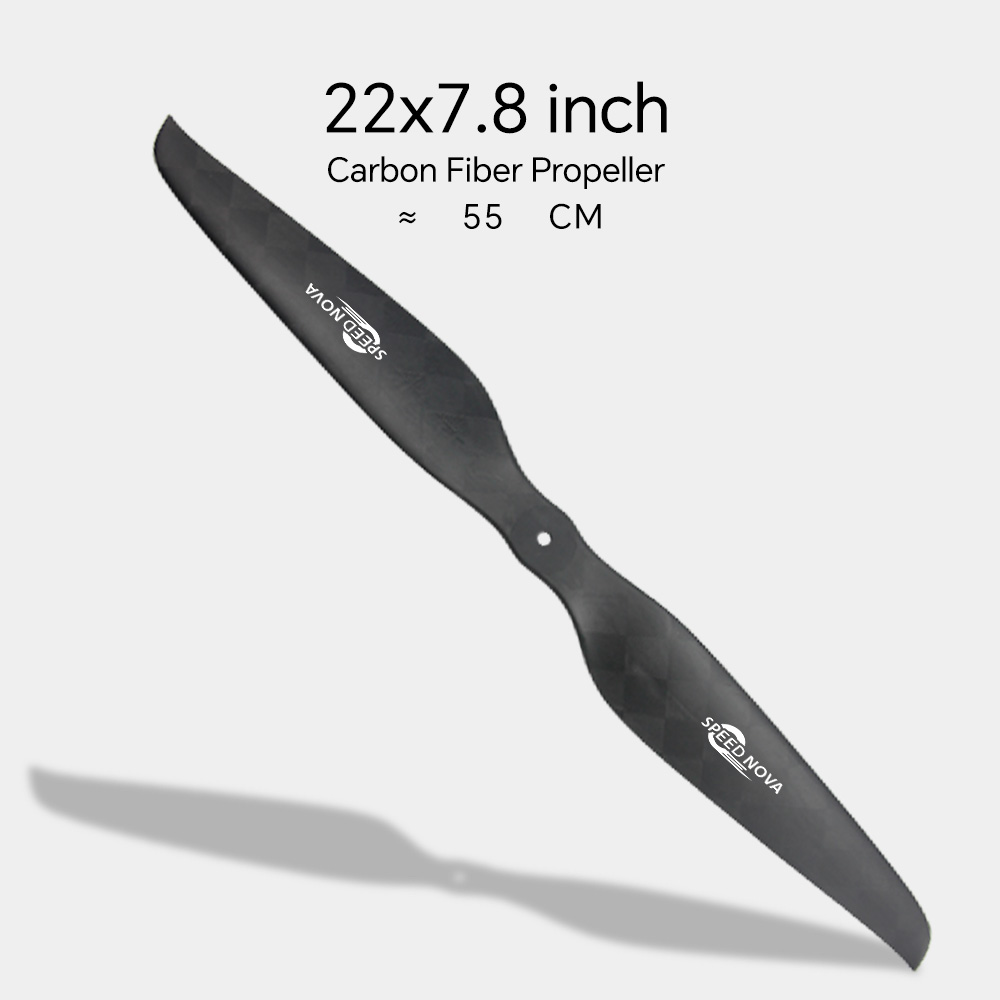

22x7.8 CF FIXED PROP

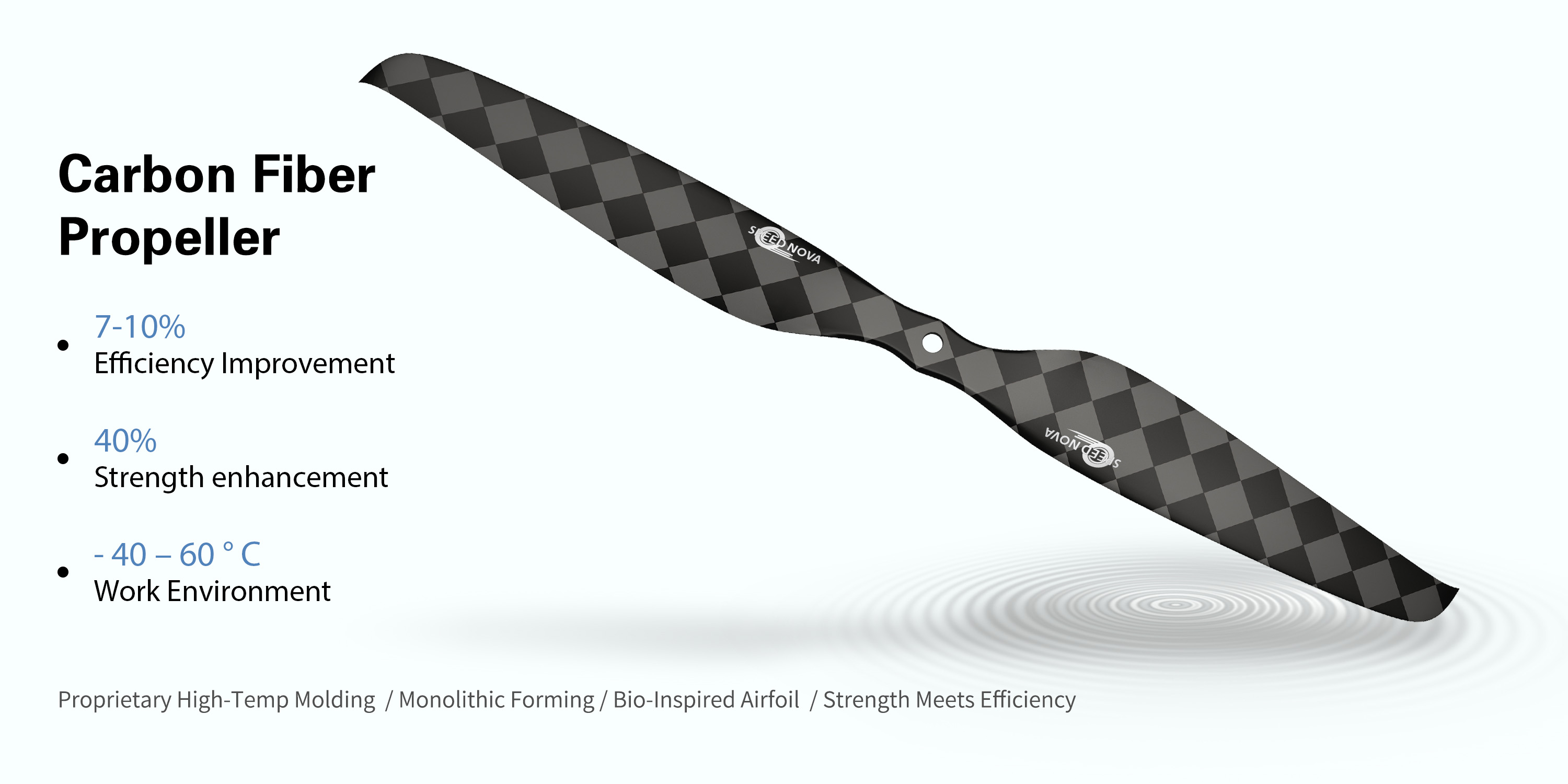

The 22x7.8 carbon fiber propeller represents an advanced propulsion solution engineered for professional UAV platforms operating in challenging environmental conditions. Weighing just 38g per blade, this ultralight 22x7.8 carbon fiber propeller combines exceptional strength with corrosion-resistant properties, making it the ideal choice for marine monitoring, agricultural applications, coastal surveying, and industrial operations where environmental exposure demands superior material durability.

Product Details

Application-Specific Advantages

Coastal and Marine Monitoring: Environmental research platforms conducting water quality surveys, marine wildlife observation, and coastal erosion documentation require propulsion systems that withstand salt exposure without performance loss. The corrosion resistant 22x7.8 Carbon Fiber Propeller eliminates the frequent replacement cycles and unexpected failures associated with standard materials in marine environments.

Agricultural Spray Operations: Crop protection UAVs face direct chemical exposure during every mission. The agriculture  22x7.8 Carbon Fiber Propeller maintains structural integrity and aerodynamic efficiency despite repeated contact with fertilizers, pesticides, and growth regulators that rapidly degrade non-resistant propeller materials.

Industrial Inspection Platforms: Power line inspection, bridge assessment, and infrastructure monitoring often occur in urban and industrial zones with elevated atmospheric pollutants. The anti-corrosion UAV 22x7.8 Carbon Fiber Propeller resists degradation from acid rain, industrial emissions, and chemical vapors that shorten the service life of conventional propellers.

Fixed-Wing Tractor and Pusher Configurations: Survey aircraft and long-range platforms benefit from the 22 inch carbon fiber propeller's integrated design in both nose-mounted tractor and tail-mounted pusher configurations. The lightweight construction reduces overall aircraft weight while the corrosion resistance supports extended deployment in coastal or agricultural survey operations.

Weight Optimization and Flight Performance

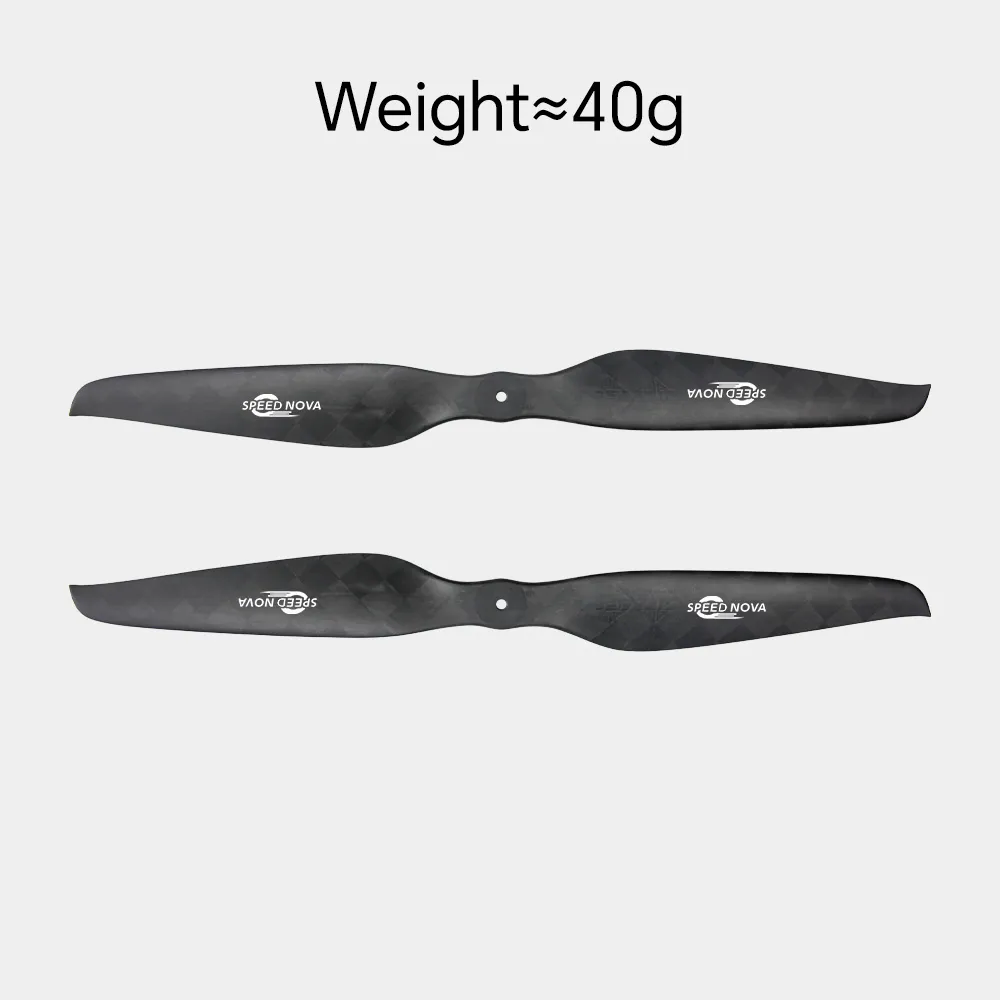

At 38g per blade, the 22x7.8 lightweight propeller ranks among the lightest options in its diameter class. This weight reduction enables several operational advantages:

Extended Flight Duration: The reduced rotational mass lowers power requirements during cruise flight, extending battery life by 8-12% compared to heavier propeller designs in similar thrust categories. For long-endurance survey missions, this translates to additional coverage area or increased loiter time.

Improved Response Characteristics: Lower rotational inertia enhances flight control responsiveness, particularly beneficial for platforms requiring precise positioning during inspection operations or stability in gusty wind conditions. The ultralight carbon fiber propeller enables faster throttle response and more accurate hover positioning.

Increased Payload Capacity: Weight savings at the propeller level create headroom for additional sensor equipment, larger batteries, or increased consumable payloads. Agricultural platforms can carry more spray material, while survey drones can deploy heavier camera systems without exceeding total weight limitations.

Installation Guidelines and Motor Compatibility

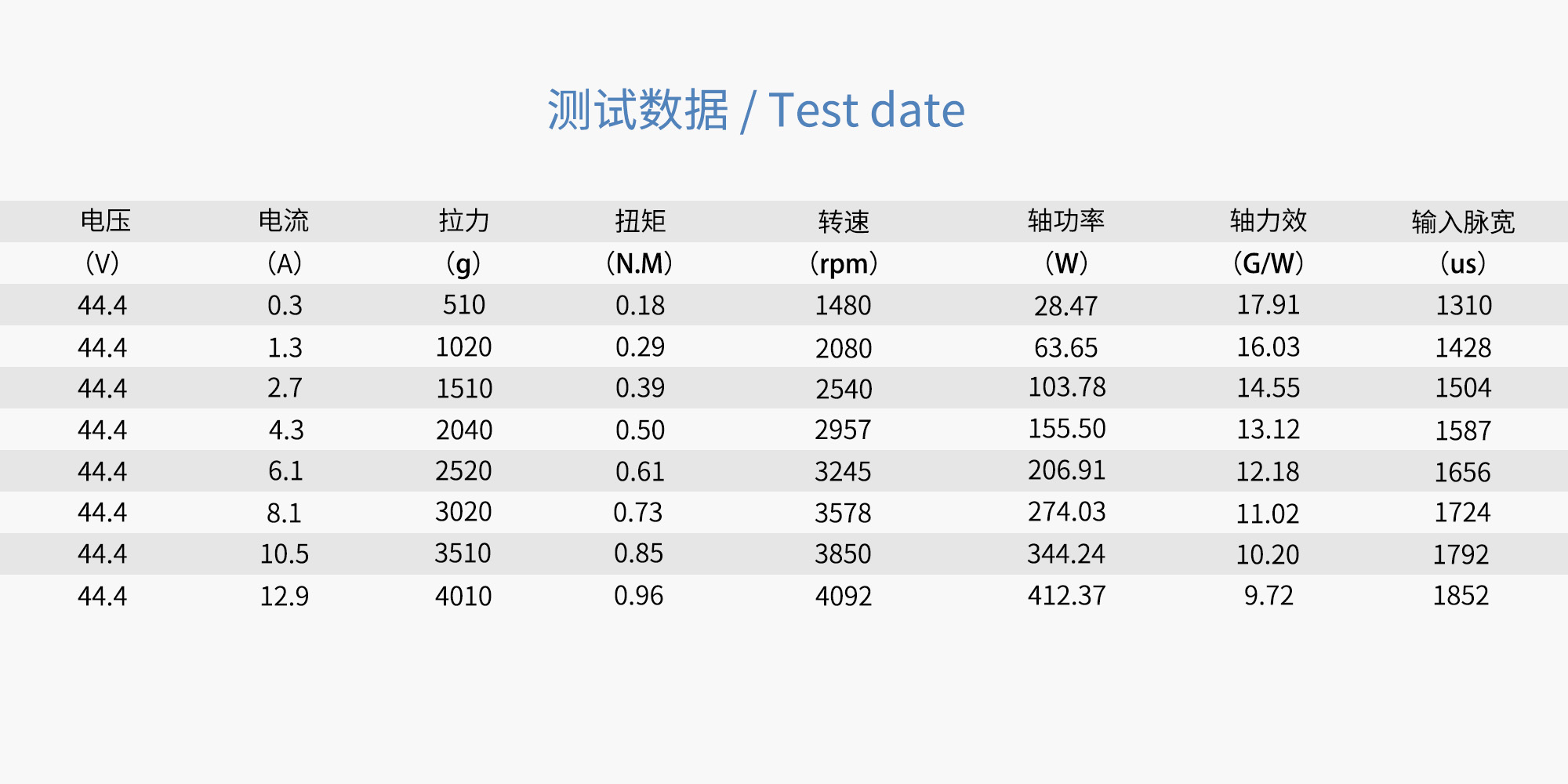

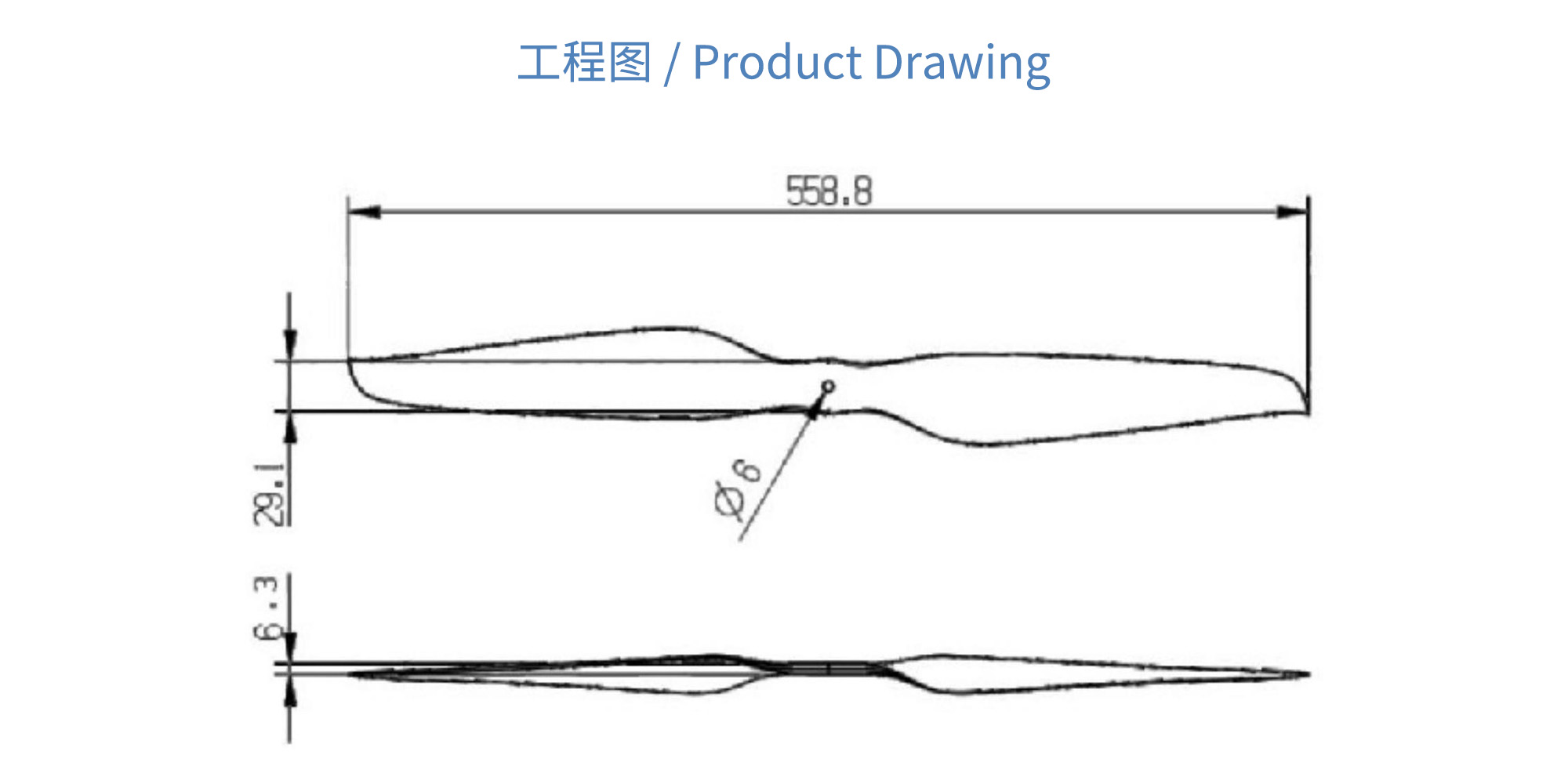

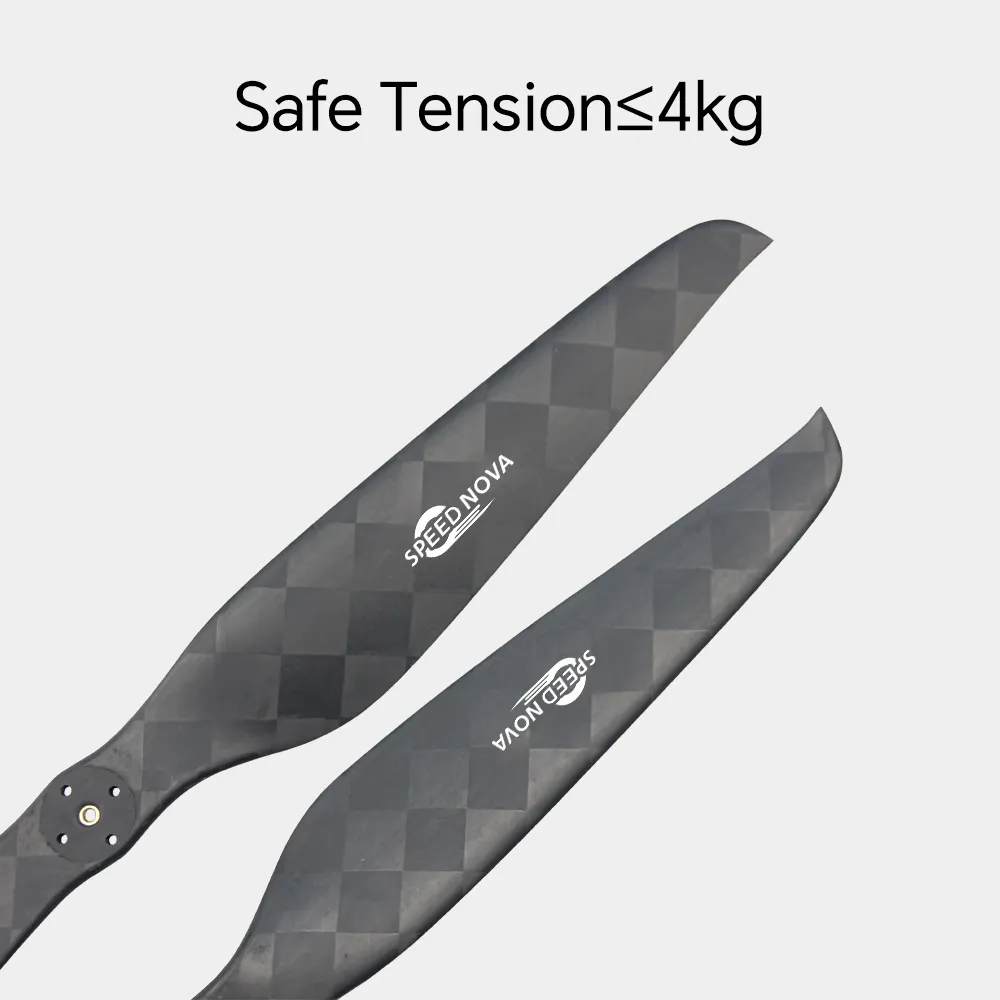

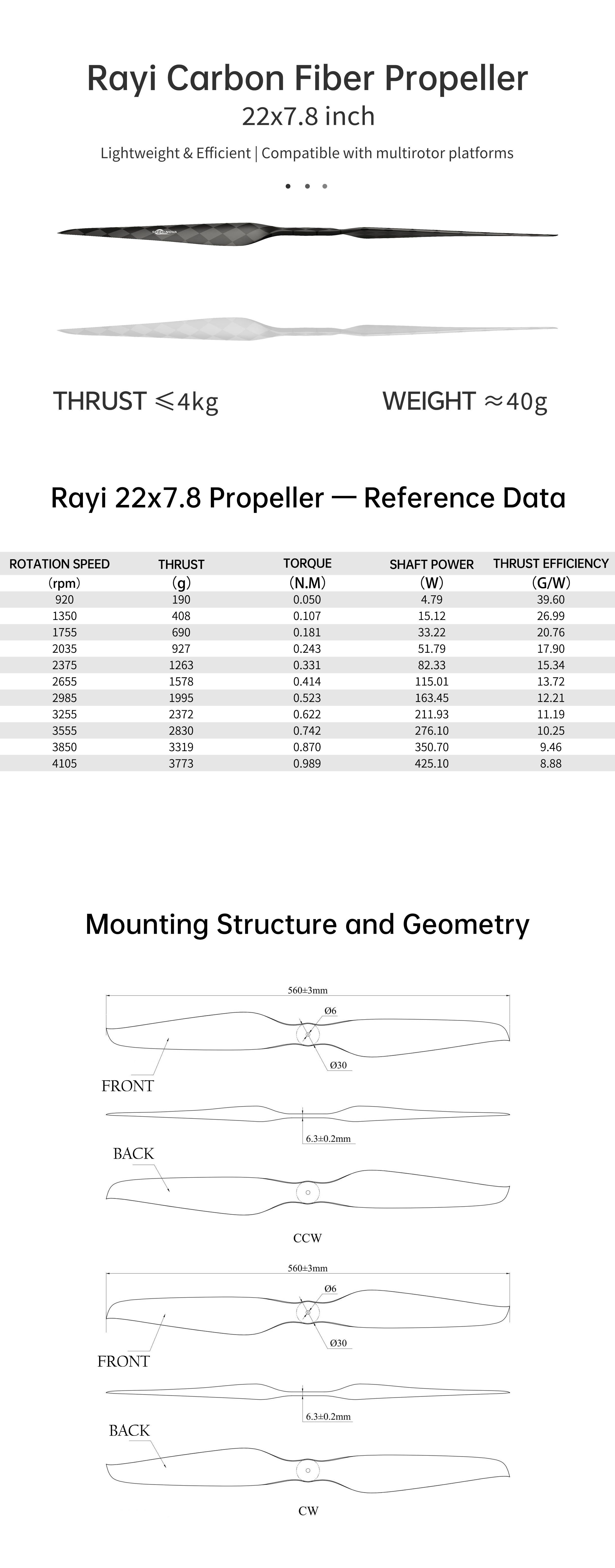

The 22x7.8 carbon fiber integrated propeller features standard hub bore configurations compatible with common motor shaft diameters in the 5-8mm range. Verify motor specifications ensure operating parameters fall within the thrust limitation (≤5000g) and RPM range (≤5420 r/min) to prevent propeller overstress and premature failure.

Apply medium-strength anaerobic thread locking compound during installation to prevent fastener loosening under vibration. Regular pre-flight inspections should verify mounting hardware tightness and propeller surface condition. The corrosion resistant propeller maintains structural properties longer than standard materials, but physical damage from impact still requires immediate propeller replacement.

OEM Customization and Bulk Orders

Rayi provides comprehensive customization services for the 22x7.8 carbon fiber propeller, including custom hub bore sizing, mounting pattern modifications, and enhanced corrosion treatments for extreme environments. OEM partners can specify weight optimization targets, surface finish preferences, and performance characteristics tailored to specific platform requirements.

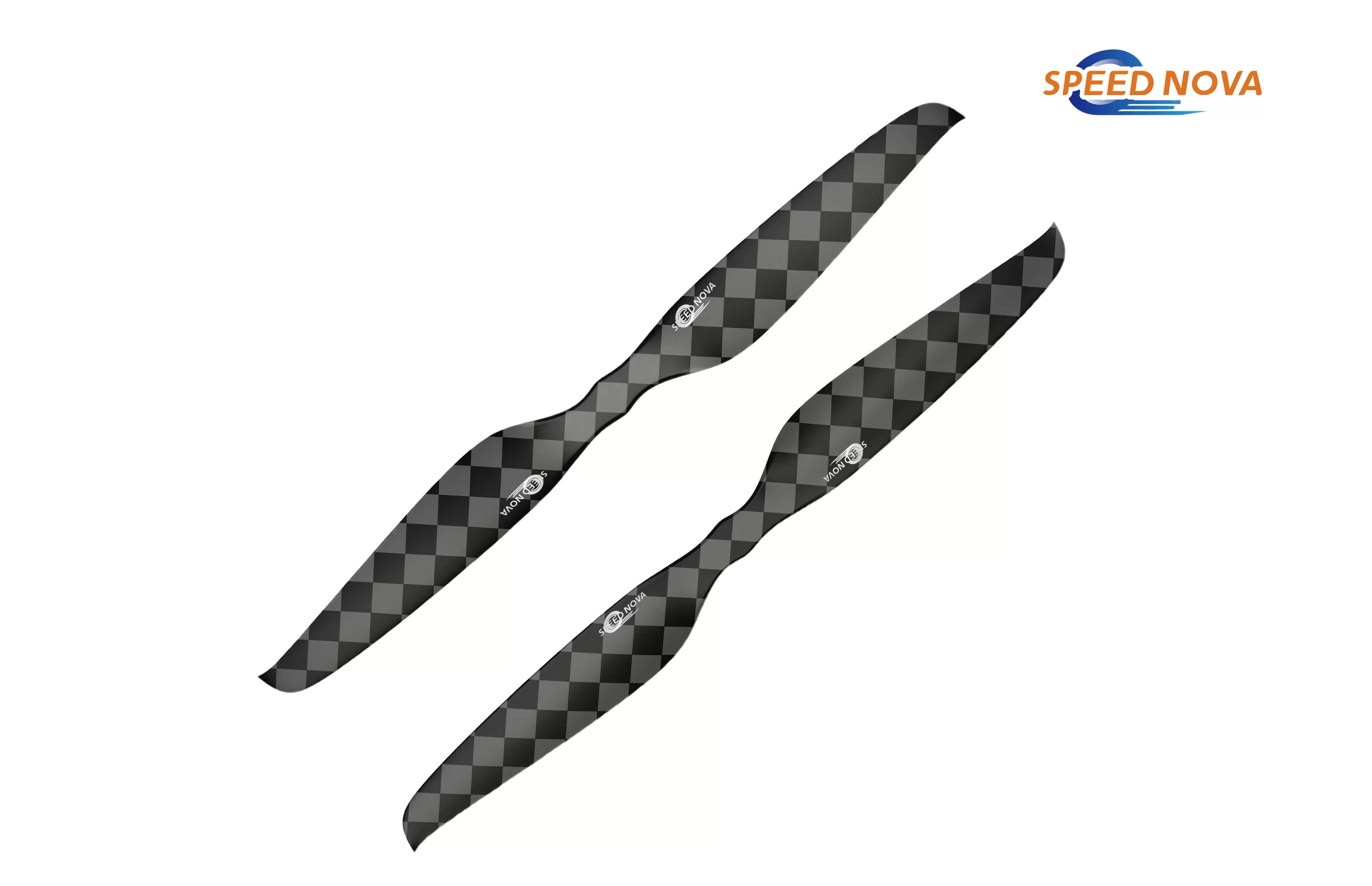

Bulk orders include weight-matched CW/CCW pairs with certification documentation for dynamic balance verification. Volume pricing supports fleet operators and platform manufacturers requiring consistent propeller specifications across multiple production units.

Maintenance Best Practices for Corrosion Resistance

Despite the anti-corrosion carbon fiber propeller's enhanced durability, proper maintenance maximizes service life. After operations in marine or chemical environments, rinse propellers with fresh water to remove salt deposits and chemical residues. Mild detergent solutions can remove stubborn contamination; avoid harsh solvents that may affect the protective resin coating.

Inspect the 22 inch corrosion resistant propeller regularly for surface crazing, edge damage, and delamination. While the specialized construction resists environmental degradation better than standard materials, physical impact damage still compromises structural integrity. Any visible cracks or significant surface damage warrants immediate replacement.

Order Your 22x7.8 Corrosion Resistant Carbon Fiber Propeller

Upgrade your UAV platform with the 22x7.8 carbon fiber propeller and experience the performance advantages of ultralight, corrosion-resistant propulsion technology. Whether you're operating marine monitoring systems, agricultural spray platforms, or industrial inspection drones, this anti-corrosion carbon fiber propeller delivers the reliability and durability your demanding missions require.

Contact Rayi for technical specifications, volume pricing, or custom solutions tailored to your specific operational environment and platform requirements.
