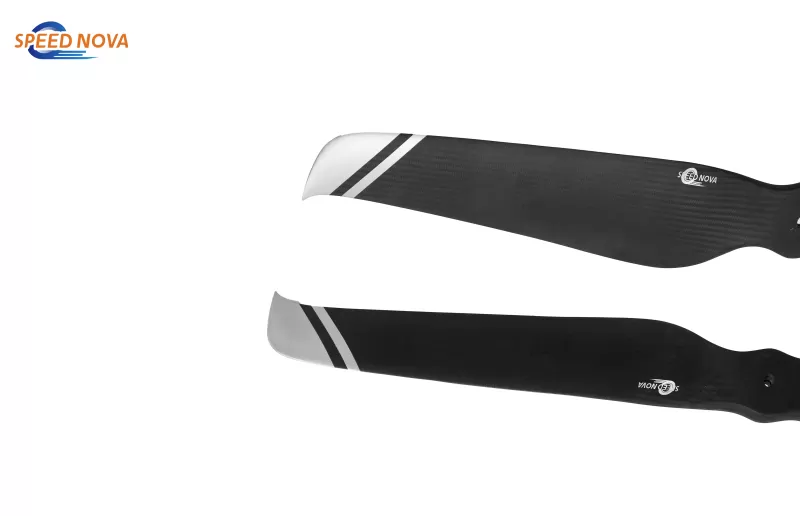

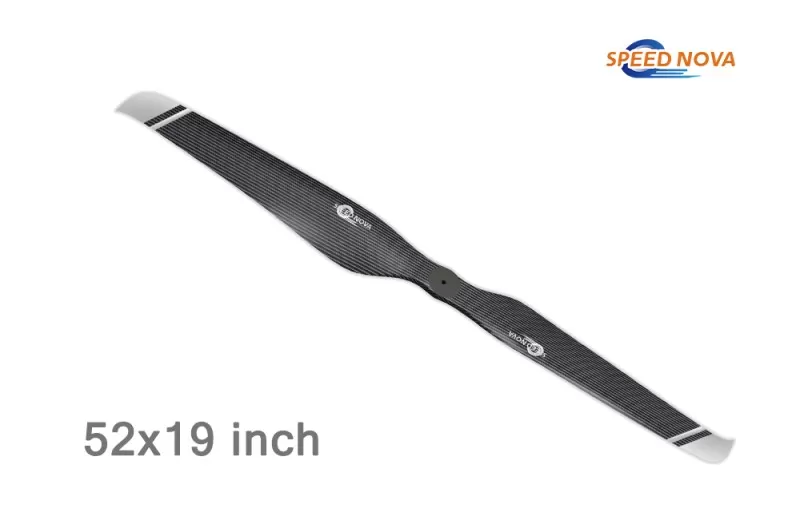

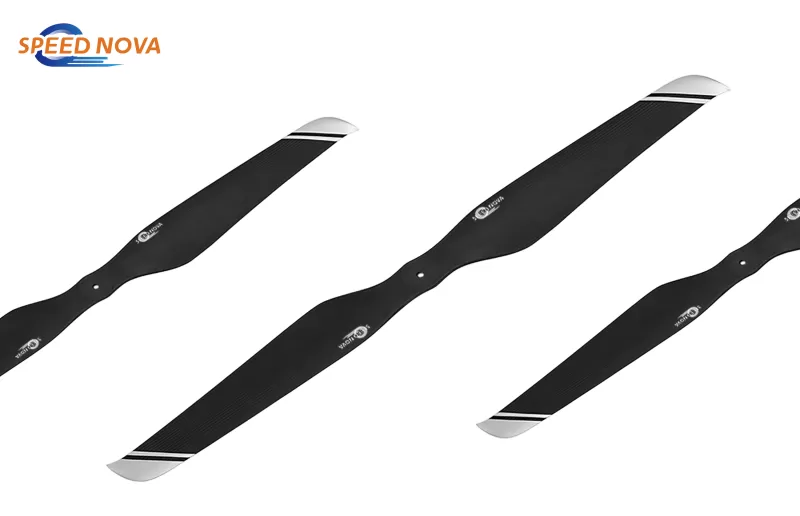

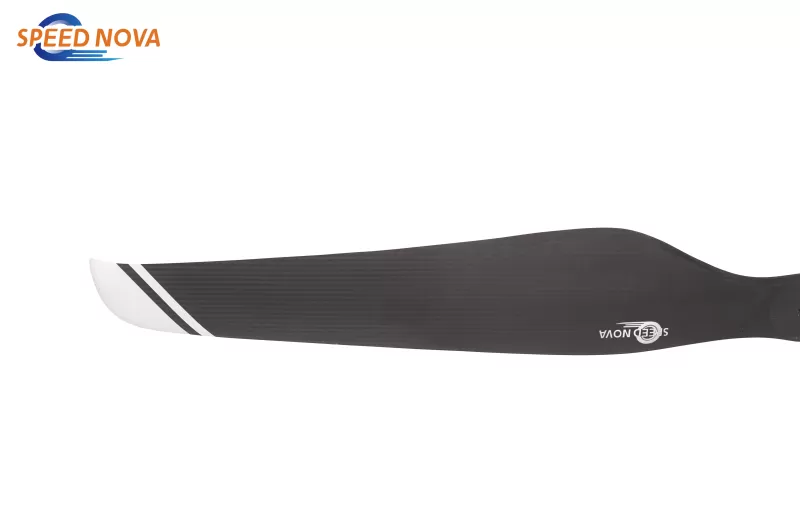

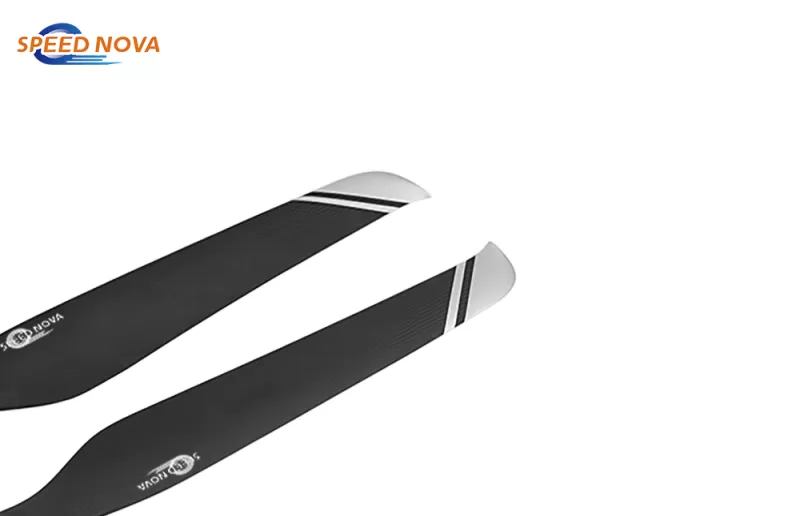

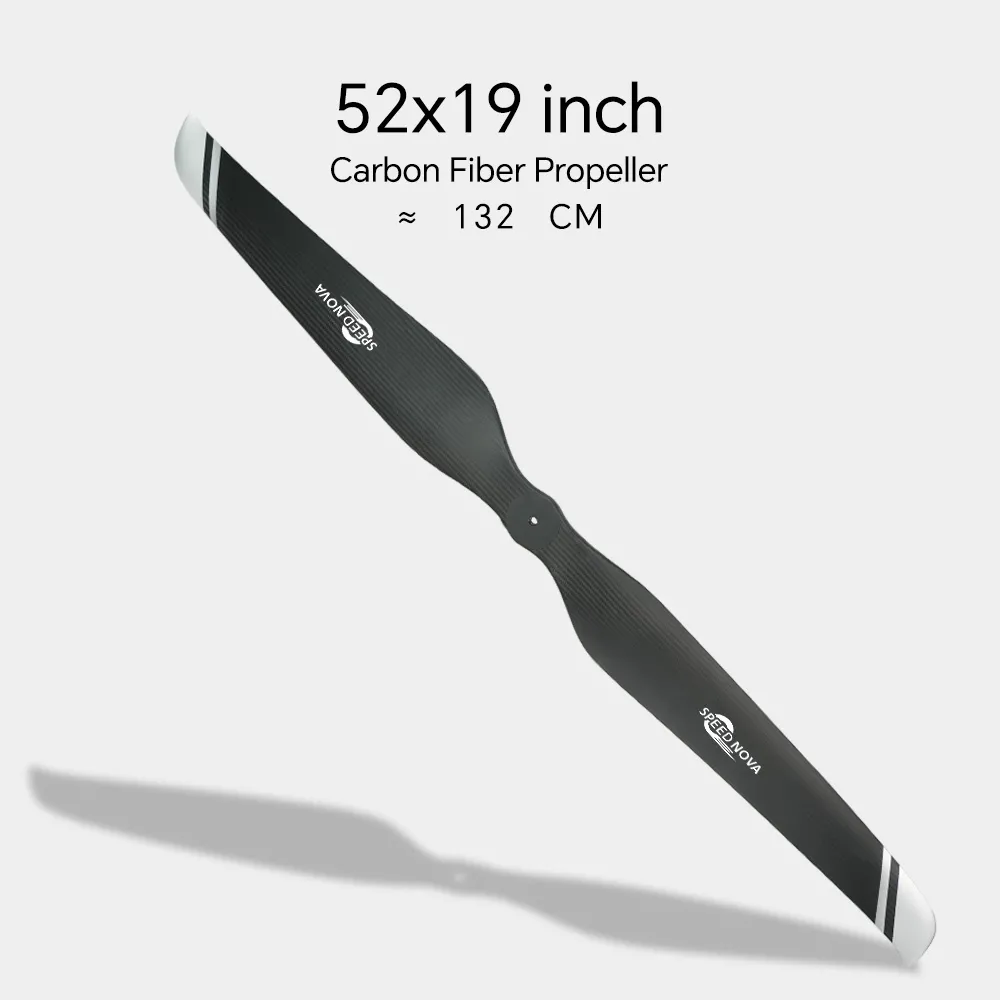

52x19 CF FIXED PROP

At 52 inches in diameter with a 19-inch pitch, this propeller occupies a critical performance tier: too large for most commercial delivery drones, yet precisely engineered for the heavy-lift multirotors, cargo UAV platforms, and manned-adjacent eVTOL systems that are reshaping how industries move payloads through the air.

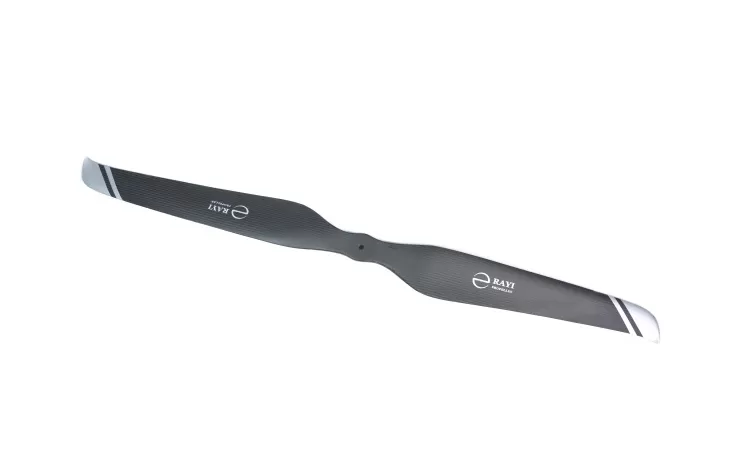

The RAYI 52x19 carbon fiber propeller is built for operators and integrators who cannot afford failure. Whether your platform is lifting a 60 kg cargo load over a logistics corridor, surveying infrastructure with LiDAR aboard, or serving as a propulsion unit in a personal aerial vehicle prototype, this propeller delivers the structural integrity, aerodynamic precision, and balanced performance that demanding applications require.

Manufactured and shipped direct from our Jiyuan, Henan facility — no trading company, no distributor markup.

Why the 52×19 Specification Matters

The 52-inch diameter is not a casual size choice. It sits at the upper boundary of standard heavy-lift UAV propulsion and begins to enter the operational regime that motor manufacturers like MAD and T-MOTOR now associate with manned aircraft propulsion systems — platforms where thrust margins, structural fatigue, and vibration characteristics are held to fundamentally different standards than consumer drones.

The 19-inch pitch delivers a high advance ratio at the relatively low RPM ranges that high-torque, low-KV motors produce. This means the 52x19 carbon fiber propeller extracts maximum energy from each motor revolution, translating battery capacity into hover time rather than heat — the core efficiency equation for endurance-critical missions.

For integrators building systems targeting MTOW configurations of 80–150 kg, or running coaxial motor pairs to maximize thrust density, the 52×19 geometry hits the aerodynamic sweet spot between blade loading, tip speed, and motor matching that smaller diameters cannot reach.

CW / CCW Pairing

On any multirotor platform using 52-inch propellers, the torque generated per propeller is substantial. Proper CW/CCW pairing is the mechanism by which the airframe achieves yaw authority and torque cancellation between motor pairs. Using mismatched propellers — whether in blade weight, geometry, or rotation direction — at this diameter creates asymmetric torque loading that no flight controller can fully compensate.

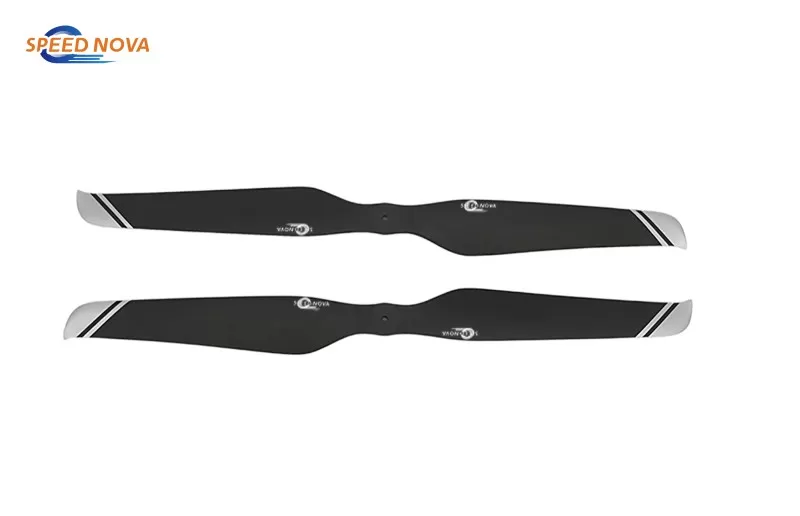

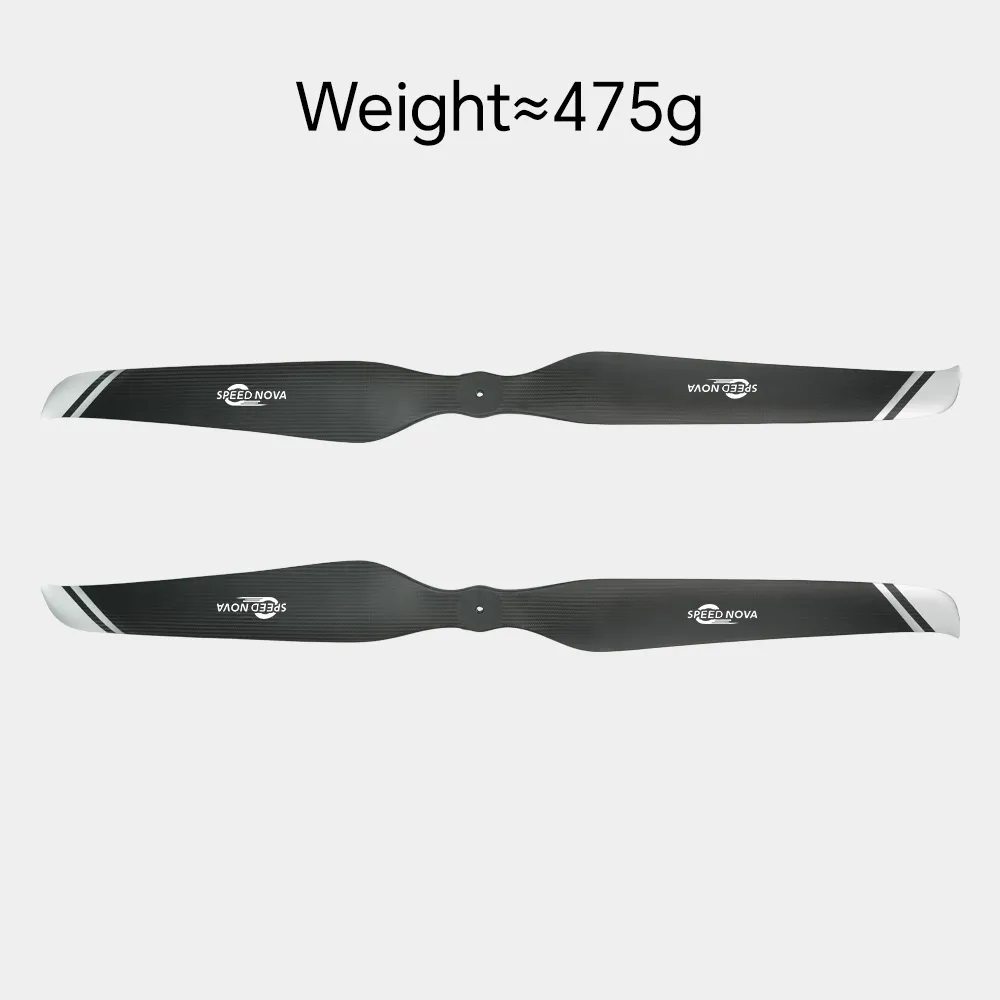

RAYI supplies the 52×19 as precision-matched CW/CCW pairs, manufactured in the same production batch to minimize blade-to-blade weight and geometry variance. This is not an administrative courtesy — it is an engineering requirement for safe and predictable flight at this propeller class.

Application Scenarios for the 52x19 Propeller

The 52-inch diameter places this propeller at the intersection of several high-value industrial UAV segments that are experiencing the strongest procurement growth:

eVTOL & Manned-Adjacent Platforms

Personal aerial vehicles, urban air mobility prototypes, and manned-adjacent cargo lifters increasingly specify propellers in the 47–55 inch range to achieve the thrust-to-weight ratios their mission profiles demand. The 52x19 carbon fiber propeller meets the structural and balance requirements these applications impose.

Long-Range Cargo & Logistics Drones

Platforms targeting 50–100 km cargo corridors with 20–60 kg payloads need propellers that sustain efficiency over multi-hour duty cycles. Low RPM, high-pitch operation in the 52×19 configuration minimizes motor heat accumulation during extended hover and cruise segments.

Agricultural Monitoring & Large-Area Spraying

Wide-body agricultural drones operating across large field areas benefit from the higher thrust per motor that 52-inch propellers provide, reducing the number of battery swaps per hectare treated.

Aerial Mapping & LiDAR Survey

Precision survey platforms carrying expensive sensor payloads need zero-compromise vibration isolation. RAYI's dynamic balance inspection standard directly supports the low-vibration environment that LiDAR and photogrammetry systems need for centimeter-accuracy data capture.

Firefighting & Emergency Response

The -40°C to +60°C operational temperature range covers the extreme ambient conditions — high-altitude cold environments and fire-proximity heat exposure — that emergency response UAVs encounter.

Infrastructure Inspection (Power Lines, Bridges, Pipelines)

Low acoustic signature and stable hover characteristics make the 52×19 configuration well-suited for inspection missions where noise disturbance or aircraft instability would compromise data quality or regulatory compliance.

University Research & Platform Development

Engineering teams building next-generation heavy-lift or manned UAV platforms need factory-direct component access with engineering support. RAYI's customization service and flexible MOQ structure serve prototype development cycles.

OEM, ODM & Custom Manufacturing Services

RAYI is a propeller manufacturer, not a trading company. Every propeller in our catalog is produced at our own factory. This structure creates three specific advantages for B2B procurement:

Direct factory pricing. The price you negotiate is the manufacturing cost plus our margin — there is no distributor, reseller, or trading company extracting a layer of margin between the factory and your procurement team.

Engineering-level customization. We can modify the 52×19 blade geometry, hub pattern, carbon fiber layup schedule, surface treatment, blade count, or pitch to match your specific motor configuration, airframe constraint, or performance target. Most custom propeller projects move from specification discussion to prototype production in under 30 days.

Scalable volume. RAYI accommodates both prototype quantities for development programs and production-scale orders for certified platforms. There is no minimum order floor that excludes early-stage engineering programs.

Our standard product range spans 12 inches through 72 inches in integrated (fixed-hub) carbon fiber configurations. Custom diameters, pitches, and blade forms beyond this range are available by specification.

Frequently Asked Questions

Q: What is the maximum thrust this propeller can generate?

A: Contact RAYI directly with your motor KV, voltage configuration (S rating), and target RPM for a thrust test data package. As a general reference, 52-inch propellers in this pitch range operating at 10–20 KV motors on 24S configurations achieve thrust levels well above the 80 kg range per propeller. Precise data depends on motor and ESC pairing.

Q: Which motors are compatible with the 52x19 carbon fiber propeller?

A: The 52×19 is optimized for high-torque, ultra-low-KV motors — typically 10–35 KV at 12S–24S voltage configurations. Industry references include ultra-heavy-duty industrial motors from manufacturers such as MAD, T-MOTOR, and equivalent Chinese industrial motor suppliers. RAYI can provide motor compatibility confirmation when you share your motor specification sheet.

Q: Is this propeller suitable for coaxial motor configurations?

A: Yes. Coaxial mounting is a common configuration for platforms targeting MTOW above 100 kg, where maximizing thrust density within a given frame footprint is essential. The fixed-hub integrated design of the 52×19Y provides the rigidity required for coaxial stack configurations, where blade flex at high thrust levels would otherwise create aerodynamic interference between the upper and lower propeller disks.

Q: What is the difference between this 52×19 and the RAYI 47.5×18?

A: The 52-inch diameter generates proportionally higher thrust at equivalent RPM due to the larger swept disk area (disk area scales with the square of radius). The 19-inch pitch of the 52×19 is slightly higher than the 47.5×18's 18-inch pitch, meaning the 52×19 advances further per revolution and is suited to platforms with motor configurations targeting even lower operating RPM. Choose the 52×19 for platforms targeting MTOW above approximately 80–100 kg per motor axis, or where frame geometry allows the larger blade clearance the 52-inch diameter requires.

Q: Can I order a sample before committing to a bulk order?

A: Yes. Sample orders ship via international express (DHL, FedEx, UPS) with typical lead times of 5–10 business days depending on destination. Bulk production orders are shipped by sea freight. Contact our team via email or WhatsApp to initiate a sample request.

Q: Do you provide thrust test curves and aerodynamic data?

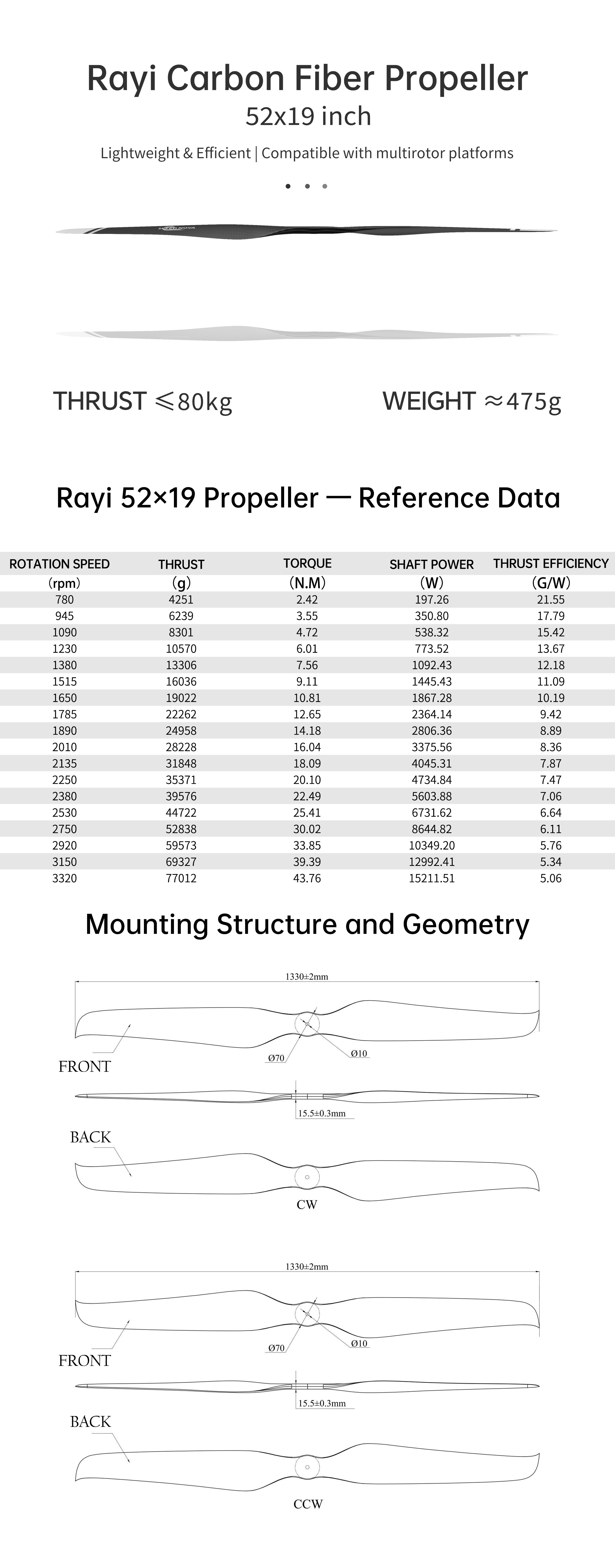

A: Yes. CAD drawings, thrust-RPM performance data, and dynamic balance certificates are available upon request for qualified procurement inquiries. Contact our engineering team with your platform specifications.

Why Source Your 52-Inch Propeller from RAYI?

The 52-inch propeller market is served by a small number of specialized manufacturers. Most buyers who reach this specification are not shopping casually — they are sourcing components for systems that represent significant capital investment and operational risk. RAYI's position in this market is built on three pillars:

Material integrity over cost-cutting. Our 38% carbon fiber content and modified low-moisture-absorption resin matrix represent a material investment above the commodity baseline. We choose not to compete on raw price at the expense of the structural properties that 52-inch operation demands.

Manufacturer transparency. You visit our factory, inspect our production line, and audit our quality control processes. We do not work through intermediaries who cannot provide this access. RAYI's Jiyuan facility is open to qualified customer visits by appointment.

Responsive engineering support. When your platform's motor configuration changes, when your frame geometry requires a different hub pattern, or when your performance target shifts, RAYI's engineering team engages directly — not through a distributor who has to relay questions back to a factory they've never visited.

Looking for a high-performance 52x19 carbon fiber propeller for heavy-lift UAVs, industrial drones, or eVTOL platforms? Designed with advanced carbon fiber composite materials and an optimized aerodynamic airfoil, the 52x19 propeller delivers exceptional thrust efficiency, lightweight performance, and outstanding fatigue resistance for demanding aerial applications. Its integrated structure helps reduce vibration, improve flight stability, and enhance overall power system efficiency.

Contact us today to discuss your UAV platform requirements and receive professional propeller recommendations.
