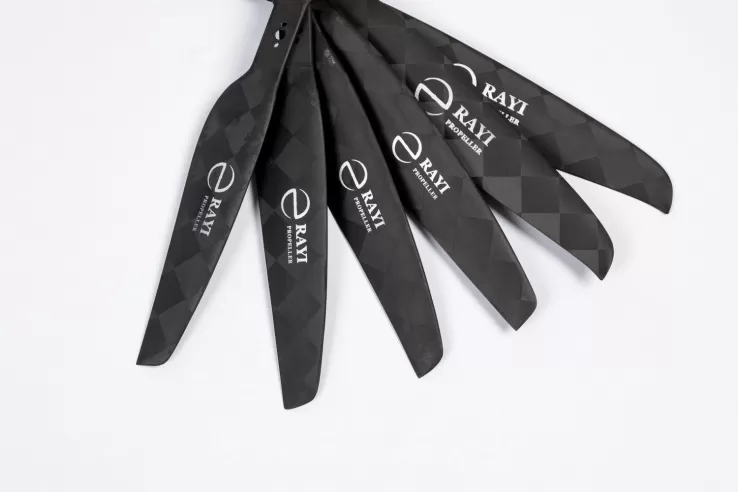

16x6 Durable Carbon Fiber Integrated CW CCW Small Propeller

16x6 Durable Carbon Fiber Integrated CW CCW Small Propeller

The 16x6 Durable Carbon Fiber Integrated Small Propeller weighs 16.4g, has a thrust limitation of ≤6000r/min, and an optimum RPM of ≤2500r/min.


  • Straight type 16*6 inch

    Price 49 usd/pair

Product Description

Specification

Product name: 16*6 Ultra light carbon fiber integrated CW/CCW Propeller

Propeller type: 2 blades-integrated

Includes: 1 pcs CW and 1 pcs CCW propeller

Specifications: IIXQ

Model: 16X6Y

Diameter (inches): 16

Pitch (inches): 6

Material: carbon fiber and epoxy

Surface Treatment : Polished or Frosted

Single net weight: 16.4g

Installation method: Screw fixation

Applicable models: Multi rotor,Vertical fixed wing

Thrust Limitation: ≤6000r/min

Optimum RPM: ≤2500g

Working ambient temperature:   -40℃~+60℃

Storage temperature:  -10℃~+40℃


Rayi 16X6 Carbon Fiber Propeller: Lightweight, Durable, and High-Performance Drone Propeller

If you’re looking for a high-performance Carbon Fiber Propeller that combines lightness, durability, and optimal efficiency, the 16X6 Carbon Fiber Propeller from Rayi is the ideal solution. Designed for multi-rotor and vertical fixed-wing drones, this Carbon Fiber Drone Propeller offers a perfect balance of strength and weight, ensuring superior flight performance in a variety of applications.


Key Features and Specifications of the 16X6 Carbon Fiber Propeller

  • Single Net Weight: Only 16.4g, providing an ultra-light design that ensures your drone operates efficiently with extended flight times

  • Thrust Limitation: Capable of withstanding ≤6000 r/min, ensuring smooth and reliable operation even under heavy load

  • Optimum RPM: Best performance at ≤2500g, ideal for energy-efficient flight operations

  • Temperature Range: Works optimally in extreme conditions, with a working ambient temperature of -40℃ ~ +60℃ and a storage temperature range of -10℃ ~ +40℃

Why Choose Rayi 16X6 Carbon Fiber Propeller?

  1. Lightweight and Efficient
    The 16X6 Carbon Fiber Propeller is specifically engineered for weight-conscious drone operators. Its ultra-light carbon fiber construction significantly reduces the overall weight of your drone, ensuring that it performs at its best with longer flight times and better fuel efficiency. This is especially crucial for aerial photography, surveying, and mapping drones that require long-duration flights.

  2. Durability and Strength
    Made from high-quality carbon fiber and epoxy, the 16X6 Carbon Fiber Propeller offers exceptional durability. This Carbon Fiber Drone Propeller is built to withstand challenging environmental conditions, making it ideal for outdoor drone operations in various industries, including agriculture, inspections, and aerial monitoring.

  3. High Thrust Capacity
    Capable of handling thrust limitations up to 6000 r/min, the 16X6 Carbon Fiber Propeller provides excellent thrust, allowing drones to operate effectively even with heavier payloads. This propeller is ideal for drones used in industrial, search-and-rescue, or delivery applications where high power and reliability are essential.

  4. Wide Temperature Range for Versatile Operations
    Designed to operate in a wide range of temperatures, the 16X6 Carbon Fiber Propeller remains functional between -40℃ ~ +60℃, making it suitable for a variety of environments, from hot desert climates to freezing cold conditions. This versatility ensures that your drone can perform consistently, no matter the weather.

  5. Energy-Efficient Performance
    The 16X6 Carbon Fiber Propeller is designed for optimal energy usage. With an optimal RPM of ≤2500g, it ensures your drone uses power efficiently, extending flight times and minimizing energy consumption. This is particularly valuable for commercial drone operators looking to maximize battery life and reduce operational costs.


Why Buy the Rayi 16X6 Carbon Fiber Propeller?

If you want to improve your drone’s performance while ensuring efficiency, durability, and reliability, the 16X6 Carbon Fiber Propeller from Rayi is the perfect choice. Whether you're working in the fields of aerial photography, industrial inspections, agriculture, or search and rescue, this propeller provides the thrust, stability, and lightweight design needed for optimal drone performance.


Ready to Take Your Drone to the Next Level?

Don’t wait any longer to upgrade your drone with the 16X6 Carbon Fiber Propeller. Designed for performance, reliability, and efficiency, this Carbon Fiber Drone Propeller is the ideal solution for professional drone operators. Click here to learn more and purchase your 16X6 Carbon Fiber Propeller today to enhance your drone’s capabilities.


Make your drone the best it can be with Rayi high-quality propellers!


Technical Parameter

16X6 Ultralight Carbon Fiber Integrated CW/CCW Drone Propeller
PARAMETER TABLE
voltagecurrentthrusttorquerotation speedshaft poweraxial forcethrottle
(V)(A)(g)(N.M)(rpm)(W)(G/W)(%)
220.672390.05198210.3823.0330
221.013290.068229216.3220.1635
221.344110.084255822.5018.2740
221.765020.101279829.5916.9745
222.296110.122309539.5315.4650
223.027560.149340753.1514.2255
223.848880.177368068.2013.0260
224.6910090.201393682.8312.1865
225.4411080.221415096.0311.5470
226.4312500.2474379113.2411.0475
227.4813780.2724599130.9710.5280
228.5815040.2974808149.5110.0685
229.8816480.3255021170.859.6590
2211.1617690.355218191.219.2595
2213.0619610.3855470220.498.89100



Want to Choose the Right Propeller for You?

Take a quick test to find the right propeller for you.

Feature

Our carbon propellers use modified materials, with extremely low water absorption, 38% carbon fiber content, higher strength than other peer products, and high propeller efficiency. High quality and low price, it is recognized in the industry as the most cost-effective product series.



1. With fine workmanship and exquisite appearance.

2. The blades have passed precise dynamic balance inspection, and the flight noise is low.

3. High aerodynamic efficiency, low power consumption, improve battery life.

4. Light and strong pulling force, and excellent balance.

5. Adopts push-type quick release design, which is easy to assemble and disassemble.

6. Adapted to various types of drones, widely used in firefighting, surveying, monitoring, logistics, express delivery, military and police equipment, and university research projects

7. It is a perfect replacement for the damaged parts.



Dimensions:

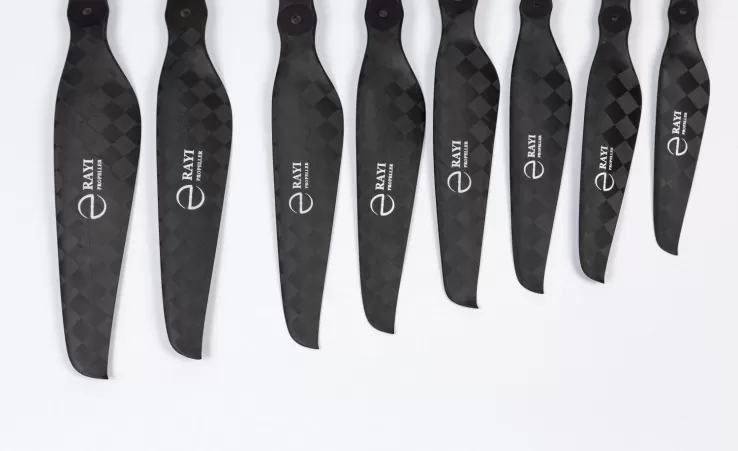

We have12X4inch,14X8inch,15X5inch,16X6inch,16X8inch,16X5.5inch,17X6inch,17.5X6.5inch,18X6.5inch,  19X6.2inch20X6.5inch,22X7.8inch,22X9inch,24X7.8inch,24X15inch,26X8.2inch,28X12inch,28X12inch,29X9.6inch,
30X9.8inch,30X14inch,32X12inch,32.5X15.6inch,34X12inch,36X18inch,40X13inch,42X14inch,47.5X18inch,
50X19inch,52X19inch,57X19inch,60X19inch,64X20inch,72X31inch carbon fiber propellers for various drone or UAV

Accept customized size and design

Notice: Accepted customized design,OEM &ODM



If You have any Questions, Please Contact Us

If You have any Questions, Please Contact Us

Warning

1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8. Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
