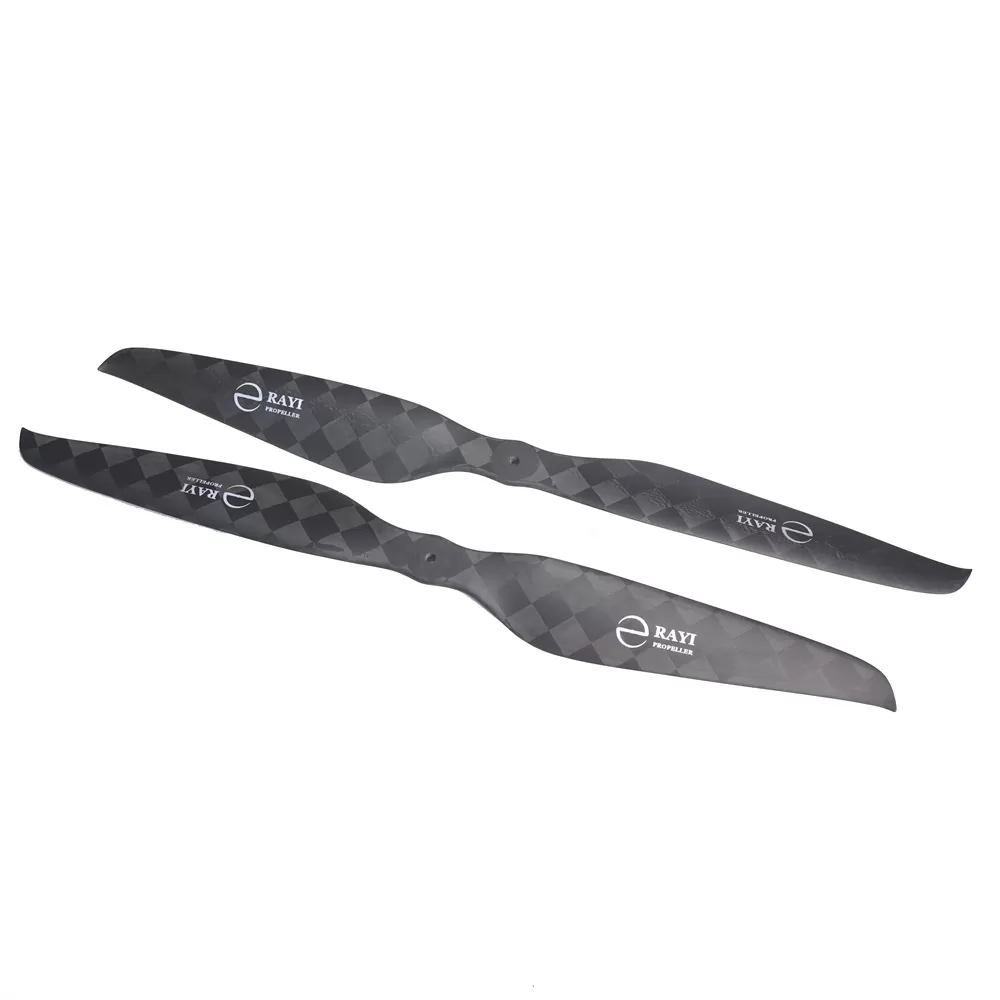

24X7.8 New arrival Carbon Fiber CW CCW Drone Propeller

24X7.8 New arrival Carbon Fiber CW CCW Drone Propeller

The Rayi 24X7.8 Carbon Fiber Integrated Propeller for Drone UAV features a lightweight 44g design with a thrust limitation of ≤3800r/min and an optimum RPM of ≤5000g, making it ideal for high-efficiency, professional drone operations.


  • Straight type 24*7.8 inch

    Price 156 usd/pair

Product Description

Specification

Product name: 24*7.8 inch Ultra light carbon fiber integrated CW/CCW Propeller

Propeller type: 2 blades-integrated

Includes: 1 piece CW and 1 piece CCW propeller

Specifications: IIXP,IIXE

Model: 24*7.8Y

Diameter (inches): 24

Pitch (inches): 7.8

Material: carbon fiber and epoxy

Surface Treatment : Polished or Frosted

Single net weight: 44g

Installation method: Screw fixation

Applicable models: Multi rotor,Vertical fixed wings

Thrust Limitation: ≤3800r/min

Optimum RPM: ≤5000g

Working ambient temperature:   -40℃~+60℃

Storage temperature:  -10℃~+40℃

Rayi 24X7.8 Carbon Fiber Integrated Propeller for Drone UAV – Power, Precision & Lightweight Performance


Engineered for high-performance drone systems, the Rayi 24X7.8 Carbon Fiber Integrated Propeller for Drone UAV combines advanced material strength with ultra-lightweight efficiency. Whether you're building a long-endurance UAV or optimizing a high-load drone platform, this propeller delivers the balance of thrust, control, and durability that professionals demand.


Key Specifications:

  • Single Net Weight: 44g – lightweight design reduces payload and maximizes flight time

  • Thrust Limitation: ≤3800r/min – ensures safe operation with high torque motors

  • Optimum RPM: ≤5000g – ideal for achieving peak performance with energy efficiency


These specifications are precisely what drone manufacturers and UAV integrators look for when selecting carbon fiber propellers for reliable, high-performance aerial operations.


Why the Rayi 24X7.8 Carbon Fiber Integrated Propeller for Drone UAV Stands Out


  1. Integrated Carbon Fiber Construction
    The propeller is built using high-strength carbon fiber in a one-piece integrated mold, ensuring exceptional stiffness and reduced vibration.

  2. Optimized for Professional UAVs
    Designed specifically for industrial and commercial drones, the Rayi 24X7.8 Carbon Fiber Integrated Propeller for Drone UAV is perfect for tasks like mapping, surveillance, agriculture, and logistics.

  3. Precision Balance & High RPM Tolerance
    With an optimum RPM of ≤5000g, it supports high-speed flight with minimal energy loss—delivering smooth thrust and precise flight control.

  4. Lightweight Yet Durable
    At just 44g per unit, the Rayi 24X7.8 Carbon Fiber Integrated Propeller for Drone UAV reduces flight load, enhances stability, and supports longer air time without compromising strength.

  5. Tested & Trusted by the Industry
    Developed by Rayi—a leader in advanced drone propeller technology—this model is widely used by professionals seeking performance and reliability in extreme environments.


Make the Smart Move—Upgrade Your Drone Fleet Today

If you’re sourcing reliable, high-performance propellers for your UAV platform, the Rayi 24X7.8 Carbon Fiber Integrated Propeller for Drone UAV is the trusted choice. Backed by expert engineering, strict quality control, and proven flight performance, it’s the right solution for drone professionals looking to gain a competitive edge.


Request a quote now or contact our team to learn more. Choose the Rayi 24X7.8 Carbon Fiber Integrated Propeller for Drone UAV and experience superior efficiency, durability, and control in every flight.



Technical Parameter

24X7.8 Ultralight Carbon Fiber Integrated CW/CCW Drone Propeller
PARAMETER TABLE
voltagecurrentthrusttorquerotation speedshaft poweraxial forceinput pulse width
(V)(A)(g)(N.M)(rpm)(W)(G/W)(us)
48.21.410000.28175051.3019.491340
48.22.415300.41210090.1516.971380
48.24.122800.612580164.7813.841460
48.26.932900.893080287.0011.461540
48.211.144801.203590451.059.931620
48.215.956301.534010642.378.761700
48.221.367601.854400852.267.931780
48.228.579902.2247701108.717.211860
48.23387502.4549901280.016.841900



Want to Choose the Right Propeller for You?

Take a quick test to find the right propeller for you.

Feature

Our carbon propellers use modified materials, with extremely low water absorption, 38% carbon fiber content, higher strength than other peer products, and high propeller efficiency. High quality and low price, it is recognized in the industry as the most cost-effective product series.



1. With fine workmanship and exquisite appearance.

2. The blades have passed precise dynamic balance inspection, and the flight noise is low.

3. High aerodynamic efficiency, low power consumption, improve battery life.

4. Light and strong pulling force, and excellent balance.

5. Adopts push-type quick release design, which is easy to assemble and disassemble.

6. Adapted to various types of drones, widely used in firefighting, surveying, monitoring, logistics, express delivery, military and police equipment, and university research projects

7. It is a perfect replacement for the damaged parts.



Dimensions:

We have12X4inch,14X8inch,15X5inch,16X6inch,16X8inch,16X5.5inch,17X6inch,17.5X6.5inch,18X6.5inch,  19X6.2inch20X6.5inch,22X7.8inch,22X9inch,24X7.8inch,24X15inch,26X8.2inch,28X12inch,28X12inch,29X9.6inch,
30X9.8inch,30X14inch,32X12inch,32.5X15.6inch,34X12inch,36X18inch,40X13inch,42X14inch,47.5X18inch,
50X19inch,52X19inch,57X19inch,60X19inch,64X20inch,72X31inch carbon fiber propellers for various drone or UAV

Accept customized size and design

Notice: Accepted OEM &ODM


If You have any Questions, Please Contact Us

If You have any Questions, Please Contact Us

Warning

1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
