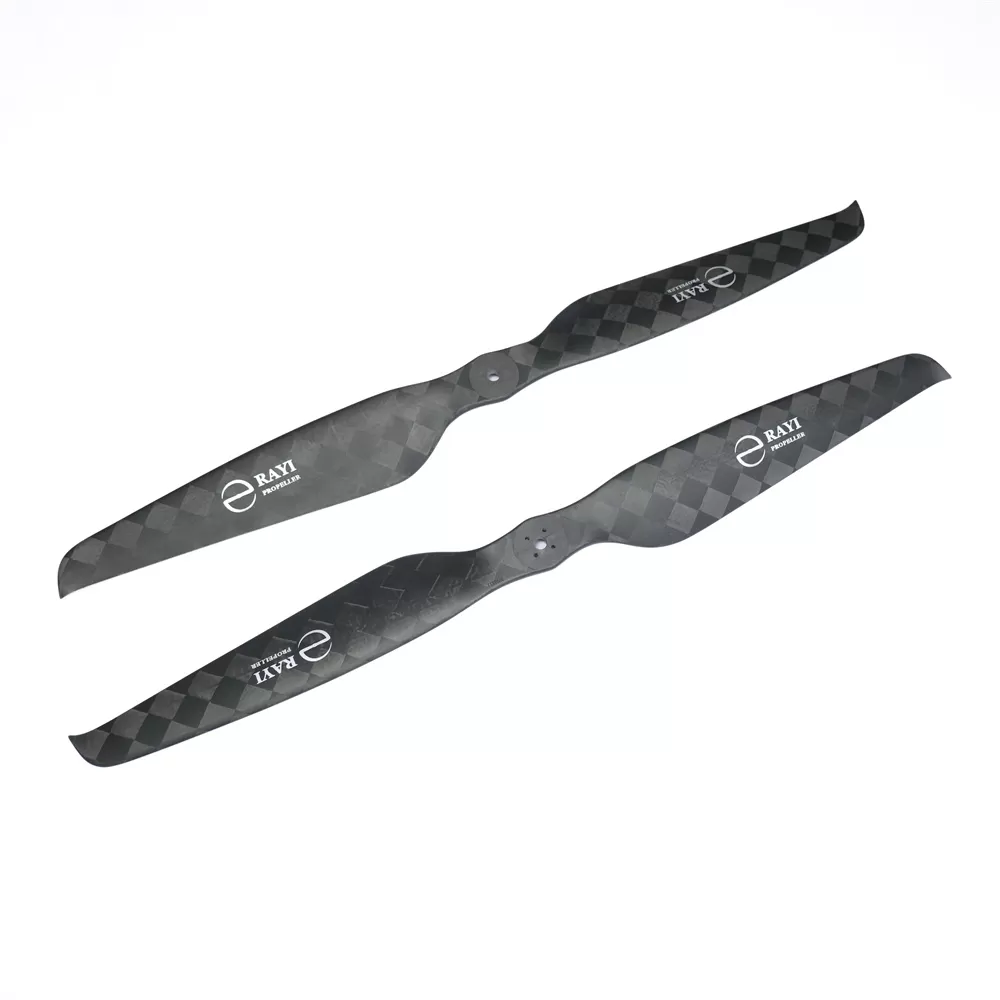

26x8.2 customized Carbon Fiber electric motor Propeller

26x8.2 customized Carbon Fiber electric motor Propeller

The Rayi 26x8.2 UAV & Drone Propellers weigh 54g, support a thrust limitation of ≤3600g, and operate optimally at up to 6000 RPM.


  • Straight type 26*8.2 inch

    Price 189 usd/pair

Product Description

Specification

Product name: 26*8.2 inch Ultra light carbon fiber integrated CW/CCW Propeller

Propeller type: 2 blades-integrated

Includes: 1 piece CW and 1 piece CCW propeller

Specifications: IIXP,IIXE

Model: 26*8.2Y

Diameter (inches): 26

Pitch (inches): 8.2

Material: carbon fiber and epoxy

Surface Treatment : Polished or Frosted

Single net weight: 54g

Installation method: Screw fixation

Applicable models: Multi rotor,Vertical fixed wing

Thrust Limitation: ≤3600r/min

Optimum RPM: ≤6000g

Working ambient temperature:   -40℃~+60℃

Storage temperature:  -10℃~+40℃

Rayi 26x8.2 UAV & Drone Propellers – Precision Carbon Fiber for Optimal Performance


For UAV manufacturers, integrators, and operators who demand high efficiency, reliability, and durability, the Rayi 26x8.2 UAV & Drone Propellers deliver exceptional performance. Designed for both professional and industrial drone applications, these propellers are engineered to maximize thrust while maintaining a lightweight and durable structure.


Key Specifications:


  • Model: Rayi 26x8.2 UAV & Drone Propellers

  • Single Net Weight: 54g

  • Thrust Limitation: ≤3600g

  • Optimum RPM: ≤6000r/min

  • Material: High-quality carbon fiber for superior strength and minimal weight

  • Use Case: Ideal for surveying drones, mapping systems, agricultural UAVs, and logistics drones


The Rayi 26x8.2 UAV & Drone Propellers are built from advanced carbon fiber, offering an excellent balance of strength and weight. With a thrust limitation of 3600g and an optimum RPM of 6000, these propellers provide the necessary power for various UAV applications while ensuring efficient energy consumption and extended operational life.


Why Choose Rayi 26x8.2 UAV & Drone Propellers?


  • High thrust capacity (≤3600g) for demanding drone missions

  • Lightweight design (54g) ensures longer flight times and reduced energy consumption

  • Optimized RPM (≤6000r/min) for stable, efficient flight performance

  • Trusted by leading drone manufacturers for quality and performance

  • Carbon fiber construction guarantees superior durability, even in challenging environments


If you're looking for Rayi 26x8.2 UAV & Drone Propellers for your UAV systems, these propellers are designed to exceed expectations. Their high-performance capabilities, coupled with long-lasting durability, make them a top choice for UAV professionals seeking to improve flight stability and efficiency.


Secure your Rayi 26x8.2 UAV & Drone Propellers today!


Take your drone operations to the next level with the Rayi 26x8.2 UAV & Drone Propellers. Whether you're upgrading existing systems or integrating new builds, these propellers deliver the reliability and power you need. Contact us for pricing, bulk orders, or to learn more about how the Rayi 26x8.2 UAV & Drone Propellers can enhance your drone fleet's performance.


Technical Parameter

26X8.2ultralight Carbon Fiber Integrated CW/CCW Drone Propeller
PARAMETER TABLE
voltagecurrentthrusttorquerotation speedshaft poweraxial forceinput pulse width
(V)(A)(g)(N.M)(rpm)(W)(G/W)(us)
44.40.610000.14148621.7845.911360
44.41.515100.22182942.9035.201426
44.42.620000.35209877.6525.761478
44.44.225000.532362130.7019.131536
44.45.630300.682577182.2616.621588
44.47.535200.822806241.1314.601640
44.49.340000.982960303.7113.171678
44.411.145101.133094364.5212.371716
44.413.350001.243299429.1711.651763
44.415.755001.423470517.5310.631804
44.418.160201.563600589.6910.211844
44.420.665001.743743683.079.521891
44.423.470101.903850767.499.131920



Want to Choose the Right Propeller for You?

Take a quick test to find the right propeller for you.

Feature

Our carbon propellers use modified materials, with extremely low water absorption, 38% carbon fiber content, higher strength than other peer products, and high propeller efficiency. High quality and low price, it is recognized in the industry as the most cost-effective product series.



1. With fine workmanship and exquisite appearance.

2. The blades have passed precise dynamic balance inspection, and the flight noise is low.

3. High aerodynamic efficiency, low power consumption, improve battery life.

4. Light and strong pulling force, and excellent balance.

5. Adopts push-type quick release design, which is easy to assemble and disassemble.

6. Adapted to various types of drones, widely used in firefighting, surveying, monitoring, logistics, express delivery, military and police equipment, and university research projects

7. It is a perfect replacement for the damaged parts.



Dimensions:

We have12X4inch,14X8inch,15X5inch,16X6inch,16X8inch,16X5.5inch,17X6inch,17.5X6.5inch,18X6.5inch,  19X6.2inch20X6.5inch,22X7.8inch,22X9inch,24X7.8inch,24X15inch,26X8.2inch,28X12inch,28X12inch,29X9.6inch,
30X9.8inch,30X14inch,32X12inch,32.5X15.6inch,34X12inch,36X18inch,40X13inch,42X14inch,47.5X18inch,
50X19inch,52X19inch,57X19inch,60X19inch,64X20inch,72X31inch carbon fiber propellers for various drone or UAV

Accept customized size and design

Notice: Accepted OEM &ODM


If You have any Questions, Please Contact Us

If You have any Questions, Please Contact Us

Warning

1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
