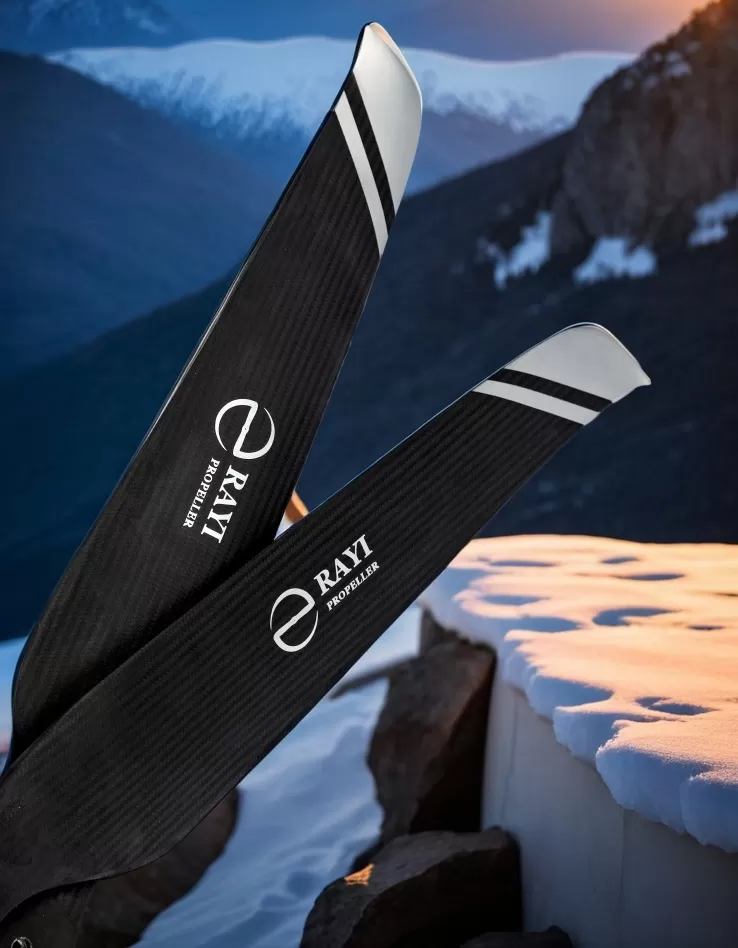

60x19 High Performance Carbon Fiber 64 inch Drone Propeller

60x19 High Performance Carbon Fiber 64 inch Drone Propeller

Rayi 60x19 Carbon Fiber Drone Propeller is specifically designed for high-performance industrial drones, aerial photography UAVs, surveying and mapping drones, and long-range inspection drones, offering enhanced thrust and efficiency for demanding applications.


  • Straight type 60*19 inch

    Price 929 usd/pair

Product Description

Specification

Product name: 60*19 inch Ultra light carbon fiber integrated CW/CCW Propeller

Propeller type: 2 blades-integrated

Includes: 1 pcs CW and 1 pcs CCW propeller

Specifications: IIKE

Model: 60*19Y

Diameter (inches): 60

Pitch (inches): 19

Material: carbon fiber and epoxy

Surface Treatment : Polished or Frosted

Single net weight: 832g

Installation method: Screw fixation

Applicable models: Multi rotor,Vertical fixed wing

Thrust Limitation: ≤120kg

Optimum RPM: ≤3000r/min

working ambient temperature:   -40℃~+60℃

Storage temperature:  -10℃~+40℃


60x19 Carbon Fiber Propeller: The Ultimate Solution for High-Performance Drones

When it comes to drone performance, the quality of the propellers plays a crucial role in determining the overall efficiency and functionality of the aircraft. Rayi 60x19 Carbon Fiber Propeller is designed to meet the growing demands of high-performance drones, particularly multi-rotor and vertical fixed-wing models. This ultra-light, high-strength propeller offers exceptional durability, low weight, and excellent thrust capabilities, making it the ideal choice for both hobbyists and professionals looking to enhance their drone's performance.


Why Choose Rayi 60x19 Carbon Fiber Propeller?

Rayi  60x19 Carbon Fiber Propeller is crafted from advanced carbon fiber and epoxy materials, providing a perfect balance of strength, lightweight construction, and durability. Whether you’re building a high-performance drone for aerial photography, surveying, or industrial applications, this propeller offers the reliability and efficiency you need. Here’s why you should consider investing in Rayi Carbon Fiber Drone Propellers:


  1. Lightweight Design
    The 60x19 Carbon Fiber Propeller weighs just 832g, significantly reducing the overall weight of your drone. A lighter drone means better efficiency, longer flight times, and greater agility in the air. The propeller's ultra-lightweight design allows your drone to achieve optimal performance without compromising on power.

  2. Superior Material for Durability
    Made from premium carbon fiber and epoxy, the propeller delivers unmatched durability, even under extreme conditions. Carbon fiber is known for its strength-to-weight ratio, making it an ideal material for high-performance drones. Whether you’re flying in challenging environments or need consistent reliability, this propeller can withstand rigorous use and harsh conditions.

  3. High Thrust Capability
    The 60x19 Carbon Fiber Propeller can handle a thrust limitation of up to 120kg, ensuring it delivers maximum power during flight. This makes it suitable for large drones, cargo drones, or industrial applications where heavy lifting and stable flight are essential.

  4. Optimized RPM Range
    With an optimum RPM of ≤3000r/min, this propeller is engineered for high efficiency and smooth operation. Whether you’re flying your drone for extended periods or in high-stress conditions, the 60x19 Carbon Fiber Propeller maintains superior performance, reducing vibration and ensuring smooth flight characteristics.

  5. Temperature Resistance
    Designed to operate in a wide range of temperatures (-40℃ ~ +60℃), this Carbon Fiber Propeller ensures reliable performance even in extreme conditions. From the freezing cold to the scorching heat, this propeller performs consistently, making it an excellent choice for outdoor and industrial applications.

  6. Easy Installation
    The 60x19 Carbon Fiber Propeller features a screw fixation installation method, making it easy to mount and replace. This user-friendly installation process saves you time and ensures secure fitting for optimal flight safety.



Technical Parameter

60X19 Ultralight Carbon Fiber Integrated CW/CCW Drone Propeller
PARAMETER TABLE
voltagecurrentthrusttorquerotation speedshaft poweraxial forceinput pulse width
(V)(A)(g)(N.M)(rpm)(W)(G/W)(us)
398.12.3664474.28750336.0919.181276
398.33.69116057.61998795.1714.591341
398.34.33138918.9410771008.0913.781354
398.44.44141049.3611161093.6712.901368
398.26.511748913.8712461809.439.671429
398.610.842838318.7715513048.059.311442
39812.733500522.3916803938.318.891477
397.917.634531129.0718955767.687.861510
398.121.535206133.5320237101.937.331538
397.626.856078539.2221758931.286.811571
397.530.46583643.08229410347.036.361602
397.534.347107046.81238611693.806.081626
397.139.577633751.04247013199.405.781646
397.347.178805957.71260415733.995.601670
39756.579895965.99275919062.355.191717
396.464.3710878772.48287421809.804.991741
396.371.4511602777.6293923878.554.861758
396.280.4812468483.83303526638.204.681782
395.488.3913061689.55311129168.384.481798
395.499.4614063896.21318132042.814.391802



Want to Choose the Right Propeller for You?

Take a quick test to find the right propeller for you.

Feature

Why Choose Rayi for Your Propeller Needs?

Rayi is a trusted manufacturer known for producing high-quality Carbon Fiber Propellers designed for a wide range of industries. When you choose Rayi, you are guaranteed a propeller that meets the highest standards of performance, durability, and safety. Backed by our expertise and innovation, Rayi’s Carbon Fiber Drone Propellers are the perfect choice for drone enthusiasts, professionals, and industries that require the best in class.


Ready to optimize your drone’s performance? Invest in Rayi’s 60x19 Carbon Fiber Propeller today and experience superior thrust, durability, and efficiency. Enhance your drone’s capabilities and elevate your operations by choosing the most reliable propellers in the market.


Contact us now for more information on the 60x19 Carbon Fiber Propeller, and make your next drone flight a success!



If You have any Questions, Please Contact Us

If You have any Questions, Please Contact Us

Warning

1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
