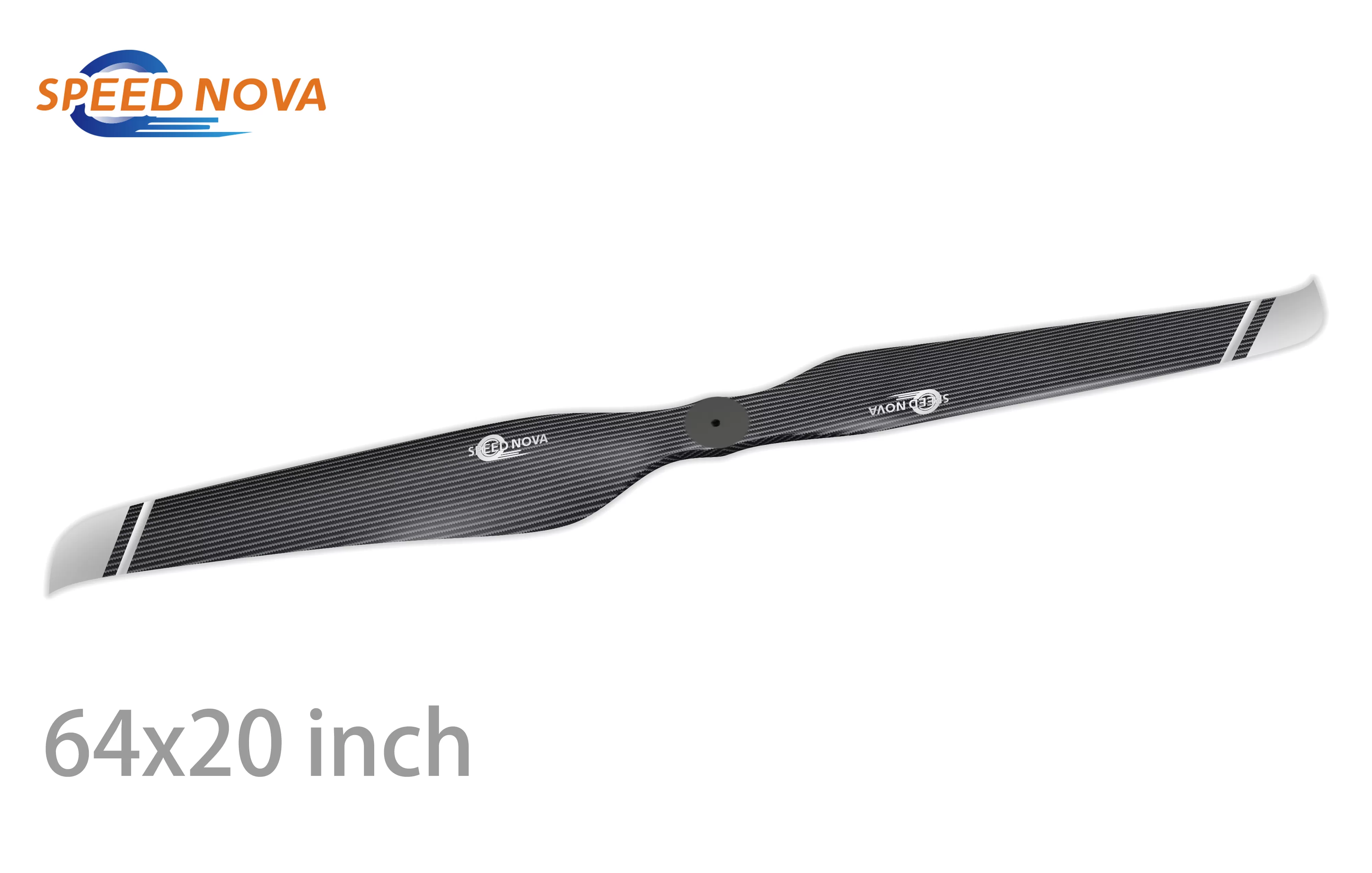

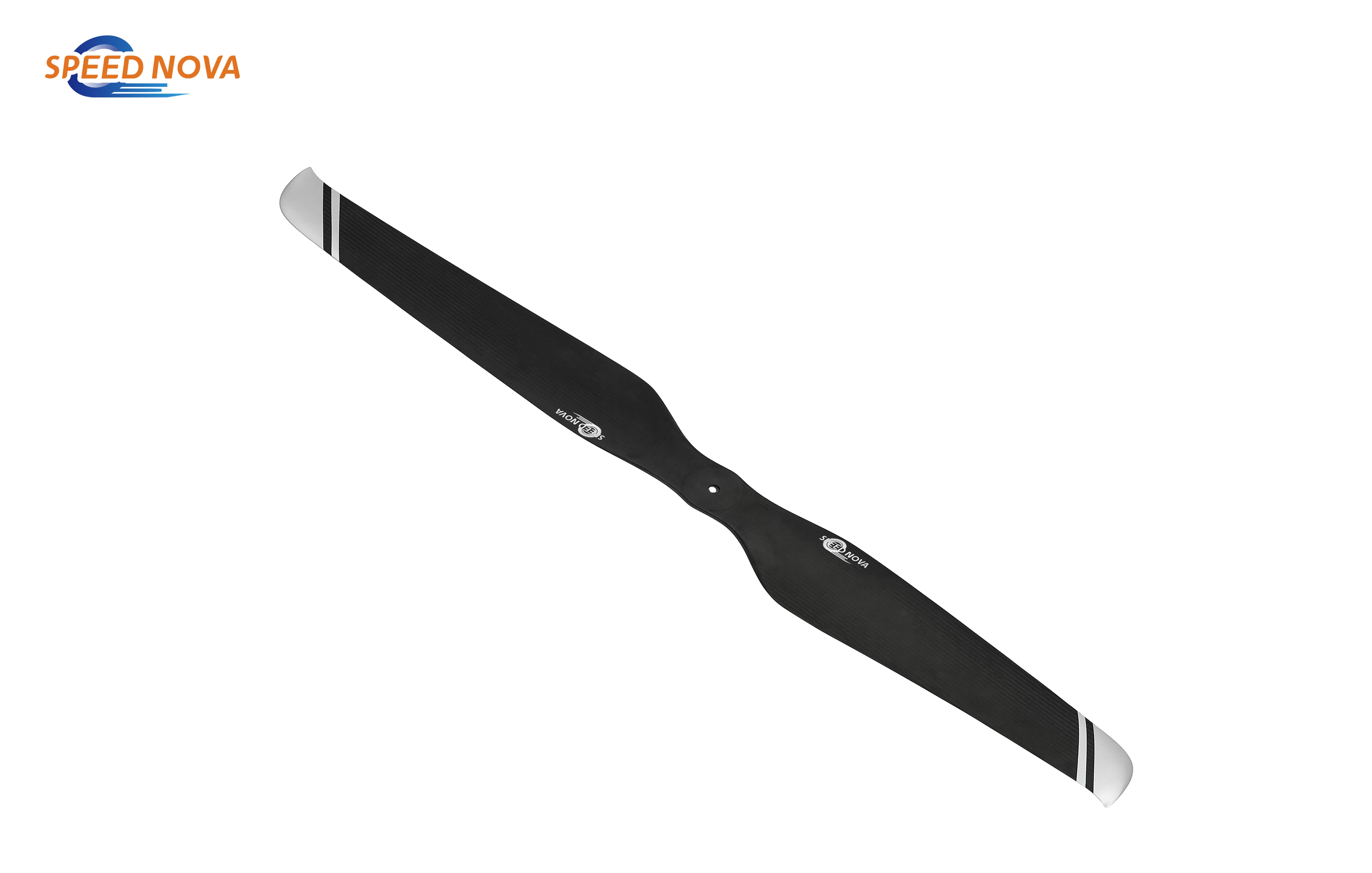

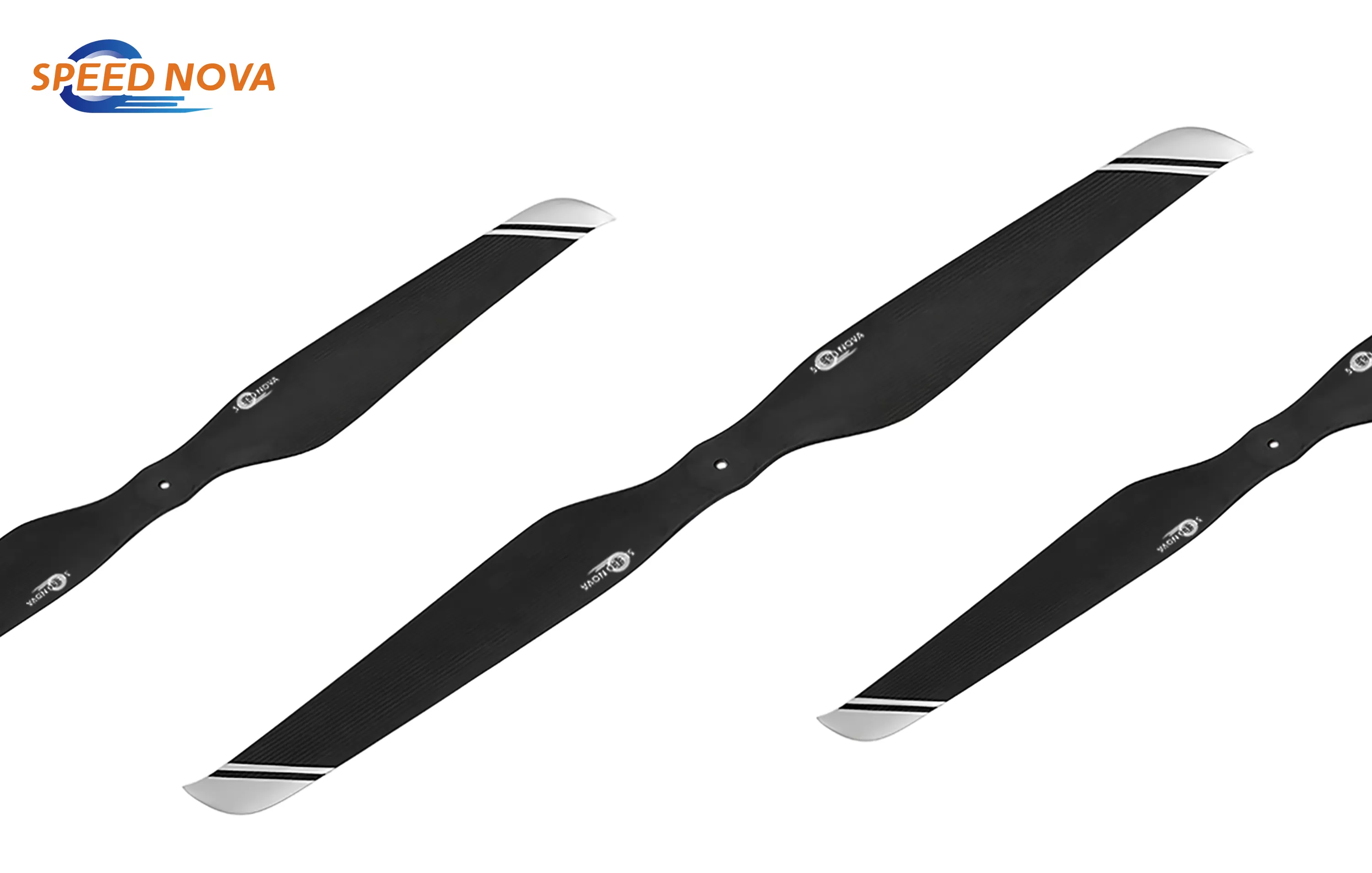

64x20 Lightweight Carbon Fiber Cargo Drone Propeller

64x20 Lightweight Carbon Fiber Cargo Drone Propeller

This oversize carbon fiber propeller is specifically designed for large multi-rotor/e-VTOL drones capable of carrying heavy loads, flying car, delivery drone, urban mobility.

  • Straight type 64*20 inch

    Price 999 usd/pair

Product Description

Product name: 64*20 inch Ultra light carbon fiber integrated CW/CCW Propeller

Propeller type: 2 blades-integrated

Includes: 1 pcs CW and 1 pcs CCW propeller

Specifications: IIKE

Model: 64*20Y

Diameter (inches): 64

Pitch (inches): 20

Material: carbon fiber and epoxy

Surface Treatment : Polished or Frosted

Single net weight: 889g

Installation method: Screw fixation

Applicable models: Multi rotor,Vertical fixed wing

Thrust Limitation: ≤2900r/min

Optimum RPM: ≤130kg

working ambient temperature:   -40℃~+60℃

Storage temperature:  -10℃~+40℃



Rayi 64x20 Lightweight Carbon Fiber Cargo Drone Propeller

When selecting a high-performance propeller for your drone or UAV, the Rayi 64x20 Lightweight Carbon Fiber Cargo Drone Propeller by Rayi stands out for its superior build, reliability, and versatility. Designed with advanced carbon fiber and epoxy materials, this propeller is perfect for multi-rotor drones and vertical fixed-wing UAVs. Whether you're building a cargo drone or upgrading your existing fleet, this propeller provides the optimal balance of strength, lightness, and durability.


High Performance & Durability

The Rayi 64x20 Carbon Fiber Drone Propeller excels in high-demand environments, designed to endure extreme working conditions. With an operating temperature range of -40°C to +60°C and a storage temperature between -10°C and +40°C, it is built to perform under diverse environmental conditions. This makes it ideal for various industrial applications, from cargo transport to surveillance and inspection in challenging weather.


Optimized for an Optimum RPM of ≤130kg, this propeller provides efficient thrust with a thrust limitation of ≤2900r/min. Whether for long-duration flights or high-powered lifting operations, this propeller consistently meets the rigorous demands of modern drone technology.


Applications of the 64x20 Carbon Fiber Propellers


The 64x20 Lightweight Carbon Fiber Cargo Drone Propeller is designed to support a wide range of applications, including:

  • Cargo Drones: Ideal for heavy-lift cargo drones that require maximum thrust and minimal weight.

  • Multi-Rotor UAVs: Perfect for multi-rotor drones used in industrial, agricultural, and military applications.

  • Vertical Fixed-Wing UAVs: The propeller is equally effective for vertical take-off and landing (VTOL) drones.

  • Surveillance & Inspection: Used in drones designed for monitoring, surveying, and data collection in both urban and remote locations.


Why Choose Rayi Carbon Fiber Drone Propellers?

When it comes to carbon fiber drone propellers, Rayi sets the industry standard for quality and performance. Our propellers are engineered for reliability, longevity, and optimal performance, ensuring that your drone operates at its best no matter the task. With over 60 high-performance propellers developed, supported by 21 patents and ISO certification, Rayi is recognized as a leader in drone propulsion technology.


If you’re looking for a propeller that combines lightweight design with robust performance, the 64x20 Lightweight Carbon Fiber Cargo Drone Propeller is your ideal choice. It provides excellent efficiency, durability, and precision for a variety of industrial and commercial applications.


Upgrade your UAV with the 64x20 Lightweight Carbon Fiber Cargo Drone Propeller and experience unmatched performance. Whether for aerial logistics, surveying, or advanced drone operations, this propeller is engineered to enhance the capabilities of your drone. Order now and take your drone performance to the next level with Rayi’s cutting-edge carbon fiber technology.



Technical Parameter

64X20 Ultralight Carbon Fiber Integrated CW/CCW Drone Propeller
PARAMETER TABLE
voltagecurrentthrusttorquerotation speedshaft poweraxial forceinput pulse width
(V)(A)(g)(N.M)(rpm)(W)(G/W)(us)
309.873.190006.50788536.2716.781300
309.795.11420010.209881055.1213.461350
309.687.81980015.0011771848.4810.711400
309.5211.72720020.0013782885.539.431450
309.3116.93570026.1015744301.228.301500
309.0722.84410032.6017505973.147.381550
308.7330.95560041.4019518456.776.571600
308.3739.76700049.80212411074.666.051650
307.9350.47940057.20228513684.505.801700
307.4163.19140066.80245117142.205.331750
306.8776.310100078.00260521273.994.751800
306.2092.811560088.00275425374.254.561850
305.57108129000100.50287730272.804.261900
305.00122140000105.30300833162.934.221950



Want to Choose the Right Propeller for You?

Take a quick test to find the right propeller for you.

Features

Key Features of the 64x20 Lightweight Carbon Fiber Cargo Drone Propeller


Designed for high-efficiency and precision, the 64x20 Carbon Fiber Propeller has a variety of features that make it an excellent choice for professionals seeking durability and performance:

  • Material Composition: Made from high-quality carbon fiber and epoxy, this propeller delivers excellent strength-to-weight ratio, ensuring both lightweight operation and robust performance.

  • Size & Dimensions: With a 64-inch diameter and 20-inch pitch, this propeller is optimized for heavy-duty applications, providing exceptional thrust for large cargo drones.

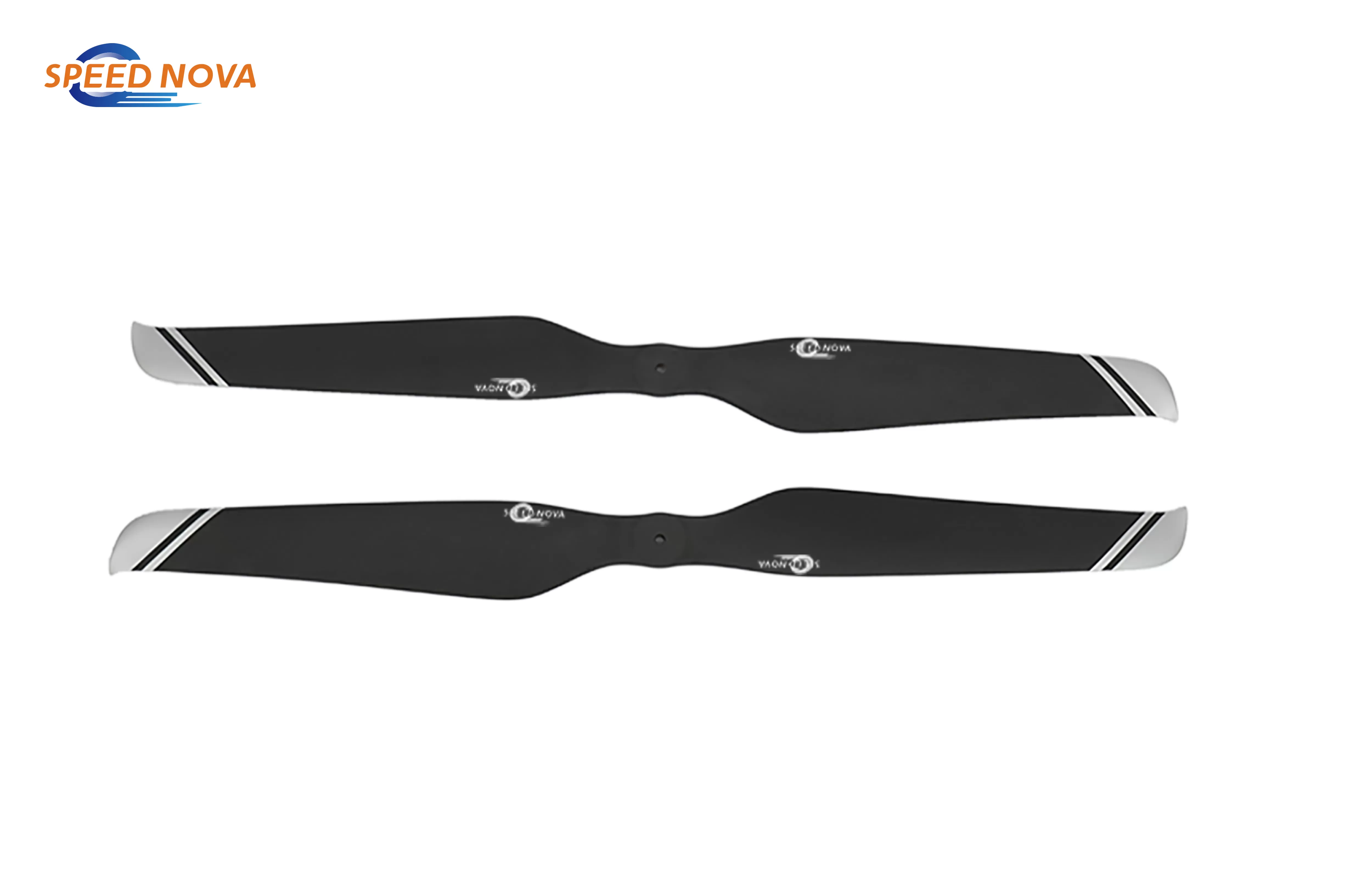

  • Dual CW/CCW Configuration: The package includes both a Clockwise (CW) and Counter-Clockwise (CCW) propeller, allowing for smooth, balanced flight for multi-rotor systems.

  • Lightweight Design: Each propeller weighs only 889 grams, ensuring your drone remains lightweight while achieving optimal lift.

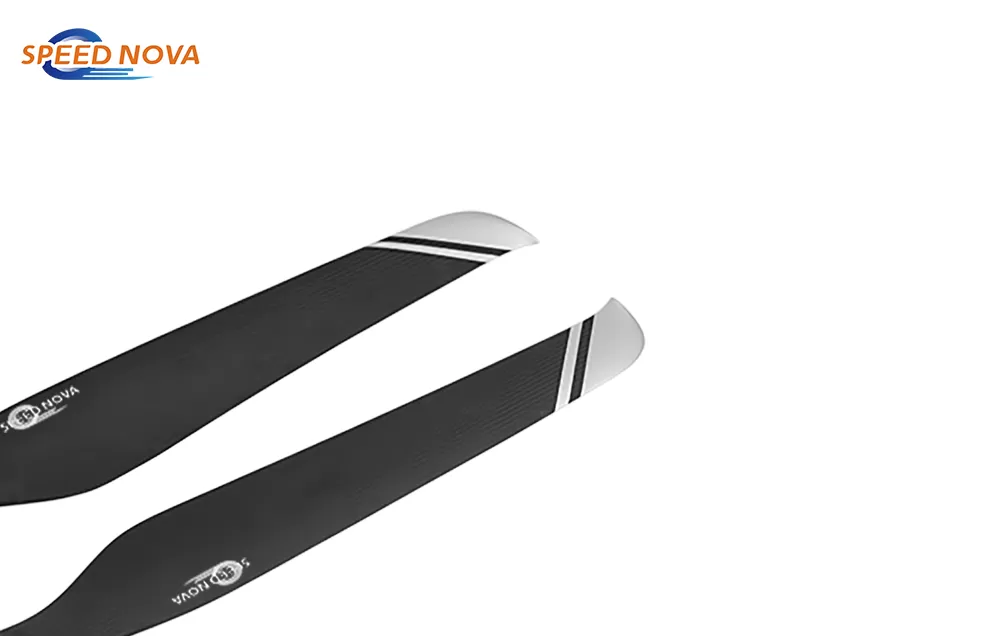

  • Surface Finish: Choose from a polished or frosted surface finish, both of which enhance the propeller’s aerodynamics while giving it a sleek, professional look.



If You have any Questions, Please Contact Us

If You have any Questions, Please Contact Us

Warning

1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
