Zero Downtime. Maximum Deployment.In commercial drone operations, waiting for gear to charge is lost revenue. The Skydroid G12-H breaks the mold by introducing an enterprise-grade 45W Fast Charging architecture (Type-C) out of the box. Combined with a massive internal battery capacity, the G12-H ensures you spend more time in the air and less time tethered to a wall.
Rapid Turnaround: Power up your ground station in record time between complex missions.

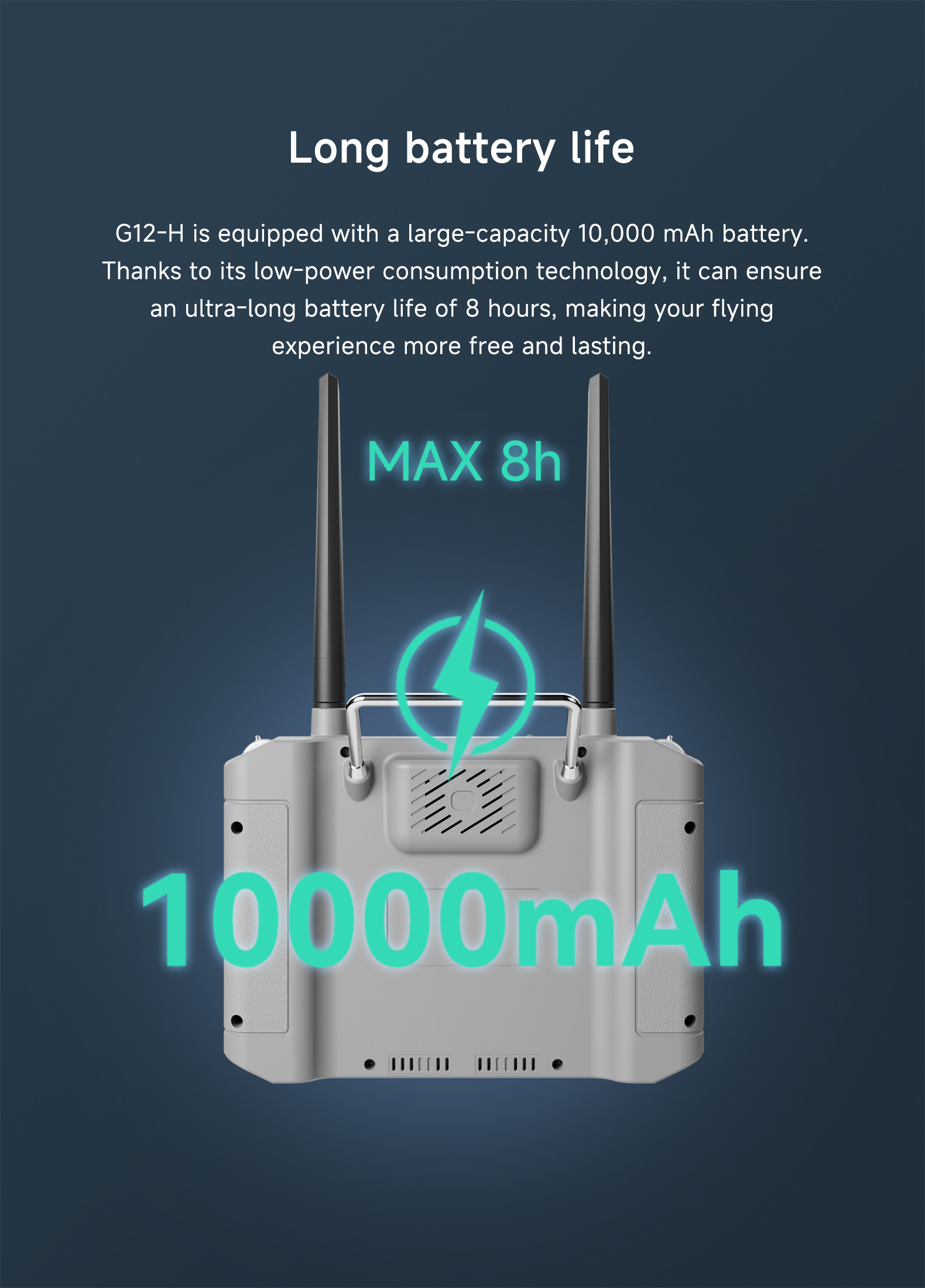

All-Day Endurance: Engineered for back-to-back surveying, inspection, or agricultural flights
The GR01 Synergistic Link

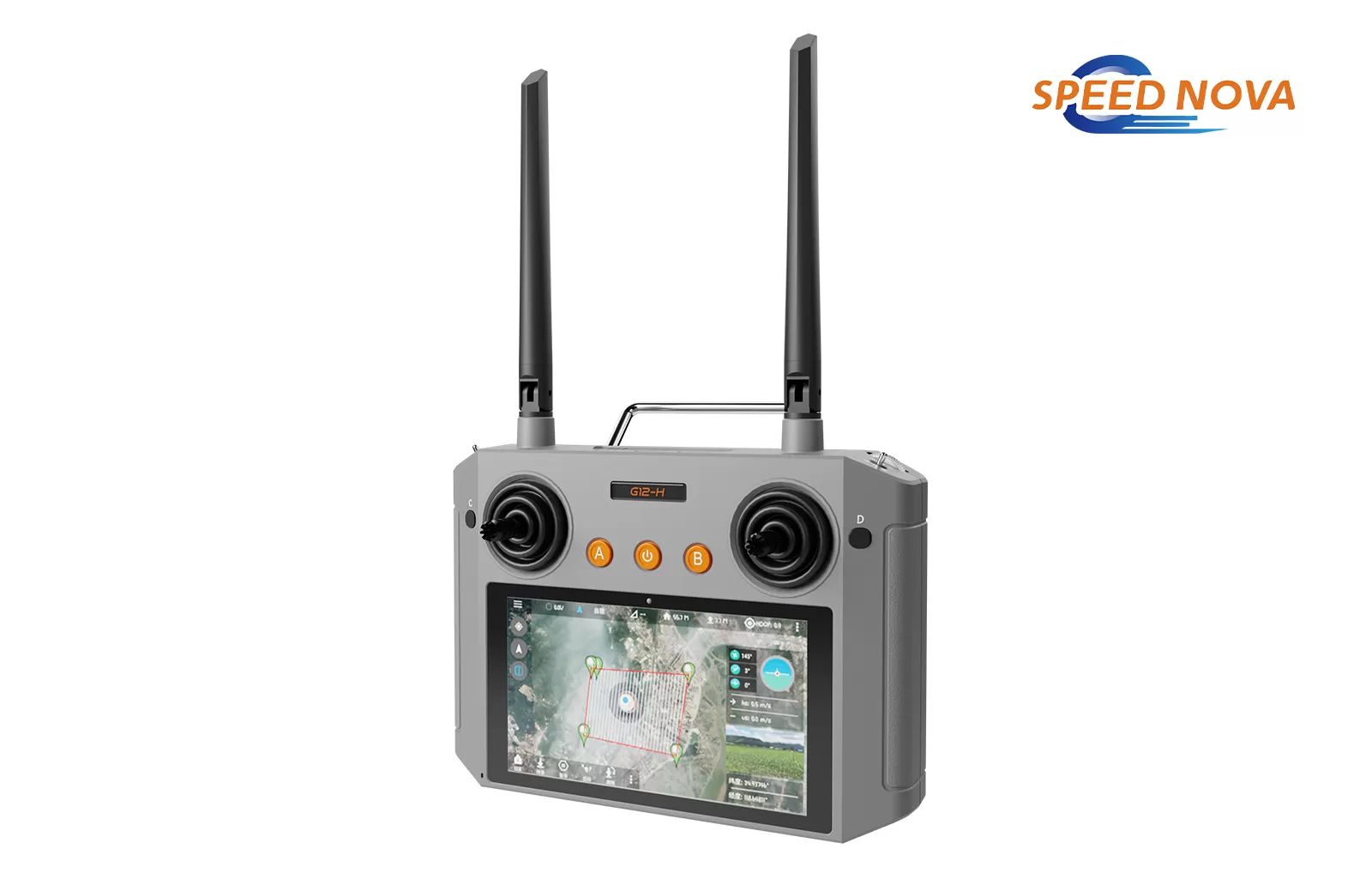

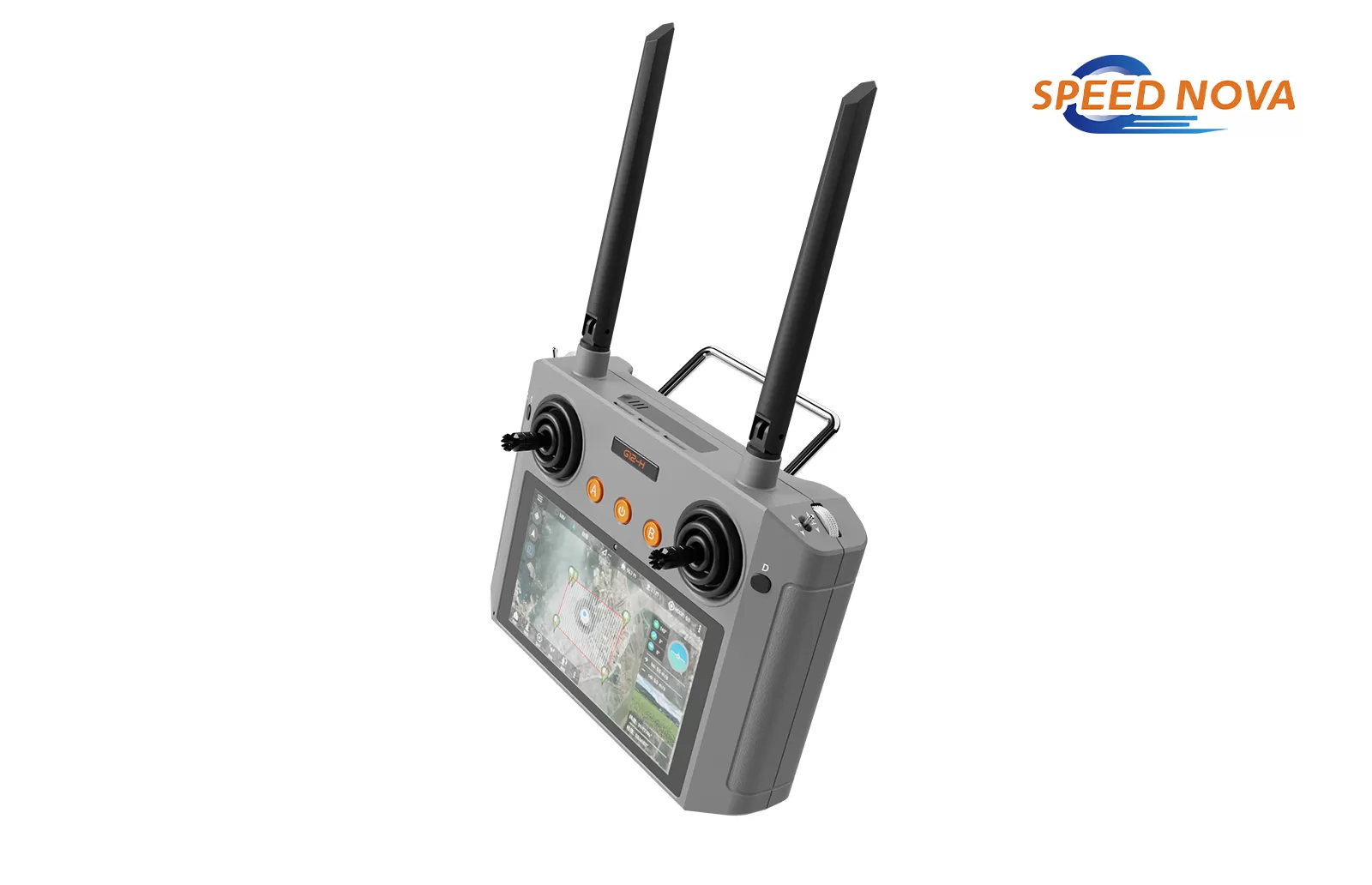

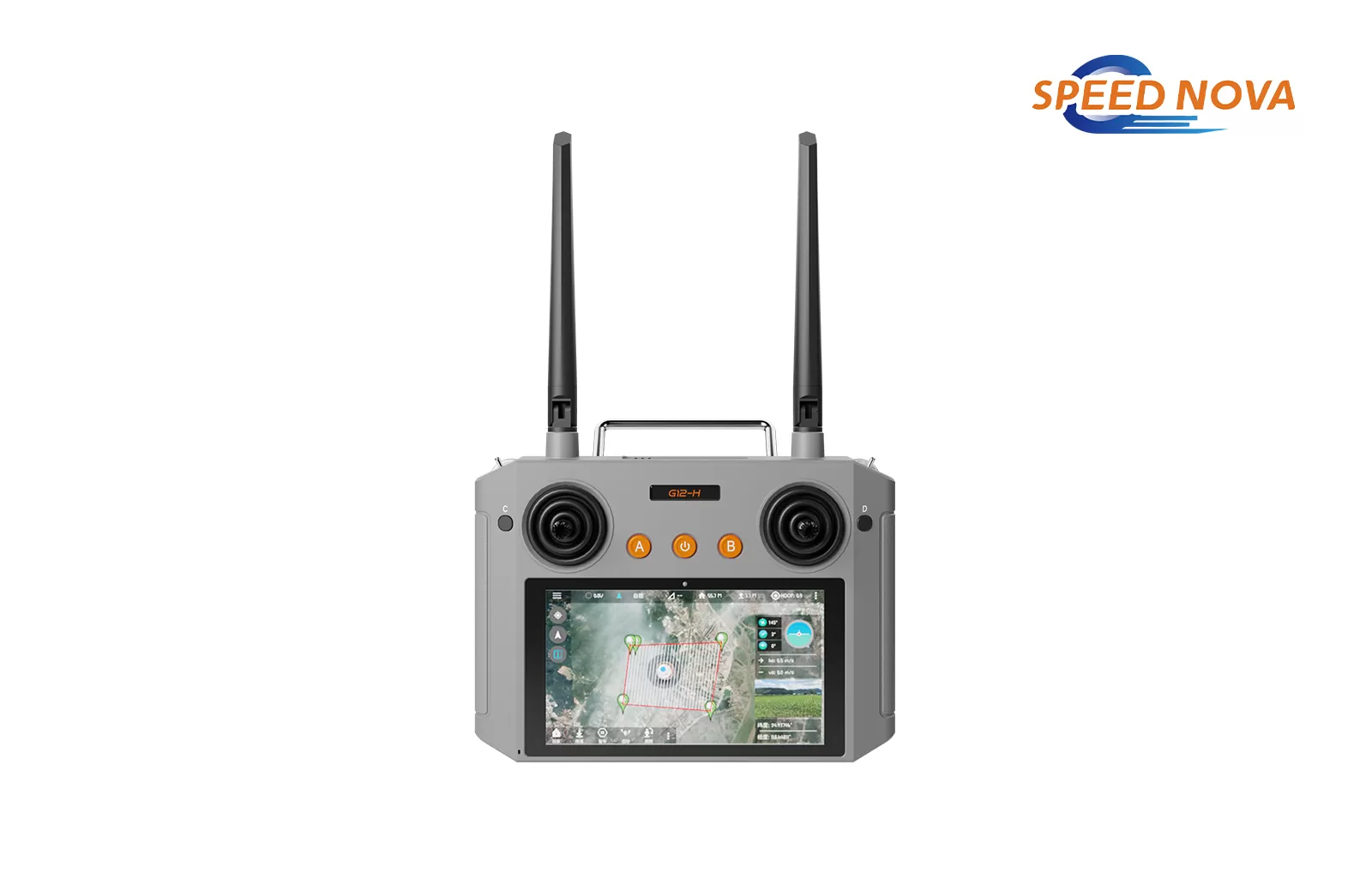

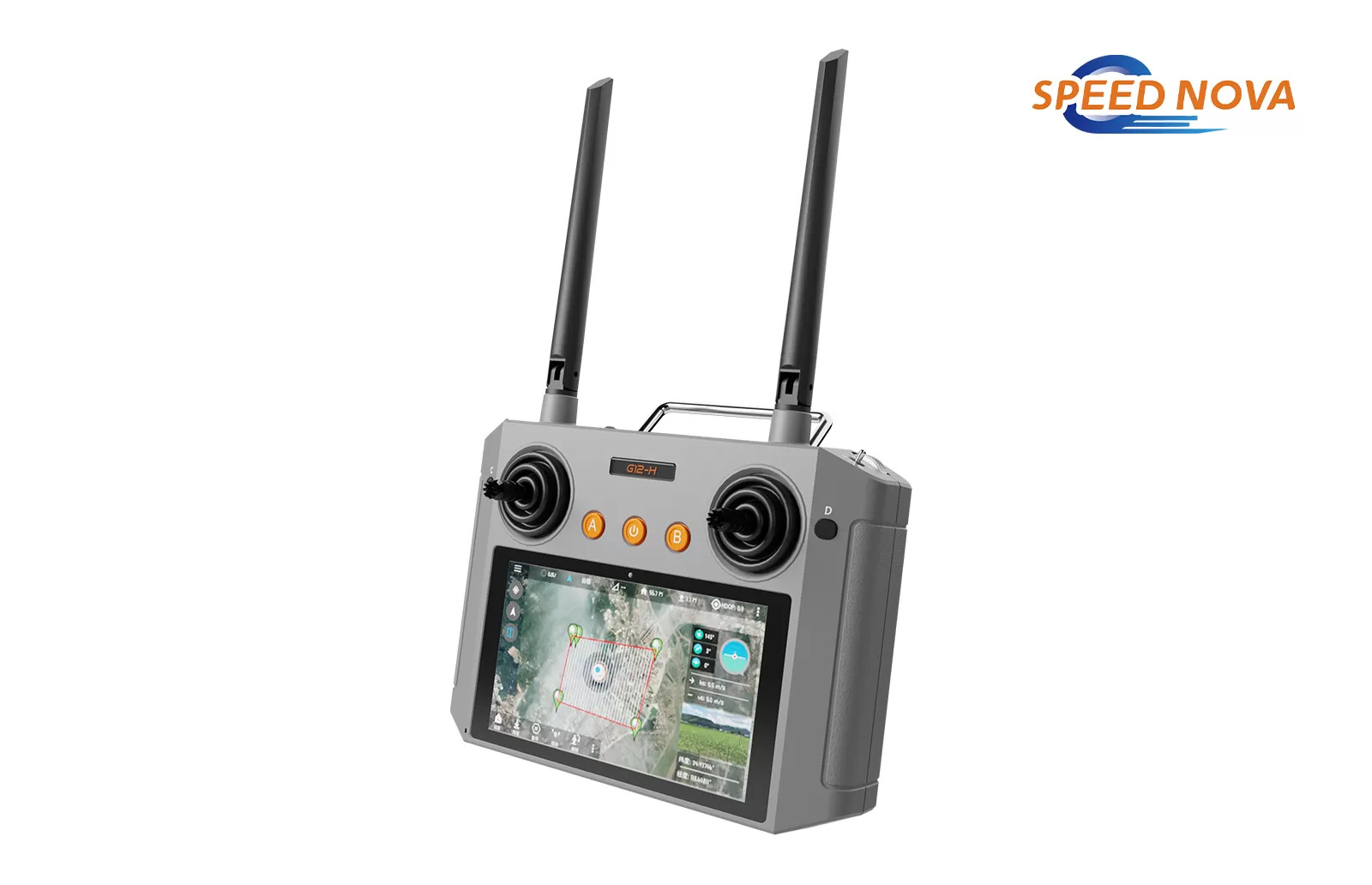

Skydroid G12-H
The G12-H doesn't just control; it communicates flawlessly. Paired explicitly with the versatile GR01 Receiver, it creates an unbreakable bond between pilot and payload.

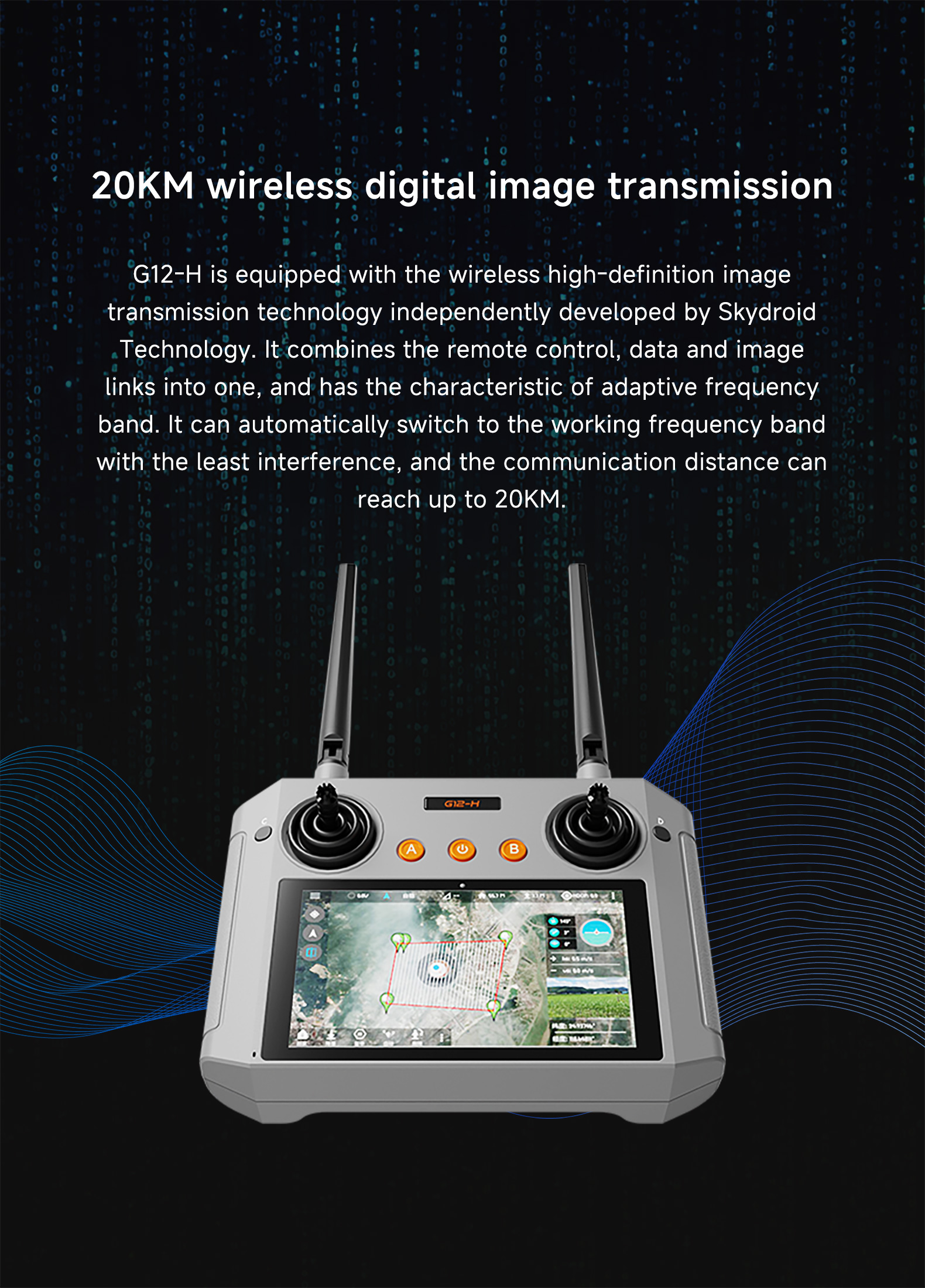

Adaptive Dual-Band: Utilizes standard 2.4G & 5.8G frequencies with custom dual-band antennas (included) to slice through urban interference.
Precise Control Integration: The GR01 comes equipped with dedicated Power, PWM, and Ethernet cabling, simplifying your flight controller integration (supports mainstream RCSDK protocols).
Smartphone Fluidity. Industrial Grip.Leave the bulky dual-screen setups for the command center. The G12-H is designed for the agile, single-operator.

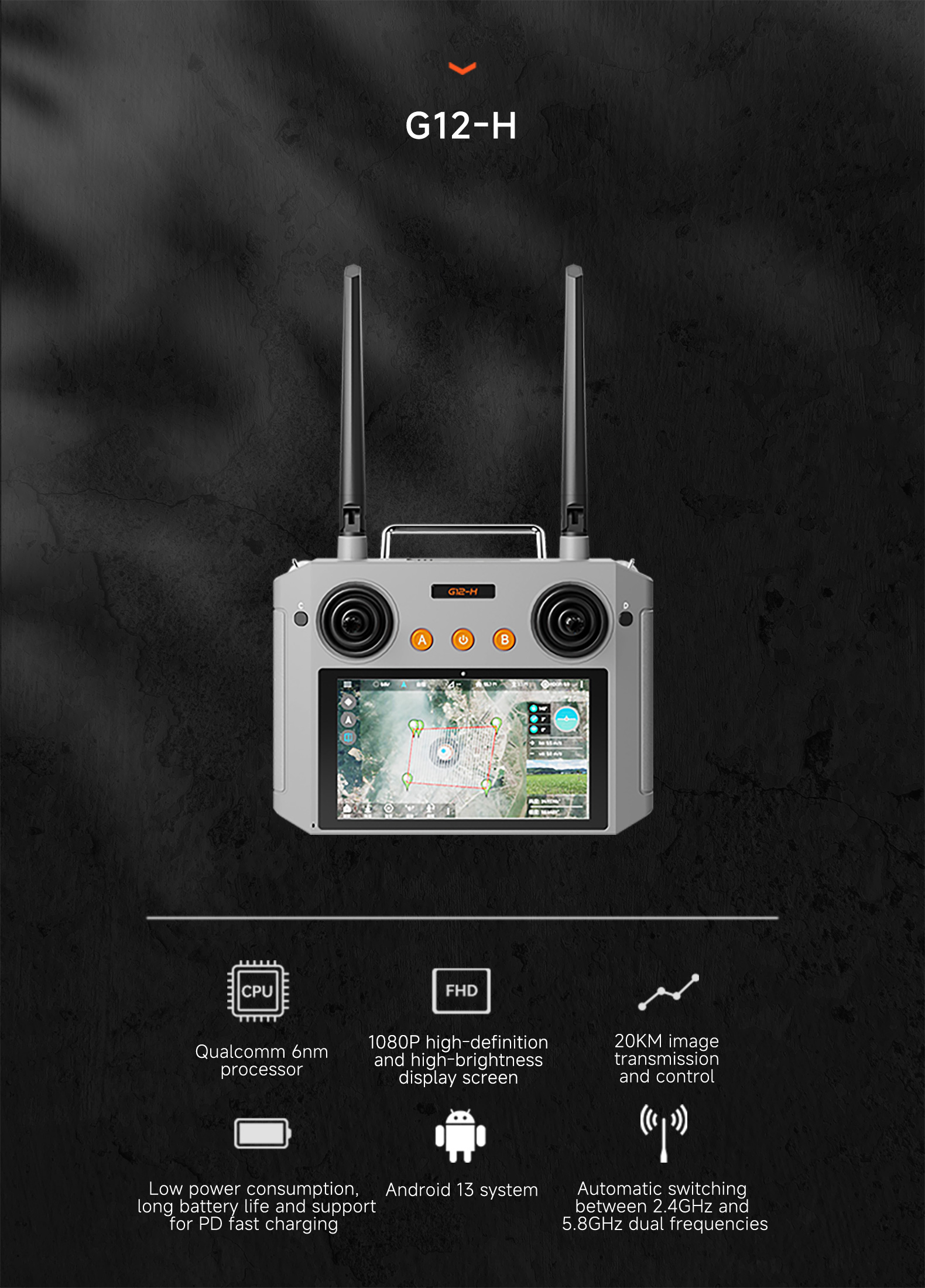

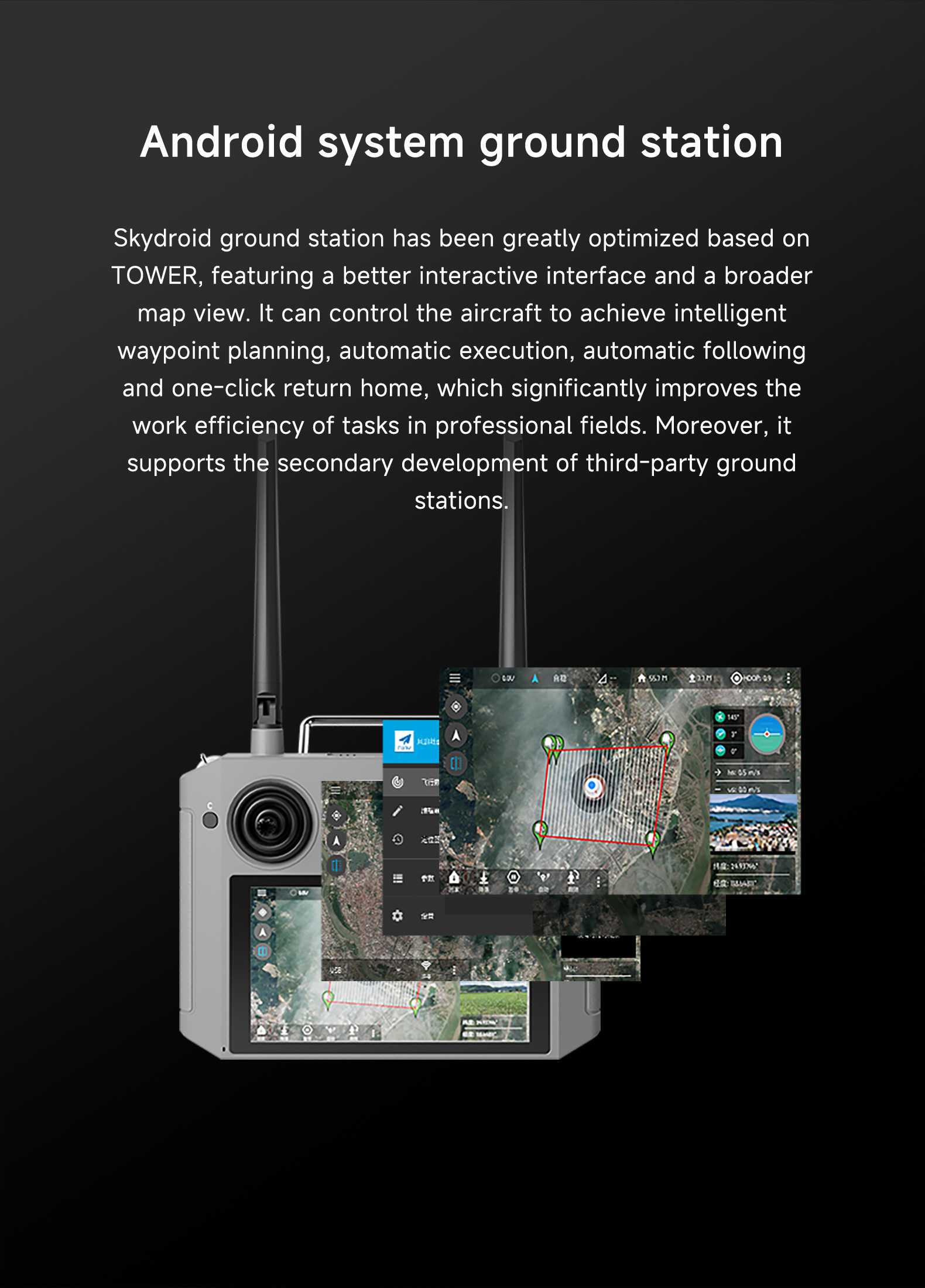

Qualcomm 6nm & Android 13: A 64-bit embedded system guarantees that memory-heavy applications (like 3D mapping software or QGC) run without a hitch.
Sunlight Readable Display: A stunning edge-to-edge screen built for glare-heavy outdoor environments, ensuring critical telemetry is always visible.
Everything You Need. Nothing You Don't.
The G12-H package is meticulously curated for professional integrators. The standard kit includes:
1x G12-H Smart Controller & 1x GR01 Receiver
1x 45W Fast Charger & C-to-C Data Cable
2x 2.4&5.8G Dual-Band Antennas & Extended Feeder Cables
Dedicated GR01 Power, PWM, and Ethernet Cables
Premium Carry Bag for field protection.

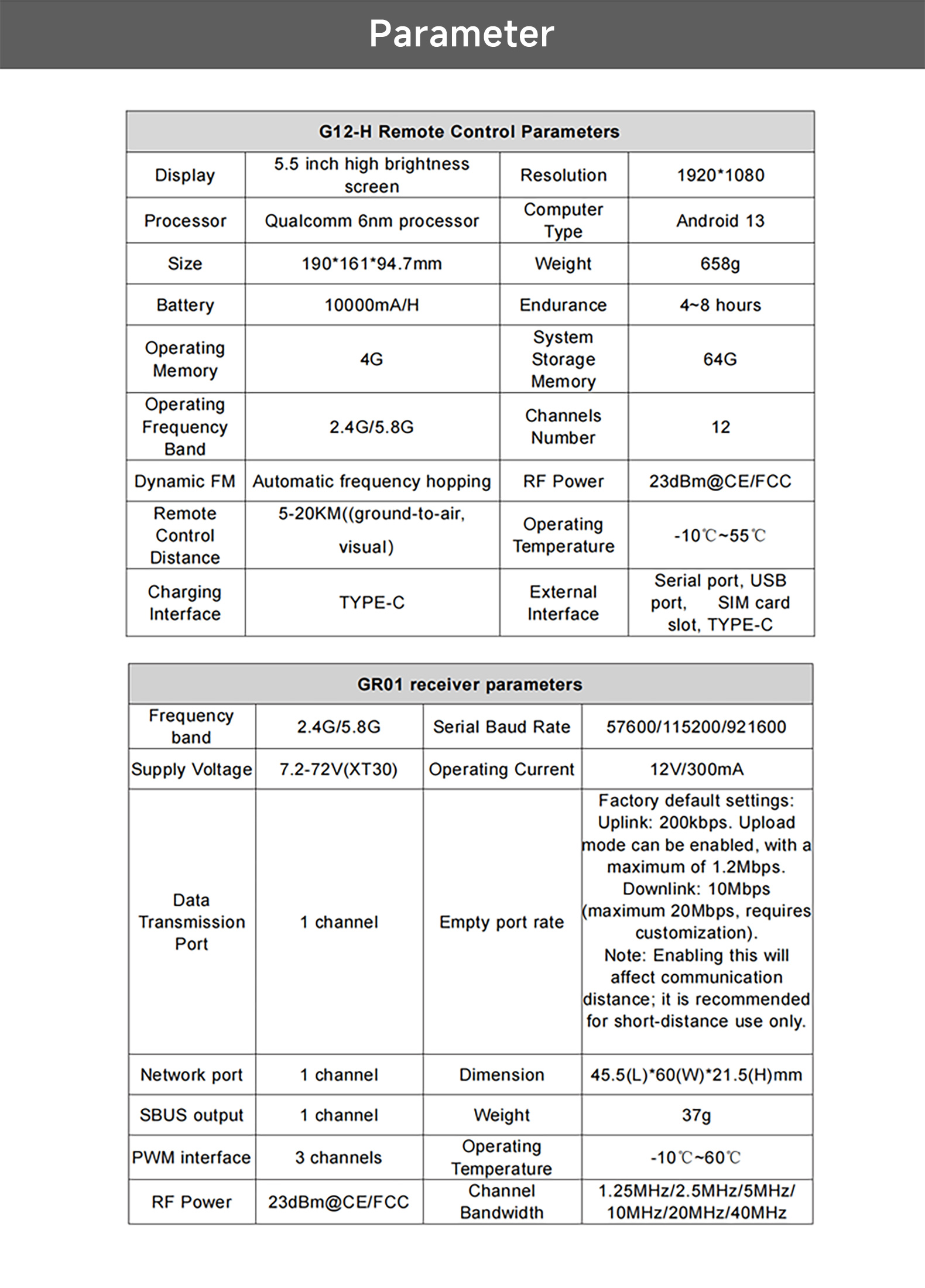

G12-H Remote Control Parameters
Parameter | Specification |
|---|---|
Display | 5.5 inch high brightness screen |
Resolution | 1920 * 1080 |
Processor | Qualcomm 6nm processor |
Computer Type | Android 13 |
Size | 190 * 161 * 94.7mm |
Weight | 658g |
Battery | 10000mA/H |
Endurance | 4~8 hours |
Operating Memory | 4G |
System Storage | 64G |
Operating Frequency | 2.4G/5.8G |
Channels Number | 12 |
Dynamic FM | Automatic frequency hopping |
RF Power | 23dBm@CE/FCC |
Remote Control | 5-20KM(ground-to-air, visual) |
Operating Temperature | -10℃~55℃ |
Charging | TYPE-C |

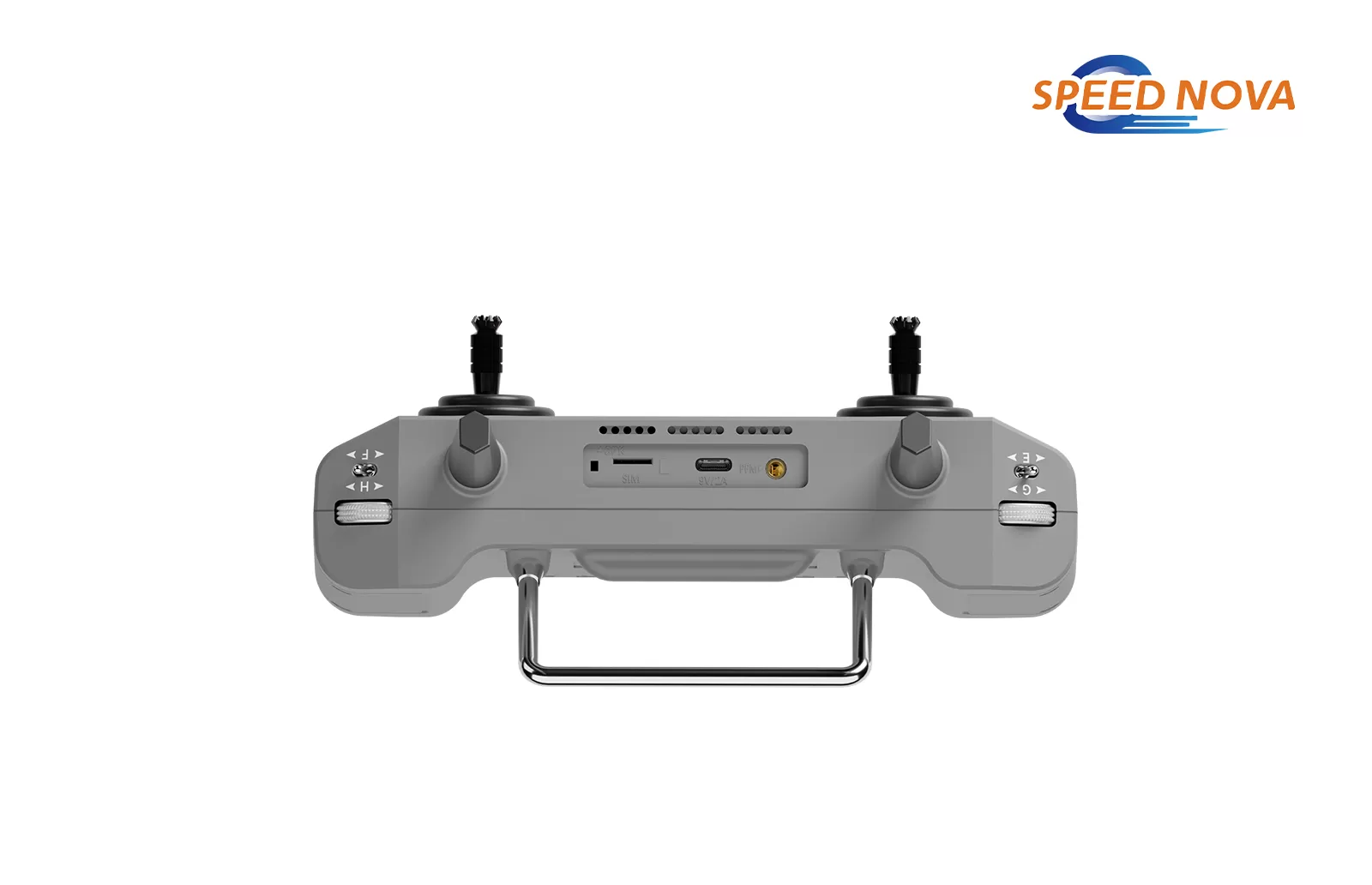

External Interface | Serial port, USB port, SIM card slot, TYPE-C |
Scale Your Operations with the G12-H.Whether you are building custom UAVs for mapping or upgrading an entire agricultural fleet, the Skydroid G12-H is your competitive edge.
Reach out to our sales engineering team today to secure inventory, request the RCSDK documentation, or discuss B2B volume discounts.
