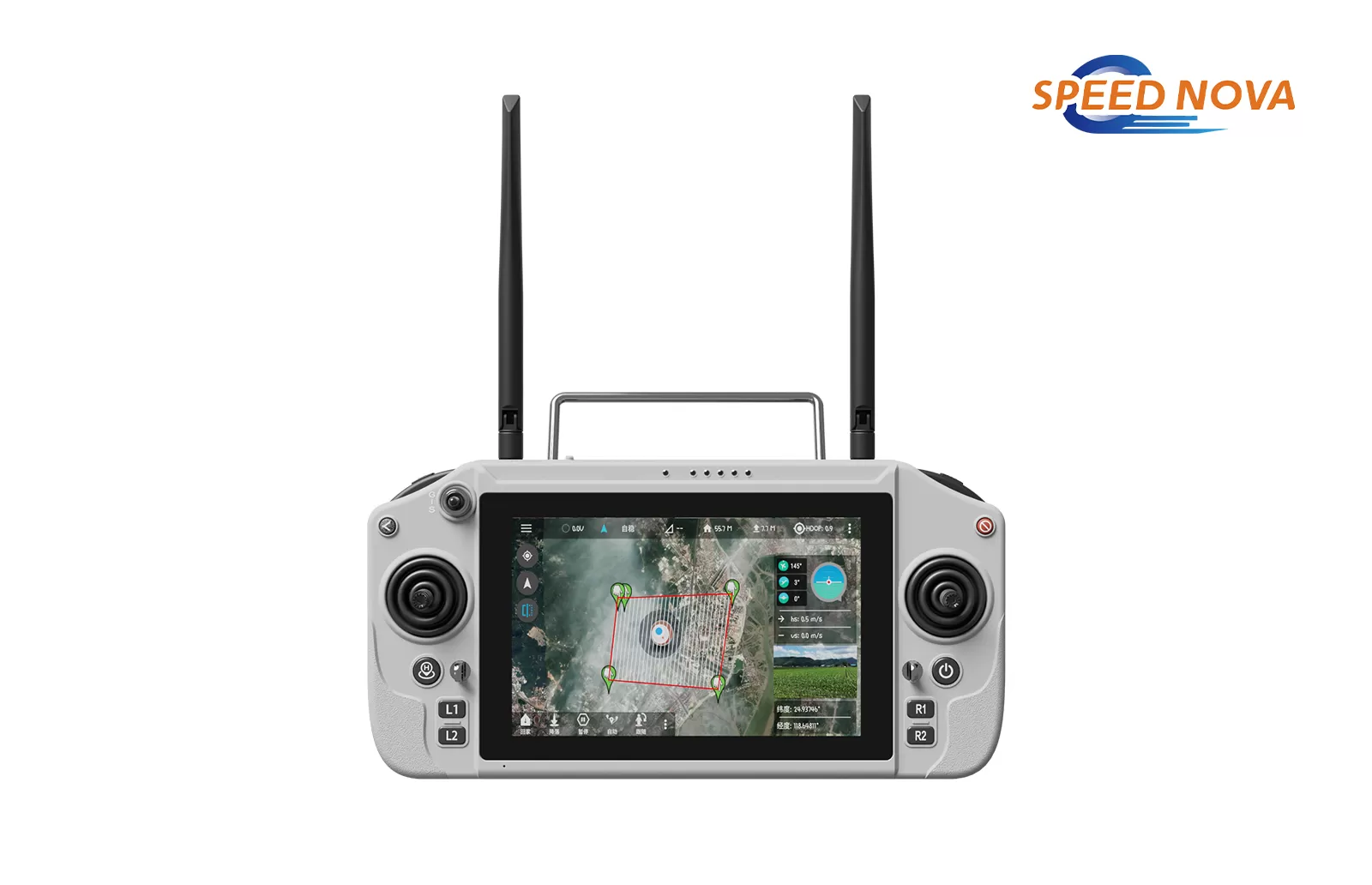

Drone remote control Skydroid G20
A flagship ground control terminal specifically designed for high-end industrial-grade drone applications. It integrates high-precision control, intelligent mission planning, and robust expansion capabilities, aiming to provide reliable, efficient, and feature-rich control solutions for professional fields such as surveying and mapping, inspection, security, and scientific research.
RAYIAERO as a first-tier agent, brings you quality service and the lowest price
Skydroid G20
High-end industrial-grade drone applications
Product specifications and parameters
Specifications
G20 Remote Control Parameters
Display: 1500nit high-brightness 7-inch display screen
Resolution: 1920 * 1200
Processor: Qualcomm 6nm processor
Computer Type: Android 13
Size: 277(L)138(W)96(H)mm
Weight: 1.2kg
Battery: 20000mA/H

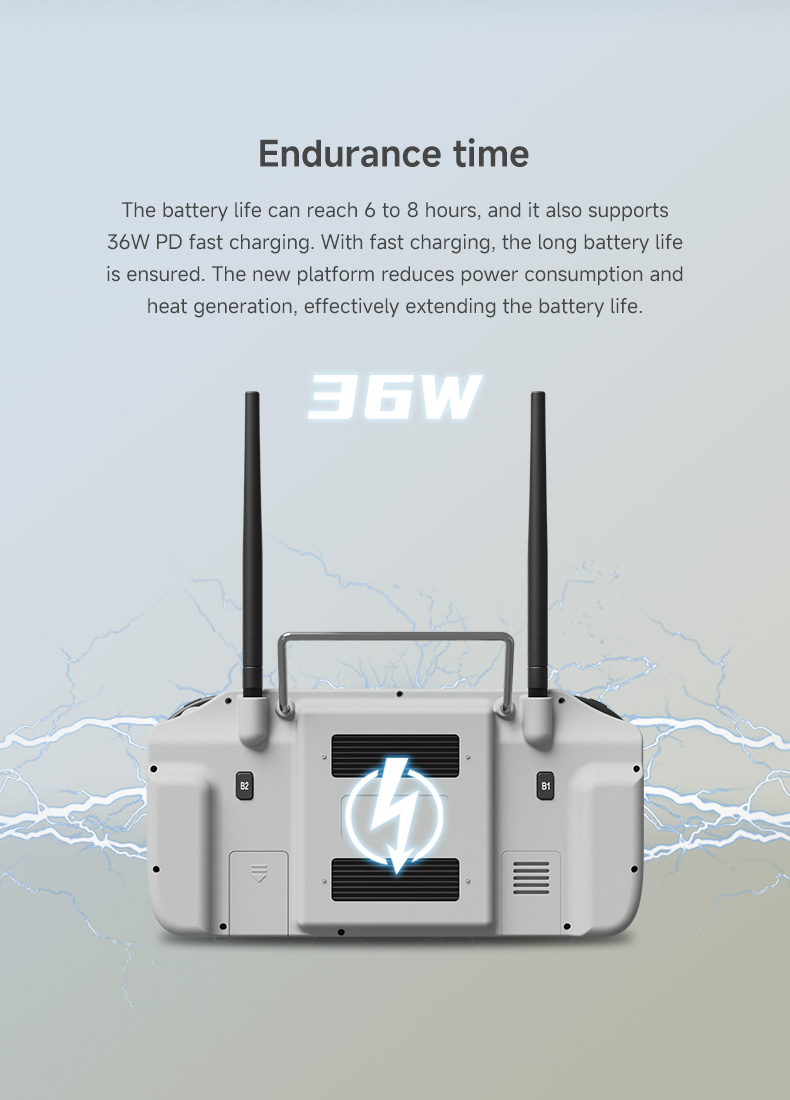

Endurance: 6~8hours
Operating Memory: 4G
System Storage: 64G
Operating Frequency: 2.4G/5.8G
Channels Number: 16
Dynamic FM: Automatic frequency hopping
RF Power: 23dBm@CE/FCC

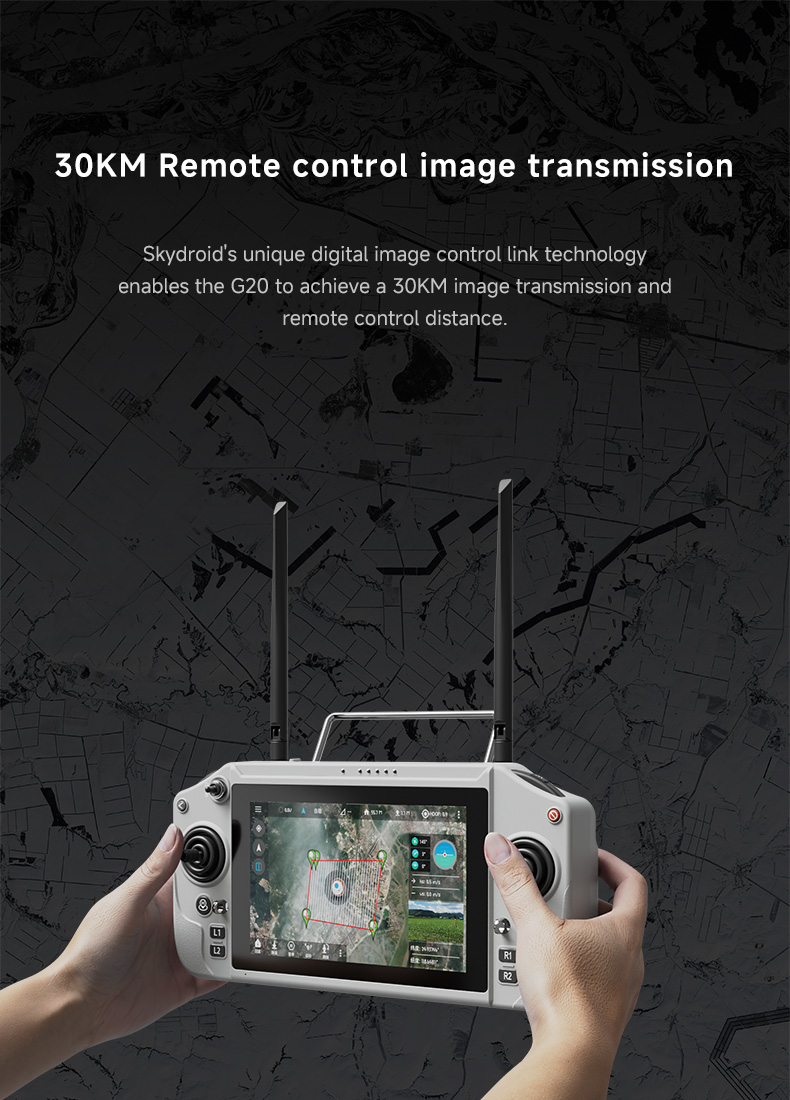

Remote Control Distance: 5-30KM (ground-to-air, visual)
Operating Temperature: -10℃~55℃
Charging Interface: TYPE-C
External Interface: USB port, SIM card slot, TYPE-C
Details Poster

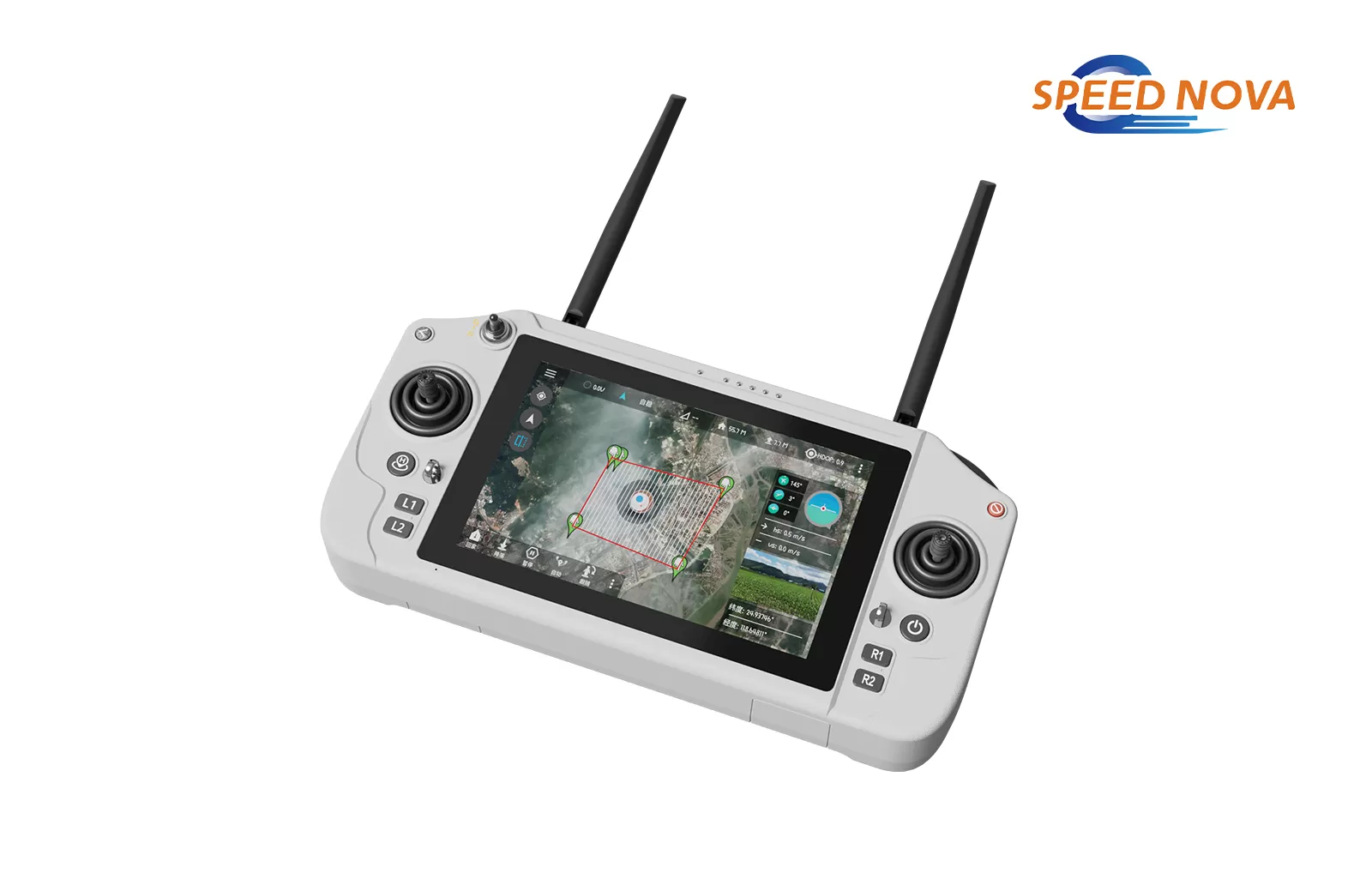

The Skydroid G20 remote control features a built-in 7-inch high-definition high-brightness display with a resolution of 1920*1200, paired with a Yunduo camera for real-time transmission of high-definition images. It also includes built-in dual fans for effective cooling, ensuring the remote control operates efficiently at all times.

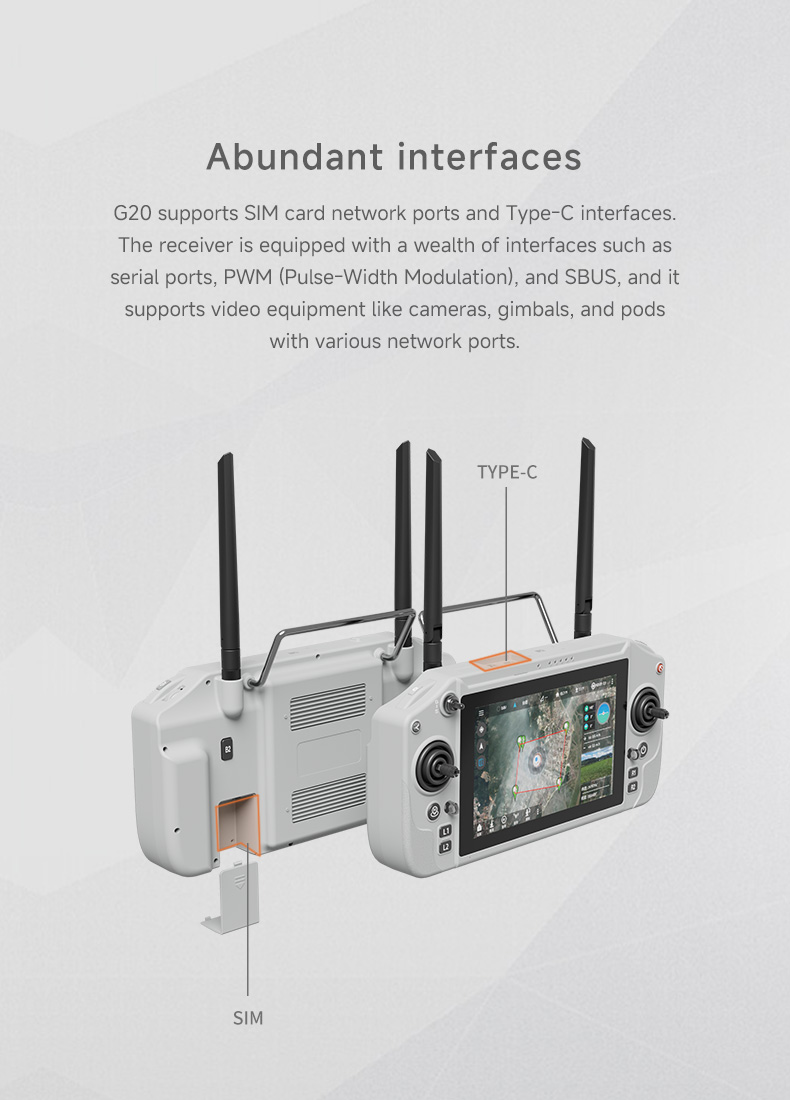

The Skydroid G20 supports SIM card interface, USB interface, and type-c interface. It provides an SDK development kit, supports video floating, and supports ground control for mainstream flight controllers. (4) It adopts high energy density lithium-ion batteries, which can operate for 6 to 8 hours on a full charge. The consistent survival mindset in the wilderness allows you to have no worries about the reliability of the device. (5) The use of meteorological silicone, frosted rubber, and ABS provides an excellent hand feel while also meeting the harsh conditions of outdoor drone use.
The G20 has dustproof measures at the body, control switches, and various peripheral interfaces to ensure stable and smooth operation of the device in harsh environments.
Used for video and image transmission (requiring an optional camera) and data transmission of unmanned equipment such as helicopters, fixed-wing aircraft, multi-rotor drones, vehicles, and boats
Used for video and image transmission (requires optional camera) and data transmission of unmanned equipment such as helicopters, fixed-wing aircraft, multi-rotor drones, vehicles, and boats
Environment temperature: -10°C to +55°C. B)
Storage temperature: -20°C to +50°C. C)
Relative humidity: Not to exceed 85%. D)
Atmospheric pressure: 86kPa~106kPa. E)
The location of use must be free from explosive media, and the surrounding media should not contain gases that corrode metals or damage insulation, nor conductive media. It is not allowed to be filled with water vapor or have severe mold presence. F) The location of use should be equipped with facilities to protect against rain, snow, wind, sand, and dust.
Warning: Do not expose to direct sunlight during use.
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
WARN
No Use For War!
Power supply method and precautions
The G20 series floor terminal is equipped with an integrated rechargeable lithium battery that is compatible with the market standard TYPE-C interface. Please use the original charger for charging
If you encounter situations such as smoking, unusual odor, or leakage during ground-side charging, please do not continue charging the ground side and instead transfer it to our company for
Maintenance.
Please do not charge this product in the area where babies can touch, to avoid the risk of electric shock.
