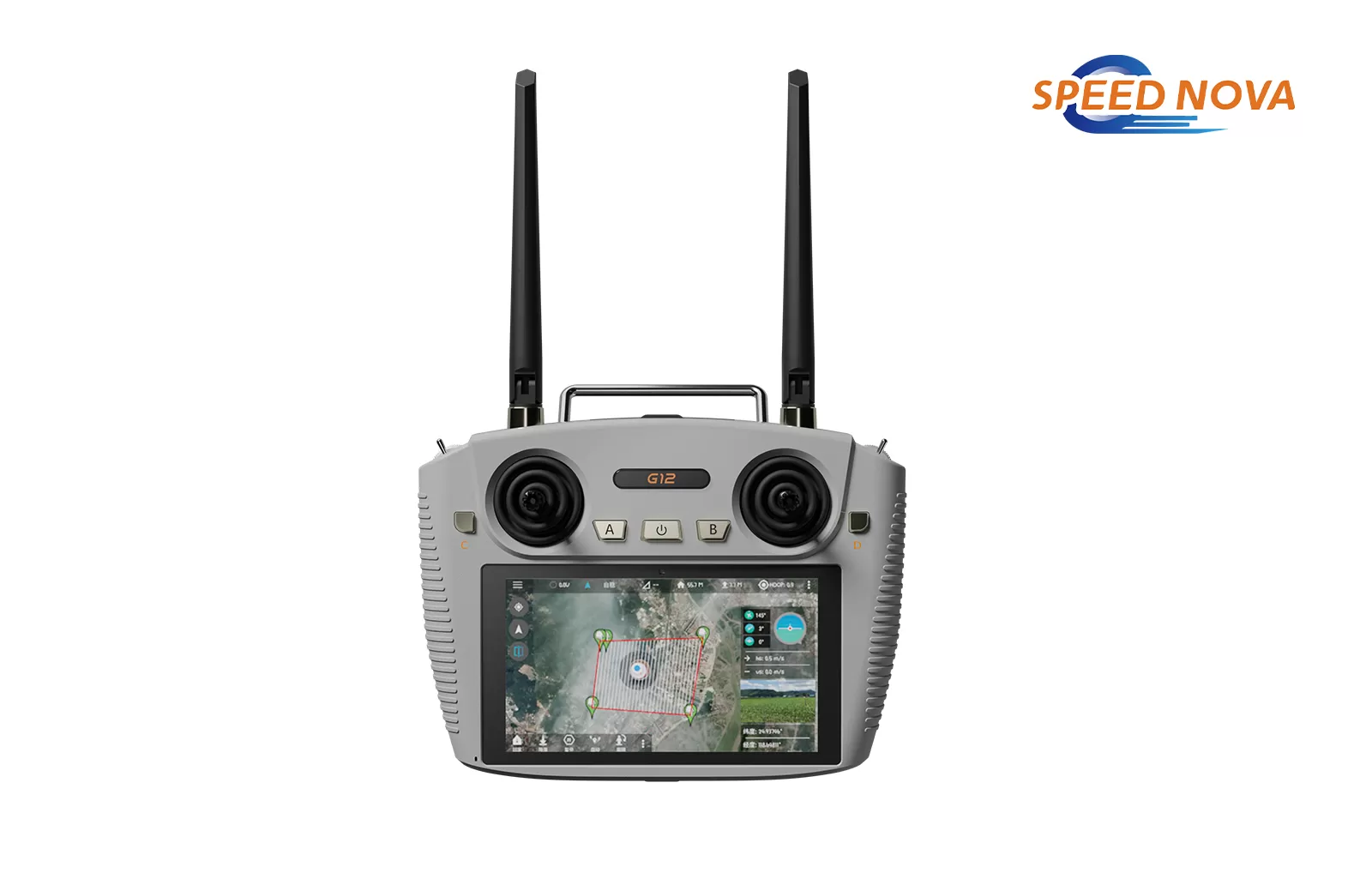

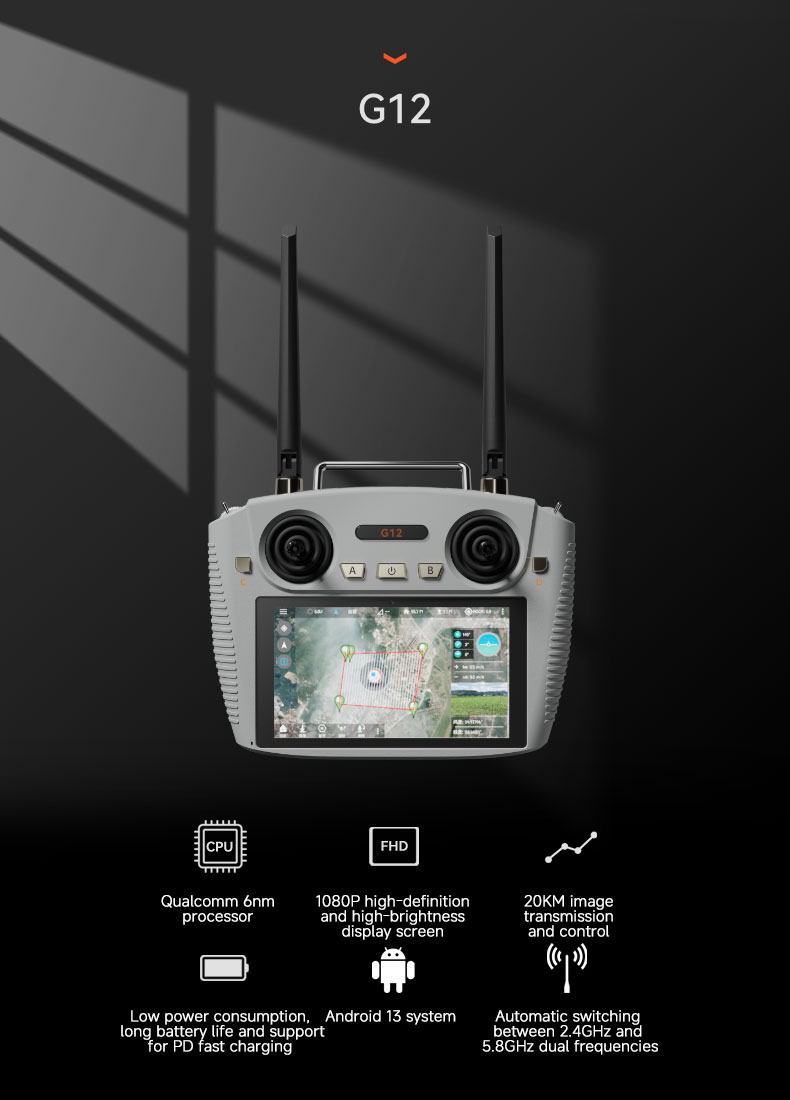

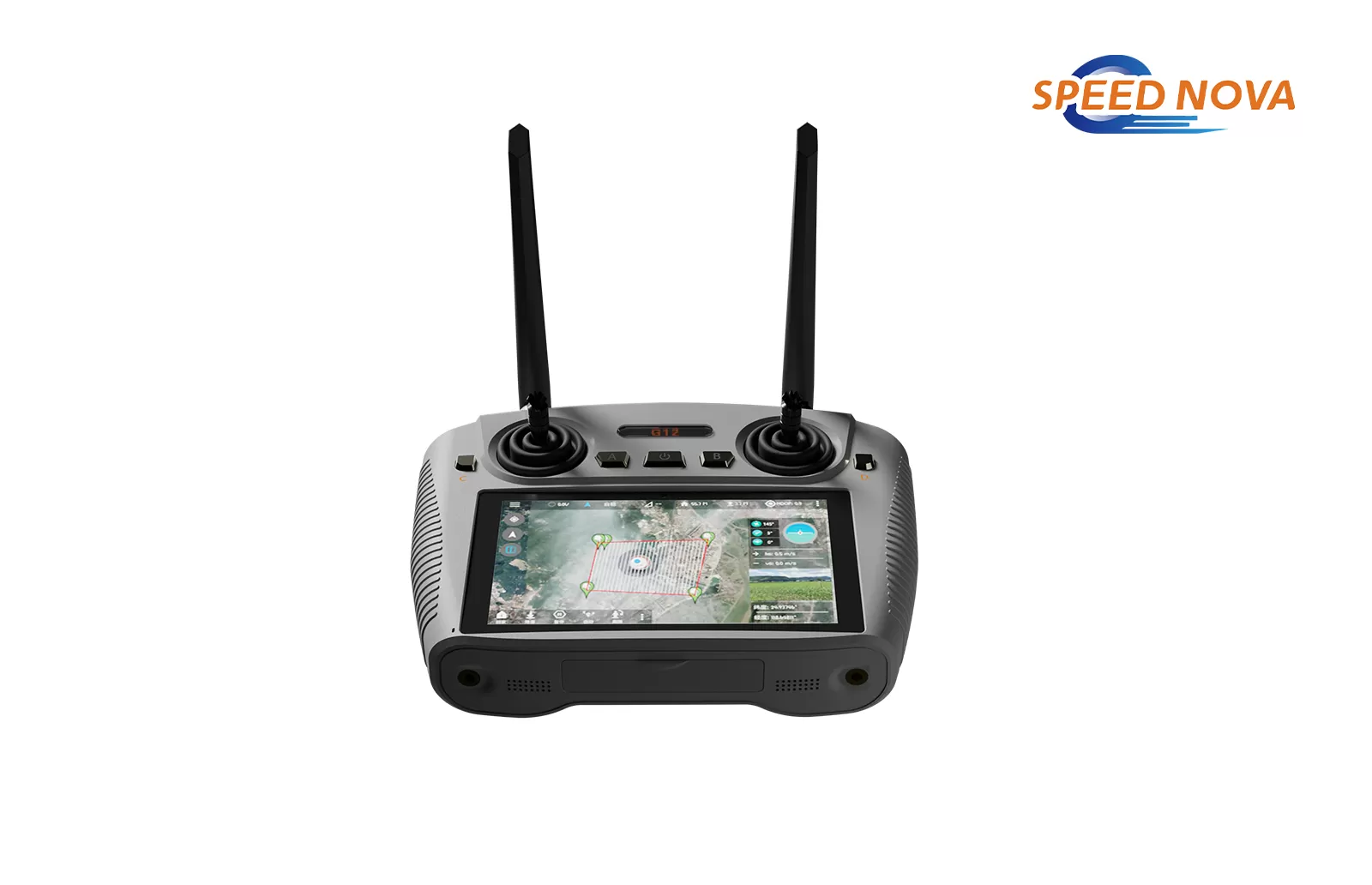

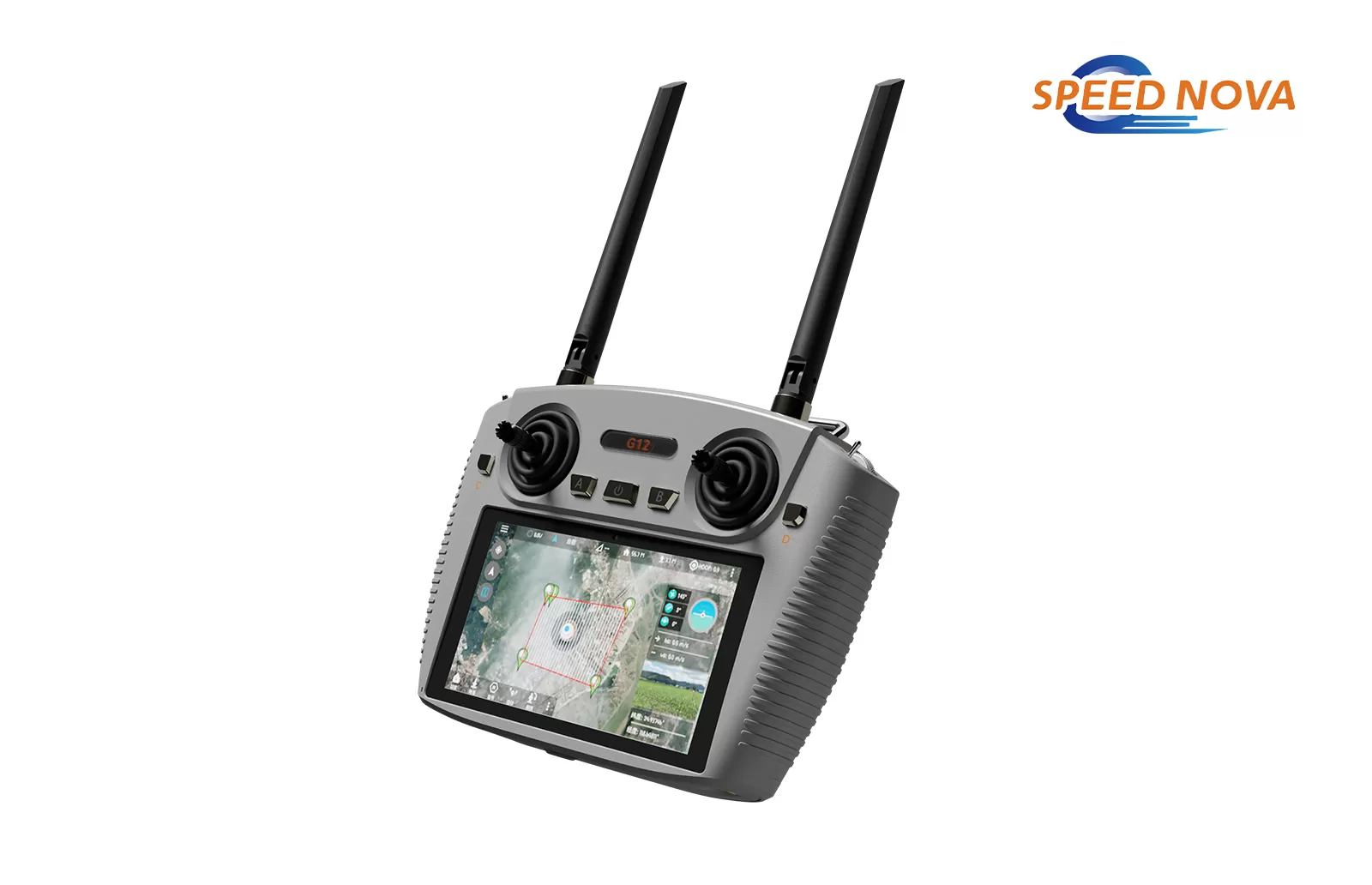

Beyond Control. Enter the Era of Smart UAV Computing.Unlike traditional proprietary controllers, the Skydroid G12 completely overhauls the user experience. Powered by a cutting-edge Qualcomm 6nm processor and running a fully embedded Android 13 (64-bit) operating system, the G12 delivers smartphone-level fluidity.

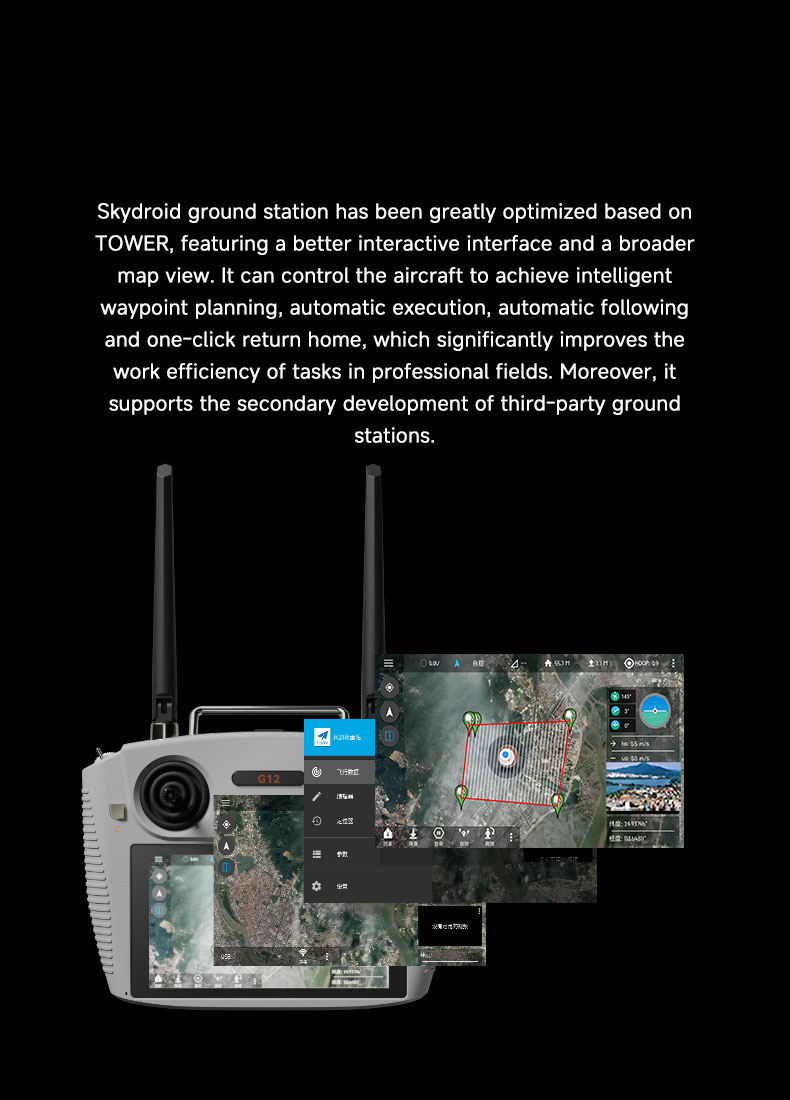

Open Ecosystem: Install almost any mainstream drone mapping, agricultural, or camera APP directly onto the 1920*1080 high-definition display.
Developer Ready: Comprehensive SDK packages provided, supporting video suspension and seamless integration with mainstream flight controllers.
The Smart Leap

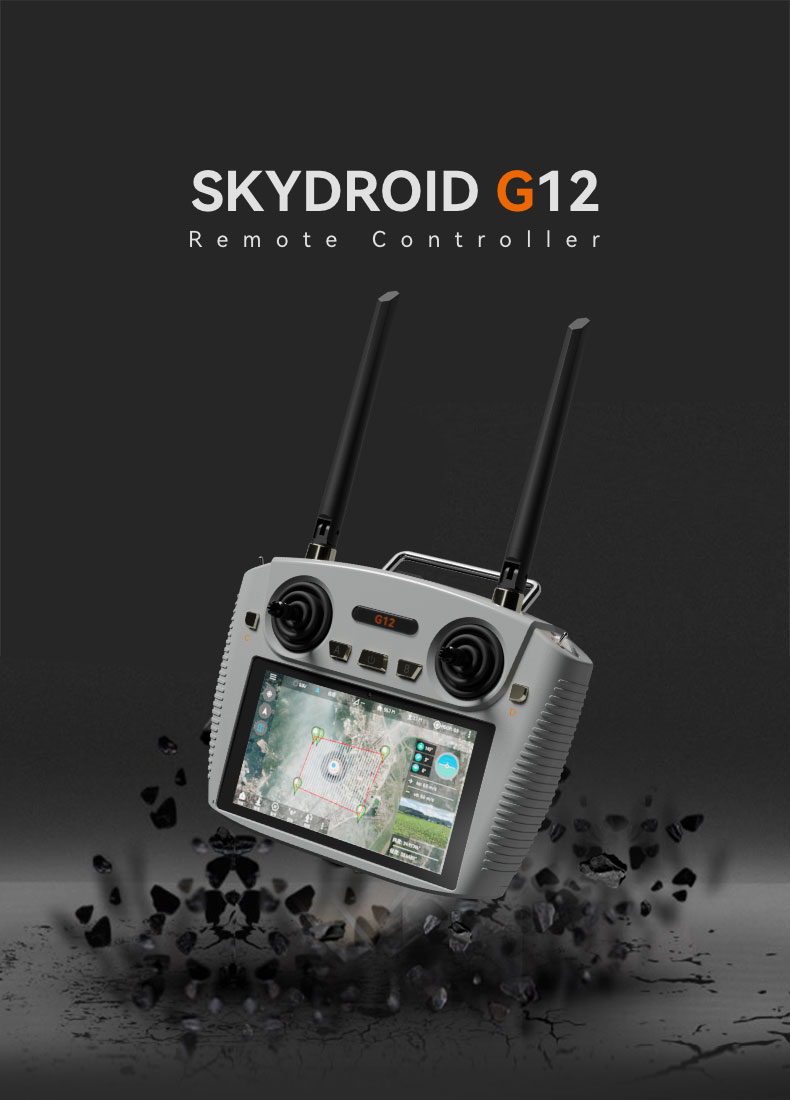

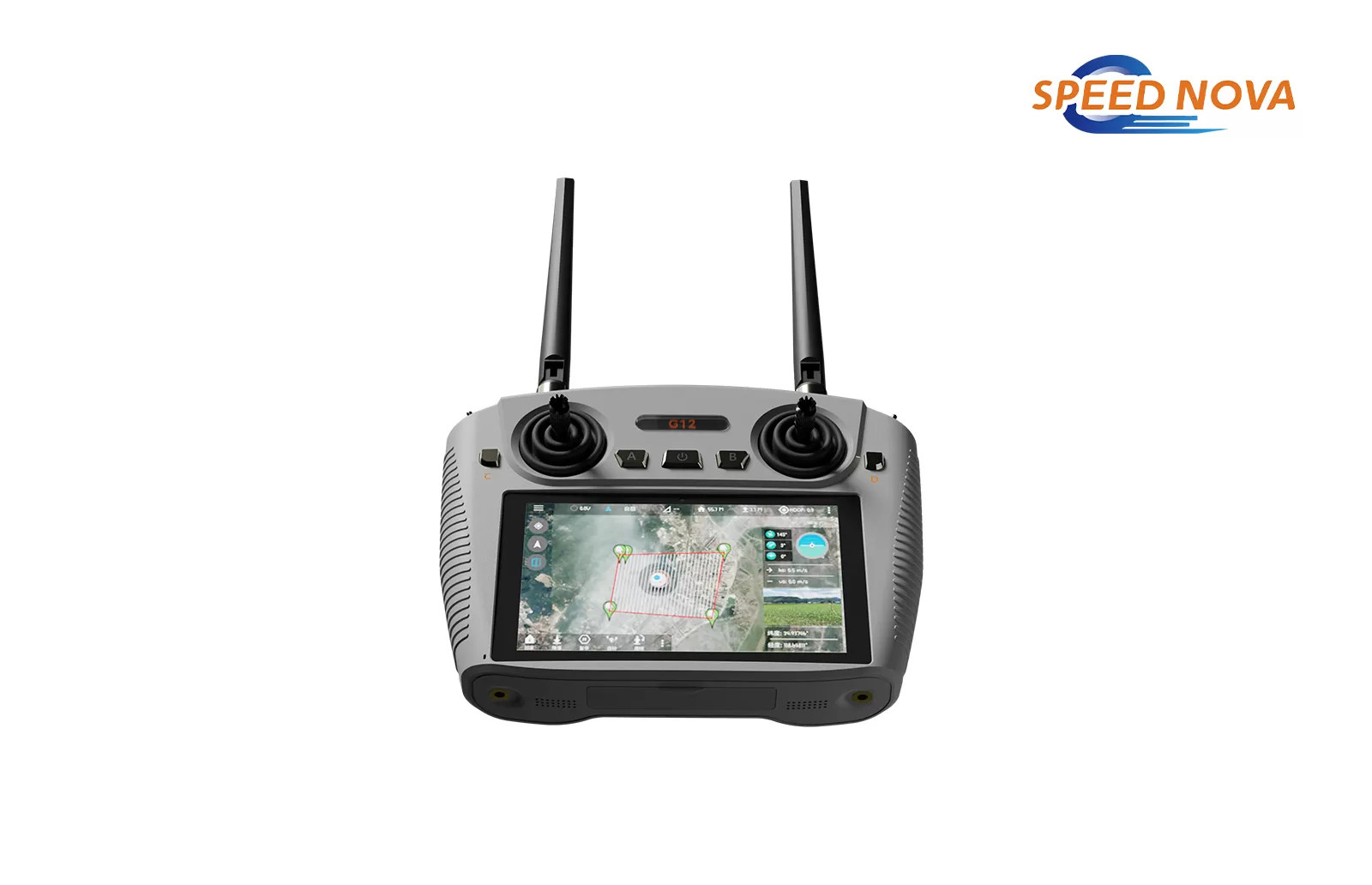

Skydroid G12
Engineered to Push Boundaries.
We let the data speak for itself. The G12 is built for extensive reach and robust signal penetration:

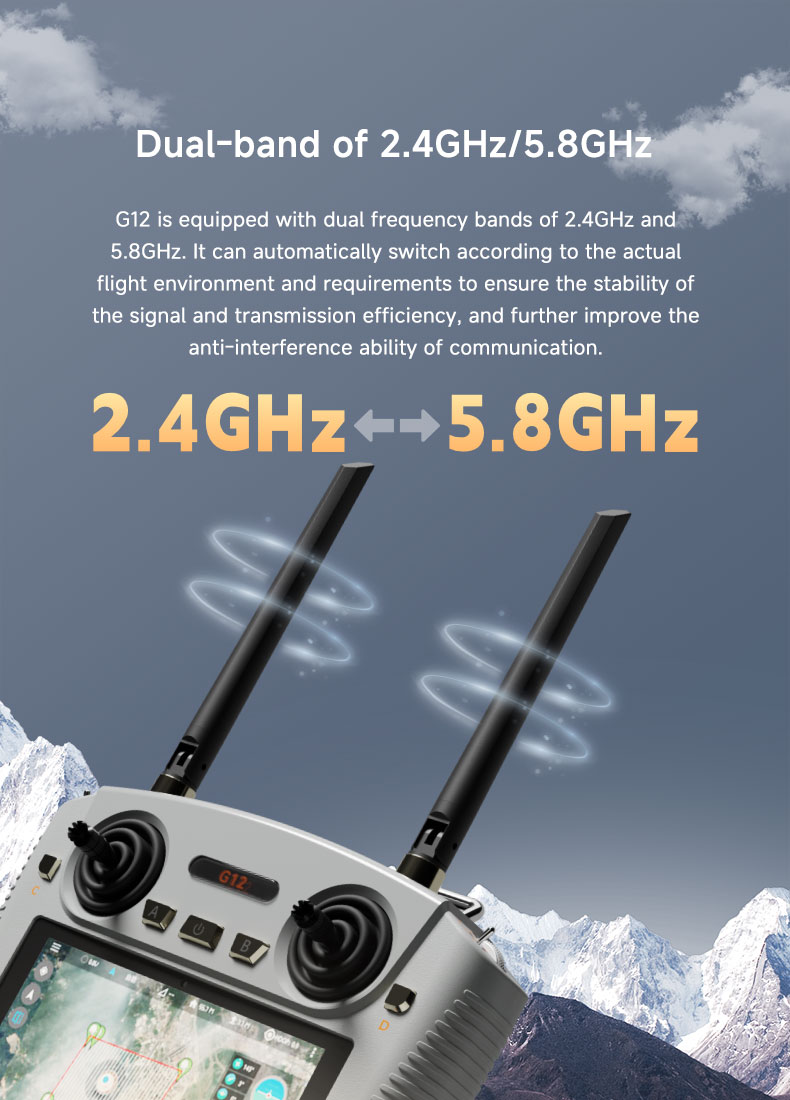

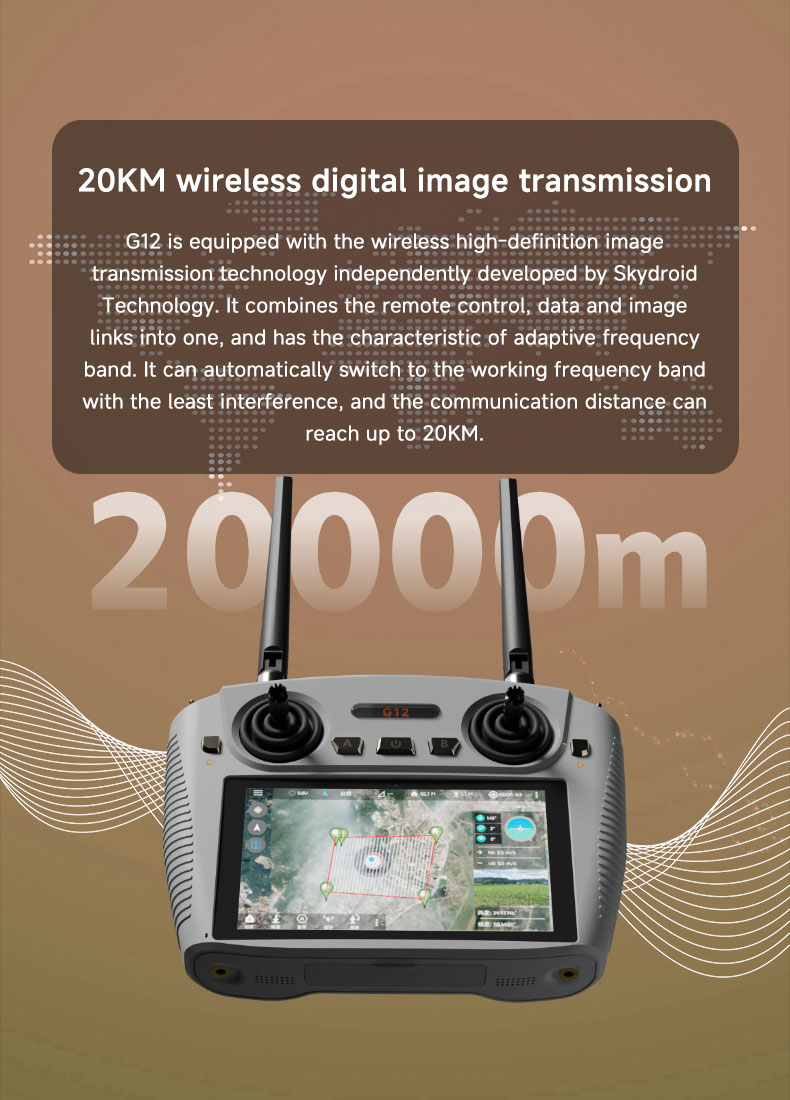

20KM Maximum Range: Featuring a brand new high-power 2.4GHz / 5.8GHz dual-band wireless module.
Interference Immunity: Automatic frequency hopping coupled with dynamic MCS adjustment ensures a rock-solid data link even in dense urban or complex topographies.
20Mbps Throughput: High-speed data transmission port guarantees zero-latency 1080p video feedback.

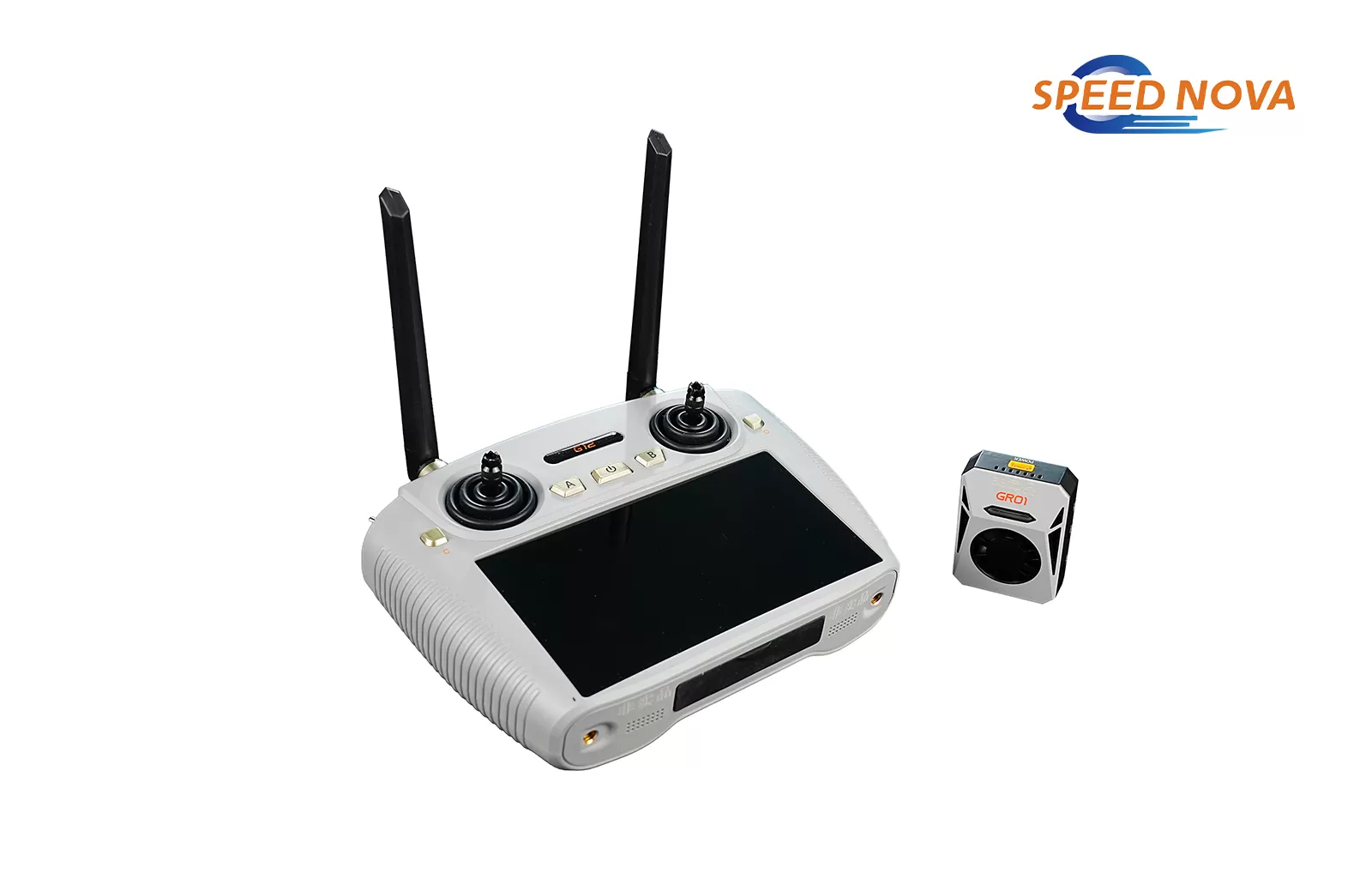

G12 and GR01 Transmitter Parameters
Parameter | Specification |
|---|---|

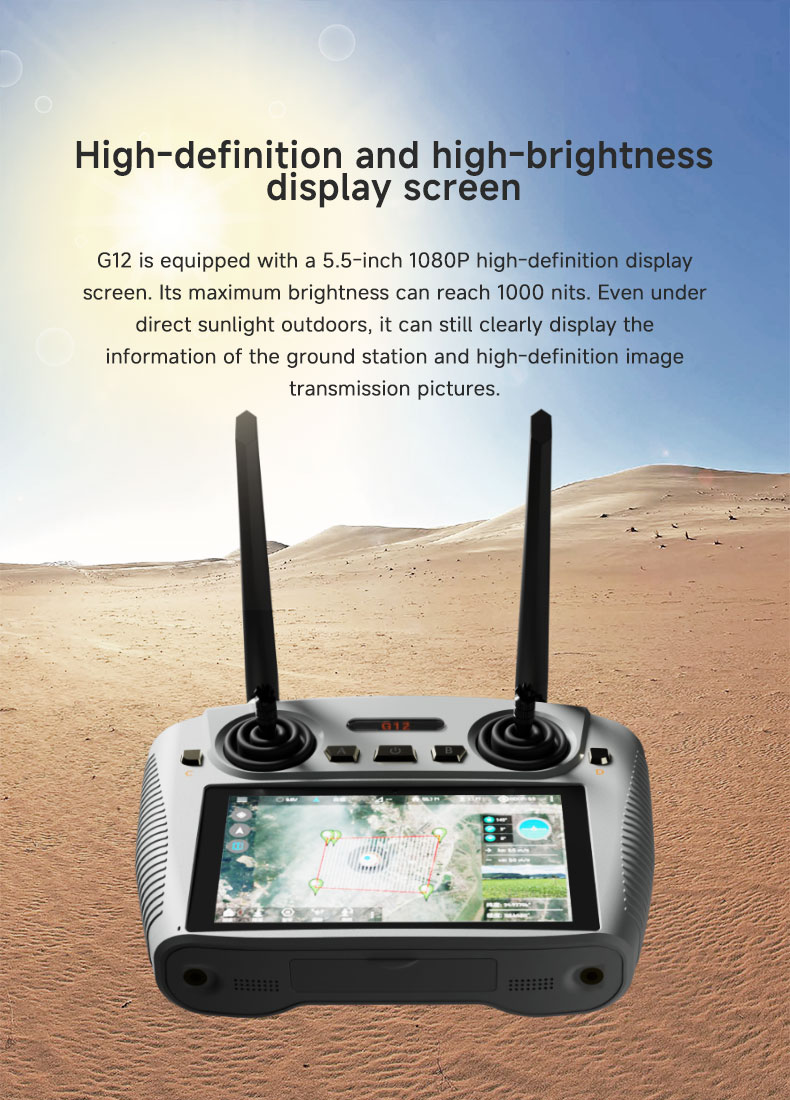

Display | 5.5-inch High-Brightness Screen |
Resolution | 1920 * 1080 |

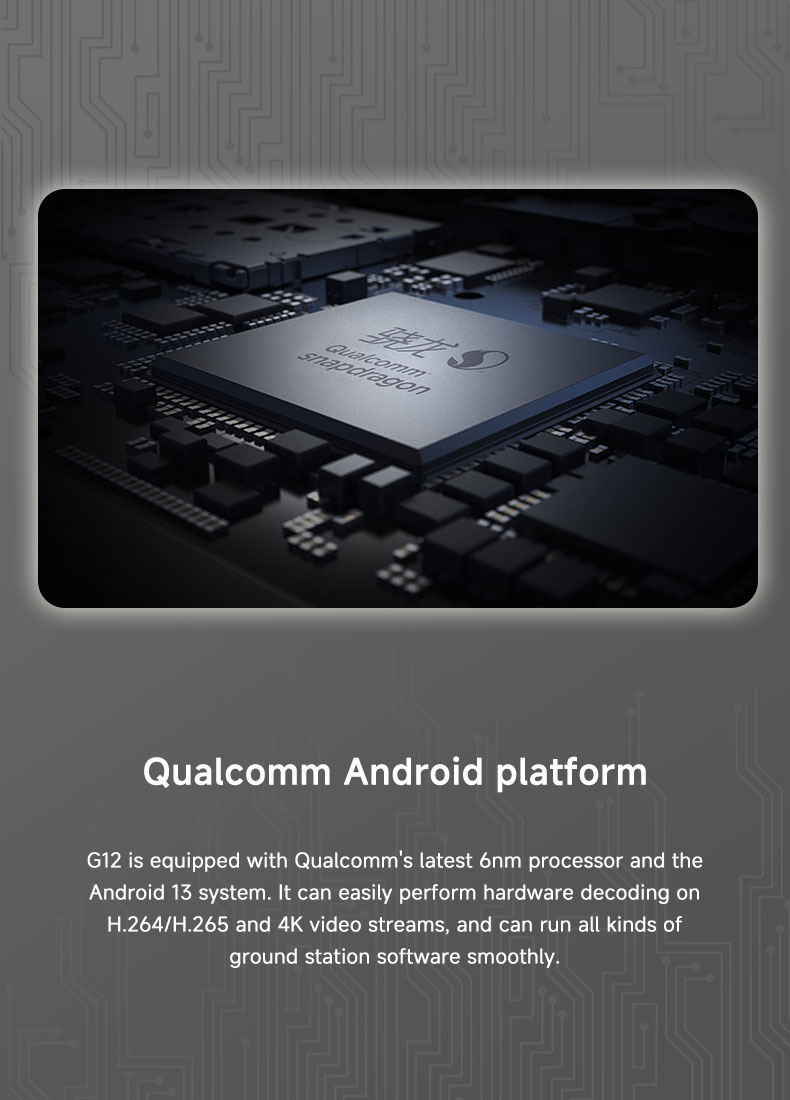

Processor | Qualcomm 6nm Processor |
OS | Android 13 |
Dimensions | 194.3(L)282.2(W)94.9(H) mm |
Weight | 683g |

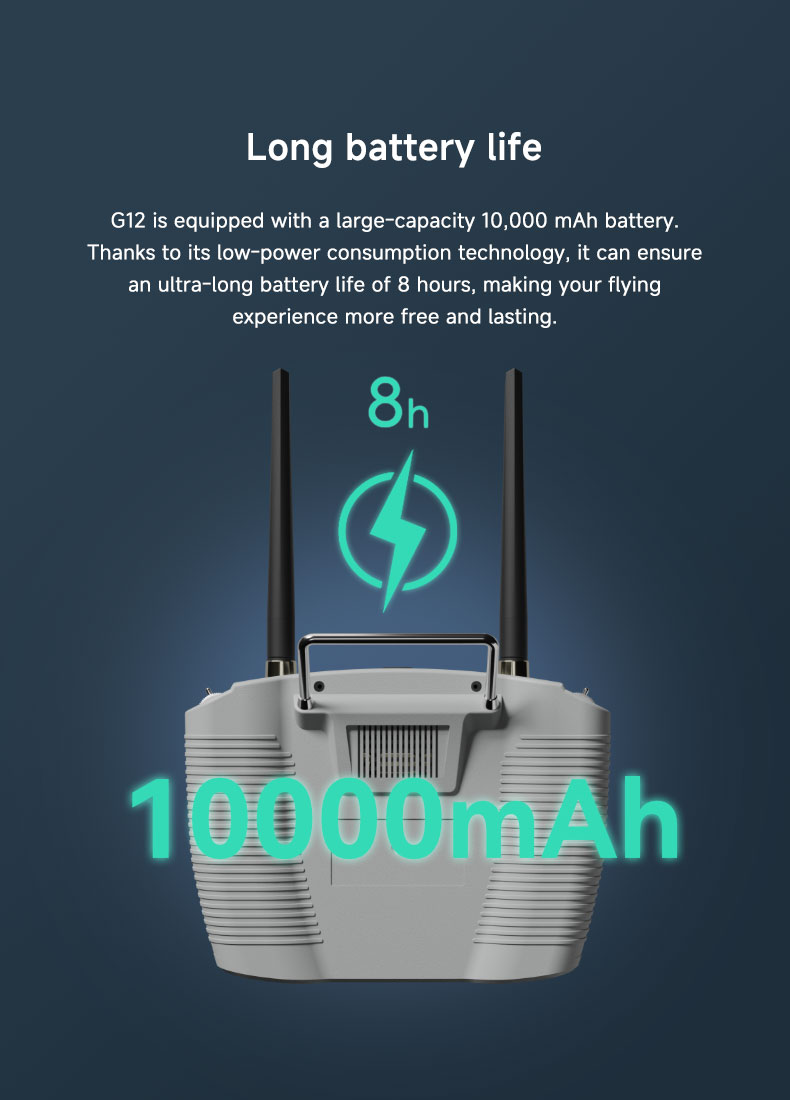

Battery | 10000mAh |
Battery Life | 4~8 hours |
RAM | 4GB |
ROM | 64GB |
Working Frequency Band | 2.4G/5.8G |
Channels | 12 |
Dynamic Frequency Hopping | Auto Hopping |
RF Power | 23dBm@CE/FCC |
Control Range | 5-20KM (Ground-to-Air, Line-of-Sight) |
Operating Temperature | -10℃~55℃ |
Charging Port | TYPE-C |
External Ports | Serial Port, USB Port, SIM Card Slot, TYPE-C |
GR01 Receiver Parameters
Parameter | Specification |
|---|---|
Frequency Band | 2.4G/5.8G |
Serial Port Baud Rate | 57600/115200/921600 |
Supply Voltage | 7.2-72V(XT30) |
Operating Current | 12V/300mA |
Data Transmission Port | 1 Channel |
Air Interface Rate | 200Kbps~160Mbps |
Network Port | 1 Channel |
Dimensions | 45.5(L)60(W)21.5(H) mm |
SBUS Output | 1 Channel |
Weight | 37g |
PWM Interface | 3 Channels |
Operating Temperature | -10℃~60℃ |
RF Power | 23dBm@CE/FCC |
Channel Bandwidth | 1.25MHz/2.5MHz/5MHz/10MHz/20MHz/40MHz |
The G12 is built for extensive reach and robust signal penetration:
20KM Maximum Range: Featuring a brand new high-power 2.4GHz / 5.8GHz dual-band wireless module.
Interference Immunity: Automatic frequency hopping coupled with dynamic MCS adjustment ensures a rock-solid data link even in dense urban or complex topographies.
20Mbps Throughput: High-speed data transmission port guarantees zero-latency 1080p video feedback.
Direct High-Voltage Input: Supports a massive 7.2V to 72V (XT30) supply voltage. Say goodbye to external step-down (BEC) modules, reducing failure points and saving wiring space.
Streamlined Connectivity: Equipped with 1 Network port, 1 SBUS output, and 2 PWM interfaces, meeting all essential command needs without the bulk.
Network Integrations: Built-in SIM card slot for cellular networks, Ethernet (Network port), USB, and Type-C.
Legacy Support: PPM port available for traditional setups.
Equip Your Fleet with Next-Gen Intelligence.The Skydroid G12 is rapidly becoming the standard for modern, agile drone integrators. Don't let outdated tech bottleneck your operations.
Contact RAYI AERO today to secure your stock, request developer SDKs, or get a custom B2B wholesale quotation.
