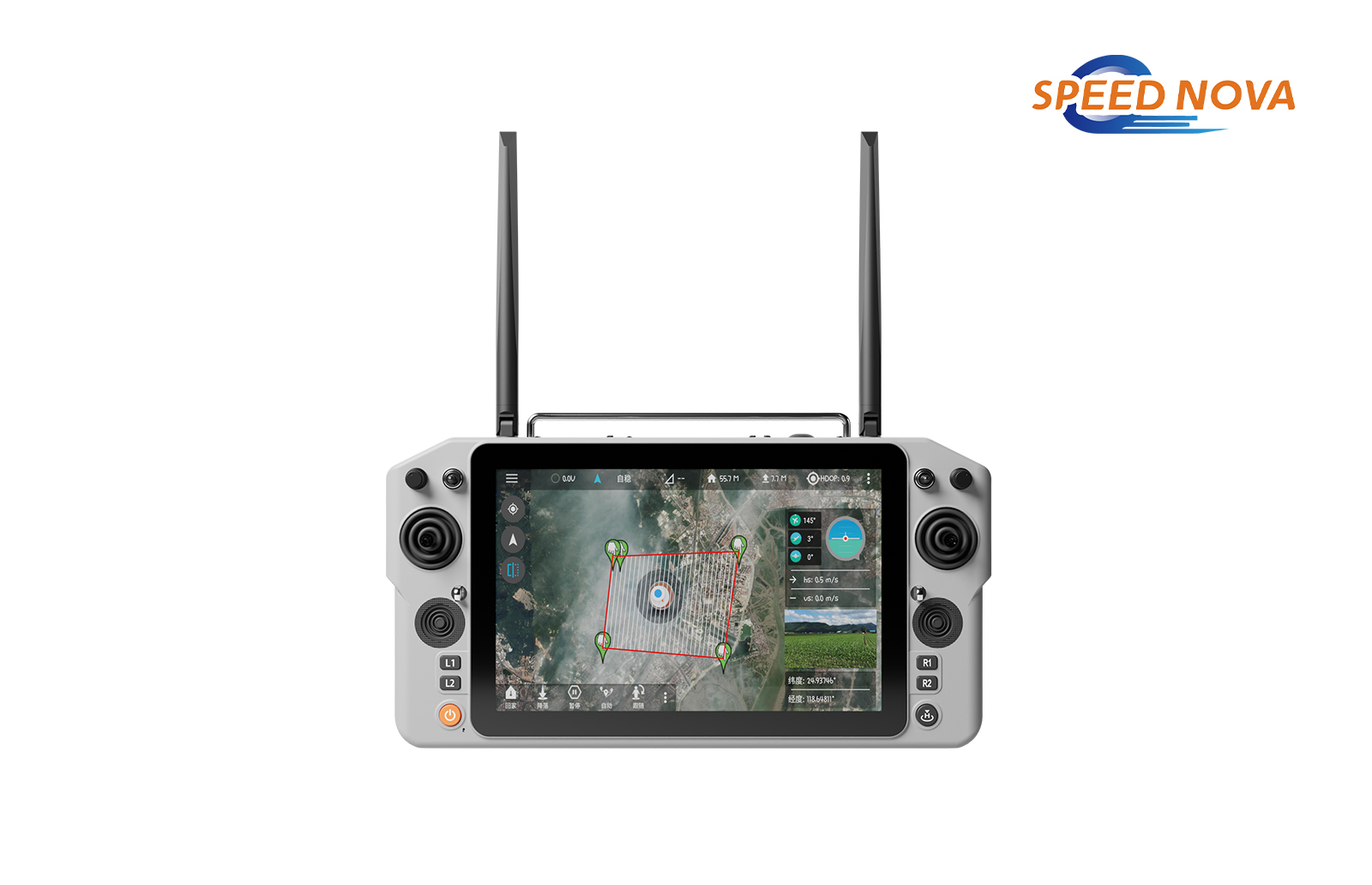

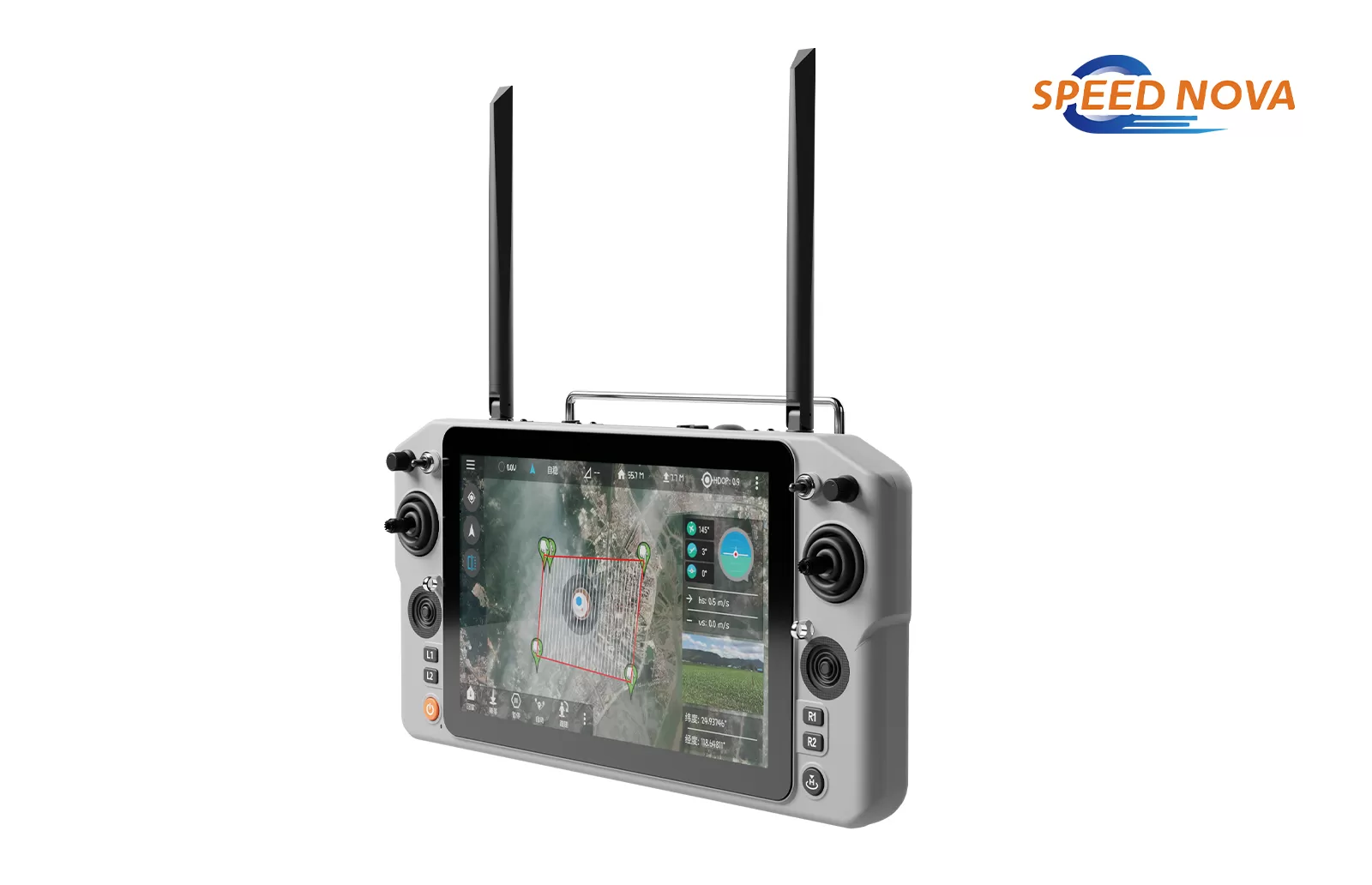

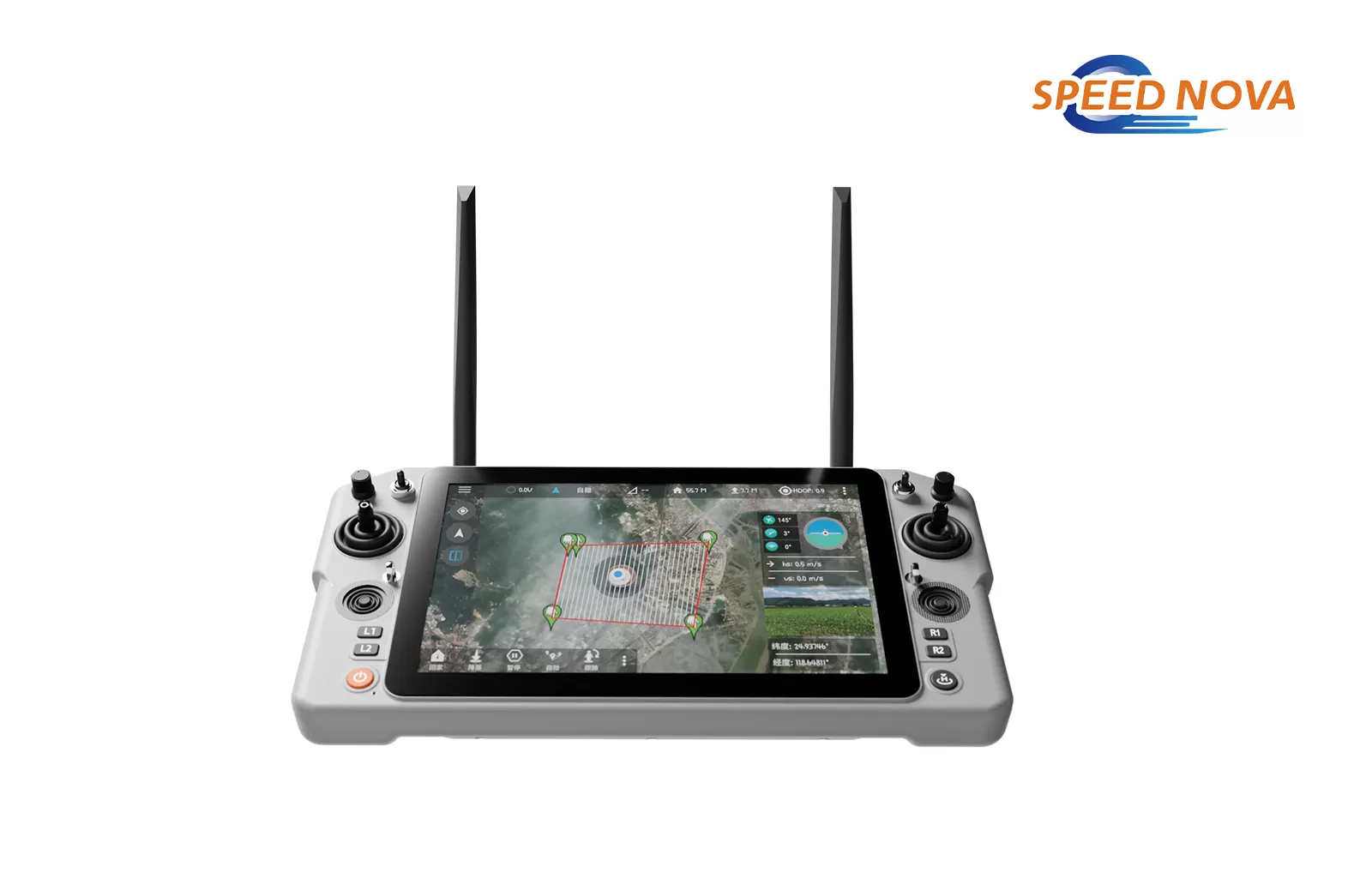

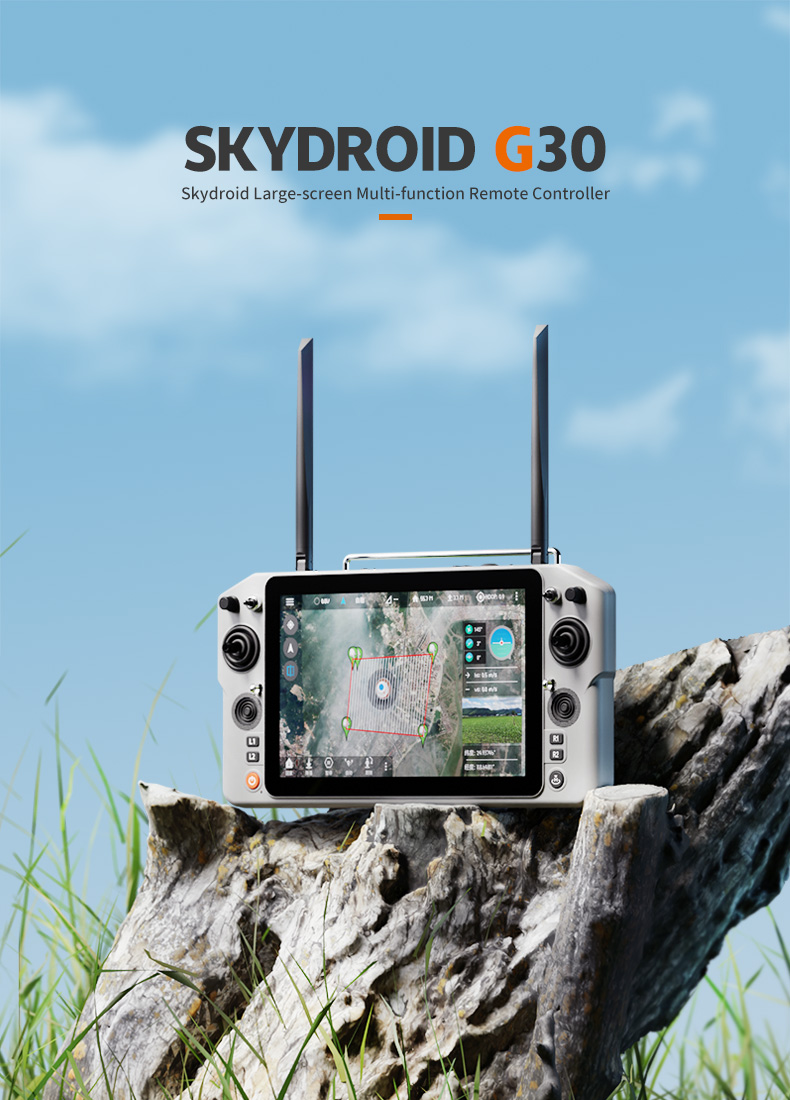

Headline: Skydroid G30 Dual-Screen Smart Ground Station
Sub-headline: Redefining Industrial Drone Control. Ultimate integration of long-range video, telemetry, and RC in one powerful dual-screen device.
Call to Action (CTA) Button: Get a Quote / Contact Us
RAYIAERO
The first-tier agent, brings you quality service and the lowest price
The Skydroid G30 is the ultimate control hub for B2B applications. It is widely compatible with flight controllers and perfectly suited for:
Heavy-Lift Drones: Reliable control for logistics and heavy payload transport.
Mapping & Surveying: Clear dual-screen visibility for route planning and real-time mapping.
Agricultural Spraying: Precise interface controls for agricultural UAVs.
Security & Inspection: Secure, long-range encrypted transmission for critical missions.
Fully supported by Skydroid's powerful software ecosystem:
Skydroid FLY & Camera FPV App: Optimized for seamless flight control and video monitoring.
RCSDK Support: Developer-friendly SDK for data link communication, integrating remote control, gimbal, and camera systems.

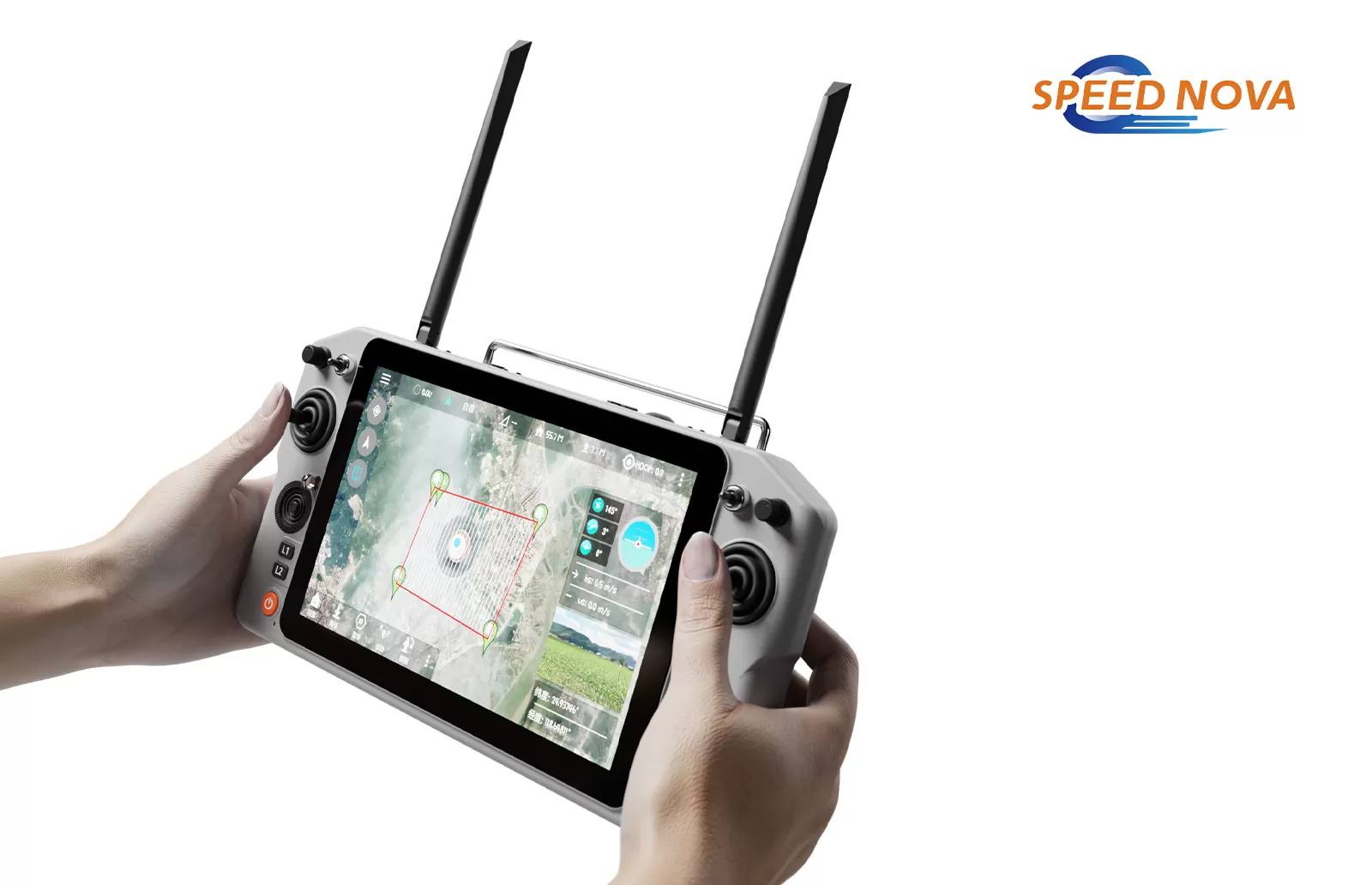

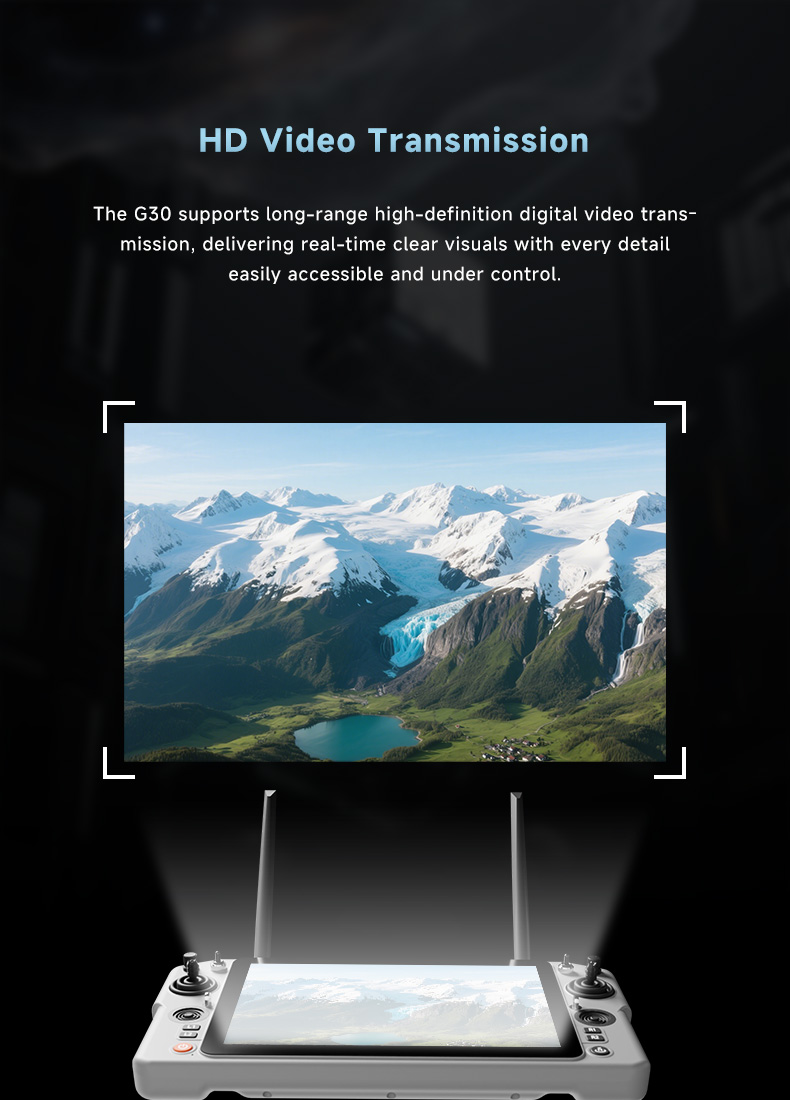

Dual-Screen Excellence: Equipped with highly responsive, high-brightness dual screens. Monitor flight data and HD video transmission simultaneously without switching interfaces, boosting operational efficiency.
Robust Signal & Transmission: Paired with the GR03 receiver, featuring adjustable channel bandwidths (1.25M to 40M) and a 23dBm RF power, ensuring stable video and data links even in complex environments.

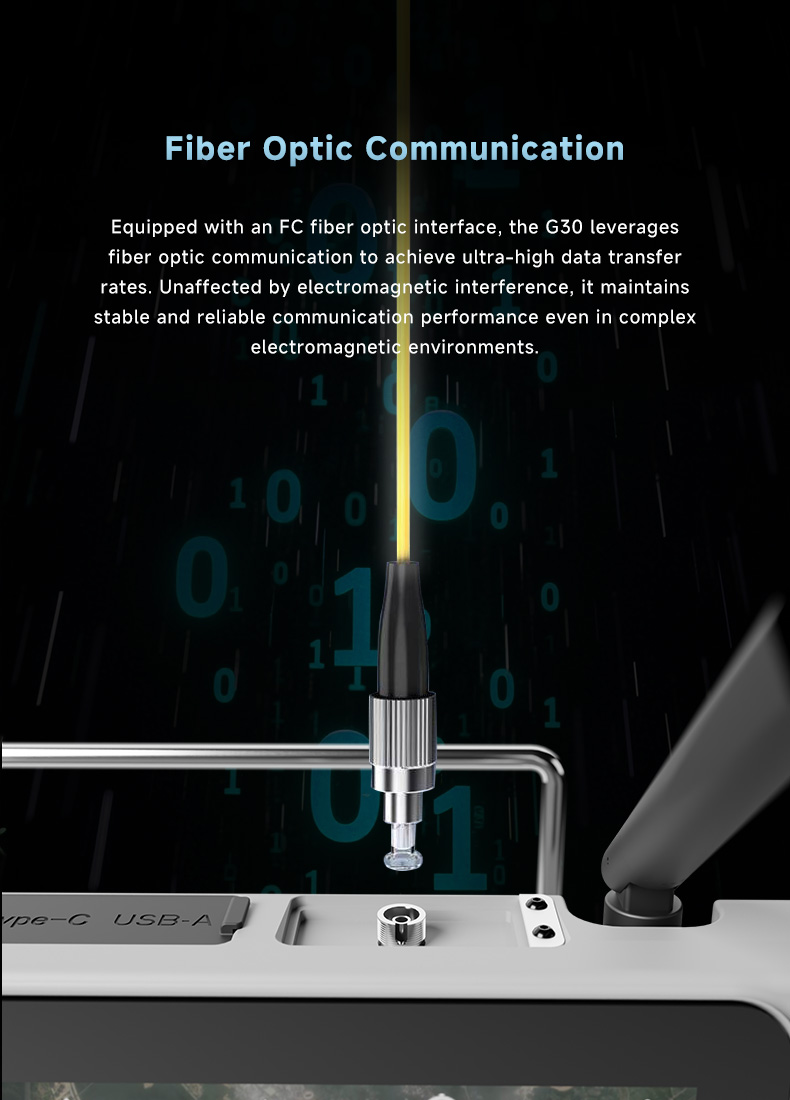

Rich Expandability: Designed for professional payloads. Includes 2 Ethernet ports, 1 SBUS output, 3 PWM interfaces, audio output, and a Fiber Optic interface, ready for diverse industrial requirements.
All-Weather Reliability: Built for extreme conditions, operating flawlessly in temperatures ranging from -10℃ to 60℃.

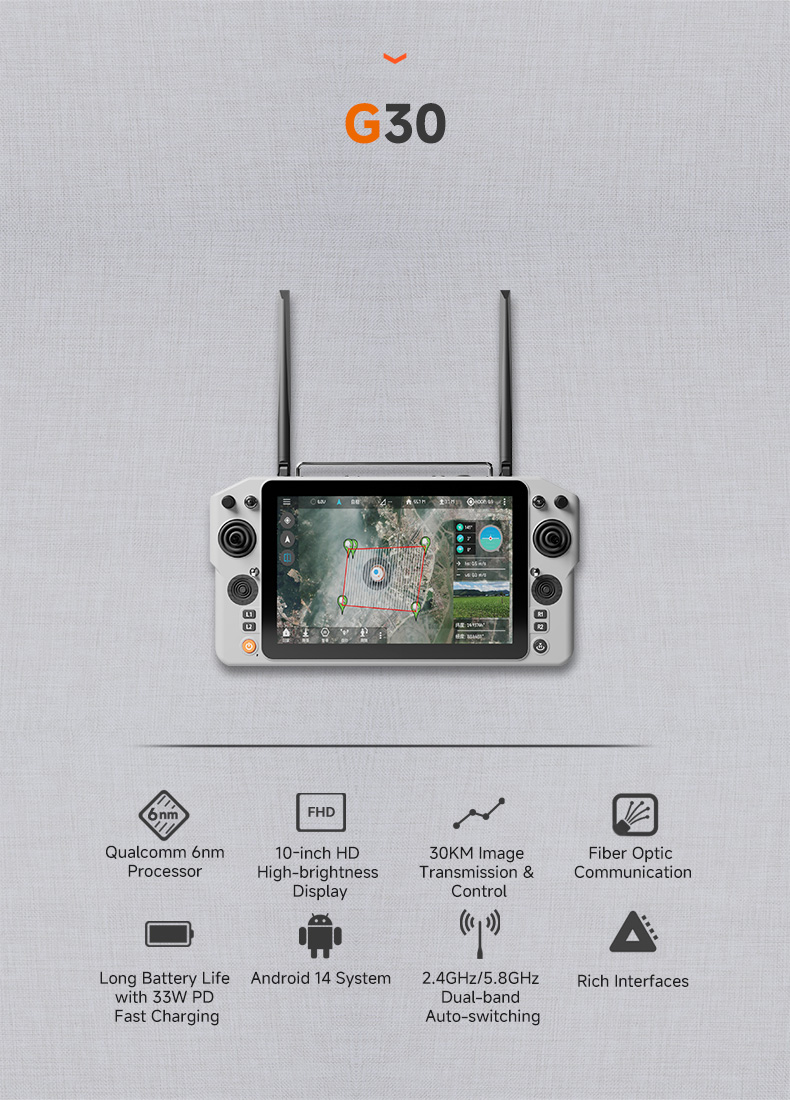

G30 Remote Controller Parameters
Parameter | Value |
|---|---|

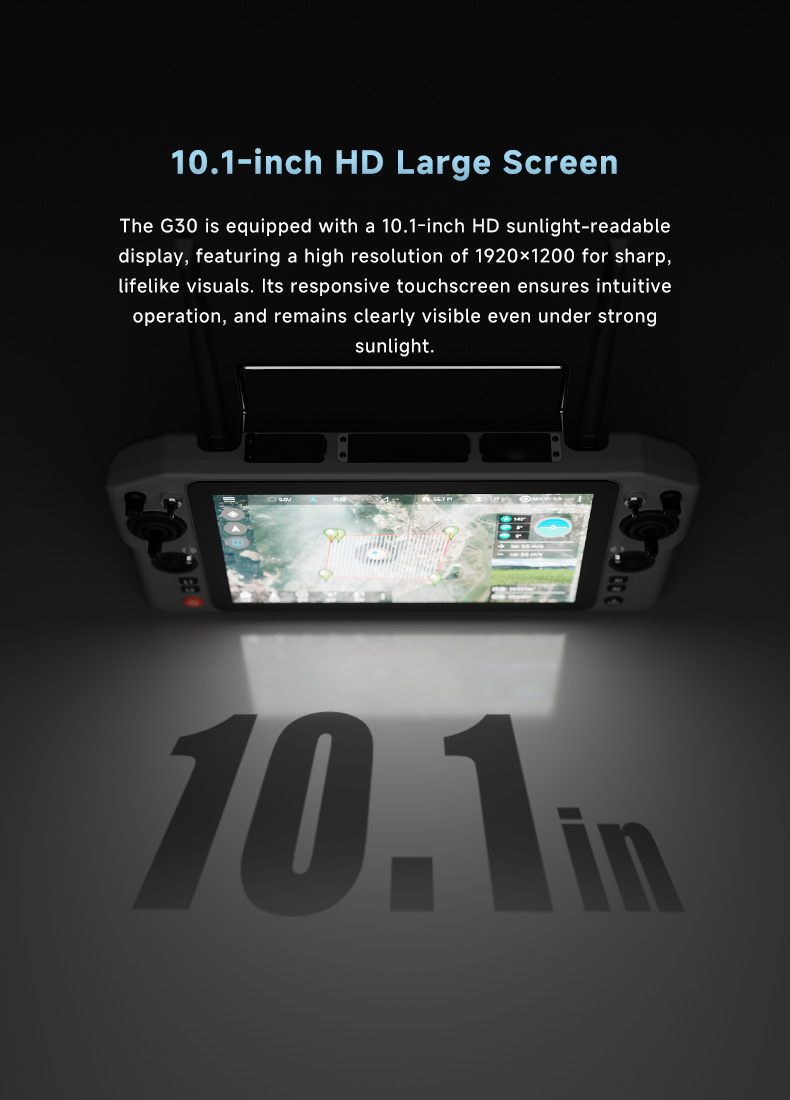

Display Screen | 10.1-inch Industrial Touchscreen + Sunlight-Readable Display |
Screen Resolution | 1920 * 1200 |

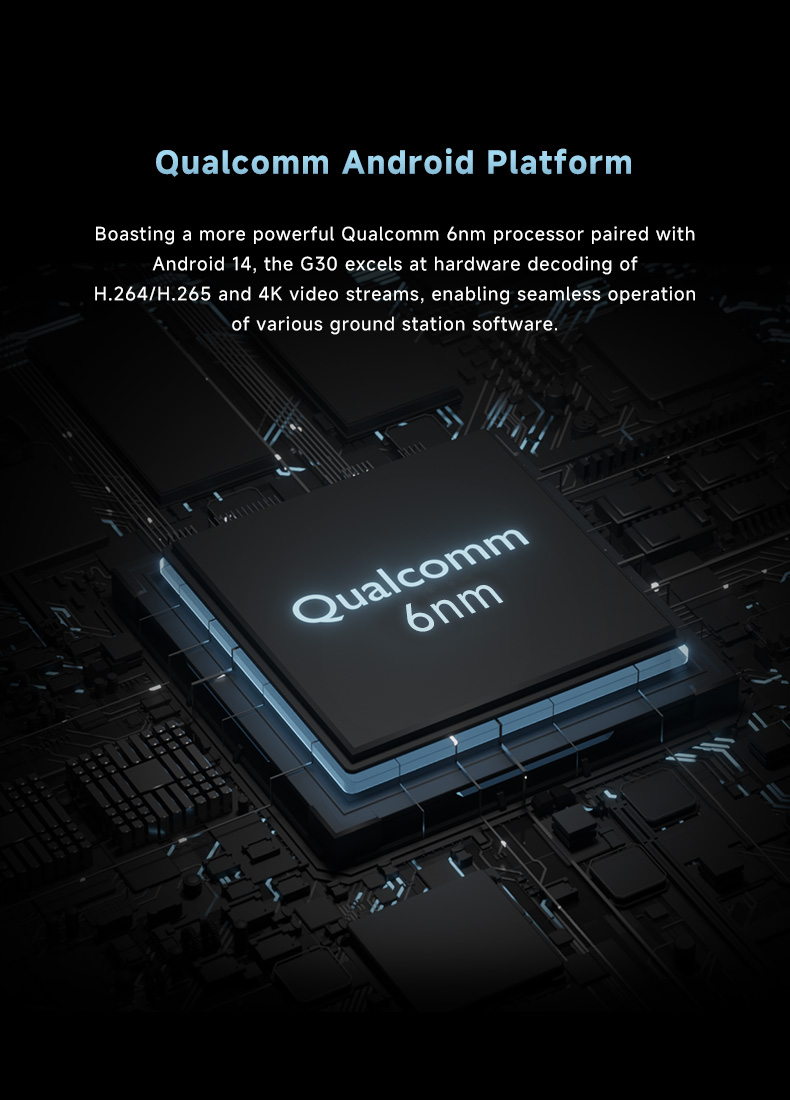

Processor | Qualcomm 6nm Processor |
Computer Type | Android 14 |
Dimension | 346(L)196.5(W)89.4(H) mm |
Weight | 1.5 kg |

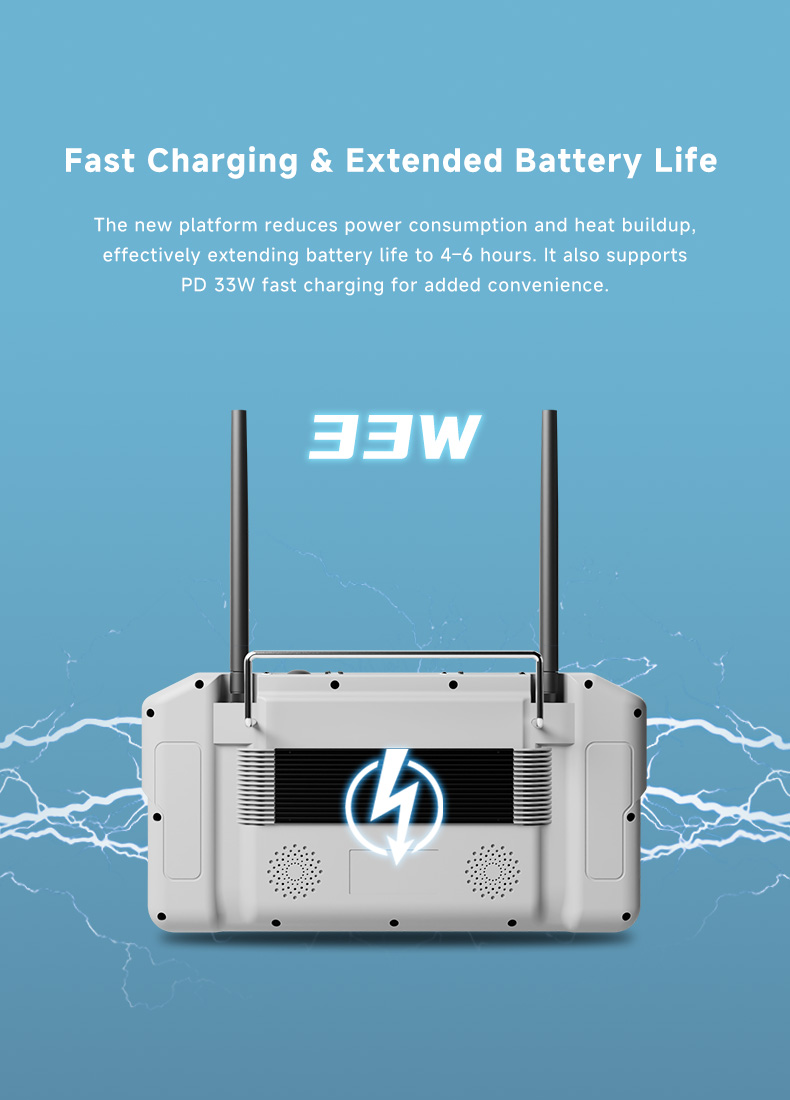

Battery | 20000 mAh |
Battery Life | 6~8 hours |
RAM | 8 G |
System Storage | 128 G |

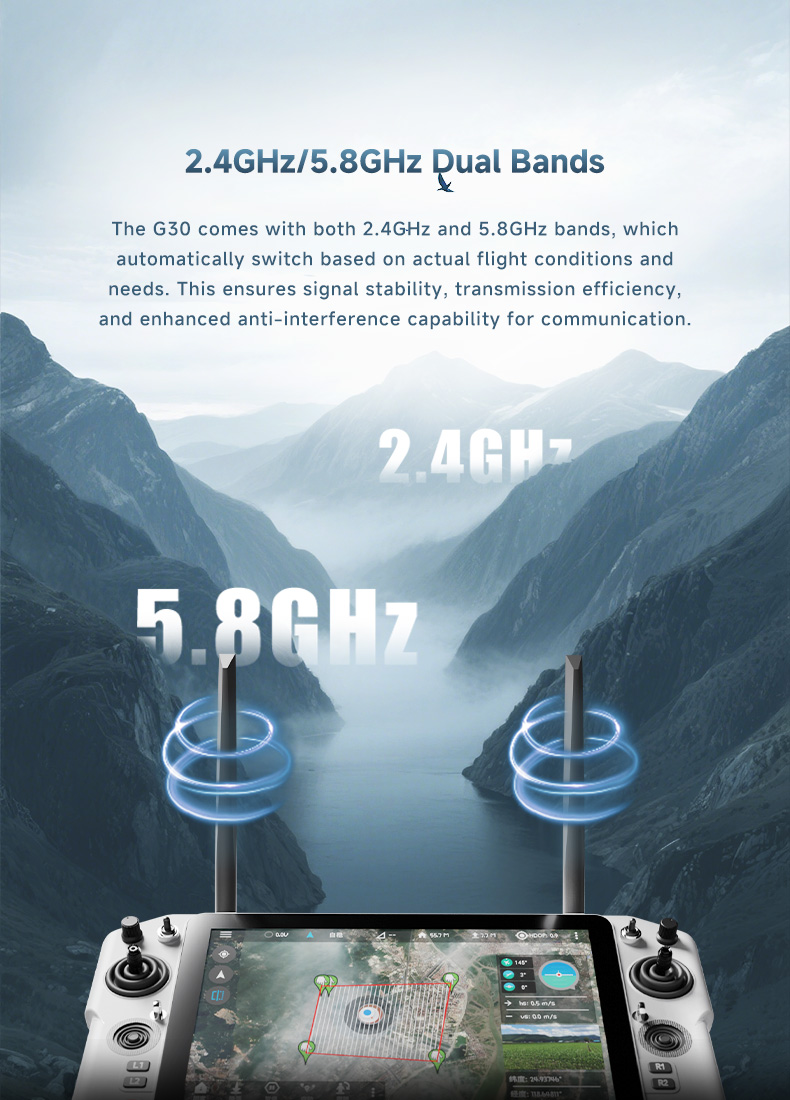

Operating Frequency Band | 2.4 Ghz / 5.8 Ghz |
Number of Channels | 16 |
Dynamic Frequency Band | Automatic Frequency Hopping |
RF Power | 23 dBm |

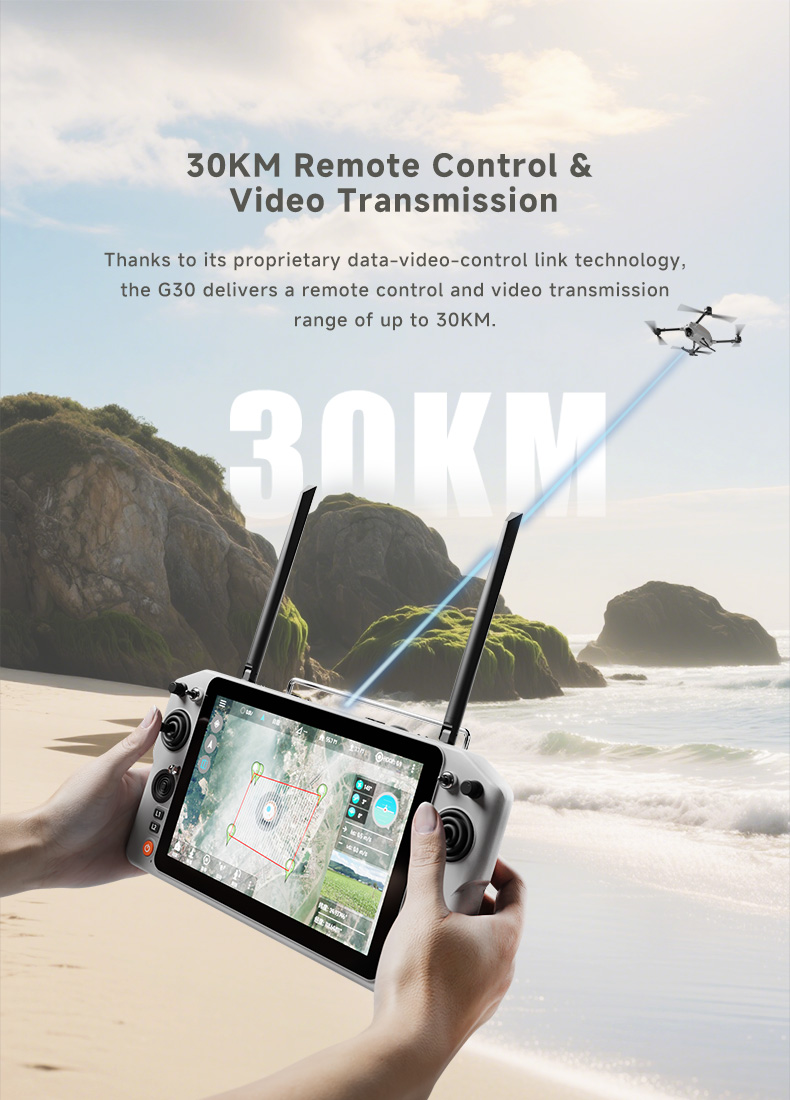

Remote Control Range | 5-30 KM (Ground-to-Air, Line of Sight) |
Operating Temperature | -10℃ ~ 55℃ |
Fiber Optic Range | 20 KM |
Charging Interface | TYPE-C |
External Interfaces | USB Port, SIM Card Slot, TYPE-C/DP Port, Ethernet Port, PPM Port, FC Port |
Parameter | Value |
|---|---|
Operating Frequency Band | 2.4 Ghz / 5.8 Ghz |
Serial Port Baud Rate | 57600 / 115200 / 921600 |
Supply Voltage | 7.2 V ~ 72 V (XT30) |
Working Current | 12 V / 350 mA |
Data Transmission Port | 2 channels |
SBUS Input | 1 channels |
Ethernet Port | 2 channels |
FC Interface | 1 channels |
Dimension | 58.7 x 82 x 20 mm |
Weight | 120 g |
PWM Interface | 3 channels |
Working Temperature | -10℃ ~ 60℃ |
Audio Output | 1 channels |
RF Power | 23 dBm @ CE/FCC |
Upload Speed | 200 kbps (Upload mode can be enabled, with a maximum speed of up to 1.2 Mbps) |
Download Speed | 10 Mbps (The maximum speed can reach 20 Mbps, which requires customization) |
Channel Bandwidth | 1.25 MHz / 2.5 MHz / 5 MHz / 10 MHz / 20 MHz / 40 MHz |
Note | Enabling upload/download mode will affect communication distance; it is recommended for short-distance use. (This note applies to transmission rate settings.) |
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
Ready to Upgrade Your Drone Fleet?Contact our RAYI AERO sales team today for bulk pricing, technical support, and shipping details for the Skydroid G30.
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
No Use For War!
Power supply method and precautions
The G20 series floor terminal is equipped with an integrated rechargeable lithium battery that is compatible with the market standard TYPE-C interface. Please use the original charger for charging
If you encounter situations such as smoking, unusual odor, or leakage during ground-side charging, please do not continue charging the ground side and instead transfer it to our company for
Maintenance.
Please do not charge this product in the area where babies can touch, to avoid the risk of electric shock.
