RAYI AeroLift Ascend is a personal eVTOL aircraft designed for manned multi-rotor flight applications. The aircraft uses a carbon fiber and 7075 aviation aluminum structure, with eight motors, eight propellers and eight electronic speed controllers. It has a weight of 80 kg excluding batteries, a rated payload of 100 kg and a maximum take-off weight of 250 kg. With a 2–4 battery configuration, the listed flight duration is 20–40 minutes and the listed flight distance is 25–50 km. The aircraft supports a maximum flight speed of 80 km/h and includes a flight control system, remote control, dual joysticks, GPS navigation, high-definition touch screen and charger. Final configuration, battery selection, operating conditions and regulatory requirements should be confirmed before purchase.
Personal eVTOL Aircraft
For Manned Multi-Rotor Flight Applications
Advanced Personal eVTOL Flight Platform

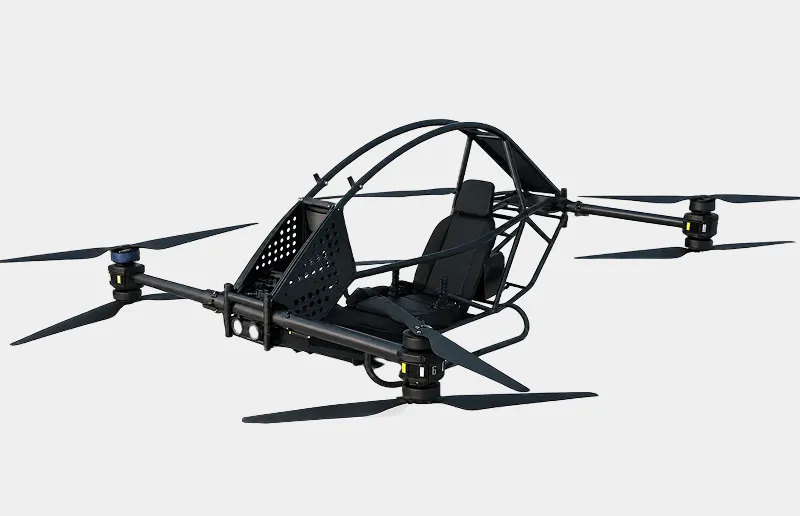

Lightweight eVTOL Structure
RAYI AeroLift Ascend combines a carbon fiber and 7075 aviation aluminum structure with an eight-motor multi-rotor layout. The aircraft weighs 80 kg excluding batteries and provides a rated payload of 100 kg. Its integrated flight control system, GPS navigation, remote control and dual joysticks support system operation and pilot control. Final assembly configuration and operating conditions must be confirmed for each application.
Configurable Battery Flight System
The aircraft supports a 2–4 battery configuration, with a listed flight duration of 20–40 minutes and a listed flight distance of 25–50 km. Each battery is listed at 16.5 kg, while charging time is approximately 45 minutes per unit. Battery quantity, flight distance, payload, charging equipment and transport requirements should be confirmed before ordering and system integration.

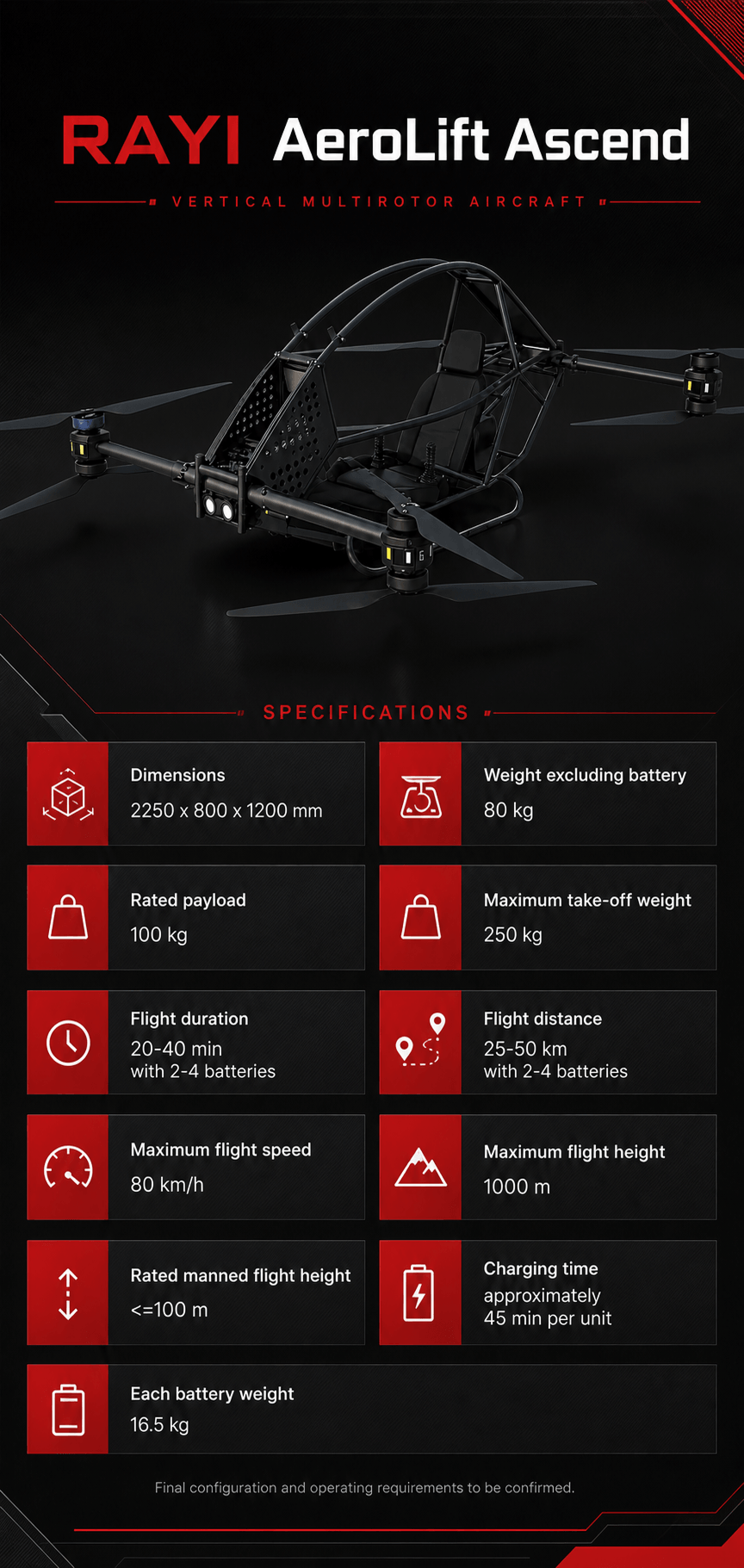

Technical Parameters
· Product Type: Personal manned multi-rotor eVTOL aircraft
· Dimensions: 2250 × 800 × 1200 mm
· Weight Excluding Battery: 80 kg / 176 lb
· Rated Payload: 100 kg / 220 lb
· Maximum Take-off Weight: 250 kg / 551 lb
· Flight Duration: 20–40 min with 2–4 batteries
· Flight Distance: 25–50 km with 2–4 batteries
· Maximum Flight Speed: 80 km/h / 50 mph
· Maximum Flight Height: 1000 m / 3280 ft
· Rated Manned Flight Height: ≤ 100 m
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Core Aircraft Specifications
· Eight-motor personal eVTOL aircraft configuration
· Carbon fiber and 7075 aviation aluminum structure
· 80 kg weight excluding batteries
· 100 kg rated payload
· 20–40 min flight duration with 2–4 batteries
· 25–50 km listed flight distance with 2–4 batteries
· 80 km/h maximum flight speed
· Integrated flight control, GPS navigation and remote control system
Configuration and Shipping
· Aircraft configuration and included equipment: To be confirmed
· Battery quantity: 2–4 batteries depending on the selected configuration
· Battery transport documents and shipping requirements: To be confirmed
· Packaging dimensions, delivery terms and shipping cost: To be confirmed
· Final configuration should be confirmed before ordering
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Notes
· Confirm the final battery quantity, battery type and charging equipment before ordering.
· Flight duration and flight distance depend on battery configuration, payload, weather and operating conditions.
· Confirm the rated payload and maximum take-off weight before carrying passengers or equipment.
· Installation, flight control configuration and commissioning should be completed by qualified personnel.
· Operating height, airspace access and manned eVTOL requirements depend on local aviation regulations.
· Product authorization, certification status and target-market compliance documents should be confirmed before purchase.
