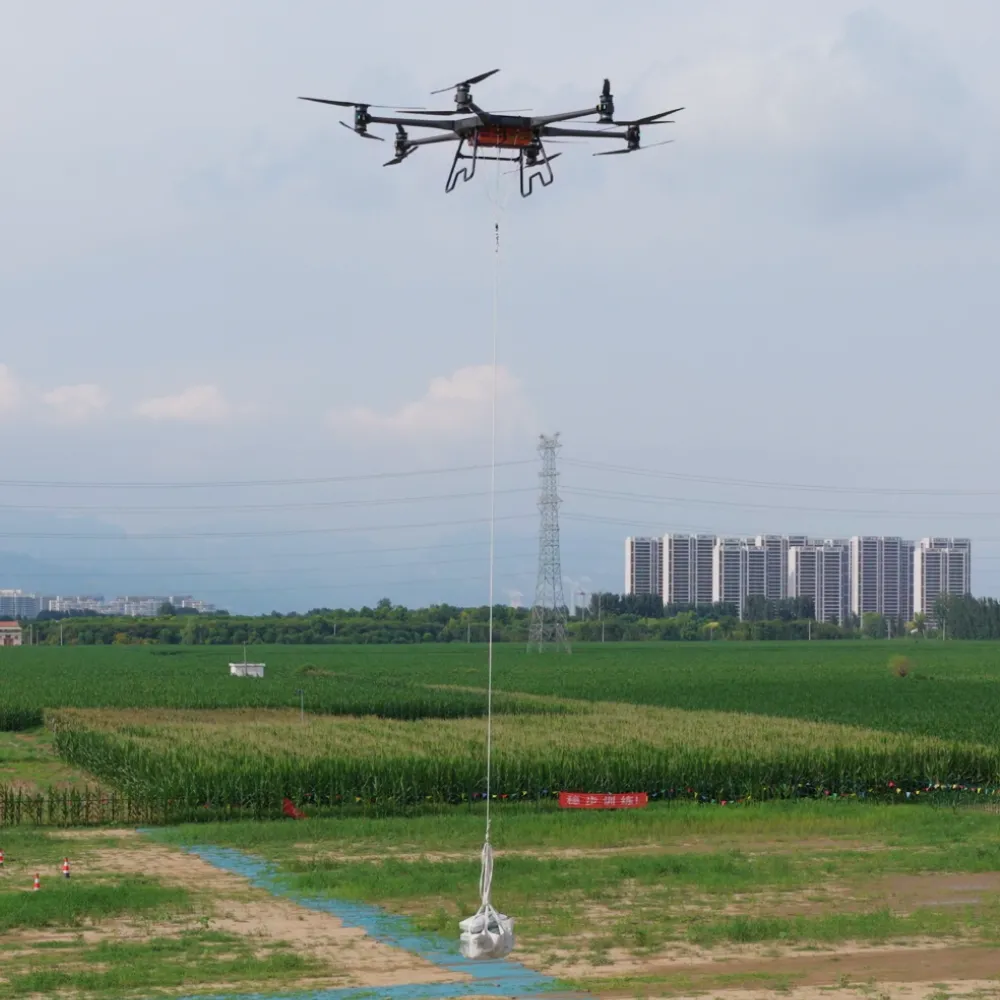

RAYI CargoLift Atlas is a heavy-lift cargo transport UAV designed for high-payload unmanned aerial transport. Its six-axis, 12-rotor configuration uses an electric power system and provides a maximum payload of 350 kg with a maximum take-off weight of 610 kg. The platform supports manual attitude control, GPS manual control, route flight and optional RTK manual control. Its cargo space is specified at 4000 × 900 × 700 mm, while the platform includes safety functions such as return to home, failsafe return, low-voltage warning, geo-fence and fault alarms. Flight endurance varies by take-off weight and payload, with listed conditions ranging from 9 to 30 minutes. Final configuration, operating area and transport requirements should be confirmed before ordering.
Heavy-Lift Cargo UAV
For Industrial Unmanned Cargo Transport
High-Payload Cargo Transport Platform

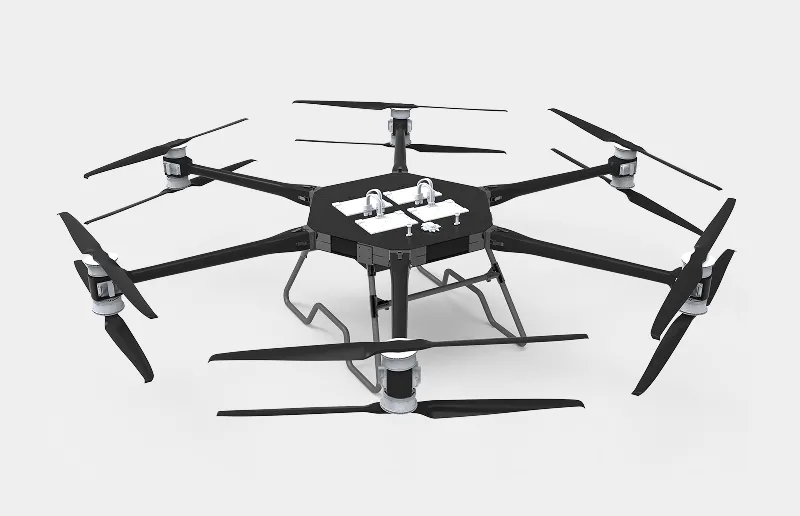

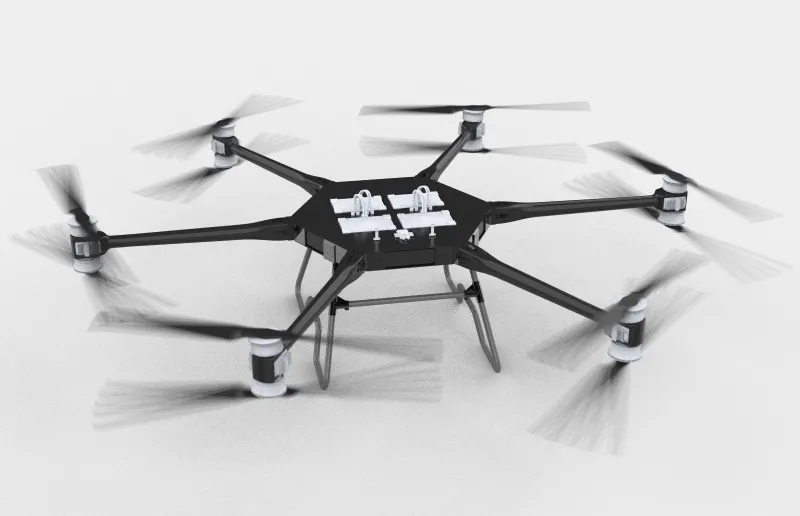

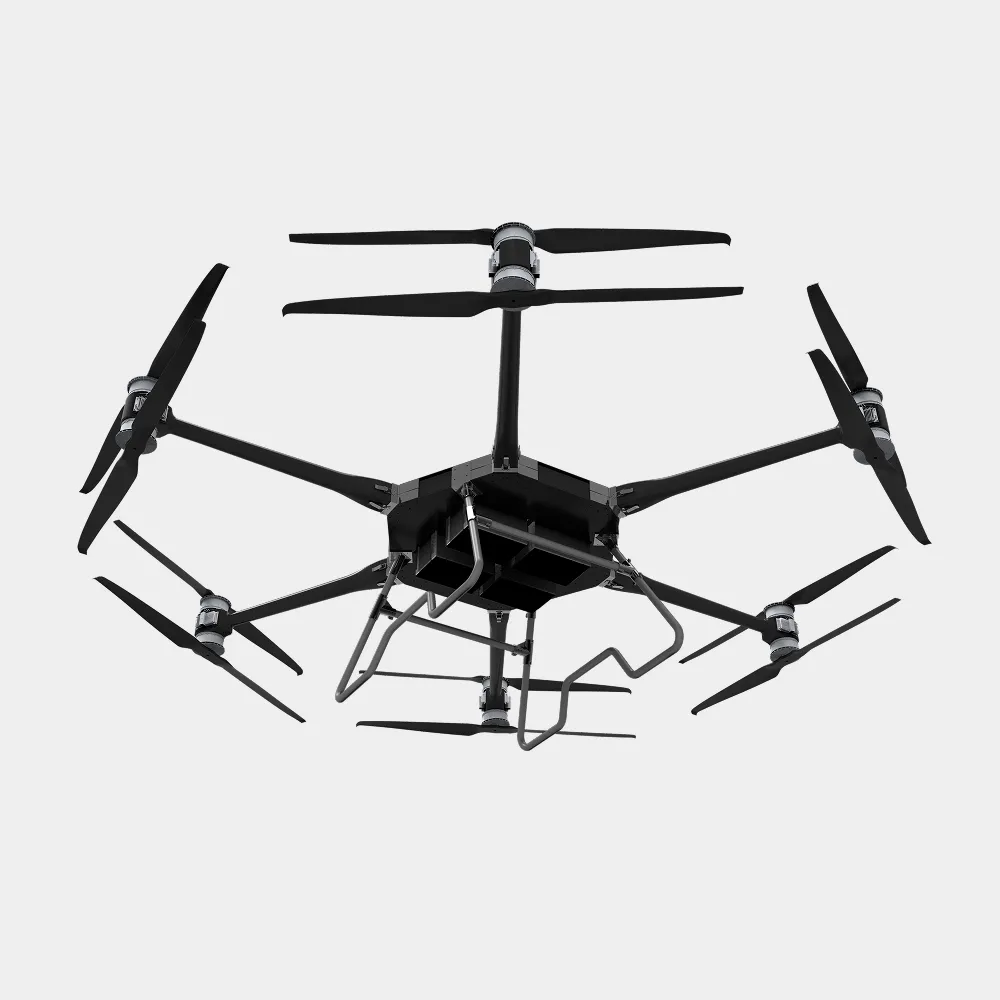

Six-Axis Heavy-Lift Configuration

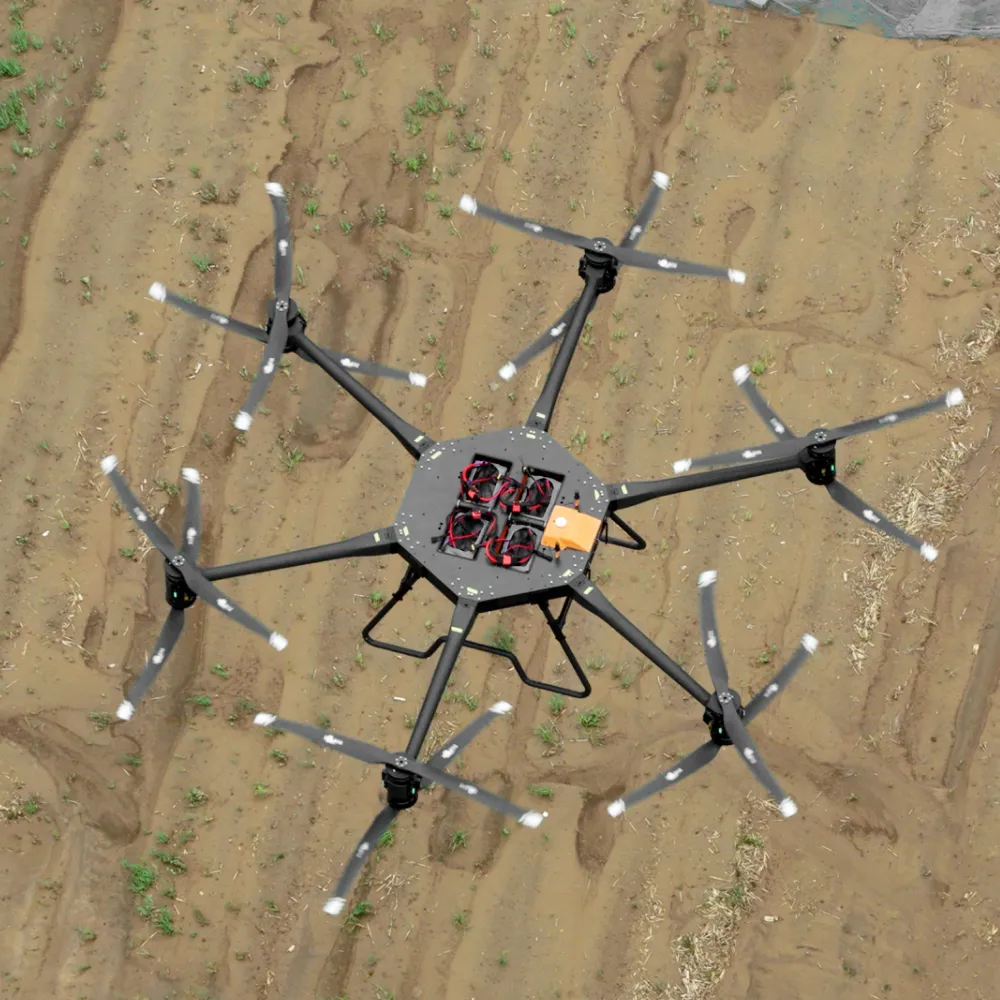

RAYI CargoLift Atlas uses a six-axis, 12-rotor configuration for heavy-lift unmanned cargo transport. The electric platform has a maximum payload of 350 kg and a maximum take-off weight of 610 kg. A standard cargo space of 4000 × 900 × 700 mm supports large-format cargo loading. The final cargo arrangement, center of gravity and take-off weight must be confirmed for each operation.
Payload-Based Flight Endurance
The listed endurance varies with take-off weight and payload: 30 minutes at 260 kg take-off weight without payload, 12 minutes at 560 kg take-off weight with a 300 kg payload, and 9 minutes at 610 kg take-off weight with a 350 kg payload. These values are measured under ideal conditions and should be reviewed together with weather, battery condition, flight route and operating requirements.
Technical Parameters
· Product Type: Heavy-Lift Cargo Transport UAV
· Rotor Configuration: 6-axis, 12-rotor
· Maximum Payload: 350 kg
· Maximum Take-off Weight: 610 kg
· Cargo Space: 4000 × 900 × 700 mm
· Maximum Flight Speed: 15 m/s
· Maximum Take-off Altitude: 4000 m AMSL
· Wind Resistance: ≥ Grade 7
· Power Type: Electric
· Operating Temperature: 0–45°C
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Core Heavy-Lift Capabilities
· Six-axis, 12-rotor heavy-lift UAV platform
· Maximum payload of 350 kg
· Maximum take-off weight of 610 kg
· Standard cargo space of 4000 × 900 × 700 mm
· Electric propulsion system for unmanned cargo transport
· Manual, GPS, route and optional RTK flight modes
· Return-to-home and failsafe protection functions
· Payload-based endurance from 9 to 30 minutes under listed conditions
Configuration and Shipping
· UAV platform: 1 set
· Integrated remote ground station: 1 unit
· Power batteries: 4 units, 28S 50Ah high-energy battery
· S7327 propellers: 12 pieces
· 15 kW dual-channel charger: 1 unit
· External load system: 1 set
· Airframe packing case: 1 wooden case
· Tool kit and on-site flight training: Subject to final quotation
· Battery transport documents, delivery terms and shipping cost: To be confirmed
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Operating Notes
· The 300 kg payload value refers to a specific endurance test condition; the listed maximum payload is 350 kg.
· Flight endurance depends on payload, take-off weight, battery condition, weather and operating conditions.
· Confirm cargo dimensions, loading method, center of gravity and total take-off weight before flight.
· The platform requires a clear take-off and landing area with no buildings, trees, structures or high-voltage lines within the specified clearance area.
· Confirm wind conditions, airspace access, route approval and local UAV operating requirements before deployment.
· RTK positioning, external load equipment and other optional configurations should be confirmed before ordering.
