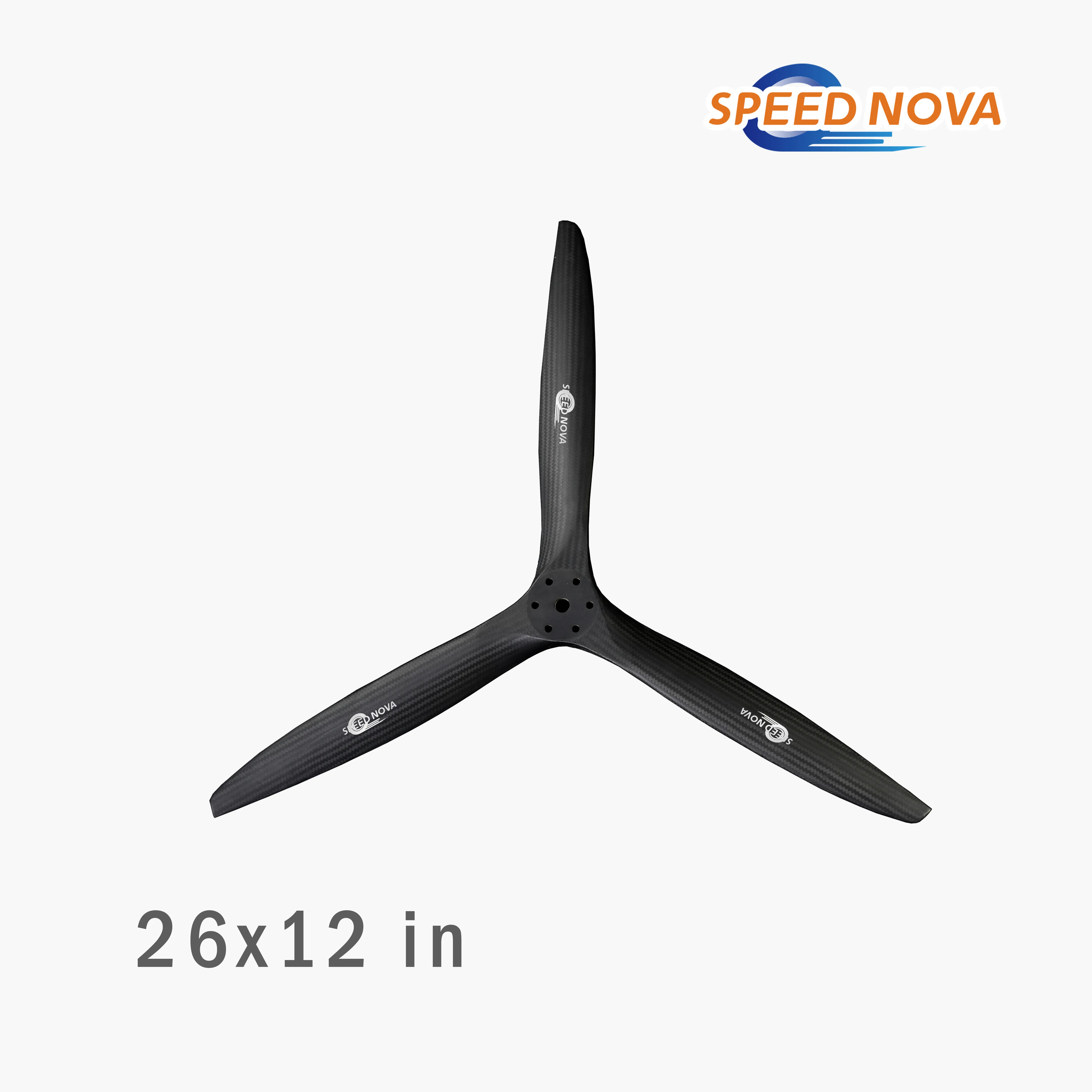

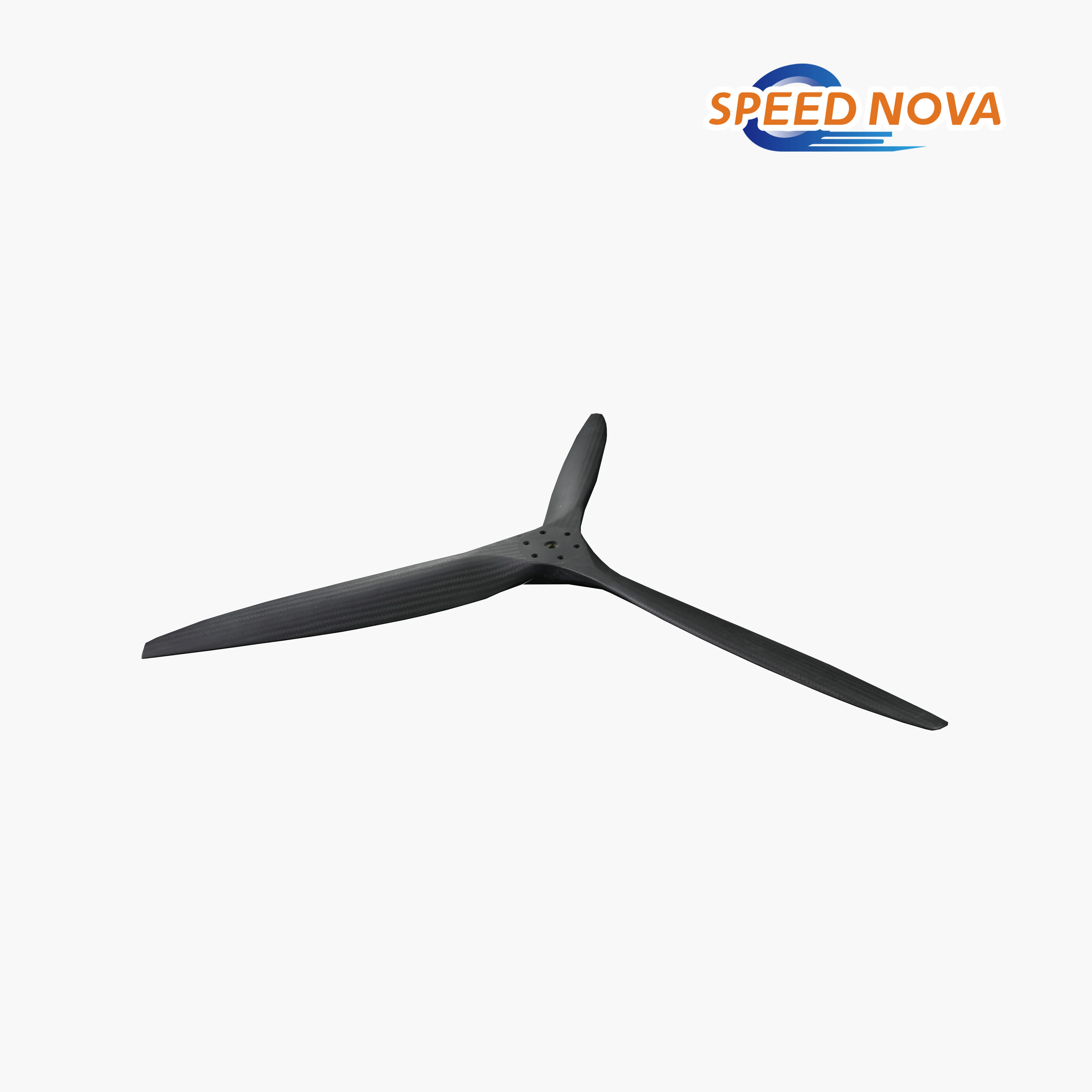

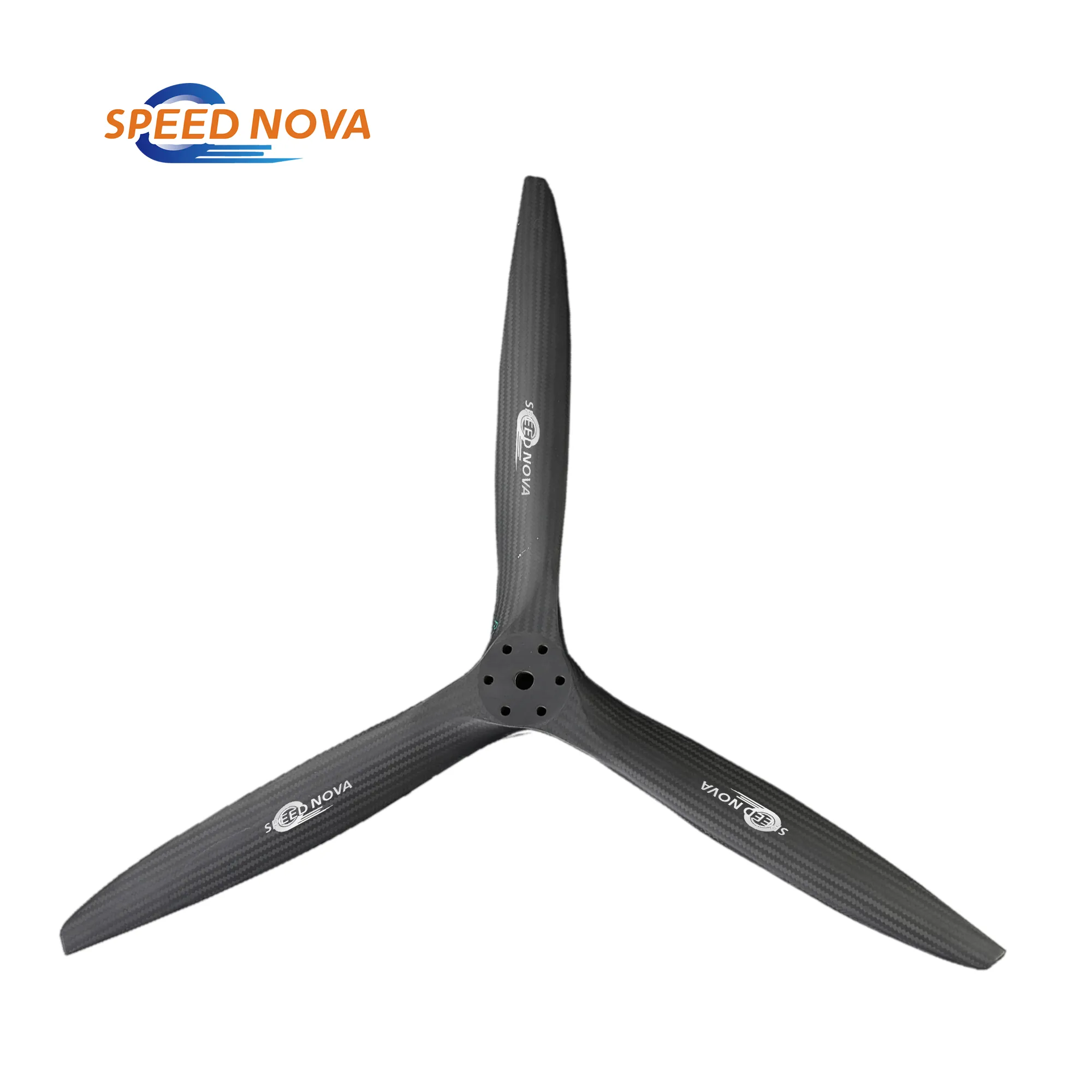

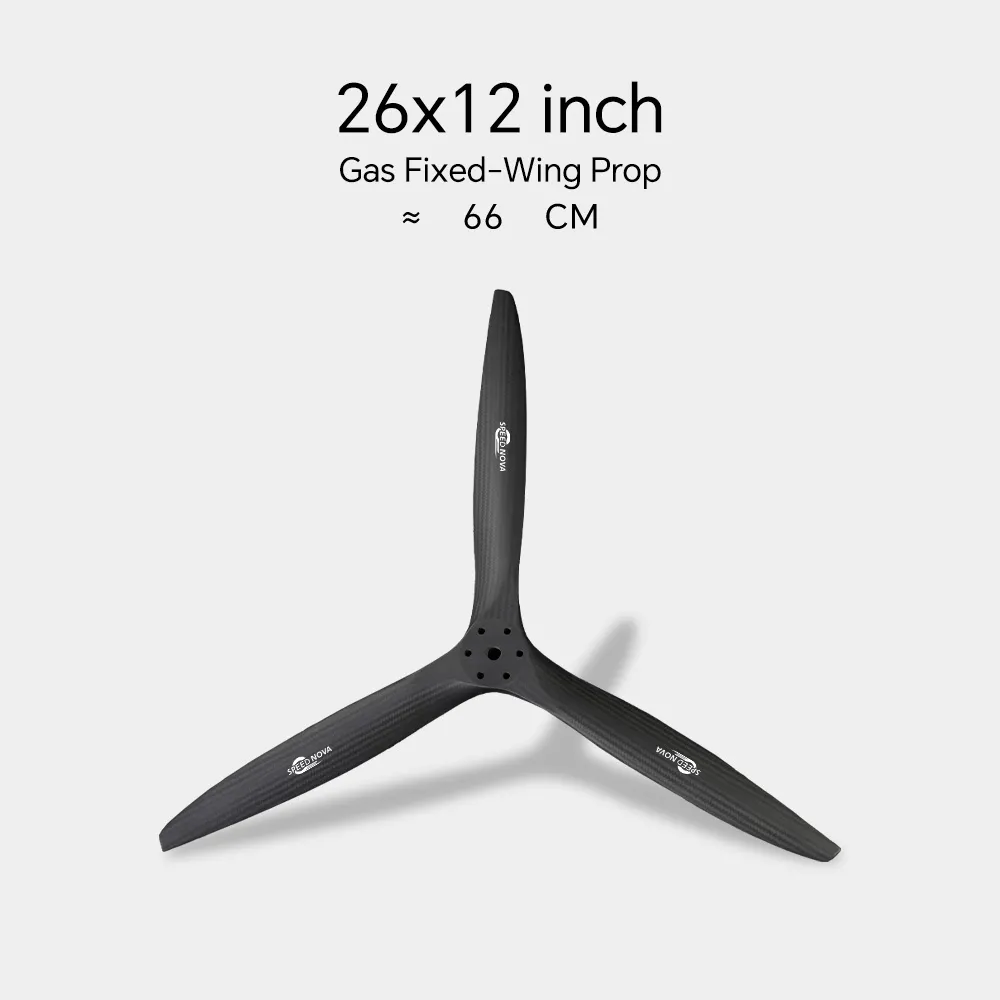

RAYI 26x12 CF Fixed Wing PROP

RAYI 26x12 CF Fixed Wing PROP

RAYI 26x12 Carbon Fiber Fixed Wing Propeller

Ultra light!  High Strength! Efficiency!

3K carbon fiber cloth, with improved fatigue resistance and strength while greatly reducing propeller weight, reducing moment of inertia, improving aircraft response speed and control flexibility.

Unique aerodynamic airfoil allowing 7% more propeller efficiency.

Matte material reduces propeller surface glare, reduces flight noise, and reduces coefficient of friction.

Custom:

We offer a propeller customisation service that can tailor propellers of different weights and strengths to your flight needs,Provide Power Solutions!



  • RAYI 26x12 Fixed-wing propeller

    Fixed-wing & Composite wing

RAYI  Carbon fiber Fixed-wing Propeller

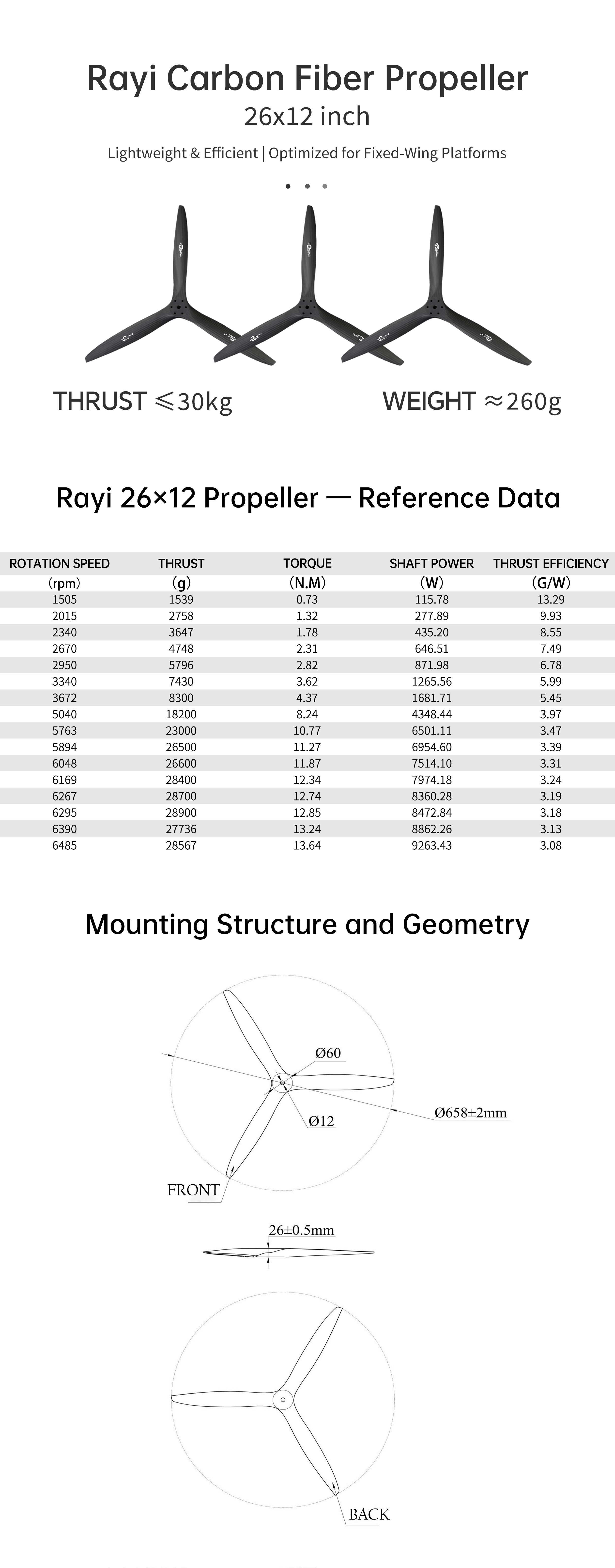

Model: 26x12

Diameter (inches): 26

Pitch (inches): 12

Sense of rotation:CW

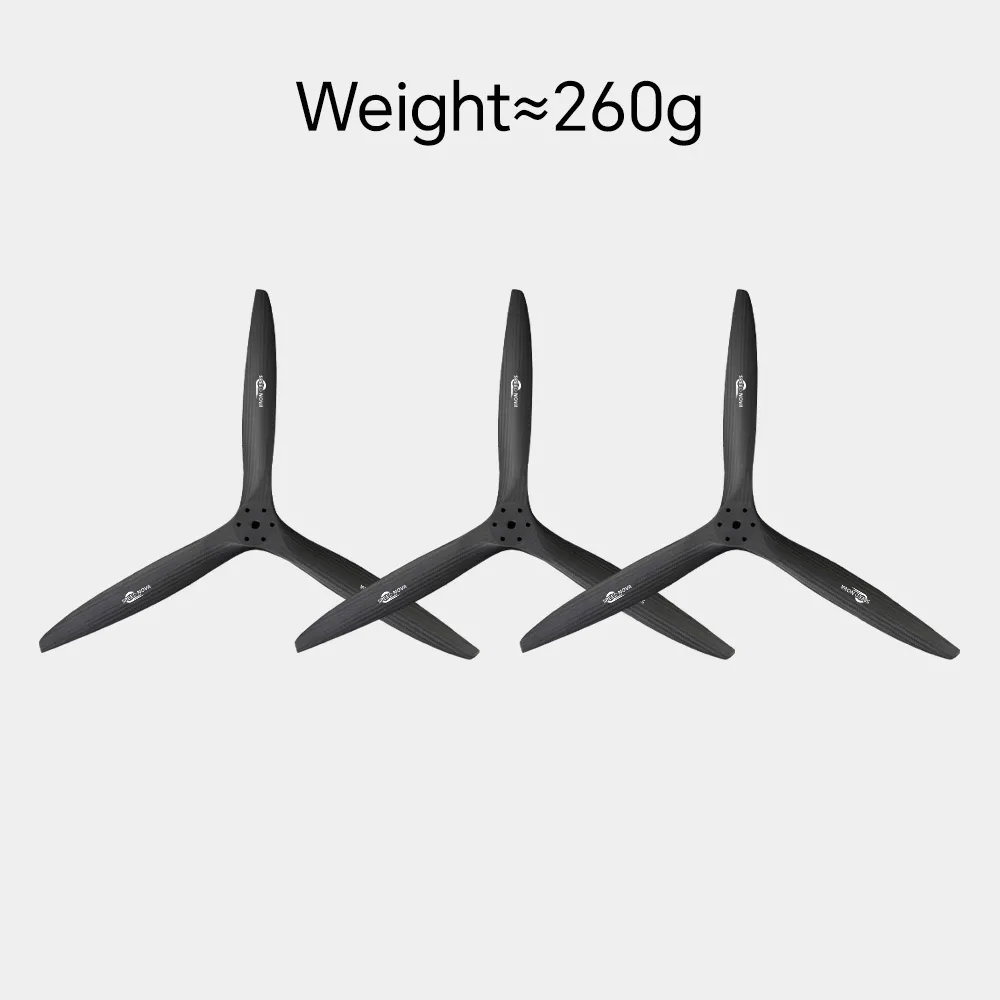

Single net weight: 260g

Thrust Limitation: ≤6500r/min

Optimum RPM: ≤30kg

working ambient temperature:   -40℃~+60℃

Storage temperature:  -10℃~+35℃
