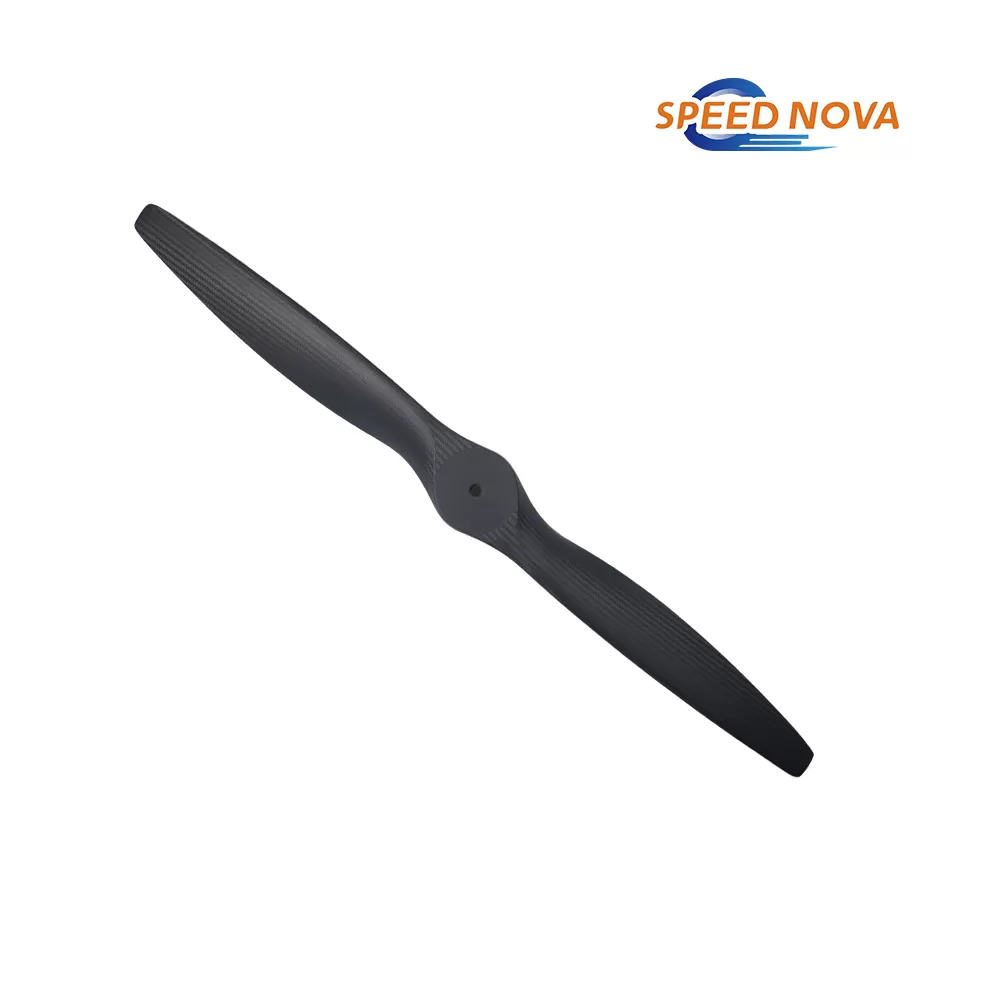

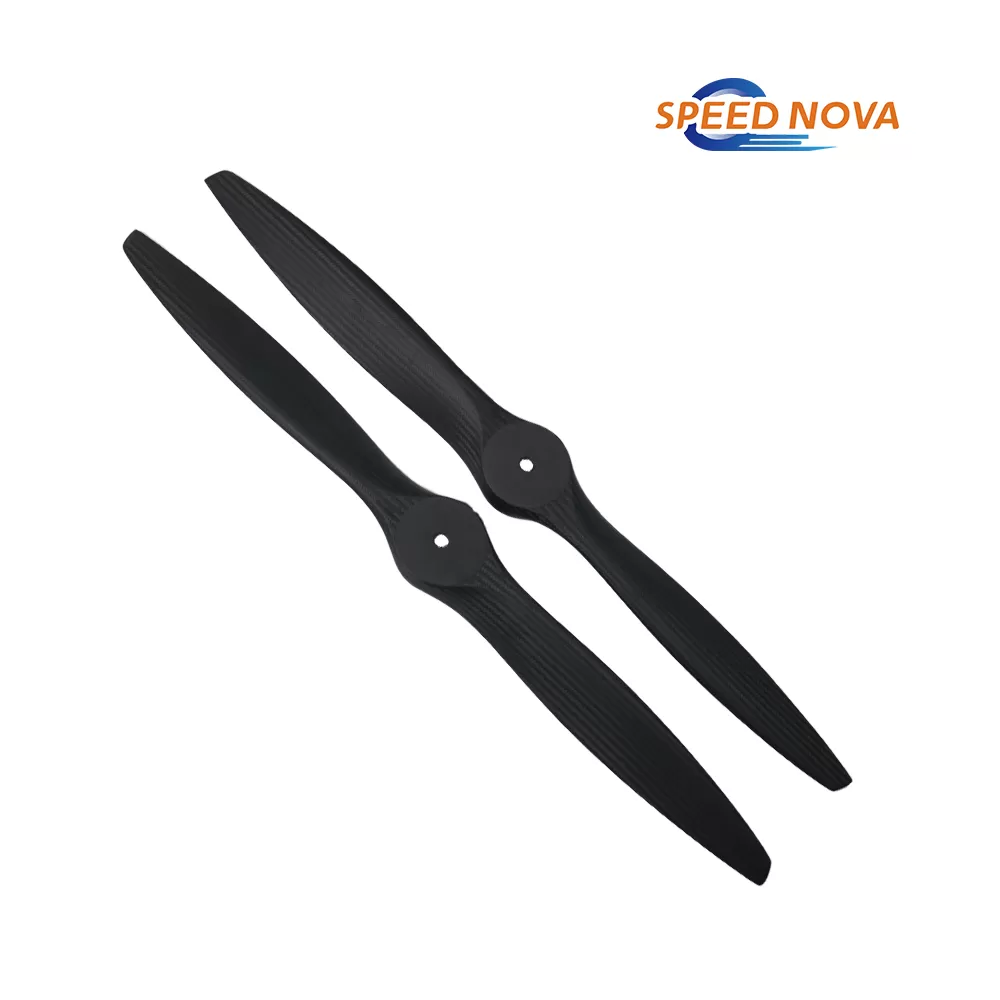

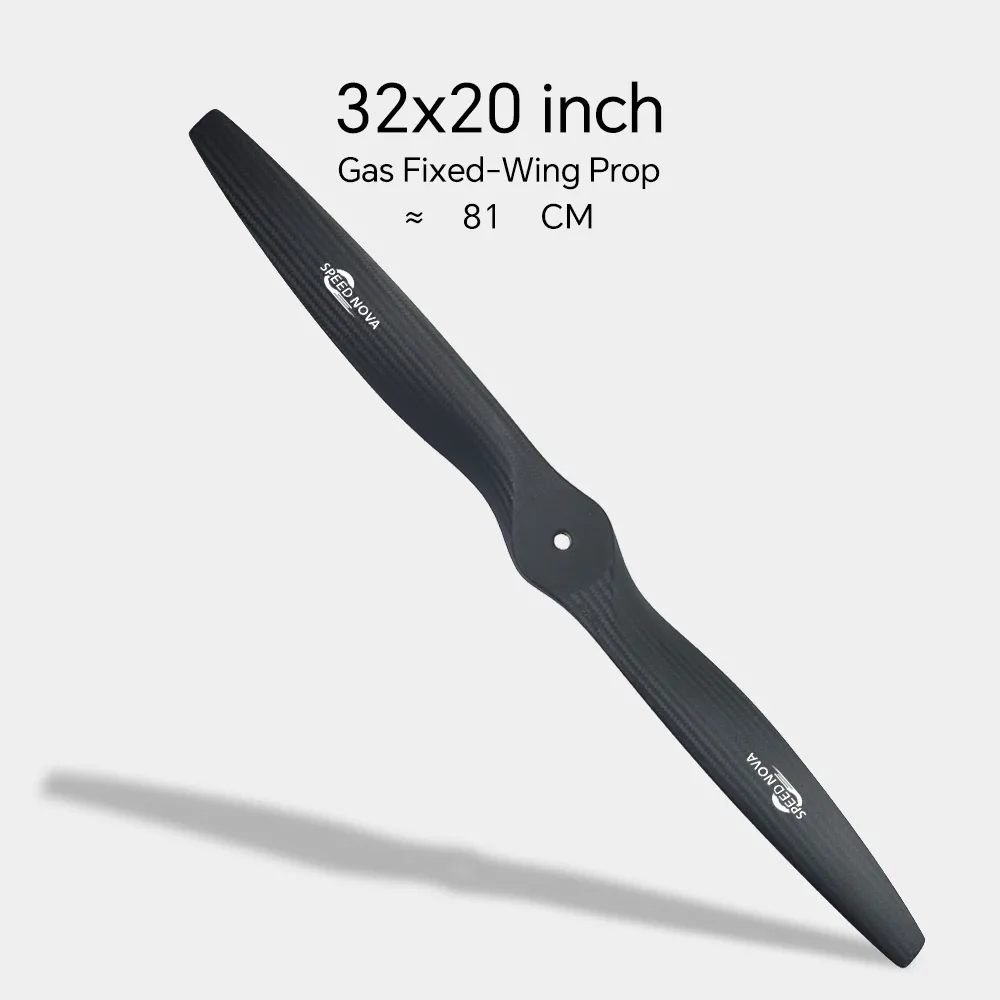

RAYI 32x20Carbon Fiber Fixed Wing Propeller
Ultra light! High Strength! Efficiency!
3K carbon fiber cloth, with improved fatigue resistance and strength while greatly reducing propeller weight, reducing moment of inertia, improving aircraft response speed and control flexibility.

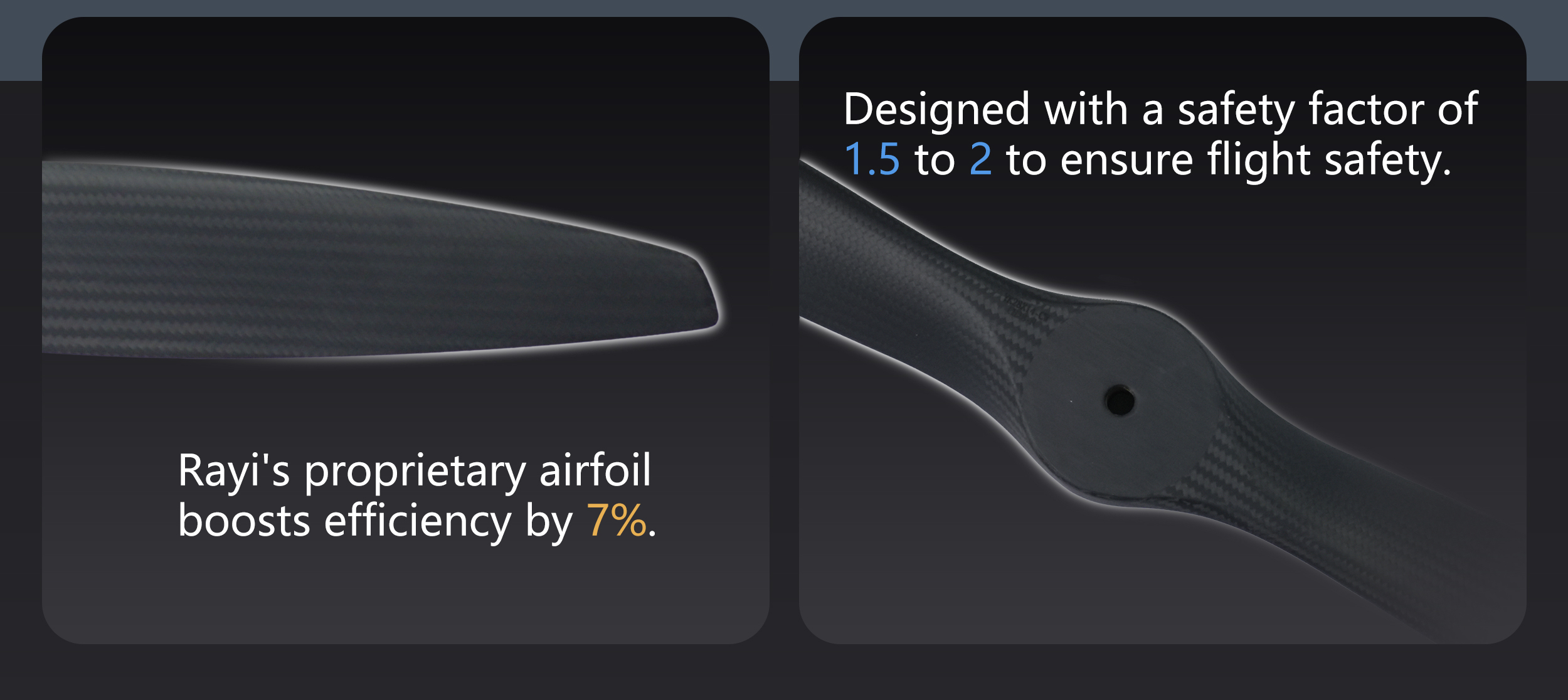

Unique aerodynamic airfoil allowing 7% more propeller efficiency.
Matte material reduces propeller surface glare, reduces flight noise, and reduces coefficient of friction.
Custom:
We offer a propeller customisation service that can tailor propellers of different weights and strengths to your flight needs,Provide Power Solutions!
32x20 inch
Fixed-wing & Composite wing
RAYI Carbon fiber Fixed-wing Propeller
Model: 32x20
Diameter (inches): 32
Pitch (inches): 20
Sense of rotation:CW

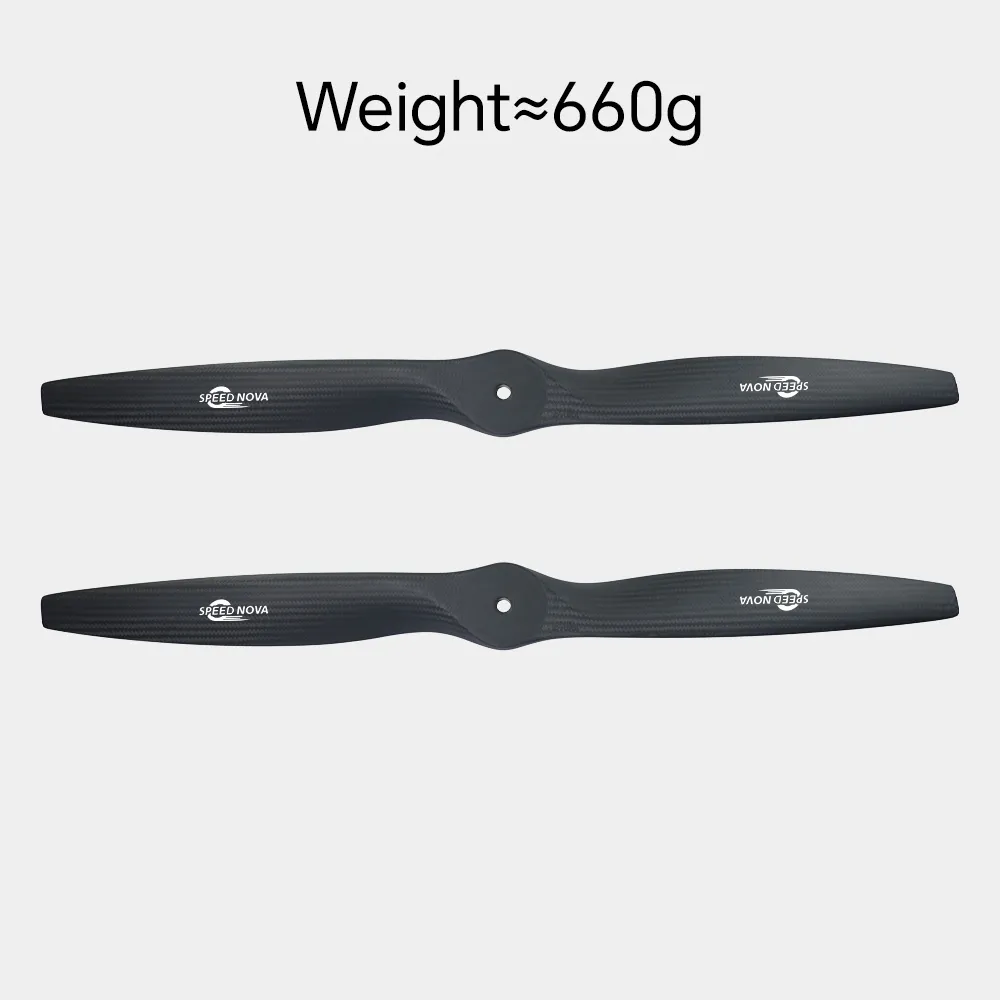

Single net weight: 345g
Thrust Limitation: ≤6500r/min

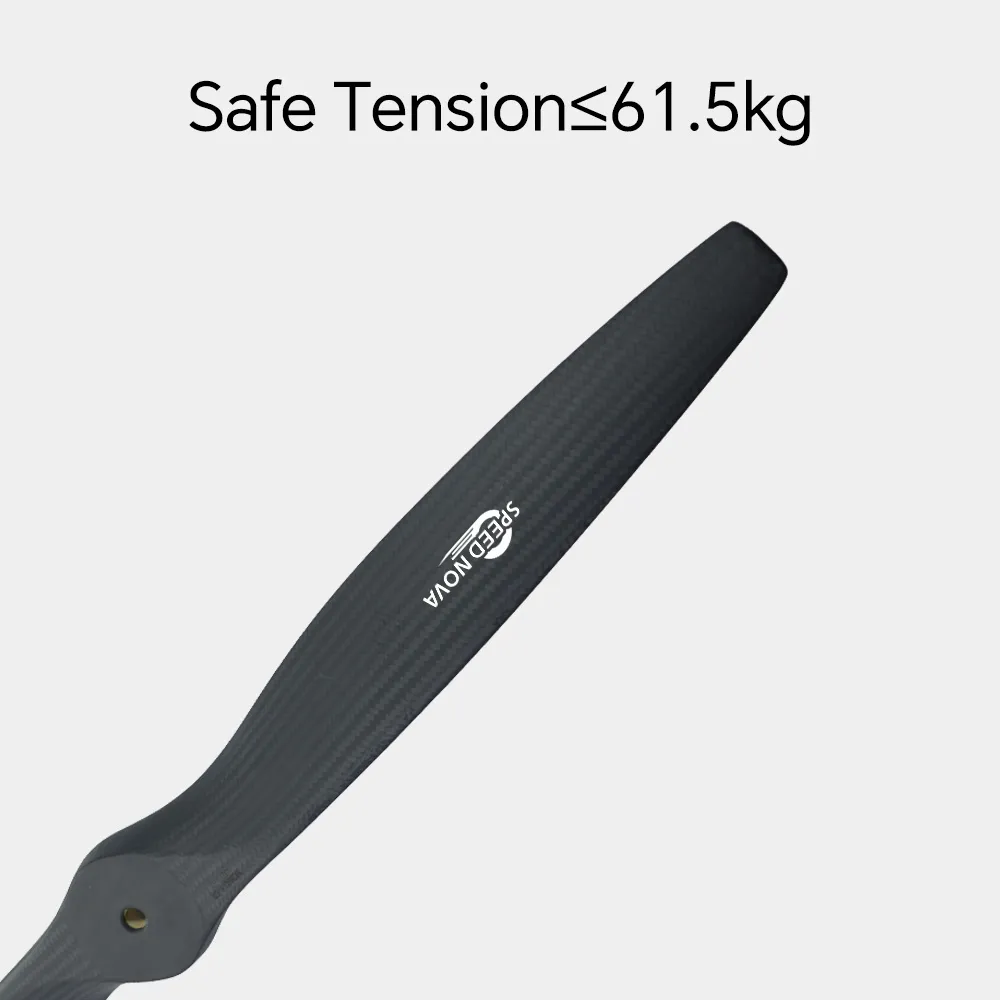

Optimum RPM: ≤61.5kg
working ambient temperature: -40℃~+60℃
Storage temperature: -10℃~+35℃
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
Dimensions:
We have 15X10 in 16x10 in 19x12 in 20x13 in 21x13 in 26x12 in 28x21 in 26x14 in 26x18 in 28x14 in 28x16 in 30x21 in 30x23 in 30x25 in 31x25 in 32x20 in 32x22 in 32x23 in 33x20 in 34x12 in 34x16 in carbon fiber propellers for various drone or UAV
Accept customized size and design
Notice: Accepted OEM &ODM
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer
