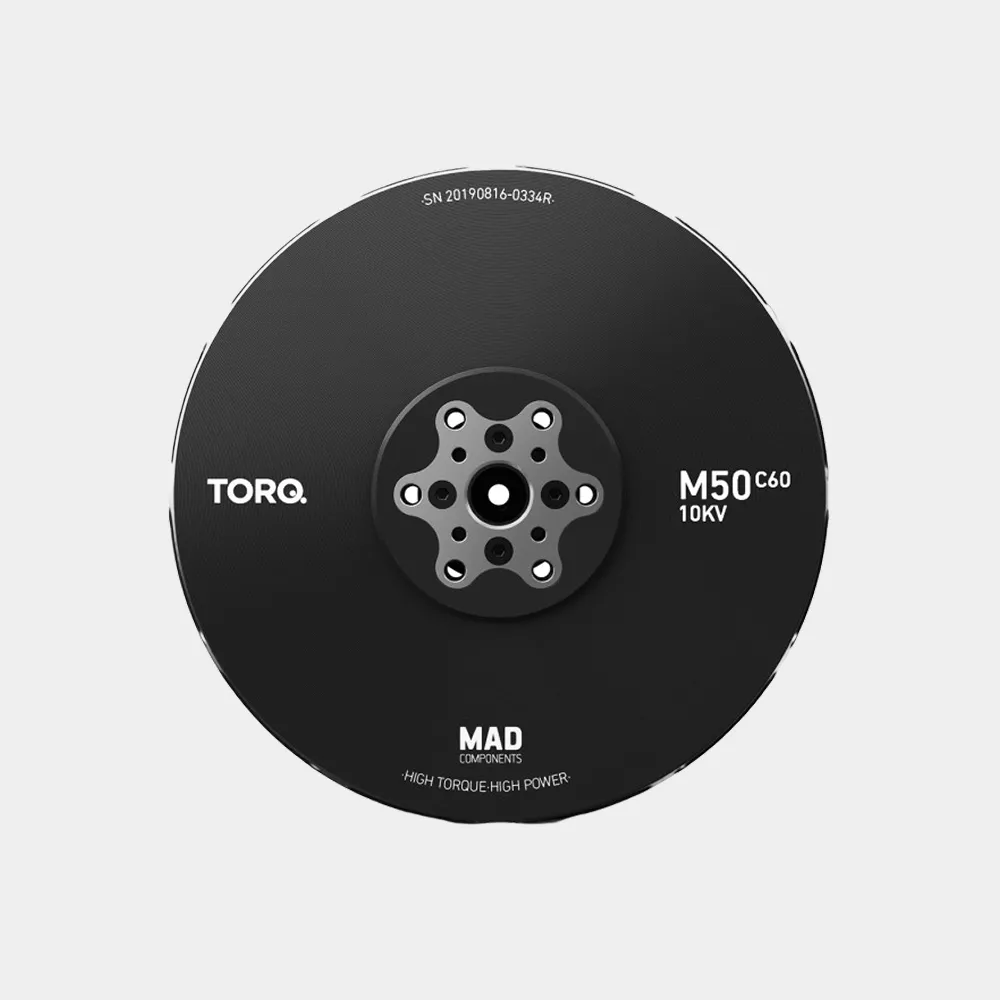

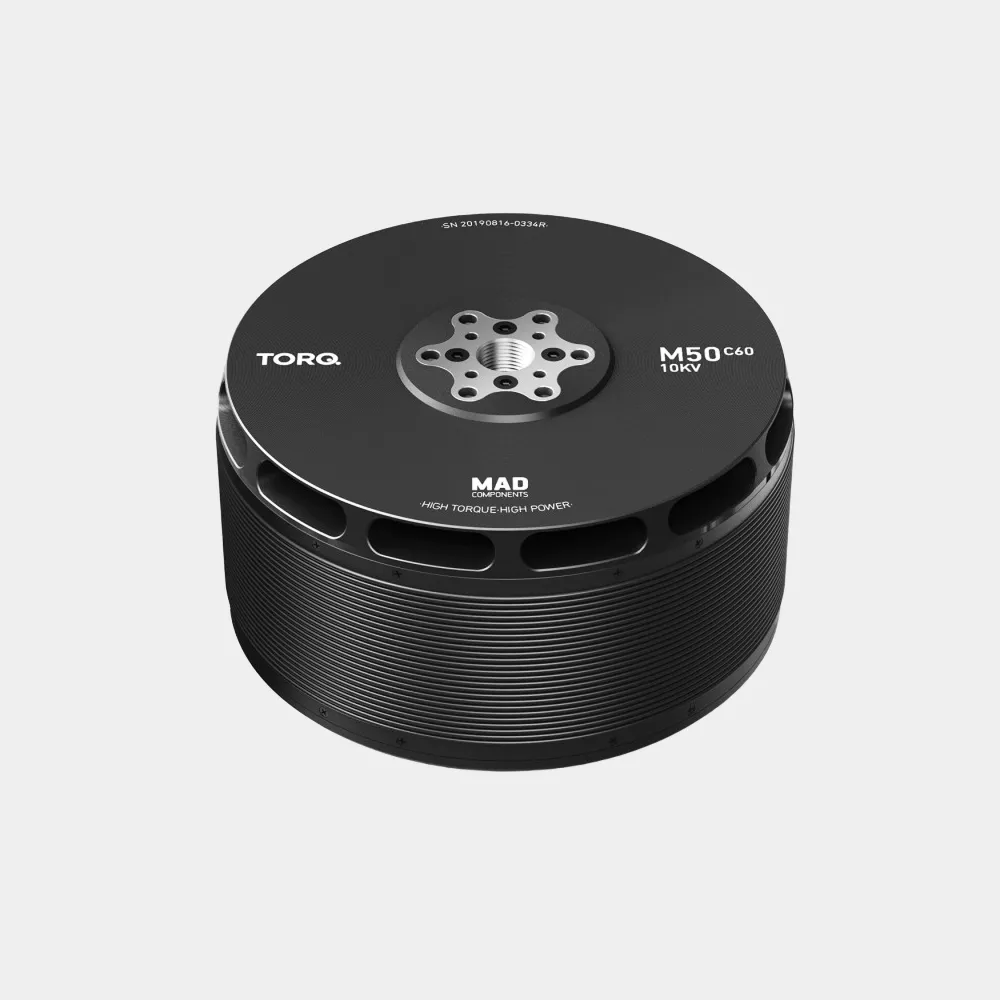

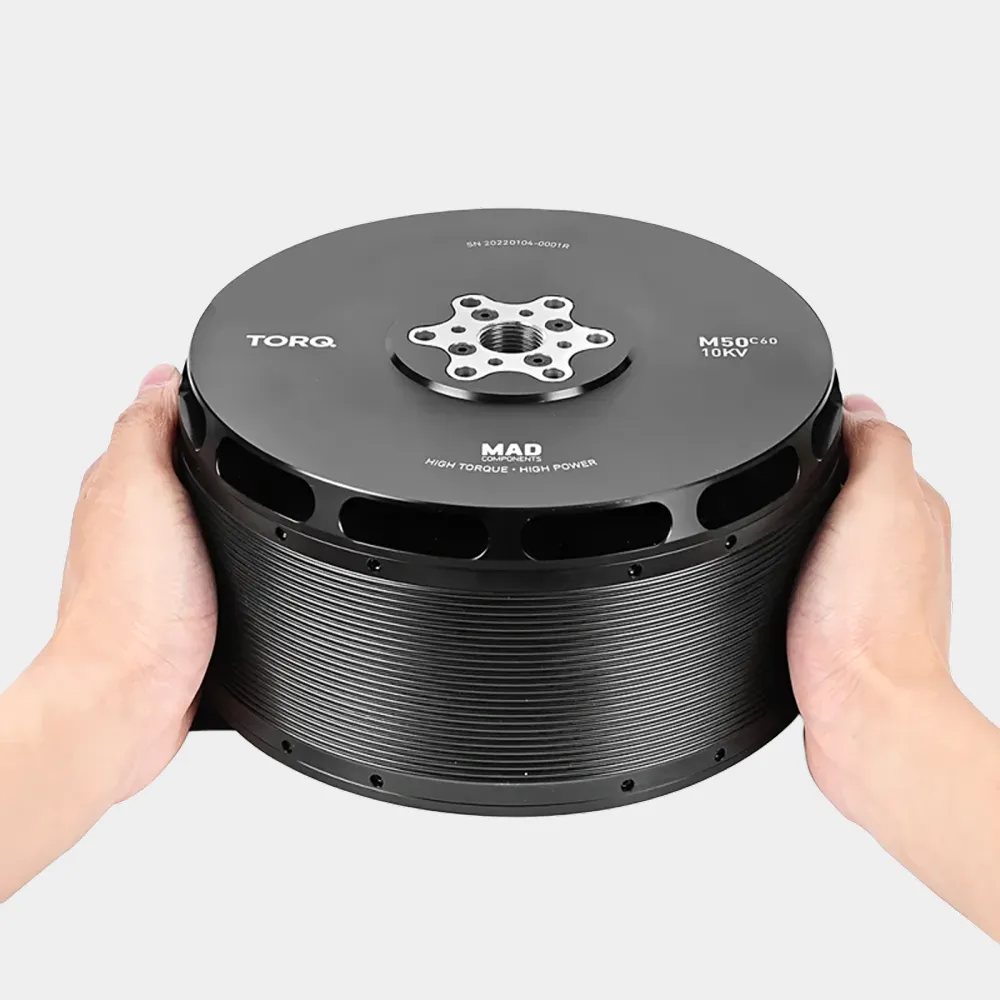

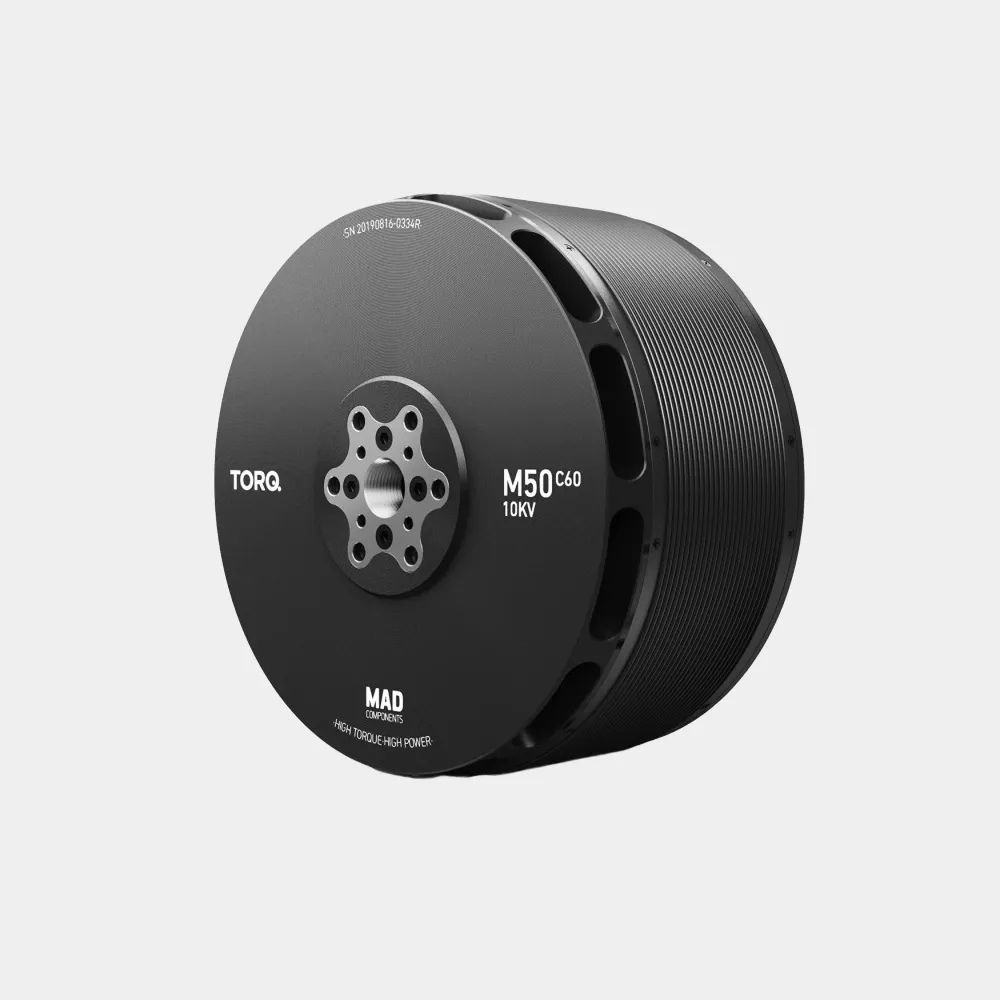

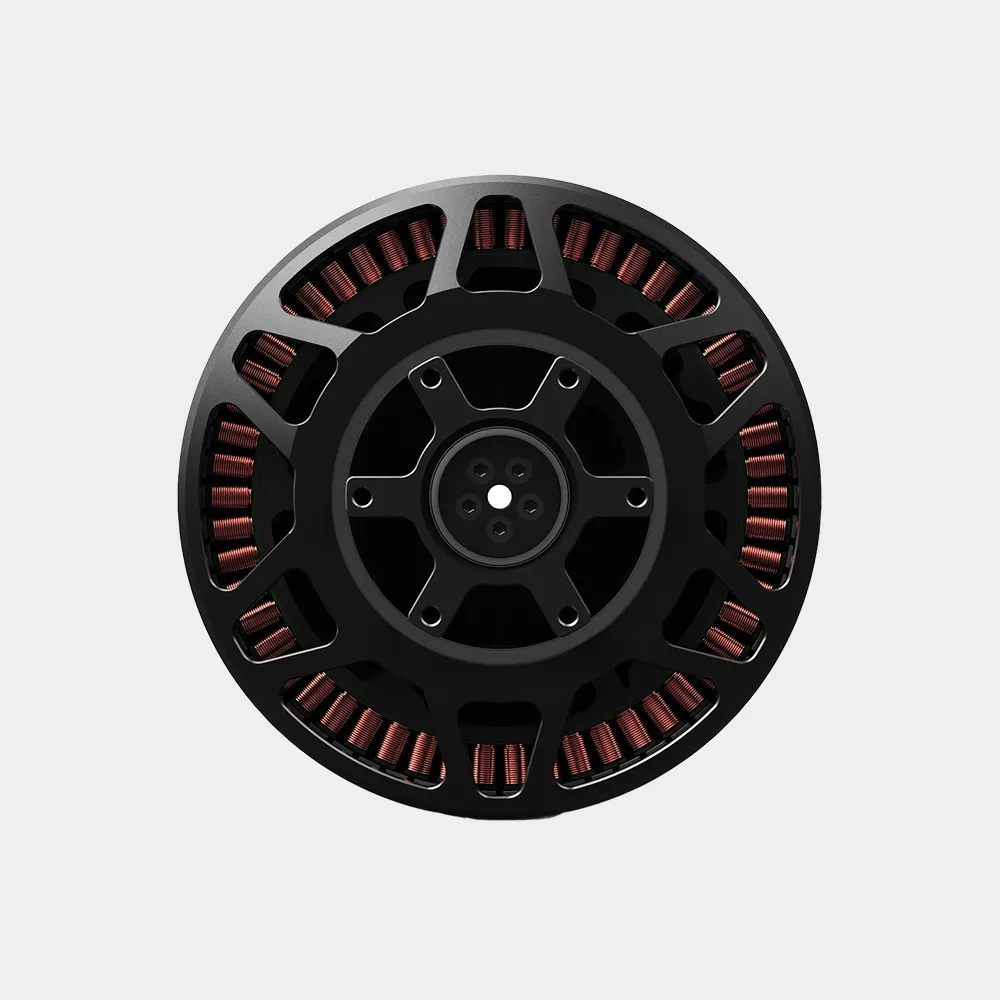

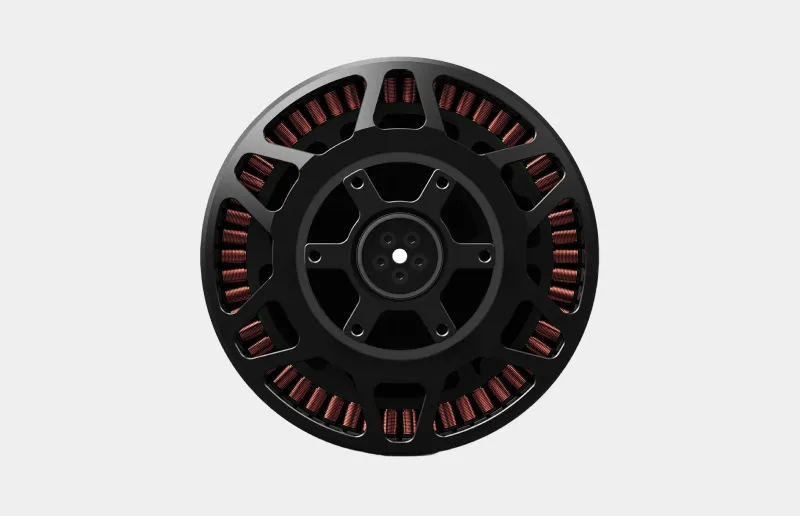

MAD M50C60 Pro IPE 10KV is a high-voltage, high-torque motor designed for industrial heavy-lift multirotor UAVs. It provides a recommended hover thrust of 50–60kgf and a maximum thrust of up to 123kgf under the specified propulsion configuration. The motor is designed to work with 63×22 and 64×20 propellers and the SineSic Pro 80A 16KW ESC operating within a 150–435V range. Its high-efficiency performance, 7.2kg motor weight and large torque output make it suitable for professional logistics, agriculture, emergency-response and other heavy-payload UAV applications.
High-Voltage Heavy-Lift Motor
10KV · 50–60kgf Recommended Hover Thrust
Industrial High-Voltage Motor for Heavy-Lift UAVs
High Thrust for Industrial UAV Platforms
The MAD M50C60 Pro IPE 10KV provides 50–60kgf recommended hover thrust and up to 123kgf maximum thrust under the specified test configuration. The product material lists 240kg quadcopter, 360kg hexacopter and 480kg octocopter UAV take-off weight references. Final aircraft performance depends on the battery, propeller, ESC, air pressure and complete UAV configuration.

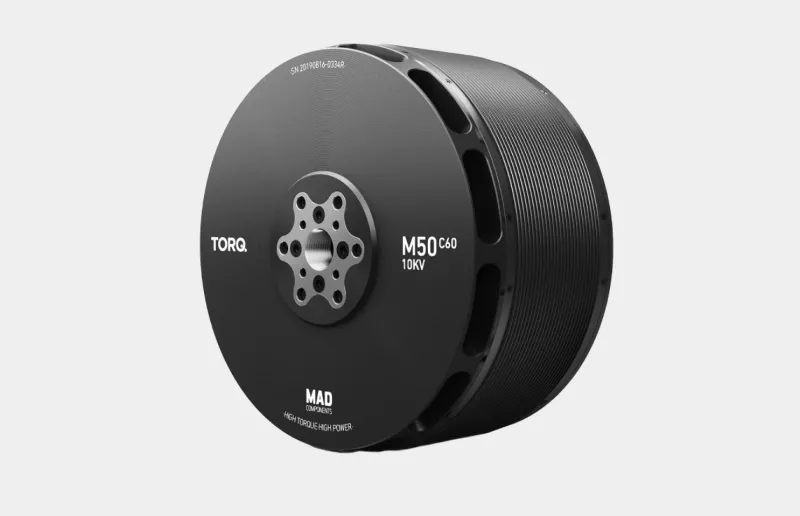

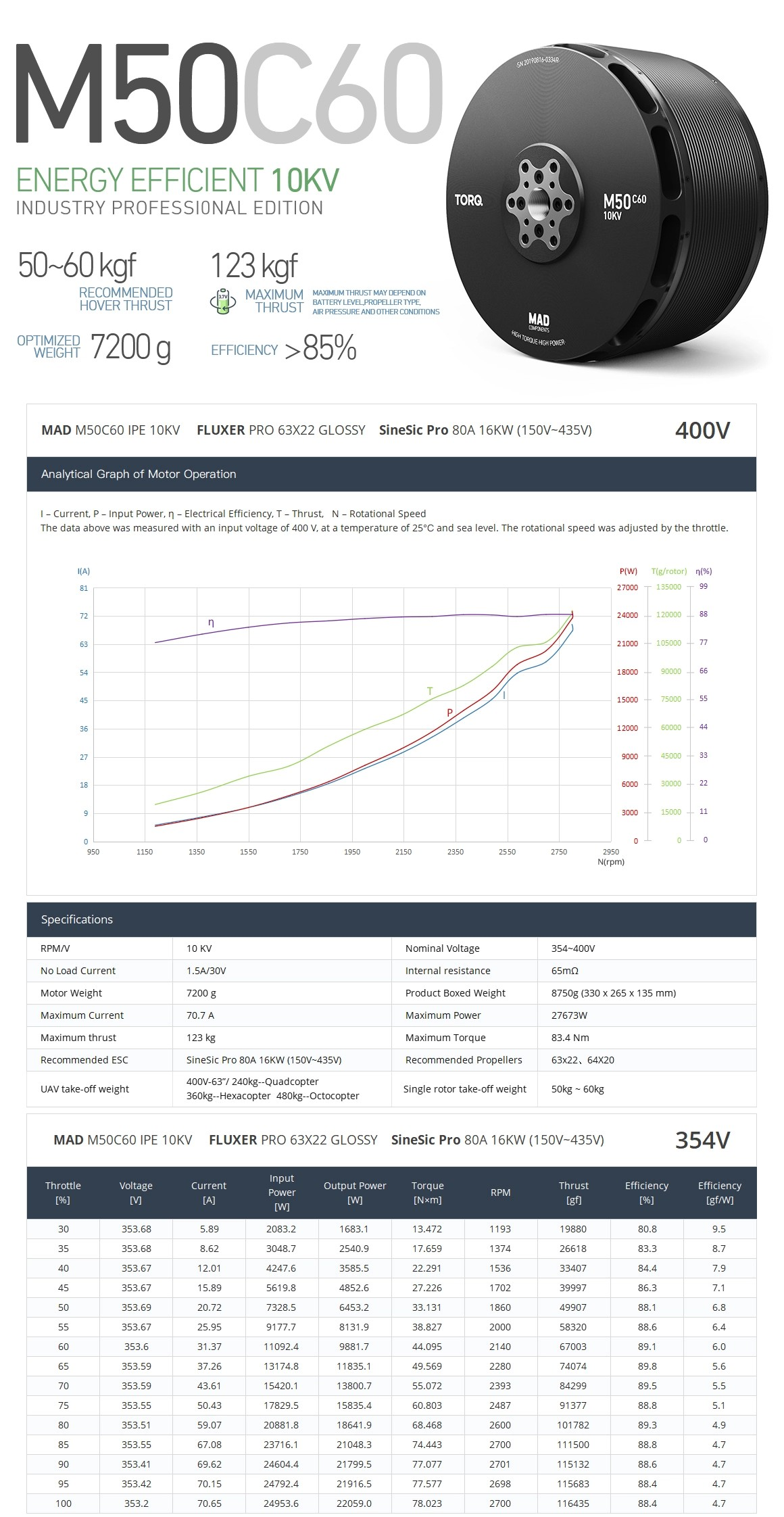

High-Voltage Propulsion Data for System Matching

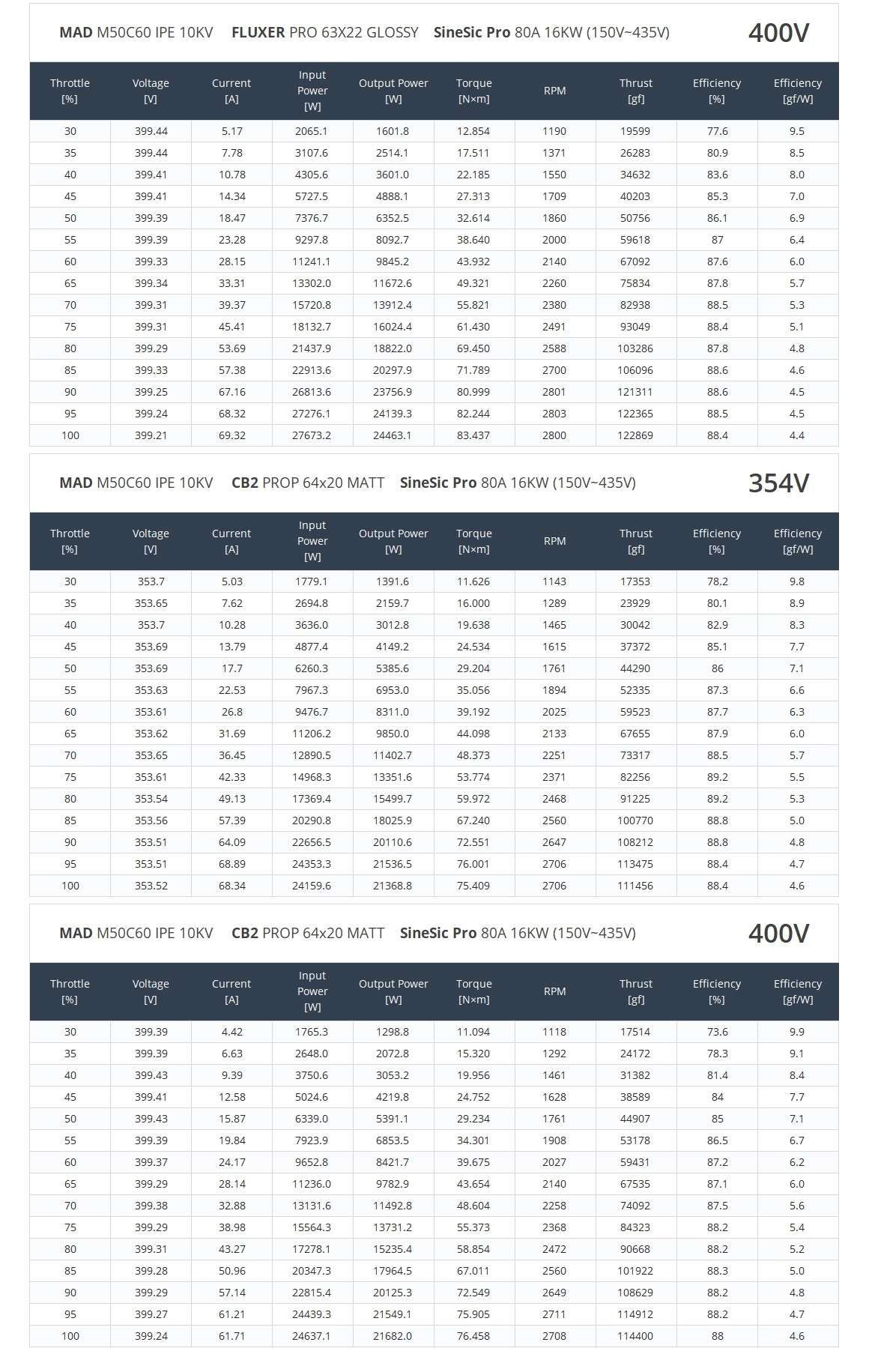

The provided test data covers 354V and 400V operating conditions with FLUXER PRO 63×22 and CB2 PROP 64×20 propellers. The data includes current, input power, output power, torque, RPM, thrust and efficiency. Use these tables as reference when matching the motor with the high-voltage ESC, propeller and UAV power system.
Technical Parameters
· Product Type: High-voltage heavy-lift UAV motor
· Model: MAD M50C60 Pro IPE 10KV
· Recommended Hover Thrust: 50–60kgf
· Maximum Thrust: 123kgf
· Motor Weight: 7200g
· Nominal Voltage: 354–400V
· Internal Resistance: 65mΩ
· Maximum Current: 70.7A
· Maximum Power: 27673W
· Maximum Torque: 83.4N·m
· Recommended ESC: SineSic Pro 80A 16KW
· ESC Voltage Range: 150–435V
· Recommended Propellers: 63×22 and 64×20
· Motor Weight Including Product Box: 8750g
· Product Box Dimensions: 330 × 265 × 135mm
· Recommended Single-Rotor Take-Off Weight: 50–60kg
· UAV Take-Off Weight Reference: 240kg quadcopter, 360kg hexacopter and 480kg octocopter
· Test Conditions: 354V and 400V configurations with the listed propellers
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
High-Voltage Heavy-Lift Performance
· Recommended hover thrust: 50–60kgf
· Maximum thrust: 123kgf
· Motor weight: 7200g
· Nominal voltage: 354–400V
· Maximum power: 27673W
· Maximum torque: 83.4N·m
· Recommended propellers: 63×22 and 64×20
· Recommended ESC: SineSic Pro 80A 16KW
· Test data covers 354V and 400V operating conditions
· Final thrust and efficiency depend on the battery, propeller, ESC, air pressure and UAV configuration
Packaging and Shipping Confirmation
· Motor weight: 7200g.
· Product boxed weight: 8750g.
· Product box dimensions: 330 × 265 × 135mm.
· Please confirm the final package contents, mounting hardware, cables and accessories before ordering.
· The actual shipping configuration is subject to the final quotation and order confirmation.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
High-Voltage Installation and System Matching Notice
· This motor is designed for a high-voltage propulsion system; confirm the power-system voltage before operation.
· Match the motor with a compatible SineSic Pro 80A 16KW ESC and suitable high-voltage battery system.
· Confirm propeller size, rotation direction and mounting configuration before installation.
· The 123kgf maximum thrust value depends on the battery, propeller, ESC, air pressure and other operating conditions.
· High-voltage wiring and commissioning must be completed by qualified personnel using appropriate insulation and safety procedures.
· Monitor current, motor temperature, vibration, RPM and mounting security during initial system testing.
· The provided 354V and 400V tables are system test references and should not be treated as guaranteed aircraft performance.
· Confirm final package contents and installation hardware before purchase.
