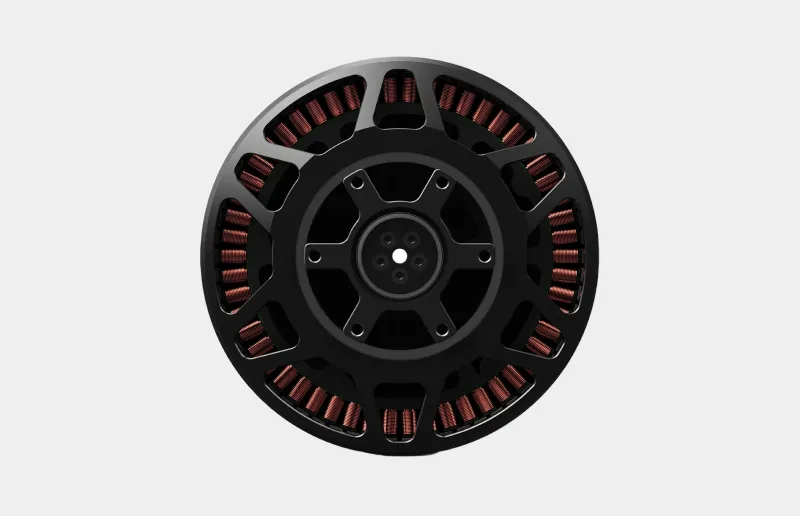

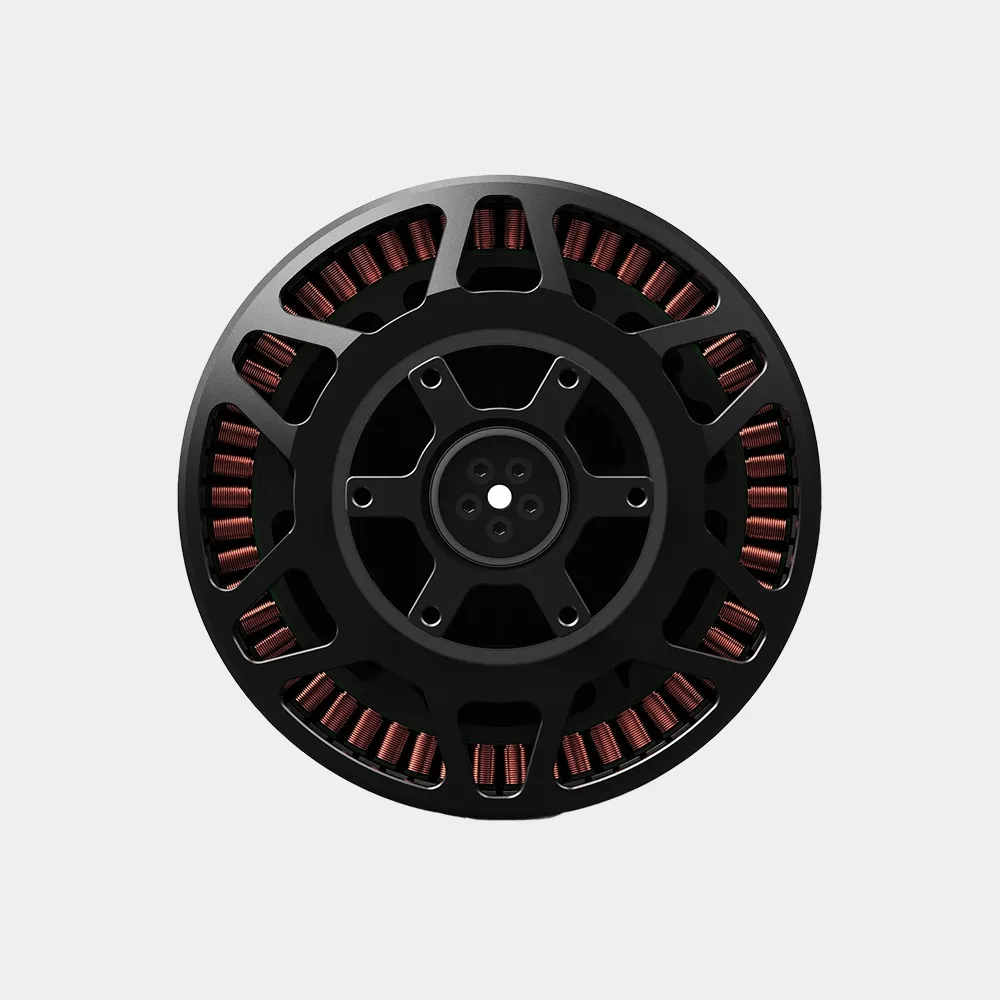

MAD M90C60 EEE 9KV is a high-voltage, high-torque motor designed for large industrial multirotor UAVs. It provides 70–100kgf recommended hover thrust and up to 200.1kgf maximum thrust under the specified CB2 72×31 propeller and SineSic Pro 160A 30KW ESC configuration. The motor supports a nominal voltage range of 354–400V and features a large 257mm motor diameter, 12.7kg motor weight, independent centrifugal heat dissipation and high-temperature motor materials. Its high-power propulsion design is suitable for professional heavy-lift UAV applications that require high payload capacity and stable system integration.
High-Voltage Heavy-Lift Motor
9KV · 70–100kgf Recommended Hover Thrust
Industrial 9KV Motor for Heavy-Lift UAVs
High Thrust for Large Industrial UAVs
The MAD M90C60 EEE 9KV provides 70–100kgf recommended hover thrust and up to 200.1kgf maximum thrust under the specified propulsion configuration. The product material lists a 70–100kg single-rotor take-off weight reference and additional UAV take-off weight references for multirotor configurations. Final aircraft performance depends on the battery, propeller, ESC, air pressure and complete UAV system.
High-Voltage Test Data for System Matching

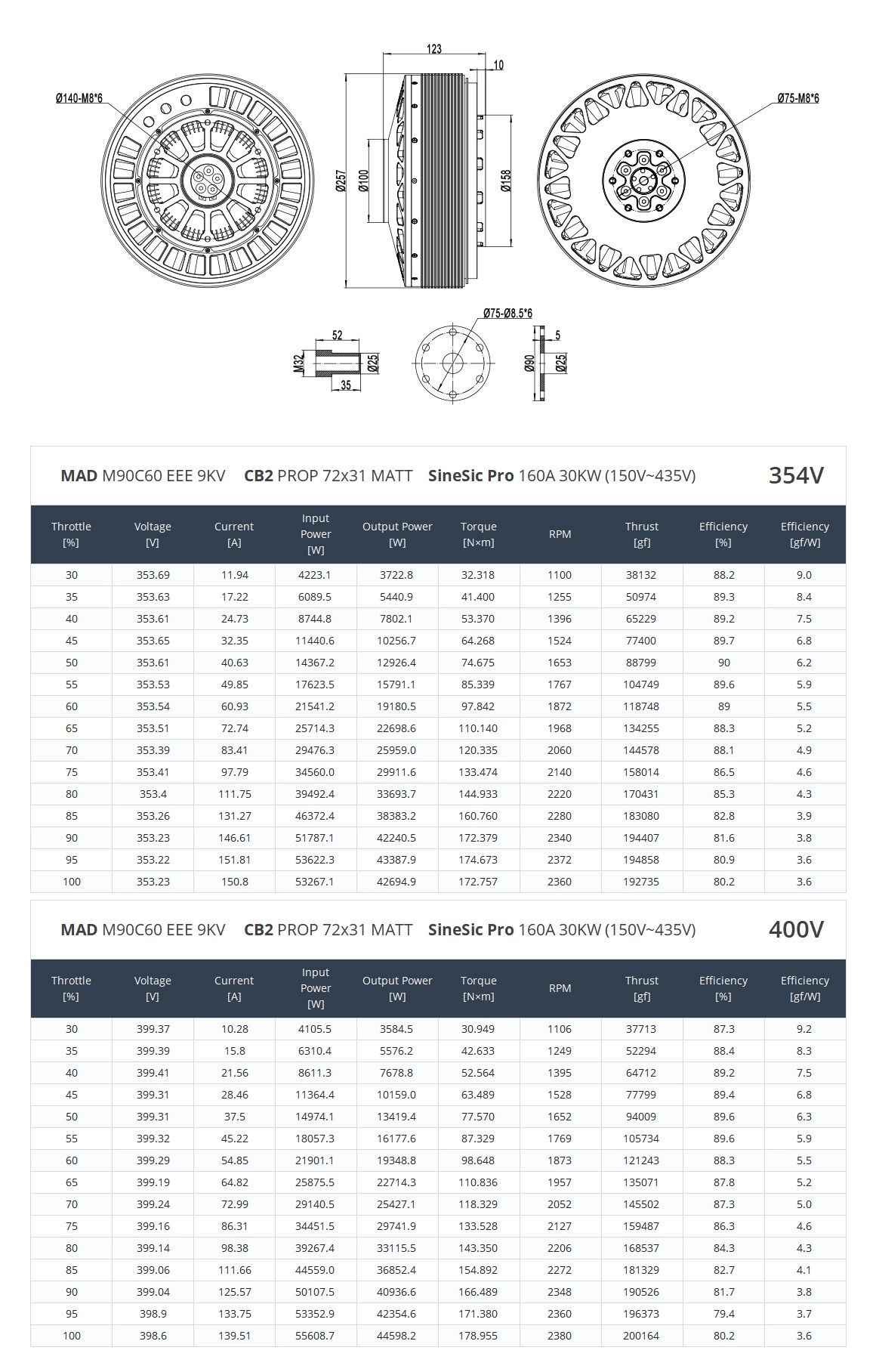

The provided test data covers 354V and 400V operating conditions with the CB2 PROP 72×31 propeller and SineSic Pro 160A 30KW ESC. The tables include current, input power, output power, torque, RPM, thrust and efficiency. Use these results as system-matching references rather than guaranteed aircraft performance values.

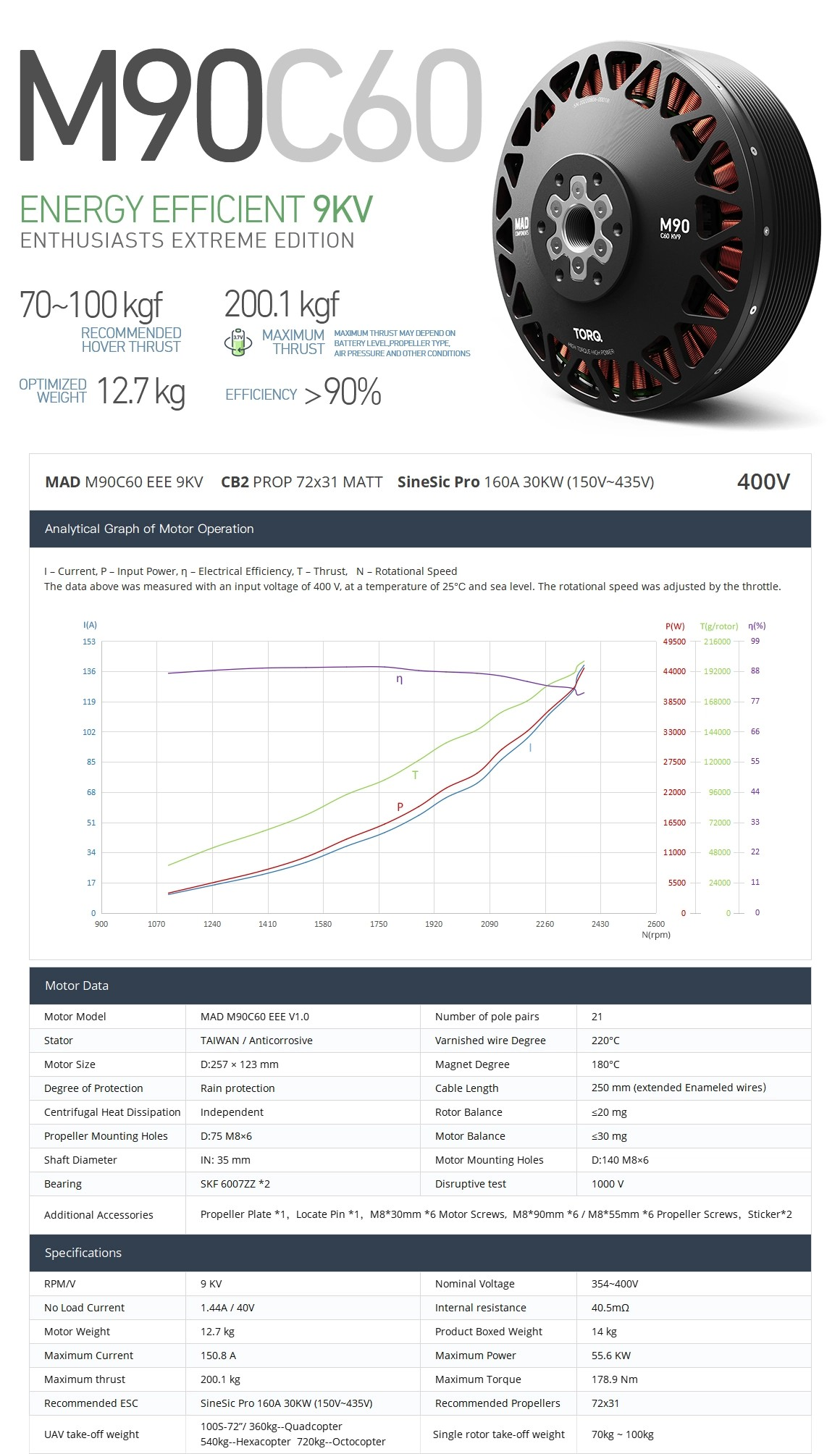

Technical Parameters
· Product Type: High-voltage heavy-lift UAV motor
· Model: MAD M90C60 EEE V1.0
· RPM/V: 9KV
· Recommended Hover Thrust: 70–100kgf
· Maximum Thrust: 200.1kgf
· Motor Weight: 12.7kg
· Product Boxed Weight: 14kg
· Nominal Voltage: 354–400V
· Internal Resistance: 40.5mΩ
· Maximum Current: 150.8A
· Maximum Power: 55.6kW
· Maximum Torque: 178.9N·m
· Recommended ESC: SineSic Pro 160A 30KW
· ESC Voltage Range: 150–435V
· Recommended Propeller: CB2 PROP 72×31

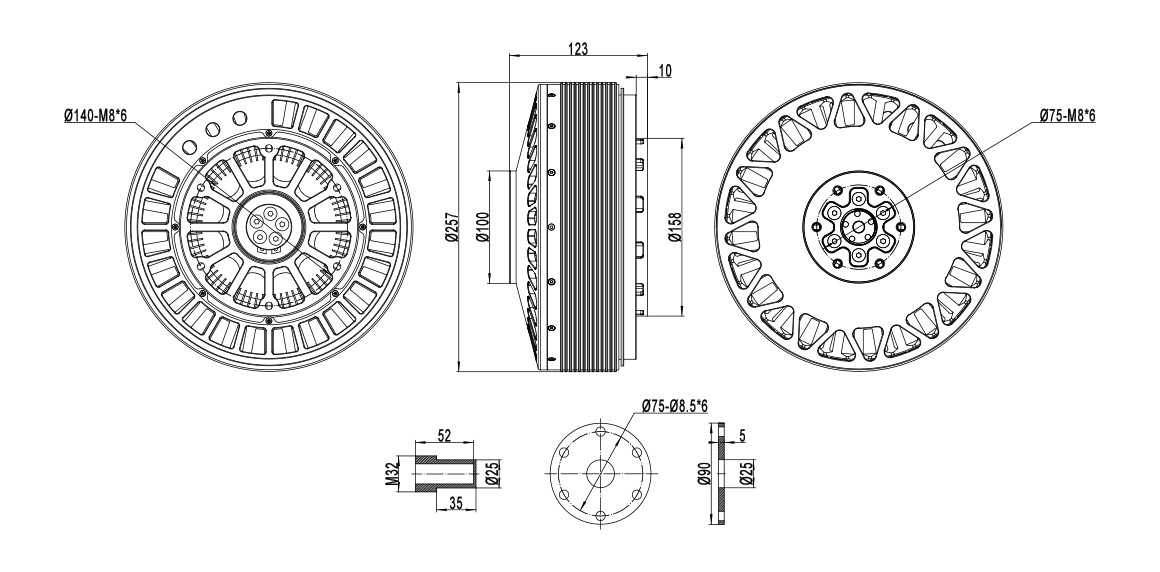

· Motor Size: Ø257 × 123mm
· Shaft Diameter: 35mm
· Motor Mounting Holes: Ø140 M8×6
· Propeller Mounting Holes: Ø75 M8×6
· Bearing: SKF 6007ZZ ×2
· Cable Length: 250mm extended enamelled wires
· Magnet Temperature Grade: 180°C
· Rotor Balance Standard: ≤20mg
· Motor Balance Standard: ≤30mg
· Disruptive Test: 1000V
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
High-Voltage Heavy-Lift Propulsion Performance
· RPM/V: 9KV
· Recommended hover thrust: 70–100kgf
· Maximum thrust: 200.1kgf
· Motor weight: 12.7kg
· Nominal voltage: 354–400V
· Maximum power: 55.6kW
· Maximum torque: 178.9N·m
· Recommended ESC: SineSic Pro 160A 30KW
· Recommended propeller: CB2 PROP 72×31
· Test data covers 354V and 400V operating conditions
· Final thrust and efficiency depend on the battery, propeller, ESC, air pressure and UAV configuration
Accessories and Shipping Confirmation
· Propeller plate: 1 piece
· Locate pin: 1 piece
· Motor screws: M8×30mm ×6
· Propeller screws: M8×90mm ×6 and M8×55mm ×6
· Stickers: 2 pieces
· Motor weight: 12.7kg
· Product boxed weight: 14kg
· Please confirm the final package contents, accessories, mounting hardware and cable configuration before ordering.
· The actual shipping configuration is subject to the final quotation and order confirmation.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
High-Voltage Installation and System Matching Notice
· This motor is designed for a high-voltage propulsion system; confirm the 354–400V power-system range before operation.
· Match the motor with a compatible SineSic Pro 160A 30KW ESC and the recommended CB2 PROP 72×31 propeller.
· Confirm propeller mounting holes, motor mounting holes, shaft dimensions and rotation direction before installation.
· High-voltage wiring and commissioning must be completed by qualified personnel using appropriate insulation and safety procedures.
· Monitor current, motor temperature, vibration, RPM and mounting security during initial system testing.
· The 200.1kgf maximum thrust value depends on the battery, propeller, ESC, air pressure and other operating conditions.
· The provided 354V and 400V tables are system test references and should not be treated as guaranteed aircraft performance.
· Confirm final package contents and installation hardware before purchase.
