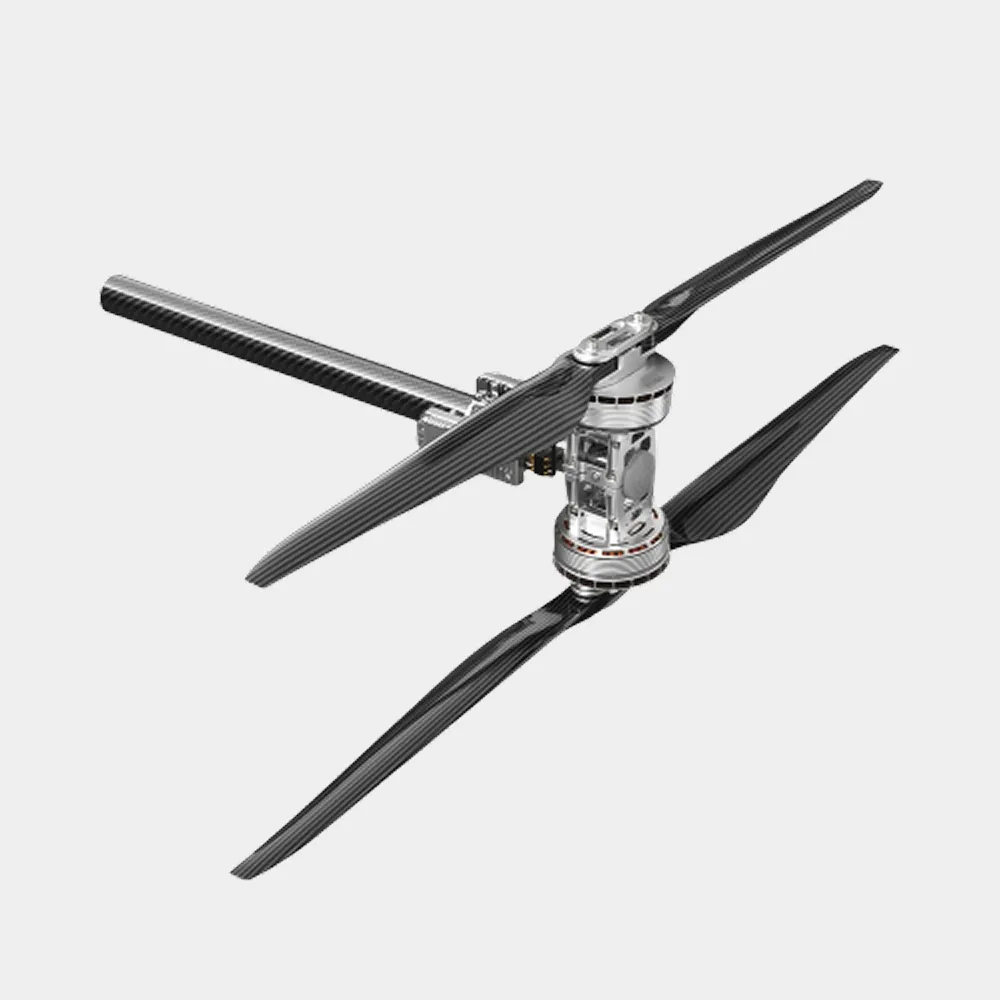

T-Motor X-A14-24S KV37 is a high-voltage heavy-lift motor designed for large agricultural and coaxial multirotor UAVs. The specified setup combines the X-A14-24S motor, a 24S FOC 150A ESC and an EFZ5720 folding carbon-fiber propeller. It supports 24–28S LiPo batteries, provides 45–50kg rated thrust and reaches up to 113kg maximum thrust under the stated test configuration. With PWM/CAN control, a 37KV winding, IPX5 protection and a 60mm tube size, the system is intended for demanding UAV propulsion applications requiring high payload capacity and stable power delivery.
High-Voltage Heavy-Lift Motor
24–28S LiPo · 45–50kg Rated Thrust

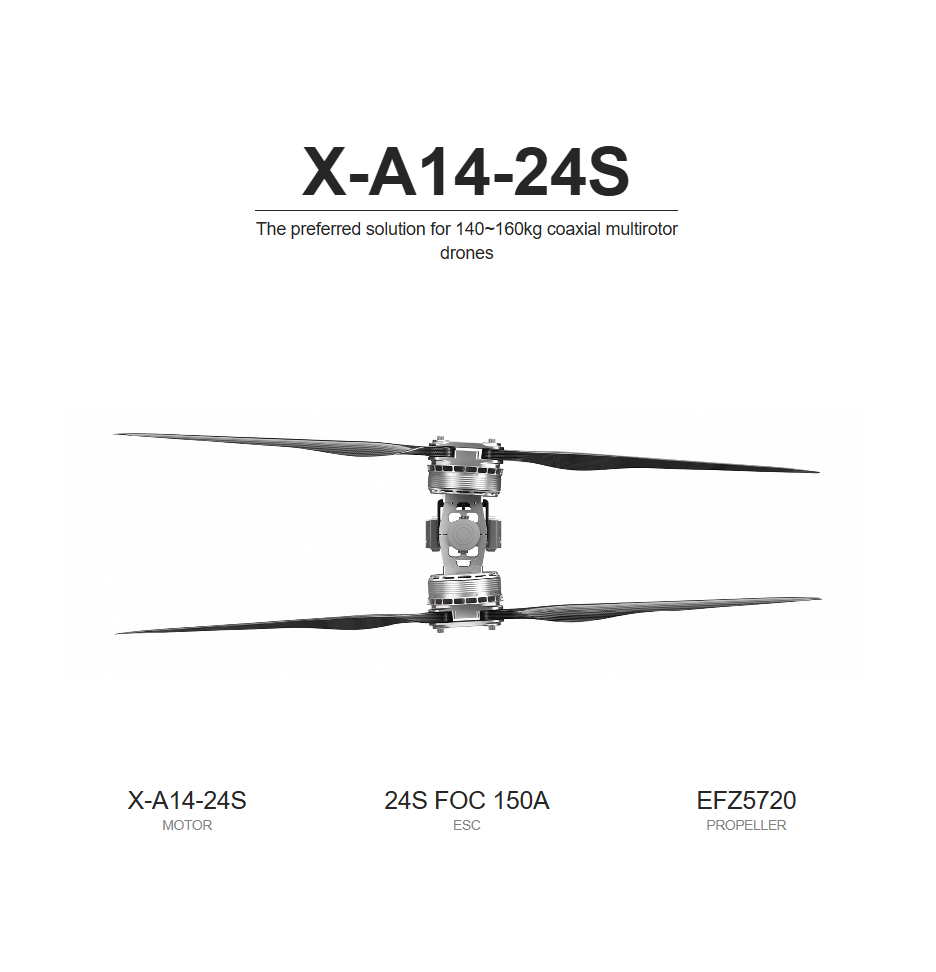

Heavy-Lift 24S Motor System for UAVs

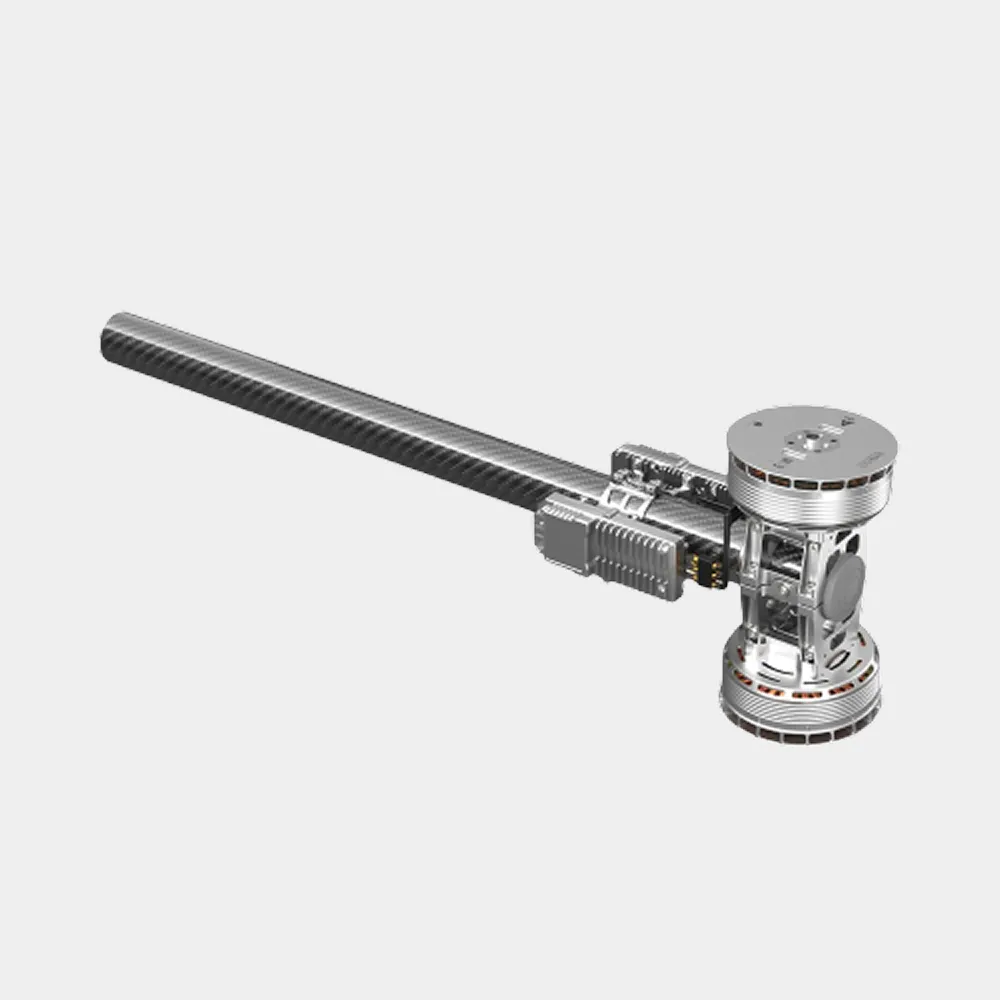

Propulsion for Heavy-Lift Multirotor Platforms

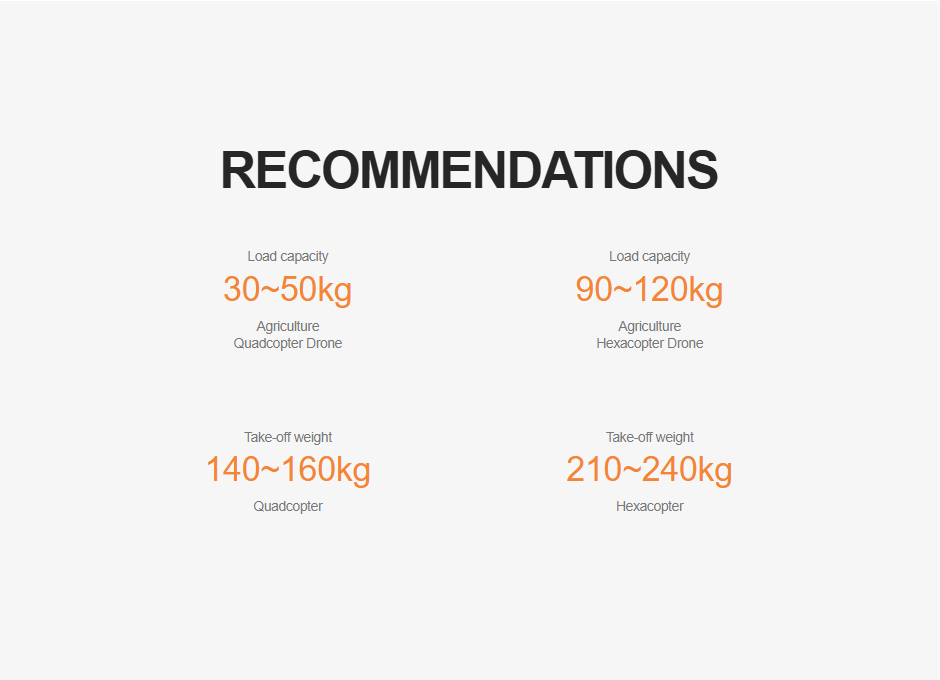

The X-A14-24S is designed for high-payload multirotor applications, including agricultural quadcopters, hexacopters and coaxial UAV platforms. The provided recommendation data lists 140–160kg take-off weight for quadcopters and 210–240kg take-off weight for hexacopters. Final propulsion selection should be confirmed according to the complete aircraft configuration, payload and operating conditions.
24S Power with Integrated Control Options
The X-A14-24S KV37 setup supports 24–28S LiPo batteries and uses a specified 24S FOC 150A ESC with PWM/CAN control. The system supports DroneCAN, UAV CAN and CubeCAN protocols. Its 60mm tube size, 1500±5mm wire length, 126V maximum voltage and 150A short-time peak current provide key integration references for high-voltage UAV propulsion design.

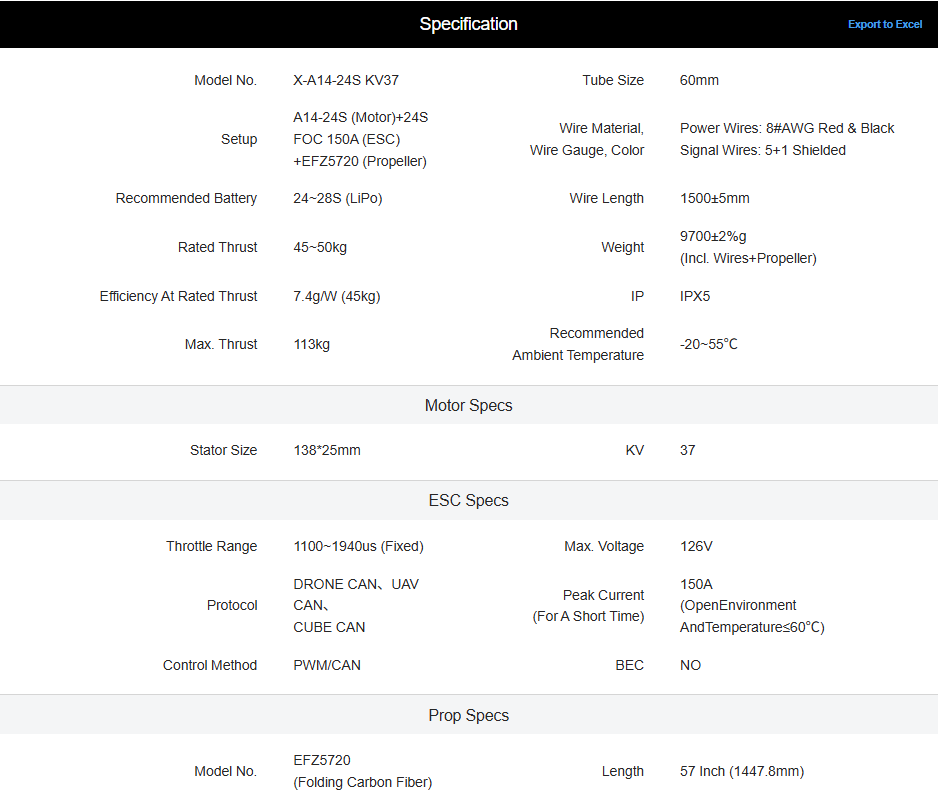

Technical Parameters
· Product Type: Heavy-lift UAV motor
· Model: X-A14-24S KV37
· Setup: A14-24S Motor + 24S FOC 150A ESC + EFZ5720 Propeller
· Recommended Battery: 24–28S LiPo
· Rated Thrust: 45–50kg
· Efficiency at Rated Thrust: 7.4g/W at 45kg
· Maximum Thrust: 113kg
· Motor KV: 37KV
· Stator Size: 138 × 25mm
· Control Method: PWM/CAN
· Supported Protocols: DroneCAN, UAV CAN and CubeCAN
· Maximum Voltage: 126V
· Peak Current: 150A for a short time
· Tube Size: 60mm
· Wire Length: 1500±5mm
· Protection Rating: IPX5
· Recommended Ambient Temperature: -20°C to 55°C
· Propeller: EFZ5720 Folding Carbon Fiber Propeller
· Propeller Length: 57 inches / 1447.8mm
· BEC: No
· Weight: 9700±2g including wires and propeller
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.

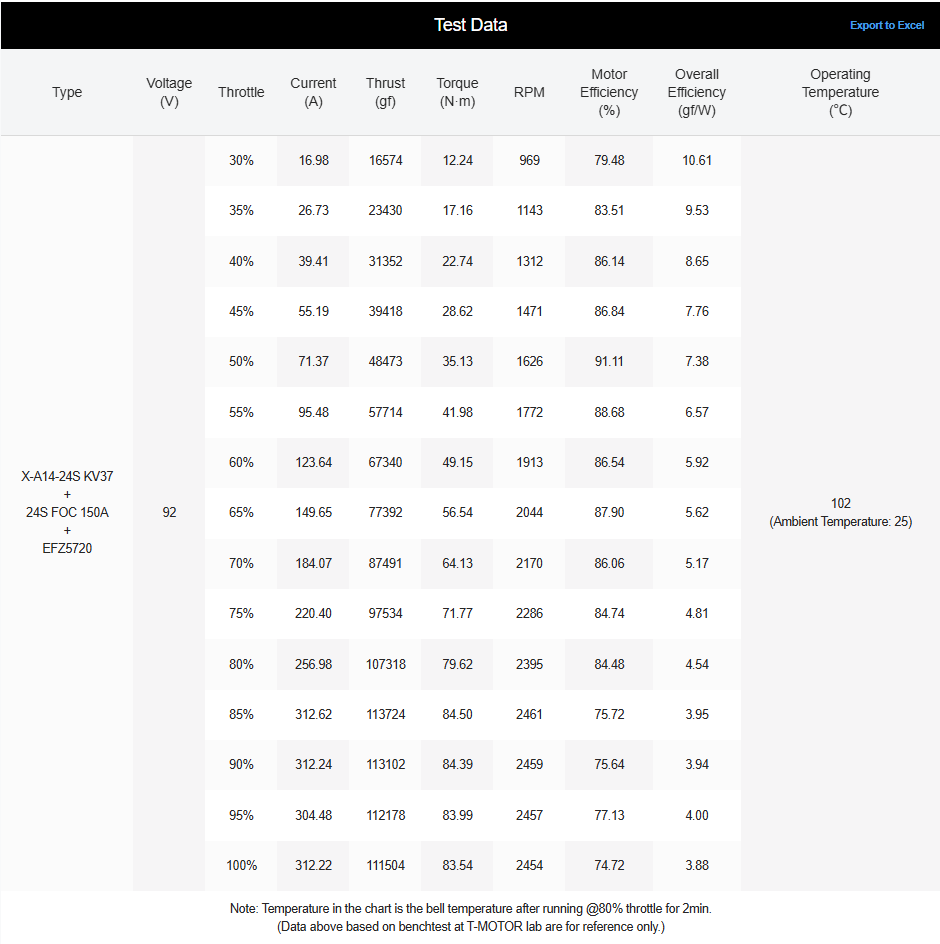

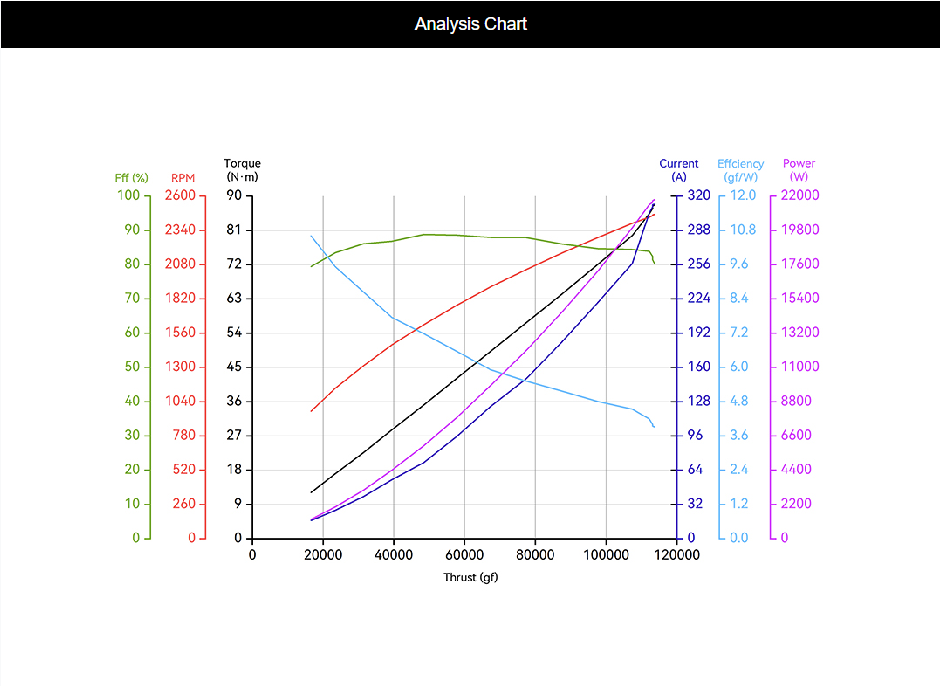

High-Voltage Thrust and Efficiency Data
· Recommended battery: 24–28S LiPo
· Rated thrust: 45–50kg
· Maximum thrust: 113kg
· Rated-thrust efficiency: 7.4g/W at 45kg
· Motor KV: 37KV
· Control method: PWM/CAN
· Peak current: 150A for a short time
· Test data is based on the specified X-A14-24S KV37 + 24S FOC 150A + EFZ5720 setup
· Test results are bench data for reference and do not replace complete aircraft-level propulsion testing

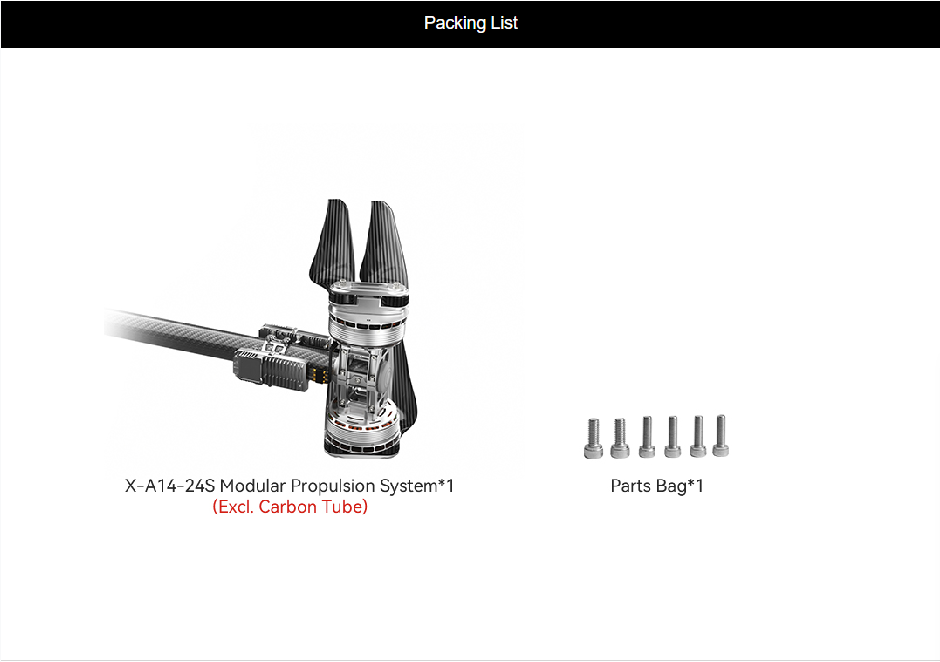

Configuration and Shipping Confirmation
· The specified setup includes the X-A14-24S motor, 24S FOC 150A ESC and EFZ5720 folding carbon-fiber propeller.
· Please confirm whether the motor, ESC and propeller are supplied together or quoted separately.
· Please confirm the final package contents, mounting accessories, cables and installation hardware before ordering.
· The actual shipping configuration is subject to the final quotation and order confirmation.
· Aircraft-level matching should be confirmed according to battery voltage, flight-controller system, propeller configuration and payload requirements.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Installation and System Matching Notice
· Confirm that the battery voltage is within the recommended 24–28S LiPo range before operation.
· The motor, ESC and EFZ5720 propeller should be matched according to the specified propulsion setup.
· Confirm the required control method and protocol, including PWM, DroneCAN, UAV CAN or CubeCAN.
· The 150A peak-current specification is for short-time operation under the stated conditions; complete aircraft-level thermal testing is required.
· Confirm the propeller rotation direction, mounting orientation and coaxial configuration before flight.
· The provided thrust and efficiency data is bench-test reference data and should not be treated as a guaranteed aircraft performance result.
· Keep the operating environment within the recommended temperature range of -20°C to 55°C.
· Confirm the final weight, package contents and installation hardware before purchase.
