Compact Size. Uncompromised Stability.

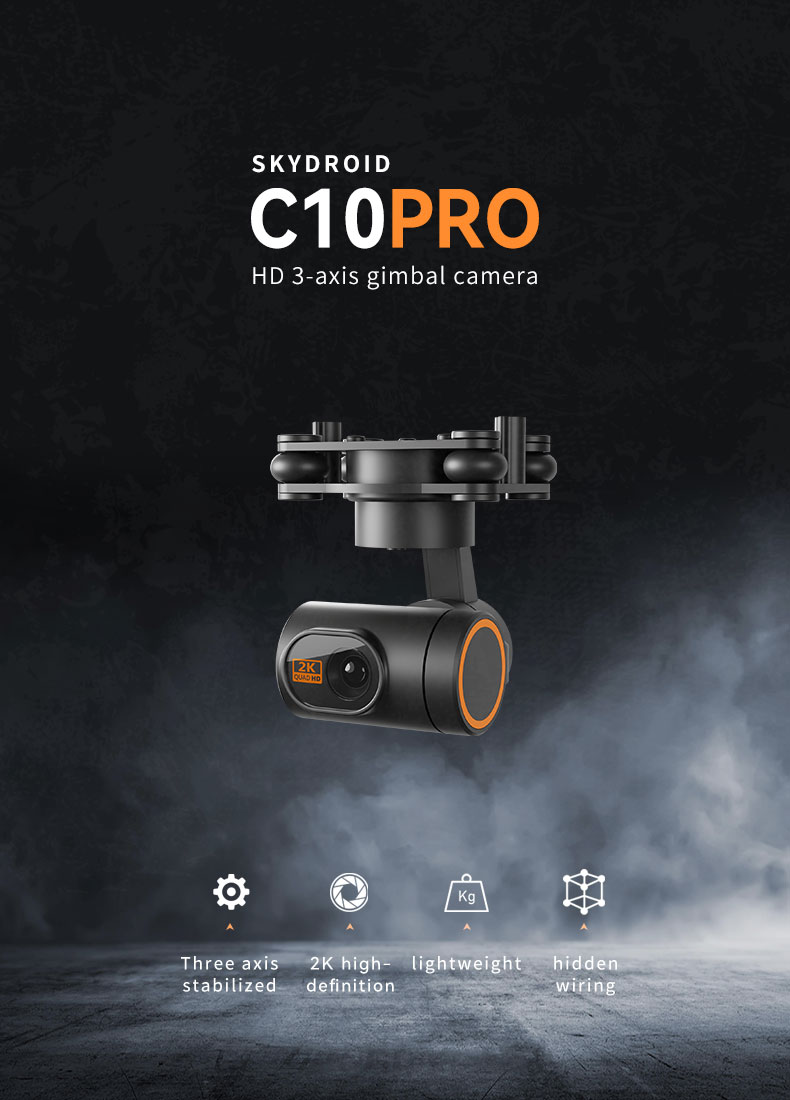

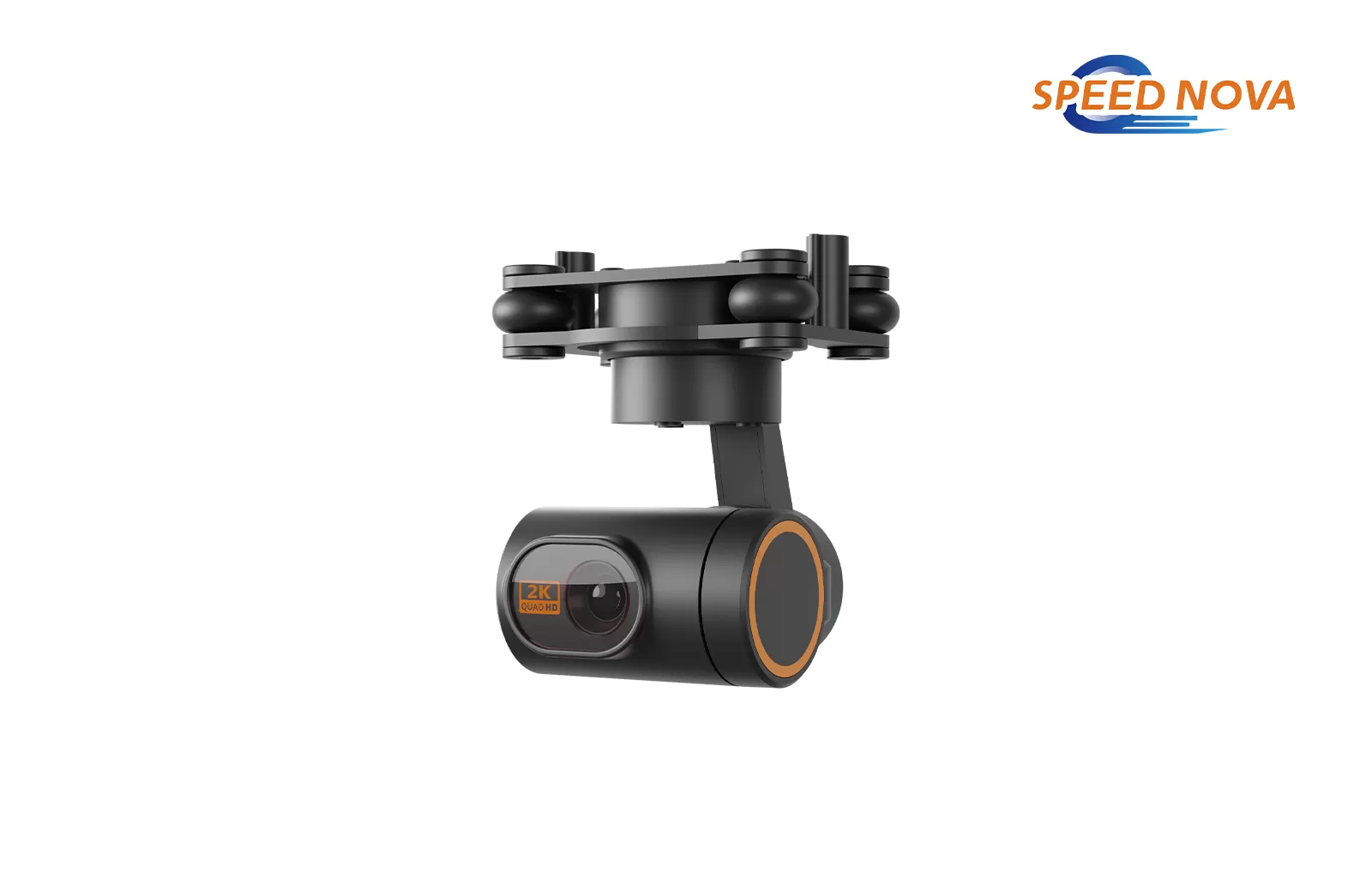

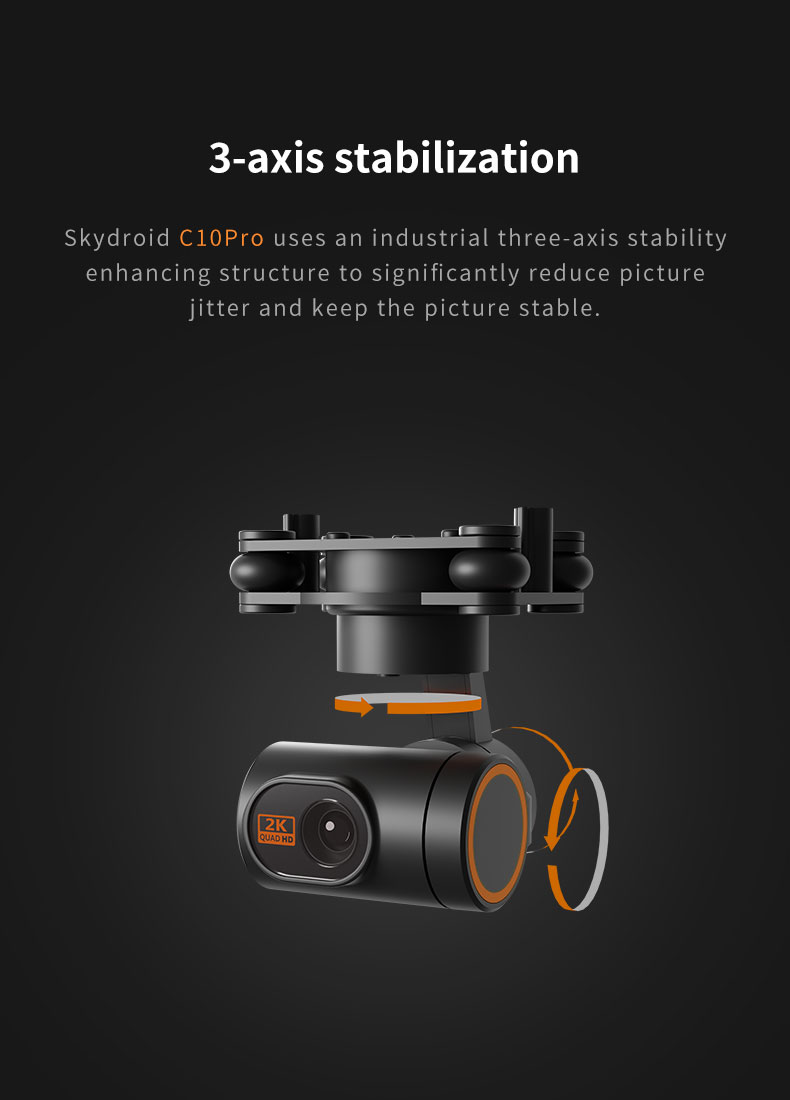

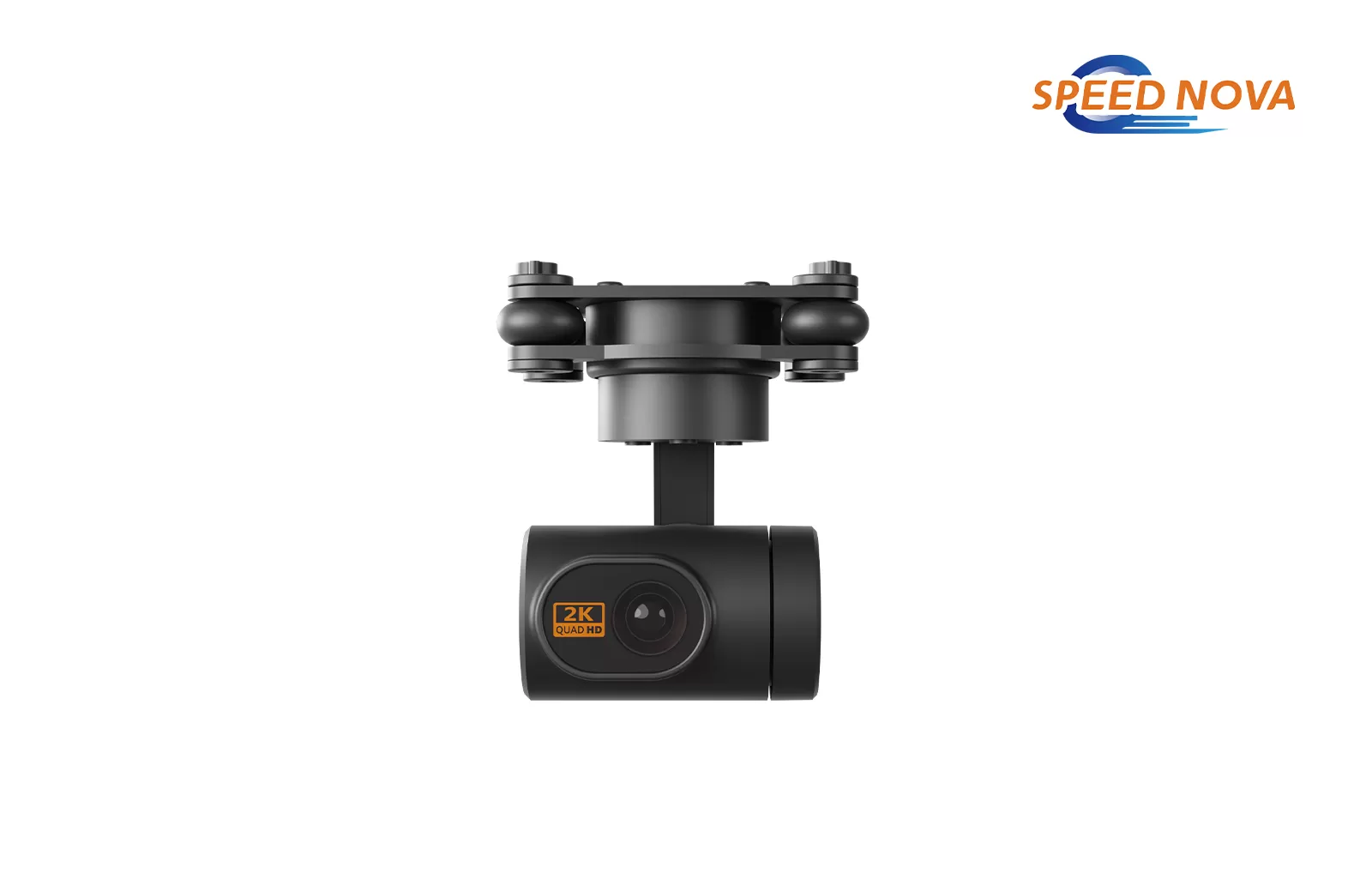

The Skydroid C10 and C10 Pro are ultra-lightweight, high-definition 3-axis gimbal cameras engineered for the modern UAV payload ecosystem. Designed to eliminate micro-vibrations, these gimbals deliver crystal-clear, fluid video transmission even during high-speed maneuvers. Perfectly integrated with Skydroid controllers, they form the ultimate optical solution for aerial photography, inspection, and security patrols.
Mounting Flexibility:

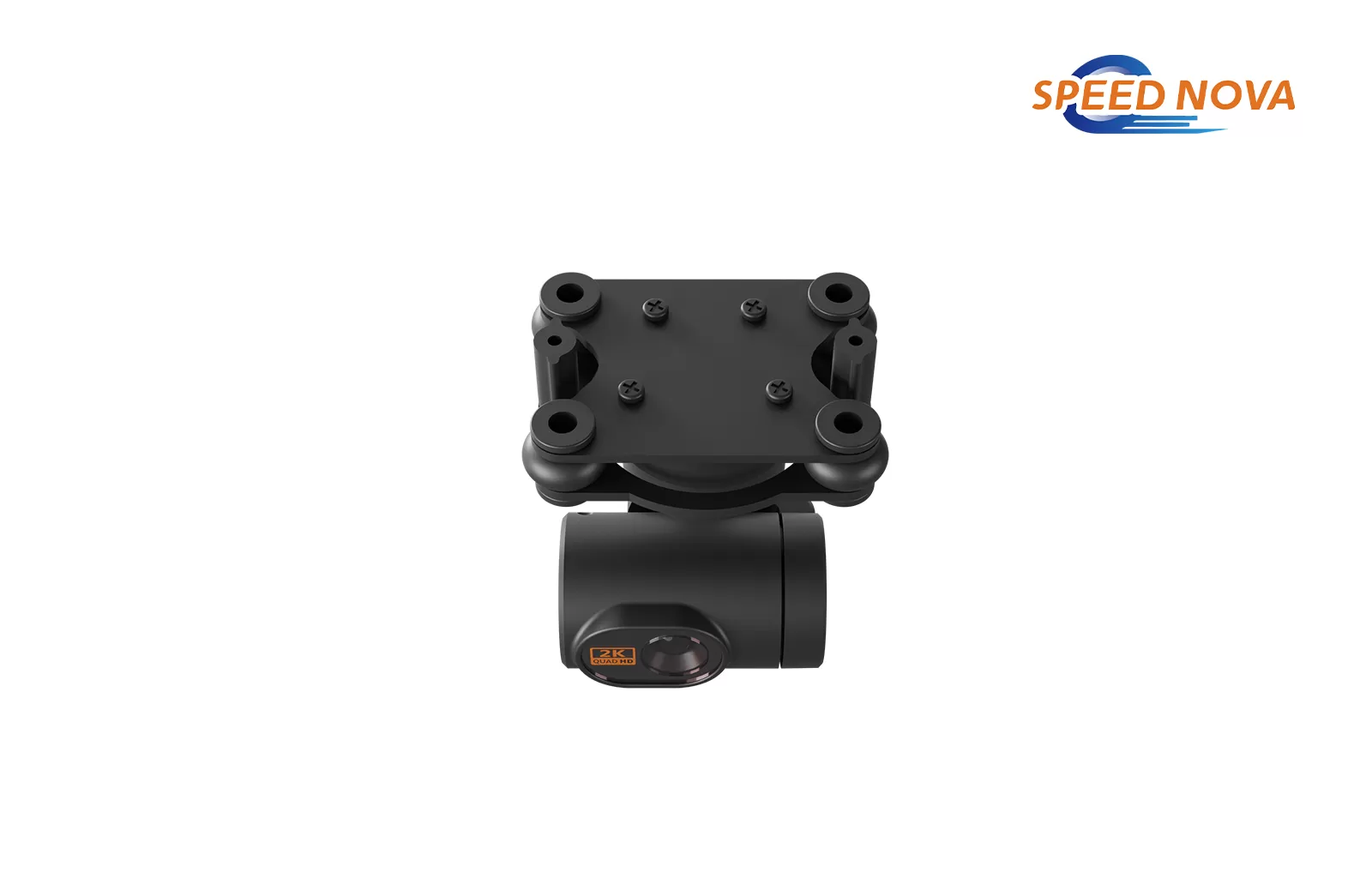

Supports both Suspended (Upright) Mode and Inverted Mode, easily adaptable to drones, UGVs, and fixed-wing platforms.
Versatile Mounting Modes (Suspended & Inverted): Configure the gimbal according to your platform's design. The system intelligently switches between standard suspended flight mode or inverted mounting for UGVs and unique airframes, ensuring the motor algorithms remain precise without damage.
Intelligent Speed Control: Tailor your camera movements via the Skydroid FPV App. Choose between Uniform Speed Mode for smooth cinematic panning or Variable Speed Mode for rapid target acquisition.

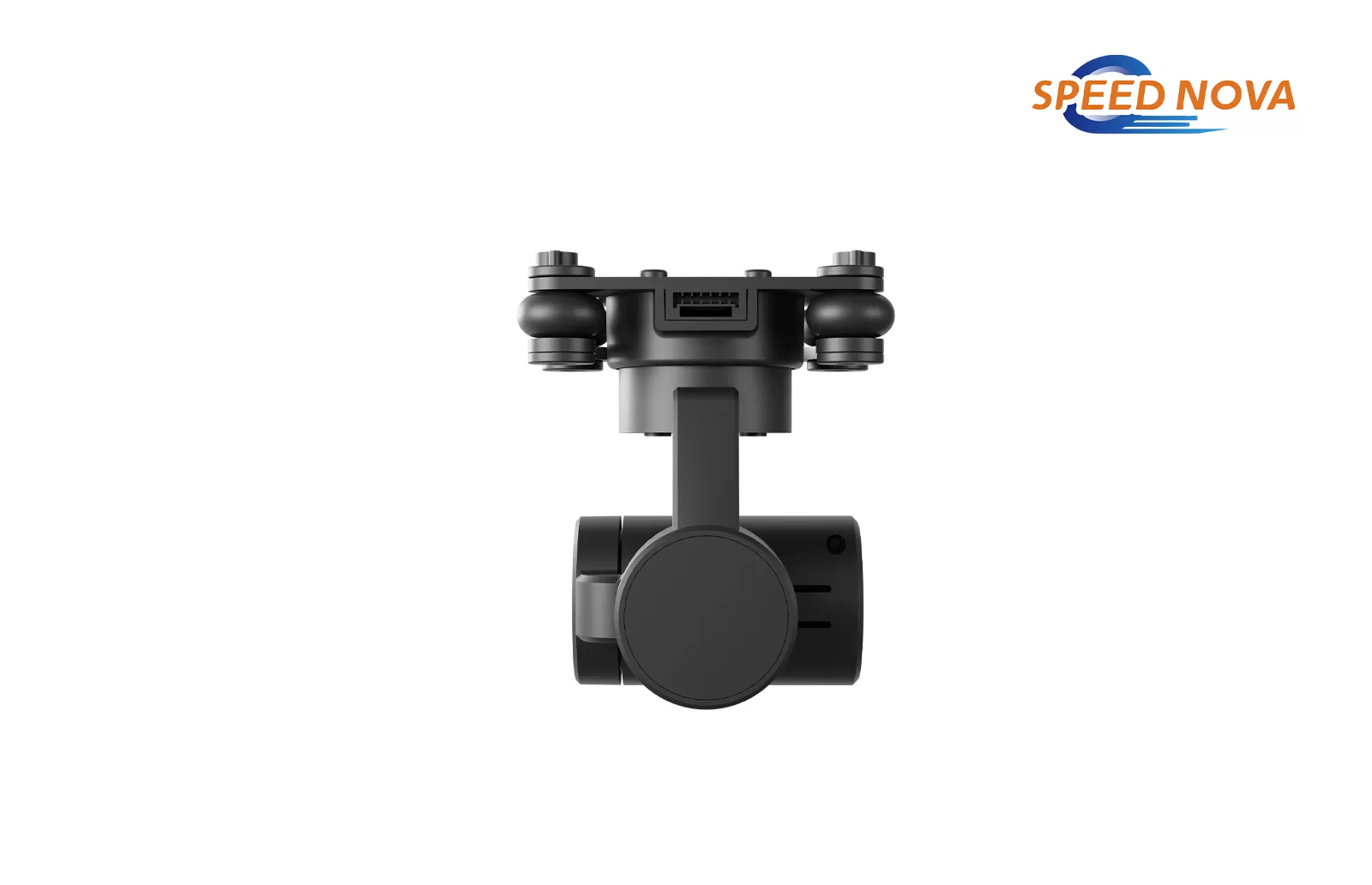

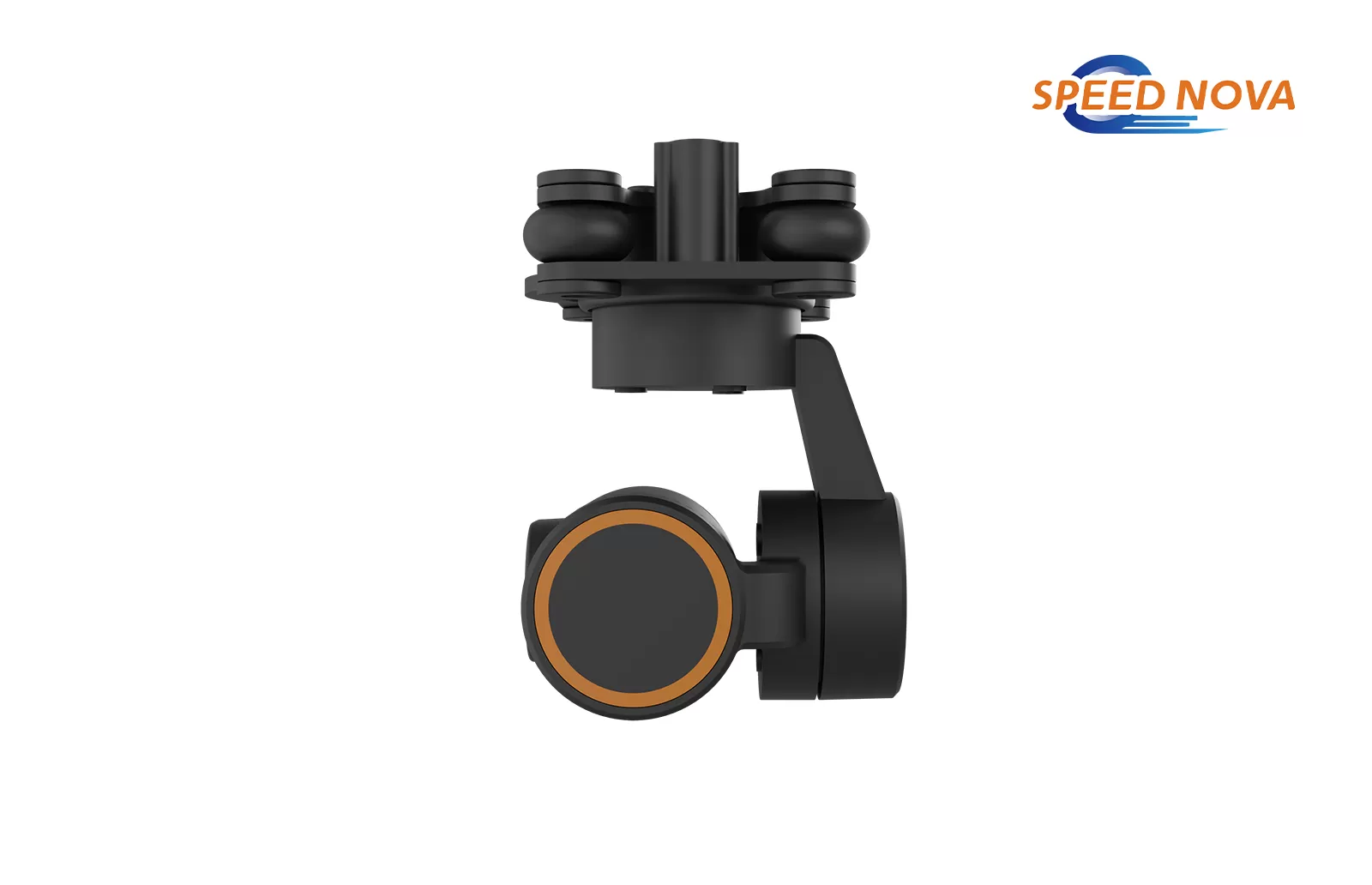

Seamless Skydroid Ecosystem: Designed to plug-and-play with Skydroid controllers (H12, H16, H30, G20, G30). Offers straightforward network and serial port connections for instant video downlink.
OTA Firmware Updates: Keep your equipment at peak performance. Directly upgrade both Camera and Gimbal firmware over-the-air through the Skydroid FPV App with just a single click.
Q: What is the main difference between Skydroid C10 and C10 Pro?
A: The primary difference lies in the optical sensor and image processing capabilities. The C10 Pro features an upgraded professional-grade sensor, providing higher dynamic range and superior clarity in low-light industrial environments compared to the standard C10, making it ideal for high-precision inspection tasks.
Q: Does the Skydroid C10 gimbal support inverted mounting for UGVs?
A: Yes. Both C10 and C10 Pro natively support Suspended (Upright) and Inverted (Downside-up) mounting modes. Users can easily switch the working mode via the Skydroid FPV App. This flexibility allows it to be used not only on drones but also on ground robots (UGVs) and robotic dogs.
Q: How do I update the firmware for the C10 gimbal and camera?
A: You can perform OTA (Over-the-Air) updates directly through the Skydroid FPV App. There is no need for complicated serial cables; simply connect the gimbal to your Skydroid controller, check for updates in the App, and upgrade both the camera and gimbal firmware with one click.
Q: Is the Skydroid C10 compatible with non-Skydroid flight controllers?
A: While optimized for the Skydroid ecosystem (H12, H16, H30, etc.), the C10 series can be integrated with other systems via its standard Ethernet and Serial port interfaces. It supports mainstream RTSP streams, making it compatible with various GCS (Ground Control Station) software that supports network video input.
| Specifications | Skydroid C10 | Skydroid C10 Pro |
| Power Consumption | 3.0W | 3.0W |
| Dimensions | 65 x 50 x 70 mm | 65 x 50 x 70 mm |
| Weight | 112g | 115g |
| Operating Voltage | 12V - 25.2V | 12V - 25.2V |
| FOV | 110° | 120° |
| Operating Temp | -10℃ ~ 50℃ | -10℃ ~ 50℃ |
| Image Sensor | 1/2.7" 200W (2M Pixels) | 1/2.8" 200W (2M Starlight) |
| Video Resolution | 1080P/30 | 1080P/30 |
| Control Range | Pitch: -120° ~ 30° | Pitch: -120° ~ 30° |
Don't let bulky payloads limit your flight times. The Skydroid C10 and C10 Pro offer the perfect balance of weight, stability, and high-definition clarity for industrial UAV manufacturers and integrators.
👉 Contact the RAYI AERO sales team today for bulk B2B pricing, payload integration SDKs, and global shipping details.
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Packaging & Shipping
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
NO USE FOR WAR
Legal Statement & Compliance
The content mentioned herein relates to your safety and legal rights. Please read carefully before use to ensure correct setup. Failure to follow instructions may cause injury to yourself or others, or damage the product and surrounding objects
No Unauthorized Disassembly or Modification
The gimbal is factory-calibrated for its specific camera and lens. Do not adjust the mechanical structure or add external equipment. Unauthorized disassembly will cause functional abnormalities
Environmental Constraints
English: Operating temperature must be between -10°C and +60°C
Disclaimer of Liability
The company has no control over specific installation, modification, or improper use by users. We assume no liability for any direct or indirect loss or injury resulting from such actions
