Unshakable Vision for Industrial Missions.

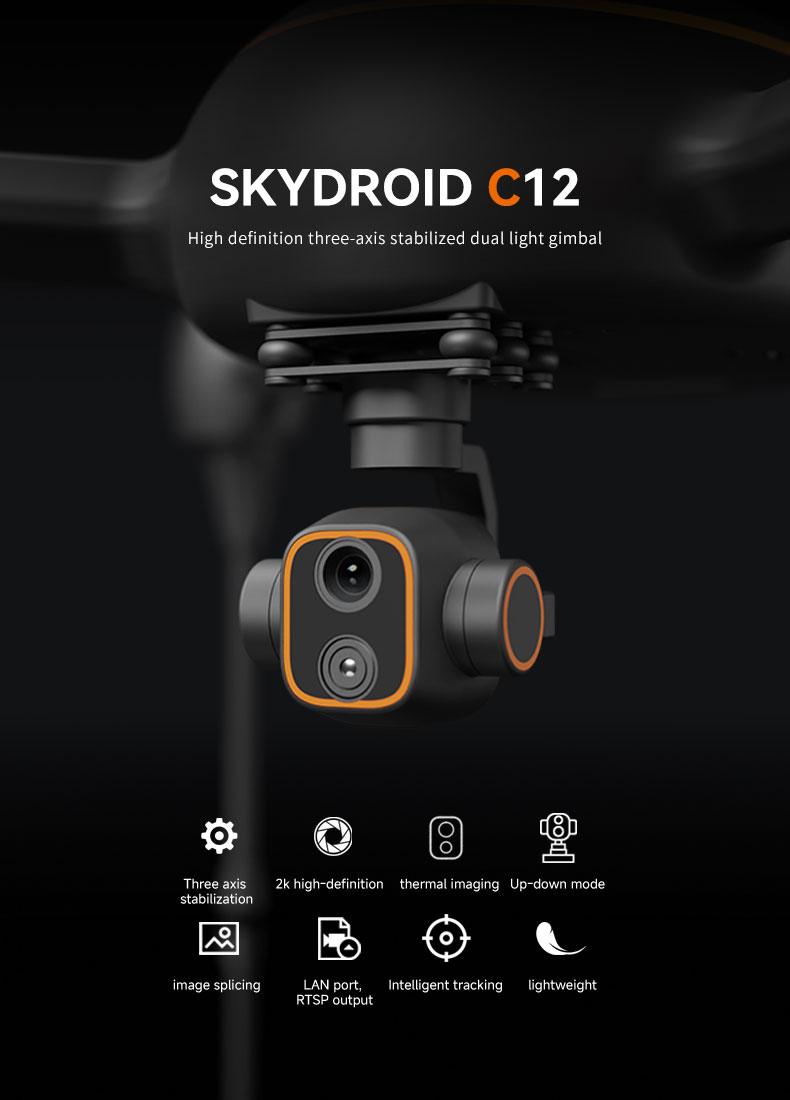

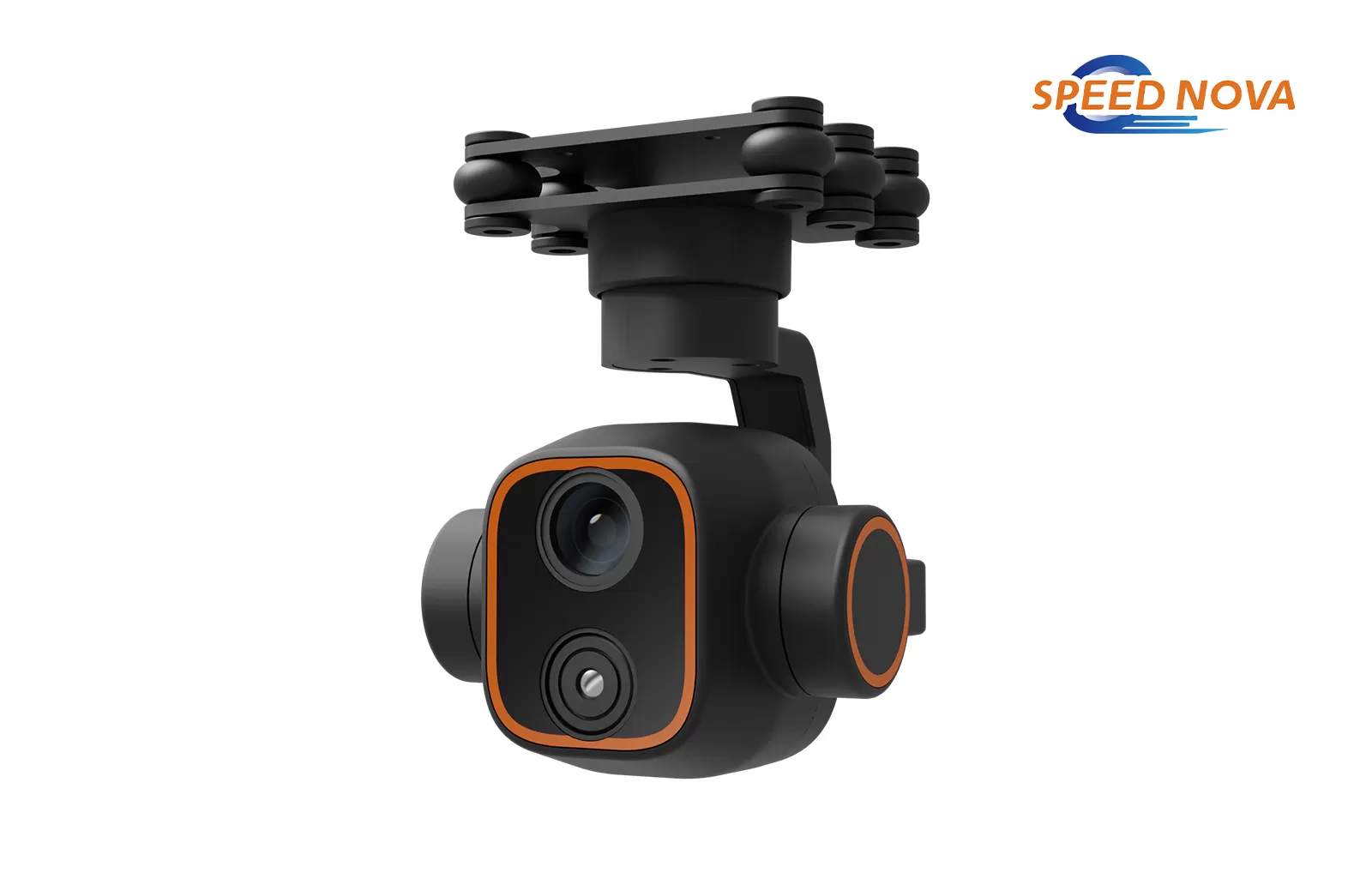

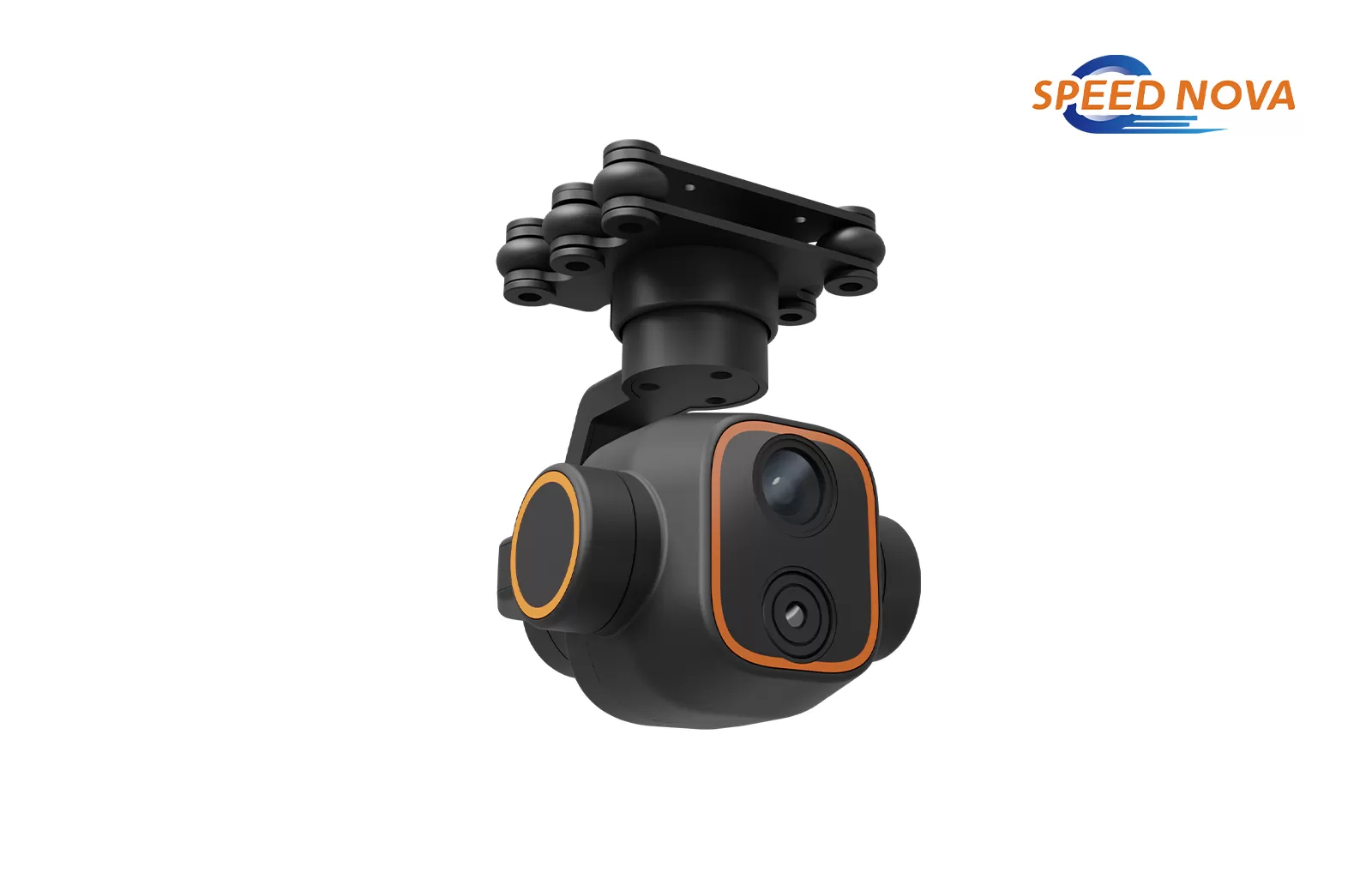

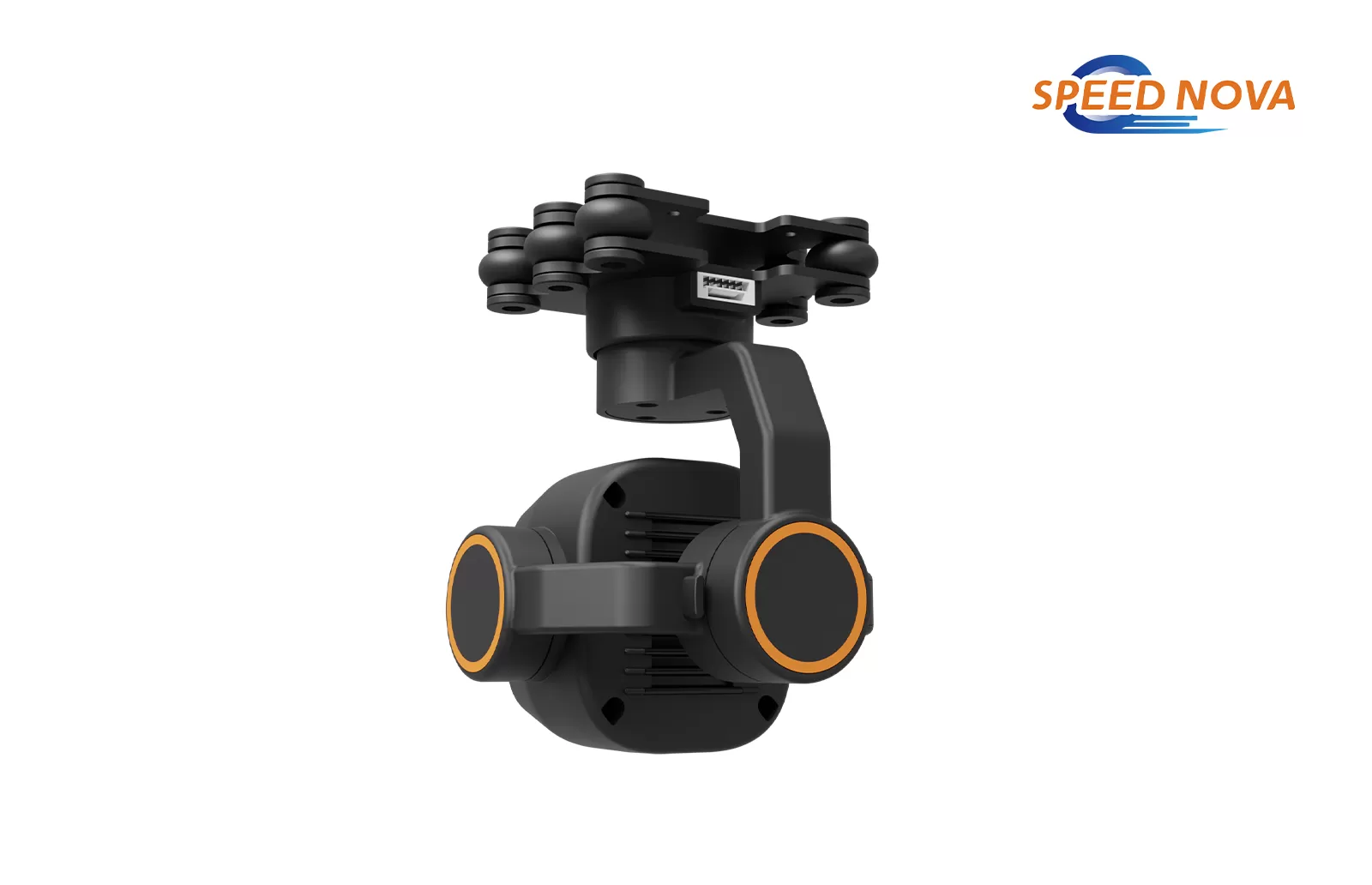

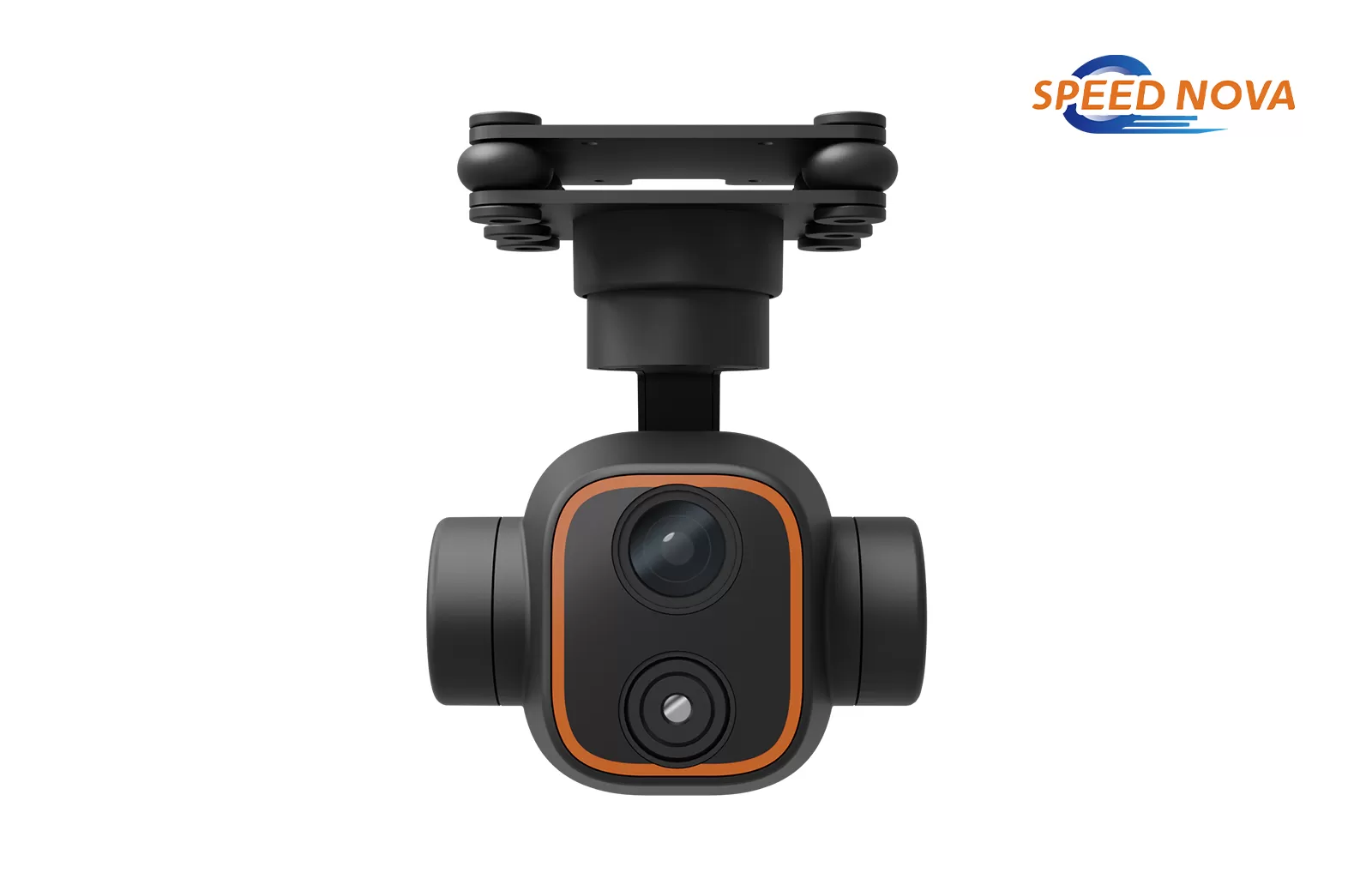

The Skydroid C12 is a robust, high-definition 3-axis gimbal camera engineered to meet the rigorous demands of commercial UAV operations. Utilizing advanced stabilization algorithms and high-precision brushless motors, the C12 eliminates mechanical vibrations to deliver ultra-smooth, crystal-clear 1080p video streams. Perfectly integrated with the Skydroid ecosystem, it is the ultimate optical payload for modern drone fleets.
Multi-Platform Ready
Engineered for seamless integration with multi-rotors, fixed-wing VTOLs, and UGVs. Ideal for powerline inspection, security surveillance, and search & rescue.

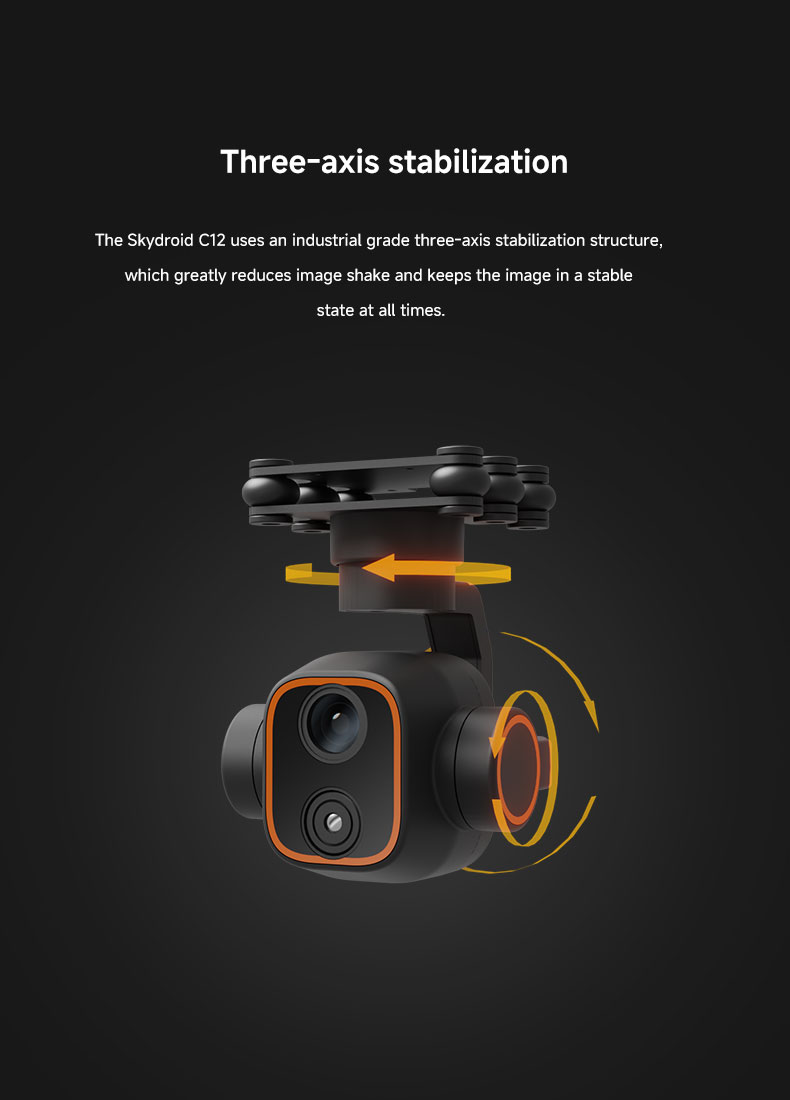

Precision 3-Axis Stabilization: Advanced motor control algorithms ensure pitch, roll, and yaw stability, maintaining target lock even during high-speed forward flight or turbulent winds.
Plug-and-Play Ecosystem: Designed for seamless compatibility with Skydroid H12, H16, H30, and G-series ground stations via a simple Ethernet connection. Zero complex wiring required.
Wide Voltage Input: Supports a broad operating voltage (typically 7.2V - 72V), allowing direct power supply from high-voltage drone batteries without the need for vulnerable BEC modules.
Intelligent App Control: Manage camera settings, gimbal pitch, and firmware OTA updates directly through the Skydroid FPV App.

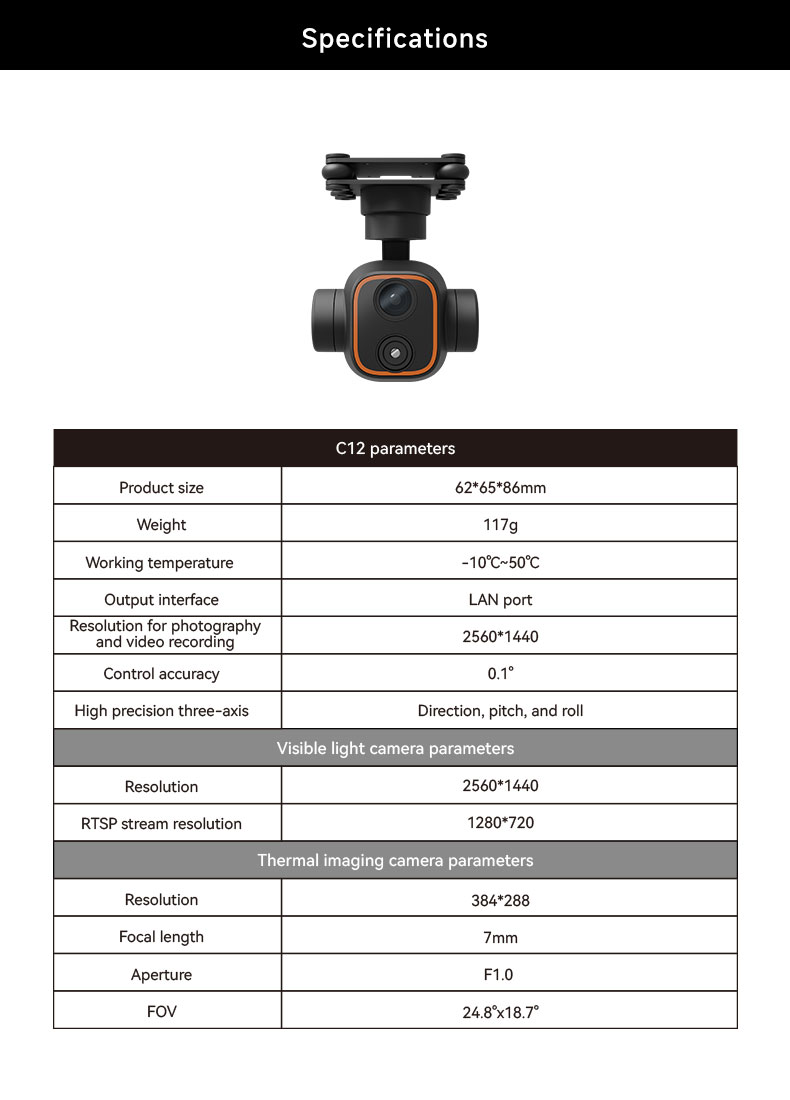

Technical Specifications
| Specifications | Skydroid C12 Details |
| Gimbal Weight | 117g |
| Dimensions | 62mm(L) * 65mm(W) * 86mm(H) |
| Operating Voltage | 7.2V ~ 72V |
| Visible Camera | 5MP, 2K (2880*1620) Recording |
| Digital Zoom | 30x |

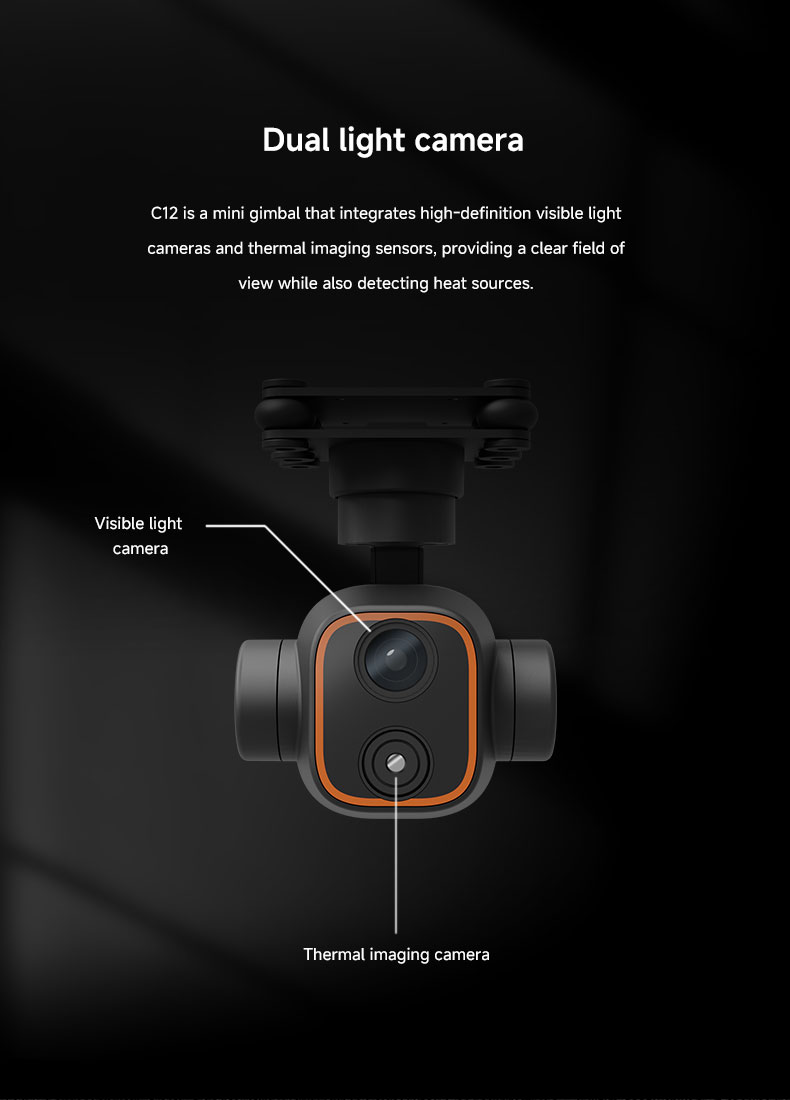

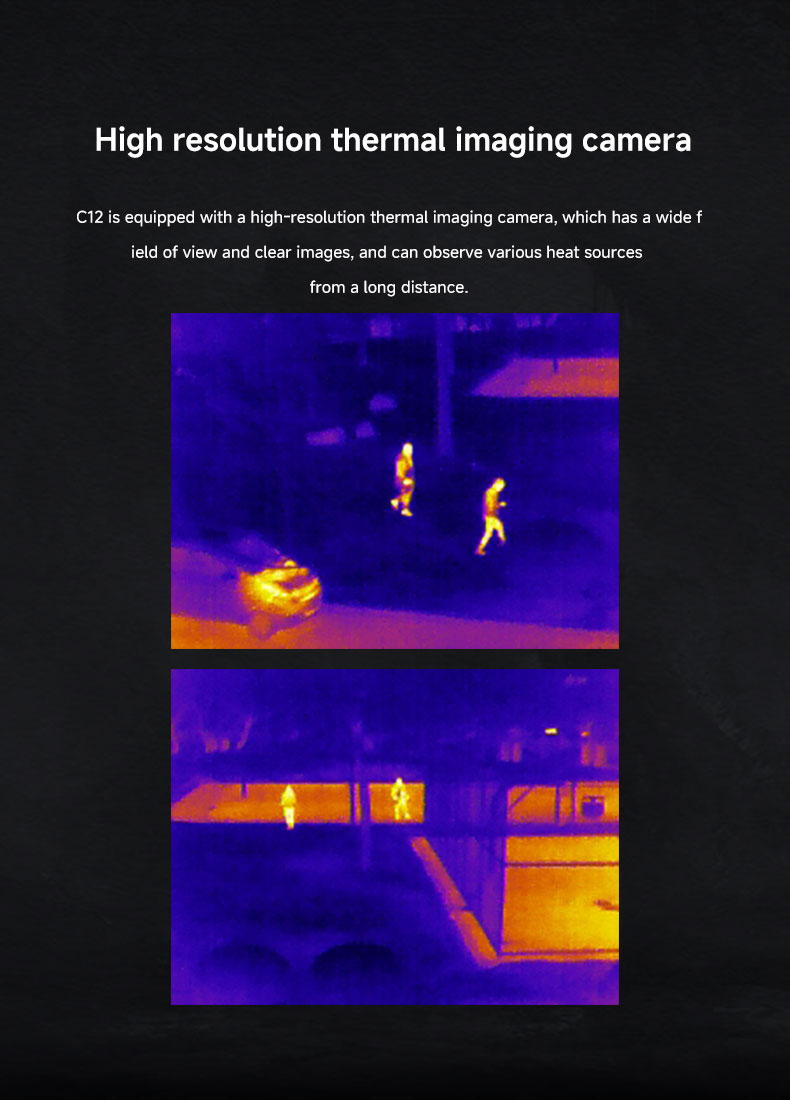

| Thermal Sensor | 384*288 Resolution, 12μm, 8~14μm Spectrum |
| Output Method | Dual Ethernet RTSP Streams |

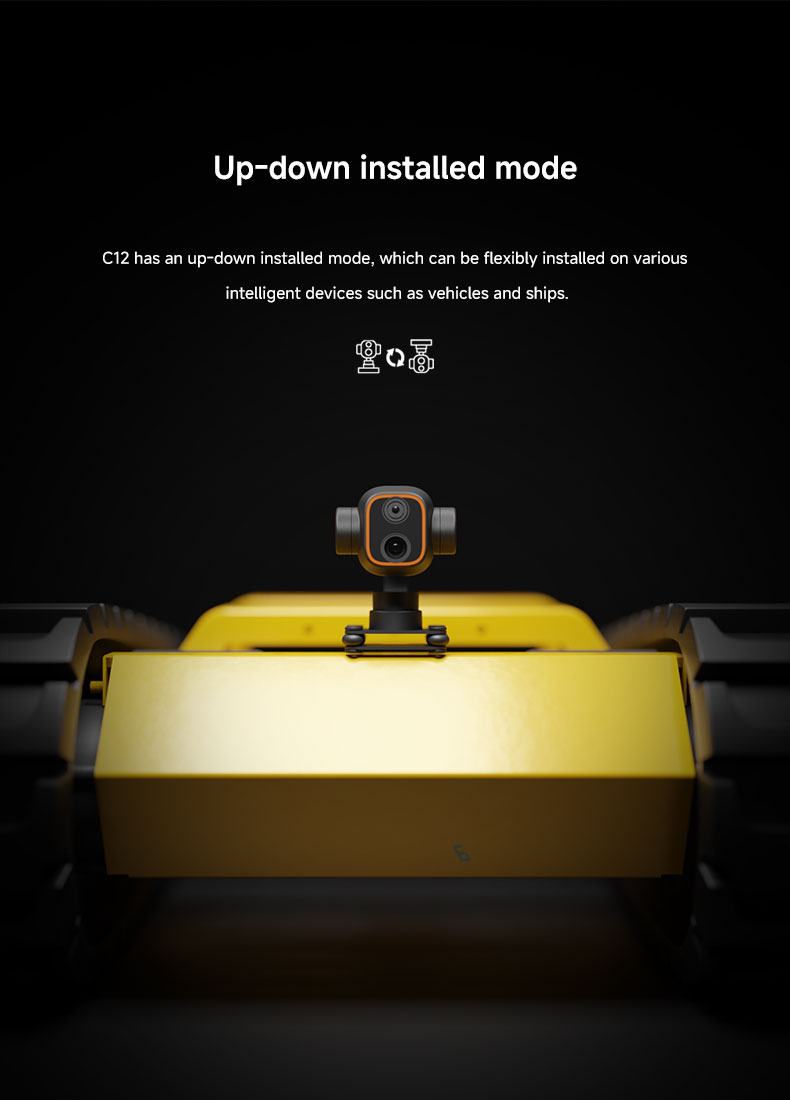

| Mounting Modes | Suspended / Inverted |
F&Q About Skydroid C12
Q: How does the Skydroid C12 connect to the H30 or H16 controller?
A: The C12 features a highly integrated design. It connects directly to the receiver of your Skydroid controller (like the H30 or H16) using the provided standard Ethernet cable for both telemetry and high-definition video transmission.
Q: Can the C12 gimbal be powered directly from a 12S drone battery?
A: Yes. The Skydroid C12 is equipped with a wide-voltage input module that safely handles up to 72V. This allows you to power the gimbal directly from standard high-voltage drone batteries (like 12S or 14S setups) without requiring an external step-down converter (BEC).
Don't compromise your drone's data-gathering capabilities with inferior cameras. The Skydroid C12 is the proven choice for enterprise integrators demanding reliability and clarity.
👉 Contact the RAYI AERO engineering team today for bulk B2B pricing, payload SDK documentation, and rapid global shipping.
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Packaging & Shipping
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning and Disclaimer
1. Legal Statement & Compliance
The content herein relates to your safety and legal rights. Failure to operate this product according to the manual may result in injury or damage to the C12 payload and the aircraft.
2. Power & Installation Warnings
Ensure the operating voltage strictly remains within the specified limits. Improper wiring or reversing the polarity will cause irreversible damage to the gimbal motors and motherboard. Do not power on the gimbal while holding it in your hands; always ensure it is securely mounted and the camera has space to self-calibrate.
3. Environmental Restrictions
Protect the C12 gimbal from rain, snow, and extreme condensation. Do not operate in areas with highly corrosive gases or explosive environments.
