Three Sensors. One Ultralight Payload. Infinite Possibilities.

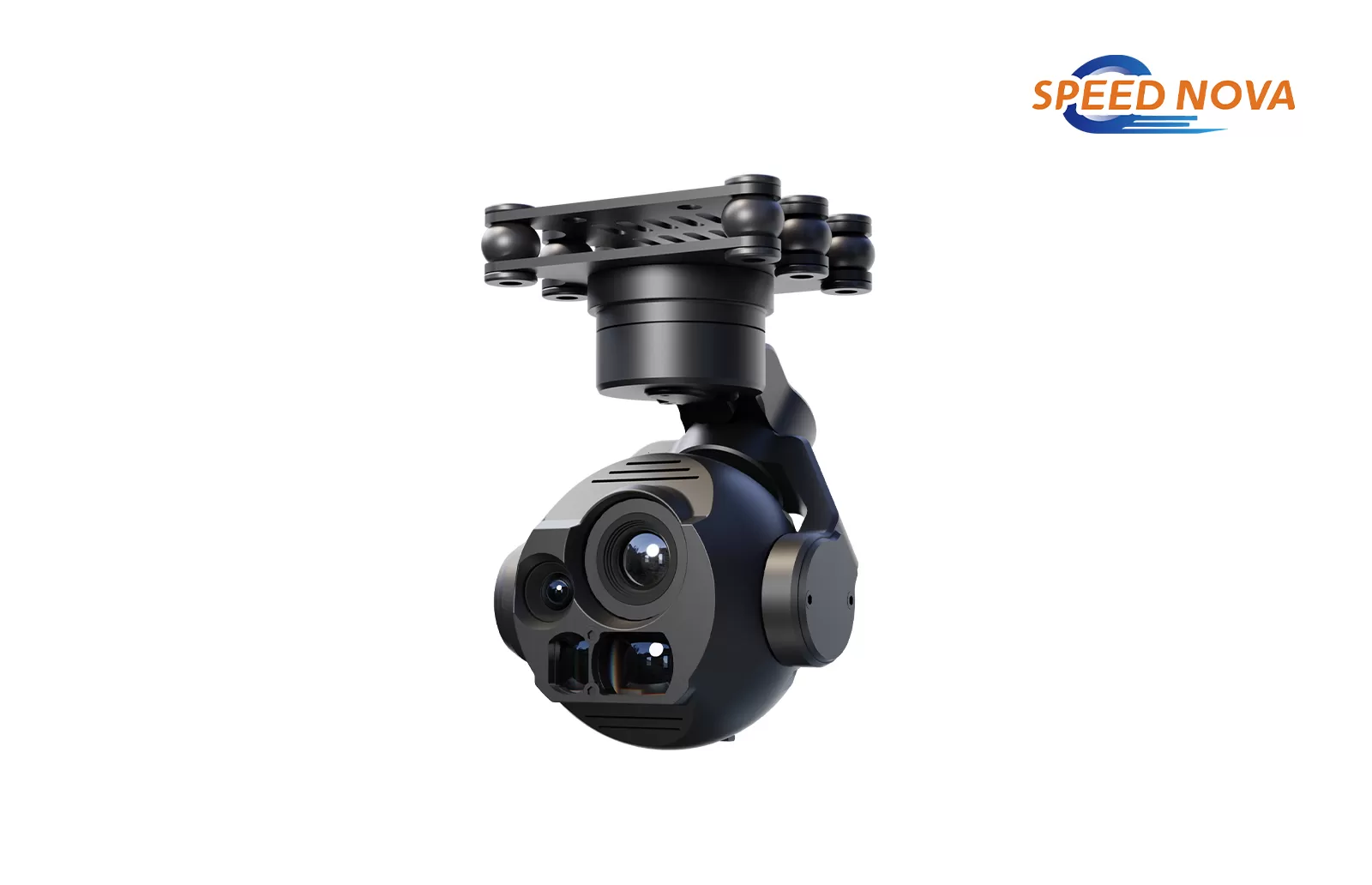

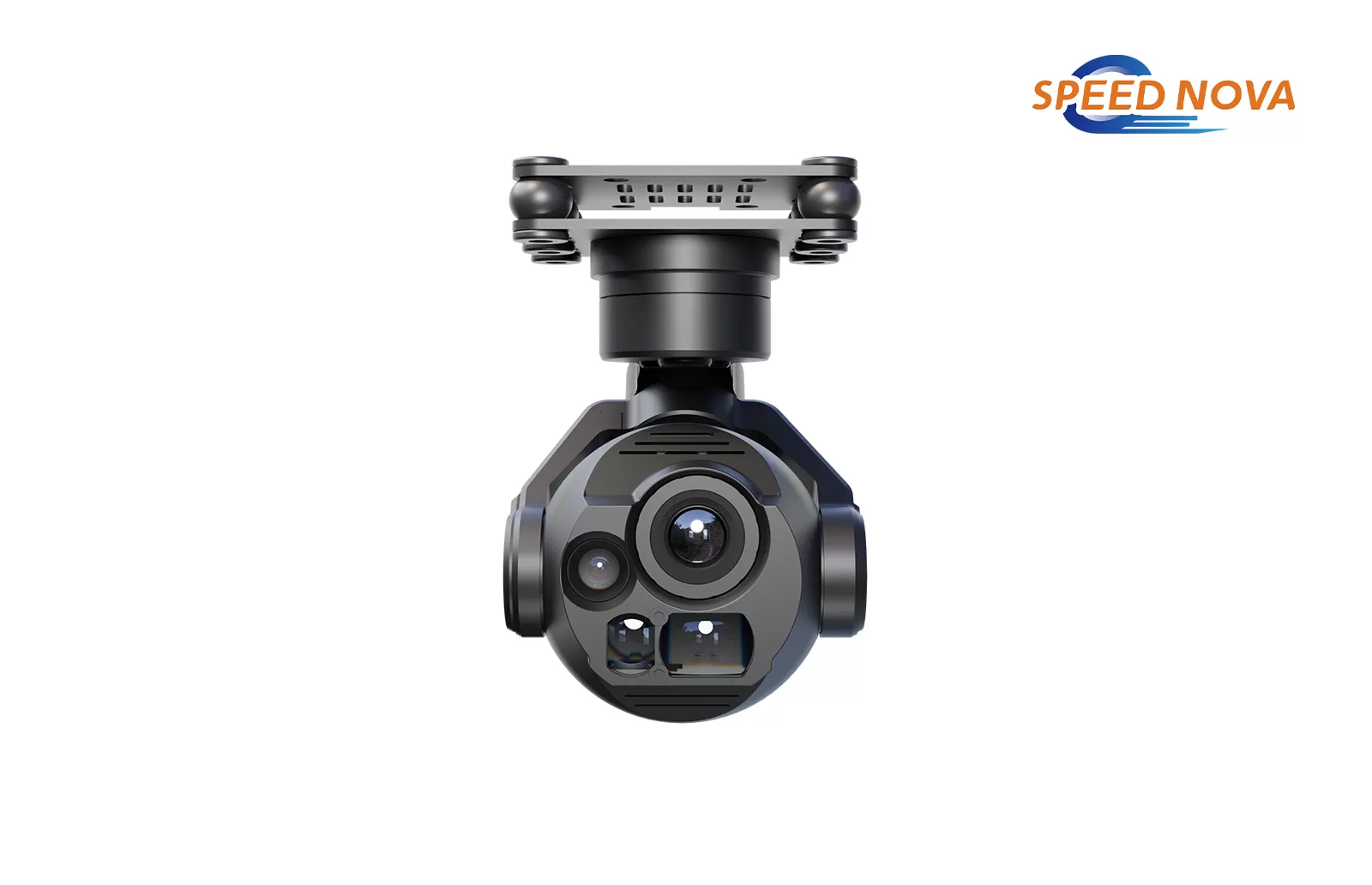

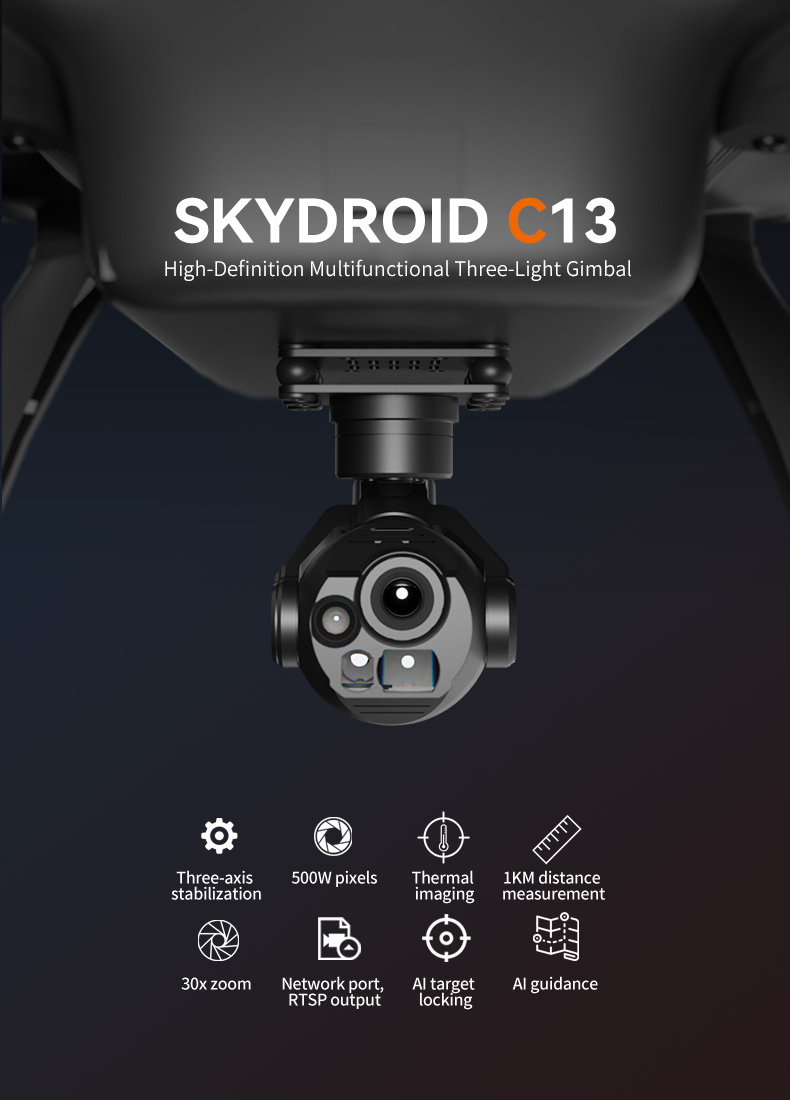

The Skydroid C13 is a masterclass in miniaturization. Built for the most demanding aerial missions, this micro-gimbal integrates a 2K visible light camera, a 640-resolution thermal imager, and a 1-kilometer laser rangefinder into a chassis that weighs a mere 176g
Ultralight Micro-Gimbal
Achieving an unprecedented weight of just 176g
Core Engineering Advantages

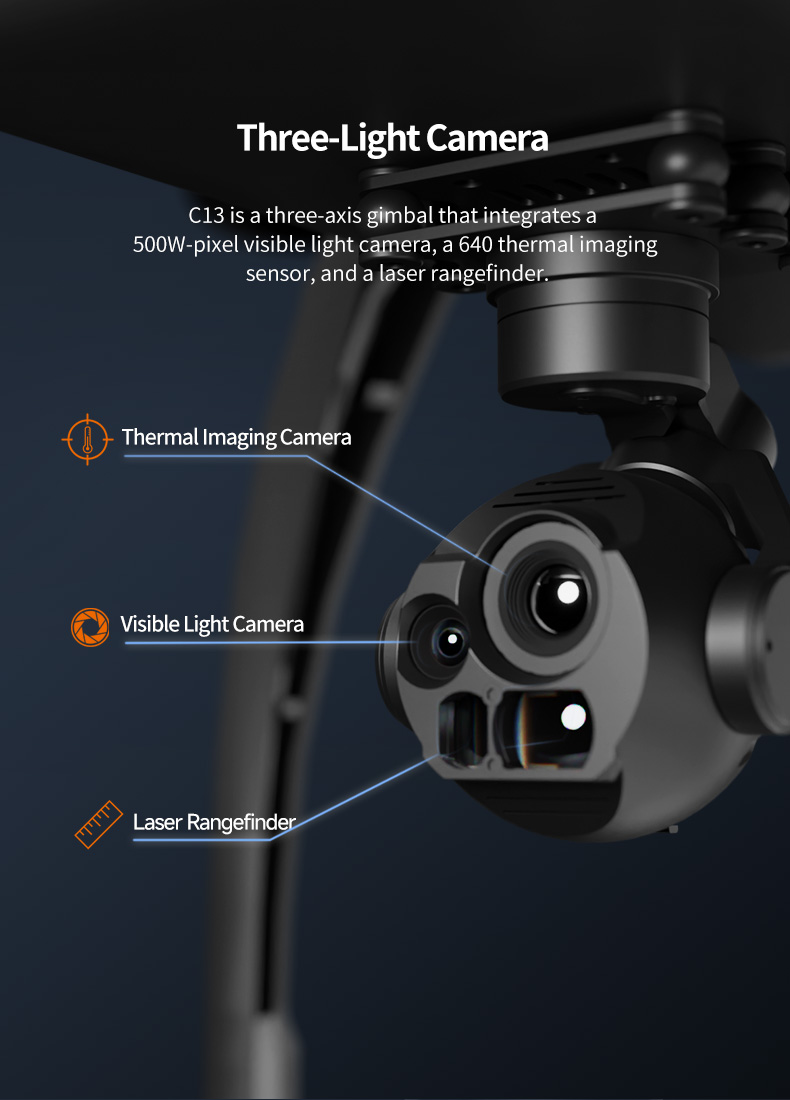

Riple-Vision Domination: Equip your fleet with a 5MP visible camera featuring 30x Digital Zoom, an upgraded 640x512 Thermal Sensor for superior heat detection, and a built-in Laser Rangefinder (LRF) effective up to 1,000 meters
The 176g Engineering Marvel: Most tri-sensor payloads weigh over 600g. The C13 cuts that down to just 176g

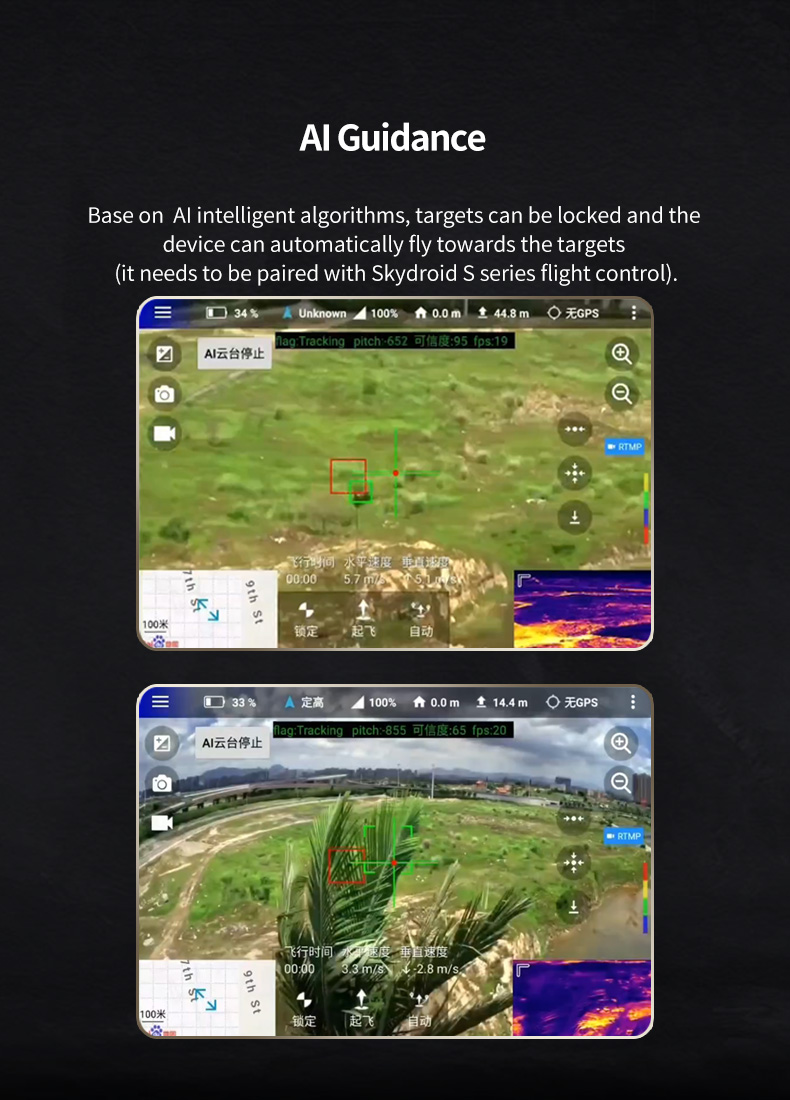

AI Smart Tracking & PiP Display: Automatically track moving targets (vehicles, suspects) directly from the Skydroid FPV App. Utilize Picture-in-Picture (PiP) or split-screen modes to monitor thermal and visible feeds simultaneously.
Direct High-Voltage Input: Supports a massive 7.2V to 72V wide-voltage input

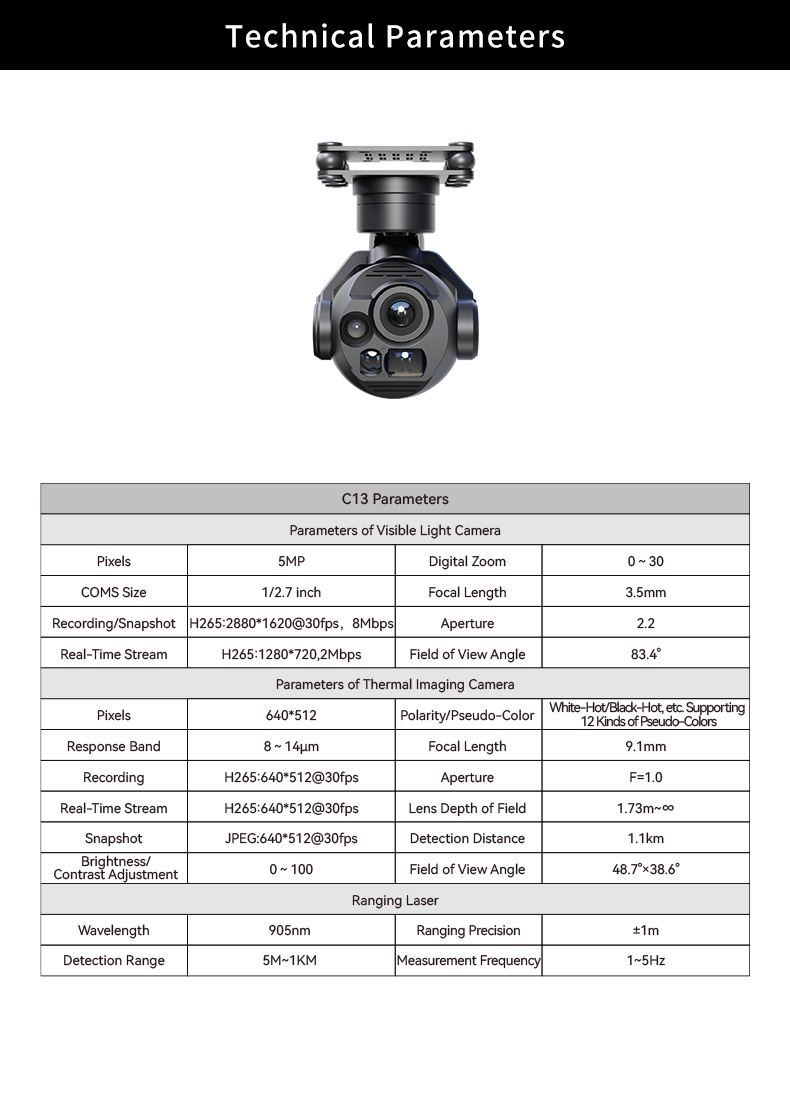

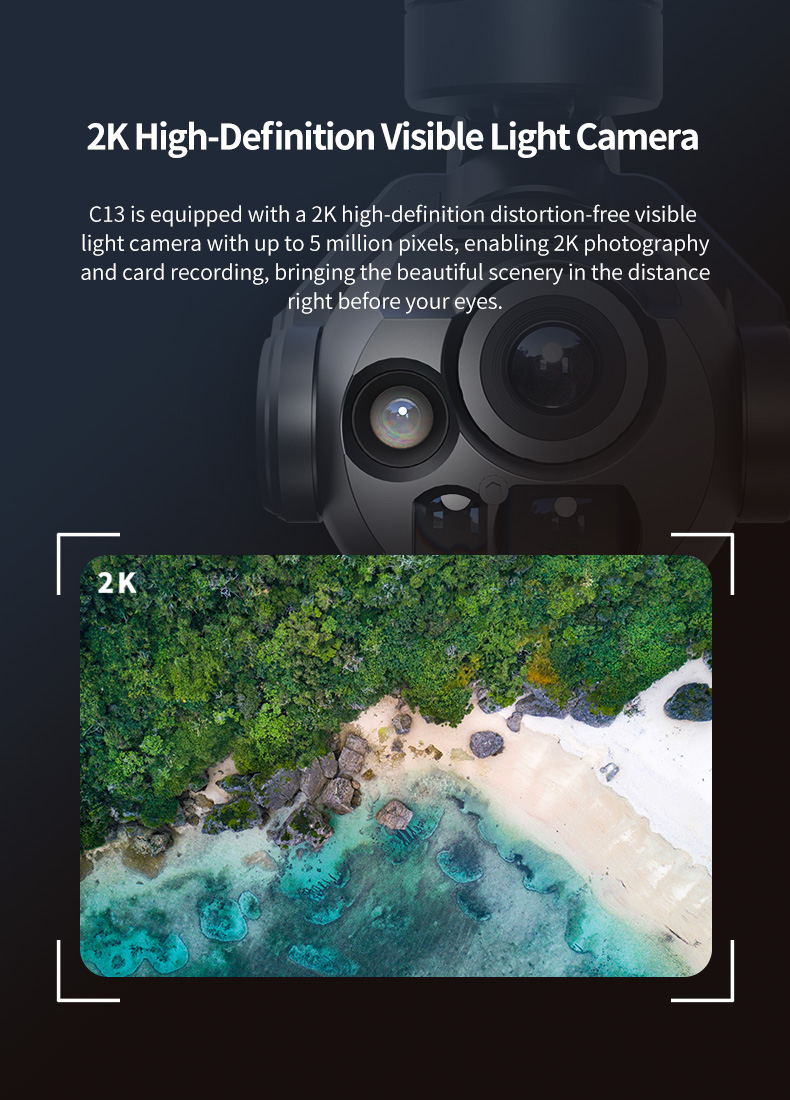

C13 Overall / Visible Light Camera Parameters
| Specification | Details |
| Lens Pixels | 5 Million (5MP) |
| Image Sensor | 1/2.7" |
| Focal Length | f=3.1mm |
| Aperture | F2.0 |
| HFOV / VFOV / DFOV | 100° / 52° / 122° |
| Zoom Ratio | 30x Digital Zoom |
| Video Transmission Resolution | 1280*720 30fps |
| SD Card Video Resolution | 2880*1620 30fps |
| Video Storage Format | H265 |
| Photo Resolution | 2880*1620 |
| Photo Storage Format | JEPG (JPEG) |
| Supported Memory Card Type | Supports MicroSD Storage (Max 256G) |
| Supported File System | FAT32 |
C13 Thermal Imaging Camera Parameters
| Specification | Details |
| Resolution | 384*288 |
| Frame Rate | ≤25Hz |
| Thermal Time Constant | <10ms |
| Focal Length | 7mm |
| Aperture | F1.0 |
| HFOV / VFOV | 24.8° * 18.7° |
| Pixel Pitch | 12μm |
| Spectral Range | 8~14μm |
People Also Ask
Q: How does the Laser Rangefinder (LRF) work on the Skydroid C13?
A: The built-in laser rangefinder can be activated via the Skydroid FPV App. Simply aim at the target using the crosshairs on your screen, click the rangefinder button, and it will instantly display the precise distance. It is effective from 5 meters up to a maximum of 1 kilometer
Q: Does the C13 support multiple thermal color palettes?
A: Yes, the C13 provides up to 11 different thermal imaging color palettes (e.g., White Hot, Black Hot, Iron Red)
Q: Why does the video sometimes show "ghosting" (smearing) during recording?
A: This is a normal processing phenomenon. The Skydroid C13 optimizes encoding for small details, refreshing them mainly during I-frames to save bandwidth. Additionally, the ISP (Image Signal Processor) might occasionally interpret tiny patterns as noise, resulting in a slight smearing or ghosting effect on extremely fine textures
Transform Your Drone into a Tactical Asset
Stop compromising between weight and capability. The Skydroid C13 gives your enterprise fleet military-grade situational awareness at just 176g.
👉 Contact the RAYI AERO engineering team today for bulk B2B pricing, payload SDK documentation, and to secure inventory for your next generation of tactical UAVs.
Skydroid C13 FPV app thermal and visible picture-in-picture mode
Skydroid C13 thermal camera multiple color palettes

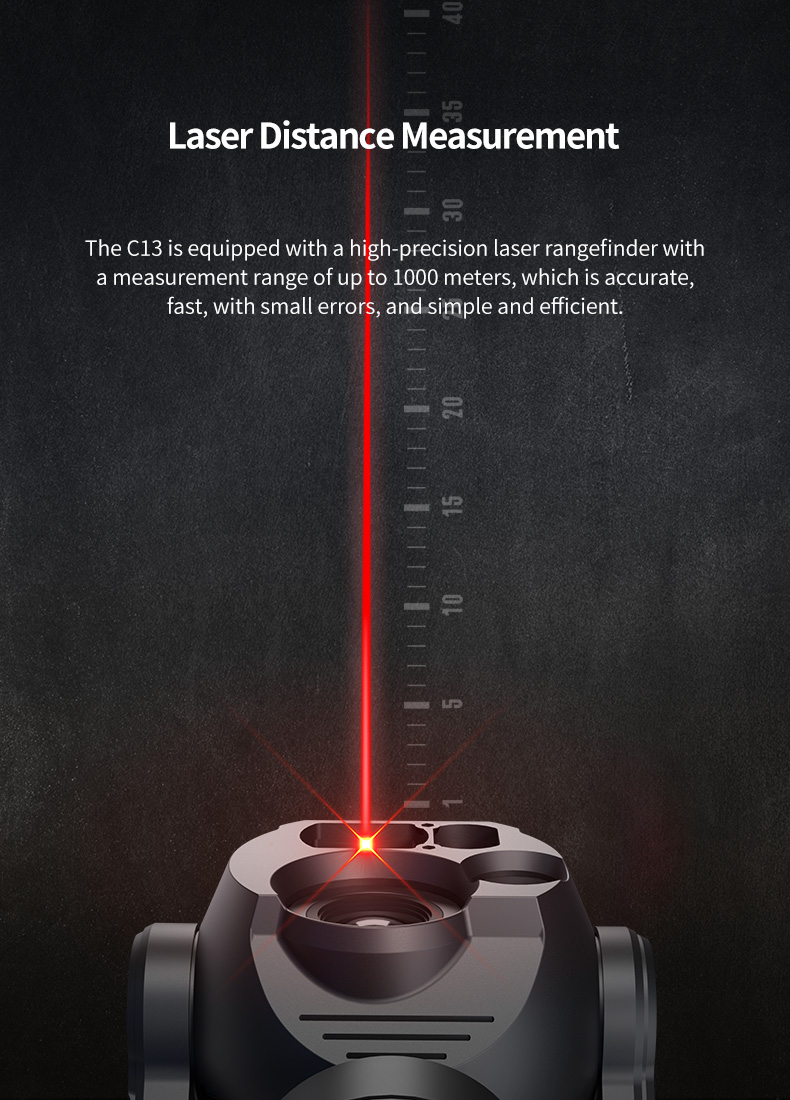

Skydroid C13 1KM laser rangefinder target lock interface
Skydroid C13 30x digital zoom visible camera UI

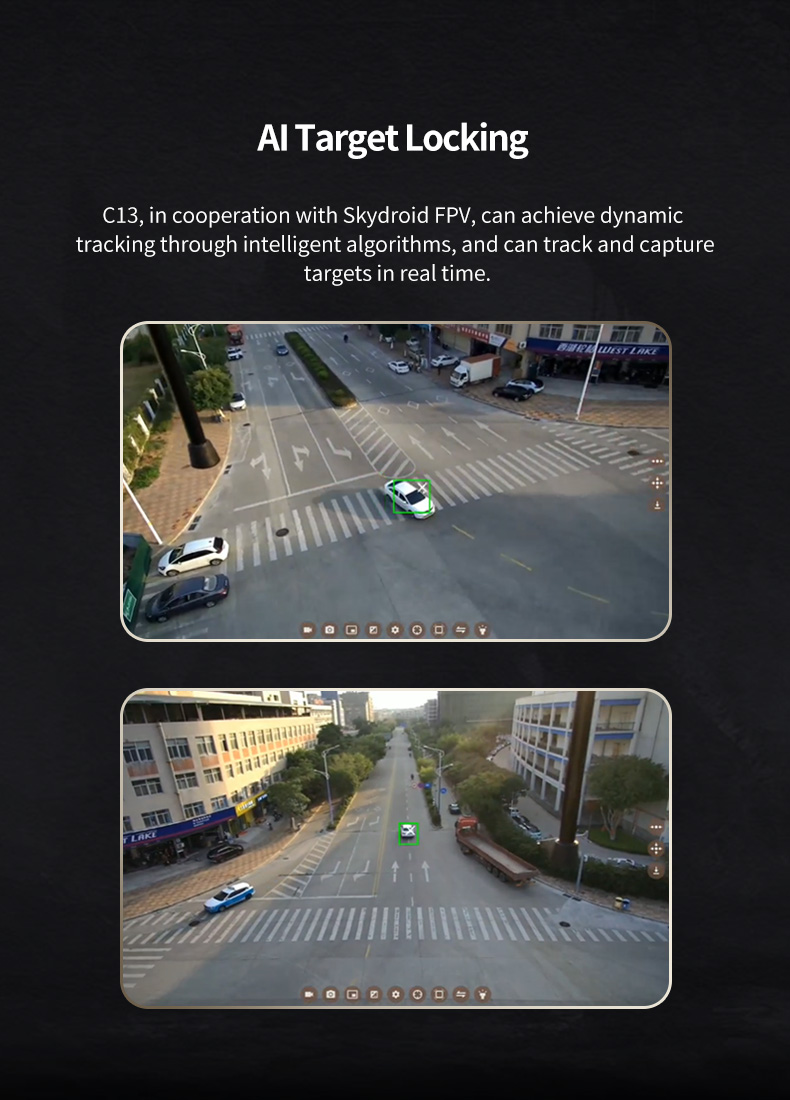

Skydroid C13 smart target tracking on moving vehicles
Skydroid C13 split-screen dual sensor monitoring
Skydroid C13 packaging, TF card and Ethernet cables
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Packaging & Shipping
🔥 Don't Let Heavy Payloads Ground Your Mission.
Why sacrifice your drone's flight endurance for tactical awareness? The Skydroid C13 delivers a 640-grade thermal imager, a 2K visible camera, and a 1KM laser rangefinder—all packed into a revolutionary 176-gram micro-chassis. It is the ultimate tri-sensor upgrade that turns your agile UAVs into tactical powerhouses.
👉 Contact RAYI AERO today to secure exclusive B2B pricing and integrate military-grade situational awareness into your fleet without the weight penalty!
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning and Disclaimer
1. Legal Statement & Disclaimer
Operating this tri-sensor payload requires strict adherence to local aviation and privacy laws. Our company has no control over user installation, modification, or improper operation. We assume no liability for direct or indirect losses or injuries resulting from such actions
2. Critical Sensor Protection Warnings
NEVER point the thermal imaging lens or the camera module directly at the sun, high-intensity lasers, or extreme radiation sources
3. Installation & Operation Warnings
Ensure the operating voltage is strictly within the 7.2V-72V range
