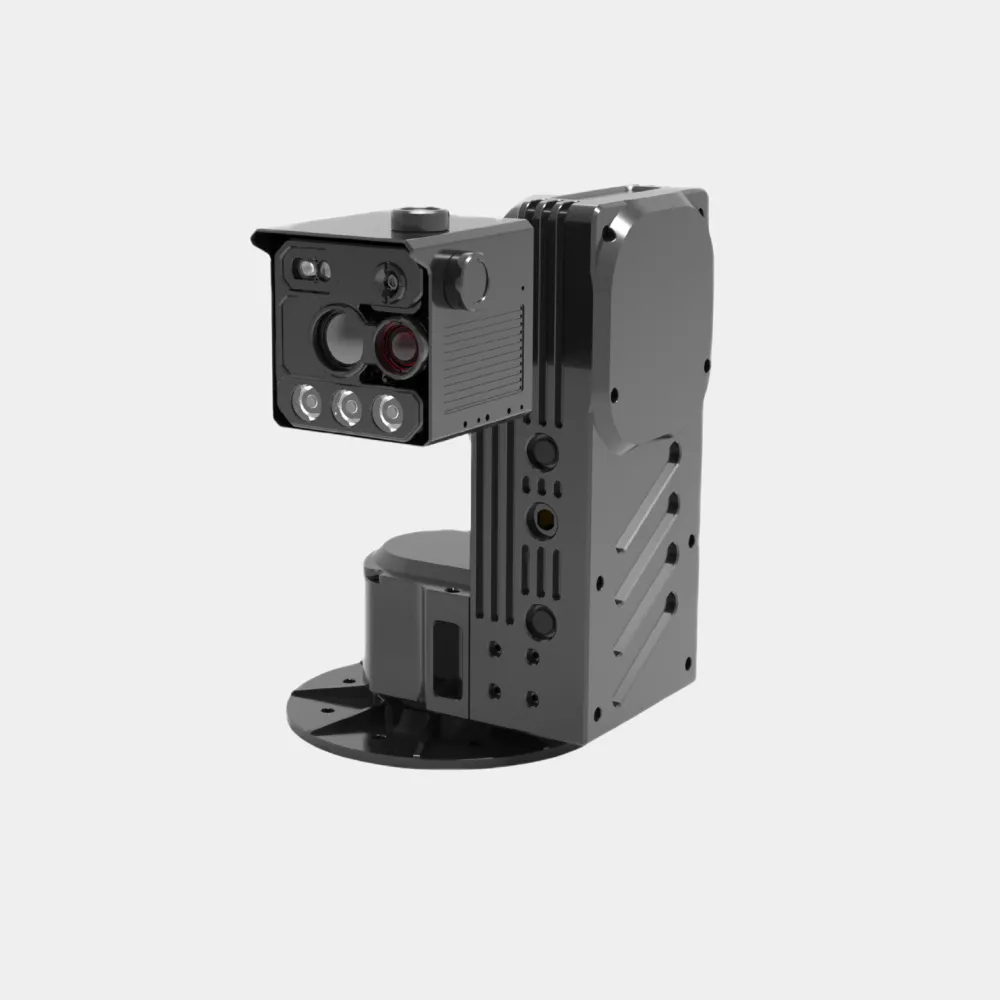

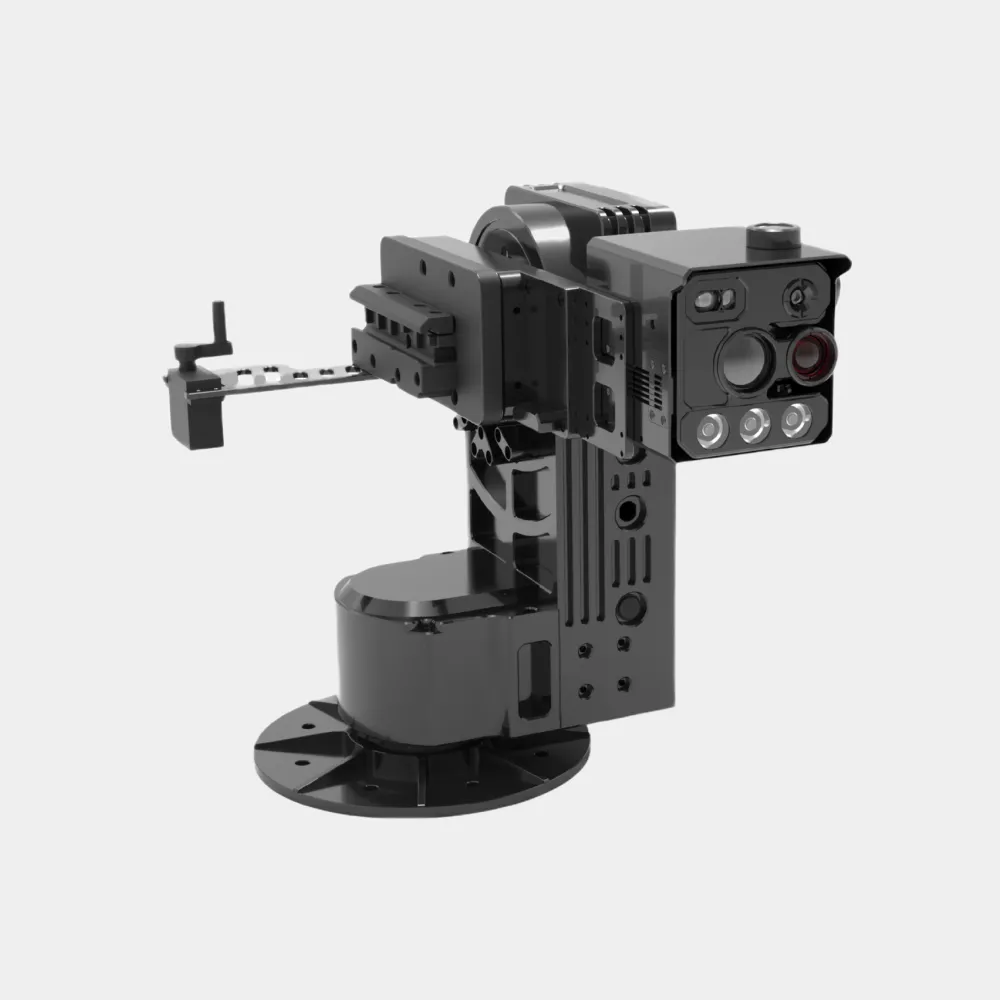

The 10kg High-Precision Servo Turntable is an integrated servo stabilization payload designed for UAVs, unmanned vehicles and other observation platforms. It has a net weight of 10kg and dimensions of 200 x 140 x 300mm. The system operates on DC 24-80V input and supports PWM, SBUS and TTL control signals. Its integrated servo motor reducer stabilization system provides dual linkage of heading and pitch with a rotation accuracy of ±0.05°. The payload supports quick-disassembly four-point positioning, secondary rebound shock absorption, automatic overload and overcurrent protection, and limit protection. Observation functions include 30x optical zoom, a 640 x 512 infrared camera with a 50mm lens, RTSP streaming and an independent APP display function.
Product Type
10kg High-Precision Servo Turntable
High-Precision UAV Servo Stabilization
High-Precision Servo Stabilization
The 10kg servo stabilization payload combines an integrated servo motor reducer with dual linkage of heading and pitch. It supports a rotation accuracy of ±0.05° and a secondary rebound shock absorption system for stable observation payload integration. PWM, SBUS and TTL control signals are supported, while automatic overload, overcurrent and limit protection help protect the system during operation.

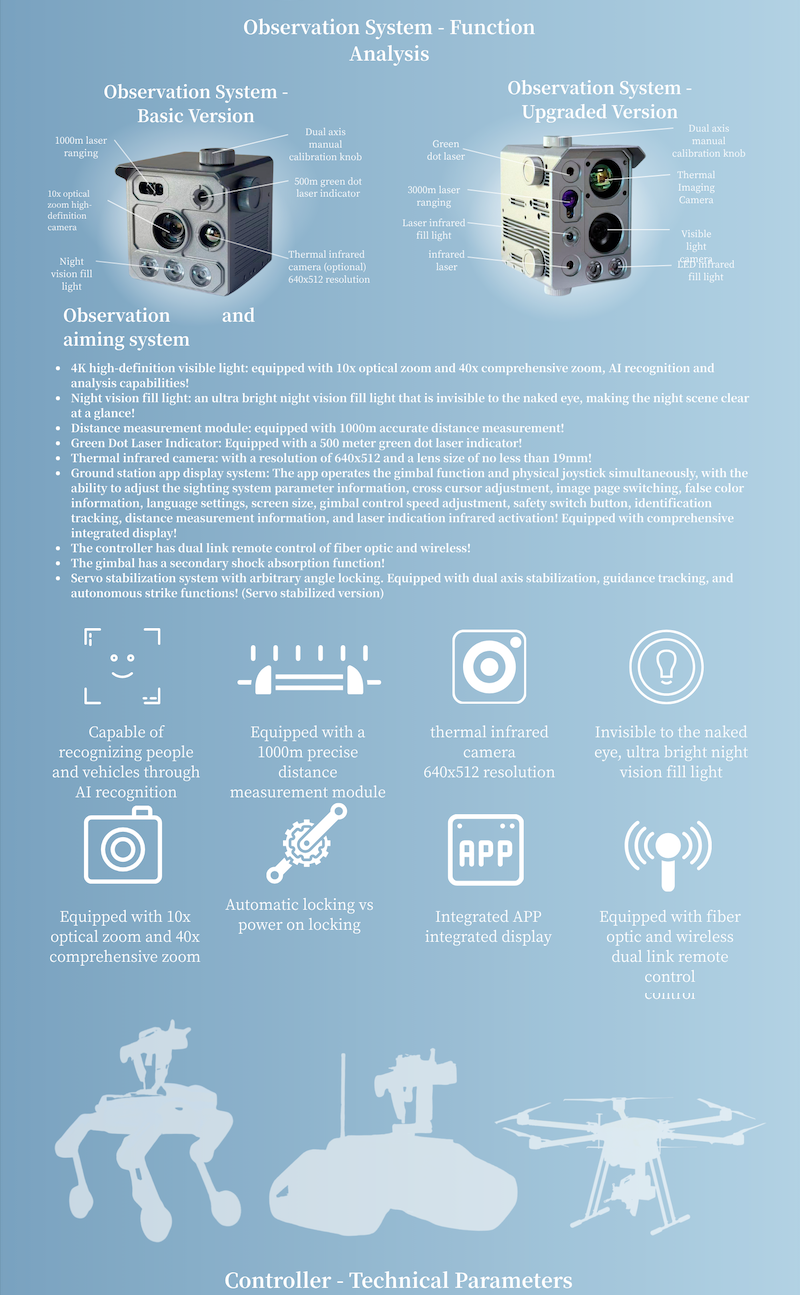

Integrated Observation Payload
The 10kg high-precision servo turntable is configured for observation and aiming system integration on UAVs and unmanned vehicles. The verified configuration includes a 30x optical zoom lens, a 640 x 512 infrared camera with a 50mm lens, front and rear super wide-angle lenses, and RTSP image transmission. The quick-disassembly four-point positioning design supports installation planning for different platforms.

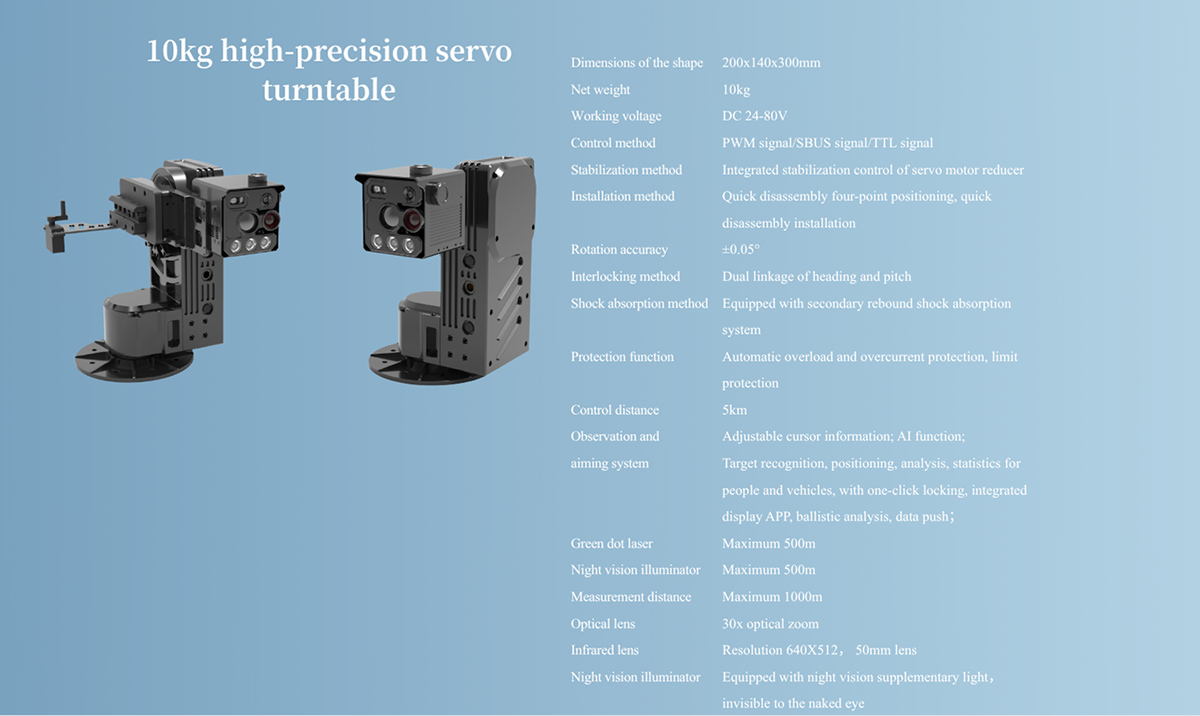

Technical Parameters
· Product Type: 10kg high-precision servo turntable
· Application: UAVs, unmanned vehicles and observation platforms
· Net Weight: 10kg
· Dimensions: 200 x 140 x 300mm
· Working Voltage: DC 24-80V
· Control Signals: PWM, SBUS and TTL
· Stabilization Method: Integrated servo motor reducer stabilization control
· Installation Method: Quick-disassembly four-point positioning
· Rotation Accuracy: ±0.05°
· Linkage Method: Dual linkage of heading and pitch
· Shock Absorption: Secondary rebound shock absorption system
· Protection: Automatic overload, overcurrent and limit protection
· Control Distance: 5km
· Optical Zoom: 30x
· Infrared Camera: 640 x 512 resolution, 50mm lens
· Measurement Distance: Maximum 1000m
· Image Transmission: RTSP streaming and independent APP display function
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
10kg Servo Turntable Specifications
· 10kg net weight and 200 x 140 x 300mm dimensions
· DC 24-80V working voltage
· PWM, SBUS and TTL control signals
· ±0.05° rotation accuracy
· Dual linkage of heading and pitch
· Automatic overload, overcurrent and limit protection
· 30x optical zoom and 640 x 512 infrared imaging
· RTSP streaming and independent APP display function
Packaging and Shipping
· Product packaging configuration: To be confirmed
· Mounting accessories and cable configuration: To be confirmed
· Shipping dimensions and package weight: To be confirmed
· Please confirm the required payload configuration before ordering.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Configuration Notes
· Confirm that the platform supports the DC 24-80V working voltage before integration.
· Confirm the required PWM, SBUS or TTL control method and matching wiring before installation.
· The 10kg net weight and 200 x 140 x 300mm dimensions must be included in the UAV or unmanned vehicle payload calculation.
· Confirm camera, infrared, laser and image transmission configuration requirements before ordering.
· Installation, calibration and first operation should be completed by qualified technical personnel.
