The 30kg High-Precision Servo Turntable is an integrated servo stabilization payload designed for UAVs, unmanned vehicles and other observation platforms. The product has a net weight of 15kg and dimensions of 550 x 300 x 450mm. It operates on DC 24-80V input and supports PWM, SBUS and TTL control signals. The integrated servo motor reducer stabilization system provides dual linkage of heading and pitch with a rotation accuracy of ±0.05°. The turntable supports quick-disassembly four-point positioning, secondary rebound shock absorption, automatic overload and overcurrent protection, and limit protection. Its observation and aiming configuration includes 30x optical zoom, a 640 x 512 infrared camera with a 50mm lens, up to 1000m measurement distance, RTSP streaming and an independent APP display function.
Product Type
30kg High-Precision Servo Turntable
High-Precision UAV Servo Stabilization
High-Precision Servo Stabilization
The 30kg servo stabilization payload uses an integrated servo motor reducer stabilization system with dual linkage of heading and pitch. It provides a verified rotation accuracy of ±0.05° and includes a secondary rebound shock absorption system. PWM, SBUS and TTL control signals are supported, while automatic overload, overcurrent and limit protection help support stable payload integration.
Observation Payload Integration
The 30kg high-precision servo turntable is designed for observation and aiming system integration on UAVs and unmanned vehicles. The verified configuration includes 30x optical zoom, a 640 x 512 infrared camera with a 50mm lens, front and rear super wide-angle lenses, and RTSP image transmission. The quick-disassembly four-point positioning design should be matched with the mounting dimensions and payload capacity of the host platform.

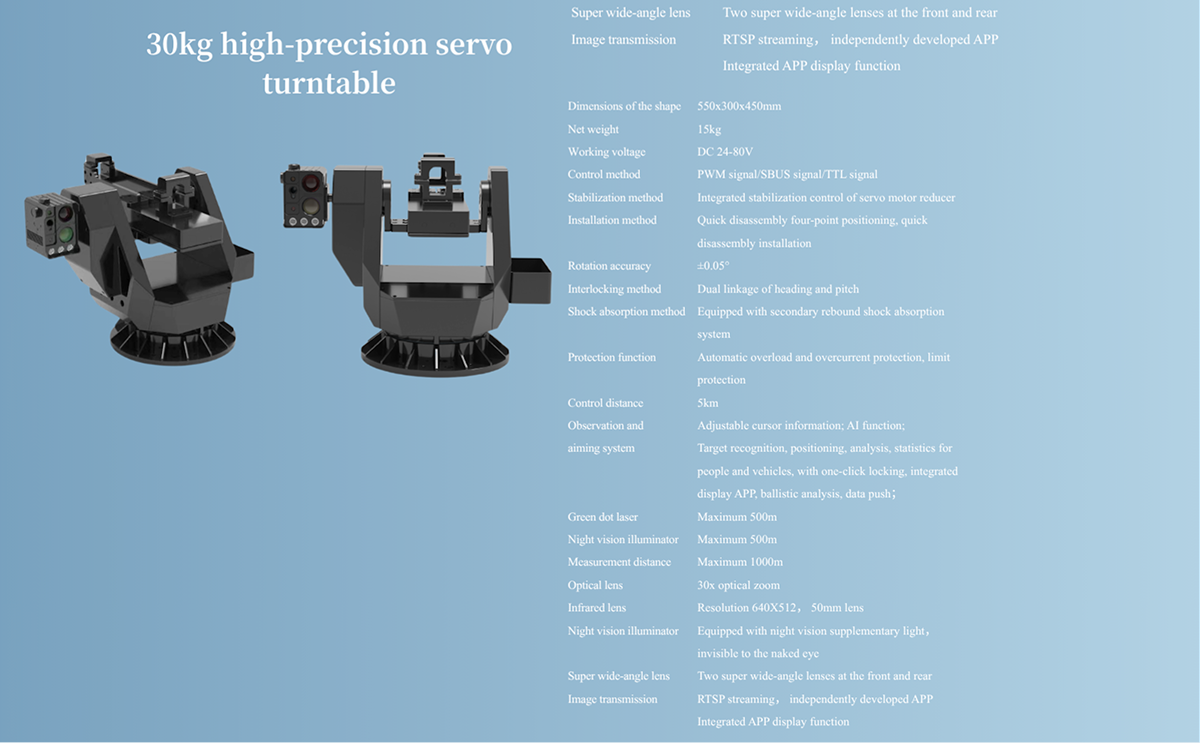

Technical Parameters
· Product Type: 30kg high-precision servo turntable
· Application: UAVs, unmanned vehicles and observation platforms
· Net Weight: 15kg
· Dimensions: 550 x 300 x 450mm
· Working Voltage: DC 24-80V
· Control Signals: PWM, SBUS and TTL
· Stabilization Method: Integrated servo motor reducer stabilization control
· Installation Method: Quick-disassembly four-point positioning
· Rotation Accuracy: ±0.05°
· Linkage Method: Dual linkage of heading and pitch
· Shock Absorption: Secondary rebound shock absorption system
· Protection: Automatic overload, overcurrent and limit protection
· Control Distance: 5km
· Optical Zoom: 30x
· Infrared Camera: 640 x 512 resolution, 50mm lens
· Measurement Distance: Maximum 1000m
· Image Transmission: RTSP streaming and independent APP display function
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
30kg Servo Turntable Specifications
· 30kg series high-precision servo turntable
· 15kg net weight and 550 x 300 x 450mm dimensions
· DC 24-80V working voltage
· PWM, SBUS and TTL control signals
· ±0.05° rotation accuracy
· Dual linkage of heading and pitch
· Automatic overload, overcurrent and limit protection
· 30x optical zoom and 640 x 512 infrared imaging
· RTSP streaming and independent APP display function
Packaging and Shipping
· Product packaging configuration: To be confirmed
· Mounting accessories and cable configuration: To be confirmed
· Shipping dimensions and package weight: To be confirmed
· Please confirm the required payload configuration before ordering.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Configuration Notes
· Confirm that the host platform supports the DC 24-80V working voltage before integration.
· Confirm the required PWM, SBUS or TTL control method and matching wiring before installation.
· The 15kg net weight and 550 x 300 x 450mm dimensions must be included in the UAV or unmanned vehicle payload calculation.
· Confirm the camera, infrared, image transmission and mounting configuration before ordering.
· Installation, calibration and first operation should be completed by qualified technical personnel.
