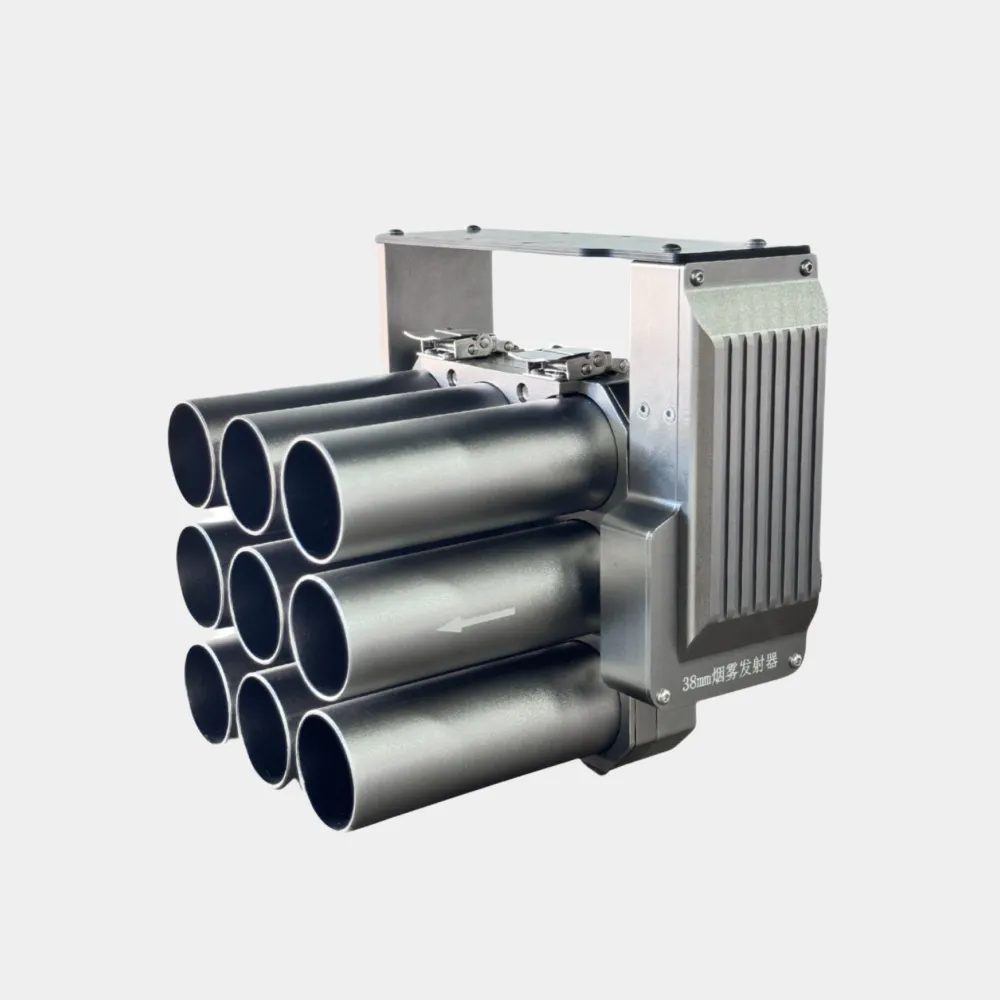

The 38mm/64mm electric-actuated smoke emitter is a configurable UAV payload module for controlled smoke deployment from unmanned aerial and ground vehicles. The system supports 38mm and 64mm caliber configurations, including 38mm-6, 38mm-9 and 64mm-6 layouts shown in the supplied materials. It uses airborne power, DC 12-80V working voltage and SBUS signal input. The emitter features quick-release installation, a safety switch, single-shot or continuous triggering, pitch-axis control and a listed control distance of up to 5 km. Its aviation aluminum, POM alloy steel and carbon-fiber construction is intended for training, emergency response, search and rescue, inspection and other controlled payload applications. Final cartridge compatibility and configuration should be confirmed before ordering.
Product Type
Electric-actuated UAV smoke emitter
Configurable UAV Smoke Payload

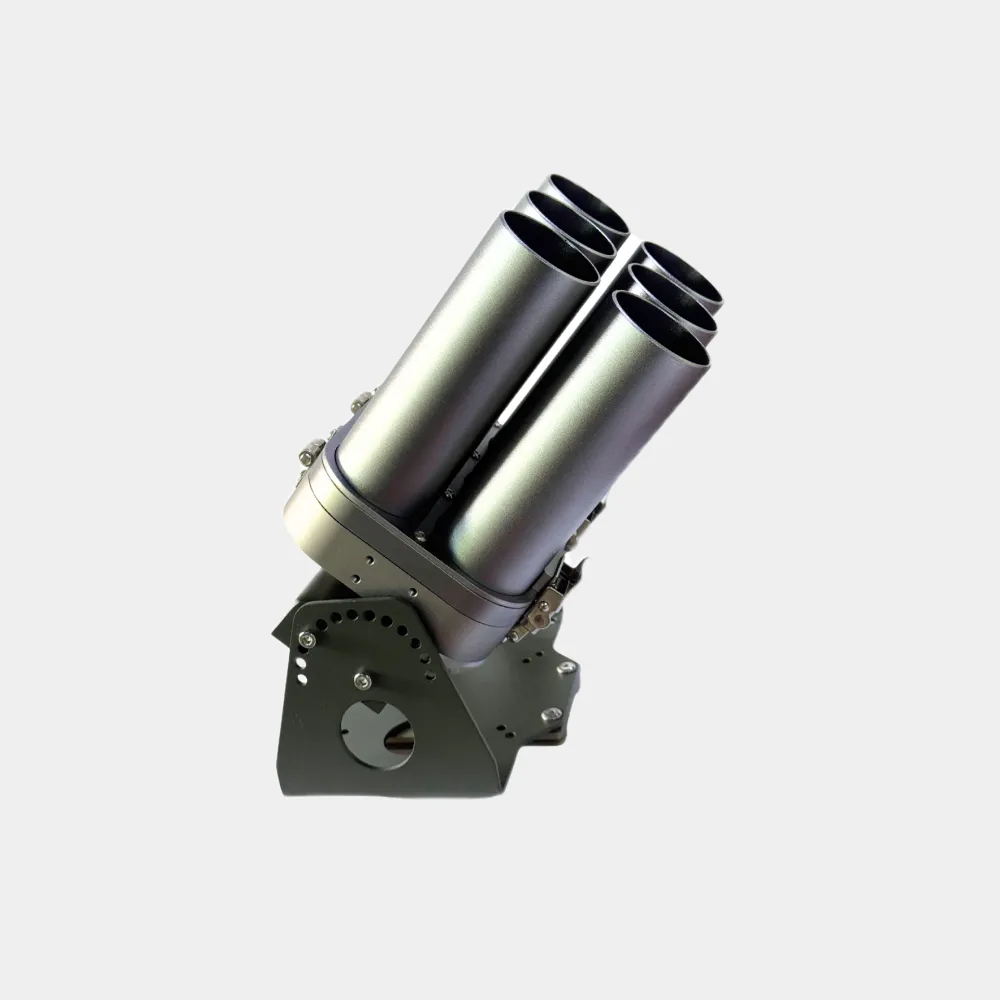

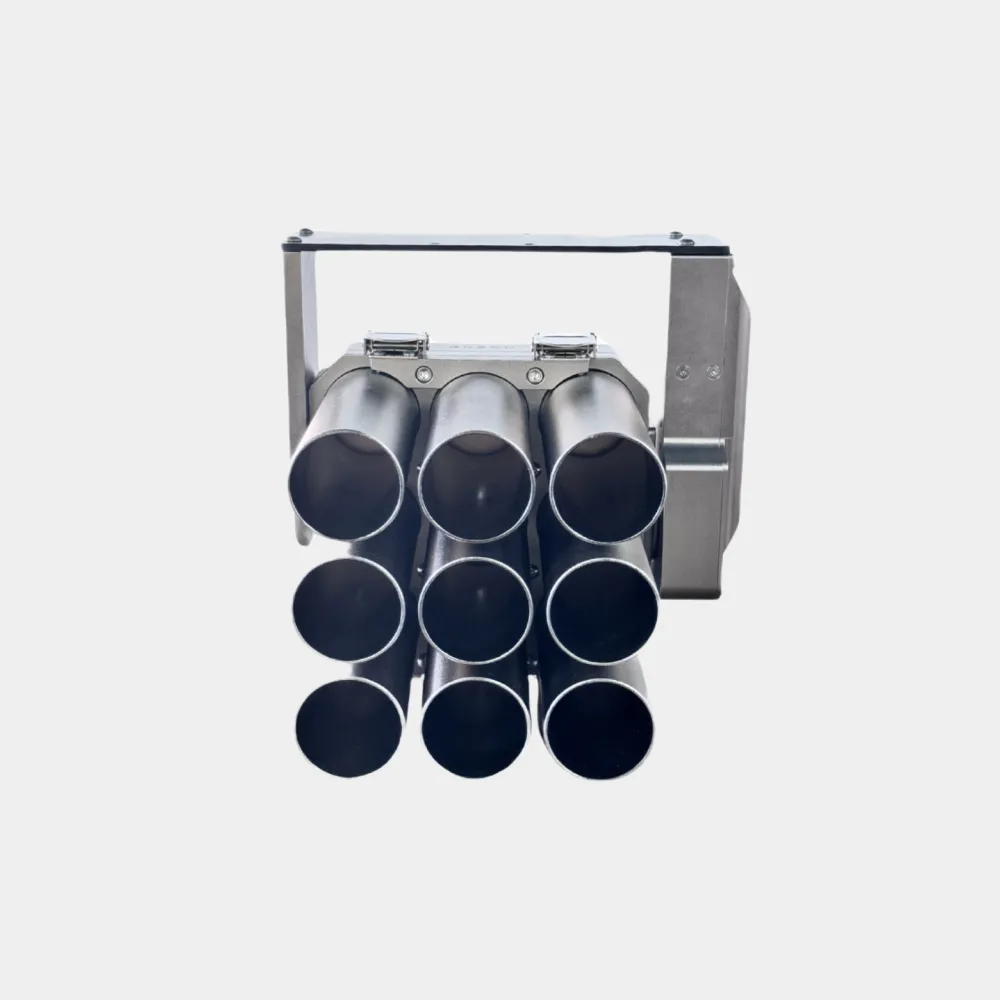

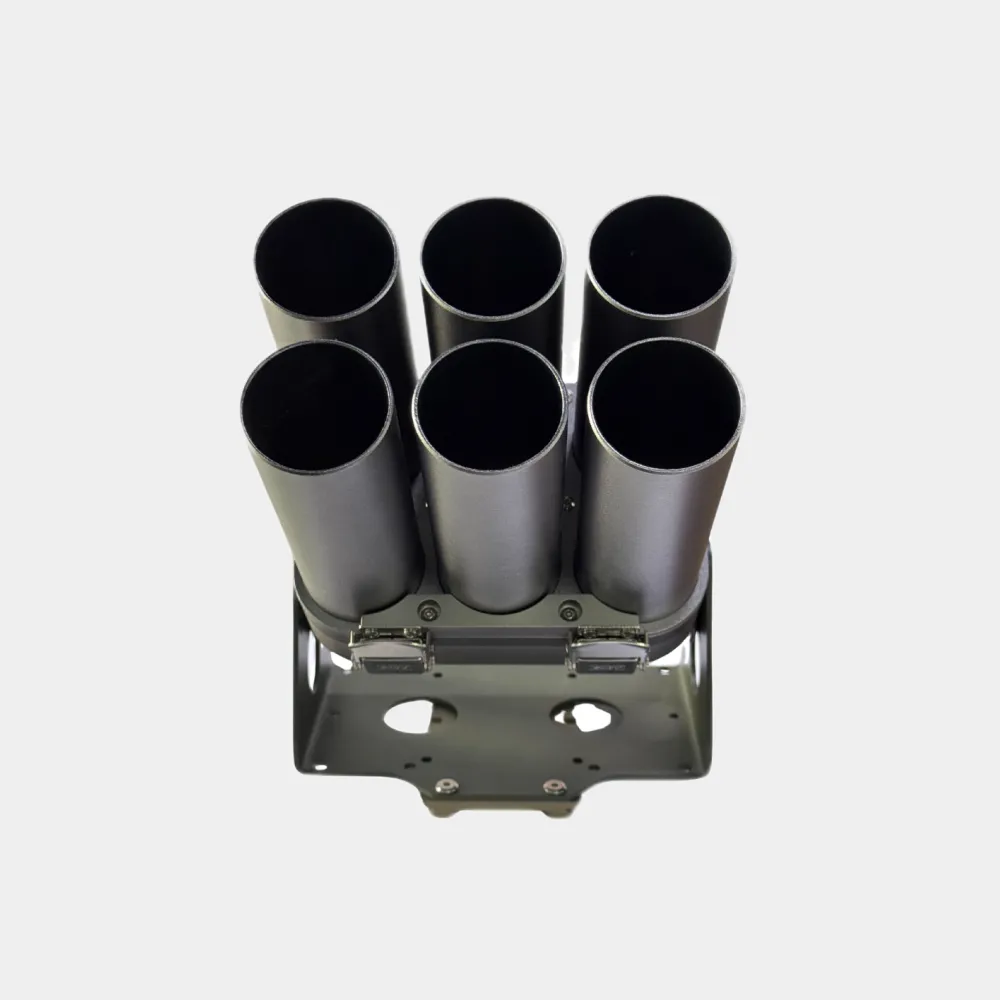

Configurable Multi-Tube Payload Design
The smoke emitter is available in multiple tube layouts for 38mm and 64mm payload configurations. The supplied materials show 38mm-6, 38mm-9 and 64mm-6 versions. The housing uses aviation aluminum together with POM alloy steel and carbon-fiber components. Model, caliber, tube quantity and compatible smoke cartridge should be confirmed before the payload is integrated with the aircraft or unmanned vehicle.
SBUS Control and Quick-Release Installation
The module uses SBUS signal input and airborne power, with a listed working voltage of DC 12-80V. Its quick-release structure supports installation and removal during payload maintenance. A safety switch supports single-shot and continuous triggering, while the supplied materials also describe pitch-axis control and a worm-gear reduction mechanism. Control distance and aircraft integration should be checked against the actual communication system and operating environment.

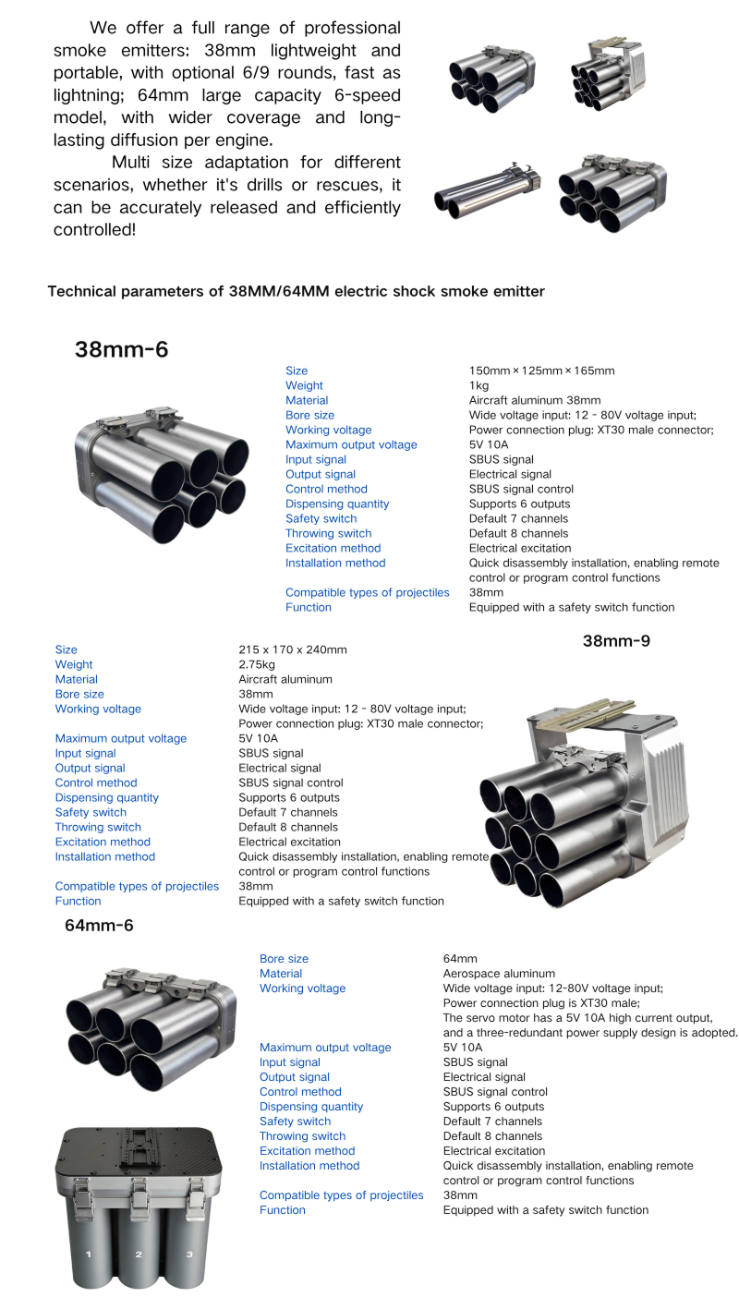

Technical Parameters
· Product type: Electric-actuated UAV smoke emitter payload
· Available caliber: 38mm and 64mm
· Configurations shown in the supplied materials: 38mm-6, 38mm-9 and 64mm-6
· Installation capacity: 6 or 8 pieces, depending on configuration
· Power supply mode: Airborne power supply
· Working voltage: DC 12-80V
· Signal input: SBUS
· Listed control distance: 5km
· Control axis: Pitch axis, 360°
· Installation method: Quick release
· Triggering modes: Single-shot and continuous triggering
· Safety control: Integrated safety switch
· Main materials: Aerospace aluminum, POM alloy steel and carbon fiber
· Mechanism: Worm-gear reduction mechanism for pitch control
· 38mm-6 overall dimensions: 150 x 125 x 165mm
· 38mm-6 weight: 0.93kg
· 38mm-9 overall dimensions: 215 x 170 x 240mm
· 38mm-9 weight: 2.75kg
· Compatible payload type: 38mm or 64mm smoke cartridge, subject to final configuration
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
UAV Smoke Payload Features
· Supports 38mm and 64mm smoke payload configurations
· Available configurations include 38mm-6, 38mm-9 and 64mm-6
· DC 12-80V airborne power input
· SBUS signal input for remote control integration
· Listed control distance of up to 5km
· Quick-release installation structure
· Safety switch with single-shot and continuous triggering
· Pitch-axis control through a worm-gear reduction mechanism
· Protection functions include overload, overcurrent, short-circuit, impact-resistance and electrostatic-discharge protection
· Aerospace aluminum, POM alloy steel and carbon-fiber construction
Packaging and Shipping
· Product configuration: Electric-actuated smoke emitter payload module.
· Available caliber and tube quantity should be confirmed before ordering.
· Smoke cartridges, aircraft mounting hardware and control-system accessories: To be confirmed.
· Package quantity, outer dimensions, gross weight and shipping details: To be confirmed.
· This product should be shipped and used in accordance with applicable aviation, transport, environmental and local safety regulations.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Safety and Compatibility Notes
· Confirm the required caliber, tube quantity and compatible smoke cartridge before ordering.
· Confirm that the aircraft or unmanned vehicle provides a compatible DC 12-80V airborne power supply.
· Confirm SBUS signal compatibility and the actual communication range of the complete control system.
· Do not load, connect or trigger the unit while people are within the discharge direction or operating area.
· Keep the emitter unloaded during installation, wiring, testing and maintenance.
· Follow the approved operating procedures for the selected smoke cartridge and comply with applicable aviation, transport and environmental regulations.
· The smoke cartridge is not confirmed as included in the current product package.
