The 50KG/200KG UAV payload release hook is a heavy-lift cargo release module for suspended-load integration on drones and unmanned vehicle platforms. The product is available in two rated load options, 50KG and 200KG, allowing customers to select a configuration according to the aircraft structure and intended payload. Its compact housing includes a top mounting section and mechanical release components for controlled load handling. The hook can be considered for UAV cargo transport, equipment deployment and other suspended-payload operations. Exact dimensions, mounting-hole pattern, release interface, product weight and certified working-load conditions are not included in the current technical materials and should be confirmed before ordering or integration.
Product Type
UAV payload release hook
Heavy-Lift UAV Payload Hook
Two Load Options for UAV Payload Integration
The product is available in 50KG and 200KG load options for different heavy-lift UAV payload requirements. The correct configuration should be selected according to the aircraft frame, suspended-load arrangement, payload center of gravity and actual operating conditions. The final working-load limit and installation requirements should be confirmed before use.
Mechanical Release Structure

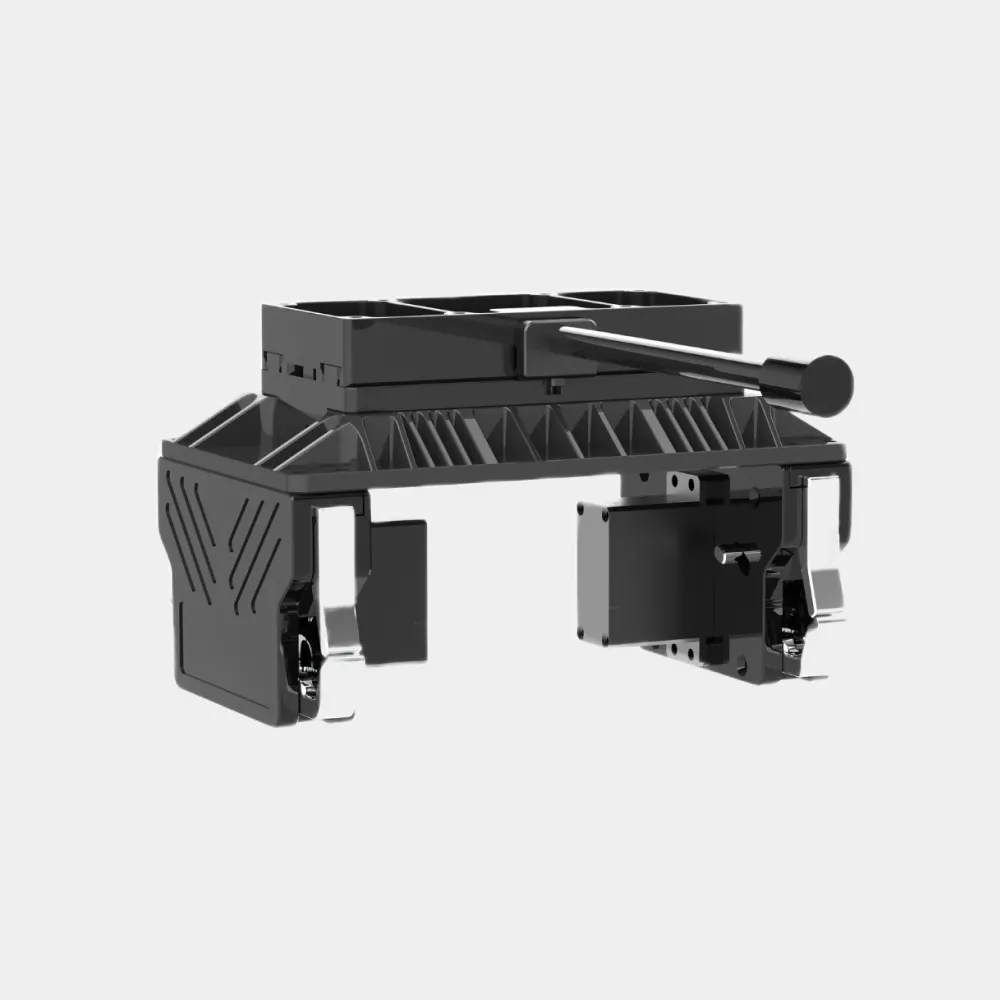

The illustrated configuration includes a mounting frame, mechanical release components and a release rod. These visible features are intended for integration into a suspended-payload system, but the current materials do not confirm the detailed release interface or aircraft-side control method. Confirm the installation pattern, release actuation and fail-safe behavior with the supplier before purchasing.

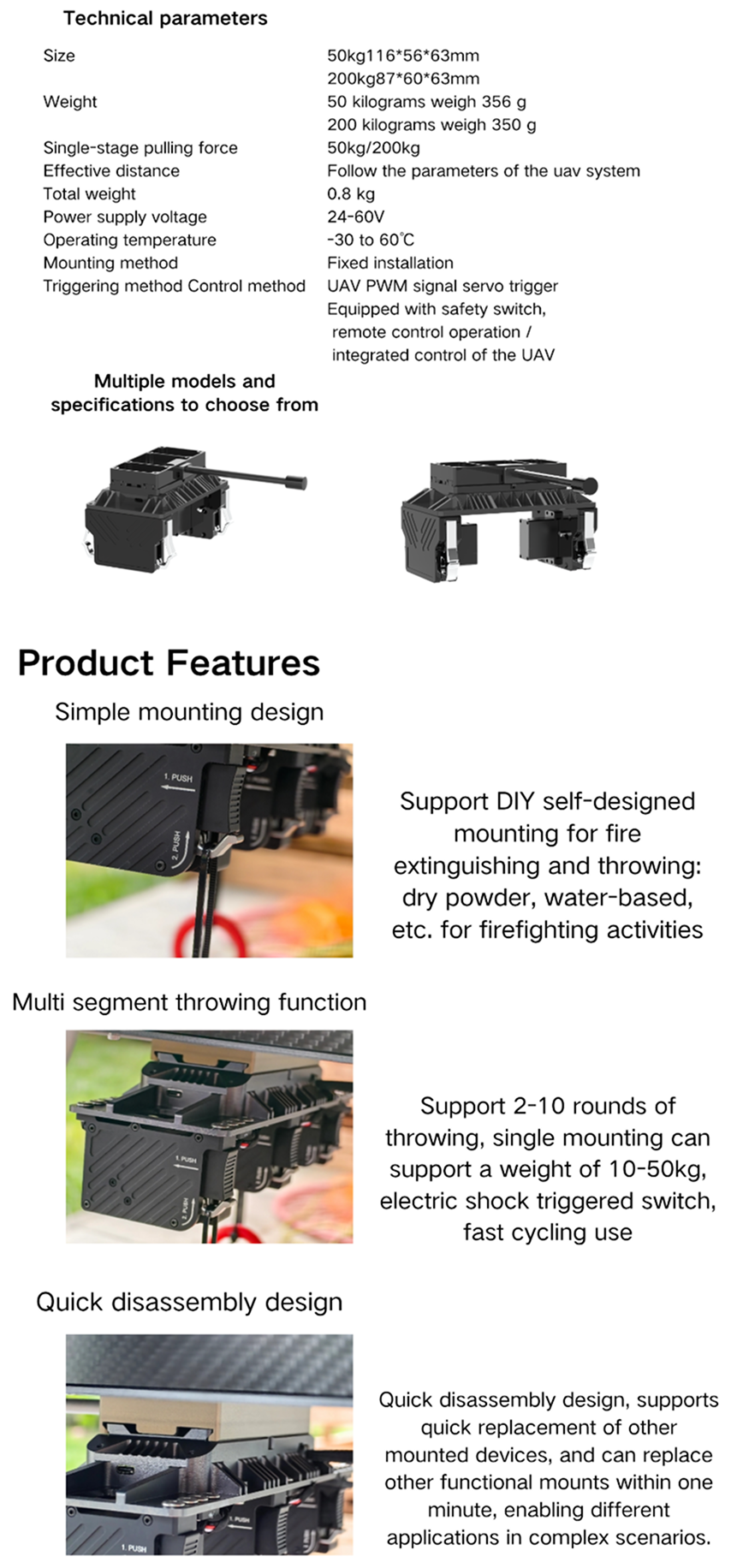

Technical Parameters
· Product type: UAV payload release hook
· Rated load options: 50KG and 200KG
· Application: Suspended-load and drone cargo payload integration
· Release structure: Mechanical release structure shown in the product images
· Mounting structure: Top mounting frame shown in the product images
· Product dimensions: To be confirmed
· Product weight: To be confirmed
· Mounting-hole pattern: To be confirmed
· Release interface: To be confirmed
· Control method: To be confirmed
· Certified working load and safety factor: To be confirmed
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
UAV Payload Release Features
· Available in 50KG and 200KG load options
· Designed for suspended-load UAV payload integration
· Compact mechanical release structure
· Top mounting frame for aircraft-side integration
· Visible release rod and hook mechanism
· Suitable for configuration-based heavy-lift payload applications
· Final dimensions, interface and certified working-load conditions require confirmation
Packaging and Shipping
· Product configuration: UAV payload release hook module.
· Load option: 50KG or 200KG, to be confirmed before ordering.
· Aircraft mounting hardware, control accessories and suspended-load accessories: To be confirmed.
· Package quantity, outer dimensions, gross weight and shipping details: To be confirmed.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Safety and Compatibility Notes
· Confirm whether the required configuration is 50KG or 200KG before ordering.
· The listed load values should not be treated as a certified working load until the supplier confirms the working-load limit and safety factor.
· Confirm the mounting-hole pattern, aircraft structure and payload center of gravity before installation.
· Perform a low-load ground test before flight operation.
· Do not exceed the confirmed working load or operate with an unbalanced suspended payload.
· Confirm the release control method and fail-safe behavior before integrating the hook with the UAV control system.
· Product dimensions, weight, release interface and installation hardware are not confirmed in the current materials.
