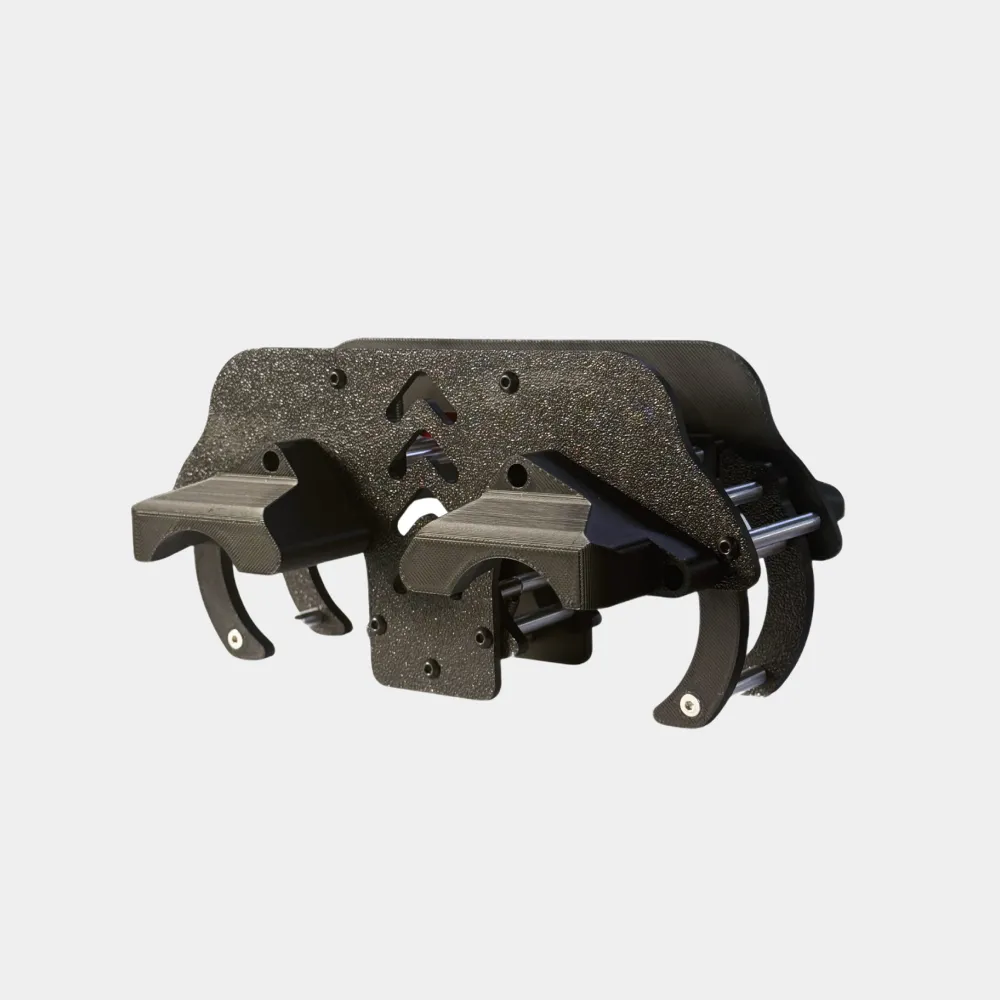

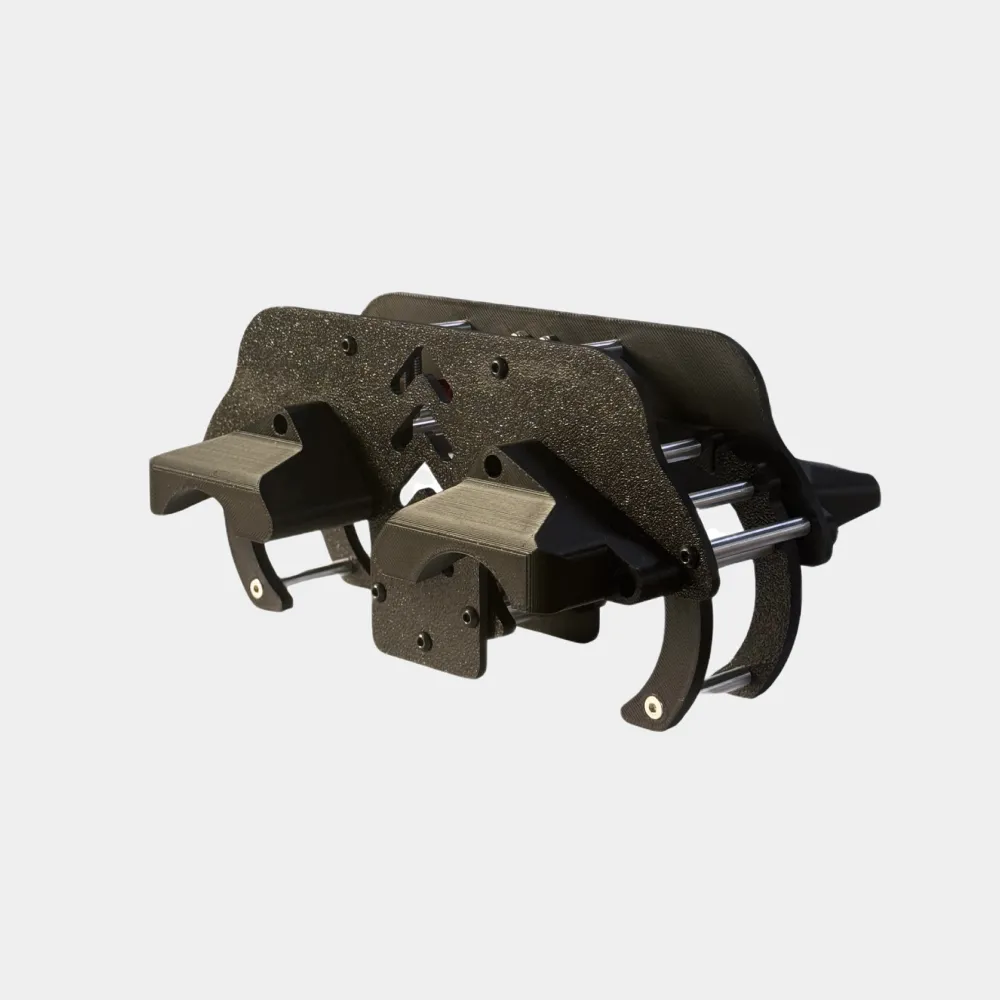

The 60mm lateral-launch payload module is a compact mechanical launcher designed for integration with UAV and unmanned vehicle payload platforms. Its side-launch layout is intended to support controlled lateral deployment of compatible 60mm payloads. The supplied product images show a structured housing with mounting holes, parallel support components and mechanical release elements. The module can be considered for specialized unmanned-platform payload integration where the launch direction and installation space require a lateral configuration. Product weight, overall dimensions, actuation method, control interface, payload compatibility and certified operating conditions are not included in the current materials and must be confirmed before ordering or installation.
Product Type
60mm lateral-launch payload module
60mm Lateral-Launch Payload
Compact Lateral-Launch Configuration

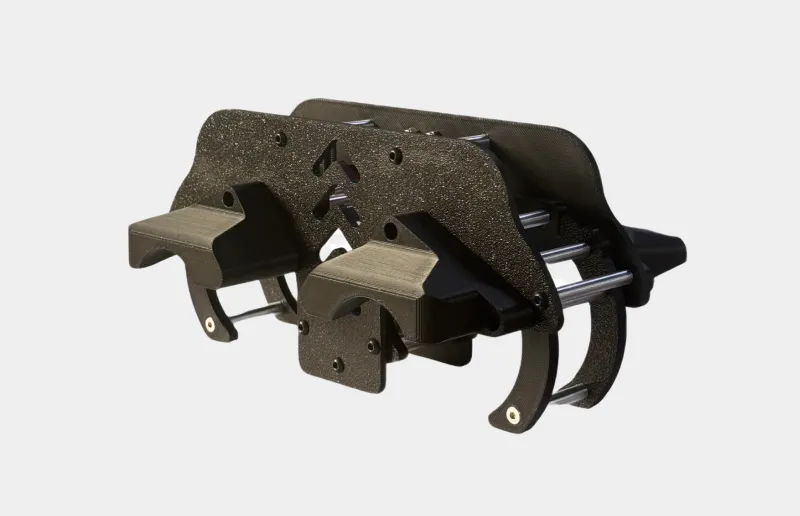

The 60mm payload module uses a compact lateral-launch configuration for unmanned-platform integration. Its mechanical housing and parallel support structure are designed to organize the payload and release direction within a limited installation space. The final payload type, launch sequence and operating method should be confirmed according to the aircraft or vehicle integration plan.
Designed for Payload Integration

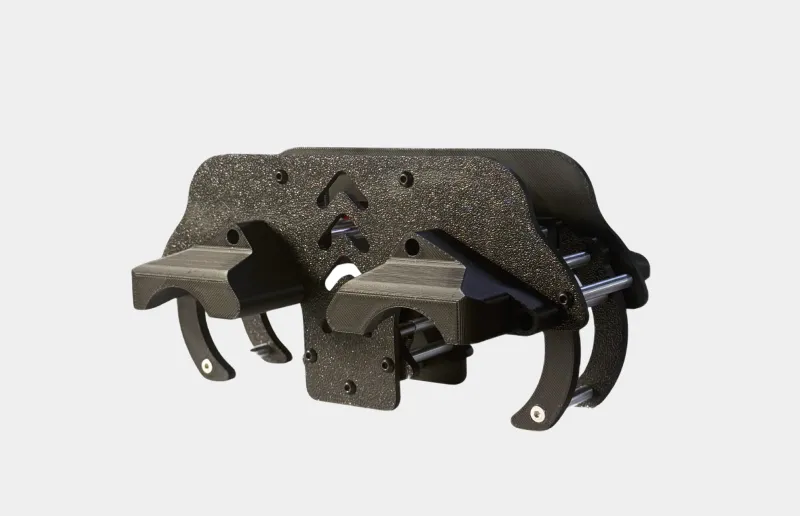

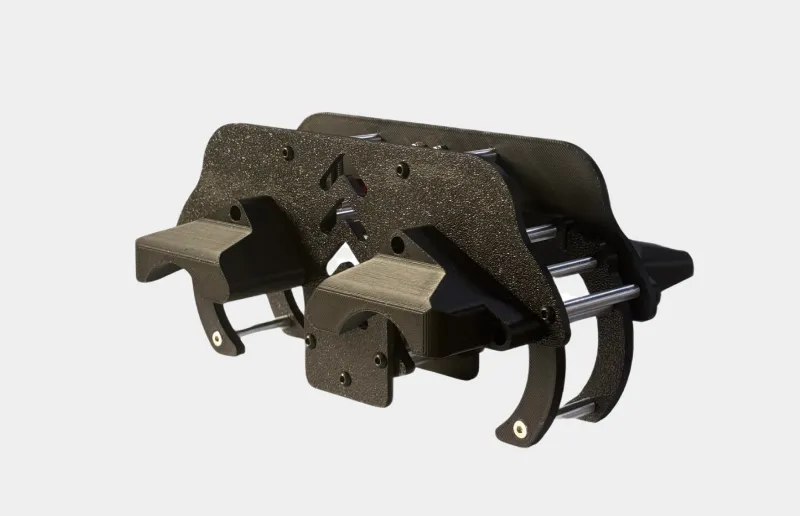

The product images show a top mounting area, multiple mounting holes and mechanical release components. These visible features can support aircraft-side integration, but the exact mounting-hole pattern, release interface, control method and structural load limits are not confirmed in the current product package. Confirm these details before purchase and before installing the launcher on an operational platform.

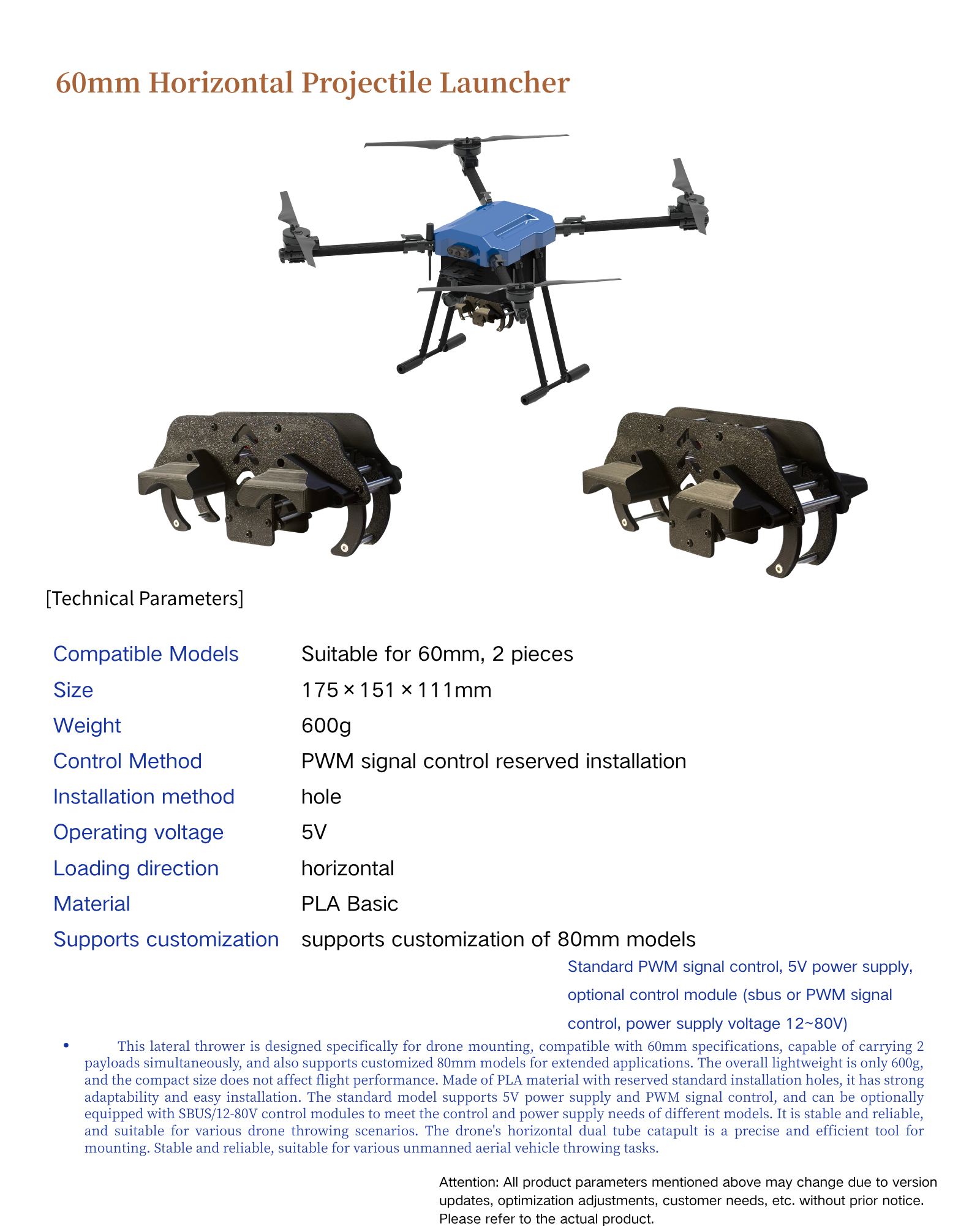

Technical Parameters
· Product type: Lateral-launch UAV payload module
· Nominal caliber: 60mm
· Launch orientation: Lateral or side launch
· Application: UAV and unmanned vehicle payload integration
· Visible structure: Mechanical housing with mounting holes and release components
· Overall dimensions: To be confirmed
· Product weight: To be confirmed
· Mounting-hole pattern: To be confirmed
· Payload compatibility: To be confirmed
· Release actuation method: To be confirmed
· Control interface: To be confirmed
· Working voltage: To be confirmed
· Certified operating conditions: To be confirmed
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
60mm Payload Launcher Features
· 60mm lateral-launch payload configuration
· Compact mechanical housing for unmanned-platform integration
· Visible top mounting interface
· Multiple mounting holes for aircraft-side installation
· Structured support components for payload positioning
· Mechanical release elements shown in the product images
· Final payload compatibility, control method and structural limits require confirmation
Packaging and Shipping
· Product configuration: 60mm lateral-launch payload module.
· Compatible payload, mounting hardware and control accessories: To be confirmed.
· Package quantity, outer dimensions, product weight and gross shipping weight: To be confirmed.
· Shipping and usage requirements should be confirmed according to the selected payload and destination regulations.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Safety and Compatibility Notes
· Confirm the compatible 60mm payload before ordering.
· Confirm the mounting-hole pattern, aircraft structure and installation direction before integration.
· Confirm the release actuation method, control interface and fail-safe behavior with the supplier.
· Keep the launcher unloaded during installation, wiring, testing and maintenance.
· Do not operate the launcher near people, property or unauthorized areas.
· Perform a controlled ground test before flight operation.
· Product dimensions, weight, working voltage, payload capacity and certified operating limits are not confirmed in the current materials.
· Use and transport the final system only in accordance with applicable aviation, transport and local safety regulations.
