The 60mm UAV Payload Dropper is a multi-round payload release system designed for unmanned aerial vehicle integration. It supports 60mm payloads and is available in 2, 4, 6, 8 and 10-round configurations. The system uses airborne power with a DC 12-80V operating range and accepts SBUS, PWM or TTL control signals. It supports automatic single-shot release and all-release modes, with individual channel control and backup release control described in the supplied materials. The unit uses aircraft aluminum, carbon fiber and stainless steel components, with an impact-locking installation mechanism. It is suitable for lawful training, emergency-response and controlled payload-deployment applications. Final payload compatibility and operating approval must be confirmed before use.
Product Type
60mm UAV payload dropper
Multi-Round UAV Payload Release

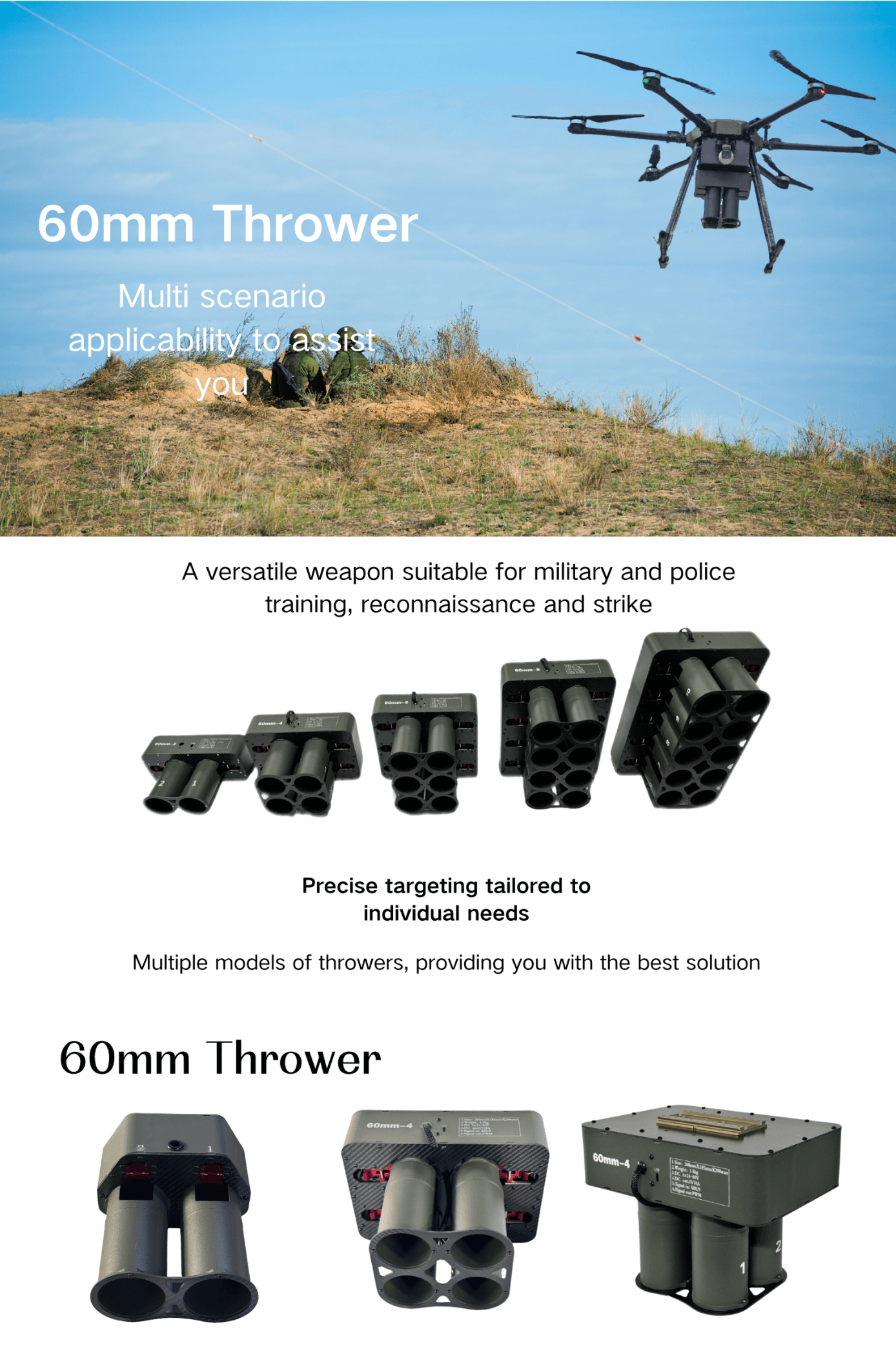

Multi-Round 60mm Payload Configuration

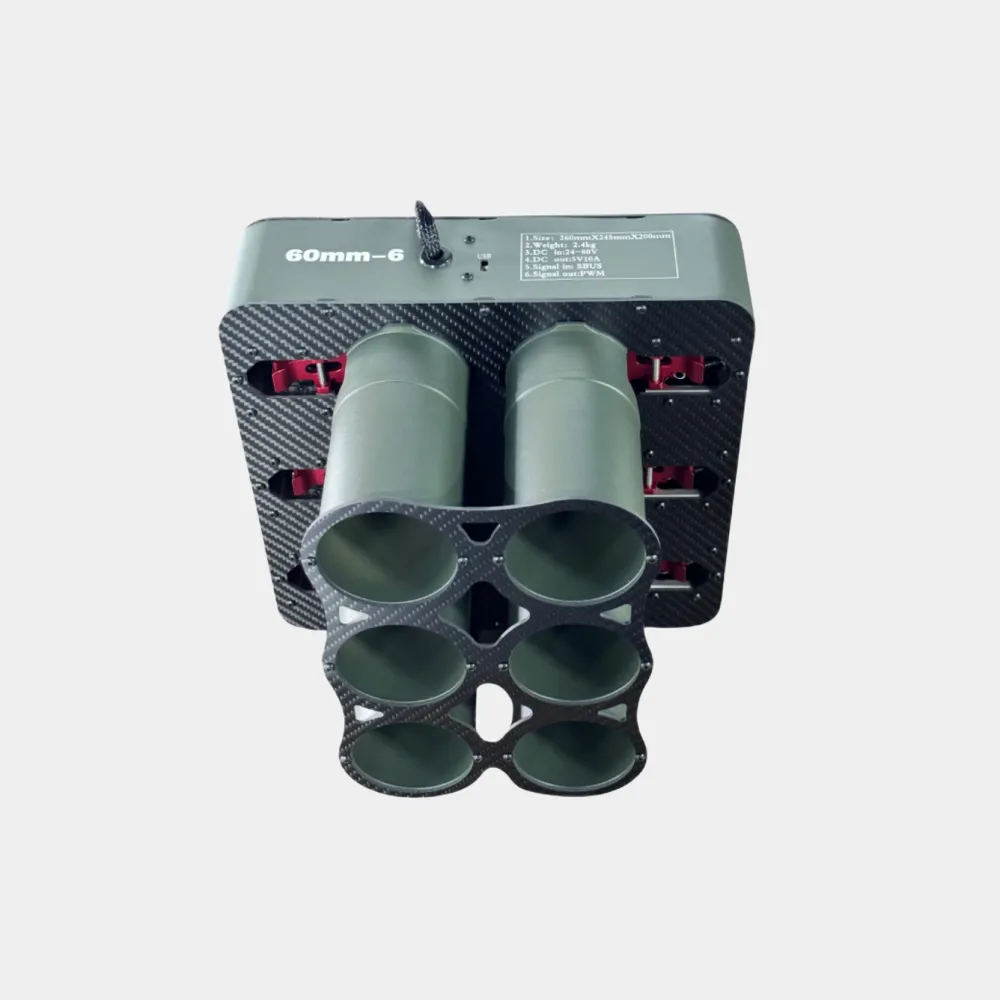

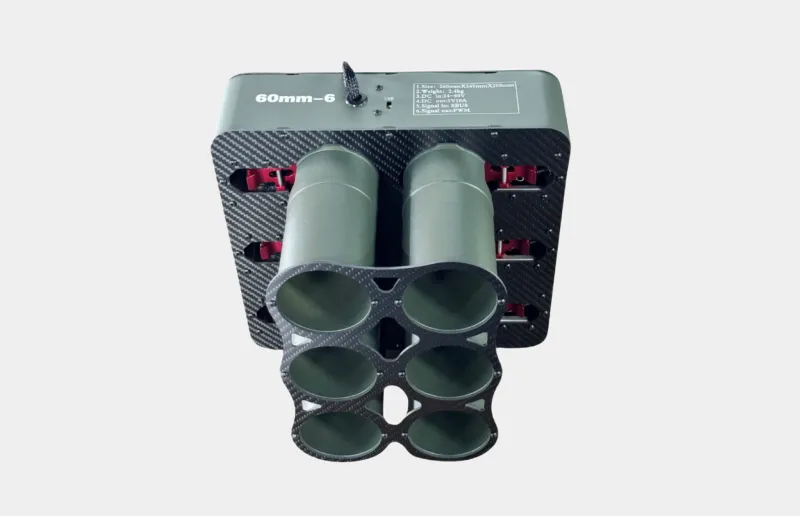

The 60mm payload dropper is available in 2, 4, 6, 8 and 10-round configurations. This allows the payload capacity to be selected according to aircraft size, available payload weight and mission requirements. The 60mm-6 configuration shown in the product images uses a carbon-fiber front plate and a structured release housing. Confirm the selected round count and compatible payload before ordering.
Flexible Release Control
The system supports automatic single-shot release or all-release operation. The supplied technical material lists SBUS, PWM and TTL signal methods, with a DC 12-80V operating range. It also describes a listed drop accuracy of 1-3m and a control range of 5-10km. Actual performance depends on the aircraft, control system, payload and operating environment.

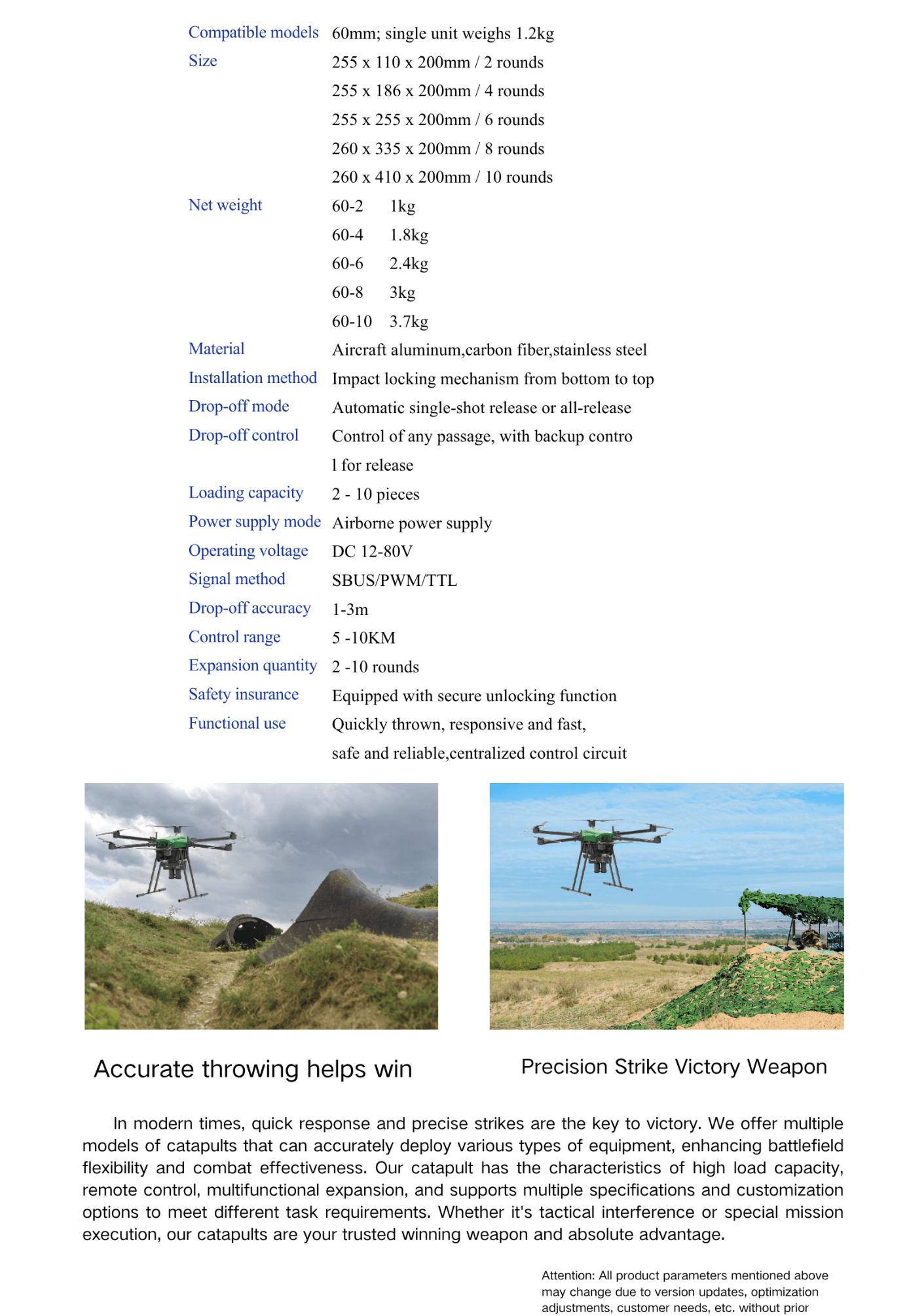

Technical Parameters
· Product type: 60mm UAV payload dropper
· Compatible payload caliber: 60mm
· Available configurations: 60-2, 60-4, 60-6, 60-8 and 60-10
· Loading capacity: 2-10 pieces
· Release modes: Automatic single-shot release or all-release
· Control method: Individual channel control with backup release control
· Power supply mode: Airborne power supply
· Operating voltage: DC 12-80V
· Signal methods: SBUS, PWM and TTL
· Listed drop accuracy: 1-3m
· Listed control range: 5-10km
· Installation method: Impact-locking mechanism from bottom to top
· Materials: Aircraft aluminum, carbon fiber and stainless steel
· 60-2 size: 255 x 110 x 200mm
· 60-4 size: 255 x 186 x 200mm
· 60-6 size: 255 x 255 x 200mm
· 60-8 size: 260 x 335 x 200mm
· 60-10 size: 260 x 410 x 200mm
· 60-2 net weight: 1kg
· 60-4 net weight: 1.8kg
· 60-6 net weight: 2.4kg
· 60-8 net weight: 3kg
· 60-10 net weight: 3.7kg
· Safety function: Secure unlocking function
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
60mm Payload Dropper Features
· Supports 60mm payloads
· Available in 2, 4, 6, 8 and 10-round configurations
· DC 12-80V airborne power input
· SBUS, PWM and TTL signal compatibility
· Automatic single-shot or all-release modes
· Listed drop accuracy of 1-3m
· Listed control range of 5-10km
· Aircraft aluminum, carbon fiber and stainless steel construction
· Impact-locking installation mechanism
· Secure unlocking function
Packaging and Shipping
· Product configuration: 60mm UAV multi-round payload dropper.
· Available configurations: 2, 4, 6, 8 or 10 rounds.
· Payloads, aircraft mounting hardware and control accessories: To be confirmed.
· Package quantity, outer carton dimensions, gross shipping weight and delivery details: To be confirmed.
· Shipping and use must comply with applicable aviation, transport and local safety regulations.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Safety and Compatibility Notes
· Confirm the required configuration and round count before ordering.
· Confirm that the aircraft provides a compatible DC 12-80V airborne power supply.
· Confirm SBUS, PWM or TTL signal compatibility with the aircraft control system.
· Confirm the compatible 60mm payload and total aircraft payload weight before installation.
· Keep the dropper unloaded during installation, wiring, testing and maintenance.
· Perform a controlled ground test before flight operation.
· The listed drop accuracy and control range are reference values from the supplied materials and may vary with aircraft, payload, control system and operating environment.
· Use and transport the complete system only for lawful, approved and controlled payload-deployment operations.
