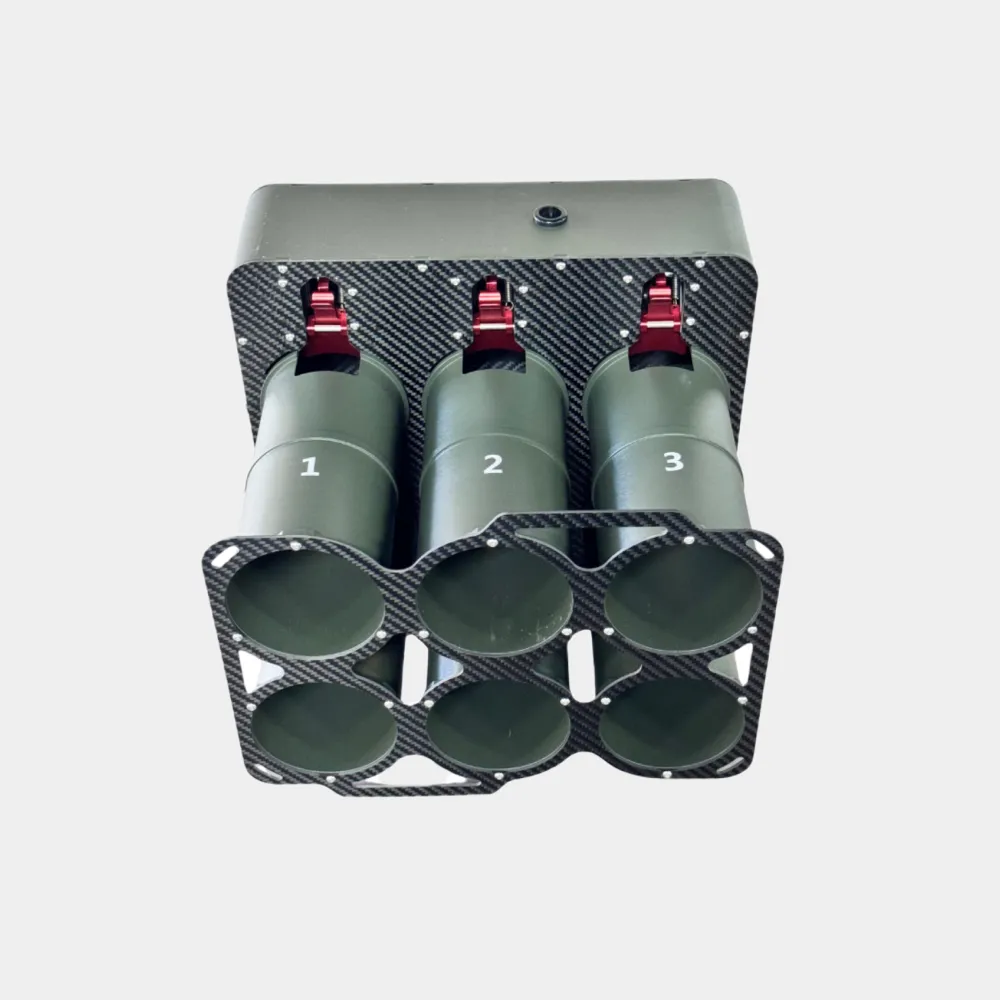

The 80mm Multi-Round UAV Payload Release Module is a modular payload deployment system for compatible unmanned aerial vehicles. It is available in 2-, 4-, 6-, 8- and 10-position configurations, allowing customers to select the payload capacity and physical size according to aircraft integration requirements. The system supports DC 12-80V airborne power supply and SBUS, PWM or TTL signal control. It uses an impact-locking installation structure and supports automatic single-position release or coordinated release of all loaded positions. The module is suitable for controlled UAV payload deployment, testing, training and other lawful operational scenarios. Aircraft payload capacity, mounting interface, signal compatibility, power supply and local regulations should be confirmed before ordering.
Product Type
80mm Multi-Round UAV Payload Release Module
Modular UAV Payload Deployment
Multi-Position Payload Configuration

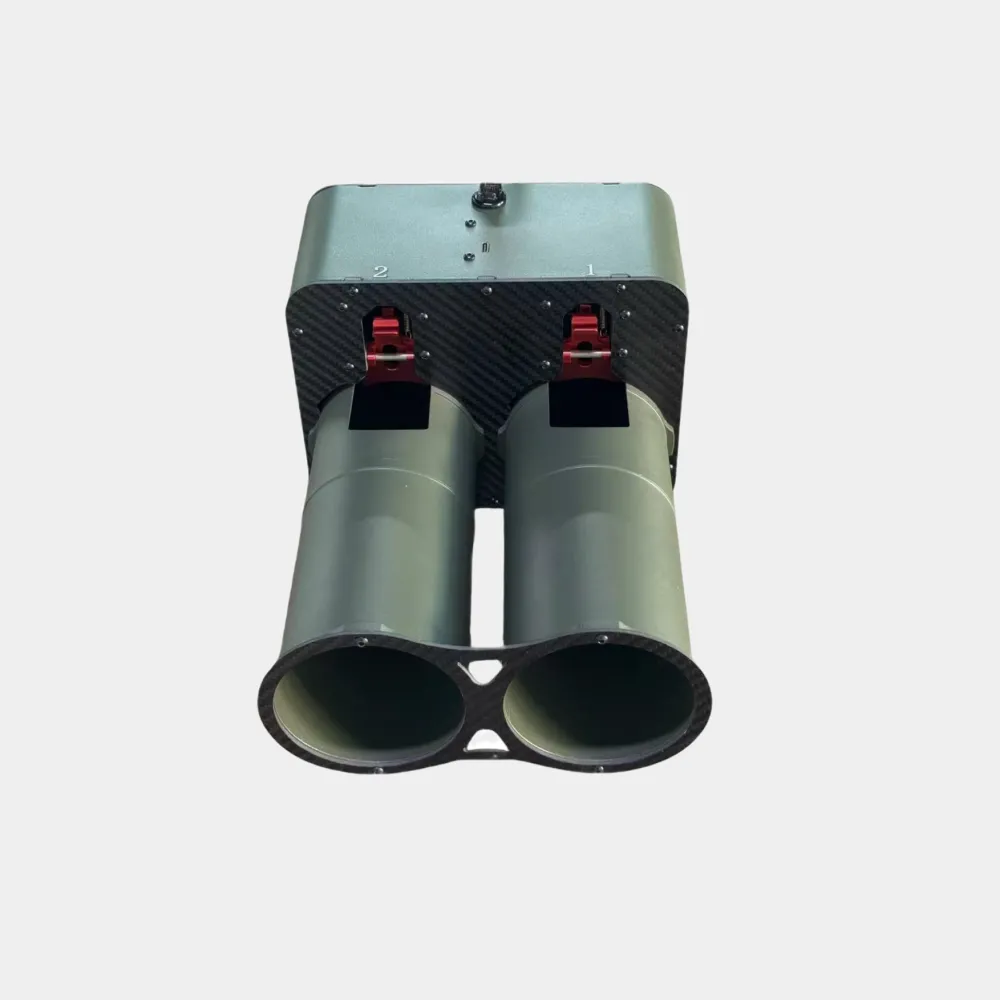

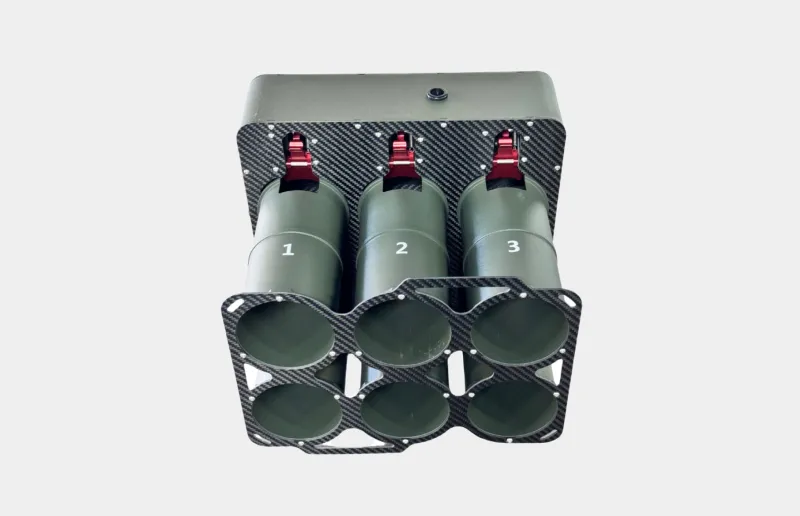

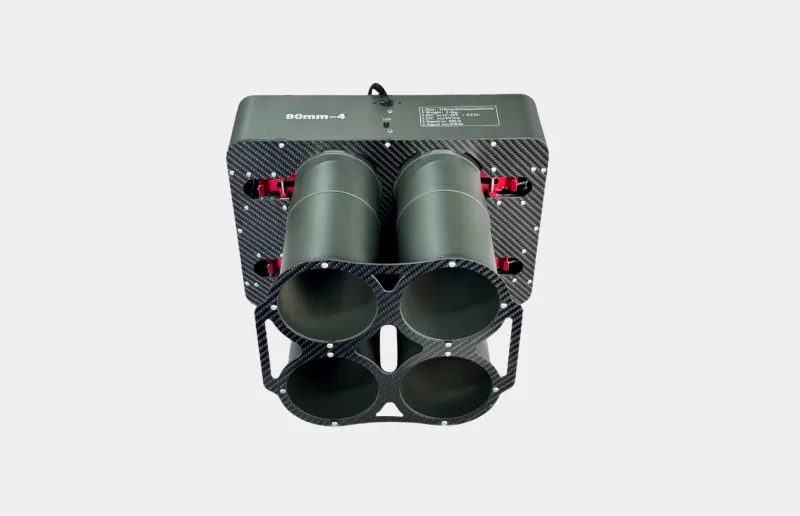

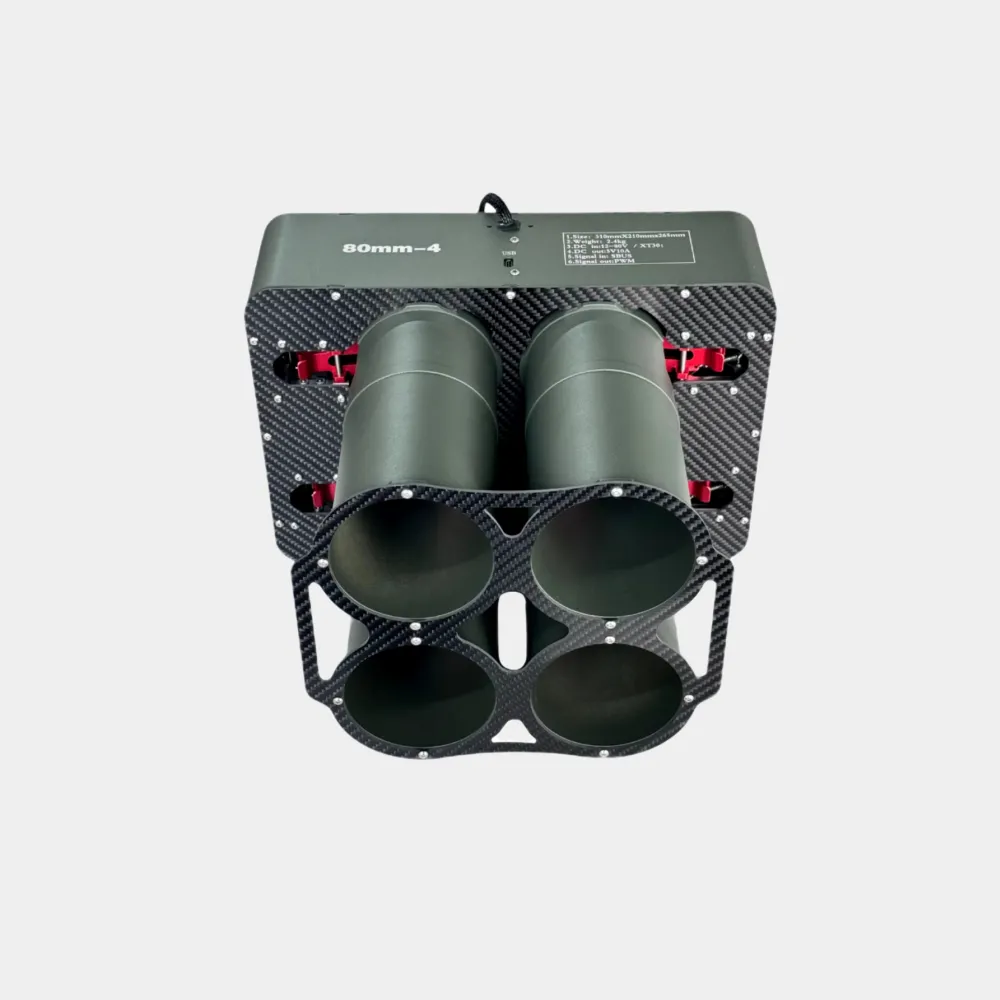

The 80mm UAV payload release module is offered in 2-, 4-, 6-, 8- and 10-position configurations. This modular structure helps users select a suitable loading capacity and installation size for different UAV platforms. The available configuration should be confirmed according to the aircraft payload limit, mounting space and intended deployment workflow.
Remote Signal Control Integration
The module supports SBUS, PWM and TTL signal control, with automatic single-position release or coordinated release of all loaded positions. It uses airborne power supply and supports DC 12-80V input according to the product specification. Before integration, confirm the aircraft control interface, power wiring, release logic and installation method with the supplier.

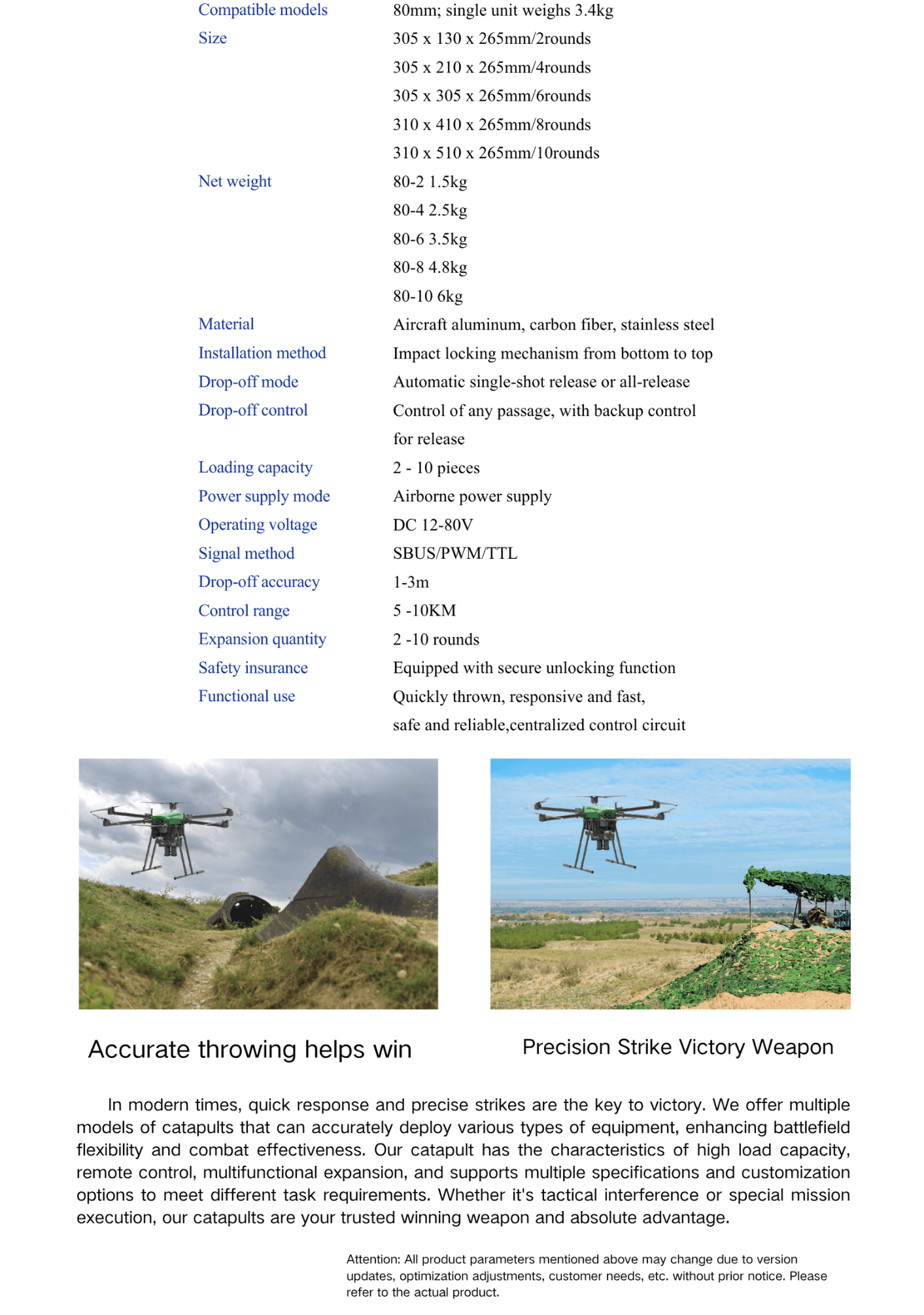

Technical Parameters
· Product Type: 80mm UAV payload release module
· Available Configurations: 2, 4, 6, 8 and 10 positions
· Size, 2-position: 305 x 130 x 265 mm
· Size, 4-position: 305 x 210 x 265 mm
· Size, 6-position: 305 x 305 x 265 mm
· Size, 8-position: 310 x 410 x 265 mm
· Size, 10-position: 310 x 510 x 265 mm
· Net Weight, 2-position: 1.5 kg
· Net Weight, 4-position: 2.5 kg
· Net Weight, 6-position: 3.5 kg
· Net Weight, 8-position: 4.8 kg
· Net Weight, 10-position: 6 kg
· Material: Aircraft aluminum, carbon fiber and stainless steel
· Release Mode: Automatic single-position release or all-position release
· Signal Method: SBUS, PWM and TTL
· Operating Voltage: DC 12-80V
· Power Supply: Airborne power supply
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Configuration and Integration Options
· 80mm payload release module for compatible UAV platforms
· Available in 2-, 4-, 6-, 8- and 10-position configurations
· Supports DC 12-80V airborne power supply
· Supports SBUS, PWM and TTL signal control
· Automatic single-position release or all-position release
· Impact-locking installation structure
· Aircraft payload capacity and control-interface compatibility must be confirmed before integration
Packaging and Shipping
· Product configuration and quantity should be confirmed before quotation.
· Select the 2-, 4-, 6-, 8- or 10-position version according to aircraft payload capacity and installation space.
· Final package contents, transport method and shipping requirements should be confirmed with RAYI before order placement.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Integration Notes
· Confirm the UAV payload capacity, mounting interface and center-of-gravity requirements before installation.
· Confirm DC 12-80V power compatibility and complete power wiring according to the actual aircraft system.
· Confirm SBUS, PWM or TTL signal compatibility and release logic before flight testing.
· Use only suitable, lawful and approved payloads. Follow local aviation, safety and transport regulations.
· Perform installation, control and release tests in a controlled area before operational use.
