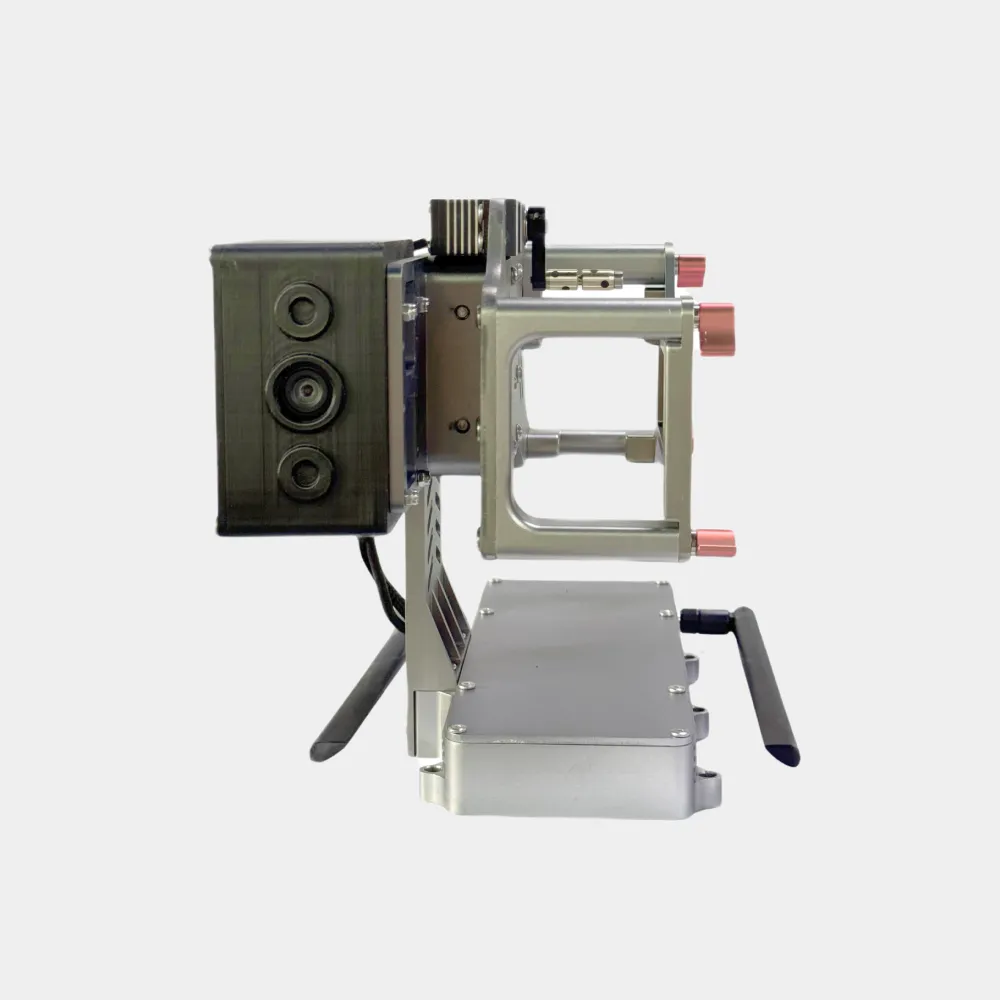

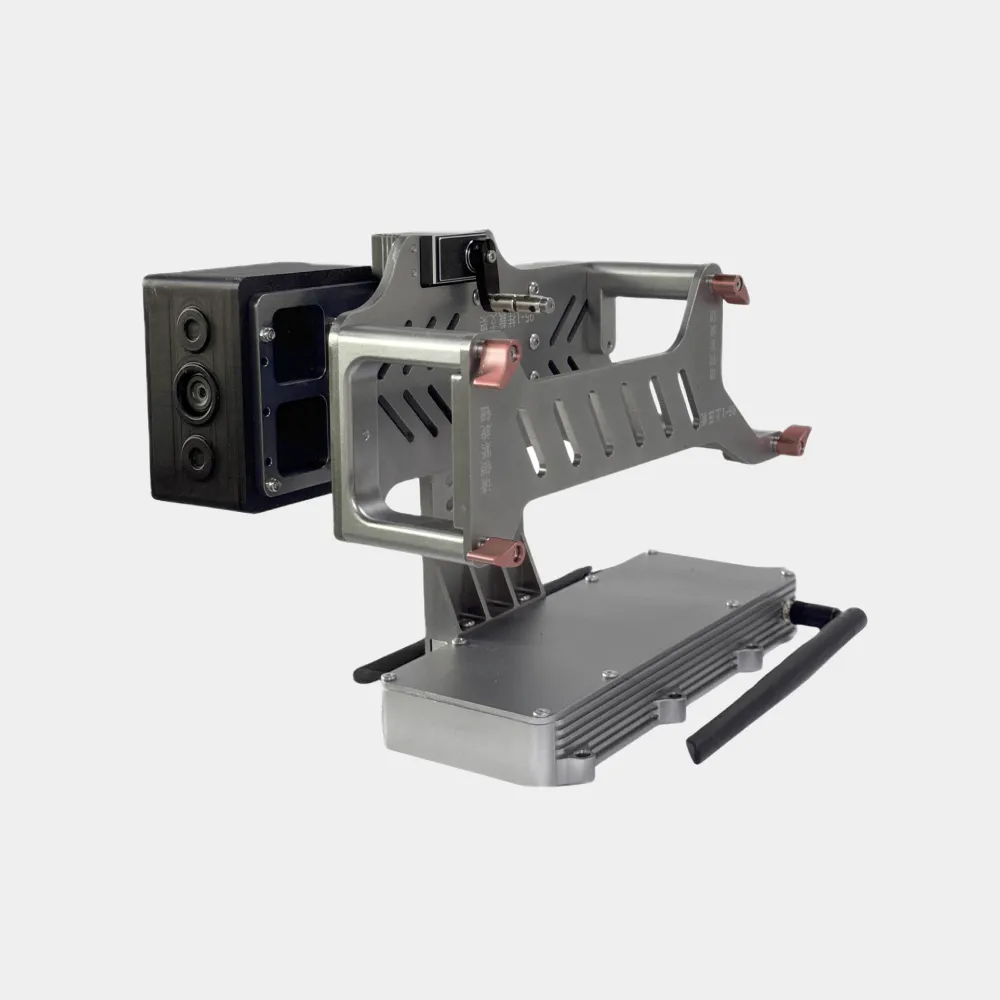

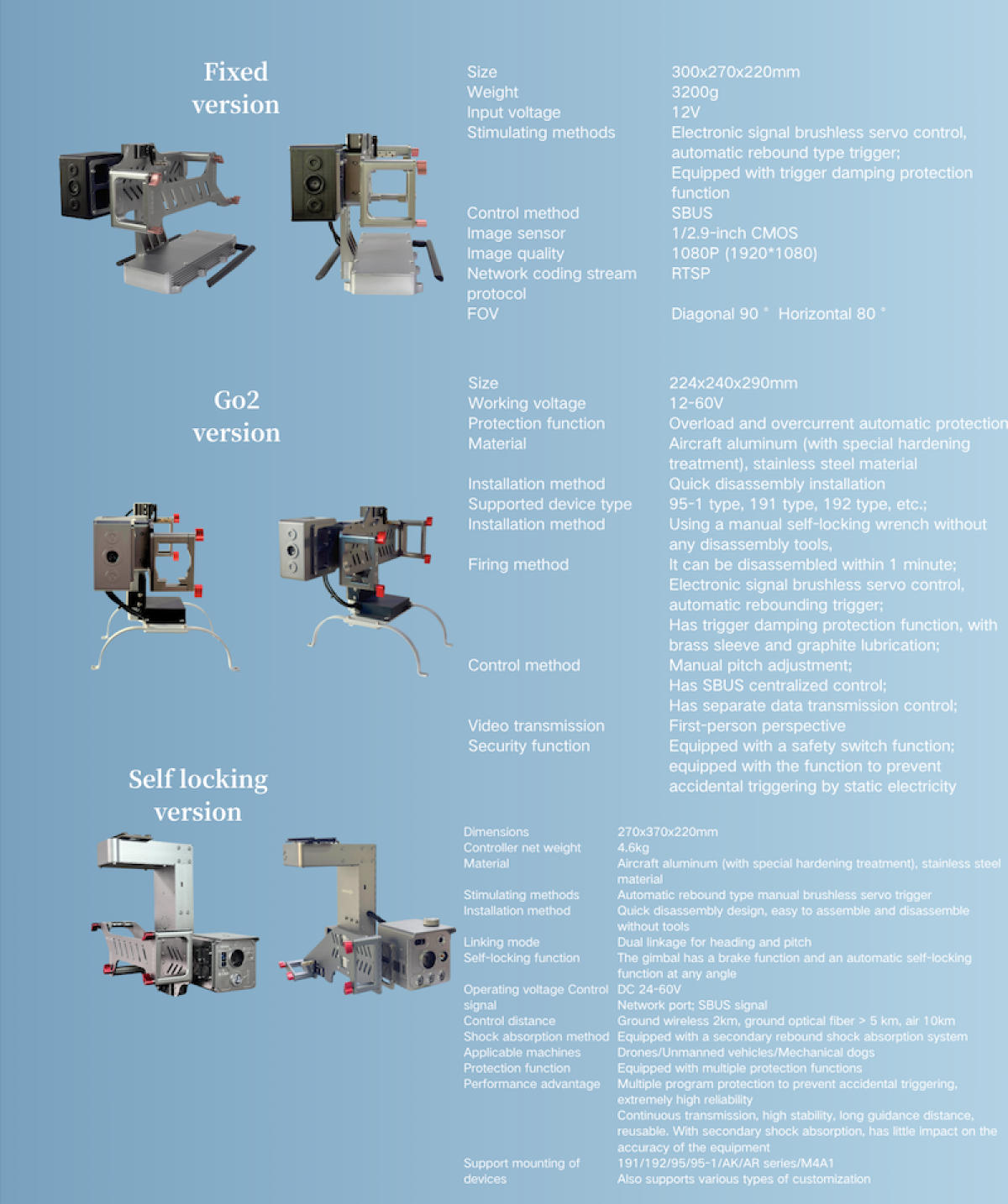

The Fixed Version Servo Controller is a fixed payload control and imaging system designed for UAVs and unmanned vehicle integration. It has dimensions of approximately 300 x 270 x 220mm and a weight of approximately 3200g. The system uses a 12V input and supports SBUS control. Its electronic signal brushless servo control uses an automatic rebound trigger structure with trigger damping protection. The imaging system includes a 1/2.9-inch CMOS image sensor, 1080P image quality with 1920 x 1080 resolution and RTSP network streaming. The stated field of view is 90° diagonal and 80° horizontal. Confirm the host-platform mounting interface, power supply and control wiring before installation.
Product Type
Fixed Version Servo Controller
Fixed UAV Payload Control System
Fixed Payload Control Structure

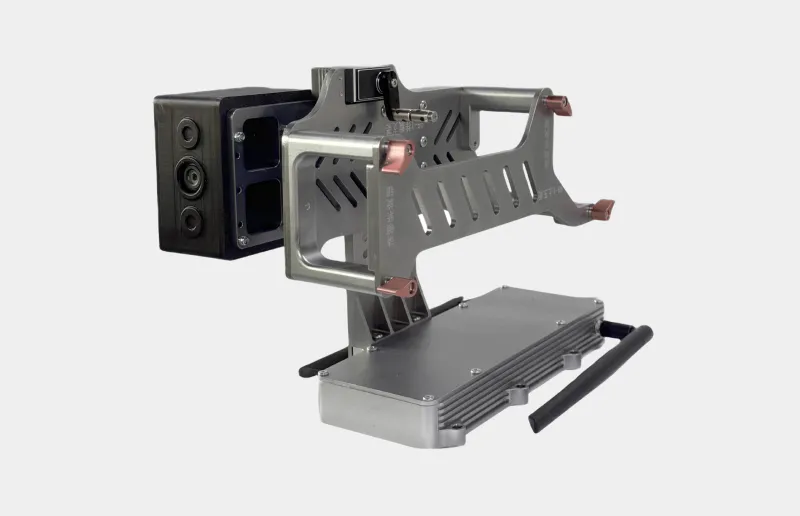

The fixed version servo controller uses electronic signal brushless servo control with an automatic rebound trigger structure and trigger damping protection. The fixed mounting structure is designed for integrated payload installation on UAVs and unmanned vehicles. Its approximate dimensions are 300 x 270 x 220mm, with an approximate weight of 3200g. Confirm the mounting position and host-platform load requirements before integration.
1080P Imaging and RTSP Streaming
The fixed payload controller includes a 1/2.9-inch CMOS image sensor and supports 1080P image quality at 1920 x 1080 resolution. RTSP network streaming enables integration with compatible video transmission and monitoring systems. The stated field of view is 90° diagonal and 80° horizontal. Confirm the network configuration and video receiving system before ordering.
Technical Parameters
· Product Type: Fixed version servo controller
· Application: UAVs and unmanned vehicles
· Dimensions: Approximately 300 x 270 x 220mm
· Weight: Approximately 3200g
· Input Voltage: 12V
· Control Method: SBUS
· Servo Control: Electronic signal brushless servo control
· Trigger Structure: Automatic rebound type trigger with trigger damping protection
· Image Sensor: 1/2.9-inch CMOS
· Image Quality: 1080P, 1920 x 1080 resolution
· Network Streaming: RTSP
· Field of View: 90° diagonal, 80° horizontal
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Fixed Payload Controller Features
· Fixed version payload control structure
· Approximately 300 x 270 x 220mm dimensions
· Approximately 3200g product weight
· 12V input voltage
· SBUS control method
· Electronic signal brushless servo control
· Automatic rebound type trigger
· Trigger damping protection
· 1/2.9-inch CMOS image sensor
· 1080P image quality at 1920 x 1080 resolution
· RTSP network streaming
· 90° diagonal and 80° horizontal field of view
Packaging and Shipping
· Product packaging configuration: To be confirmed
· Mounting accessories and cable configuration: To be confirmed
· Video transmission equipment configuration: To be confirmed
· Shipping dimensions and package weight: To be confirmed
· Please confirm the fixed mounting and control configuration before ordering.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Configuration Notes
· Confirm that the host platform provides a stable 12V input before integration.
· Confirm the SBUS control wiring and compatible control equipment before installation.
· The approximate 3200g weight and 300 x 270 x 220mm dimensions must be included in the platform payload calculation.
· Confirm the RTSP video receiving system and network configuration before ordering.
· Installation, wiring and initial operation should be completed by qualified technical personnel.
