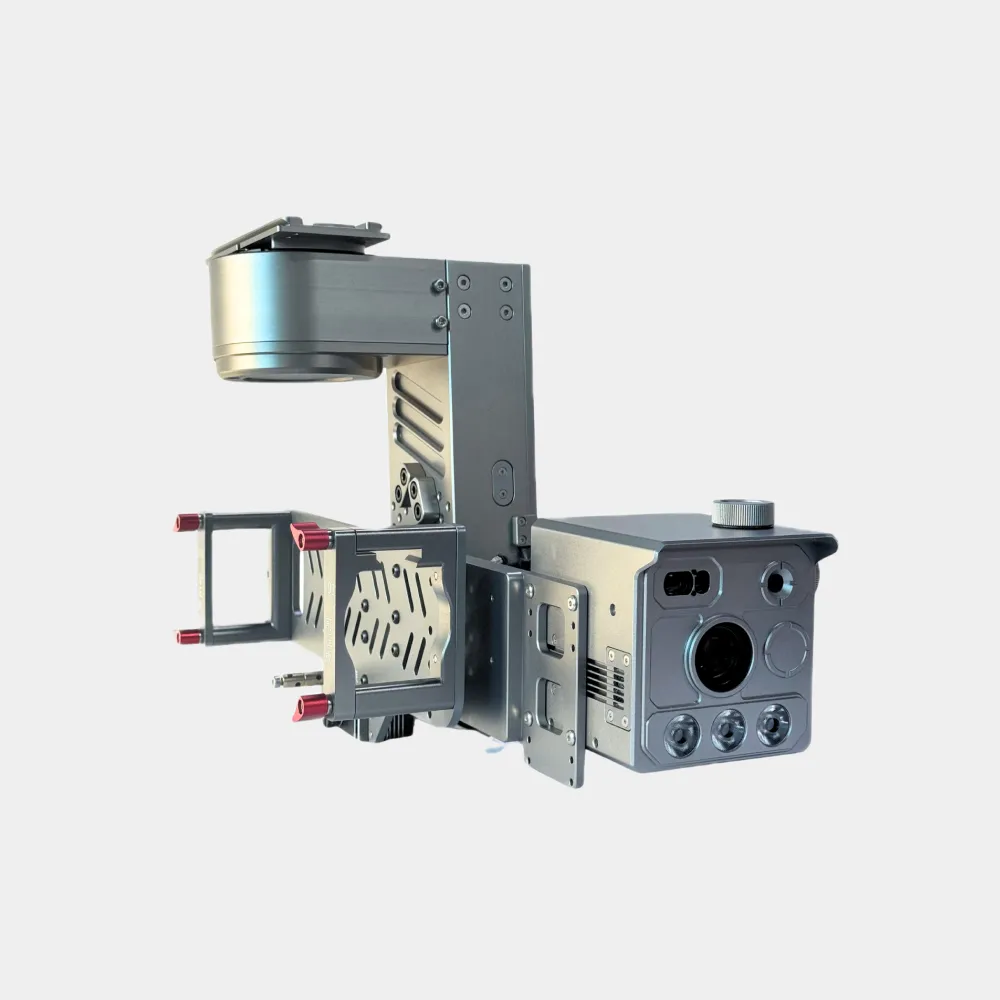

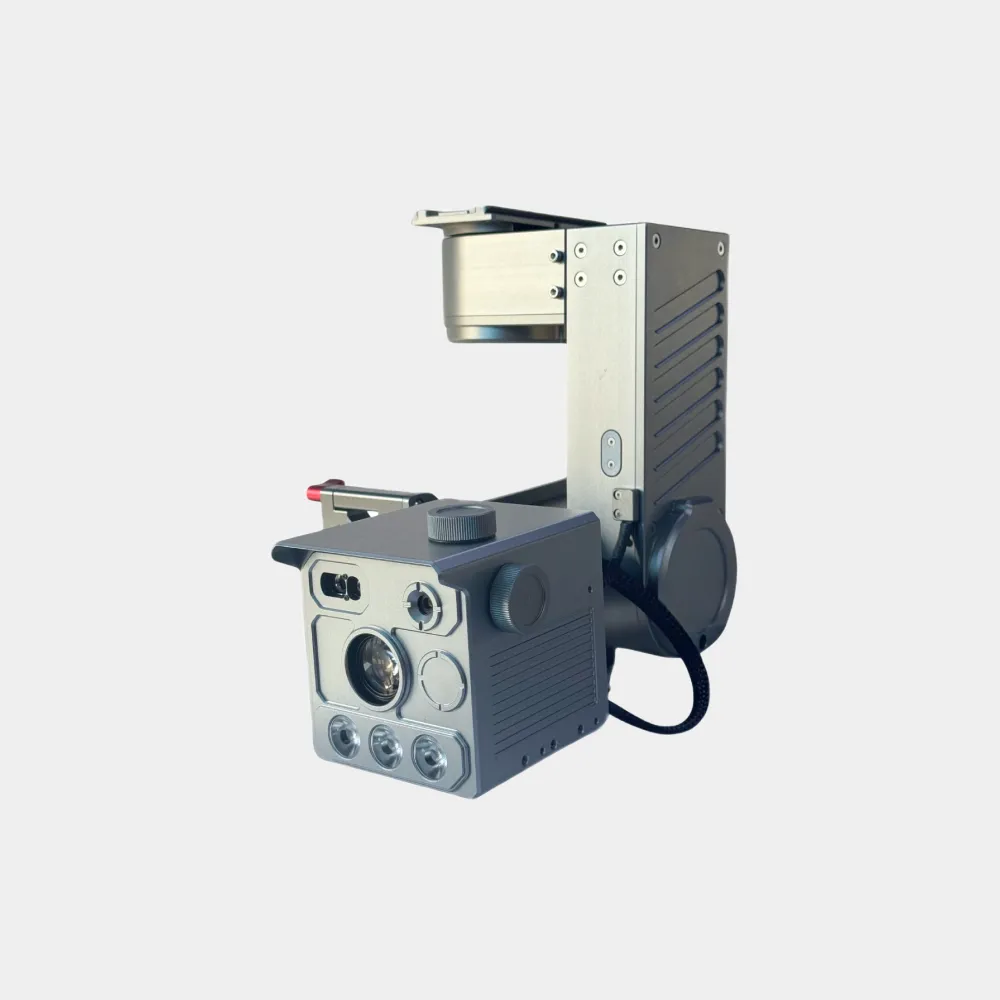

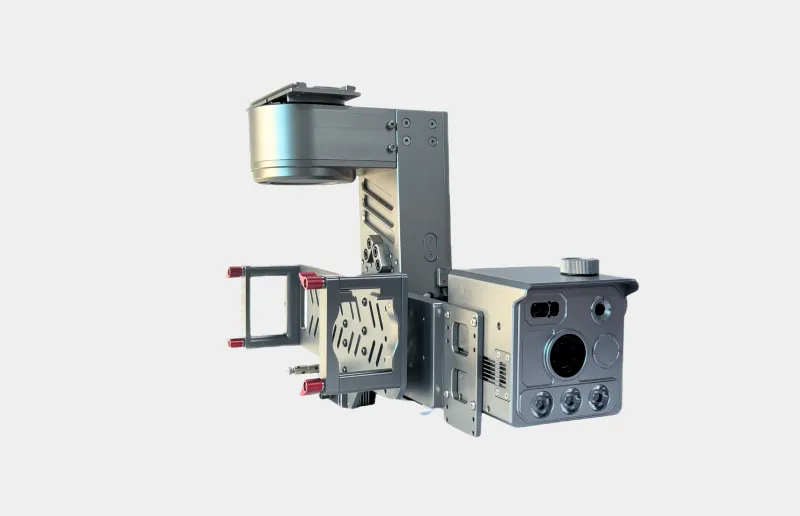

The Servo Stabilization Version Controller is an integrated stabilization and payload control system for UAVs, unmanned vehicles and robotic platforms. It has dimensions of 360 x 300 x 320mm and a controller net weight of 5kg. The system operates on DC 24-60V input and supports network port and SBUS signal control. It provides dual linkage of heading and pitch, automatic self-locking at any angle and a secondary rebound shock absorption system. The quick-disassembly design allows assembly and disassembly without tools. Multiple protection functions are included to help prevent accidental triggering during operation. The controller supports ground wireless control up to 2km, ground optical-fiber control beyond 5km and airborne control up to 10km, subject to the actual system configuration.
Product Type
Servo Stabilization Version Controller
Integrated Servo Stabilization Control
Dual-Axis Servo Stabilization
The servo stabilization version controller provides dual linkage of heading and pitch for integrated UAV and unmanned vehicle payload systems. Its gimbal includes brake and automatic self-locking functions at any angle. A secondary rebound shock absorption system helps reduce the effect of platform movement on payload stability during operation.
Platform Integration and Control
The controller uses a quick-disassembly design for assembly and removal without tools. It supports network port and SBUS signal control, with a stated control distance of 2km for ground wireless control, more than 5km for ground optical-fiber control and up to 10km for airborne control. Confirm the actual communication equipment, mounting interface and host platform before ordering.

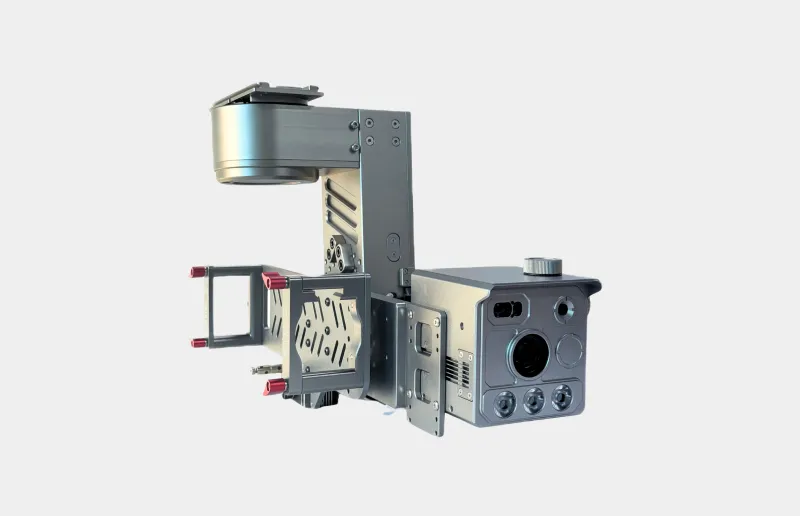

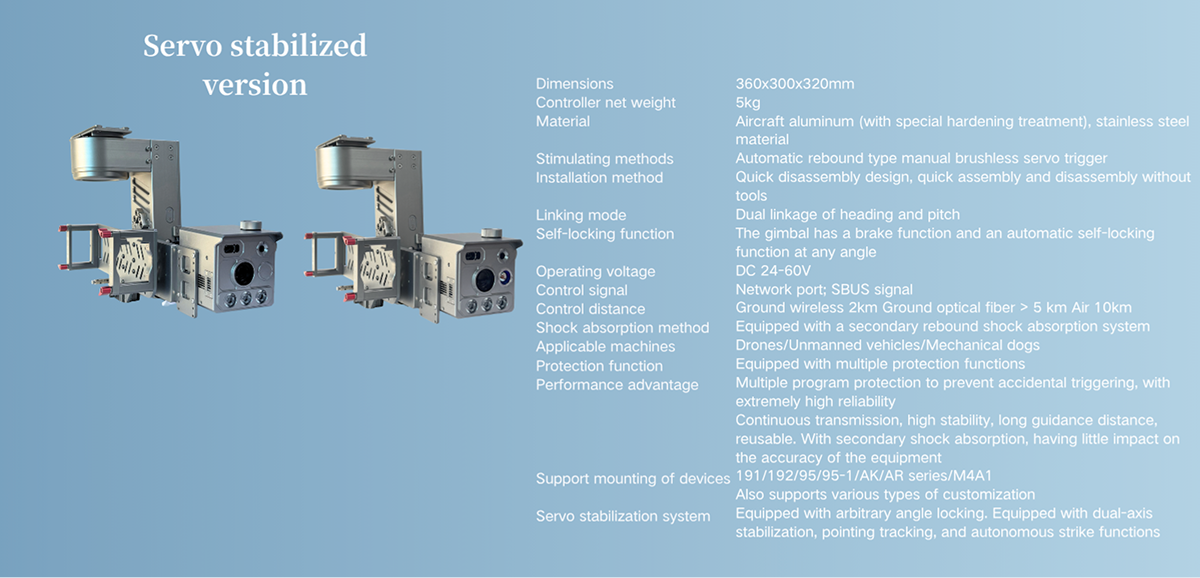

Technical Parameters
· Product Type: Servo stabilization version controller
· Application: UAVs, unmanned vehicles and robotic platforms
· Dimensions: 360 x 300 x 320mm
· Controller Net Weight: 5kg
· Material: Aircraft aluminum with special hardening treatment and stainless steel
· Working Voltage: DC 24-60V
· Control Signals: Network port and SBUS signal
· Stabilization Linkage: Dual linkage of heading and pitch
· Self-Locking Function: Automatic self-locking at any angle
· Installation Method: Quick-disassembly design without tools
· Shock Absorption: Secondary rebound shock absorption system
· Control Distance: Ground wireless 2km; ground optical fiber >5km; airborne 10km
· Applicable Platforms: Drones, unmanned vehicles and mechanical dogs
· Supported Mounting Devices: 191, 192, 95, 95-1, AK, AR series and M4A1
Want to Choose the Right Products for You?
Take a quick test to find the right propeller for you.
Servo Stabilization Controller Features
· 360 x 300 x 320mm overall dimensions
· 5kg controller net weight
· DC 24-60V working voltage
· Network port and SBUS signal control
· Dual linkage of heading and pitch
· Automatic self-locking at any angle
· Quick-disassembly design without tools
· Secondary rebound shock absorption system
· Ground wireless control up to 2km
· Ground optical-fiber control beyond 5km
· Airborne control distance up to 10km
Packaging and Shipping
· Product packaging configuration: To be confirmed
· Mounting accessories and cable configuration: To be confirmed
· Communication equipment configuration: To be confirmed
· Shipping dimensions and package weight: To be confirmed
· Please confirm the required stabilization and mounting configuration before ordering.
Need a Custom
Share your UAV requirements. We’ll help evaluate the right propeller solution.
Important Configuration Notes
· Confirm that the host platform supports the DC 24-60V working voltage before integration.
· Confirm the required network or SBUS control method and matching communication equipment before installation.
· The 5kg controller net weight and 360 x 300 x 320mm dimensions must be included in the platform payload calculation.
· Confirm the mounting interface and supported device configuration before ordering.
· Installation, calibration and initial operation should be completed by qualified technical personnel.
